Rinnai Energysaver RHFE-556FM User manual

How to use your
Space Heater
EnergysaverRHFE-556FM
Rinnai Guarantee < 1
Layout of appliance < 2
Features < 4
Safety Points . < 6
Operation < 8
Adjusting Temperature < 9
Humidifier
Installer
I
SERVICE CONTACTS
NZ [phone]
.
< 10
i 14
\

This appliance shall be installed in accordance
with:
l Manufacturer’s Instructions
l Local Authority Building Codes
l NZS 5261 Installation Code for Gas Burning
Equipment
l Any other relevant Statutory Regulation
This appliance must be installed, serviced and
removed by an authorised person.
DEAR CUSTOMER
THANK YOU FOR PURCHASING THIS RINNAI APPLIANCE. WE ARE PLEASED TO ADVISE THAT
RINNAI PRODUCTS ARE NOW COVERED BY A 2 YEAR. GUARANTEE: FREE PARTS AND
LABOUR FOR THE FIRST YEAR AND PARTS ONLY FOR THE SECOND YEAR.
-THIS GUARANTEE IS IN ADDITION TO ANY GUARANTEES WHICH
CONSUMERS MAY HAVE UNDER THE CONSUMER GUARANTEES ACT -
SHOULD YOU HAVE ANY QUERIES REGARDING THIS GUARANTEE PLEASE CONTACT YOUR
LOCAL RINNAI AGENT.
Please record below the following information for your own records.
Your Retailer:
Address: Phone:
Date of Purchase:
Your Installer:
Address:
Date of Installation:
Installer’s Licence No.
Phone:
-l-

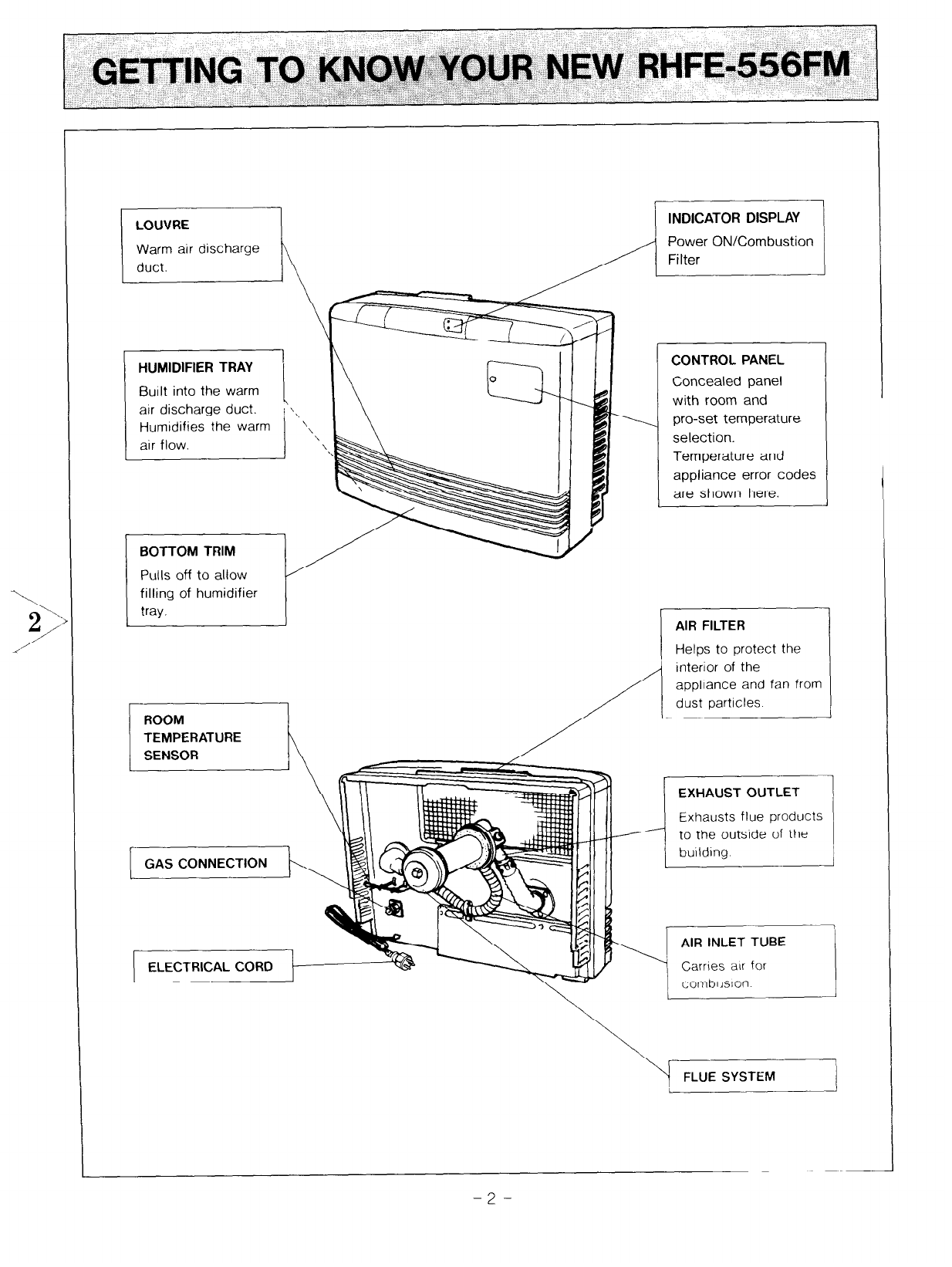

LOUVRE
Warm air discharge
duct.
INDICATOR DISPLAY /
_/ ;;;;r ON/Combustion )
HUMIDIFIER TRAY 1
Built into the warm
air discharge duct. !
/\,
Humidifies the warm
air flow.
Pulls off to allow
filling of humidifier
tray.
1
CONTROL PANEL
Concealed panel
with room and
pro-set temperature
selection.
Temperature and
appliance error codes
are shown here.
/
I
1
ROOM
TEMPERATURE
SENSOR
GAS CONNECTION
AIR FILTER
Helps to protect the
interior of the
appliance and fan from
dust particles
L
EXHAUST OUTLET
Exhausts flue products
to the outslde of the
bulldIng
_I
AIR INLET TUBE
Carnes air for
combllsron
FLUE SYSTEM
1
-2-

ON/OFF Button
I-- \’
Selected Room
Temperature Display *
/
LO16 18 20 22 24 26 HI
v
Temperature Control
1Temoerature Adiustment Buttons
* Flashing LED is room temperature.
Steady LED is selected temperature.
Power ON/Combustion
indicator
/ \
-+ ON-Q
-@ Filtter
L /
I-
Filter Indicator
-3-

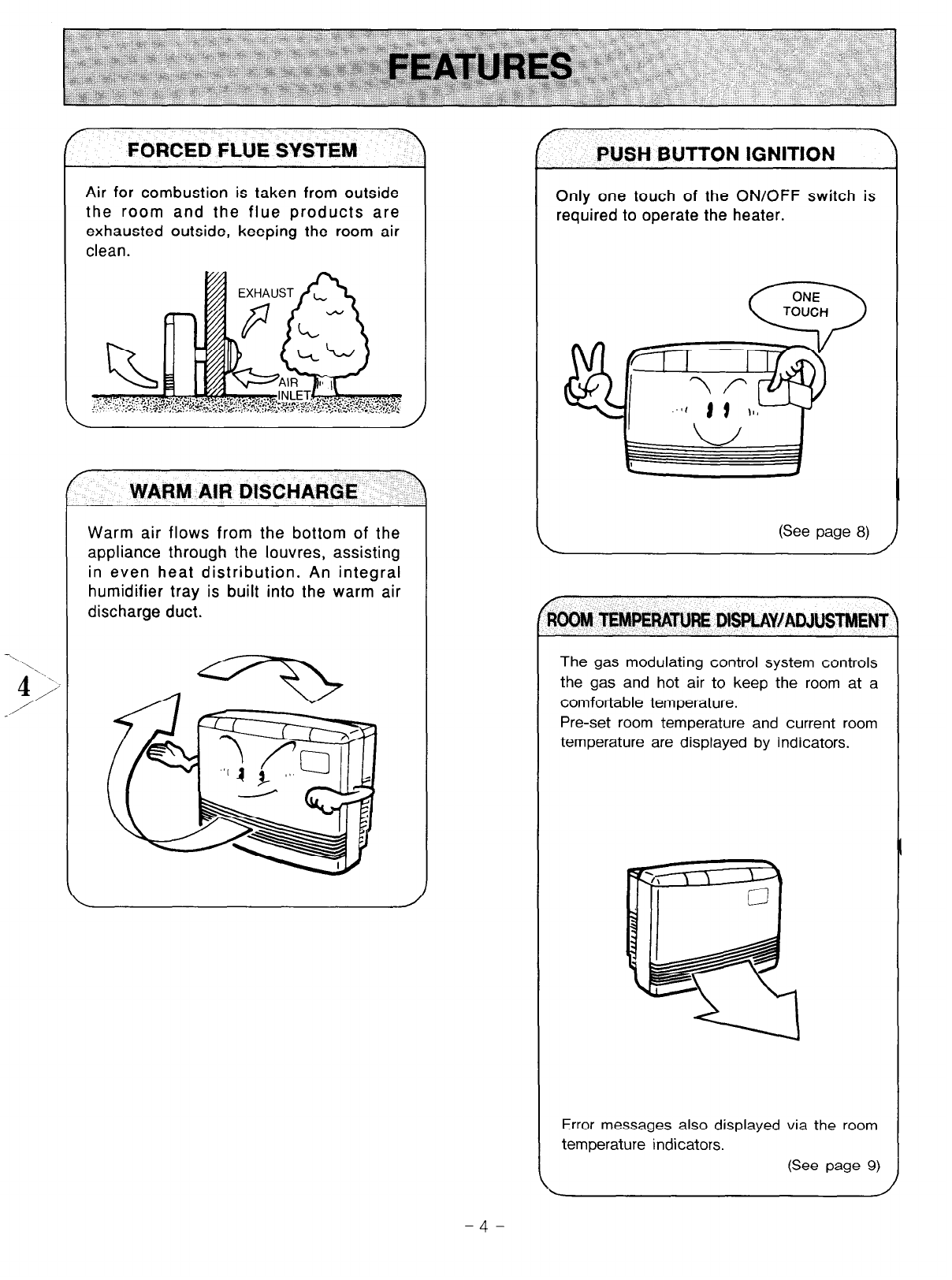

F Y
FORCED FLUE SYSTEM
Air for combustion is taken from outside
the room and the flue products are
exhausted outside, keeping the room air
clean.
/ -3
WARIW AIR DISCHARGE
Warm air flows from the bottom of the
appliance through the louvres, assisting
in even heat distribution. An integral
humidifier tray is built into the warm air
discharge duct.
r w
PUSH BUTTON IGNITION
Only one touch of the ON/OFF switch is
required to operate the heater.
(See page 8)
The gas modulating control system controls
the gas and hot air to keep the room at a
comfortable temperature.
Pre-set room temperature and current room
temperature are displayed by indicators.
Error messages also displayed via the room
temperature indicators. (See page 9)
-4-

/ 7 / Y
FlLTER INDICATOR VERTICAL LOUVRE ADJUSTMENT
When the fan filter becomes covered with
dust and the temperature inside the
appliance rises, the filter indicator will
flash. The filter should be vacuumed at
regular intervals to avoid unnecessary
strain on the appliance.
(See page 9)
/
~U~IDI~ER TRAY
The integral humidifier tray can be filled
with water as required to raise the humidity
level in the room.
Humdifik Tray (See page 10) 1
The louvre can be adjusted to alter the
direction of the air flow by using a screw
driving or similar tool by gently bending the
vertical louvre(s) to the left or right.
(See page 10)
MEMORY \
The micro-computer records selected pre-
set temperature, to maintain comfort levels,
so your preferred temperature always
remains in place.
-5-

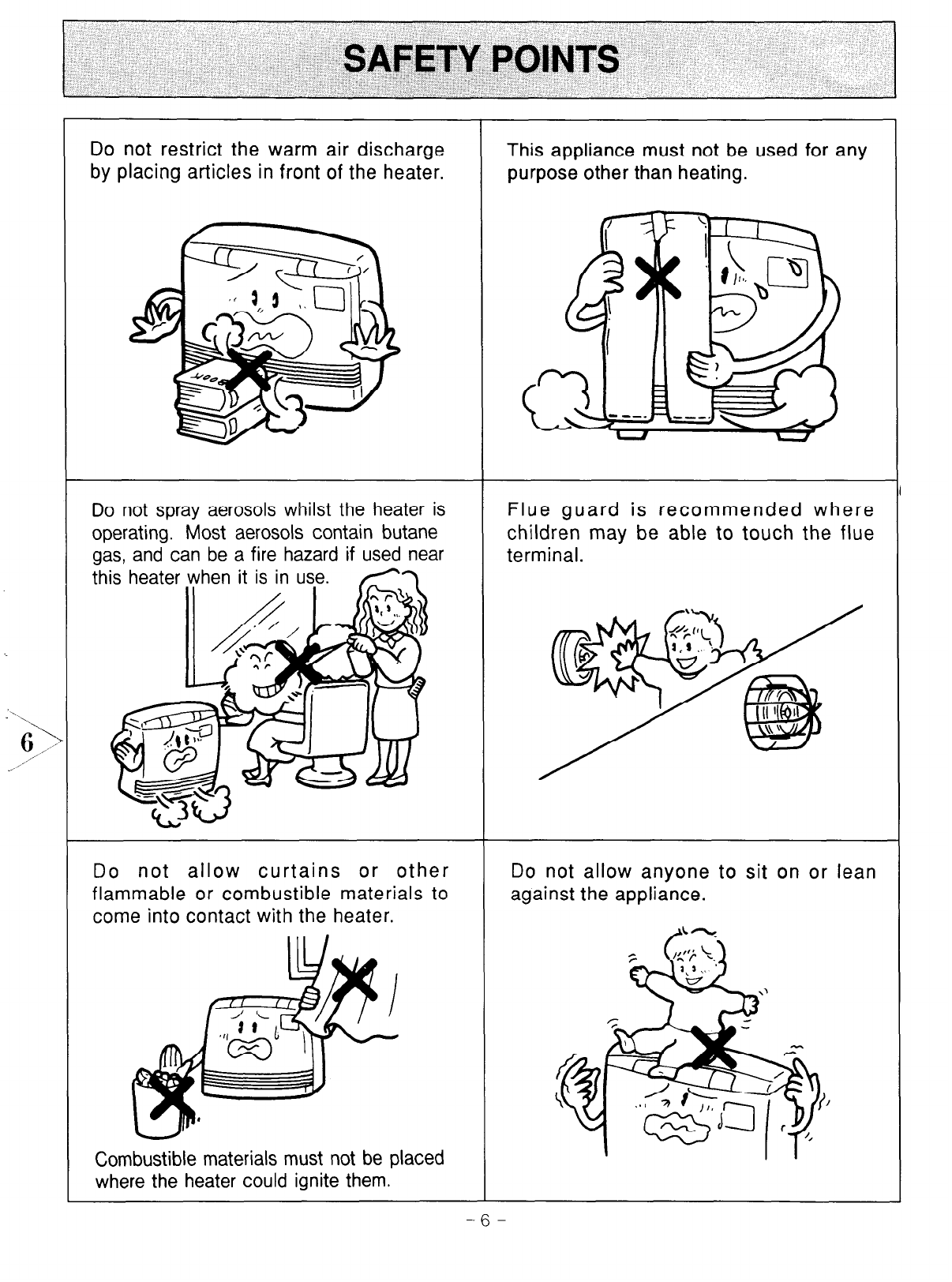

IO not restrict the warm air discharge This appliance must not be used for any
byplacing articles in front of the heater. purpose other than heating.
IO not spray aerosols whilst the heater is Flue guard is recommended where
operating. Most aerosols contain butane children may be able to touch the flue
Jas, and can be a fire hazard if used near terminal.
Do not allow curtains or other Do not allow anyone to sit on or lean
flammable or combustible materials to against the appliance.
I
where the heater could ignite them.
-6-

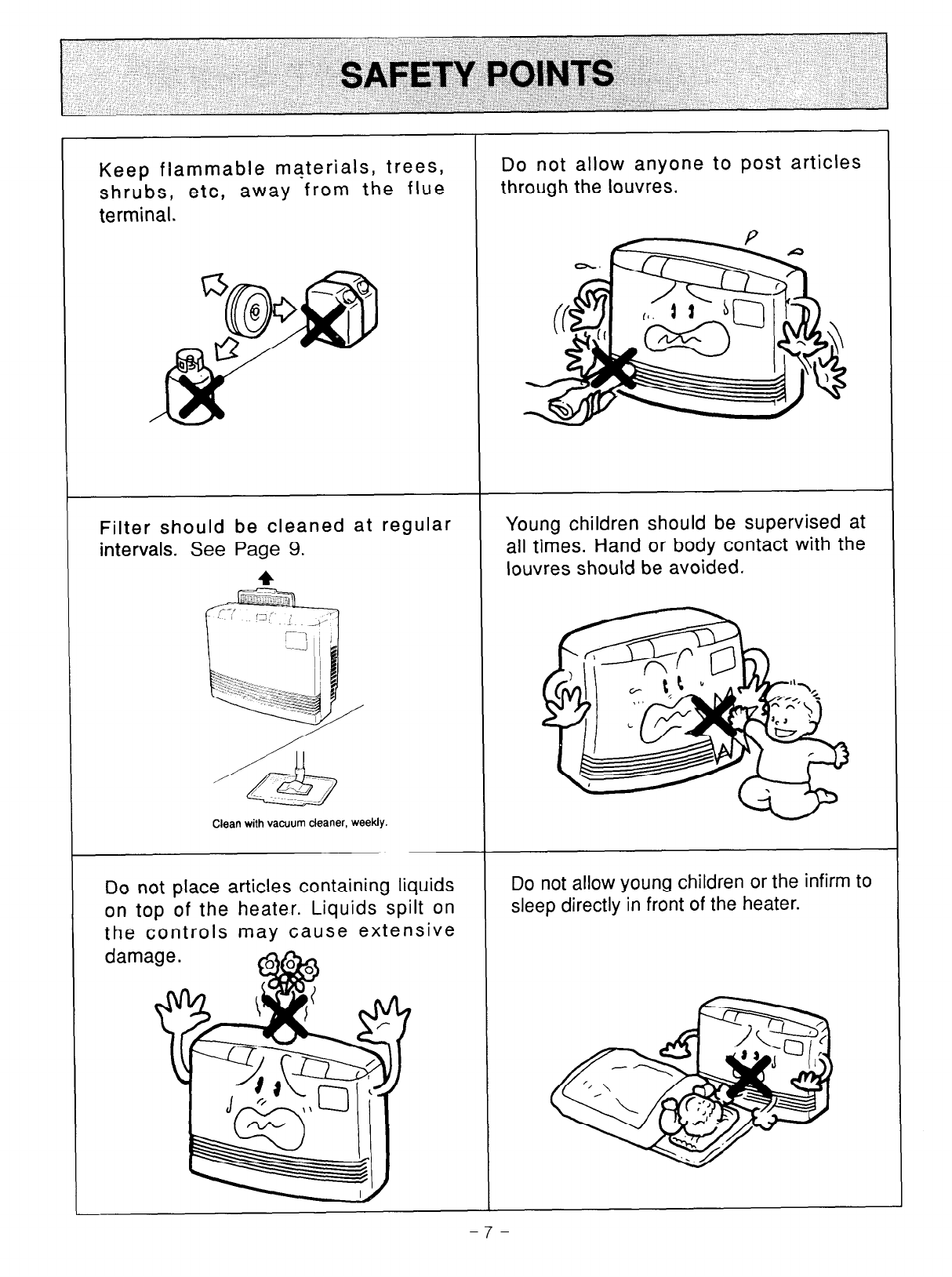

Keep flammable materials, trees,
shrubs, etc, away from the flue
terminal.
Filter should be cleaned at regular
intervals. See Page 9.
+
Clean with vacuum cleaner, weekly.
Do not place articles containing liquids
on top of the heater. Liquids spilt on
the controls may cause extensive
Do not allow anyone to post articles
through the louvres.
Young children should be supervised at
all times. Hand or body contact with the
louvres should be avoided.
Do not allow young children or the infirm to
sleep directly in front of the heater.

n TO OPEN THE CONTROL PANEL
Using a finger, pull door lightly forward from the
centre catch point on the left hand side of the
control panel cover. The control panel cover
will open forward to an angle.
n TURNING ON
Press the ON/OFF button to operate the
heater. The ON indicator will glow green.
After approximately 20 seconds the spark
generator will be heard before the burner
ignites and the ON indicator glows red,
indicating that the burner is alight. Warm air
can be felt coming from the louvres
approximately 15 seconds later.
Power ON/Combustion
I-
Filter Indicator
If the heater does not ignite on initial use, this may be due to air remaining in the gas supply
line, and the temperature display will flash. The spark generator will only continue for 15 seconds.
After this it will be necessary to press the ON/OFF button, then ON again.
n TURNING OFF
@ Power ON/Combustion
Indicator
Simply press the ON/OFF button to switch off
the heater. The ON indicator will go out. The
convection fan will continue to operate for
several minutes after the burner has gone out
in order to cool the appliance. Do not unplug
the appliance while the convection fan is
running.
Filter Indicator
00 NOT turn heater off by ~~~fu~~i~~ at the power p&t.
The convection fan wiffcontinue to run until ihta appliancecools,
-8-

n ROOM TEMPERATURE ADJUSTMENT
The room temperature and pm-set temperatures can only be displayed and adjusted when
the heater is running.
ON/OFF Button
/
0
1
Selected Room
Temperature Display*
Press the “A” button to increase the temperature
setting or “V” button to decrease the temperature
setting.
The Temperatures can be preset to:
a) [ L ] low (about 1O’C)
b) [16’C] to [26’C] in 2’ C steps
c) [ H ] (continuously high)
Temperature Adjustment Buttons
* Flashing LED is room temperature.
Steady LED is selected temperature.
If the heater does not ignite then the pm-set temperature may not be set to a setting which is
higher than the roum temperature. The ON indicator will change cotour from red to green
when the heater reaches the preset temperature and stops funning. The heater will operate at
eight minute intervals to maintain warmth in a room.
n FAN FILTER
To protect the room air fan from dust particles or
lint, a filter is situated at the rear of the appliance.
When this filter becomes blocked, the filter
indicator will flash to indicate that it should be
cleaned. Clean the filter weekly during the heating
season to avoid unnecessary. strain on the
appliance.
Do not remove filter when appliance is
operating. When the filter requires cleaning,
clean filter before using the appliance, or whilst
the appliance is not operating.
If you do not clean the filter at regular intervals
and the filter indicator is allowed to remain
flashing, then the appliance will stop and [20] will
flash on the Digital Display signifying that the
inbuilt safety device has functioned. You must
clean the filter before operating the heater again.
-9-

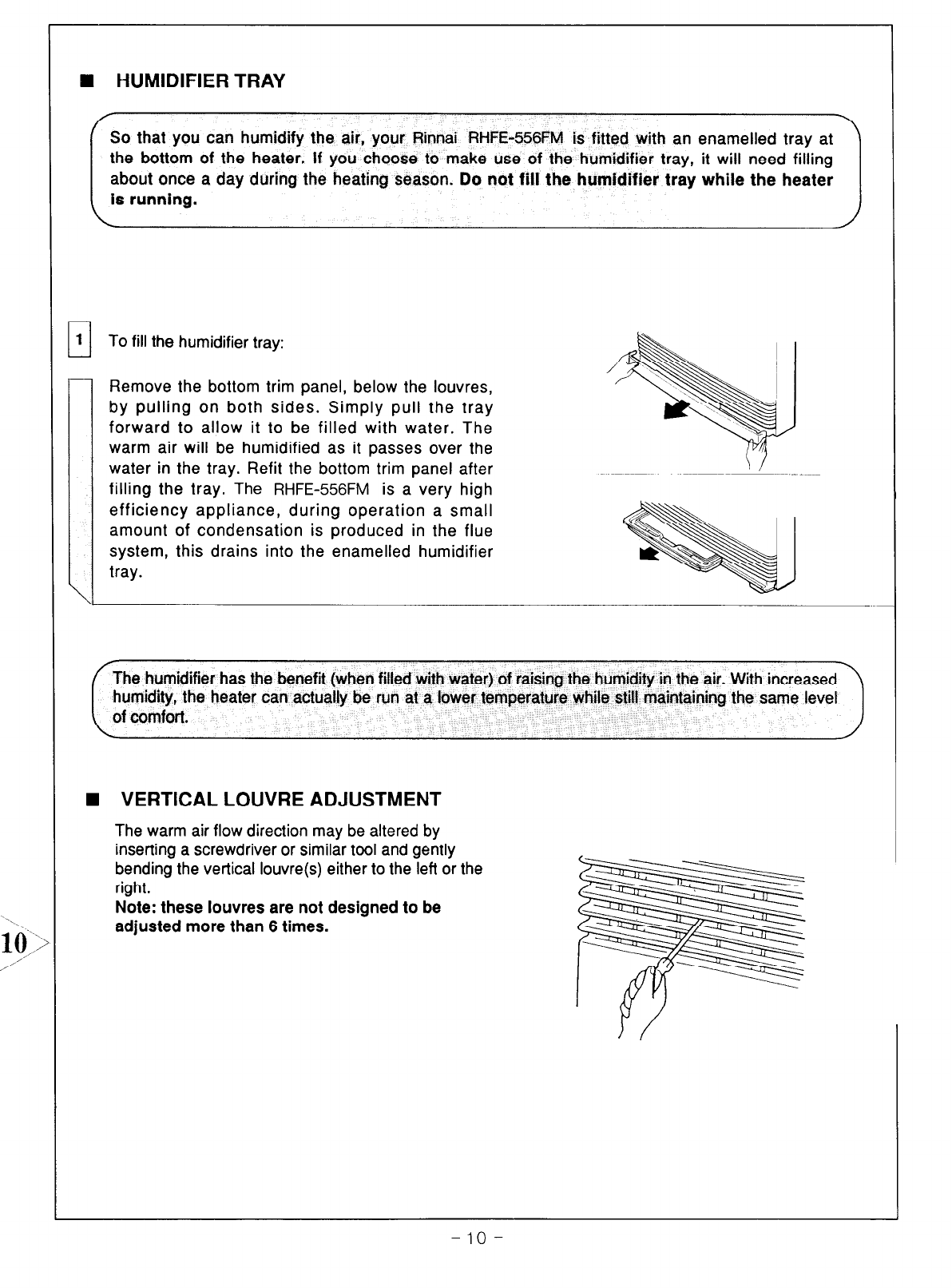

E HUMIDIFIER TRAY
I Y
So that you can humidify the air, your Rinnai RHFE-556FM is fitted with an enamelled tray at
the bottom of the heater. If you choose to make use of the humidifier tray, it will need filling
about once a day during the heating season. Do not fill the humidifier tray while the heater
is running.
\ /
II
1 To fill the humidifier tray:
Remove the bottom trim panel, below the louvres,
by pulling on both sides. Simply pull the tray
forward to allow it to be filled with water. The
warm air will be humidified as it passes over the
water in the tray. Refit the bottom trim panel after
filling the tray. The RHFE-556FM is a very high
efficiency appliance, during operation a small
amount of condensation is produced in the flue
system, this drains into the enamelled humidifier
tray.
\
he humidifier has the benefit (when filled with water) of raising the humidity in the air. With increased
humidity, the heater can actually be run at a lowsr temperature white still maintaining the same level
n VERTICAL LOUVRE ADJUSTMENT
The warm air flow direction may be altered by
inserting a screwdriver or similar tool and gently
bending the vertical louvre(s) either to the left or the
right.
Note: these louvres are not designed to be
adjusted more than 6 times.
-lO-

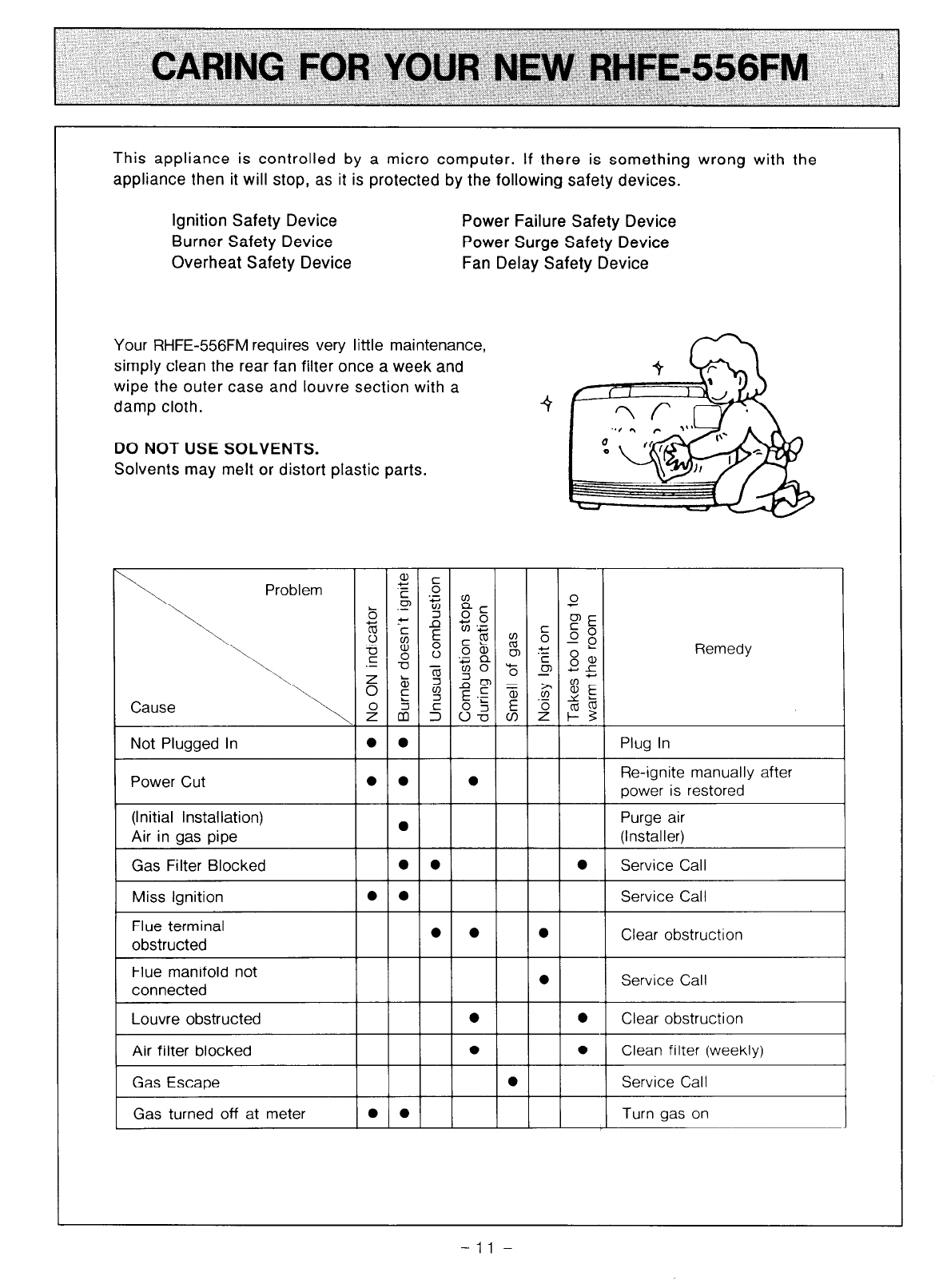

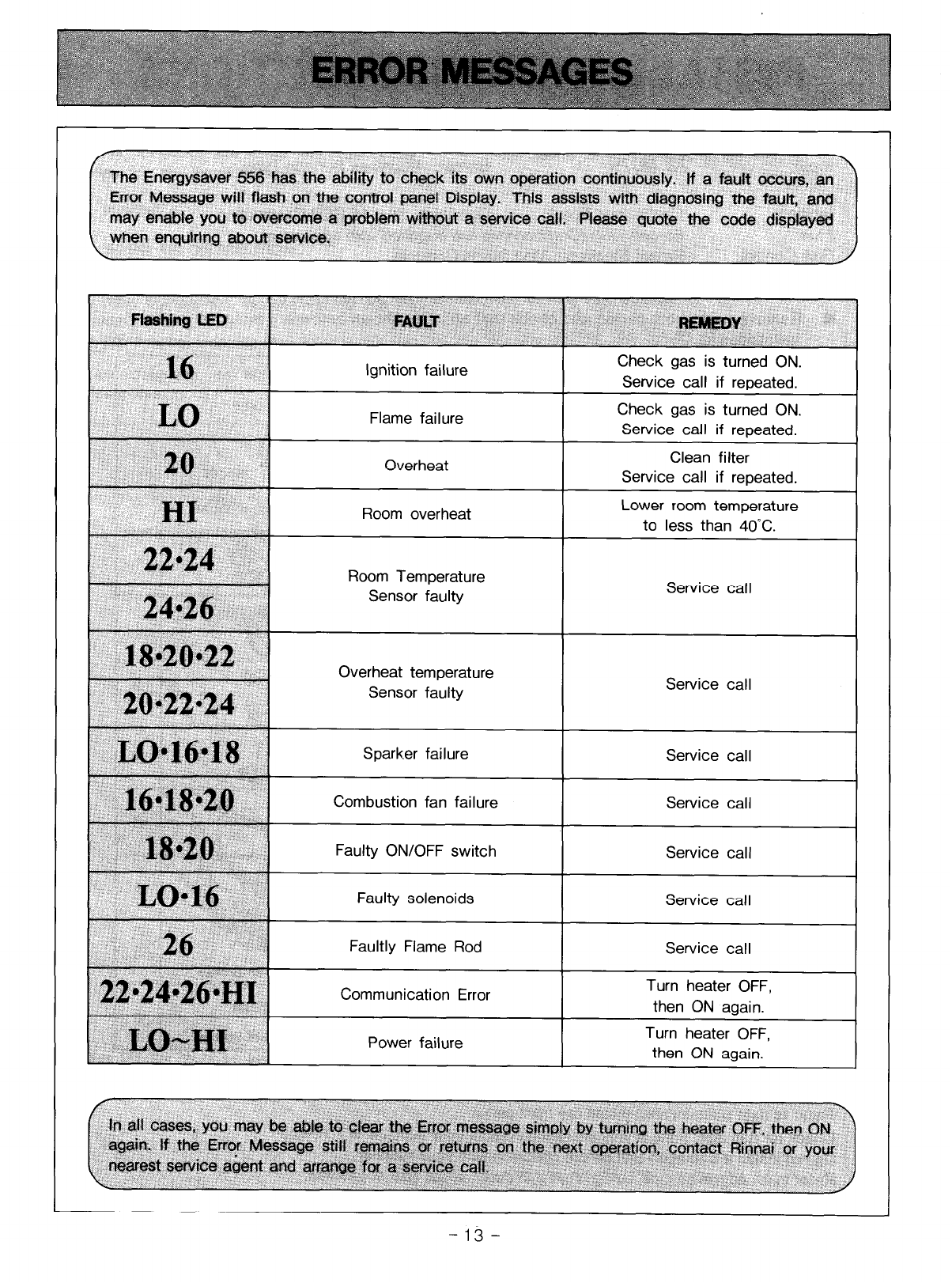

This appliance is controlled by a micro computer. If there is something wrong with the
appliance then it will stop, as it is protected by the following safety devices.
Ignition Safety Device Power Failure Safety Device
Burner Safety Device Power Surge Safety Device
Overheat Safety Device Fan Delay Safety Device
Your RHFE-556FM requires very little maintenance,
simply clean the rear fan filter once a week and
wipe the outer case and louvre section with a
damp cloth.
DO NOT USE SOLVENTS.
Solvents may melt or distort plastic parts.
Problem
Remedy
Cause
Not Plugged In
Power Cut
(Initial Installation)
Air in gas pipe
Gas Filter Blocked
Miss Ignition
Flue terminal
obstructed
0 0 Plug In
0 0 0 Re-ignite manually after
power is restored
0 Purge air
(Installer)
0 0 0 Service Call
0 0 Service Call
0 0 0 Clear obstruction
-11 -

Before asking for a service call please check the following points.
These points are part of the normal operation of the unit.
n At Ignition:
Heater does not operate. 1 + Is the heater plugged in?
Have the fuses or breaker blown at the switch board?
Is there a power failure?
Is the air filter blocked?
Is anything blocking the outlet for the hot air?
Is the flue blocked?
Is the central timer turned off? (where fited)
Warm air does not flow when the burner lights. + The fan is started automatically after a short delay.
This is to allow the heat exchanger to warm up,
helping to avoid cold draughts.
Smoke or strange smells are produced on the
first trial light up after installation.
+ This is caused by grease or oil and dust on the heat exchanger
and will stop afler a short time.
Sharp clicking noises at ignition, or when the -b This is simply expansion noise from the heat exchanger.
unit cuts down on the thermostat, or goes out.
n During combustion:
Clunking noise when the thermostat operates. This is the sound of the solenoid gas valves opening and
closing.
Unit is not heating room. + Is the air filter blocked?
Is the set temperature high enough?
Is the warm air outlet blocked by anything?
Are the doors and windows of the room closed?
Air filter is blocked or the louvres are blocked
or obstructed. Allow heater to cool, clean air filter, operate again.
Heater will not re-ignite after overheating. + Even after unit has cooled down the heater does not ignite
again. Repair is necessary.
Contact your local agent or Rinnai for a
Service call.
n When the unit is turned off:
Convection fan continues to run after turning OFF. --) This is to remove the residual heat from the heat exchanger, the
fan will stop when the heater cools down.
S Other Points:
Steam is discharged from the flue terminal. --) High efficiency appliances tend to discharge water vapour on
cold days, this is normal.
Unit cuts off without apparent reason. -+ Check whether filters are blocked, dirty filters will cause the
heater to overheat.
Power Failure. + Switch OFF, then ON again when power is restored to
re-set controls.
-12-

‘I Wition failure Check gas is turned ON.
Service call if repeated.
,’ ‘.l’ : %tme failure Check gas is turned ON.
Service call if repeated.
Overheat Clean filter
Service call if reoeated.
Room overheat
Room Temperature
c....^^- z-. .I*..
Lower room temperature
to less than 40°C.
Service call
Service call
Service call
Combustion fan failur
Faulty solenoids
Faultly Flame Rod Service call
“---unication Error
“Twer failure
Turn heater OFF,
then ON again.
Turn heater OFF,
then ON aaain.
-13-

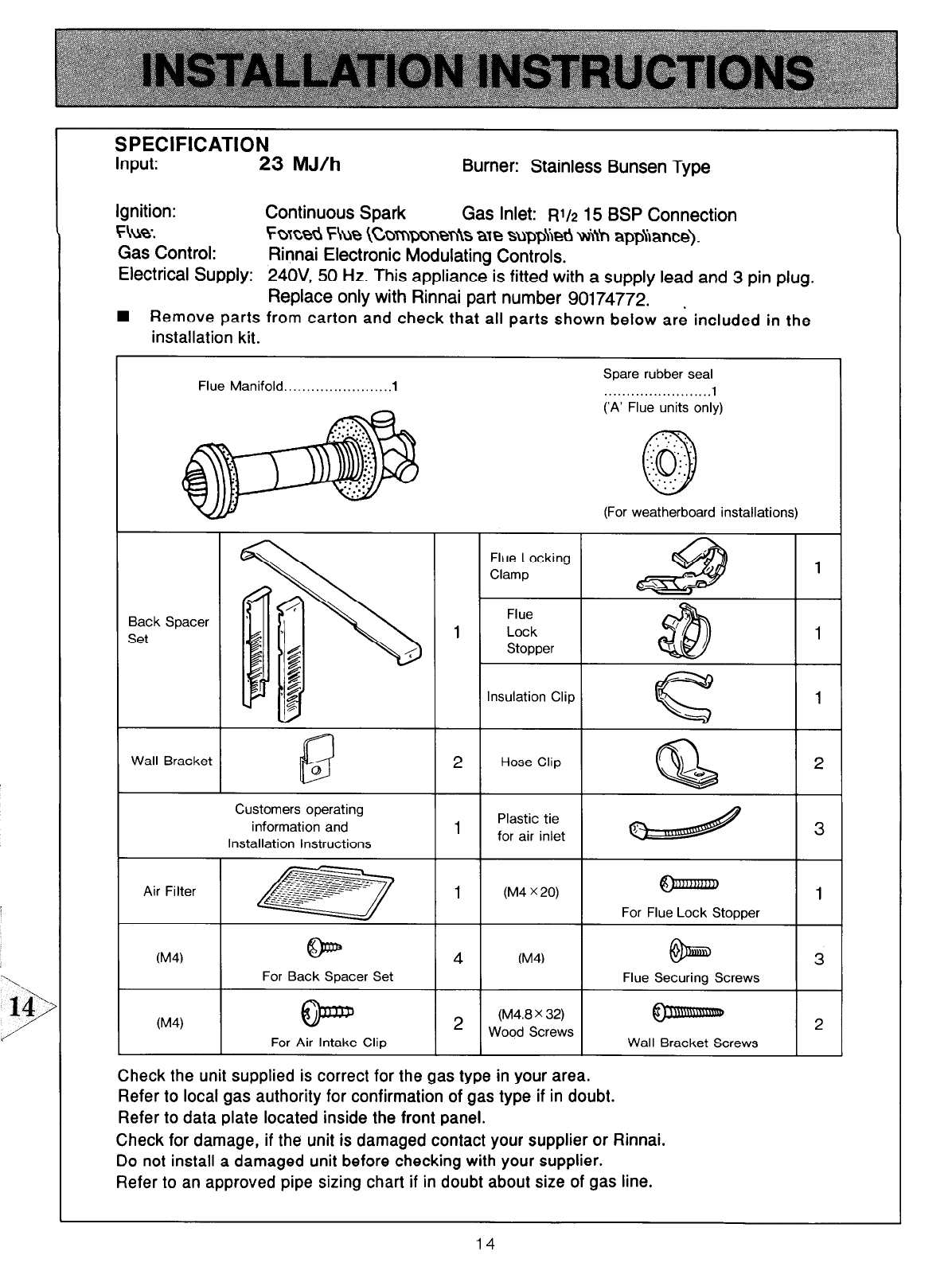

SPECIFICATION
Input: 23 MJ/h Burner: Stainless Bunsen Type
Ignition: Continuous Spark Gas Inlet: Rl/2 15 BSP Connection
F\ue:
Gas Control: Faced Rue \Componens ale suppbed wiYnappI)ance).
Riqnai Electronic Modulating Controls.
Electrical Supply: 24OV, 50 Hz. This appliance is fitted with a supply lead and 3 pin plug.
Replace only with Rinnai part number 90174772.
W Remove parts from carton and check that all parts shown below are included in the
installation kit.
Spare rubber seal
........................1
(‘A’ Flue units only)
(For weatherboard installations) I
Wall Bracket
Customers operating
information and
Installation Instructions 1 Plastic tie
for air inlet
1
1
ww
-l--I
Air Filter ~ 1 (M4x20) G5lmmrD
For Flue Lock Stc
(M4) ci%Q 4 (M4) b
For Back Spacer Set Flue SE- ‘-~ mm
(M4) cl== 2 (M4.8 X 32) a
Wood Screws
For Air Intake Clip Wall Bracket Screws
3
xunng 3crews I I
Check the unit supplied is correct for the gas type in your area.
Refer to local gas authority for confirmation of gas type if in doubt.
Refer to data plate located inside the front panel.
Check for damage, if the unit is damaged contact your supplier or Rinnai.
Do not install a damaged unit before checking with your supplier.
Refer to an approved pipe sizing chart if in doubt about size of gas line.
-14-

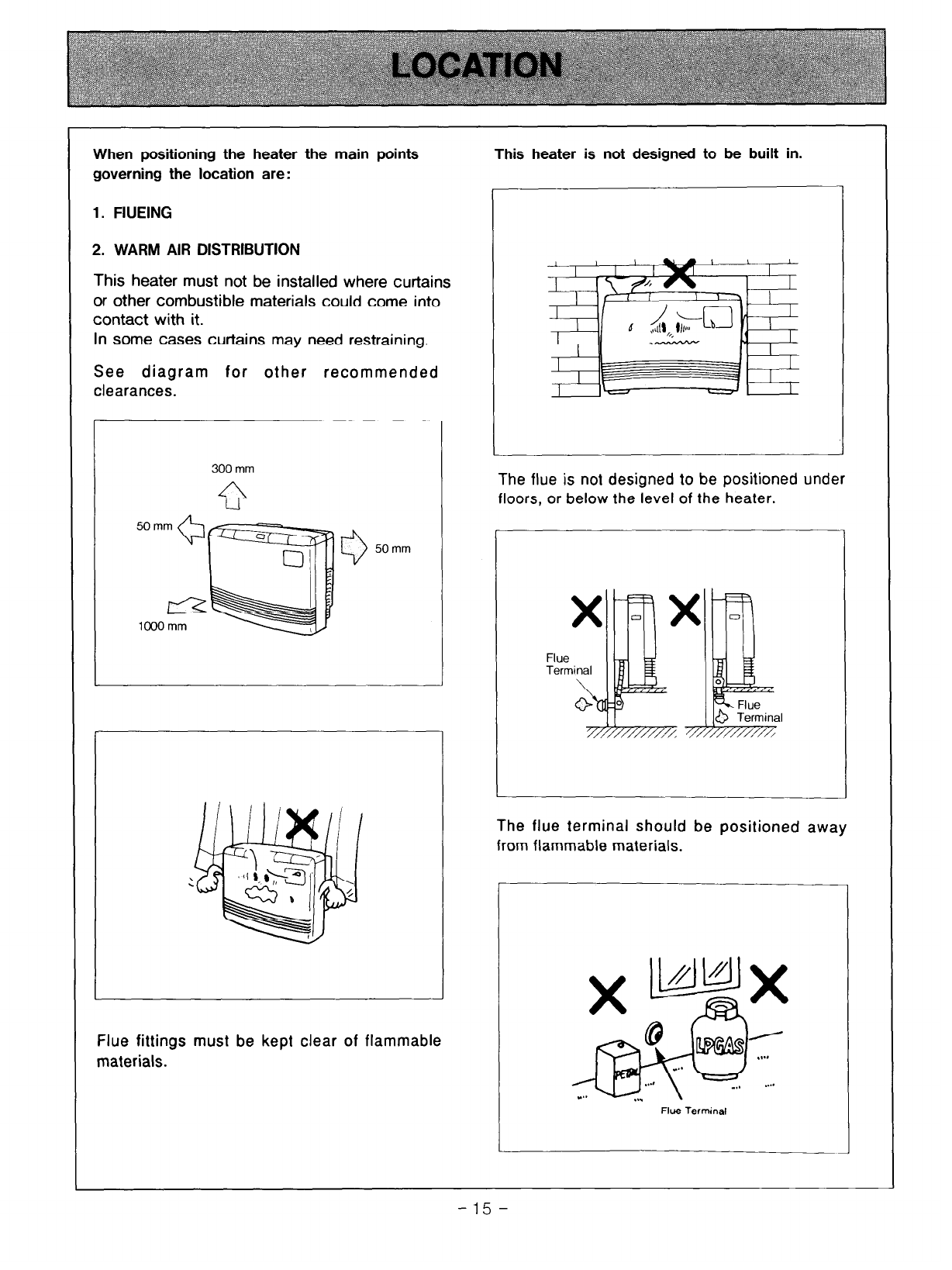

When positioning the heater the main points
governing the location are: This heater is not designed to be built in.
1. FIUEING
2. WARM AIR DISTRIBUTION
This heater must not be installed where curtains
or other combustible materials could come into
contact with it.
In some cases curtains may need restraining.
See diagram for other recommended
clearances.
300 mm
$3
c3 50 mm
Flue fittings must be kept clear of flammable
materials.
The flue is not designed to be oositioned under
floors, or below the level of the’heater.
The flue terminal should be positioned away
from flammable materials.
Flue Terminal
-15-

3 not flue into natural draught flues or fireplaces
is unit can only be used with one of the six
pes of Rinnai flue kits.
3 not flue unit into other rooms.
ue terminal must be outside.
-
lue may be positioned directly under openin
rindows, with a minimum clearance of 150 mm.
‘LUE SIZES:
Flue lengths are available.
,A flue suits wall 75 - 115 mm
flue suits wall 115 - 240 mm
; flue suits wall 240 - 400mm
: flue suits wall 400 - 600 mm
1 flue suits wall 600 - 800 mm
I flue suits wall 800 - 1000 mm
;o-ax flue also available.
iNOW AREAS
n areas subject to heavy snowfall, keep sno
:lear of flue terminal at all times.
STANDARD INSTALLATION OF FLUE MANIFOLD.
Diagram below shows minimum clearances and
distances from obstructions. Also check local
regulations.
Flammable
‘///////////A\\\\\\\\\\ Floor
Side Clearances
500 mm truction
I ( 1 I 1
GAS
FIT BACK COVERS (SIDES ONLY)
Fit back covers (sides only) as shown below.
with
Fit suitable copper flare elbow to appliance inlet.
-16-

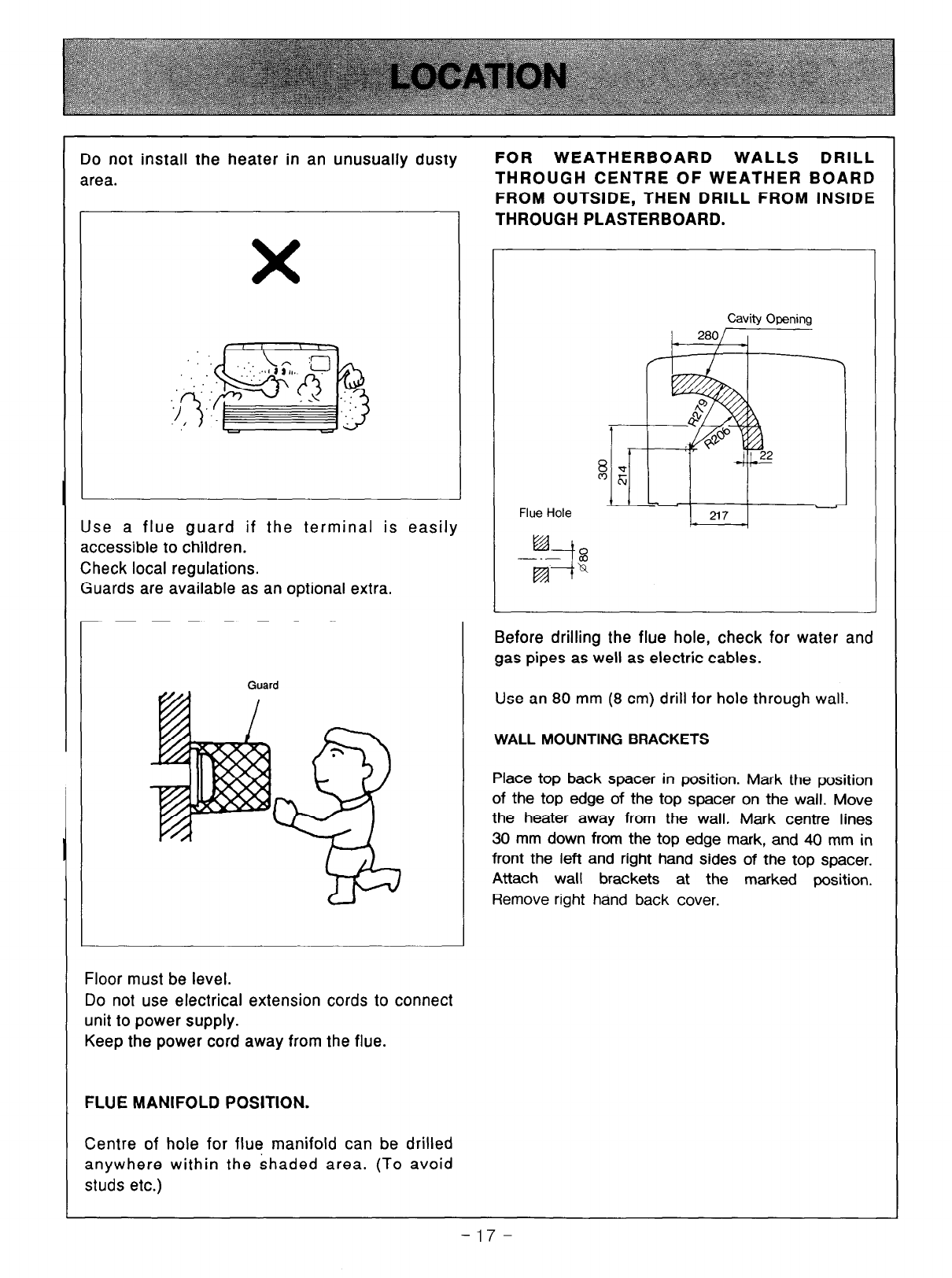

Do not install the heater in an unusually dusty
area.
Use a flue guard if the terminal is easily
accessible to children.
Check local regulations.
Guards are available as an optional extra.
X
Guard
Floor must be level.
Do not use electrical extension cords to connect
unit to power supply.
Keep the power cord away from the flue.
FLUE MANlFOLD POSITION.
FOR WEATHERBOARD WALLS DRILL
THROUGH CENTRE OF WEATHER BOARD
FROM OUTSIDE, THEN DRILL FROM INSIDE
THROUGH PLASTERBOARD.
Flue Hole
Cavity Opening
2801 4
Before drilling the flue hole, check for water and
gas pipes as well as electric cables.
Use an 80 mm (8 cm) drill for hole through wall.
WALL MOUNTING BRACKETS
Place top back spacer in position. Mark the position
of the top edge of the top spacer on the wall. Move
the heater away from the wall. Mark centre lines
30 mm down from the top edge mark, and 40 mm in
front the left and right hand sides of the top spacer.
Attach wall brackets at the marked position.
Remove right hand back cover.
Centre of hole for flue manifold can be drilled
anywhere within the shaded area. (To avoid
studs etc.)
-17-

1. Disassemble Manifold from Sleeve.
The flue consists of 3 parts, sleeve,
inside connectors and tube, outside
terminal; (dis-assemble by pulling hard on
outside terminal and inner connections,
then pull sleeve off outer terminal).
2. Adjustment of Sleeve Length.
Measure wall thickness through
previously drilled 80 mm hole.
End of sleeve should protrude 5-10 mm
from outside wall. Adjust sleeve length to
wall thickness plus 5 -10 mm. (Sleeve is
threaded for adjustment).
3. For A and AA flues only
Depending on flue set and wall thickness
extension piece “C” may need to be
removed.
Cut plastic, remove extension, then follow
instruction 2.
This applies to “A” and “AA” flues only.
There is no extension on other flues, they
can be fully adjusted by turning the
threaded section.
4. Fixing Sleeve.
Fix to the wall, using the 3 screws
provided.
NOTE:
The flange is marked “TOP”, sleeve
must be fitted with this mark UP.
Check sleeve protrudes 5-10 mm on
the outside.
Con&Cons Sk& Terminal
Extension joint
under plastic Extension
(“A” and “AA” ftues only)
1 Adjust length by tuning sleeve.
Rerke extension at this
pointif necessary.
5-10 mm
Don’t remove green plastic covering from sleeve.
-18-

5. Check rubber seal is in place on terminal.
* For weather board walls, add spare
rubber seal provided to compensate for
weatherboard angle.
6. Installation of Terminal
From outside, insert terminal into sleeve
with the “A” mark at the top. Left hand
side fixing tie is marked “LEFT” (from
inside).
7. Attaching Ties
Pull hard on left and right hand side ties,
clip ties over lugs inside sleeve. You
should be able to pull ties 2 or 3 slots
past the starting point. Cut the ties,
leaving about 20 mm past the lugs. Bend
ties so they are parallel with the wall.
8. Insert Inner Connection Assembly. Push
assembly into the terminal tube, make
sure “TOP” mark is uppermost. Fix with 3
screws provided.
9. Manifold can still be turned after
attaching.
Terminal seal
(Add ‘weather board”
Terminal
Cut (leave 20 mm tree)
Sleeve Terminal
Outlet
Inlet
-19-
