RIOTEC iDC9278K User manual

1

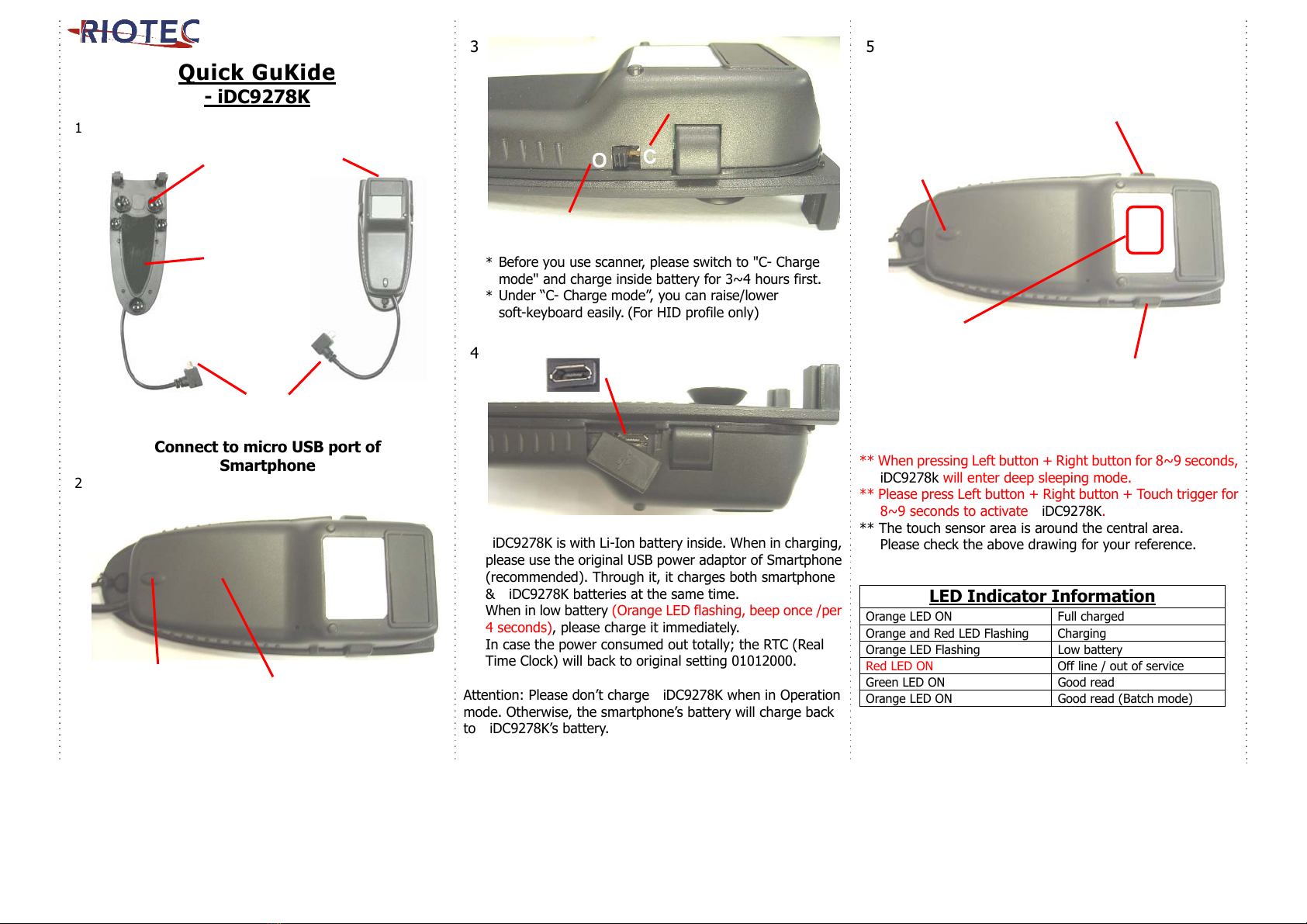

Quick GuKide
- iDC9278K
1
Connect to micro USB port of
Smartphone
2
3
* Before you use scanner, please switch to "C- Charge
mode" and charge inside battery for 3~4 hours first.
* Under “C- Charge mode”, you can raise/lower
soft-keyboard easily.(For HID profile only)


4
iDC9278K is with Li-Ion battery inside. When in charging,
please use the original USB power adaptor of Smartphone
(recommended). Through it, it charges both smartphone
& iDC9278K batteries at the same time.
When in low battery (Orange LED flashing, beep once /pe
r
4 seconds), please charge it immediately.
In case the power consumed out totally; the RTC (Real
Time Clock) will back to original setting 01012000.
Attention: Please don’t charge iDC9278K when in Operation
mode. Otherwise, the smartphone’s battery will charge back
to iDC9278K’s battery.
5








** When pressing Left button + Right button for 8~9 seconds,
iDC9278k will enter deep sleeping mode.
** Please press Left button + Right button + Touch trigger for
8~9 seconds to activate iDC9278K.
** The touch sensor area is around the central area.
Please check the above drawing for your reference.
LED Indicator Information
Orange LED ON Full charged
Orange and Red LED Flashing Charging
Orange LED Flashing Low battery
Red LED ON Off line / out of service
Green LED ON Good read
Orange LED ON Good read (Batch mode)
O=Operation mode
C=Charge mode
Left Button
Under BT HID Profile, press Left button to raise/lowe
r
soft-Keyboard; press the left button for 4 seconds to
un-pair. Then, scanner can be connected with other
BT devices (Please check page #2, left column)
T
ouch Tri
gg
er Area
SCAN/ Power ON
Press 1 second to wake it
up from power saving
mode
Ri
g
ht Button
Power Saving button:
Press the button for 4 second
then enter
p
ower savin
g
mode
Indicator
(LED)
Char
g
e por
t
Li- Ion Battery inside
Indicator (LED)
Suction Cup Exit Windo
w
PU Glue
(Can be used
repeatedly)
Micro USB
cable (OTG)

2

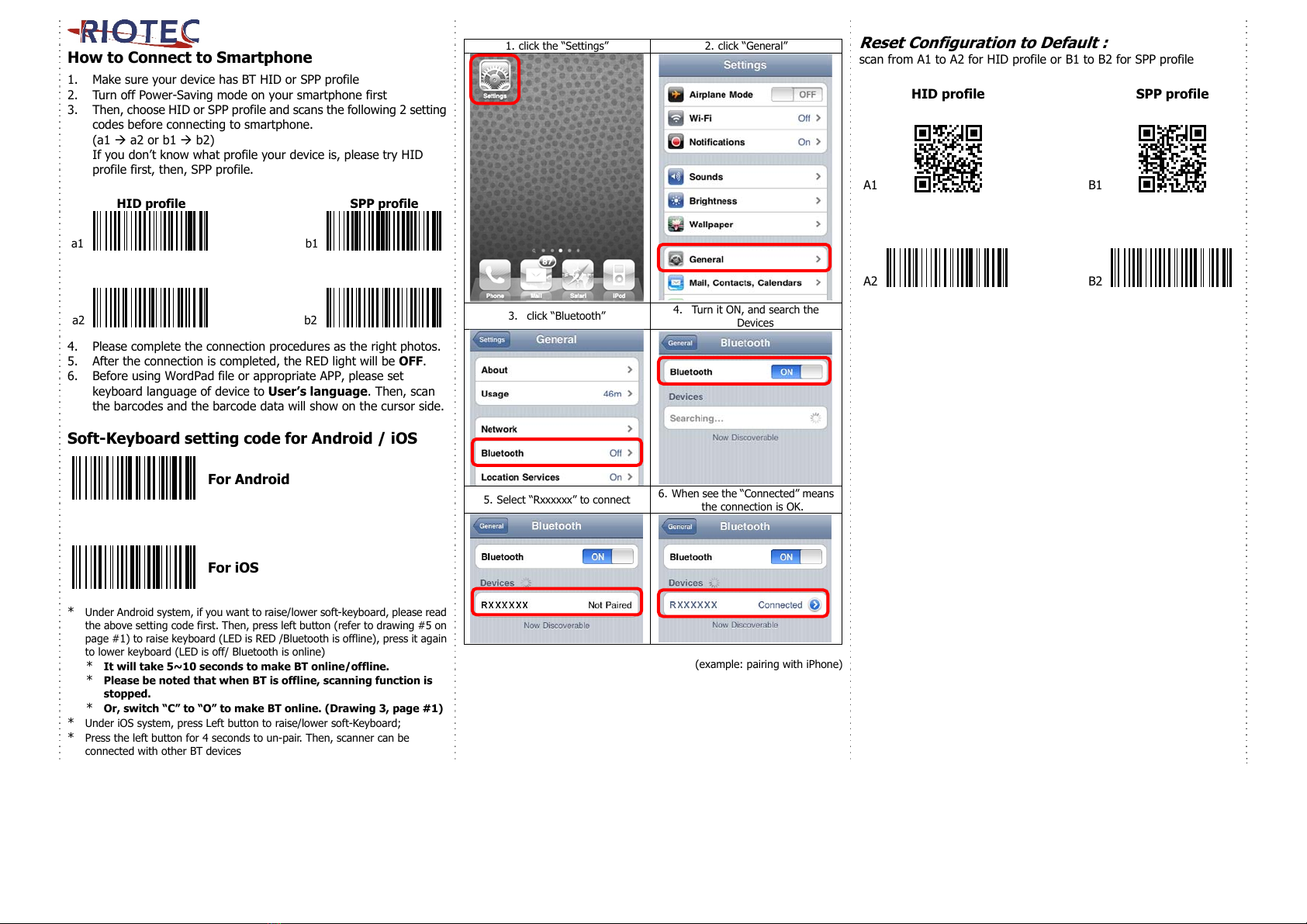

How to Connect to Smartphone
1. Make sure your device has BT HID or SPP profile
2. Turn off Power-Saving mode on your smartphone first
3. Then, choose HID or SPP profile and scans the following 2 setting
codes before connecting to smartphone.
(a1  a2 or b1  b2)
If you don’t know what profile your device is, please try HID
profile first, then, SPP profile.
HID profile SPP profile
a1 b1
a2 b2
4. Please complete the connection procedures as the right photos.
5. After the connection is completed, the RED light will be OFF.
6. Before using WordPad file or appropriate APP, please set
keyboard language of device to User’s language. Then, scan
the barcodes and the barcode data will show on the cursor side.
Soft-Keyboard setting code for Android / iOS
For Android
For iOS
* Under Android system, if you want to raise/lower soft-keyboard, please read
the above setting code first. Then, press left button (refer to drawing #5 on
page #1) to raise keyboard (LED is RED /Bluetooth is offline), press it again
to lower keyboard (LED is off/ Bluetooth is online)
* It will take 5~10 seconds to make BT online/offline.
* Please be noted that when BT is offline, scanning function is
stopped.
* Or, switch “C” to “O” to make BT online. (Drawing 3, page #1)
* Under iOS system, press Left button to raise/lower soft-Keyboard;
* Press the left button for 4 seconds to un-pair. Then, scanner can be
connected with other BT devices
1. click the “Settin
g
s” 2. click “Gene
r
al”
3. click “Bluetooth” 4. Turn it ON, and search the
Devices
5. Select “Rxxxxxx” to connect 6. When see the “Connected” means
the connection is OK.
(example: pairing with iPhone)
Reset Configuration to Default :
scan from A1 to A2 for HID profile or B1 to B2 for SPP profile
HID profile SPP profile
A1

B1

A2 B2

3

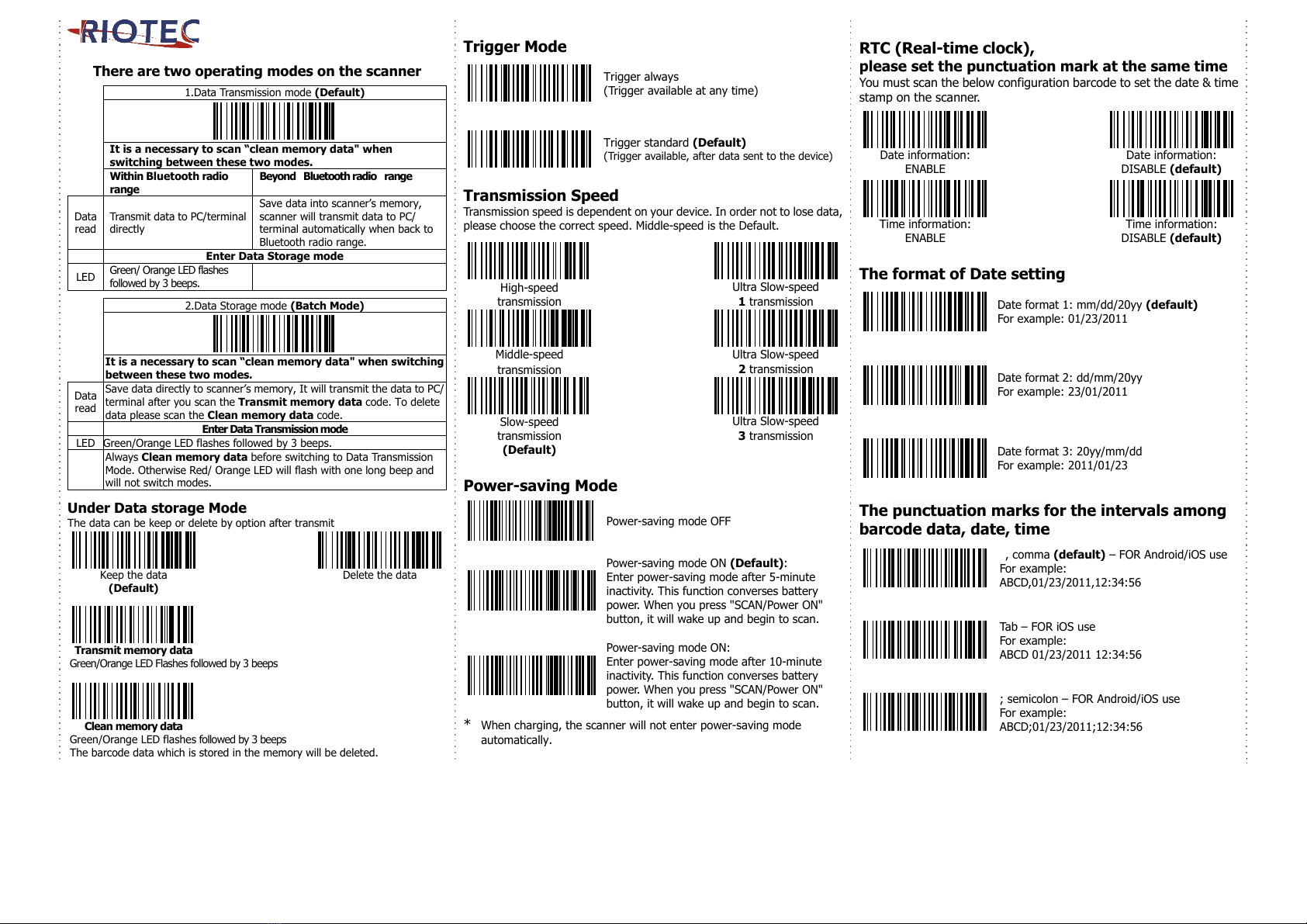

There are two operating modes on the scanner
1.Data Transmission mode (Default)
It is a necessary to scan “clean memory data" when
switching between these two modes.
Within Bluetooth radio
range
Beyond Bluetooth radio ran
ge
Data
read
Transmit data to PC/terminal
directly
Save data into scanner’s memory,
scanner will transmit data to PC/
terminal automatically when back to
Bluetooth radio range.
Enter Data Stora
g
e mode
LED Green/ Oran
g
e LED flashes
followed by 3 beeps.
2.Data Stora
g
e mode (Batch Mode)
It is a necessary to scan “clean memory data" when switchin
g
between these two modes.
Data
read
Save data directly to scanner’s memory, It will transmit the data to PC/
terminal after you scan the Transmit memory data code. To delete
data please scan the Clean memory data code.
Enter Data Transmission mod
e
LED
G
reen/Oran
g
e LED flashes followed by 3 beeps.
Always Clean memory data before switchin
g
to Data Transmission
Mode. Otherwise Red/ Orange LED will flash with one long beep and
will not switch modes.
Under Data storage Mode
The data can be keep or delete by option after transmit
Keep the data
(Default)
Delete the data
Transmit memory data
Green/Oran
g
e LED Flashes followed by 3 beeps
Clean memory data
Green/Oran
g
e LED flashes followed by 3 beeps
The barcode data which is stored in the memory will be deleted.
Trigger Mode
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the device)
Transmission Speed
Transmission speed is dependent on your device. In order not to lose data,
please choose the correct speed. Middle-speed is the Default.
High-speed Ultra Slow-speed
transmission 1 transmission
Middle-speed Ultra Slow-speed
transmission 2 transmission
Slow-speed Ultra Slow-speed
transmission
(Default)
3 transmission
Power-saving Mode
Power-saving mode OFF
Powe
r
-saving mode ON (Default):
Enter power-saving mode after 5-minute
inactivity. This function converses battery
power. When you press "SCAN/Power ON"
button, it will wake up and begin to scan.
Powe
r
-saving mode ON:
Enter power-saving mode after 10-minute
inactivity. This function converses battery
power. When you press "SCAN/Power ON"
button, it will wake up and begin to scan.
* When charging, the scanner will not enter power-saving mode
automatically.
RTC (Real-time clock),
please set the punctuation mark at the same time
You must scan the below configuration barcode to set the date & time
stamp on the scanner.
Date information:
ENABLE
Date information:
DISABLE (default)
Time information:
ENABLE
Time information:
DISABLE (default)
The format of Date setting
Date format 1: mm/dd/20yy (default)
For example: 01/23/2011
Date format 2: dd/mm/20yy
For example: 23/01/2011
Date format 3: 20yy/mm/dd
For example: 2011/01/23
The punctuation marks for the intervals among
barcode data, date, time
, comma (default)
–
FOR Android/iOS use
For example:
ABCD,01/23/2011,12:34:56
Tab
–
FOR iOS use
For example:
ABCD 01/23/2011 12:34:56
; semicolon
–
FOR Android/iOS use
For example:
ABCD;01/23/2011;12:34:56

4

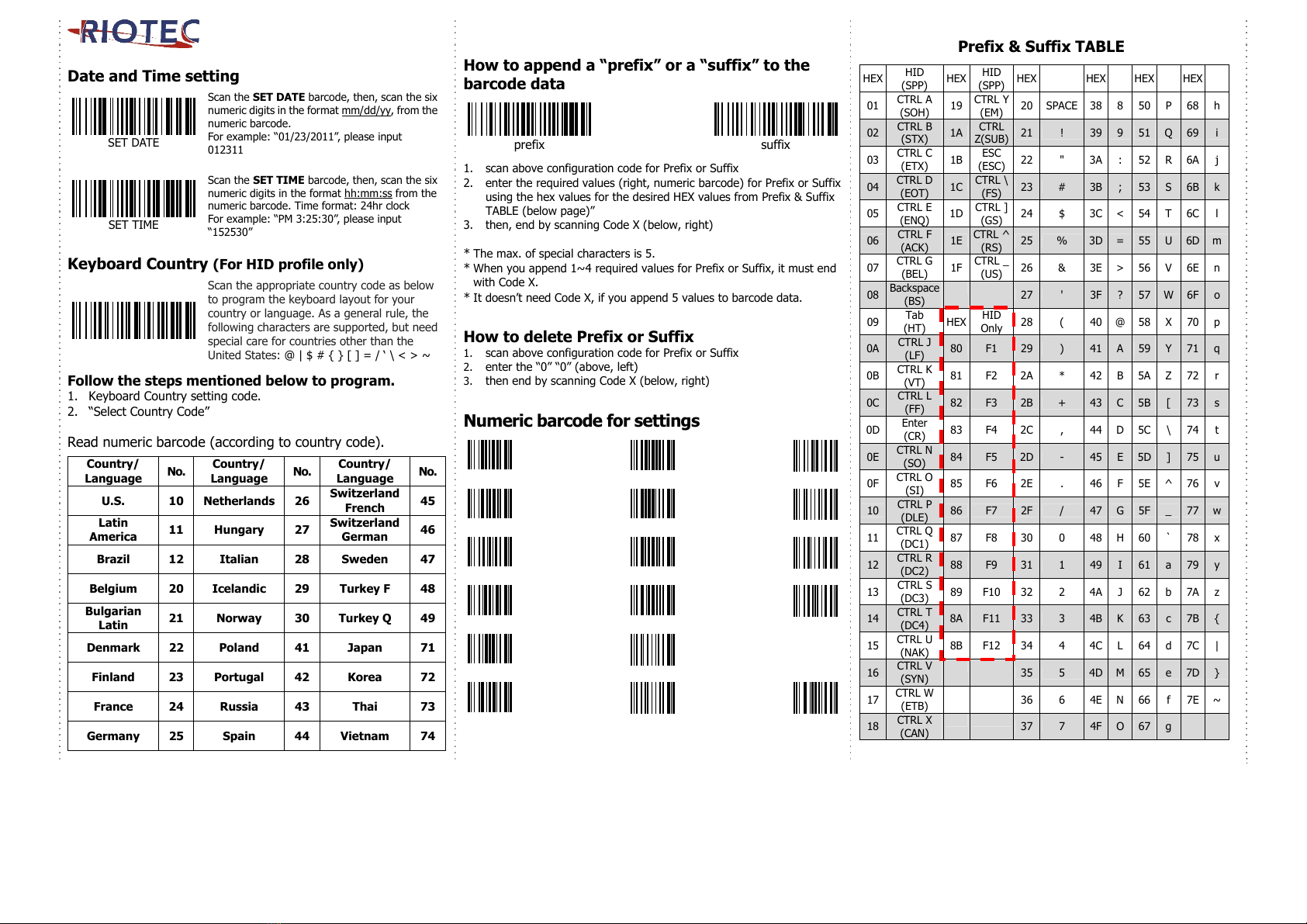

Date and Time setting
SET DATE
Scan the SET DATE barcode, then, scan the six
numeric digits in the format mm/dd/yy, from the
numeric barcode.
For example: “01/23/2011”, please input
012311
SET TIME
Scan the SET TIME barcode, then, scan the six
numeric digits in the format hh:mm:ss from the
numeric barcode. Time format: 24hr clock
For example: “PM 3:25:30”, please input
“152530”
Keyboard Country (For HID profile only)
Scan the appropriate country code as below
to program the keyboard layout for your
country or language. As a general rule, the
following characters are supported, but need
special care for countries other than the
United States: @ | $ # { } [ ] = / ‘ \ < > ~
Follow the steps mentioned below to program.
1. Keyboard Country setting code.
2. “Select Country Code”
Read numeric barcode (according to country code).
Country/
Language No. Country/ Language No. Country/ Language No.
U.S. 10 Netherlands 26 Switzerland
French 45
Latin
America 11 Hungary 27 Switzerland German 46
Brazil 12 Italian 28 Sweden 47
Belgium 20 Icelandic 29 Turkey F 48
Bulgarian
Latin 21 Norway 30 Turkey Q 49
Denmark 22 Poland 41 Japan 71
Finland 23 Portugal 42 Korea 72
France 24 Russia 43 Thai 73
Germany 25 Spain 44 Vietnam 74
How to append a “prefix” or a “suffix” to the
barcode data
prefix suffix
1. scan above configuration code for Prefix or Suffix
2. enter the required values (right, numeric barcode) for Prefix or Suffix
using the hex values for the desired HEX values from Prefix & Suffix
TABLE (below page)”
3. then, end by scanning Code X (below, right)
* The max. of special characters is 5.
* When you append 1~4 required values for Prefix or Suffix, it must end
with Code X.
* It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. scan above configuration code for Prefix or Suffix
2. enter the “0” “0” (above, left)
3. then end by scanning Code X (below, right)
Numeric barcode for settings
Prefix & Suffix TABLE
HEX HID
(SPP) HEX HID (SPP) HEX HEX HEX HEX
01 CTRL A
(SOH) 19 CTRL
Y
(EM) 20 SPACE 38 8 50 P 68 h
02 CTRL B
(STX) 1A CTRL Z(SUB) 21 ! 39 951 Q 69 i
03 CTRL C
(ETX) 1B ESC (ESC) 22 " 3A : 52 R 6A j
04 CTRL D
(EOT) 1C CTRL \ (FS) 23 # 3B ;53 S 6B k
05 CTRL E
(ENQ) 1D CTRL ] (GS) 24 $ 3C < 54 T 6C l
06 CTRL F
(ACK) 1E CTRL ^ (RS) 25 % 3D =55 U 6D m
07 CTRL G
(BEL) 1F CTRL _ (US) 26 & 3E > 56 V 6E n
08 Backspace
(BS) 27 ' 3F ?57 W 6F o
09 Tab
(HT) HEX HID Only 28 ( 40 @ 58 X 70 p
0A CTRL J
(LF) 80 F1 29 ) 41 A59 Y 71 q
0B CTRL K
(VT) 81 F2 2A * 42 B 5A Z 72 r
0C CTRL L
(FF) 82 F3 2B + 43 C5B [ 73 s
0D Ente
r
(CR) 83 F4 2C , 44 D 5C \ 74 t
0E CTRL N
(SO) 84 F5 2D - 45 E5D ] 75 u
0F CTRL O
(SI) 85 F6 2E . 46 F 5E ^ 76 v
10 CTRL P
(DLE) 86 F7 2F / 47 G5F _ 77 w
11 CTRL Q
(DC1) 87 F8 30 0 48 H 60 ` 78 x
12 CTRL R
(DC2) 88 F9 31 1 49 I61 a 79 y
13 CTRL S
(DC3) 89 F10 32 2 4A J 62 b 7A z
14 CTRL T
(DC4) 8A F11 33 3 4B K63 c 7B {
15 CTRL U
(NAK) 8B F12 34 4 4C L 64 d 7C |
16 CTRL
V
(SYN) 35 5 4D M65 e 7D }
17 CTRL W
(ETB) 36 6 4E N 66 f 7E ~
18 CTRL
X
(CAN) 37 7 4F O67 g
0
6C
1 7 D
28E
39F
4A
5B X

5

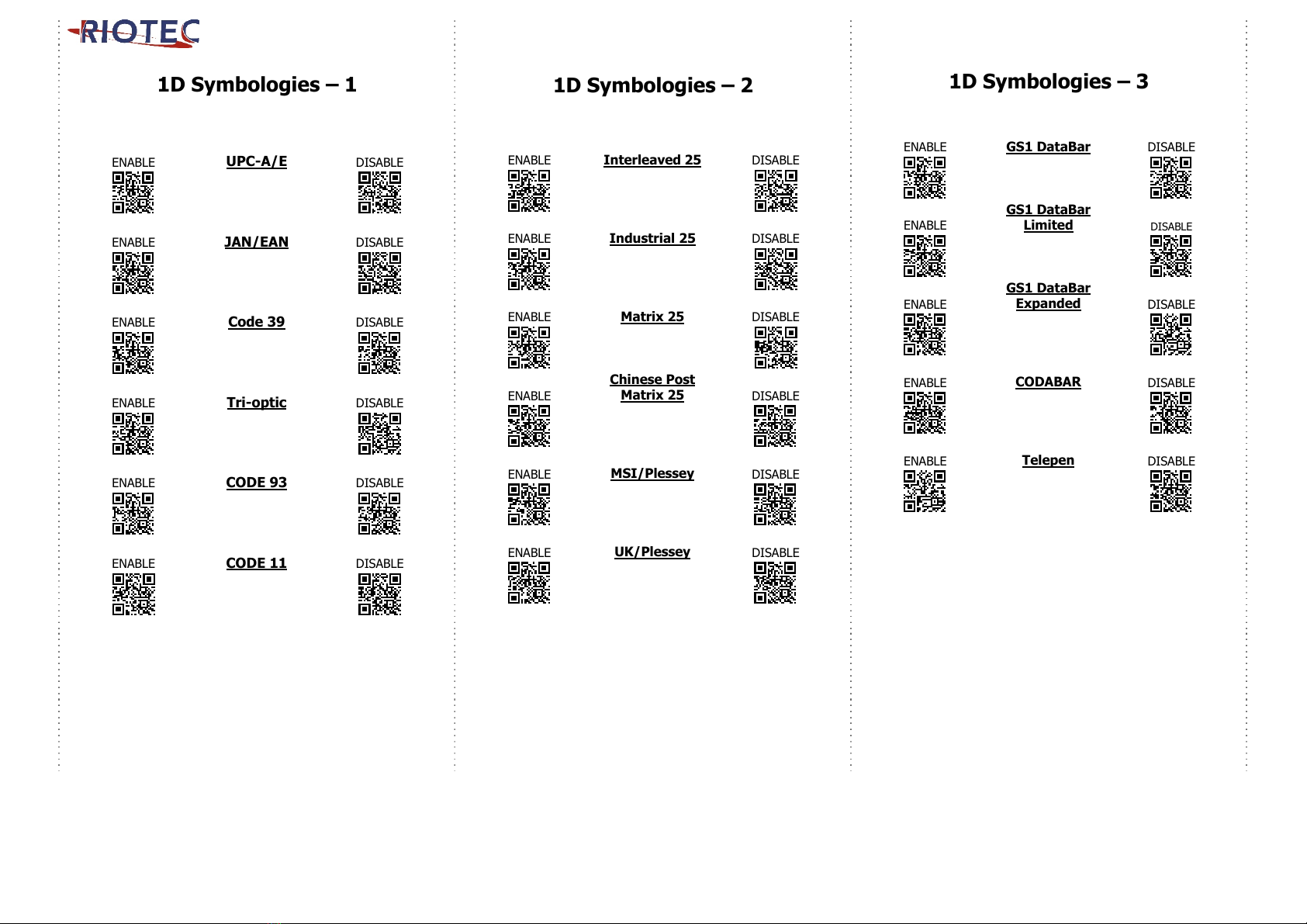

1D Symbologies – 1
ENABLE
UPC-A/E DISABLE
ENABLE
JAN/EAN DISABLE
ENABLE
Code 39 DISABLE
ENABLE
Tri-optic DISABLE
ENABLE
CODE 93 DISABLE
ENABLE
CODE 11 DISABLE
1D Symbologies – 2
ENABLE Interleaved 25 DISABLE
ENABLE Industrial 25 DISABLE
ENABLE Matrix 25 DISABLE
ENABLE
Chinese Pos
t
Matrix 25 DISABLE
ENABLE MSI/Plessey DISABLE
ENABLE UK/Plessey DISABLE
1D Symbologies – 3
ENABLE GS1 DataBar DISABLE
ENABLE
GS1 DataBar
Limited DISABLE
ENABLE
GS1 DataBar
Expanded DISABLE
ENABLE CODABAR DISABLE
ENABLE Telepen DISABLE

6

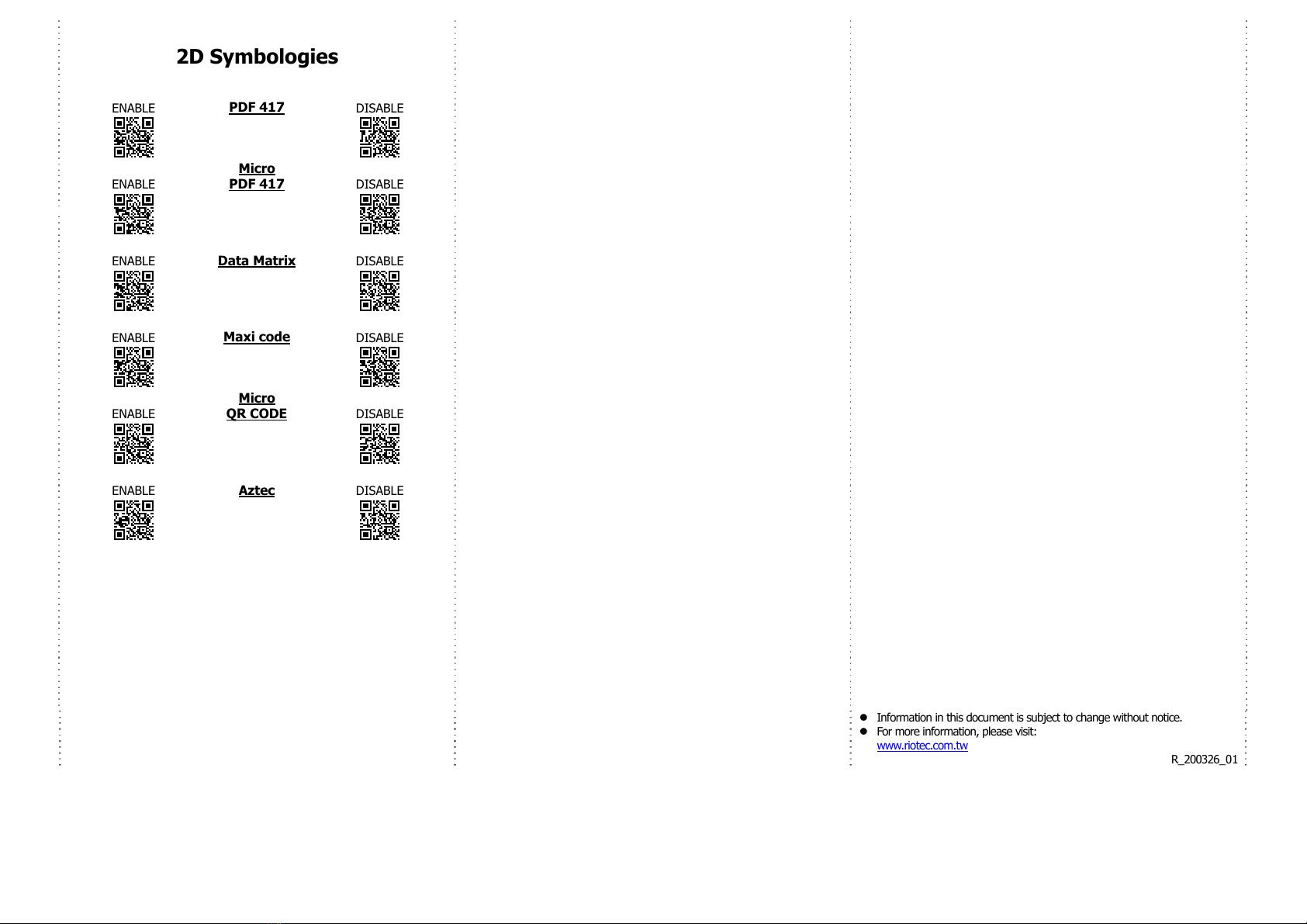

2D Symbologies
ENABLE PDF 417 DISABLE
ENABLE
Micro
PDF 417 DISABLE
ENABLE Data Matrix DISABLE
ENABLE Maxi code DISABLE
ENABLE
Micro
QR CODE DISABLE
ENABLE Aztec DISABLE
 Information in this document is subject to change without notice.
 For more information, please visit:
www.riotec.com.tw
R_200326_01
