RIOTEC iDC9602A User manual

1
Wireless 1D
Pocket barcode scanner
Quick Guide
Model no.: iDC9602A
Introduction
Designed primarily for P.O.S. retail environments, the iDC9602A is a wireless
pocket barcode scanner that allows you to scan various barcoded items.
Its in-built Motorola SE955 engine allows you to reliably read 1D barcodes on
various shapes and is a great space-saver for busy or limited workspaces.
It supports iOS, Android, and Windows devices through Bluetooth HID or SPP
communication.
Technical data
*Light source................650 nm Laser Diode
*Depth of field..............Up to 1430 mm (dependent on width of barcode).
*Scan speed.................104(±)12 scan/sec (bi-directional)
*Best resolution.............0.1 mm (4 mils) – Code 39
*Transmission range......BT Class 1 (100m, line of sight)
*Profiles........................HID & SPP profile 2.4GHz Wireless
*Memory Capacity.........1M memory inside
*Input voltage...............5V/DC
*Rechargeable battery....3.7V 900mA Li-Ion battery
*Operating time.............25,000 readings when full charged
*Operating conditions.....-0℃to 50℃
*Dimensions..................100 x 43 x 24.5mm (L x W x H)
*Symbologies:
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128,
UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma
Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,
Codabar, MSI, GS1 DataBar
Delivery content
* Pocket Barcode scanner x 1
* Quick instructions x 1
* Mini USB cable x 1((for charging only)
* Strap x 1
Limited Warranty
Riotec provides one-year limited warranty.
Riotec will not warranty any product which has been subjected to improper
usage, neglect or unauthorized repair or installation.
Besides, warranty does not cover the faulty usages or consumable parts.
(Cable & battery are consumable.)
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting personal
injury or damage to property.
*The product is equipped with a Class 2 laser.
*Never look into the laser beam and never point it at people or animals. Laser
radiation can seriously damage your eyes.
*Do not point the laser beam at mirrors or other reflective surfaces. The
uncontrolled, reflected beam may strike people or animals.
*Don’t put scanner in places excessively high temperatures, such as expose
under direct sunlight
*Don’t use scanner in extremely humid area or drastic temperature change
*The rechargeable battery is permanently built into the product and cannot be
replaced.
*Never damage the rechargeable battery. Damaging the casing of the
rechargeable battery might cause an explosion or a fire!

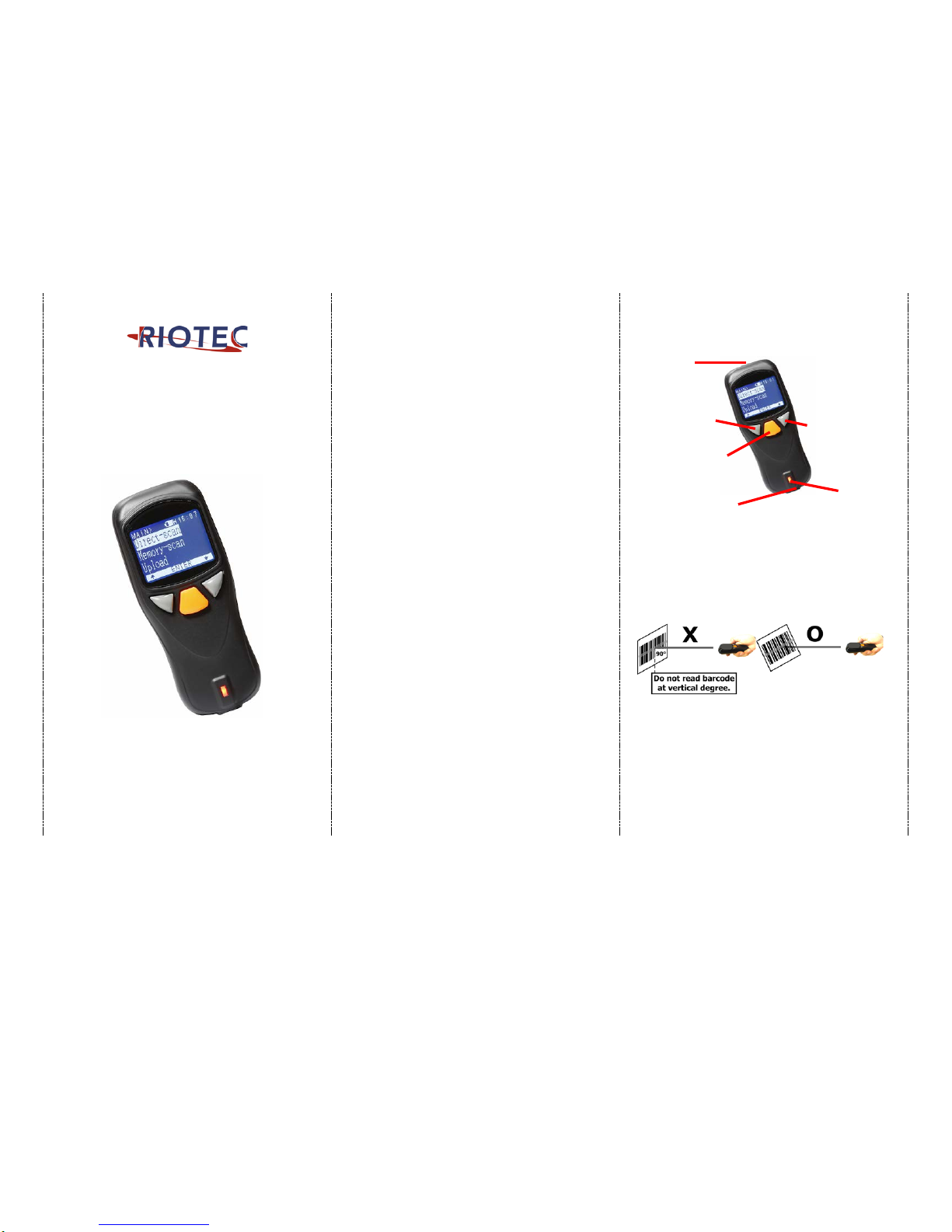

Operating elements
** Please switch ON and charge scanner for 3~4 hours at first time
before use.
** In the beginning, you must press the orange trigger button for
8 seconds to turn on the pocket barcode scanner. Then, press
it for scanning barcodes & waking up from sleeping mode.
Power Saving button:
Press the button for 2~3
seconds
then enter power
saving mode
SCAN/ENTER/Power ON
Button
(For iOS Device ONLY)
the button to raise and lower
ON-Screen Keyboard
Indicator (LED)
Exit
Window
Mini USB port
with protective cover
charge scanner via mini USB host cable.

2
How to Connect to Smartphone or Tablet
1. Make sure your device supports BT HID or BT SPP profile
2. Turn off Power-Saving mode on your smartphone/tablet first
3. Then, choose HID or SPP device before connecting to smartphone/tablet.
If you don’t know what profile your device is, please try HID profile first,
then, SPP profile.
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select BT setup
S>
S
12:52
BT setup
Sleep time
Output Speed
ESC
ENTER
↓
After you select what you want,
press the orange button to enter
the next or ESC button back to
the previous.
How to connect to SPP or HID device
SPP device (from A1 to A2); HID device (from B1 to B3)
A1. select SPP device
B1. select HID device
S/B>
S
12:52
SPP device
HID device
dongle
ESC ENTER
↓
S/B>
S
12:52
SPP device
HID device
dongle
ESC ENTER
↓
A2. Setting.. Completed.
B2. select Simple pairing
or Pairing
Setting …
Completed!!!
S/B/H>
S
12:52
Simple pairing
Pairing
ESC ENTER
↓
B3. Setting … Completed.
Setting …
Completed!!!
After you select what you want, press the orange button to enter
the next or ESC button back to
the previous.

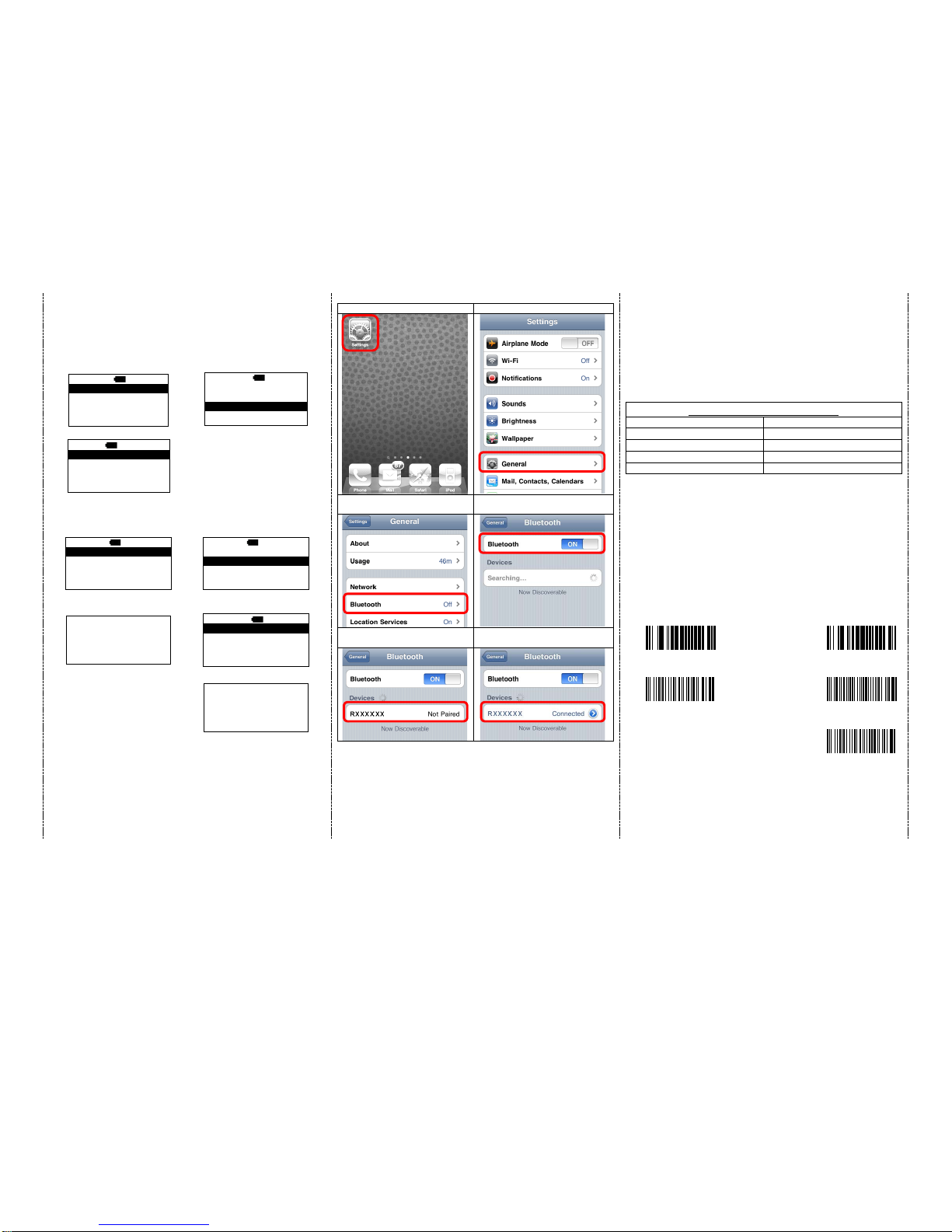

1. click the “Settings”
2. click “General”
3. click “Bluetooth”
4. Turn it ON, and search the
Devices
5. Select “Rxxxxxx” to connect
6. When see the “Connected” means
the connection is OK.
(example: pairing with iPhone)
4. Please complete the connection procedures as the above photos.
5. After the connection is completed, the RED light will be OFF.
6. Before using WordPad file or appropriate APP, please set keyboard language
of device to US language. Then, scan the barcodes and the barcode data
will show on the cursor side.
Notes:
*This product complies with Bluetooth standards. This device that
communicated with this product must support the same SPP or
HID. For other Bluetooth devices with other profiles we cannot
guarantee a connection before the product has been tested.
*The communication speed and range of the product may vary due
to obstacles and radio wave condition between the product and
device to which it is connected. Condition on the host device may
also affect the communication speed and range of the scanner.
LED Indicator Information
Orange LED ON
Full charged
Orange LED Flashing
Charging / Low battery
Red LED ON
Offline / out of service
Green LED ON
Good read
Orange LED ON
Good read (Batch mode)
Remark:
*When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
*In case the powerconsumedout totally; the RTC (Real Time Clock) will back to
original setting 01012000.
*If scanner shuts down it is recommended to charge it fully before turning it
back on.
*Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A2 for HID profile or B1 to B3 for SPP profile)
HID profile
SPP profile
A1
B1
A2
B2
B3

3
There are two operating modes on the scanner
1. Direct-scan Mode
1. select Direct-scan
2a. BT connected, begin to
scan the barcodes
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
D>
S
12:52
ESC
SCAN
MAIN
2b. BT is disconnected.
D>
S
12:52
Off line !!!
…Linking!
ESC
SCAN
MAIN
If BT is disconnected, please back to
page #2 and do the pairing procedure
again.
2. Memory-scan Mode
1. select Memory-scan
2. begin to scan the barcodes
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
M>
S
12:52
ESC
SCAN
MAIN
Under Memory-scan mode, enable/disable “Quantity
entry” function
Disable “Quantity entry” (default)
1. disable “Quantity entry”
Setting code
2. begin the scan the barcodes
M>
S
12:52
ESC
SCAN
MAIN
3. press DEL to delete the last
barcode data
4. be sure that you want to
delete the last barcode.
M>
S
12:52
1234567
ESC
SCAN
DEL
M>
S
12:52
The last code
Will be deleted !
Are you sure ?
NO
YES
Enable “Quantity Entry” function,
decide the order of the output data to your device first
1. Q’ty first, then, barcode
2. Barcode first, then, Q’ty
3. Enable “Quantity Entry”
Setting code
4. begin the scan the barcodes
M>
S
12:52
SCAN:
Q’ty: 000
ESC
SCAN
ENTER
When “Quantity Entry” is enabled, decide how to type-in
the number.
By button (default)
By scanning the number code
C1. enable
D1. enable
C2. scan the barcode
D2. scan the barcodes
M>
S
12:52
SCAN:
Q’ty: 1
ESC
SCAN
ENTER
M>
S
12:52
Q’ty: 1
ESC
SCAN
ENTER
C3. Press the ENTER to type the q’ty
D3. Press the ENTER to type the q’ty
M>
S
12:52
1234567
Q’ty: 1
ESC
SCAN
ENTER
M>
S
12:52
7654321
Q’ty: 1
ESC
SCAN
ENTER
C4. press ↓to choose number, then,
press ENTER to confirm
D4. scan numeric code (page #5)
M>
S
12:52
Q’ty: 5---
ESC ENTER
↓
M>
S
12:52
Q’ty: 5---
ESC
ENTER
5. Then, scan the next barcode
5. end by X code, then,
be ready to scan the next
M>
S
12:52
SCAN:
Q’ty: 1
ESC
SCAN
ENTER
M>
S
12:52
SCAN:
Q’ty: 1
ESC
SCAN
ENTER
Upload data (Memory-scan)
1. press ESC, select Upload
2. BT connected, press
START to send data
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
U>
S
12:52
Push START key
to send data…
ESC
START
MAIN
3. After data upload, press
ERASE to delete memory data
4. be sure that you want to delete
memory data.
U>
S
12:52
ESC
SPEED
ERASE
U/E>
S
12:52
Data in memory
Will be erased!
Are you sure?
NO
YES
5. After you delete the memory data, it will be back to MAIN MENU
Switch from Memory-scan to Direct-scan mode
1. switch Memory-scan to
Direct-scan mode
2. must delete all data in the
memory
D>
S
12:52
Data in memory
will be erased!
NO
YES
Erasing…
Completed!!!
3. begin to scan the barcode
D>
S
12:52
ESC
SCAN
MAIN
Power-saving Mode
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select Sleep time
4. press ↓, decide the time to
enter sleeping mode
S>
S
12:52
BT setup
Sleep time
Output Speed
ESC ENTER
↓
S/P/S>
S
12:52
Sleep time
00
ESC
ENTER
↓
*When charging, the scanner will not enter power-saving mode automatically.

4
Transmission Speed
Transmission speed is dependent on your device. In order not to lose data,
please choose the correct speed.
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select Output Speed
4. select the speed type,
S>
S
12:52
BT Status
Sleep time
Output Speed
ESC
ENTER
↓
S/O>
S
12:52
Medium
Low
Extra low 1
ESC
ENTER
↓
RTC (Real-time clock)
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select Time
4. select Stamp
S>
S
12:52
Sleep time
Output Speed
Time
ESC ENTER
↓
S/T>
S
12:52
Stamp
Format
Data
ESC ENTER
↓
5. select Data Stamp
6. Data Stamp is on or off.
S/T/S>
S
12:52
Data Stamp
Time Stamp
Interval char.
ESC ENTER
↓
S/T/S/D>
S
12:52
Data Stamp
On
Off
ESC ENTER
↓
7. press ESC, select Time
Stamp
8. Time Stamp is on or off
S/T/S>
S
12:52
Data Stamp
Time Stamp
Interval char.
ESC ENTER
↓
S/T/S/T>
S
12:52
Time Stamp
On
Off
ESC ENTER
↓
9. press ESC, select
Interval char. 8. select Interval char.
S/T/S>
S
12:52
Data Stamp
Time Stamp
Interval char.
ESC ENTER
↓
S/T/S/T>
S
12:52
Interval char.
,
ESC ENTER
↓
The format of Date setting
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select Time
4. select Format
S>
S
12:52
Sleep time
Output Speed
Time
ESC ENTER
↓
S/T>
S
12:52
Stamp
Format
Data
ESC ENTER
↓
5. select the format of date
S/T/F>
S
12:52
MM/DD/YY
DD/MM/YY
YY/MM/DD
ESC ENTER
↓
Date setting
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select Time
4. select Data
S>
S
12:52
Sleep time
Output Speed
Time
ESC ENTER
↓
S/T>
S
12:52
Stamp
Format
Data
ESC ENTER
↓
5. Set the date, press
↓
to select
number, then, press ENTER to
go to the next
6. Save the date data
S/T/D>
S
12:52
MONTH(01-12):01
Date (01-31):01
Year (00-99):00
ESC
ENTER
↓
Save it ?
NO
YES
Time setting
1. Main MENU
2. select Setup
MAIN>
S
12:52
Direct-scan
Memory-scan
Upload
↑
ENTER
↓
MAIN>
S
12:52
Memory-scan
Upload
Setup
↑
ENTER
↓
3. select Time
4. select Clock
S>
S
12:52
Sleep time
Output Speed
Time
ESC
ENTER
↓
S/T>
S
12:52
Format
Data
Clock
ESC
ENTER
↓
5. set the time. Press
↓
to
select the number, then,
press the ENTER to go the next
6. save the time setting
S/T/T>
S
12:52
Hour (00-23):00
Min (00-59):00
Sec (00-59):00
ESC
ENTER
↓
Save it ?
NO
YES
Trigger Mode
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the
device)

5
How to append a “prefix” or a “suffix” to the
barcode data
prefix
suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the required values (right, numeric barcode) for Prefix or Suffix
using the hex values for the desired HEX values from Prefix & Suffix
TABLE (below page)”
3. Then, end by scanning Code X (below, right)
*The max. of special characters is 5.
*When you append 1~4 required values for Prefix or Suffix, it must end
with Code X.
*It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the “0” “0” (above, right)
3. Then end by scanning Code X (below, right)
Numeric barcode for settings
0
6
C
1
7
D
2
8
E
3
9
F
4
A
5
B
X
Prefix & Suffix TABLE
HEX
HID
(SPP)
HEX
HID
(SPP)
HEX
HEX
HEX
HEX
01
CTRL A
(SOH)
19
CTRL Y
(EM)
20 SPACE 38 8 50 P 68 h
02
CTRL B
(STX)
1A
CTRL
Z(SUB)
21 ! 39 9 51 Q 69 i
03
CTRL C
(ETX)
1B
ESC
(ESC)
22 " 3A : 52 R 6A j
04
CTRL D
(EOT) 1C
CTRL \
(FS) 23 # 3B ; 53 S 6B k
05
CTRL E
(ENQ)
1D
CTRL ]
(GS)
24 $ 3C < 54 T 6C l
06
CTRL F
(ACK)
1E
CTRL ^
(RS)
25 % 3D = 55 U 6D m
07
CTRL G
(BEL)
1F
CTRL _
(US)
26 & 3E > 56 V 6E n
08
Backspace
(BS)
27 ' 3F ? 57 W 6F o
09
Tab
(HT) 28 ( 40 @ 58 X 70 p
0A
CTRL J
(LF)
29 ) 41 A 59 Y 71 q
0B
CTRL K
(VT)
2A * 42 B 5A Z 72 r
0C
CTRL L
(FF)
2B + 43 C 5B [ 73 s
0D
Enter
(CR)
2C , 44 D 5C \ 74 t
0E
CTRL N
(SO) 2D - 45 E 5D ] 75 u
0F
CTRL O
(SI)
2E . 46 F 5E ^ 76 v
10
CTRL P
(DLE)
2F / 47 G 5F _ 77 w
11
CTRL Q
(DC1)
30 0 48 H 60 ` 78 x
12
CTRL R
(DC2)
31 1 49 I 61 a 79 y
13
CTRL S
(DC3) 32 2 4A J 62 b 7A z
14
CTRL T
(DC4)
33 3 4B K 63 c 7B {
15
CTRL U
(NAK)
34 4 4C L 64 d 7C |
16
CTRL V
(SYN)
35 5 4D M 65 e 7D }
17
CTRL W
(ETB)
36 6 4E N 66 f 7E ~
18
CTRL X
(CAN)
37 7 4F O 67 g
Redundancy Level
This scanner offers two levels of decode redundancy. Select higher
redundancy levels for decreasing levels of bar code quality. As redundancy
levels increase, the decoder’s aggressiveness decreases.
Select the redundancy level appropriate for the bar code quality.
Redundancy Level 1
barcode must be successfully read twice before
being decoded
Redundancy Level 2
barcode must be successfully read three times
before being decoded:
1D Symbologies -1
ENABLE
UPC-A DISABLE
ENABLE
UPC-E
DISABLE
ENABLE
EAN-8
DISABLE
ENABLE
EAN-13
DISABLE
ENABLE
Code 128
DISABLE
ENABLE
ISBT 128
DISABLE

6

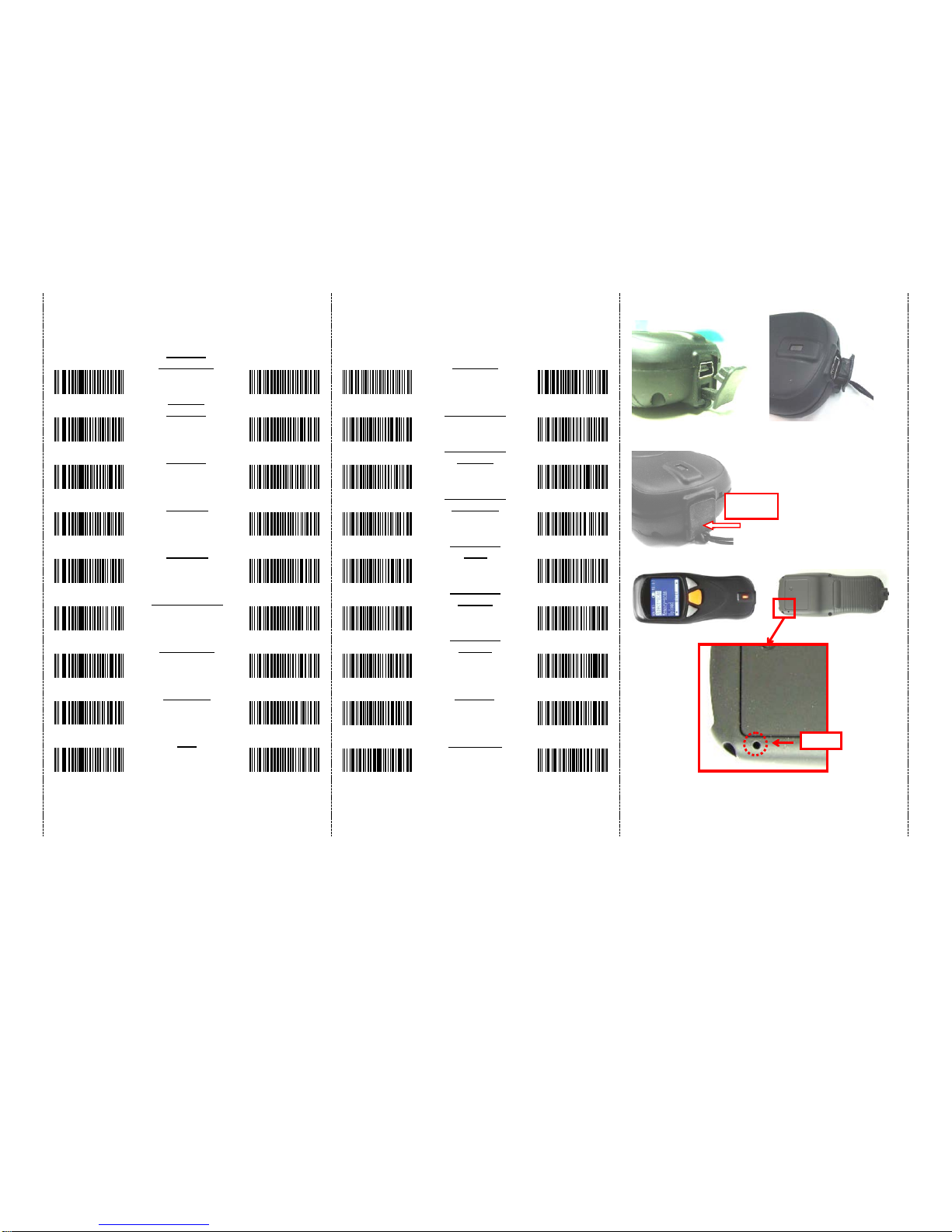

1D Symbologies -2
ENABLE
Code 39
FULL ASCII DISABLE
ENABLE
Trioptic
Code 39
DISABLE
ENABLE
Code 32
DISABLE
ENABLE
CODE 93
DISABLE
ENABLE
CODE 11
DISABLE
ENABLE
Interleaved 25 DISABLE
ENABLE
Discrete 25
DISABLE
ENABLE
CODABAR
DISABLE
ENABLE
MSI
DISABLE
1D Symbologies -3
ENABLE
Matrix 25 DISABLE
ENABLE
GS1 DataBar
DISABLE
ENABLE
GS1 DataBar
Limited
DISABLE
ENABLE
GS1 DataBar
Expanded
DISABLE
ENABLE
Composite
CC-C
DISABLE
ENABLE
Composite
CC-A/B
DISABLE
ENABLE
Composite
TLC 39 DISABLE
ENABLE
Code 39
DISABLE
ENABLE
Chinese 25
DISABLE
1. Pull out the USB cover its
slot
2. Press inward firmly on the
USB cover to reattach it
Top
Bottom
Insert a thin object (e.g. a bent paper clip) into the small hole.
To click the reset button inside
Quick guide is subject to change without notice.
R_161227_01
Pressing
direction
Reset
