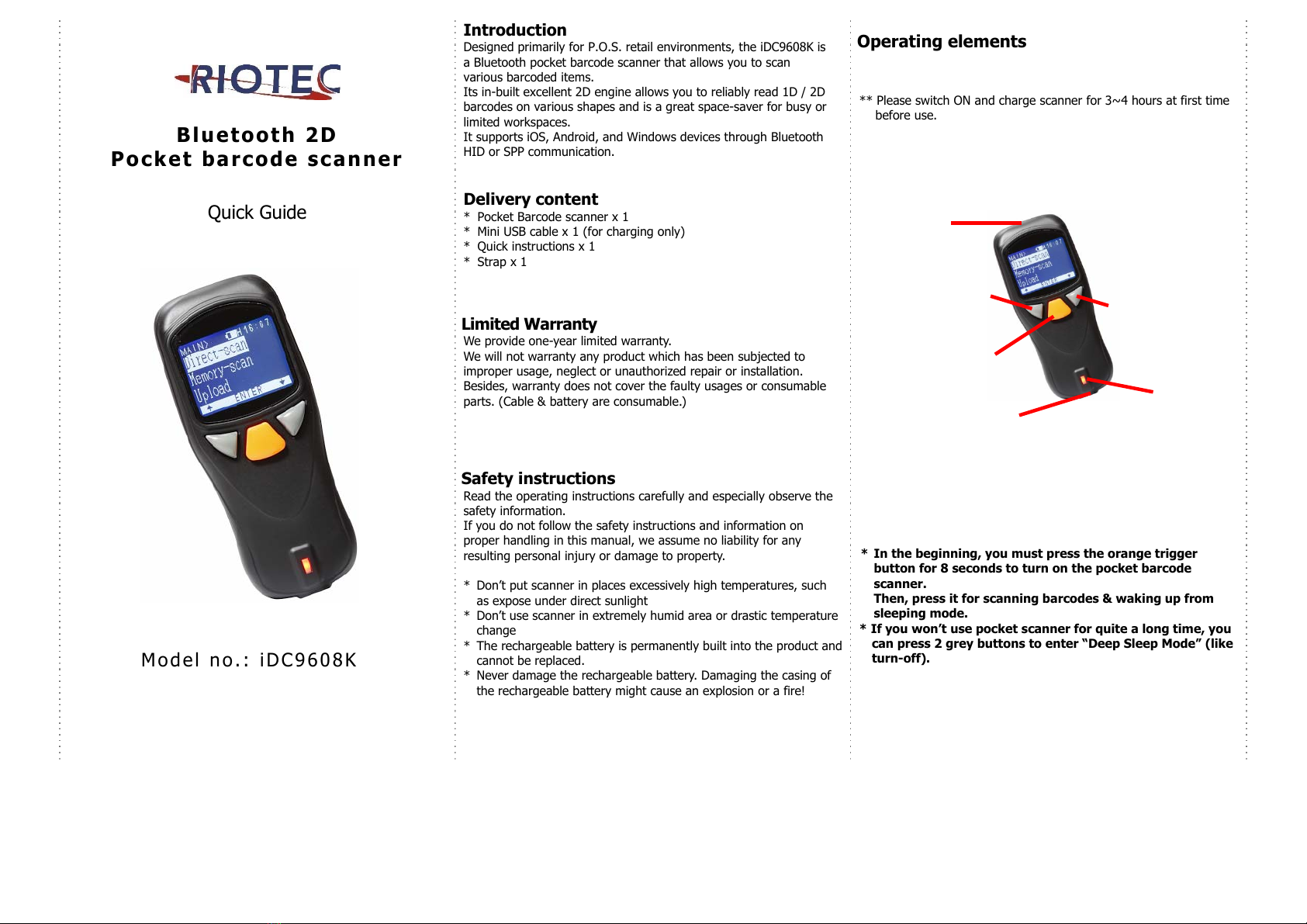

RIOTEC iDC9608K User manual

1
Bluetooth 2D
Pocket barcode scanner
Quick Guide
Model no.: iDC9608K
Introduction
Designed primarily for P.O.S. retail environments, the iDC9608K is
a Bluetooth pocket barcode scanner that allows you to scan
various barcoded items.
Its in-built excellent 2D engine allows you to reliably read 1D / 2D
barcodes on various shapes and is a great space-saver for busy or
limited workspaces.
It supports iOS, Android, and Windows devices through Bluetooth
HID or SPP communication.
Delivery content
* Pocket Barcode scanner x 1
* Mini USB cable x 1 (for charging only)
* Quick instructions x 1
* Strap x 1
Limited Warranty
We provide one-year limited warranty.
We will not warranty any product which has been subjected to
improper usage, neglect or unauthorized repair or installation.
Besides, warranty does not cover the faulty usages or consumable
parts. (Cable & battery are consumable.)
Safety instructions
Read the operating instructions carefully and especially observe the
safety information.
If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any
resulting personal injury or damage to property.
* Don’t put scanner in places excessively high temperatures, such
as expose under direct sunlight
* Don’t use scanner in extremely humid area or drastic temperature
change
* The rechargeable battery is permanently built into the product and
cannot be replaced.
* Never damage the rechargeable battery. Damaging the casing of
the rechargeable battery might cause an explosion or a fire!
Operating elements
** Please switch ON and charge scanner for 3~4 hours at first time
before use.
* In the beginning, you must press the orange trigger
button for 8 seconds to turn on the pocket barcode
scanner.
Then, press it for scanning barcodes & waking up from
sleeping mode.
* If you won’t use pocket scanner for quite a long time, you
can press 2 grey buttons to enter “Deep Sleep Mode” (like
turn-off).
Power Saving button:
Press the button for
2~3 seconds then enter
power saving mode
SCAN/ENTER/Power ON
Button
The button to raise/
lower ON-Screen
Keyboard (refer to left
column of page #6)
LED Indicator
Exit
Window
Mini USB port with protective cove
r
charge scanner via mini USB host cable

2
How to Connect to Smartphone or Tablet
1. Make sure your device supports BT HID or BT SPP profile
2. Turn off Power-Saving mode on your smartphone/tablet first
3. Then, choose HID or SPP device before connecting to
smartphone/tablet.
If you don’t know what profile your device is, please try HID profile
first, then, SPP profile.
1. Main MENU 2. select Setup
MAIN> S 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> S 12:52
Memor
y
-scan
Upload
Setup
↑ ENTER ↓
3. select BT setup
S> S 12:52
BT setup
Sleep time
Output Speed
ESC ENTER ↓
After you select what you want,
press the orange button to enter
the next or ESC button back to
the previous.
How to connect to SPP or HID device
SPP device (from A1 to A2); HID device (from B1 to B3)
A
1. select SPP device B1. select HID device
S/B> S 12:52
HID device
SPP device
don
g
le
ESC ENTER ↓
S/B> S 12:52
HID device
SPP device
don
g
le
ESC ENTER ↓
A
2. select Simple pairin
g
or Pairing
B2. select Simple pairin
g
or Pairing
S/B/S> S 12:52
Simple pairin
g
Pairin
g
ESC ENTER ↓
S/B/H> S 12:52
Simple pairin
g
Pairin
g
ESC ENTER ↓
A
3. Settin
g
… Completed. B3. Settin
g
… Completed.
Settin
g
…
Completed!!!
Settin
g
…
Completed!!!
After you select what you want, press the orange button to enter
the next or ESC button back to the previous.
1. click the “Settin
g
s” 2. click “General”
3. click “Bluetooth” 4. Turn it ON, and search the
Devices
5. Select “Rxxxxxx” to connect 6. When see the “Connected”
means the connection is OK.
(example: pairing with iPhone)
4. Please complete the connection procedures as the above photos.
5. After the connection is completed, the RED light will be OFF.
6. Please open WordPad or appropriate APP first, then, scan the barcodes
and the barcode data will show on the cursor side.
Notes:
* This product complies with Bluetooth standards. This device that
communicated with this product must support the same SPP or HID.
For other Bluetooth devices with other profiles we cannot guarantee a
connection before the product has been tested.
* The communication speed and range of the product may vary due to
obstacles and radio wave condition between the product and device to
which it is connected. Condition on the host device may also affect the
communication speed and range of the scanner.
LED Indicator Information
Oran
g
e LED ON Full char
g
ed
Oran
g
e LED Flashin
g
Char
g
in
g
/ Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Oran
g
e LED ON Good read (Batch mode)
Remark:
* When the battery power is too low, the Orange LED will flash and
beep once. Scanner should be charged immediately.
* In case the power consumed out totally; the RTC (Real Time Clock) will back
to original setting 01012000.
* If scanner shuts down it is recommended to charge it fully before
turning it back on.
* Under power-saving mode, there will not be LED indication when
charging.
Reset Configuration to Defaults
(scan from A1 to A2 for HID profile or B1 to B2 for SPP profile)
HID profile SPP profile
A1

B1

A2 B2

3
There are two operating modes on the
scanner
1. Direct-scan Mode
1. select Direct-scan 2a. BT connected, be
g
in to
scan the barcodes
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
D> H 12:52
ESC SCAN
2b. BT is disconnected.
D> H 12:52
Off line !!!
…Linkin
g
!
ESC
If BT is disconnected, please back
to page #2 and do the pairing
procedure again.
2. Memory-scan Mode
1. select Memor
y
-scan 2. be
g
in to scan the barcodes
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
M> H 12:52
ESC SCAN
Under Memory-scan mode, enable/disable “Quantity
entry” function
Disable “Quantity entry” (default)
1. disable “Quantity entry”
Setting code 2. begin the scan the barcodes
M> H 12:52
ESC SCAN
3. press DEL to delete the last
barcode data
4. be sure that you want to
delete the last barcode.
M> H 12:52
1234567
ESC SCAN DEL
M> H 12:52
The last code
Will be deleted !
A
re you sure ?
NO
Y
ES
Enable “
Q
uantit
y
Entry” function
,
decide the order of the output data to your device first
1.
Q
’ty first, then, barcode 2. Barcode first, then,
Q
’t
y
3. Enable “
Q
uantity Entry”
Setting code 4. begin the scan the barcodes
M> H 12:52
Scan code:
Q
’ty:
ESC SCAN
When “Quantity Entry” is enabled, decide how to type-in
the number.
By button (default) By scannin
g
the number code
C1. enable D1. enable
C2. scan the barcode D2. scan the barcodes
M> H 12:52
1234567
Q
’ty: 1
ESC SCAN ENTER
M> H 12:52
7654321
Q
’ty: 1
ESC SCAN ENTER
C3. Press the ENTER to type the q’ty D3. Press the ENTER to type the q’ty
M> H 12:52
1234567
Q
’ty: 1
ESC SCAN ENTER
M> H 12:52
7654321
Q
’ty: 1
ESC SCAN ENTER
C4. press ↓ to choose number,
then, press ENTER to confirm D4. scan numeric code (page #5)
M> H 12:52
1234567
Q
’ty: 5---
ESC ENTER ↓
M> H 12:52
7654321
Q
’ty: 5---
ESC SCAN
5. Then, scan the next barcode 5. end by X code, then,
be ready to scan the next
M> H 12:52
SCAN:
Q
’ty:
ESC SCAN
M> H 12:52
SCAN:
Q
’ty:
ESC SCAN
Upload data (Memory-scan)
1. press ESC, select Upload 2. BT connected, press
START to send data
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
U> H 12:52
Push START ke
y
to send data…
ESC START
3. After data upload, press
ERASE to delete memory data
4. be sure that you want to delete
memory data.
U> H 12:52
ESC SPEED ERASE
U/E> H 12:52
Data in memor
y
Will be erased!
A
re you sure?
NO
Y
ES
5. After you delete the memory data, it will be back to MAIN MENU
Switch from Memory-scan to Direct-scan mode
1. switch Memor
y
-scan to
Direct-scan mode
2. must delete all data in the
memory
D> H 12:52
Data in memor
y
will be erased!
Are you sure?
NO
Y
ES
Completed!!!
3. be
g
in to scan the barcode
D> H 12:52
ESC SCAN
Power-saving Mode
1. Main MENU 2. select Setup
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> H 12:52
Memor
y
-scan
Upload
Setup
↑ENTER ↓
3. select Sleep time 4. press ↓, decide the time to
enter sleeping mode
S> H 12:52
BT setup
Sleep time
Output Speed
ESC ENTER ↓
S/P/S> H 12:52
Sleep time
00
ESC ENTER ↓
* When charging, the scanner will not enter power-saving mode
automatically.

4

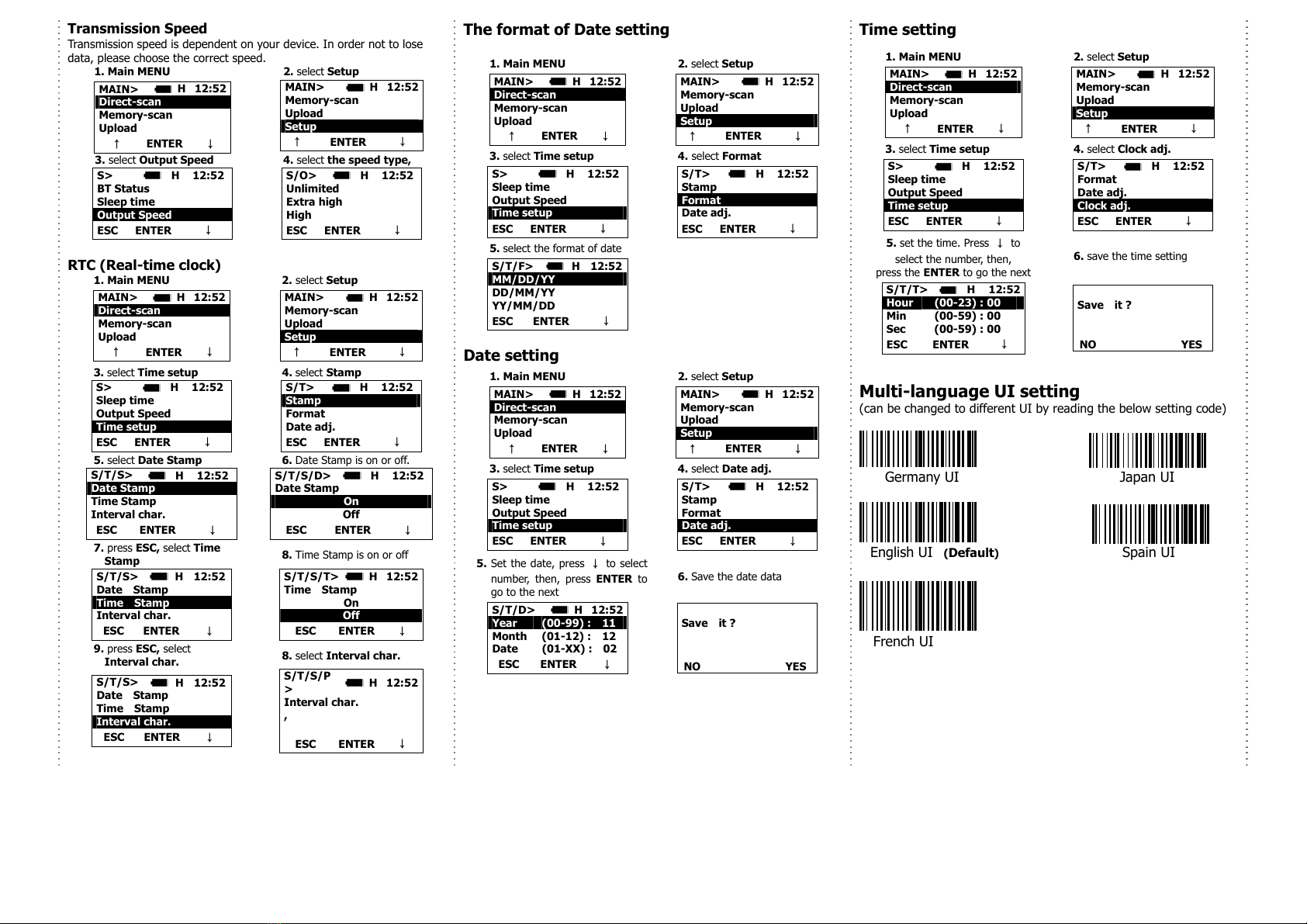

Transmission Speed
Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed.
1. Main MENU 2. select Setup
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> H 12:52
Memor
y
-scan
Upload
Setup
↑ ENTER ↓
3. select Output Speed 4. select the speed type,
S> H 12:52
BT Status
Sleep time
Output Speed
ESC ENTER ↓
S/O> H 12:52
Unlimited
Extra hi
g
h
Hi
g
h
ESC ENTER ↓
RTC (Real-time clock)
1. Main MENU 2. select Setup
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> H 12:52
Memor
y
-scan
Upload
Setup
↑ ENTER ↓
3. select Time setup 4. select Stamp
S> H 12:52
Sleep time
Output Speed
Time setup
ESC ENTER ↓
S/T> H 12:52
Stamp
Format
Date ad
j
.
ESC ENTER ↓
5. select Date Stamp 6. Date Stamp is on or off.
S/T/S> H 12:52
Date Stamp
Time Stamp
Interval char.
ESC ENTER ↓
S/T/S/D> H 12:52
Date Stamp
On
Of
f
ESC ENTER ↓
7. press ESC, select
T
ime
Stamp 8. Time Stamp is on or off
S/T/S> H 12:52
Date Stamp
Time Stamp
Interval char.
ESC ENTER ↓
S/T/S/T> H 12:52
Time Stamp
On
Of
f
ESC ENTER ↓
9. press ESC, select
Interval char. 8. select Interval char.
S/T/S> H 12:52
Date Stamp
Time Stamp
Interval char.
ESC ENTER ↓
S/T/S/P
> H 12:52
Interval char.
,
ESC ENTER ↓
The format of Date setting
1. Main MENU 2. select Setup
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> H 12:52
Memor
y
-scan
Upload
Setup
↑ENTER ↓
3. select
T
ime setup 4. select Format
S> H 12:52
Sleep time
Output Speed
T
ime setup
ESC ENTER ↓
S/T> H 12:52
Stamp
Format
Date ad
j
.
ESC ENTER ↓
5. select the format of date
S/T/F> H 12:52
MM/DD/Y
Y
DD/MM/Y
Y
Y
Y/MM/DD
ESC ENTER ↓
Date setting
1. Main MENU 2. select Setup
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> H 12:52
Memor
y
-scan
Upload
Setup
↑ENTER ↓
3. select
T
ime setup 4. select Date ad
j
.
S> H 12:52
Sleep time
Output Speed
T
ime setup
ESC ENTER ↓
S/T> H 12:52
Stamp
Format
Date ad
j
.
ESC ENTER ↓
5. Set the date, press ↓ to select
number, then, press ENTER to
go to the next
6. Save the date data
S/T/D> H 12:52
Y
ear (00-99) : 11
Month (01-12) : 12
Date (01-XX) : 02
ESC ENTER ↓
Save it ?
NO
Y
ES
Time setting
1. Main MENU 2. select Setup
MAIN> H 12:52
Direct-scan
Memor
y
-scan
Upload
↑ ENTER ↓
MAIN> H 12:52
Memor
y
-scan
Upload
Setup
↑ENTER ↓
3. select
T
ime setup 4. select Clock ad
j
.
S> H 12:52
Sleep time
Output Speed
T
ime setup
ESC ENTER ↓
S/T> H 12:52
Format
Date ad
j
.
Clock ad
j
.
ESC ENTER ↓
5. set the time. Press ↓ to
select the number, then,
press the ENTER to go the next
6. save the time setting
S/T/T> H 12:52
Hour (00-23) : 00
Min (00-59) : 00
Sec (00-59) : 00
ESC ENTER ↓
Save it ?
NO
Y
ES
Multi-language UI setting
(can be changed to different UI by reading the below setting code)
Germany UI Japan UI
English UI (Default) Spain UI
French UI

5
How to append a “prefix” or a “suffix” to the
barcode data
prefix suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the required values (right, numeric barcode) for Prefix or Suffix
using the hex values for the desired HEX values from Prefix & Suffix
TABLE (below page)”
3. Then, end by scanning Code X (below, right)
* The max. of special characters is 5.
* When you append 1~4 required values for Prefix or Suffix, it must end
with Code X.
* It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the “0” “0” (above, right)
3. Then end by scanning Code X (below, right)
Numeric barcode for settings
Prefix & Suffix TABLE
HEX HID
(SPP) HEX HID (SPP) HEX HEX HEX HEX
01 CTRL A
(SOH) 19 CTRL
Y
(EM) 20SPACE388 50 P68h
02 CTRL B
(STX) 1A CTRL Z(SUB) 21 ! 39 9 51 Q69 i
03 CTRL C
(ETX) 1B ESC (ESC) 22 " 3A : 52 R 6A j
04 CTRL D
(EOT) 1C CTRL \ (FS) 23 # 3B ; 53 S6B k
05 CTRL E
(ENQ) 1D CTRL ] (GS) 24 $ 3C < 54 T 6C l
06 CTRL F
(ACK) 1E CTRL ^ (RS) 25 % 3D = 55 U6D m
07 CTRL G
(BEL) 1F CTRL _ (US) 26 & 3E > 56 V 6E n
08 Backspace
(BS) 27 ' 3F ? 57 W6F o
09 Tab
(HT) HEX HID Only 28 ( 40 @ 58 X 70 p
0A CTRL J
(LF) 80 F1 29 ) 41 A 59 Y71 q
0B CTRL K
(VT) 81 F2 2A * 42 B 5A Z 72 r
0C CTRL L
(FF) 82 F3 2B + 43 C 5B [73 s
0D Ente
r
(CR) 83 F4 2C , 44 D 5C \ 74 t
0E CTRL N
(SO) 84 F5 2D - 45 E 5D ]75 u
0F CTRL O
(SI) 85 F6 2E . 46 F 5E ^ 76 v
10 CTRL P
(DLE) 86 F7 2F / 47 G 5F _77 w
11 CTRL Q
(DC1) 87 F8 30 0 48 H 60 ` 78 x
12 CTRL R
(DC2) 88 F9 31 1 49 I 61 a79 y
13 CTRL S
(DC3) 89 F10 32 2 4A J 62 b 7A z
14 CTRL T
(DC4) 8A F11 33 3 4B K 63 c7B {
15 CTRL U
(NAK) 8B F12 34 4 4C L 64 d 7C |
16 CTRL
V
(SYN) 35 5 4D M 65 e7D }
17 CTRL W
(ETB) 36 6 4E N 66 f 7E ~
18 CTRL
X
(CAN) 37 7 4F O 67 g
Keyboard Country
Scan the appropriate country code below to
program the keyboard for your country or
language. As a general rule, the following
characters are not supported by the scanner for
countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~
Follow the steps mentioned below to program.
1. Keyboard Country setting code.
2. “Select Country Code”
Read numeric barcode (according to country code table).
Country/
Language No. Country/ Language No. Country/ Language No.
U.S. 10 Netherlands 26 Switzerland
French 45
Latin
America 11 Hungary 27 Switzerland German 46
Brazil 12 Italian 28 Sweden 47
Belgium 20 Icelandic 29 Turkey F 48
Bulgarian
Latin 21 Norway 30 Turkey Q 49
Denmark 22 Poland 41 Japan 71
Finland 23 Portugal 42 Korea 72
France 24 Russia 43 Thai 73
Germany 25 Spain 44 Vietnam 74
0
6C
1 7
D
2 8
E
3 9
F
4
A
5
B X

6
Soft-Keyboard setting code for Android / iOS
For Android
For iOS
* Under Android system:
If you want to raise/lower On-Screen keyboard, please
read the above setting code first. Then, press left button
for 2 seconds to activate this function (LED is RED
/Bluetooth is offline), press it again to lower keyboard
(LED is off/ Bluetooth is online).
*It will take 5~10 seconds to make BT
online/offline.
*Please be noted that when BT is offline,
scanning function is stopped.
* Under iOS system:
If you want to raise/lower On-screen keyboard, please
read the above setting code first. Then, press left button
for 2 seconds to raise/lower soft-Keyboard;
Trigger Mode
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the
device)
1D Symbologies -1
ENABLE
UPC-A/E DISABLE
ENABLE
JAN/EAN DISABLE
ENABLE
Code 39 DISABLE
ENABLE
Tri-optic DISABLE
ENABLE
CODE 93 DISABLE
ENABLE
CODE 11 DISABLE
1D Symbologies -2
ENABLE
Interleaved
25 DISABLE
ENABLE Industrial 25 DISABLE
ENABLE Matrix 25 DISABLE
ENABLE
Chinese Pos
t
Matrix 25 DISABLE
ENABLE MSI/Plessey DISABLE
ENABLE UK/Plessey DISABLE










7

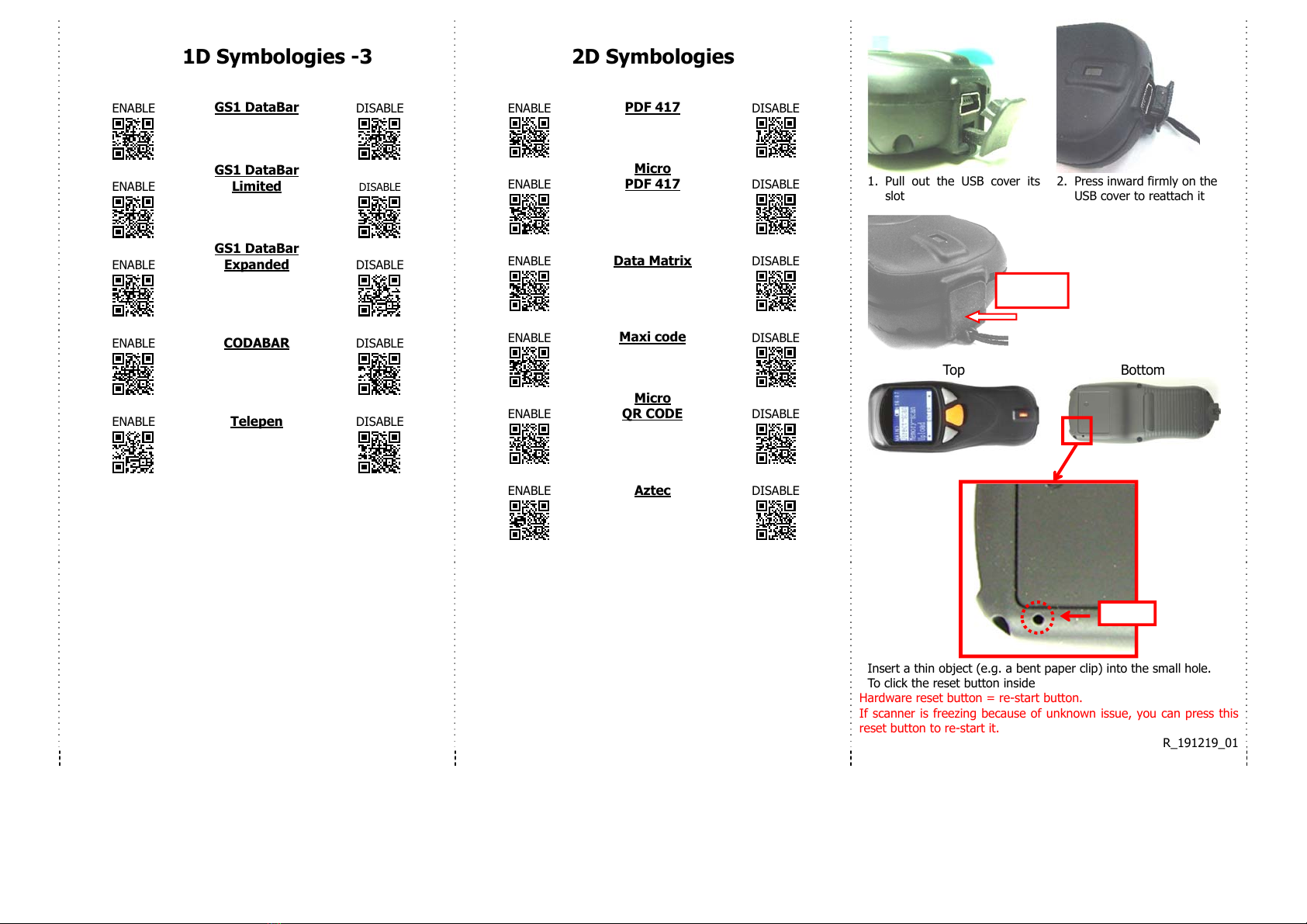

1D Symbologies -3
ENABLE GS1 DataBar DISABLE
ENABLE
GS1 DataBar
Limited
DISABLE
ENABLE
GS1 DataBar
Expanded DISABLE
ENABLE CODABAR DISABLE
ENABLE Telepen DISABLE
2D Symbologies
ENABLE PDF 417 DISABLE
ENABLE
Micro
PDF 417 DISABLE
ENABLE Data Matrix DISABLE
ENABLE Maxi code DISABLE
ENABLE
Micro
QR CODE DISABLE
ENABLE Aztec DISABLE
1. Pull out the USB cover its
slot
2. Press inward firmly on the
USB cover to reattach it
Top Bottom
Insert a thin object (e.g. a bent paper clip) into the small hole.
To click the reset button inside
Hardware reset button = re-start button.
If scanner is freezing because of unknown issue, you can press this
reset button to re-start it.
R_191219_01
Quick guide is subject to change without notice.
Pressing
direction
Reset
