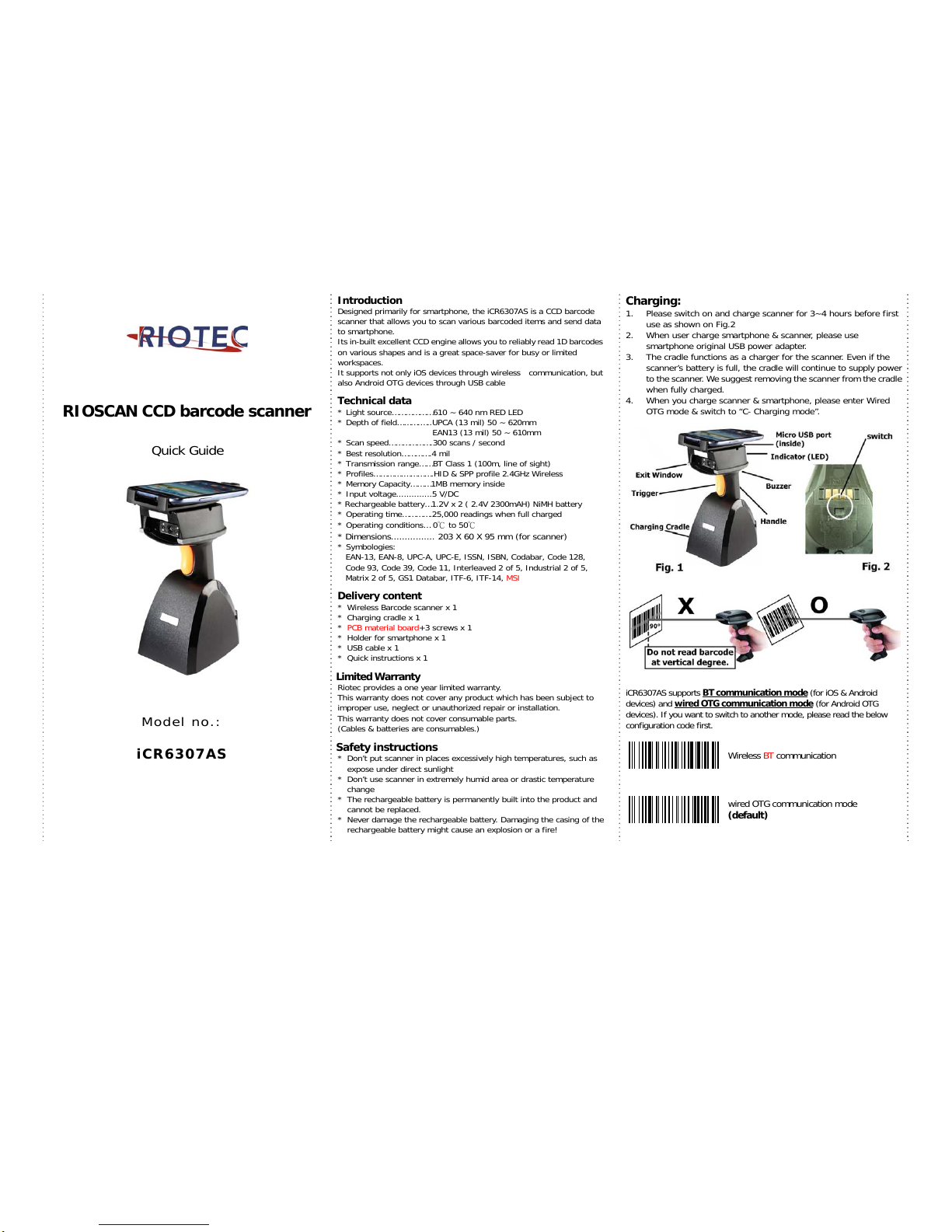

RIOTEC RIOSCAN iCR6307AS User manual

1
RIOSCAN CCD barcode scanner
Quick Guide
Model no.:
iCR6307AS
Introduction
Designed primarily for smartphone, the iCR6307AS is a CCD barcode
scanner that allows you to scan various barcoded items and send data
to smartphone.
Its in-built excellent CCD engine allows you to reliably read 1D barcodes
on various shapes and is a great space-saver for busy or limited
workspaces.
It supports not only iOS devices through wireless communication, but
also Android OTG devices through USB cable
Technical data
* Light source………………610 ~ 640 nm RED LED
* Depth of field……….…..UPCA (13 mil) 50 ~ 620mm
EAN13 (13 mil) 50 ~ 610mm
* Scan speed……………….300 scans / second
* Best resolution………….4 mil
* Transmission range……BT Class 1 (100m, line of sight)
* Profiles………….………….HID & SPP profile 2.4GHz Wireless
* Memory Capacity………1MB memory inside
* Input voltage..............5 V/DC
* Rechargeable battery…1.2V x 2 ( 2.4V 2300mAH) NiMH battery
* Operating time………….25,000 readings when full charged
* Operating conditions… 0℃to 50℃
* Dimensions................ 203 X 60 X 95 mm (for scanner)
* Symbologies:
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128,
Code 93, Code 39, Code 11, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of 5, GS1 Databar, ITF-6, ITF-14, MSI
Delivery content
* Wireless Barcode scanner x 1
* Charging cradle x 1
* PCB material board+3 screws x 1
* Holder for smartphone x 1
* USB cable x 1
* Quick instructions x 1
Limited Warranty
Riotec provides a one year limited warranty.
This warranty does not cover any product which has been subject to
improper use, neglect or unauthorized repair or installation.
This warranty does not cover consumable parts.
(Cables & batteries are consumables.)
Safety instructions
* Don’t put scanner in places excessively high temperatures, such as
expose under direct sunlight
* Don’t use scanner in extremely humid area or drastic temperature
change
* The rechargeable battery is permanently built into the product and
cannot be replaced.
* Never damage the rechargeable battery. Damaging the casing of the
rechargeable battery might cause an explosion or a fire!
Charging:
1. Please switch on and charge scanner for 3~4 hours before first
use as shown on Fig.2
2. When user charge smartphone & scanner, please use
smartphone original USB power adapter.
3. The cradle functions as a charger for the scanner. Even if the
scanner’s battery is full, the cradle will continue to supply power
to the scanner. We suggest removing the scanner from the cradle
when fully charged.
4. When you charge scanner & smartphone, please enter Wired
OTG mode & switch to “C- Charging mode”.
iCR6307AS supports BT communication mode (for iOS & Android
devices) and wired OTG communication mode (for Android OTG
devices). If you want to switch to another mode, please read the below
configuration code first.
Wireless BT communication
wired OTG communication mode
(default)

2
Operating elements
* Please switch ON and charge scanner for 3~4 hours at first
time before use.
How to Connect to Smartphone via BT
1. Make sure the default is BT mode (below right, page #1) & your
device supports BT HID or SPP profile
2. Turn off Power-Saving mode on your smartphone/tablet
3. Then, choose HID or SPP profile and scans the following 2
settings codes before connecting to smartphone/tablet.
(A1 A2 or B1 B2)
If you don’t know which profile to choose for your device, try HID
first, then, SPP.
HID profile SPP profile
A1 B1
A2 B2
1. click the “Settings” 2. click “General”
3. click “Bluetooth” 4. Turn it ON, and search the
Devices
5. Select “Rxxxxxx” to connect 6. When see the “Connected”
means the connection is OK.
(example: pairing with iPhone)
4. Please complete the connection procedures as the above
photos.
5. After the devices are paired, the screen will show
“Connected”. (see step #6 above)
6. Before using WordPad file or appropriate APP, please set
keyboard language of device to US English. Then, scan the
barcodes and the barcode data will show on the cursor side. If
the data cannot be sent to smartphone/tablet, please scan the
“Reset Configuration to Defaults” setting codes (on page #3)..
Notes 1:
* This product complies with Bluetooth standards. This device used
with this product must support the same SPP or HID standard. For
Bluetooth devices with other profiles we cannot guarantee a
connection before the product has been tested.
* The communication speed and range of the product may vary due to
obstacles and radio interference between the product and device.
Condition on the host device may also effect the communication
speed and range of the scanner
Note 2:
* When the battery power is too low, the Orange LED will flash
and beep once. Scanner should be charged immediately. If
scanner shuts down it is recommended to charge it fully then
power it back on.
Tri
gg
er / Power ON
Button
(For iOS Device ONLY)
Press the trigger for 4~5
seconds to raise and lower
soft-Keyboard
Exit
Window
Micro USB port (OTG)
Use Micro USB cable to
connect to smartphone.
Charging
cradle
Indicator
(LED)
Before enterin
g
BT mode, you
must switch to right “C”
(Charging mode) first.
T
hen, cradle can supply
power to smartphone
/scanner batteries through
micro USB cable
simultaneously.
Indicator (LED)
Please check the “LED
Indicator Information” on
page #3

3
Reset Configuration to Defaults
(scan from A1 to A8 for HID profile or B1 to B8 for SPP profile)
HID profile SPP profile
A1 B1
A2 B2
A3 B3
A4 B4
A5 B5
A6 B6
A7 B7
A8 B8
How to Connect to Smartphone via OTG cable
1. Make sure you enter wired OTG mode (below right, page #1)
and your Android device supports OTG functionality.
2. Make sure scanner is in “O” (OPERATION MODE) (see below)
3. Connect scanner to Android OTG device through micro USB cable.
4. Scan the barcode
5. Open app on smartphone/tablet & data will be sent to the app
directly
LED Indicator Information
Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Orange LED ON Good read (Batch mode)
After the scanner connects to your iOS device and is inserted into
cradle, it may display the above message.
If this happens, remove and reinsert device into cradle.
Keyboard Country
(Wired OTG mode only)
Scan the appropriate country code as below to program the
keyboard layout for your country or language. As a general
rule, the following characters are supported, but need special
care for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~
USA
(Original setting)
Italian
Norway
France
Germany
Vietnam
Sweden
Spain
Denmark
P
ortu
g
al
Switzerland Hun
g
ary
Switch to left:
“
O” (Operation mode)
(data transmission)
Switch to right:
“
C” (Charging mode)
Indicator (LED)
Please check the
“
LED Indicator
Information”

4
PCB material board with 3 fixed screws.
1. Make sure your micro USB cable is ready.
User can adjust micro USB cable to the right channel based on the
location & direction of micro USB port on the smartphone.
2. Lock PCB material board on the top cover by 3 screws
3. There are another 3 fixed screws on the PCB material board.
Aiming at fixed screws put holder on them pull down and left
for locking
(The transparent acrylic board is for reference only)
1. The holder is stuck on the top cover by 3 fixed screws.
2. Put smartphone onto holder. It will use PU glue & suction cup to fix
smartphone. And, user can plug micro USB cable to
smartphone. Then, user can begin to do the BT pairing or wired
connection.
3. When the pairing is completed, the data you scan will be sent to
smartphone easily.
There are two operating modes on the scanner
1.Data Transmission mode(Default)
It is a necessary to scan
“
clean memor
y
data
”
when
switching between these two modes.
Within 2.4GHz radi
o
ran
ge
Beyond 2.4GHz radio ran
ge
Data
read Transmit data to smartphone/tablet directly
Save data in scanner’s memory,
scanner will transmit data to
smartphone/tablet automatically
after getting back to 2.4GHz radio
range.
Enter Data Stora
g
e mode
LED Green/ Oran
g
e LE
D
flashes,
followed by 3 beeps.

2. Data Storage mode(Batch Mode)



It is a necessary to scan
“
clean memor
y
data
”
when
switching between these two modes.
Data
read
Save data directly to scanner’s memory. It will transmit data to
smartphone/tablet after you scan the Transmit memory data
code. To delete data, please scan the Clean memory data code.
Enter Data Transmission mod
e
LED Green/ Oran
g
e LED
f
lashes followed by 3 beeps.
Always Clean memory data before switchin
g
to Data Transmission
Mode.
Otherwise Red/ Orange LED will flash with one long beep sounds
and will not switch modes.

A
. Data Transmission mode
(Default)
1. When you are out of BT signal range,
the data you scan will be saved to
memory. Once you are back within
range, the data will be sent to
smartphone/tablet automatically.
B. Data Storage mode(Batch mode)
1. Data Storage mode (Batch mode):
When you scan the barcodes, the data
will be saved directly to scanner’s
memory. After you scan the
“Transmit memory data” code
(above right), the data will be sent to
smartphone/tablet.
2. Before you can continue to scan or
switch modes, you must first delete
the data stored in the memory. To do
this, scan the “Clean memory data”
code. (below right)
Transmit memory data
Green/Oran
g
e LED flashes
followed by 3 beeps
The barcode data which is stored
in the memory will be sent to
smartphone/tablet directly.
(under Batch mode, within
Bluetooth service range)
Clean memory data
Green/Oran
g
e LED flashes
followed by 3 beeps.
The barcode data which is stored
in the memory will be deleted. You
can then switch modes.

Holder
PCB material board
with 3 fixed screws.
Holder-back side
(for top cover) Holder-front side
(for smartphone)

5

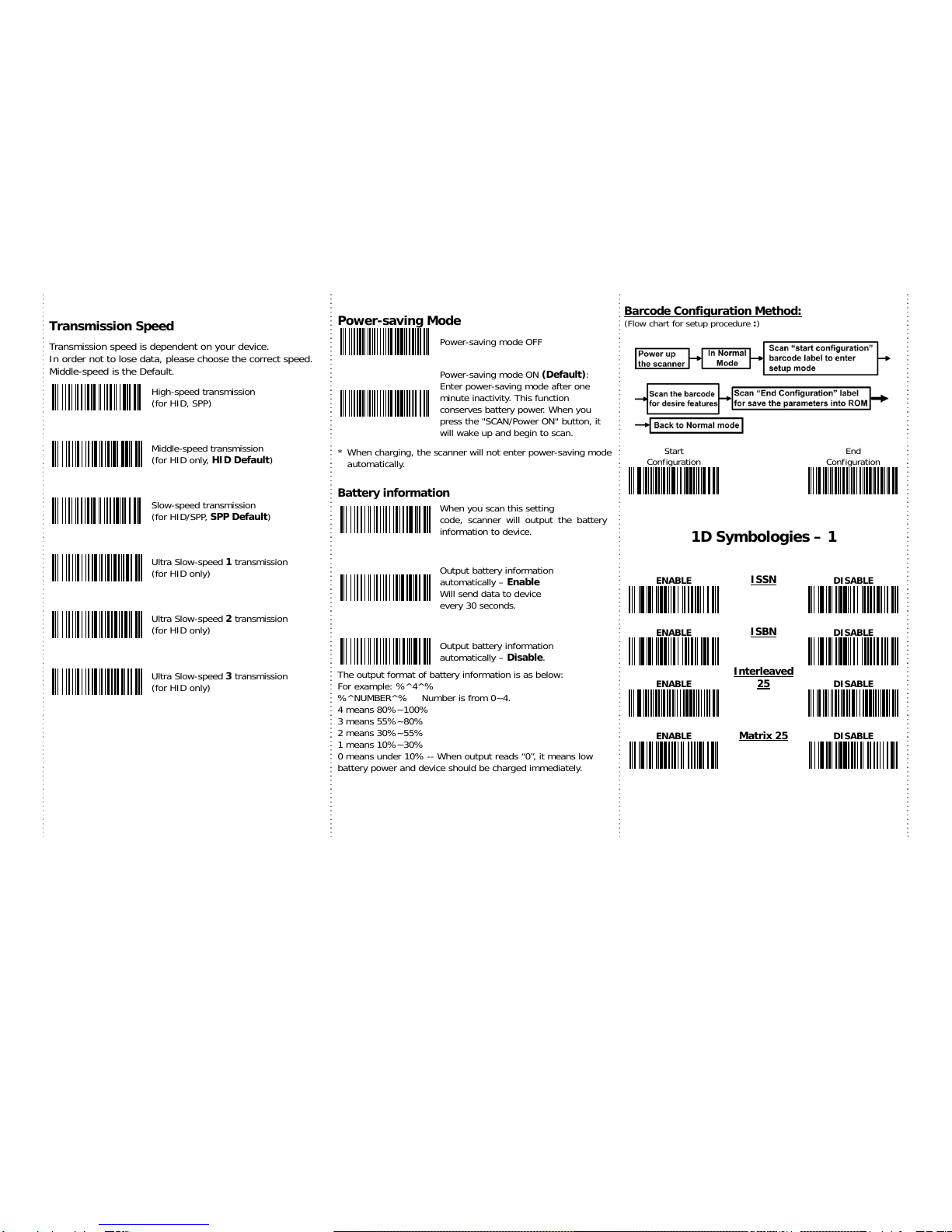

Transmission Speed
Transmission speed is dependent on your device.
In order not to lose data, please choose the correct speed.
Middle-speed is the Default.
High-speed transmission
(for HID, SPP)
Middle-speed transmission
(for HID only, HID Default)
Slow-speed transmission
(for HID/SPP, SPP Default)
Ultra Slow-speed 1 transmission
(for HID only)
Ultra Slow-speed 2 transmission
(for HID only)
Ultra Slow-speed 3 transmission
(for HID only)
Power-saving Mode
Power-saving mode OFF
Powe
r
-savin
g
mode ON (Default):
Enter power-saving mode after one
minute inactivity. This function
conserves battery power. When you
press the "SCAN/Power ON" button, it
will wake up and begin to scan.
* When charging, the scanner will not enter power-saving mode
automatically.
Battery information
When you scan this settin
g
code, scanner will output the battery
information to device.
Output battery information
automatically – Enable
Will send data to device
every 30 seconds.
Output battery information
automatically – Disable.
The output format of battery information is as below:
For example: %^4^%
%^NUMBER^% Number is from 0~4.
4 means 80%~100%
3 means 55%~80%
2 means 30%~55%
1 means 10%~30%
0 means under 10% -- When output reads “0”, it means low
battery power and device should be charged immediately.
Barcode Configuration Method:
(Flow chart for setup procedure :)
Start
Configuration End Configuration
1D Symbologies – 1
ENABLE
ISSN DISABLE
ENABLE
ISBN DISABLE
ENABLE Interleaved
25
DISABLE
ENABLE
Matrix 25 DISABLE

6
Barcode Configuration Method:
(Flow chart for setup procedure :)
Start
Configuration End Configuration
1D Symbologies – 2
ENABLE GS1-Databar
(RSS) DISABLE
ENABLE GS1-Databar
(RSS-Limited) DISABLE
ENABLE GS1-Databar
(RSS-Expand) DISABLE
ENABLE
CODE 93 DISABLE
1D Symbologies – 3
ENABLE
Industrial 25 DISABLE
ENABLE
Plessey DISABLE
ENABLE MSI-
Plessey DISABLE
ENABLE
CODE 128 DISABLE
ENABLE GS1-128
UCC/EAN-128
DISABLE
ENABLE
CODE 11 DISABLE
ENABLE
CODABAR DISABLE
ENABLE
CODE 39 DISABLE
1D Symbologies – 4
ENABLE
EAN-8 DISABLE
ENABLE
EAN-13 DISABLE
ENABLE
UPC-E DISABLE
ENABLE
UPC-A
DISABLE
ENABLE CODE 39
FULL ASCII
DISABLE
ENABLE
CODE 39
Transmit
Start/Stop
Character DISABLE
Quick guide is subject to change without notice. R_160302_05
