Rohnson R-860 User manual

Stand fan with double blade and remote
control
Model: R-860
INSTRUCTION MANUAL

IMPORTANT SAFEGUARDS
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
•To operate this device safely, the user must have read and understood these
instructions for use before using the device for the first time.
•Observe all safety instructions! Failure to do so may cause harm to you and others.
•Retain all instructions for use, and safety instructions for future reference.
•If you sell or pass the device on, you must also hand over these operating instructions.
•The device must only be used when it functions properly. If the product or part of the
product is defective, it must be taken out of operation and disposed of correctly.
•Never use the device in a room where there is a danger of explosion or in the vicinity
of flammable liquids or gases.
•Always ensure that a device which has been switched off cannot be restarted
unintentionally.
•Do not use devices with an on/off switch that does not function correctly.
•Keep children away from the device! Keep the device out of the way of children and
other unauthorized persons.
•Do not overload the device. Do not use the device for purposes for which it is not
intended.
•Exercise caution and only work when in good condition: If you are tired, ill, if you
have ingested alcohol, medication or illegal drugs, do not use the device, as you are not
in a condition to use it safely.
•This product is not intended to be used by persons (including children) or who are
limited in their physical, sensory or mental capacities or who lack experience and/or
knowledge of the product unless they are supervised, or have been instructed on how to
use the product, by a person responsible for their safety.
•Ensure that children are not able to play with the device.
•Always comply with all applicable domestic and international safety, health, and
working regulations.

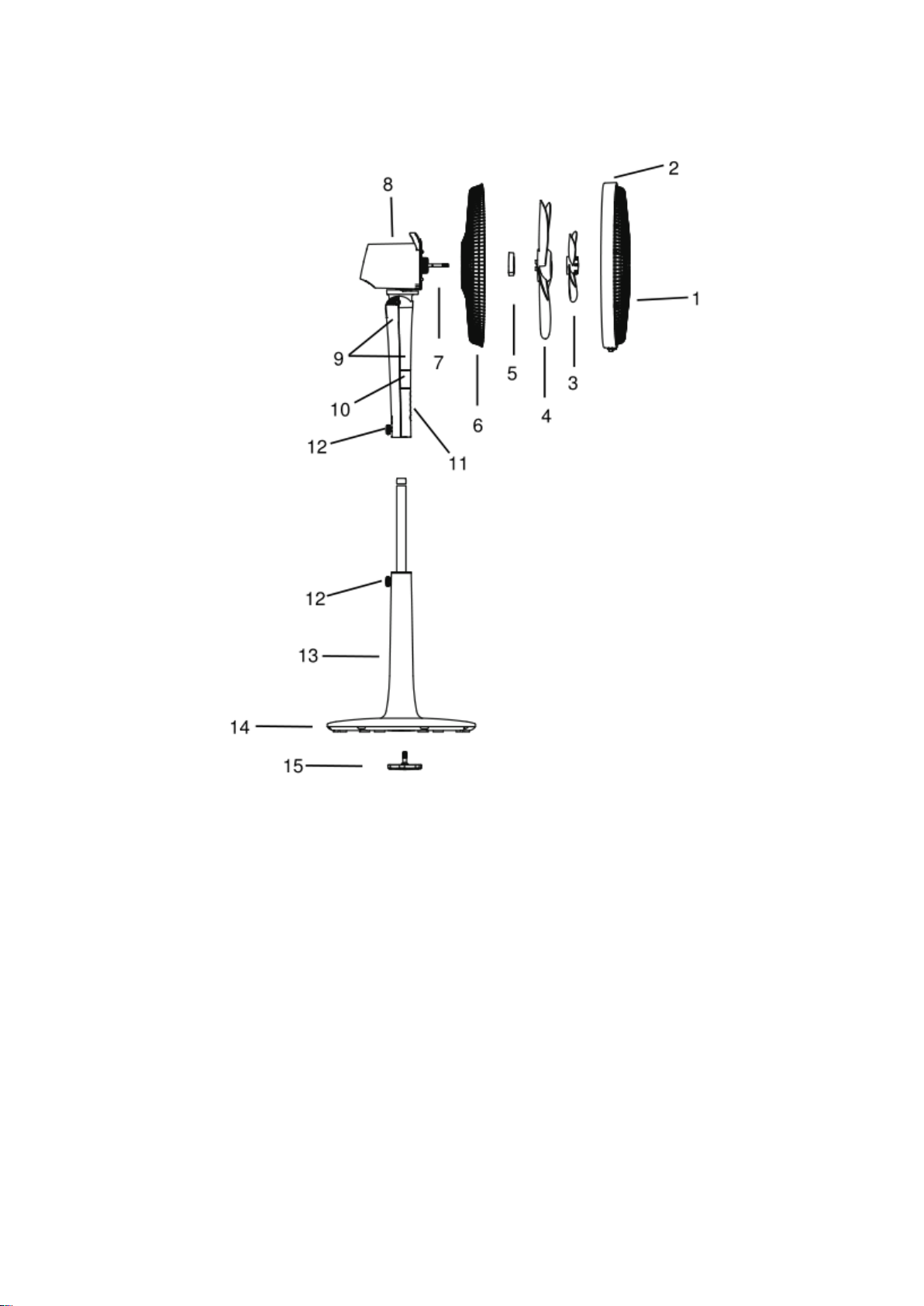

Structures:
1- Front grill
2- Circlip
3- Small blade
4- Fan blade
5- Plastic nut
6- Rear grill
7- Shaft
8- Motor
9- Fan body
10-Display window
11-Control part
12-Screw
13-Pole
14-Base
15-Base fixing nut

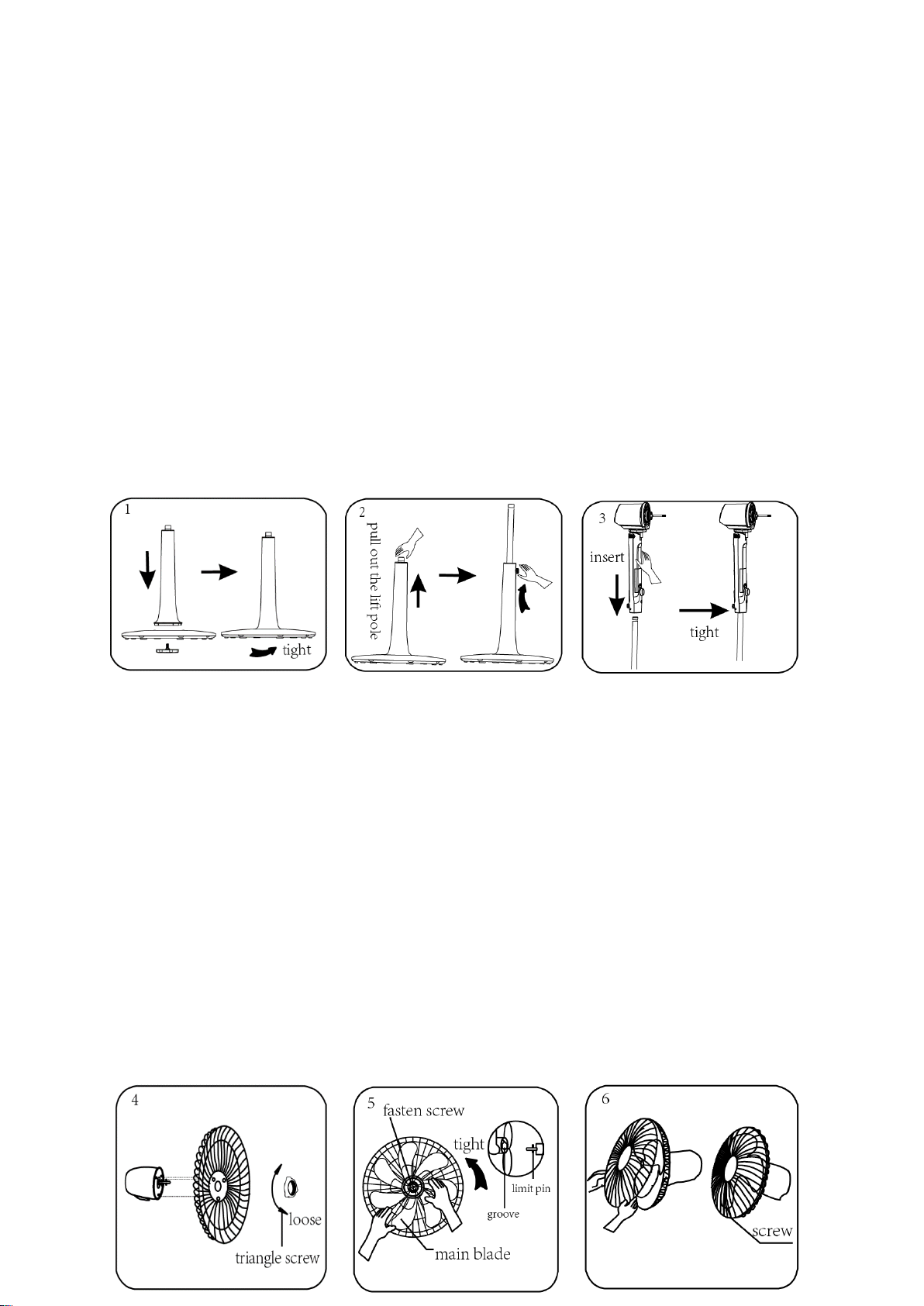

Assembly instructions
1. Attach the base stand to the hole on the base.
Unscrew and remove the base fixing nut from the base stand if is tightened to the base
stand.
2. Position the base fixing nut on the other side of the base and firmly tighten it by
turning clockwise.
3. To disassembly, loosen the base fixing nut and detach the base stand from the base.
4. Loosen the fan head locking nut. Slightly increase the height of the extension tube
as described in section
Height adjustment. Attach the fan head to the extension tube of the base stand.
5.
Firmly tighten the extension tube locking nut by turning clockwise. To disassembly,
loosen the fan head
locking nut and detach the fan head from the extension tube.
Grill & Fan blade assembly
1. Put the rear guard on the adjustable head by inserting three holes on the rear guard
to the three pins on
the head. Firmly tighten the rear guard fixing nut by turning it clockwise.
2. Insert the big blade on the motor shaft with putting the attention of its correct
position. The two pins on
the motor shaft should match with two holes on the big blade holder.
3. Hold the big blade and firmly tighten the small blade to the motor shaft by turning
it anticlockwise.
Put the front guard on the rear guard. Make sure that each guide on the front guard is
locked in the outer
ring of the rear guard.
Close the plastic lock on the front blade. Firmly tighten the screw by turning it
clockwise.

Operating instructions
Plug in the power adapter, after a "beep" tone, the fan is on standby.
Remote controller
1. Timer
2. Speed increase
3. OSC
4. Speed decrease
5. On/Off
“ ” On/Off key
Press this button under standby mode, the fan starts at memorial speed which it
worked last time.
Press this button when the fan is working, it will be turned off to standby state.
“ ” + -
Press the button + on the remote controller to increase fan speed. Press the button - on
the remote controller to decrease fan speed.
" " OSC key
After the fan starts, repeatedly touch this button to start or stop oscillation.
" " Timer key
Turn the timer dial Press the timer button repeatedly to obtain the desired operating
time. (1 hour to 24 hours). Each time the button is pressed the time interval is
incremented upwards by 1 hour. The display panel will indicate timer value.
Timer ON Feature:
Select the time after which you want to operate the fan after the selected time is
elapsed the fan the unit will operate in normal mode.

While the unit is in standby mode press the timer button once and the display will
show up the selected time in hours. Press the same timer button to select the desired
time after which you want the fan to start, the time can be selected from 1 to 24 hours.
The fan will start to operate once the selected time is elapsed.
Timer OFF Feature:
While the fan is operating press the timer button and the timer OFF indicator will
illuminate and the display will show up the selected time in hours. Press the timer
button to select the desired time after which you want the fan to stop, the time can be
selected from 1 to 24 hours. Once the selected time is reached the fan will turn itself
off and will remain in standby mode.
Control panel
•On/Off button
Same as it on remote control.
•Mode button
Press the mode button repeatedly to select the desired mode of operation. The fan can
be set to run in three different modes of operation: Normal, Natural and Sleep. The
icon corresponding to selected mode will appear on the display panel.
1.Normal Mode :
Press the Mode button till the icon corresponding to the normal mode will glow on the
display panel. The Fan speed can be adjusted from 1 to 26 as per the requirements. In
this mode the fan will run at constant speed at which it is set.

2.Natural Mode:
In this mode the fan will operate in a preset program which varies the speed of the fan
giving a natural breeze effect.
In natural mode, the user can select among the 4 speeds，it is shown on the display：
04,03,02,01. And the air flow has variations. The change rule of each speed：
04 ：26（5S）→22（10S）→20（15S）→26（5S）→22（15S）→20（10S）
→26（5S）→ 22（10S）→ 20（15S）→ 26（5S）→ 22（15S）→ 20（10S）circulation
03：18（5S）→16（10S）→14（15S）→18（5S）→16（15S）→14（10S）
→18（5S）→ 16（10S）→ 14（15S）→ 18（5S）→ 16（15S）→ 14（10S）circulation
02：12（5S）→10（10S）→16（15S）→12（5S）→10（15S）→8（10S）
→12（5S）→ 10（10S）→ 16（15S）→ 12（5S）→ 10（15S）→ 8（10S）circulation
01：6（5S）→ 4（10S）→ 1（15S）→ 6（5S）→ 4（15S）→ 1（10S）→ 6（5S）
→4（10S）→1（15S）→6（5S）→4（15S）→1（10S）circulation
Sleep mode:
In sleep mode,the user can select among the 4 speeds and the unit is running under the
speed we have selected, it is shown on the display：04,03,02,01
But If we want to change the speed, the user has to move to natural mode or normal
mode, select the desired speed and then move to sleep mode again.
For example，when the normal speed on 21- 26 or natural on 04，you switch the sleep
mode，it is shown 04.
And there is variation in the air flow. the change rule of each speed：
04（21-26）：26（15min）→25（15min）→24（15min）.........→12（15min）
→11（15min）→10（15min）
03（18-14）：18（15min）→17（15min）→16（15min）........→9（15min）→8
（15min）→7（15min）
02（7-13）：13（15min）→12（15min）→11（15min）........→6（15min）→5
（15min）→4（15min）
01（1-6）：6（15min）→5（15min）→4（15min）→3（15min）→2（15min）
→1（15min）
•Timer button
Same as it on remote control.
•Speed button
Press this button to increase fan speed.
•OSC button
Same as it on remote control.

Tilt adjustment
To adjust the air flow upward or downward, push the guards lightly to the desired
direction.
Height adjustment
1. To increase or decrease the height of the fan, loosen the extension tube locking nut
and lift up or down the extension tube to the desired position.
2. Firmly tighten the extension tube locking nut to lock the extension tube.
Screen-off function
When the appliance is running for 60 seconds, there is no operation, the screen will
automatically turns off. In this state, click any button and the screen will light up. The
function runs after clicking the corresponding function button again.
Power off memory function
Memorize last status of appliance automatically when turn on again.
Cleaning
DANGER! Caution, risk of injury! Always pull the mains plug out before
commencing any work on the product.
–Turn off the product, pull out the mains plug.
–Wipe the product with a slightly damp cloth.
Troubleshooting
If something stops working…
Malfunctions are often caused by minor faults. You can easily remedy most of these
yourself. Please consult the following table before contacting the vendor. You will
save yourself a lot of trouble and possibly money too.
Fault
Cause
Remedy
Product not running.
No mains voltage?
Check cable, plug, socket and fuse.
Cable faulty?
Contact your local vendor.
If you can’t fix the fault yourself, contact your nearest vendor. Please be aware that
any improper repairs will also invalidate the warranty and additional costs may be
incurred.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It
must be taken to a special local authority differentiated waste collection center or to a
dealer providing this service. Disposing of a household appliance separately avoids
possible negative consequences for the environment and health, deriving form
inappropriate disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a crossed-out wheeled
dustbin.
