Rollplay Mini Cooper S Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
Owner’s Manual and Assembly Instructions
Model #: W456B
6V MINI COOPER S
®
IMPORTANT:
Save this manual with your sales receipt.
25701652 05/21

Introduction
Specifications:
BATTERY 6V 7AH
MOTOR 6V 15W
AGE 3 and Up
MAX WEIGHT 77 lbs. (35 kg)
PRODUCT SIZE 41.3 x 23.2 x 21.3 in. (105 x 59 x 54.2 cm)
SPEED Up to 4 km/h (2.5 mph)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle.
Please keep your sales receipt and register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions. Have your
model number and serial number ready before calling. Please have proof
of purchase.
Phone:
Email: [e-mail]
Hours: 8 AM - 5 PM EST, Monday - Friday

DO NOT RETURN YOUR PRODUCT TO THE STORE.
CONTACT ROLLPLAY WITH QUESTIONS.
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS (NO MORE THAN
30 HOURS) BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
E-mail Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Please provide proof of purchase. Keep your sales receipt and register your
product at www.rollplay.com, as we require proof of purchase.
[email protected]
Read this entire manual prior to
assembly to ensure safe operation
of the vehicle.

This page is intentionally left blank.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Steering Wheel......................13
Attach the Speedometer/Windshield .....14
Attach the Spoiler/Mirrors ......................15
Attach the Seat ........................................16
Battery Removal ......................................17
Operating Instructions............................18
Maintenance ............................................19
General Care ............................................20
Troubleshooting Guide............................21
FCC Information ......................................23
Customer Service ...............................24
Warranty ...................................................25
Notes ...................................................... 26
Product Registration ...............................27

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines or serious
injury or death may occur.
ALWAYS use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 77 lb (35 kg).
This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
Product Safety Commission (CPSC) Standard
Riders must always wear a fitted helmet that complies with U.S. Consumer
16 CFR 1203.
Only sit on the seat in the vehicle.
Do not allow more than one rider.
Do not overload the vehicle. Do not remove the weight restriction decals.
Do not tow the vehicle with another vehicle or similar device.
Keep body parts, such as hands, legs and hair, and clothing away from moving
parts. Moving parts can cause serious injury.
ALWAYS wear shoes while using the vehicle.
NEVER operate near roadways or motor vehicles.
Do not operate near drop-offs, such as steps, steep inclines or hills. Operate on
relatively level ground.
Do not operate near water, swimming pools or other bodies of water.
Do not operate near loose dirt, mud, sand or fine gravel.
Do not operate in dangerous weather conditions such as rain or snow.
Always use the vehicle in a safe, secure environment with adult supervision.
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
the vehicle. Direct adult supervision is REQUIRED.
RISK OF FIRE. Do not operate near flammable vapors (gasoline, paint thinner,
acetone, etc.). Remove batteries if product is to be left unused for a long time.
Do not bypass. Replace only with supplied 6V battery, charger and circuitry.
Always replace the whole set of batteries at one time, taking care not to mix old
and new batteries, or batteries of different types.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

7
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead components.
DO NOT open the battery.
PROPOSITION 65 WARNING: Battery posts, terminals and related accessories contain lead
and lead compounds, chemicals known to the State of California to cause cancer and
reproductive harm. Batteries also contain other chemicals known to the State of California
to cause cancer. WASH HANDS AFTER HANDLING.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

8Parts
• Phillips screwdriver
• 2 AA batteries
Not Included:
19
10 11 12 17
18
16
1. Manual
2. Battery
3. Steering Wheel
4. Seat
5. Rear Spoiler
6. Car Body
7. Front Wheel (2)
8. Rear Wheel (2)
9. Rims (4)
10. Small Washers (4+1)
11. Large Washers (4+1)
12. Snap Pins (4+2)
13. Speedometer
14. Mirrors (2)
15. Windshield
16. Charger
17. Nut
18. Steering Wheel Screw
19. Blister box

9
Charging Instructions
To Charge the Battery:
1. Ensure the car is stopped and the
power switch is turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug the battery
charger (D) into a 120 V outlet.
To Reconnect the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 17.
AC
Battery
A B
D
Seat
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
YOU MUST CHARGE THE BATTERY FOR 24
HOURS (NO MORE THAN 30 HOURS)
BEFORE THE FIRST USE!

10
Small washer
Front wheel
Snap pin
Small washer
Rim
Assemble the Front Wheels
1. Slide the large washer onto the front axle.
2. Slide the front wheel onto the front axle.
3. Slide the small washer onto the front axle.
4.
attached.
5. Snap the rim onto the wheel to complete the assembly.
6. Repeat steps 1-5 for the remaining front wheel.

11
Assemble the Left Rear Wheel
Rim
Snap
Pin
Left washer
Rear wheel
Assemble the Left Rear Wheel
1. Turn the car body upside down, pull the rear axle out of the hole, use
scissors to cut off the xing cable tie on the gear box (as shown in
gure a).
2. Rotate the gear box upwards, insert the rear axle through the hole in the
middle of the gear box and the car body (as shown in gure b).
3. Place rear wheel (the side with the gear teeth facing inward) and the
washer into the rear axle in order, ensure that the rear wheel gear teeth t
the gear box, lock it with the snap pin, then snap the rim onto the wheel
to complete the assembly (as shown in gure c).
ab
c

Assemble the Right Rear Wheel:
1. Slide the large washer onto the rear axle.
2. Slide the right rear wheel onto the rear axle. The side with the
gear teeth faces inward.
3. Slide the large washer onto the rear axle.
4.
attached.
5. Snap the rim onto the wheel to complete the assembly.
Large washer
Large washer
Rear wheel
Snap
Pin
Rim
12 Assemble the Right Rear Wheel

13
Attach the Steering Wheel
1. Remove the screw
and nut from the
steering wheel
assembly before
attaching.
2. Insert the steering
wheel into the
steering rod, and
match the screw
holes of the steering
wheel with the screw
holes on the steering
rod.
3. Insert the screw into
the hole and fasten
the nut to secure.
Steering wheel requires
2 AA batteries (not
included).
1. Open the battery
compartment cover with
2. Insert the two batteries
into the battery
compartment.
3. Replace the battery
compartment cover and
securely close with the
screw.
WARNING!
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
a Phillips screwdriver.

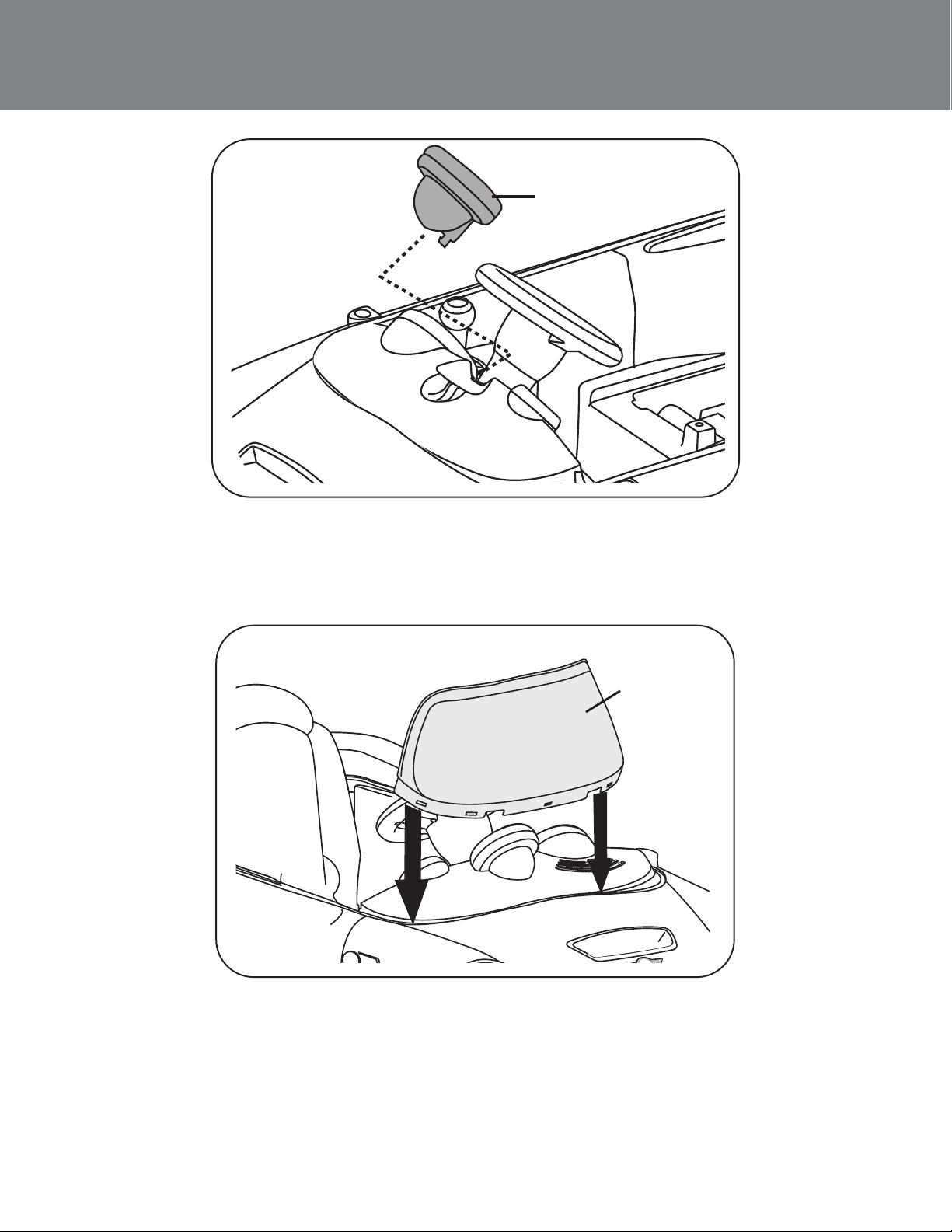

14 Attach the Speedometer/Windshield
1. Align the windshield (15) with the two side slots between the
dashboard and the body.
2. When evenly aligned, push lightly on the windshield while holding
at each end until it clicks. (Note: the two sides of the windshield
must be pushed in evenly.)
3. Push down lightly on the middle of the windshield until it clicks.
15
1. Align the speedometer (13) with the slot on the dashboard.
2. Push the speedometer slightly until you hear the click to complete
the assembly.
13

15
Attach the Spoiler/Mirrors
1. Line up the clips on the rear spoiler (5) with the slots on the back of
the car body.
2. Push the rear spoiler until it clicks and connects with the car body
to complete the assembly.
1. Insert the clip of the mirror (14) into the slot of the car body.
2. Push the clip into the slot until you hear a click to complete the
assembly.
3.
Please note that the left and right mirrors are different.
Repeat steps for the opposite mirror.
14
14
5
14

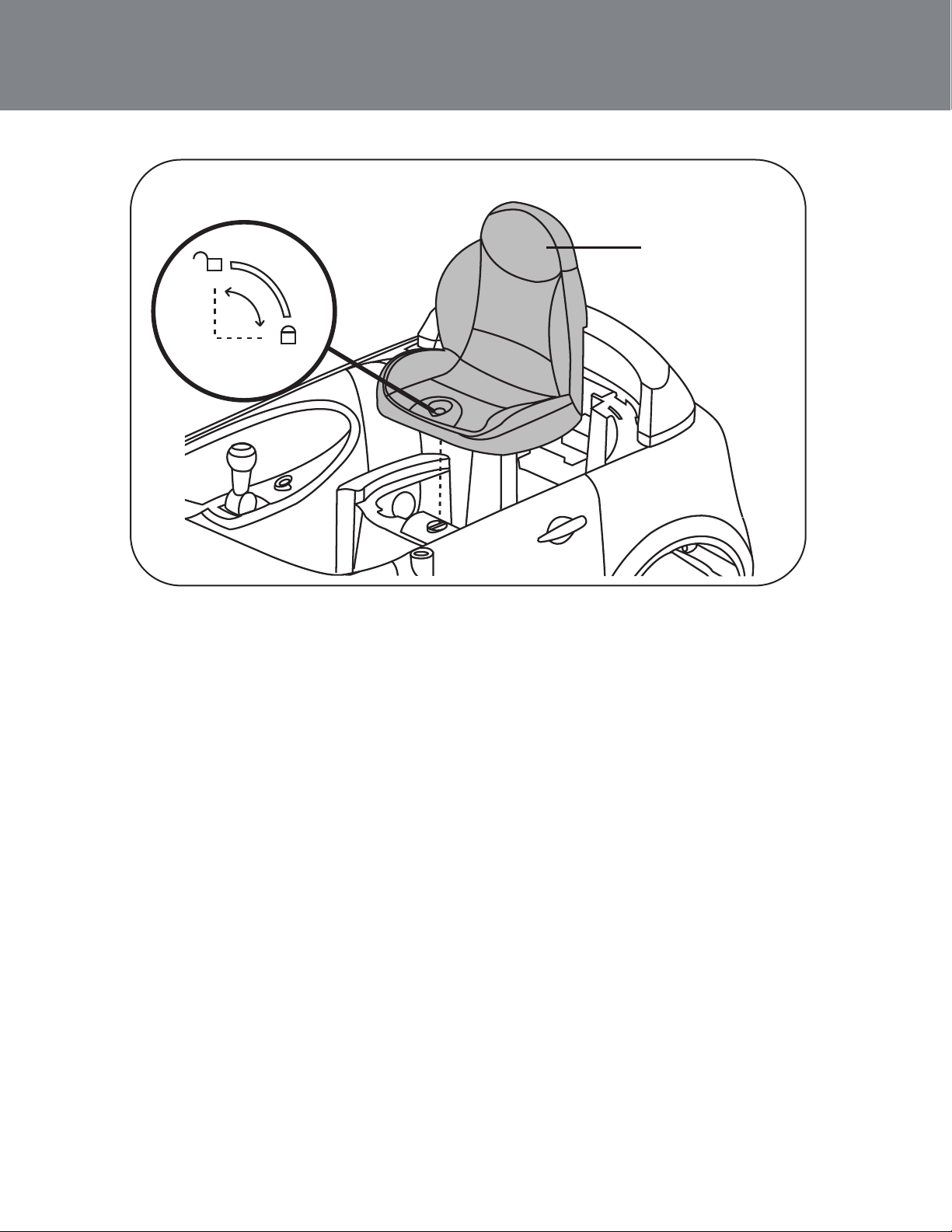

16 Attach the Seat
1. Position the seat (4) over the battery compartment.
2. Slide the seat onto the guides located in front of the rear spoiler.
3. Turn the thumb screw clockwise on the seat to lock it properly in
position.
Ensure the red battery connector is attached to the red engine
connector in the battery compartment before attaching the seat.
seat

17
Battery Removal
2. Disconnect the red battery connector (A) from the red engine
connector (B).
1. Unlock and remove the seat.
3. Loosen screw and remove the battery strap.
4. Remove the battery from the vehicle.
Note: It is not necessary to remove the battery for charging. However,
if the battery does not reach the outlet, then it can be removed for
charging.
Battery strap
Battery
Screw
AB

18 Operating Instructions
• To turn on the vehicle, turn the power switch to “I.” To turn off the
vehicle, turn the power switch to “O.”
• Push the shifter forward to move forward. Pull the shifter backward to
go in reverse.
• Press the foot pedal down to go. Release the foot pedal to stop.
• Press the left and right buttons on the steering wheel to make sounds.
• Note: The steering wheel must have batteries to make sounds. (See
Page 13 for directions.)
Power Switch
Shifter
PedalSteering Wheel
Horn Engine Sound

19
Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
•
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 24 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.
Charge the battery for 24 hours before using the vehicle for the rst
time. Do not charge for more than 30 hours.
Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.

• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Customer Service on Page 24 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
20 General Care
