Roma Medical Monza User manual

Monza
MODEL: S-889DXS
USER MANUAL
Please ensure that this manual is read and understood before
using the scooter.
Feb 06

Contents Page
Introduction 2
IntendedUse 2
Technical Specification 2
Feature Guide 3
Safety Advice 4
Adjustments
• Tiller angle 5
• Seat slide 5
• Seat swivel 5
• Seat height 5
• Arm Adjustment 5
Tiller Controls 6 & 7
Brake Release / Freewheel Operation 8
Starting to Drive
• Getting Started 8
• Moving Off 8
• Steering 9
• Reversing 9
• Gradients and Kerbs 9
Batteries and Battery Charger 10
Maintenance 11 & 12
Troubleshooting
• Circuit Breaker 12
• Fuses 12
• Check List 13
Further Information 13 & 14
Warranty
Page 1

Introduction
Congratulations on your purchase of the RMA/Shoprider® MONZA scooter.
This scooter incorporates comfort and style with the latest in technology. With
all round suspension and large wheels, you will find the MONZA comfortable
and easy to manoeuvre. It is also complemented with a full light set that
includes front and rear lights, indicators and hazard warning lights enabling it
to be used on public roads.
Intended Use
The MONZA was carefully designed for persons with limited mobility. It is for
indoor / outdoor use by a single occupant up to a maximum weight of 150kg /
23.5st.
The intended user should possess the necessary physical and visual skills to
operate the scooter safely. If you have any doubt, please consult your dealer /
prescriber.
The MONZA is a Class 3 / C vehicle and is not legally defined as a motor
vehicle, and therefore the user is not required to possess a driving license. It
is exempt from road tax and MOT certification.
A Class 3 / C vehicle can only be used by a person suffering from some
physical defect or physical disability aged 14 or over, or by an able bodied
person who is demonstrating a vehicle before sale, training a disabled user or
taking the vehicle to or from a place for maintenance or repair.
A Class 3 / C vehicle can be used on public roads, but not on motorways,
cycle lanes or bus lanes. When used on pavements or in pedestrian areas the
scooter MUST be switched to its lower speed limit (see page 6). It is not
recommended that the scooter is used on a dual carriageway, but if it is
necessary an amber coloured flashing beacon must be used to warn other
road users of your presence. Always seek an alternative route wherever
possible.
It is important that the user reads and understands the safety advice given
within this manual before attempting to operate the product to avoid possible
injury to the user or bystanders and avoid damage to the scooter or
surrounding property.
Technical Specification
The MONZA is classified as:
Class 1 Medical Device
Class 3/C Outdoor/Indoor Vehicle
Overall Size Seat Dimensions
Length 1450mm Width 470mm
Width 660mm Depth 440mm
Height 1105mm Height to floor pan 430-510mm
Max. Speed 12km/h (8ph) &
6km/h (4mph) Backrest height to lowest
seat
660-790mm
Weight with Batteries 129kg Range 55km (35m)*
Maximum user weight 150kg / 23.5st Battery charger (off board) 8 amp
Max. Climbing angle 8º (14%) Batteries 2 x 73/75Ah
*Passenger weight, rough ground conditions, low temperatures and battery
condition can affect maximum range.
Page 2

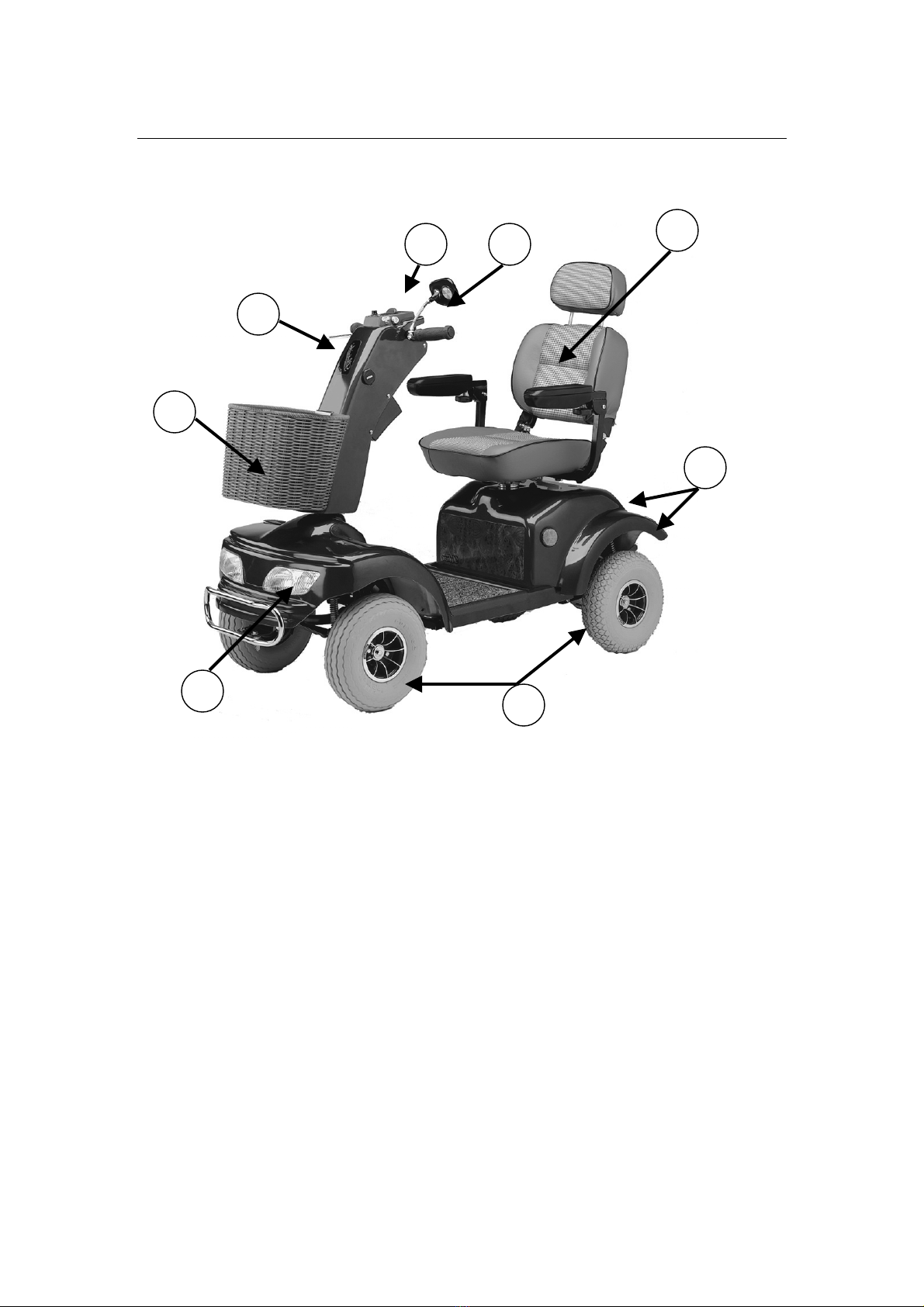

Feature Guide
1. Rear view mirror
2. Tiller controls
3. Fully adjustable ‘Captain’s’ seat
4. Rear anti-tippers
5. 315mm (13”) pneumatic rear wheels with non-marking tyres
6. Full lights set
7. Adjustable angle steering tiller
8. Handy front basket
12 3
4
5
6
7
8
Page 3

Safety Advice
DO:
• Read this manual carefully before using your scooter.
• Turn the power off when transferring to and from the scooter.
• Select a slow speed when going down gradients or over uneven
ground.
• Keep your feet inside the scooter whilst driving.
• Ensure the batteries are fully charged before your journey.
• Avoid rough or soft terrain and long grass wherever possible.
• Be aware of other road users and pedestrians. If driving on the road
you MUST adhere to the Highway Code.
• Use lights whenever necessary.
• Turn the power off when not in use.
• Follow the maintenance guide to ensure safe operation of the scooter.
• Always remove the keys if leaving the scooter unattended.
Unauthorised persons/children may use the scooter resulting in injury.
DO NOT:
• Carry passengers.
• Exceed inclines over 8° (14%).
• Traverse inclines.
• Attempt inclines if the surface is slippery.
• Turn sharply at full speed.
• Exit or enter the scooter unless the power is switched off.
• Switch off the power whilst driving – this will cause the scooter to stop
abruptly and could damage the controls.
• Use the scooter where you cannot safely or legally walk.
• Attempt to climb kerbs over 10cm (4”) high.
• Use the scooter if under the influence of alcohol or any medication.
• Use a mobile phone whilst driving.
• Attempt to negotiate steps or escalators.
• Sit on the scooter if being transported in a vehicle.
• Attempt to tow any other devices.
• Exceed the stated weight limit.
• Connect any other devices to the batteries as this could cause
permanent damage and void your warranty.
• Use any other batteries/charger other than those supplied by RMA.
• Travel through water or over soft terrain (mud, sand etc.).
• Lift the scooter by the shroud assembly or any plastic part.
• Sharply shift your centre of gravity as this could make the scooter
unstable.
Every care has been taken to ensure that your scooter will give you safe,
reliable service provided you adhere to the advice given above.
Page 4

Adjustments

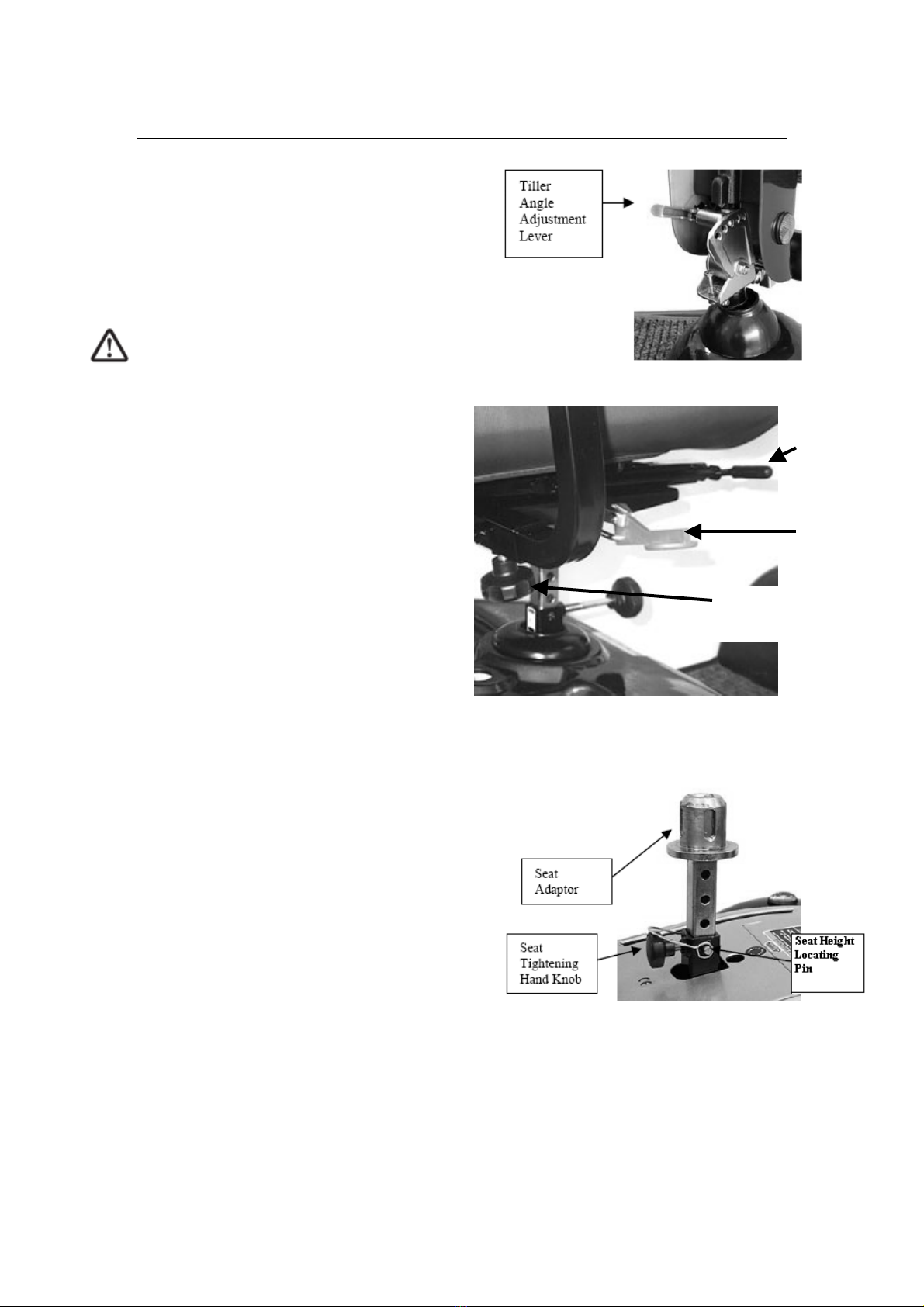

Tiller Angle Adjustment
On the left side of the base of the tiller
there is a red lever. Push the lever in to
release the pin and select the required
tiller angle.
When the desired angle is set, refit the pin
into one of the five locating holes.
Caution! Ensure the tiller is properly
locked into position before driving the
scooter.
Seat Slide Adjustment
Pulling up on the lever allows the seat
position to be adjusted forward or
backward. Releasing the lever will lock
the seat in position.
Seat Swivel Adjustment
Under the right of the seat is a red
lever. Pulling up on the lever allows
the seat to swivel to either side,
allowing for easy manoeuvring on or
off the scooter. Do not drive the
scooter if the seat is not locked in
the forward position.
Seat Height Adjustment
To adjust the height of the seat, undo
the seat-tightening knob under the front
of the seat.
Pull the swivel adjustment lever
upwards and at the same time lift the
seat from the adaptor.
Remove the seat height-locating pin and
set the seat adaptor to the desired
height and reset the locking pin.
Reverse the above instructions to
replace the seat and re-tighten the hand
knob.
Armrest Width Adjustment
On the underside of the seat there are two hand knobs. Releasing the hand
knob allows the arms to be adjusted to the required width, or removed for
transportation.
Ensure the knobs are fully tightened before driving the scooter. Do not
drive the scooter without the arms fitted.
Slide
Lever
Swivel
Lever
Armrest Width
Adjustment Knob
Page 5

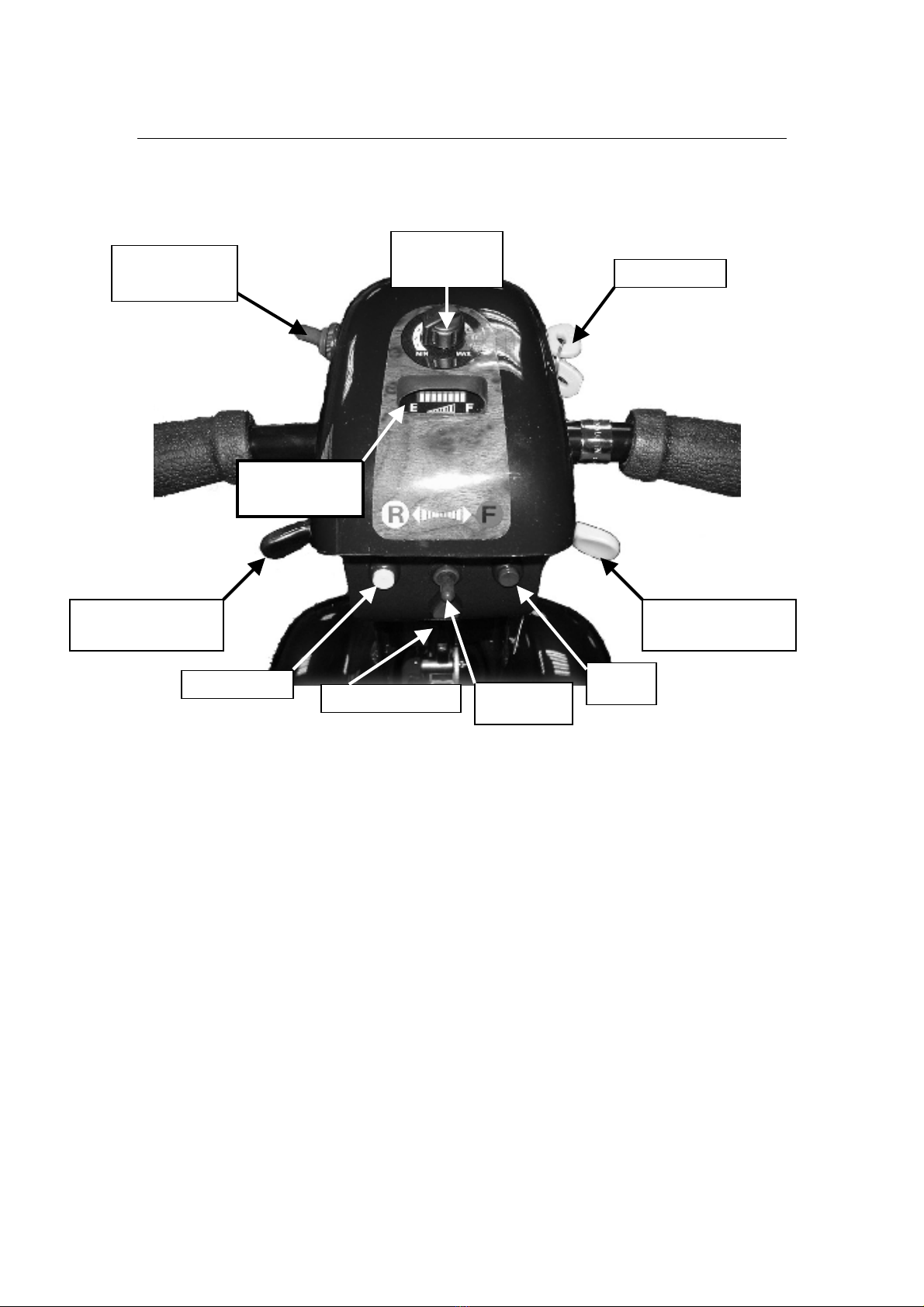

Tiller Controls
Speed Control:
This allows the user to set the maximum speed of the scooter between 1
(minimum) and 10 (maximum).
Battery Level Indicator:
The number of LED bars lit gives an indication to the amount of charge
remaining in the batteries. The amount of charge will only show it’s true level
when the scooter is being driven. Do not allow the LED bars to go out
completely as complete discharge of the batteries could cause
permanent damage to your batteries.
Sleep Mode:
Your scooter has a digital battery status indicator, which displays the current
charge status of the batteries in your scooter.
The circuitry also detects changes in power draw from the batteries.
If you scooter is left switched on without use for about five minutes the
electronics will go into ‘sleep’ mode to conserve power. You will see one bar
on the battery status indicator oscillate from side to side. Simply switching the
scooter off and back on will enable the scooter to operate as normal.
Speed
Control
Right Thumb
Lever (Forward)
Left Thumb Lever
(Reverse)
Lights
Indicators
Hazard li
g
hts
Horn Button
Hi / Low
Speed Switch Ke
y
Switch
Battery Level
Indicator
Page 6

Continued…..
Constant speed use
As the circuitry senses changes in power draw it is possible that on journeys
where your speed is constant for an extended period of time that you will see
the single bar oscillate even though the scooter is in motion. This is due to the
prolonged period of no change in power draw.
This is perfectly normal and by simply adjusting your speed for a moment will
change the battery status indicator back to normal.
High/Low Speed Switch:
This sets the maximum high speed for the scooter. This MUST be set to low
when used in pedestrian areas. The ‘HIGH’ setting should only be selected
when used on the road.
Hazard Lights:
This red button operates all of the indicators simultaneously.
Lights:
This blue button operates the main front and rear lights.
Key Switch:
The key switch operates the main power for the scooter. When turned
clockwise the battery level indicator should light up indicating that the scooter
is on. There is a small delay before the thumb lever controls operate as the
controller checks the main circuits. Never leave the key in the switch
unattended to prevent unauthorised use. Do not turn the power to stop
the scooter unless it is an emergency. The scooter will stop very sharply
if stopped in this way.
Horn:
This yellow button operates the scooter’s horn. The horn should only be
used to warn others of your presence and not as any form of rebuke.
Finger Lever Control:
The left thumb lever controls the reverse and the right thumb lever controls
the forward motion of the scooter. The further you push the lever the faster
the scooter will travel. Releasing the lever will slow the scooter to a safe stop
and the electro-magnetic brakes will apply automatically.
Charging Port:
This is situated just below the key switch. Slide the cover to access the
socket.
Please refer to page 9 & 10 ‘Batteries and Battery Charger’
Indicator Switch:
This switch operates the indicator lights of the scooter. Please use the
indicators at all times when making manoeuvres on roads.
Page 7

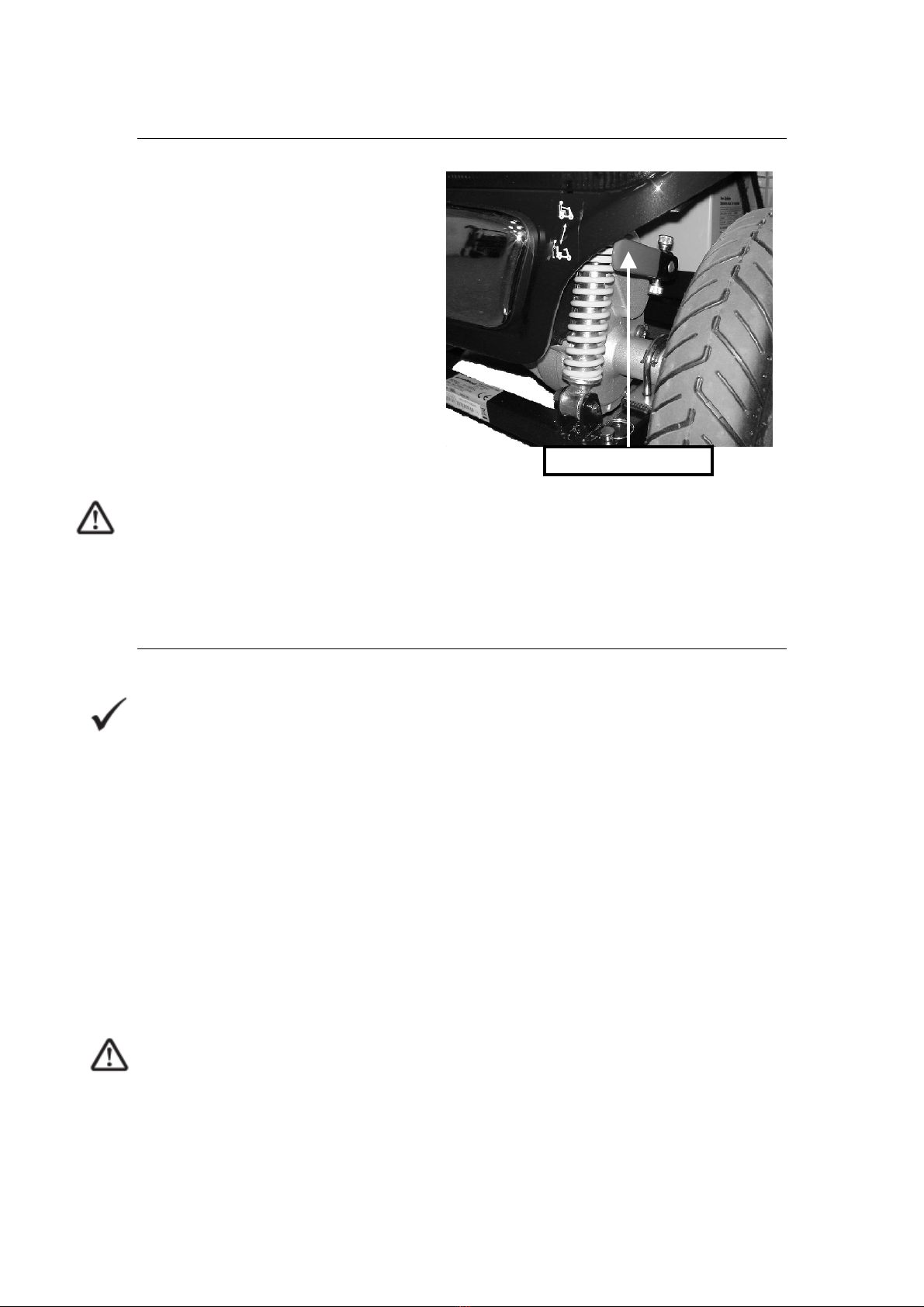

Brake Release / Freewheel Operation
The release lever for the electro-
magnetic brake is situated under
the rear left of the scooter. Ensure
that the power is switched off.
In the event of power failure or the
need to mover the scooter without
driving, the electro-magnetic brake
can be disengaged by a pulling the
red lever upwards – this will then
put the scooter in ‘freewheel’
mode. To re-engage the brakes
push the lever down fully and
ensure that the brake is engaged
before entering the scooter.
Caution! NEVER leave the scooter unattended whilst in freewheel mode
as it will roll away down an incline. ‘Freewheel’ mode should only be
used in an emergency to move the scooter due to power failure. NEVER
move the scooter in this mode whilst it is occupied. Your scooter will
continually bleep if it is switched on when in this mode.
Starting to Drive
Getting Started
Note: You must fully charge the batteries prior to first use (see ‘Batteries
and Charging’)
Select an area with plenty of space.
Mount the scooter by either lifting the arm and sliding onto the seat or swivel
the seat around to access the scooter. Ensure the seat is securely locked
in the forward facing position before driving. Adjust the tiller and seat if
necessary (see ‘Adjustments’). DO NOT use the tiller to fully support you
during transfers.
Moving Off
Turn the key clockwise to turn on the power. Initially set the speed control to a
low setting. Push your right thumb lever and the scooter will move forward
slowly. The further you push the lever the faster the scooter will travel, but
only to the maximum speed that has been selected. Release the lever and the
scooter will come to a smooth controlled stop.
Caution! DO NOT switch off the power to stop the scooter, as this will
cause the transmission to lock and the scooter will come to a sharp
stop, which could possibly cause injury. This procedure should only be
used in an emergency.
Rel
ease Lever
Page 8

Continued…..
Steering
Steering the scooter is light and easy. Ensure when starting off you give a
wide clearance when turning so that the rear wheels can clear any obstacle
that you are passing. When steering through limited spaces such as doorways
or when turning around, turn the tiller handle in the direction you want to go
and gently apply the power. NEVER turn sharply when travelling at high
speed as this may affect stability. The maximum speed should be set at
50%.
Reversing
Before reversing ensure that the area behind the scooter is free from any
hazards or obstructions. Adjust the speed setting low before you reverse.
Press the left thumb lever and steer wide of all corners and obstacles.
Caution! Do not reverse onto a main thoroughfare. Take care, objects in
the rear view mirror will appear to be further away from the back of the
scooter than they actually are.

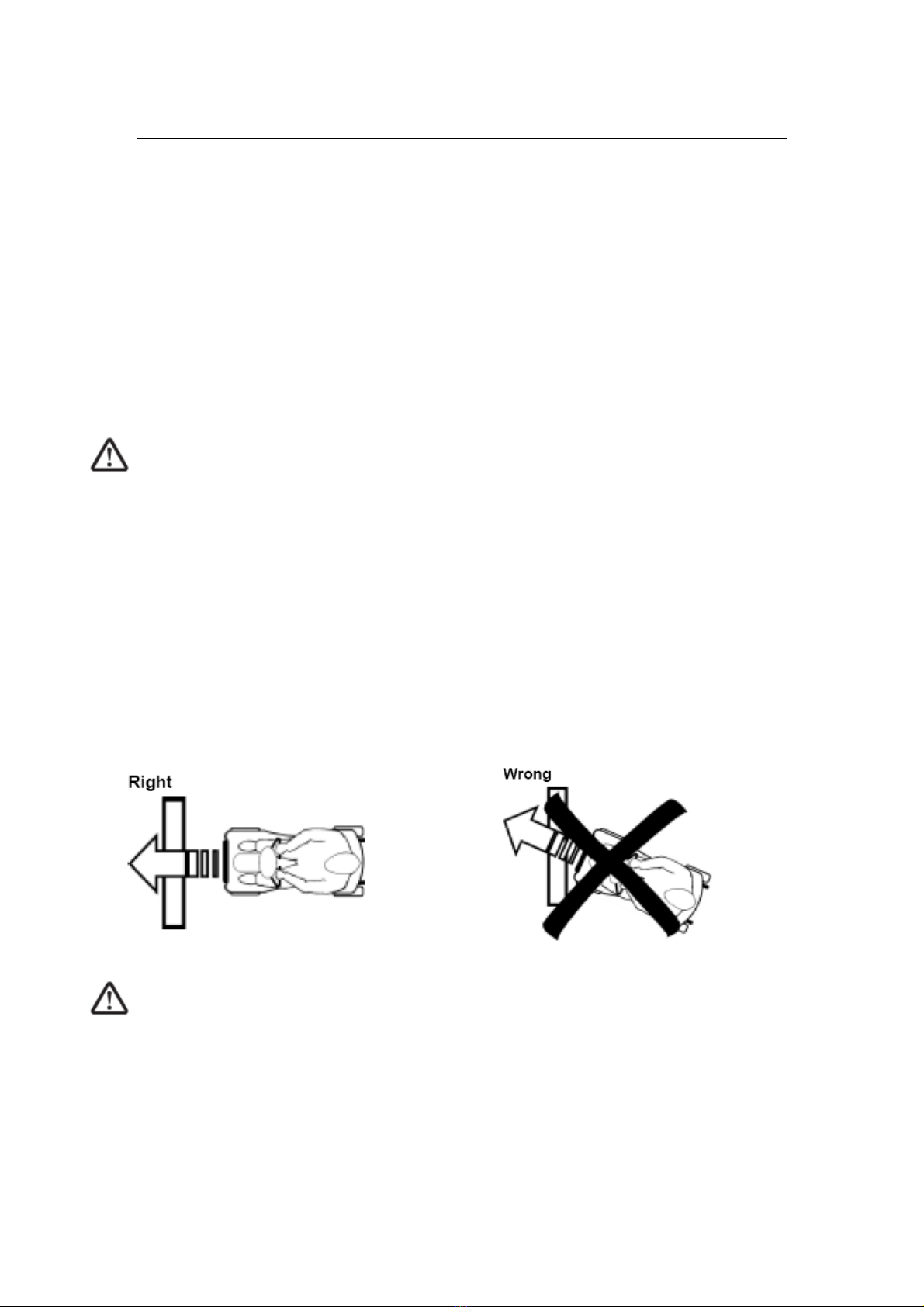

Gradients and Kerbs
We recommend that wherever possible that a suitable access point such
as a drop kerb or ramp be used. The necessity to climb a kerb directly
should be as a last resort.
If negotiating a gradient or kerb (up to 6cm), always address the situation at
an angle of 90° to ensure stability of the scooter. Do not hit a kerb at speed,
drive slowly until you reach the kerb then apply more power to travel over the
obstacle. Do not turn sharply on any slope moving forwards or
backwards.
Caution! Always ensure that the power is turned off when entering or
dismounting the scooter. Take plenty of time to become familiar with the
way that the scooter behaves. DO NOT drive on public roads until you
have the confidence and ability to do so.
Page 9

Batteries and Battery Charger
Batteries
The MONZA is supplied with two, maintenance free, sealed lead acid AGM
batteries. These are fitted under the seat on the scooter.
Battery performance can be affected by low temperatures, rough terrain and
the weight of the user. Your battery gauge is a guide only on the level of
charge remaining in the batteries.
An active user can use 30% of the battery capacity or more per day.
An inactive user may only use 50% of the battery capacity in a week.
Battery Charger
Charge the batteries completely (8-12 hours) prior to first use.
Batteries supplied with your scooter are specially designed for use on
powerchairs and scooters and require an automatic battery charger. These
chargers have an electronic switch that terminates the charge when the
batteries are full.
The battery charger is an 8-amp switch mode type off board. The charger is
able to read the level of charge in the batteries and will switch off when the
batteries are fully charged.
To charge the batteries connect the plug lead into the charging socket (page
7) on the tiller or under the lid (page 3) and the 3-pin plug into the wall socket
and switch on.
The battery charger has two lights. A constant red light will show when the
battery charger is connected (this will flash if there is a break in the
connection). The orange light indicates that the batteries are receiving charge,
this will change to green when the charging cycle is complete.
Caution: Always charge the batteries in a well-ventilated indoor area.
You must still maintain charging the batteries even if the scooter is not
to be used for a prolonged period of time (2 to 3 weeks). Failure to do so
could result in permanent damage and render the batteries unusable.
Wherever possible do not interrupt the charge cycle until the batteries
are fully charged. Continual interruption can permanently damage the
batteries. If the charging lead should become damaged discontinue use
immediately and seek a replacement from your dealer.
Disposing and recycling of used batteries
Batteries must always be recycled correctly. Do not dispose of them with your
domestic refuge.
For further information regarding your nearest recycling facility please contact
your local authority.
Page 10

Maintenance
Cleaning the Scooter
When cleaning the scooter please pay attention to the following points:
• Only use a damp cloth and gentle detergent.
• DO NOT use any abrasive products.
• DO NOT use a hose or pressure washing equipment.
• AVOID water contact with any electrical components.
• DO NOT put the scooter through an automated car wash or similar.
Routine Maintenance
We recommend that the following checks be carried out on a periodical basis
by a qualified person:
RMA Scooters
Maintenance and Inspection
Daily
Weekly
Monthly
Annually
Check / Charge Batteries 
Check removable parts are secure 
Check electrical connections are secure 
Check tyre pressures (30 psi rear, 25 psi front) 
Check tyre wear (minimum 2mm tread depth) 
Lubricate wheel / castor bearings with a light oil 
Complete inspection by an authorised Dealer 
The transaxle/gearbox is a sealed unit and does not need lubricating.
Wheels and Tyres
The wheels of your scooter have split rims. This allows any punctures to be
repaired easily.
To change the wheels, remove the centre bolt and slide the wheel off its axle.
Ensure that when refitting the wheel the retaining nut is fitted with a locking
washer or the screw threads are treated with ‘Loc-tite’ or a similar thread
locking compound. When changing a tyre the inner tube must be deflated.
Remove the four bolts from the wheel and slit the rim. Tyre pressure is
recommended to be kept at 30psi on the rear and 25psi on the front tyres.
Note: Regularly check and maintain these tyre pressures as low tyre
pressure can reduce the range of your scooter.
Product Life Expectancy
Your scooter has been designed to provide the user with a long, reliable life
provided it is correctly maintained and regularly serviced by an authorised
dealer. However, due to inevitable wear and tear and technological
improvements it is recommended that the average usable life of this scooter is
five years.
Page 11

Continued…..
Note: Should any parts need replacing during routine maintenance
please consult your local Dealer for approved spare parts for your
scooter. Failure to do so may damage the scooter and void your
warranty.
Troubleshooting

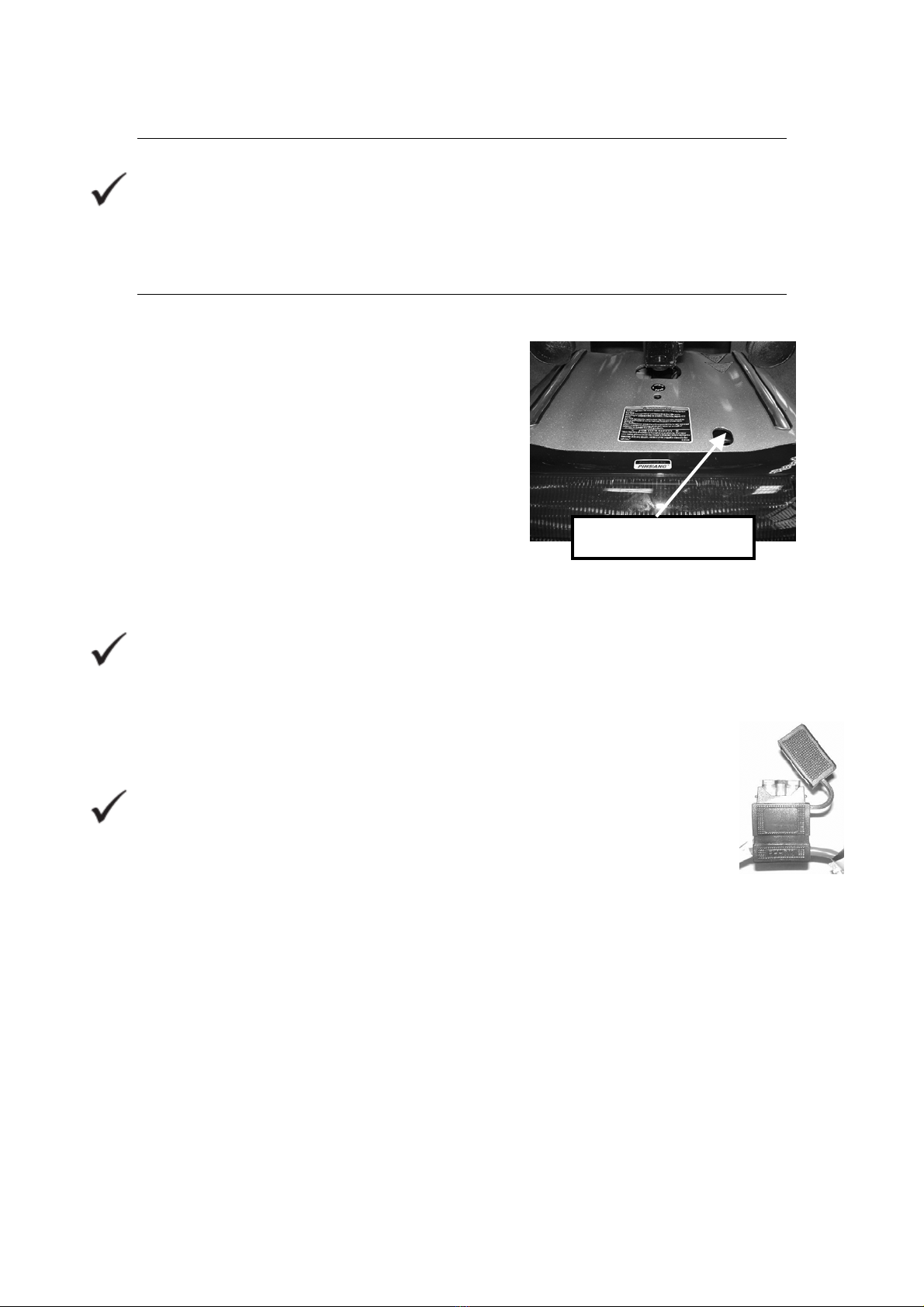

Circuit Breaker
Your scooter is fitted with the latest in
electronic controls that are programmed to
protect the electrical system from abnormal
overloads. Fitted for extra protection is a
circuit breaker. Should there be a situation
where your scooter stops for no apparent
reason please check that the circuit breaker
has not tripped. The circuit breaker is located
is located through a hole in the shroud
underneath the seat behind the seat post. Press
this button to reset the circuit breaker.
Note: Should the circuit breaker continue to trip turn off the scooter
immediately and consult your dealer.
Fuses
Inline 50 amp blade type fuses from the batteries protect any overload,
and a 15 amp fuse is located in the battery charger as extra protection.
Note: Should the fuses need replacing please contact your dealer
to ensure the correct sizes are fitted. Failure to do so could result
in permanent damage to the scooter’s electronics and possibly
cause a fire hazard. Failure to do this will void your warranty.
Check List
If you scooter fails to operate, please check the following:
• The unit is switched on.
• All plugs and connectors are firmly fixed.
• Battery level shows full charge.
• Freewheeling device is in the drive position (lever down).
• Circuit breaker has not tripped
If the freewheel device has been operated with the scooter left switched on,
the scooter will bleep continually and not operate until the ignition key has
been switched off then on again.
Please consult your dealer if your scooter does not run after checking these
points.
Circuit Breaker Reset
Page 12

Further Information
Safety Information Regarding Electromagnetic Interference (EMI)
Scooters and powerchairs are designed to operate under certain conditions.
However, radio waves or electromagnetic fields may affect the operation of
the scooter. The source of EMI could be radio or television transmitters or
portable devices such as mobile phones, portable CB radios etc.
Should any unintentional movement occur turn the scooter off as soon as
safely possible.
Solar Energy
During periods of sunny weather, it is possible that surfaces of your scooter
may reach high temperatures (as with motor vehicles). Please take
precautions if leaving the scooter in direct sunlight for any period of time.
Seek shade or cover the seat and hand controls to keep any temperature
increases to a minimum.
Health Factors
Suitability for this product has been assessed on the user’s current state of
health. It is essential that the user regularly monitor their ability to use the
scooter safely.
Please read and adhere to the guidelines set out in this manual and in the
‘Code of practice for Class 3/C vehicle users’
General Use
Take heed of the information given in this manual regarding safety and the
maintenance of your scooter. If adhered to, your scooter should give you
years of reliable mobility.
DO NOT use the scooter in electrical storms, high winds or prolonged
downpours. Care must also be taken during cold weather due to icy surfaces.
Storage and General Care
We recommend that the scooter is always stored in a dry environment such
as a garage or shed to protect the chassis and other components from
corrosion or water damage. Do not leave the scooter outside during
rainstorms. If the scooter is wet, wipe with a dry cloth to ensure there is no
ingress of water into the internal components of the scooter (If the scooter
needs to be cleaned, use a mild detergent and warm water with a damp
sponge or cloth. DO NOT throw water over the scooter).
Page 13

Product Stability
Scooters and powered wheelchairs are designed to allow the user flexibility of
movement in restricted areas. Driving at maximum speed and attempting
sharp turns can create a situation where the product becomes unstable.
Therefore it is essential that the user pay attention the guidance set out in this
manual.
For maximum stability the speed setting should be set up to 50% of the
maximum available (halfway between the tortoise and the hare or just
entering the red sector on the speed indicator depending on the model.
The main factors affecting stability are:
• Maximum speed setting
• Seat height
• User movement
• User’s manoeuvres
• Gradients or slopes
Please keep your speed to a level where you can safely stop without having
to make any erratic turns.
Do not load bags etc. on the back of the seat as this will affect the centre of
gravity and could increase instability.
Do not lean outside of the ‘footprint’ of the product, especially whilst moving.
Avoid making turns on gradients or slopes.
Notes
Page 14

WARRANTY TERMS AND CONDITIONS
Standard Terms
This is to certify that your RMA/Shoprider® scooter is guaranteed for a period
of one year from the date of purchase. The warranty is not transferable.
If a defect or fault arises the dealer from where the scooter was
purchased should be notified immediately.
The manufacturer will not accept liability for damage caused by any misuse,
unauthorised alterations or non-observance of the instructions set out in this
user manual.
The guarantee excludes parts, which have been subjected to natural wear
and tear during this period (Tyres and plastic parts).
Model No:……………………………
Serial No:…………………………….
Purchase Date:……………………..
RMA Ltd,
York Road,
Bridgend Industrial Estate,
Bridgend.
CF31 3TB
Tel: [phone] Fax: [phone]
Email: [email protected]
www.romamedical.co.uk
RMA reserve the right to change specifications without prior notice
Dealer’s Stamp
KB&SXXXXX
