1. Introduction
Verti-Inside is a wall cupboard unit for electrical height adjustment of wall cupboards.
Verti-Inside is ideal for wheelchair users or persons who are unable to reach the upper shelves
of the wall cupboards.
The users must follow these instructions. It is very important that the instructions have been
read and understood prior to operating the product.
These instructions must always be available to the user and must accompany the product in
case of relocation.
Correct use, operation and inspection are decisive factors for effective and safe performance.
2. Conformity with EU Directive
This product has CE marking according to the current Machinery Directive and is therefore in
accordance with the basic safety requirements. See separate CE Declaration, Section 16.
If these frames are assembled or otherwise combined with other electrical components, the
assembly will be considered a new unit, which must be subjected to a risk assessment to obtain
CE marking.
3. Application
Verti-Inside is designed to obtain optimum working height for the user. Verti-Inside is designed
to adjust the height of wall cupboards. Verti-Inside must NOT be used as a lifting unit or person
lifter.
The product must be used indoor, under normal room temperature and humidity conditions as
stated in Section 4. Verti-Inside is not designed for use in damp rooms.
The control unit has protection IP32/ll and must always be installed in accordance with
the Danish High Voltage Regulations or corresponding national or international
standards.
This manual must ALWAYS accompany the product and be read by and available to the user
This product is electrically height adjustable and there is therefore a risk of getting jammed.
Operation must always be carried out or supervised by an adult, who has read and
understood the importance of Section 12 “Safety in use”.

Page 4 © ROPOX 2017
4. Technical data
Product name: Ropox Verti-Inside
Item numbers: Item number:
Verti-Inside width 40 cm, depth 26.5cm: 30-40404
Verti-Inside width 50 cm, depth 26.5cm: 30-40405
Verti-Inside width 60 cm, depth 26.5cm: 30-40406
Verti-Inside width 70 cm, depth 26.5cm: 30-40407
Verti-Inside width 80 cm, depth 26.5cm: 30-40408
Verti-Inside width 90 cm, depth 26.5cm: 30-40409
Verti-Inside width 100cm, depth 26.5cm: 30-40410
Verti-Inside width 40 cm, depth 31cm: 30-40414
Verti-Inside width 50 cm, depth 31cm: 30-40415
Verti-Inside width 60 cm, depth 31cm: 30-40416
Verti-Inside width 70 cm, depth 31cm: 30-40417
Verti-Inside width 80 cm, depth 31cm: 30-40418
Verti-Inside width 90 cm, depth 31cm: 30-40419
Verti-Inside width 100cm, depth 31cm: 30-40420
Material: Welded steel pipes St. 37 and various plastic components
Surface treatment: Blue chromate, powder coating
Power supply: 230VAC / 2.5A / 50Hz - Alternatively 100VAC / 50/60 Hz
Standby primary: <0.3W
Control voltage: 24VDC
Duty cycle max.: Max. 4 min. active then 18 min. pause
Max. load: 80kg evenly distributed
Speed/time for lifting: Approx. 33 mm/sec. –Approx. 15 sec.
Travel 495mm
Temperature: 5-45° C
Air humidity: 5-85% (non-condensing)
Complaints: See Complaints page 30
Manufacturer: Ropox A/S, DK-4700 Næstved, Tel.: [phone]
e-mail: in[email protected] - www.ropox.dk

Page 5 © ROPOX 2017

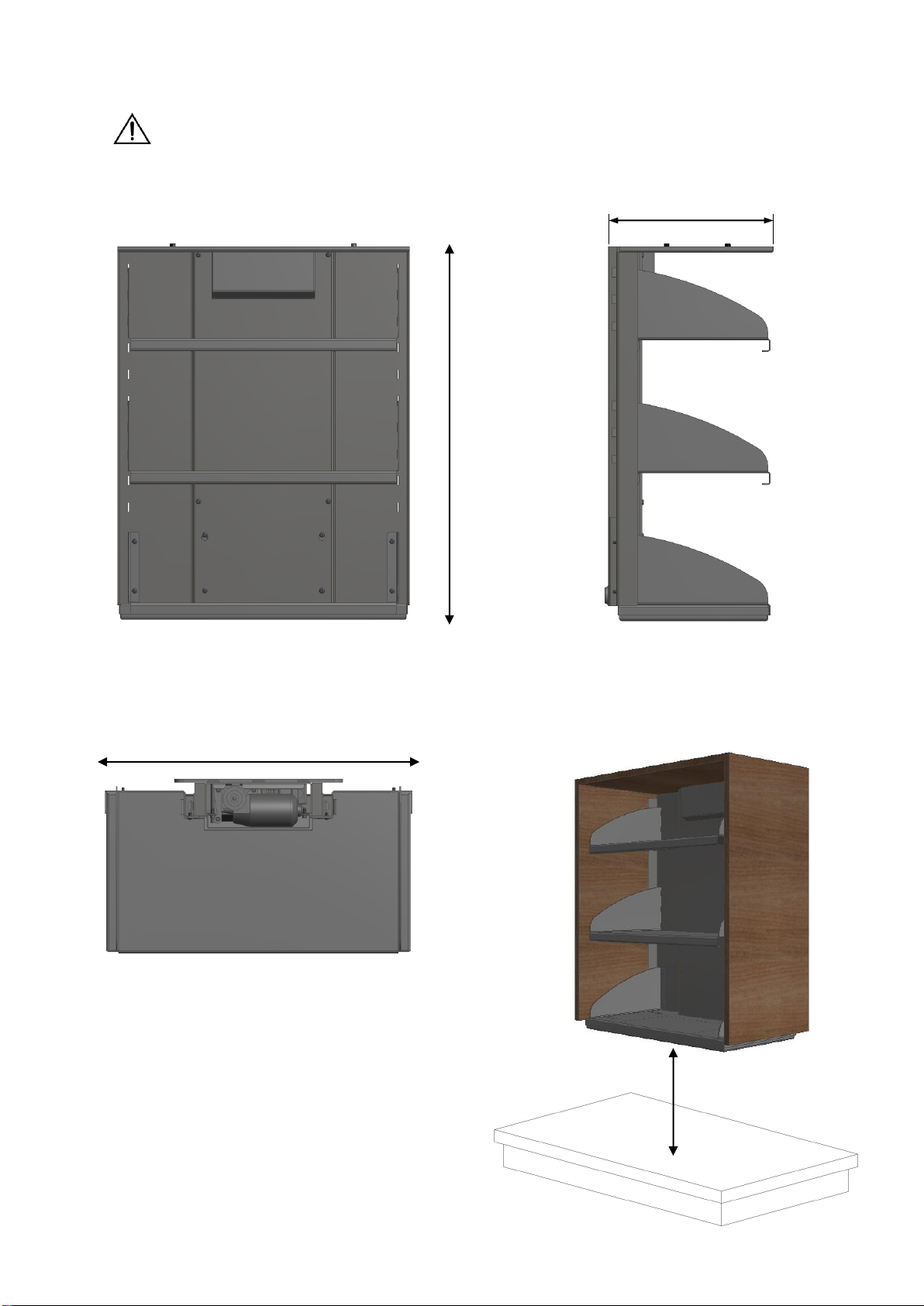

5. Dimension sketch of Verti-Inside
It is important that cables to the control unit are flexible and can move freely within the height
adjustment range of the unit.
Travel: 495mm
The cupboard is mounted on the wall
with min. 530mm between the bottom
of the cupboard and other installations
for utilisation of the entire travel of the
unit
703mm
350/450/550/650/750/850/950mm
iincrementsval
495mm
Depth 265mm or 310mm

Page 6 © ROPOX 2017
5.1 Construction see dimensions on the following page
Minimum area for reinforcement of wall. Wall material must be suitable for screw
mounting.
Area for electric installation.
Area for conduit.
Cabinet height of 70.4cm or more. For cabinet heights above 70.4cm a fixed shelf is placed in
the upper part of the cabinet (see illustration).
Cable for operation must be laid from the cabinet to the front edge of the worktop for mounting
of the control switch. We recommend the installation of an empty conduit in the wall to
accommodate the cable (ø3.5cm).
If a high cabinet stands in the immediate vicinity of Verti-Inside, the cable may be run through
the cabinet to avoid the conduit in the wall.
Max. load 80kg evenly distributed over all three shelves for cabinets up to 100cm in width,
according to DS/EN 12182, based on 8 screws/bolts.
Minimum load capacity per screw/bolt:
10.5kg
The fitter should always consider the material, condition and strength of the wall and use screws
and rawlplugs suitable for the specific wall type.
5.1.2 Cupboard sizes
704mm, higher cupboards may be used

Page 7 © ROPOX 2017
Cabinet height of 70.4 cm
Cabinet height above 70.4 cm
Fixed shelf for mounting
the top safety stop
electric
installation
electric
installation

Page 8 © ROPOX 2017
5.1.3 Operation of Verti-InsideElectric
Operation:
The height of the cupboard is adjusted by means of the
control switch connected to the control unit.
The cupboard is adjusted upwards by pressing the UP
symbol of the control switch and downwards by pressing the
DOWN symbol of the control switch.
As soon as you let go of the control switch, the movement
of the unit will stop.
5.1.4 Wiring diagram
S2
S1
HS
M1

Page 9 © ROPOX 2017
6. Mounting instructions
Before starting installation, check that all parts mentioned in the list of components have been
delivered.
See list of components, Section 8.
Mounting must always be carried out by competent personnel
Mount 2 x 30-40400-021
flush with rear edge of cupboard

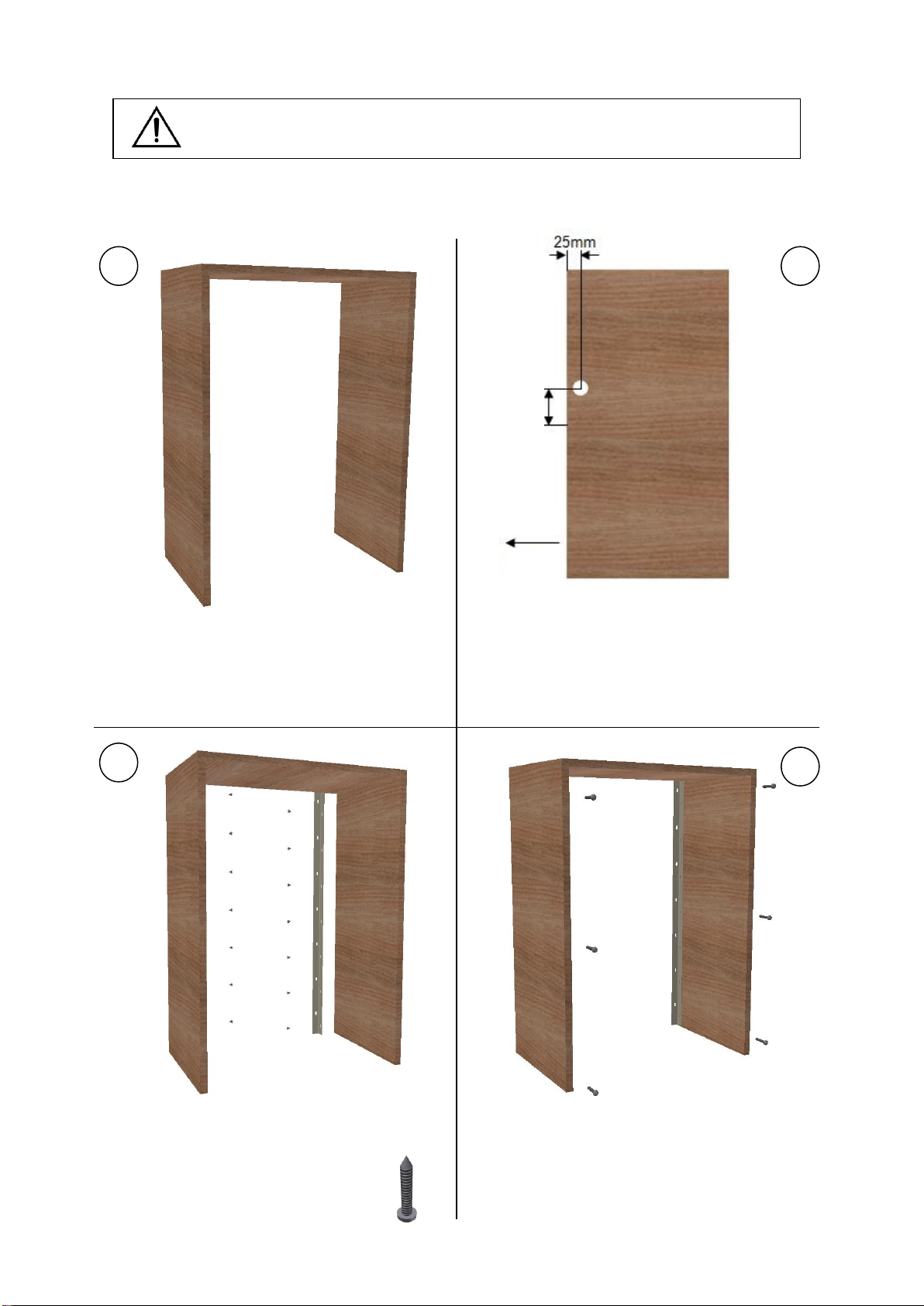

Remove back and bottom from the cupboard.
Note!
The back may remain in place if it is fastened to
the wall by bolts
Mount cupboard on wall
Drill 1 x Ø40 hole in the top of the
cupboard for cables
Mark up for upper safety stop (see
9)
14 x Ø3.5x12 wood
screw
1
2
3
4
70mm from center
Wall

Page 10 © ROPOX 2017
Lift lifting unit 30-40400-042 into the cupboard
and hook it onto the suspension fixture
Drill holes in wall. Fasten lifting unit
30-40400-042 with 7 screws. Use
screws and lplugs suiting the
construction and materials of the
wall
5
6
7
Mount suspension fixture 30-40400-103 on wall
*When installing the verti-Inside
in a cabinet height of 704 mm.
the safety stop will be 20mm
lower than the cabinet.
20mm

Page 11 © ROPOX 2017
1. Connect the control switch to HS
If required, use extension cord: 93000162
Pull the cable behind the motor and
through the hole at the top of the
cupboard
2. Pull mains cable behind the motor and
through the hole at the top of the
cupboard, connect and turn on power
3. Connect the motor cable 96000814 to M1
8
M1
HS
Mains cable

Page 12 © ROPOX 2017
Monting of top safety stop
Connect safety stop to control unit, to
the cable marked: S1.
(See wiring diagram page 8)
Mount upper safety stop on top of the
cupboard. (Illustration shows cupboard
viewed from below)
Wall
=
=
22mm
9
10
4 x Ø5x20
wood screw
4 x 96121409,
plastic bushing

Page 13 © ROPOX 2017
Mount cover plate 30-40400-085
The top of the cover plate has
“keyholes” fitting the pre-mounted
bolts of the lifting unit
The bottom of the cover plate has a flange
fitting around the lifting unit.
When the ”keyhole” and flange “catch”, push
the plate upward and tighten the bolts.
11

Page 14 © ROPOX 2017
12
Lift front plate into the cupboard and hook it onto
the pre-mounted bolts of the lifting unit. Now
mount the remaining 6 bolts
6 x M6x10

Page 15 © ROPOX 2017
1
2
1
2
4
Connect safety stop and spiral cable

Page 16 © ROPOX 2017
Mount cable relief for mains cable on wall
13

Page 17 © ROPOX 2017

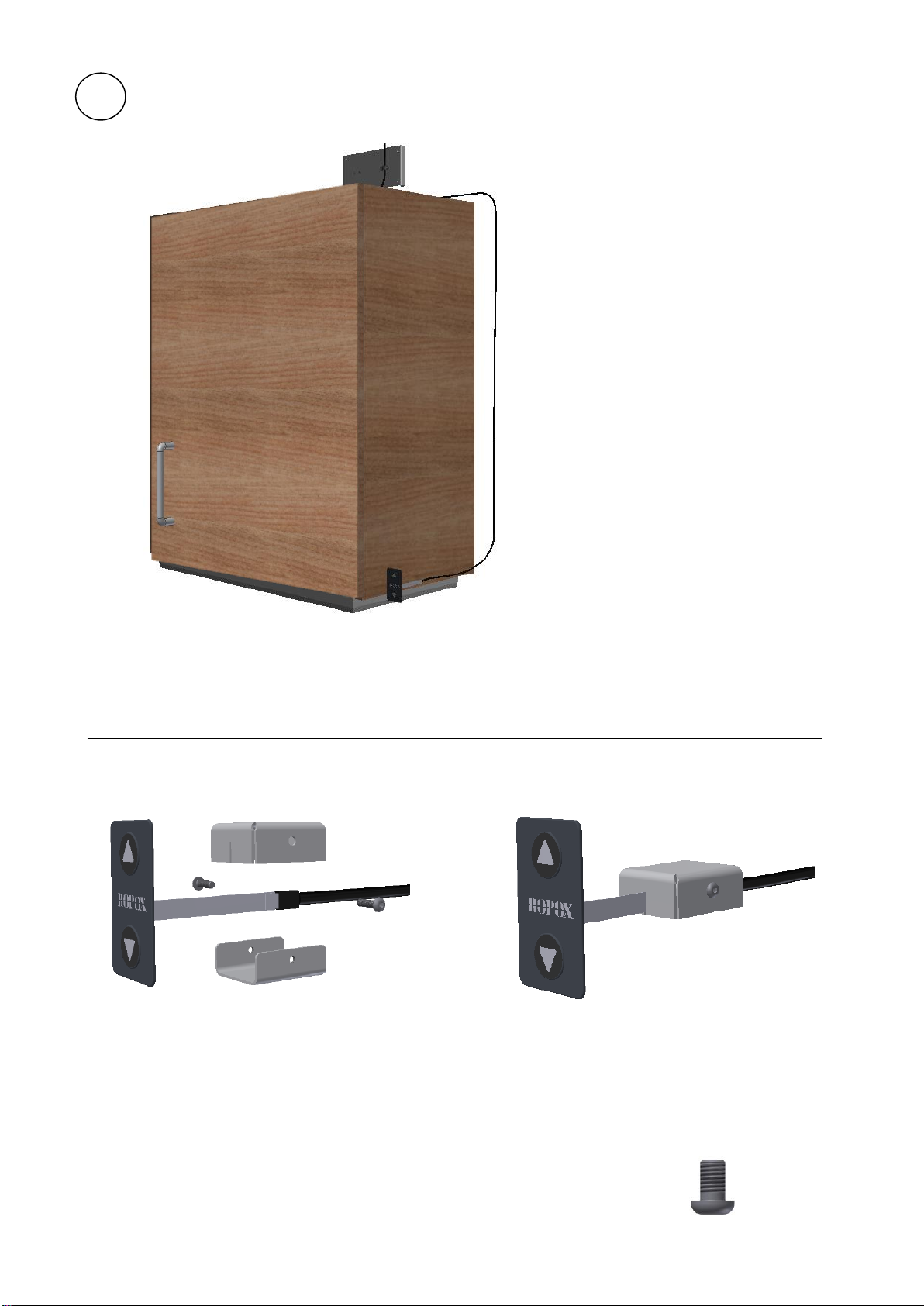

Mount 97701-841 and 97701-842 shielding for control switch
1
1
14
2 x M3x8
Place control switch acc. to customer’s wish
and connect by means of cable: 97000245.
If required, use extension cord: 93000162

Page 18 © ROPOX 2017
7.Performance test
After completed installation and before use all functions of the module must be tested. After that
a performance test must be carried out at least once a year by competent personnel.
1. Check that the mounting instructions have been observed.
2. Check that all bolts and screws have been tightened.
3. Check that all cables have been correctly connected and that the plugs have been pressed
all the way in
4. There must be no load on the unit.
5. There must be no objects preventing the frame from moving freely within the range of height
adjustment.
Start-up procedure
1. Connect the net cable and turn on the power
2. Connect the motor cables to M1
3. Connect the control switch to HS
4. Press UP on the control switch, move the frame to top position, check that the movement is
even and smooth. The frame is now reset.
5. Press DOWN on the control switch, move the frame to buttom position and check that the
movement is even and smooth.
The safety stops must be tested:
Lower safety stop: Press the DOWN button and let the cupboard move 2-5 cm downwards,
and activate the safety stop. The unit must now stop the downward movement, move 1-2 cm
upward and stop.
Upper safety stop: Press the UP button and let the cupboard move 2-5cm upwards, and
activate the safety stop. The unit must now stop the upward movement, move 1-2 cm
downwards and stop.
When all these tests have been carried out successfully, the unit is ready for use.
See ”Safety in use” Section 11.

Page 19 © ROPOX 2017

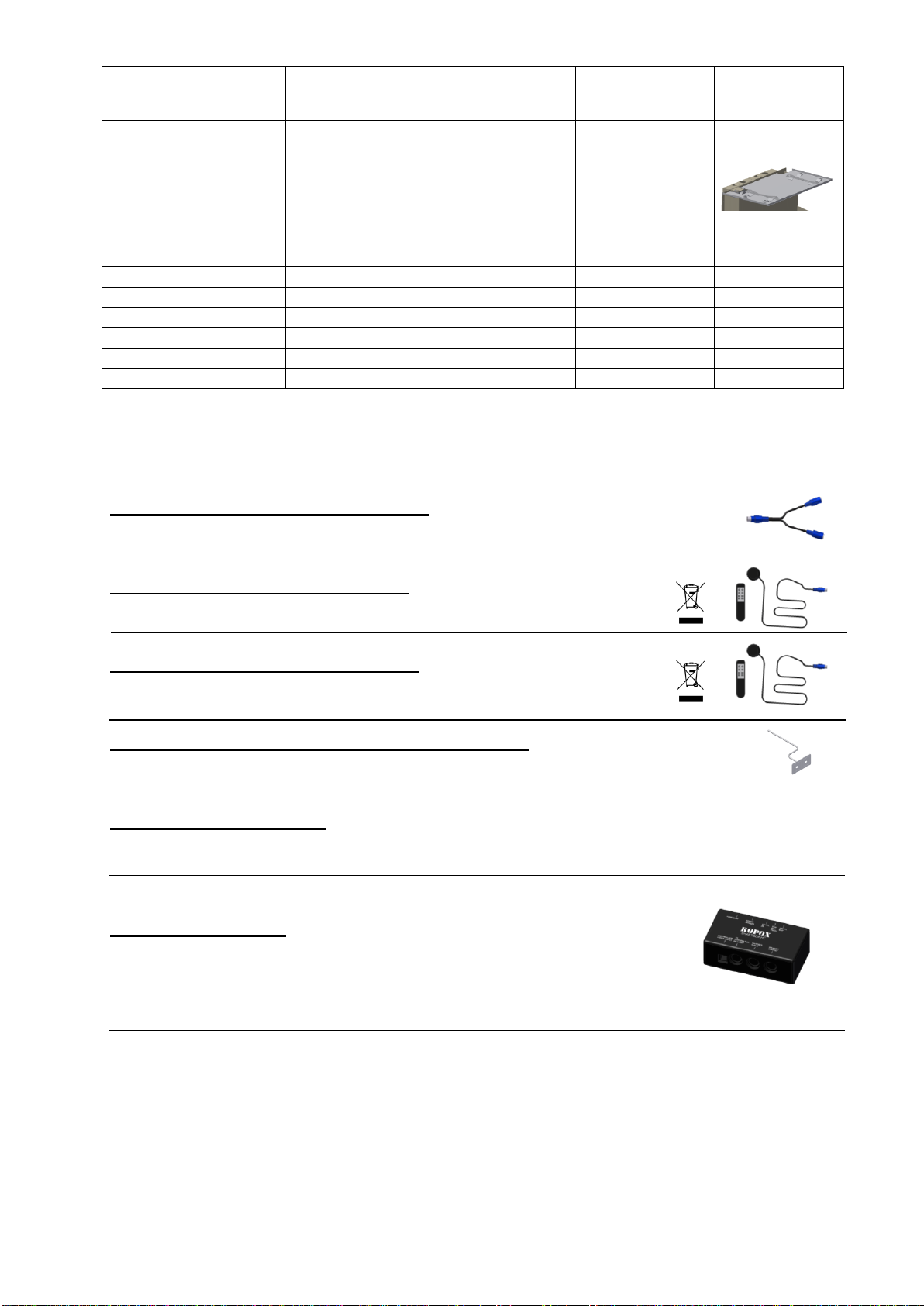

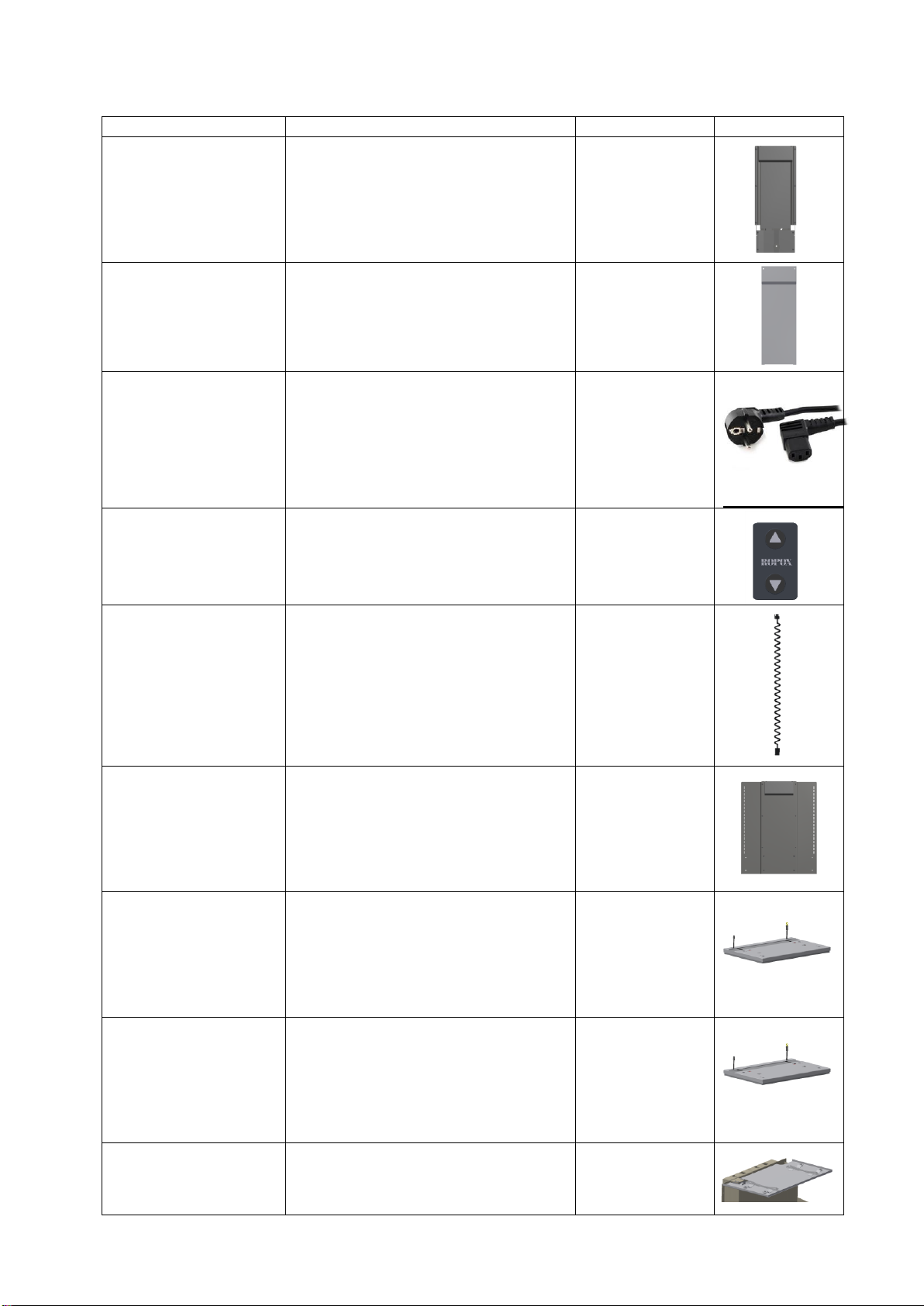

8. List of components, Verti-InsideElectric
Item number
Designation
Number
Illustration
30-40400-042
30-40400-019
30-40601-144
96000169
95010416
Verti-InsideElectric
Lifting unit
Suspension fixture
Relief for mains cable
Cable clips 24mm
M4x16 bolt, cylindrical head
1 (one)
1 (one)
1 (one)
1 (one)
2 (two)
30-40400-085
Cover plate
1 (one)
Mains cable 300cm
1 (one)
30-67840
93000162
Control switch standard, (3x6 cm)
1 (one)
incl. 150 cm cable
Extension cord for control switch 3.5m
1 (one)
98002087
Spiral cable male/female
1 (one)
30-40400-113 (40cm)
30-40400-114 (50cm)
30-40400-115 (60cm)
30-40400-116 (70cm)
30-40400-117 (80cm)
30-40400-118 (90cm)
30-40400-119 (100cm)
Front plate
1 (one)
30-40204-2 (40cm)
30-40205-2 (50cm)
30-40206-2 (60cm)
30-40207-2 (70cm)
30-40208-2 (80cm)
30-40209-2 (90cm)
30-40210-2 (100cm)
Safety stop bottom, for 26.5cm
cupboard
1 (one)
30-40214-2 (40cm)
30-40215-2 (50cm)
30-40216-2 (60cm)
30-40217-2 (70cm)
30-40218-2 (80cm)
30-40219-2 (90cm)
30-40220-2 (100cm)
Safety stop bottom, for 31cm cupboard
1 (one)
30-40304-1 (40cm)
30-40305-1 (50cm)
30-40306-1 (60cm)
30-40307-1 (70cm)
Safety stop top, for 26.5cm cupboard
1 (one)

Page 20 © ROPOX 2017
30-40308-1 (80cm)
30-40309-1 (90cm)
30-40310-1 (100cm)
30-40314-1 (40cm)
30-40315-1 (50cm)
30-40316-1 (60cm)
30-40317-1 (70cm)
30-40318-1 (80cm)
30-40319-1 (90cm)
30-40320-1 (100cm)
Safety stop top, for 31cm cupboard
1 (one)
95122516
Chip board screw 3.5x16
14 (fourteen)
95010008
M6x10 bolt, button head
8 (eight)
95020616
M6x16 countersunk bolt
4 (four)
96121409
Sleeve bushing
4 (four)
30-40601-097
Distance washer
4 (four)
97701-841
Shielding for control switch part 1
1 (one)
97701-842
Shielding for control switch part 2
1 (one)
9. Options, Verti-InsideElectric
Split cable for control switch 96000629: 1 (one)
To be used if more than one control switch is required
Infrared control 30-72006, 1 function:
Remote control via infrared receiver (cable 250 cm) 1 (one)
Infrared control 30-72007, 2 functions:
Remote control via infrared receiver (cable 250 cm) 1 (one)
Control switch, large press pad (14x7 cm) 30-67841:
Disabled press pad incl. 150 cm cable 1 (one)
Control switch 40-14701-9:
Control switch with spiral cable 1 (one)
Smartbox 30-69002-1: 1 pc.
Option for safety stop plate
To be ordered if Diagonal is mounted above a FlexiElectric
