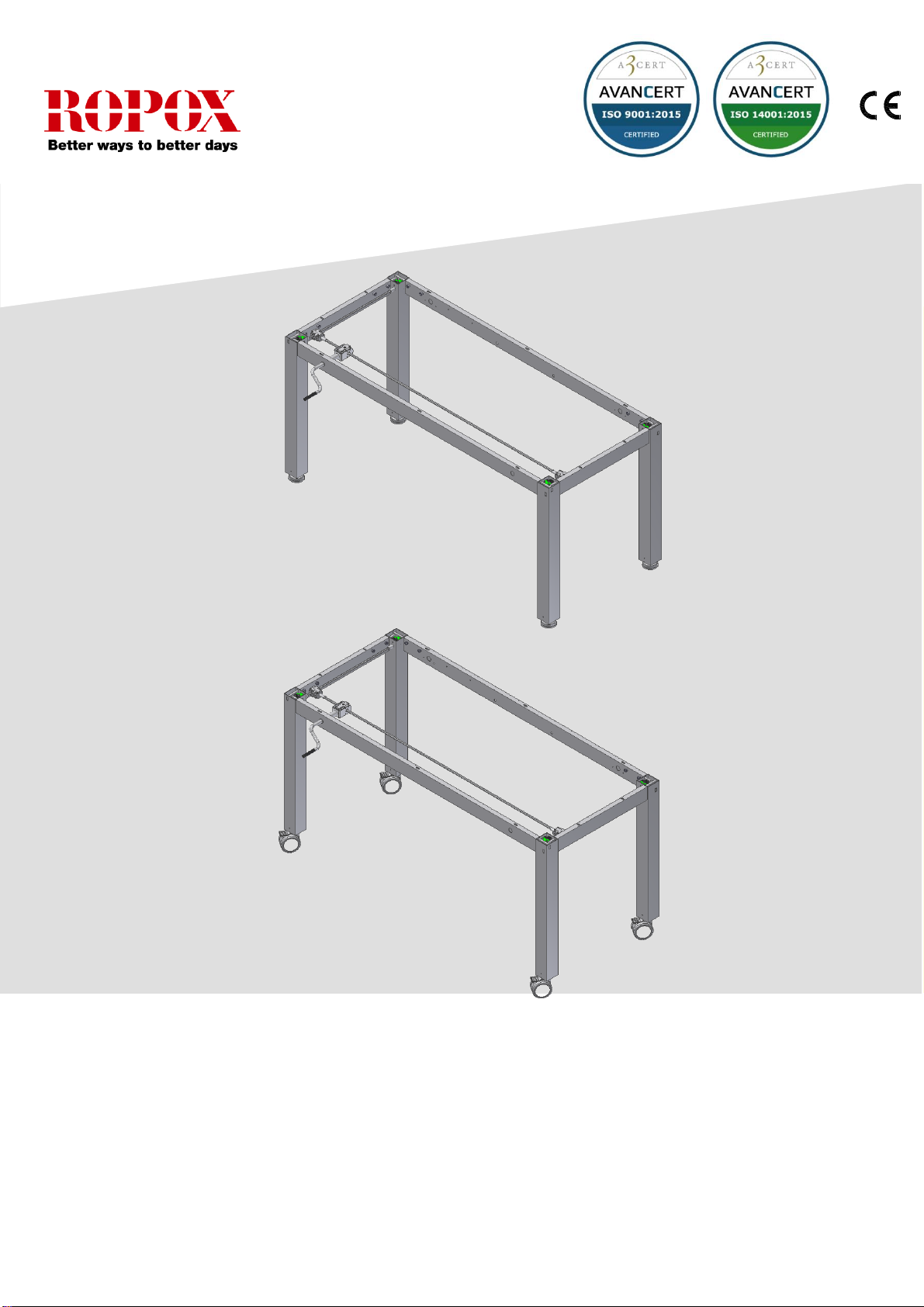

Ropox 4SingleManual User manual

4SingleManual
User Manual
Mounting Instructions
Keep this folder with product at all times!
PDF 6005 / 17.09.2019

Page 2
Contents
1. INTRODUCTION....................................................................................................................................... 3
2. APPLICATION........................................................................................................................................... 3
3. TECHNICAL DATA................................................................................................................................... 4
4. SCHEMATIC DIAGRAM OF FRAME ..................................................................................................... 5
4. SCHEMATIC DIAGRAM OF FRAME ..................................................................................................... 5
1. GEARBOX 96000656 2................................................................................................................................ 6
5. MOUNTING INSTRUCTIONS, ILLUSTRATIONS................................................................................. 6
5. MOUNTING INSTRUCTIONS, ILLUSTRATIONS................................................................................. 7
5.1 Assembly of frame............................................................................................................................... 7
6. LIST OF COMPONENTS........................................................................................................................... 7
6. LIST OF COMPONENTS........................................................................................................................... 8
7. OPTIONS..................................................................................................................................................... 8
8. SAFETY IN USE......................................................................................................................................... 9
9. CLEANING/ MAINTENANCE.................................................................................................................. 9
9.1 Cleaning of frame ............................................................................................................................... 9
9.2 Maintenance....................................................................................................................................... 9
9.3 Service schedule, operation and maintenance.....................................................................................10
10. CE-MARKING...........................................................................................................................................11
11. COMPLAINTS...........................................................................................................................................12

Page 3
1. Introduction
4Single is a multi-function table, which may be adjusted to suit seated or standing activities.
Owing to the unique design there are a variety of applications and the table is therefore also
ideal for wheelchair users.
All users must follow these instructions. It is very important that the instructions have been read
and understood prior to operation of the product.
These instructions must always be available to the user and must accompany the product in
case of relocation.
Correct use, operation and inspection are decisive factors for efficient and safe performance.
2. Application
4Single is designed to obtain optimum working height for the user. It is an activity table and not
for use as a lifting table or person lifter.
The product must be used indoor, under room temperatures and humidity as stated in section 3.
4Single is not designed for use in damp rooms.
This document must ALWAYS accompany the product and be read by and available to users.
The operation must be made or supervised by an experienced adult, who has read and
understood the importance of section 8 ” Safety in use”

Page 4
3. Technical data
Product: 4SingleManual
Item numbers: Set of legs, manual
Height 55-85cm H1 50-41110
Height 65-95cm H2 50-41210
Front fascias for frame L = xxx cm 50-42xxx
From 60-300cm in increments of 1cm
Side fascias for frame W = xxx cm 50-44xxx
From 60-200cm in increments of 1cm
Options: Wheels: Increase the table height by 7.5cm
Material: Welded steel tubes St. 37 and various plastic components
Surface treatment: Blue chromate, powder coating: Standard CWS 81283 RAL
7021 mat
Max. load of frame: 150kg evenly distributed
Temperature: 5-45° C
Air humidity: 5-85% (non-condensing)
Complaints: See page 12
Producer: Ropox A/S, DK-4700 Naestved, Tel.: [phone]
E-mail: inf[email protected] - www.ropox.com

Page 5
4. Schematic diagram of frame
All connections to the table must be flexible to ensure that the table moves freely within the
range of adjustment.
Size of frame without middle support: Size of frame with middle support:
Length 60-300cm Length 60-300cm
Width 60-120cm Width 121-200cm
For table top length 60 - 300cm
(Length of frame always 0.4 cm less than the table top, i.e. 59.6 –299.6cm)
Height: 55-85cm (H1)
Height w/wheels: + 7.5cm
Height:65-95cm (H2)
Width 60 - 200cm
(Width of frame always 0.4cm less
than the table top, i.e. 59.6 –
199.6cm)
Length –9cm
Width –18cm
33,6cm
or
20cm
20cm
6cm
6cm

Page 6
6
2
10
3
1
13
11
5
7
9
14
12
4
8
Component Item No. Pcs.
1. Gearbox 96000656 2
2. Shaft adapter, outside Hex7, inside Hex6 30*12999-047 4
3. Side fascia shaft, Hex6. Length = frame width –13.8cm 2
4. Gearbox for crank handle, Fixture & Bushing 30*12999-148 1
5. Front fascia shaft, Hex7. Length = frame length –16.7cm 1
6. Leg 1 2
7. Leg 2 2
8. Handle 20*60320-297 1
9. Allen screw M8x16 95010003 16
10. Side fascia profile, Length = frame width –12.4cm 2
11. Front fascia profile, Length = frame length –12.4cm 2
12. Stop ring incl. screw 98000-555 2
13. Screw ø4.8x13, Torx 95091012 2
14. Cover plate 50*40000-025 4
Black
Green
Green
Black
Black
Blue
Black
Blue
Red
Black
Leg 1
Green
Black
Black
Green
Leg 2
Leg 2
Leg 1
1

Page 7
5. Mounting instructions, illustrations
Mounting must always be carried out by competent personnel.
Prior to mounting, check that all parts have been provided. See list of components, section 6.
5.1 Assembly of frame
6.1.3 Now mount the two front fascias.
Tighten the bolts securely by means of
the wrench provided.
6.1.5 Fix the table top with screws through the
holes of the fascias.
6.2.1 Mount the wheels. Do not forget to fit
three washers on each wheel.
5.2 Mounting of wheels (option)
6.1.2 At the opposite end of the handle fit a
stop ring on either side of the angular
gear. Do not tighten the stop rings till the
frame has been assembled.
6.1.1 Check that the height (L) of all four legs is
identical. May be adjusted on hexagonal
shaft by means of the open-end wrench
provided. Place side fascias on a plane
surface and mount legs. See label on legs.
6.1.4 Place the frame on the table top and push
the cover plates between legs and table top.
Centre the frame in relation to the table top.

Page 8
6. List of components
Set of legs H1, 50-41110: 1 set
Set of legs H2, 50-41210: 1 set
Front fascias for L=xxx cm, 50-42xxx: 1 sets
Shaft Hex7 (fascia length –approx. 5cm) 1 pc.
Side fascias for W=xxx cm, 50-44xxx: 1 set
Shaft Hex6 (fascia width + ca.2.5cm) 1 pc.
Handle for 4Single 50-47010-9: 1 pc.
Gearbox 96000656: 2 pcs.
Shaft adapter 30*12999-047: 4 pcs.
Gearbox for handle 30*12999-148: 1 pc.
The Gearbox contains:
Gearbox 96000688 1 pc.
Fixture for shaft extension 30*12999-051 1 pc.
Bushing 30*12999-052 1 pc.
Allen screw M8x16 95010003: 16 pcs.
Screw ø4.8x13 95091012: 2 pcs.
Stop ring incl. screw 30*65500-084: 2 pcs.
7. Options
Brake wheels, black (4 wheels) 50-41600:
Increase the table height by 7.5 cm 1 set
incl. 12 washers (95170510)

Page 9
8. Safety in use
➢4Single must only be used by persons, who have read and understood these
instructions.
➢4Single is an activity table and should not be used as a lifting table or person lifter,
➢Always use the table in a manner excluding the risk of damage to persons or property.
The person operating the table is responsible for avoiding damage or injury.
➢Children or persons with reduced observation capability should only operate the table
when supervised.
➢If the table is used in publicly accessible locations where children or persons with
reduced observation capability may get near the table, the person operating the table
must pay attention to those present in order to prevent dangerous situations.
➢Make sure that there is free space above and below the table to allow height adjustment.
➢Do not operate the table in case of defects or damage.
➢Do not overload the table and make sure that the load distribution is correct.
➢Do not use the table in an explosive environment.
➢In connection with inspections, service or repairs always remove weight from the table.
➢Modifications, which may influence the operation or construction of the table, are not
allowed.
➢Installation, service and repairs must be carried out by competent personnel.
➢If the table has not been assembled according to these mounting instructions the right to
complain may become void.
➢Only use Ropox original spare parts as replacement parts. If other spare parts are used,
the right to complain may become void.
9. Cleaning/ maintenance
9.1 Cleaning of frame
Clean the frame with a wrung cloth with lukewarm water and a mild detergent. Do not use
enchants or abrasives or grinding cloths, brushes or sponges.
Dry the frame after cleaning.
9.2 Maintenance
The frame is maintenance-free and the moving parts have been lubricated for life. For reasons
of safety and reliability we recommend inspection of the frame once a year:
➢Check that all bolts have been securely tightened.
➢Check that the table moves freely from bottom to top position.
After each inspection, fill in the service schedule.
Only use Ropox original spare parts for replacement of parts. If other spare parts are used, the
right to complain may become void.
Inspections, service and repairs must be carried out by competent personnel.

Page 10
9.3 Service schedule, operation and maintenance
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
