Ropox 4SingleElectric User manual

© ROPOX 2015
4SingleElectric
User Manual
Mounting Instructions
Keep this folder with product at all times!
PDF 6090 / Rev 001

Page 2
© ROPOX 2019
Contents
1. INTRODUCTION ..............................................................................................................................................3
2. CONFORMITY WITH EU-DIRECTIVES.....................................................................................................3
3. APPLICATION..................................................................................................................................................3
4. TECHNICAL DATA..........................................................................................................................................4
5. SCHEMATIC DIAGRAM OF FRAME...........................................................................................................5
6. MOUNTING INSTRUCTIONS, DESCRIPTION ......................................................................................7
6.1 Assembly of frame .....................................................................................................................................7
6.2 MOUNTING OF SAFETY STRIP ...................................................................................................................9
6.3 PERFORMANCE TEST...............................................................................................................................10
7. LIST OF COMPONENTS...............................................................................................................................11
8. OPTIONS..........................................................................................................................................................12
9. SAFETY IN USE..............................................................................................................................................13
10. CLEANING/MAINTENANCE.......................................................................................................................14
10.1 Cleaning of frame....................................................................................................................................14
10.2 Maintenance............................................................................................................................................14
10.3 Service schedule, operation and maintenance ........................................................................................15
11. TROUBLE SHOOTING..................................................................................................................................15
11.1 The frame seems loose or unstable..........................................................................................................15
11.2 The height of the frame cannot be adjusted (adjustment seems very difficult)........................................15
11.3 The frame does not move straight ...........................................................................................................15
12. COMPLAINTS.................................................................................................................................................16

Page 3
© ROPOX 2019
1. Introduction
4Single is a multi-function table, which may be adjusted electrically to suit seated or standing
activities. Owing to the unique design there are a variety of applications and the table is
therefore also ideal for wheelchair users.
All users must follow these instructions. It is very important that the instructions have been read
and understood prior to operation of the product.
The instructions should always be available to the user and must accompany the product in
case of relocation.
Correct use, operation and inspection are decisive factors for efficient and safe performance.
2. Conformity with EU-Directives
This product has CE-marking and meets the safety requirements of the Machinery Directives.
If the table frame is assembled with or is an integral part of other electrical components it will be
considered a new unit. Therefore, the assembled product must be subjected to a risk
assessment to obtain CE-marking.
3. Application
4Single is designed to obtain optimum working height for the user. It is an activity table and
should therefore not be used as a lifting table or person lifter.
The product must be used indoor, under normal room temperatures and humidity as stated in
section 4. 4Single is not designed for use in damp rooms.
The control unit has IP32/ll protection and must always be installed in accordance with
the low voltage directive or corresponding national or international legislation.
This document must ALWAYS accompany the product and be read by and available to users.
This product is electrically adjustable in height, which means that there is a risk of trapping.
The operation must therefore be made or supervised by an adult, who has read and
understood the importance of section 9 “Safety in use”.
The frame is provided with an infrared remote control, which must always be kept out of reach
of children.

Page 4
© ROPOX 2019
4. Technical data
Product name: 4SingleElectric
Item number: Set of legs, Electric
Height 55-85 cm H1 50-41120
Height 65-95 cm H2 50-41220
Front fascias for frame L = xxx cm 50-43xxx
From 60-300cm at increments of 1cm
Side fascias for frame W = xxx cm 50-45xxx
From 60-200cm at increments of 1cm
Options: Wheels: Increase the table height by 7.5cm
Flexible safety strip
Material: Welded steel tubes St. 37 and various plastic components
Surface treatment:Blue chromate, powder coating: Standard CWS 81283 RAL
7021 mat
Power supply: 230VAC / 2.5A / 50Hz
Standby primary: 1.1W
Control voltage: 24VDC
Duty circle: Max. 10% conform to 1 min. active / 9 min. pause
Max. load of frame: 150kg evenly distributed
Speed/lifting time: Approx. 32 mm/sec. –approx. 10sec.
Increased load of frame: 250 kg evenly distributed (option)
Speed/lifting time: Approx. 12 mm/sec. - approx. 25sec.
Temperature: 5-45°C
Air humidity: 5-85% (non-condensing)
Complaints: See Complaints, page 15
Producer: Ropox A/S, DK-4700 Naestved, Tel.: [phone]
e-mail: in[email protected] - www.ropox.com

Page 5
© ROPOX 2019
5. Schematic diagram of frame
All electrical connections to the control unit must be flexible to ensure that the table moves
freely within the range of adjustment.
Table size without middle support: Table size with middle support:
Length 60cm - 300cm Length 60cm - 300cm
Width 60cm - 120cm Width 121cm - 200cm
Height: 55-85cm (H1)
Height w. wheels: + 6,5cm
Height: 65-95cm H2)
For table top length 60 - 300cm
(Frame length always 0.4cm less than the table top, i.e. 59.6 –299.6cm)
Length ÷ 35cm
Width 60 - 200cm
(Frame width always 0.4cm less
than table top, i.e. 59.6 –199.6cm)
16cm
Width ÷ 6cm
33,6cm
6cm
6cm

Page 6
© ROPOX 2019
Component Item number Pcs.
Motor 96000553 2
1. Motor cable 2m 96000573 2
2. Control unit 96000549 1
3. Side fascia shaft, Hex6. Length = frame width –13.8cm 2
4. Control switch 30-67840 1
5. Angle plate for control unit 50*40000-039 1
6. Leg 1 2
7. Leg 2 2
8. Allen screw M8x16 95010003 16
9. Side fascia profile Length = frame width –12.4cm 2
10. Front fascia profile Length = frame length –12.4cm 2
11. Screw ø4.8x13, Torx 95091012 6
12. Cover plates 50*40000-025 4
Black
Red
7
10
4
11
8
9
1
12
3
3
6
2
13
Black
Red
Red
Black
Red
Black
Leg 1
Leg 1
Leg 2
Leg 2
5
Green by
increased lifting
power
Green by
increased lifting
power

Page 7
© ROPOX 2019
6. Mounting instructions, description
Mounting must always be carried out by competent personnel.
Prior to mounting, check that all parts have been provided. See list of components, section 7.
6.1 Assembly of frame

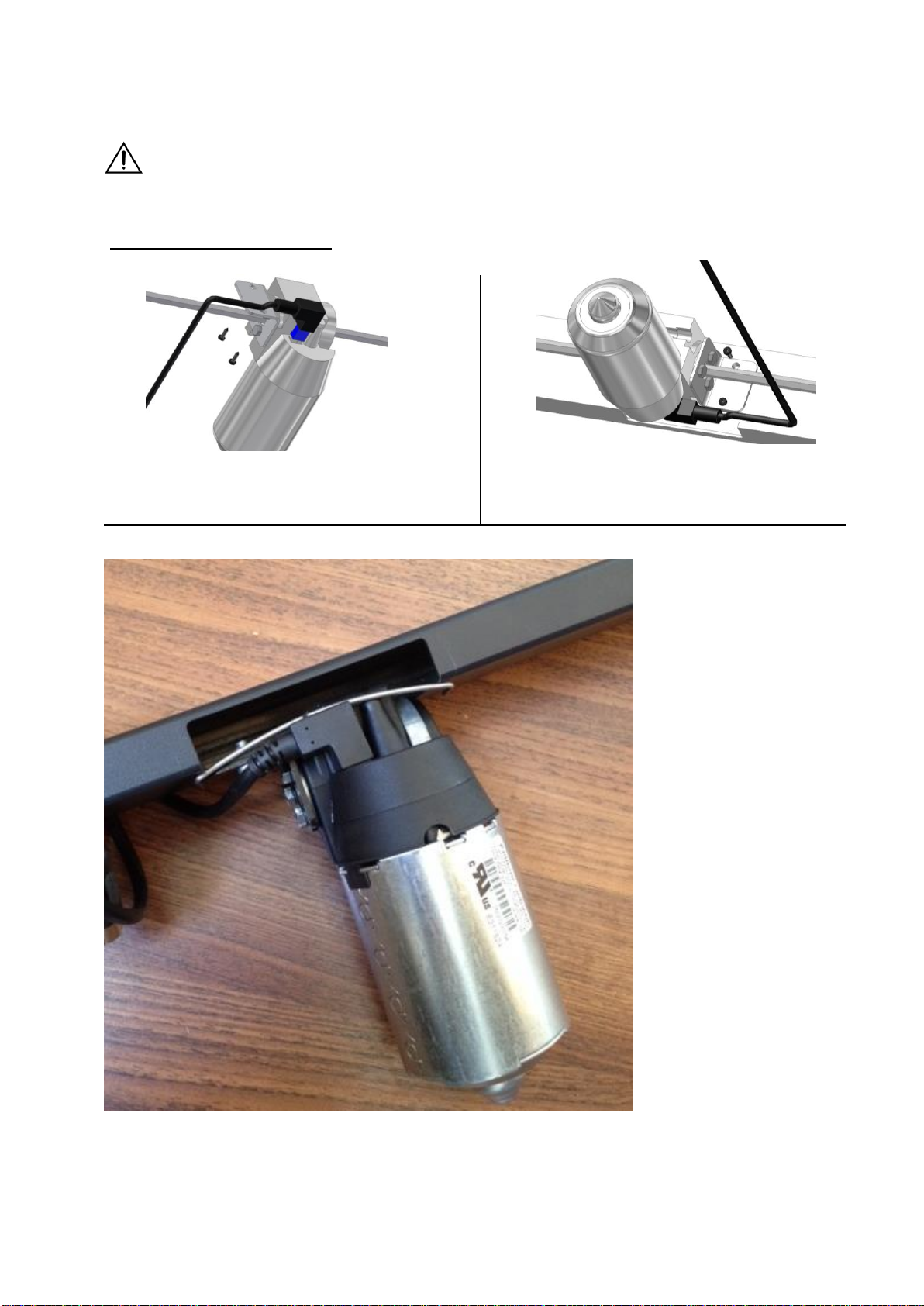

6.1.3 Mount the spring for retention of motor plug.
6.1.1 Mount hexagonal shaft and motor cable.
6.1.2 Mount motor on side fascia. Free cut of
profile away from table top.

Page 8
© ROPOX 2019
6.1.4 Check that the height (L) of all four legs is
identical. May be adjusted on hexagonal
shaft by means of the open-end wrench
provided. Place side fascias on a plane
surface and mount legs. See label on legs.
6.1.5 Now mount the two front fascias. Important:
Push side and front fascias firmly against the
leg before retightening the fascias. Tighten
the bolts securely by means of the wrench
provided.
6.1.6 Position the angle plate for control unit
as shown and fasten it to front fascia.
6.1.7 Attach control unit to angle plate and
fasten.

Page 9
© ROPOX 2019
6.2 Mounting of safety strip
Option: Ropox always recommends the use of safety strips on electrically
adjustable frames.
See the manual for strips provided.
Be careful not to damage the safety strip during transportation or mounting.
If the safety strip is bent or twisted too much it may not have the intended effect.
In order to obtain optimum adhesion the surface on which the safety strip is to be attached must
be clean and dry.

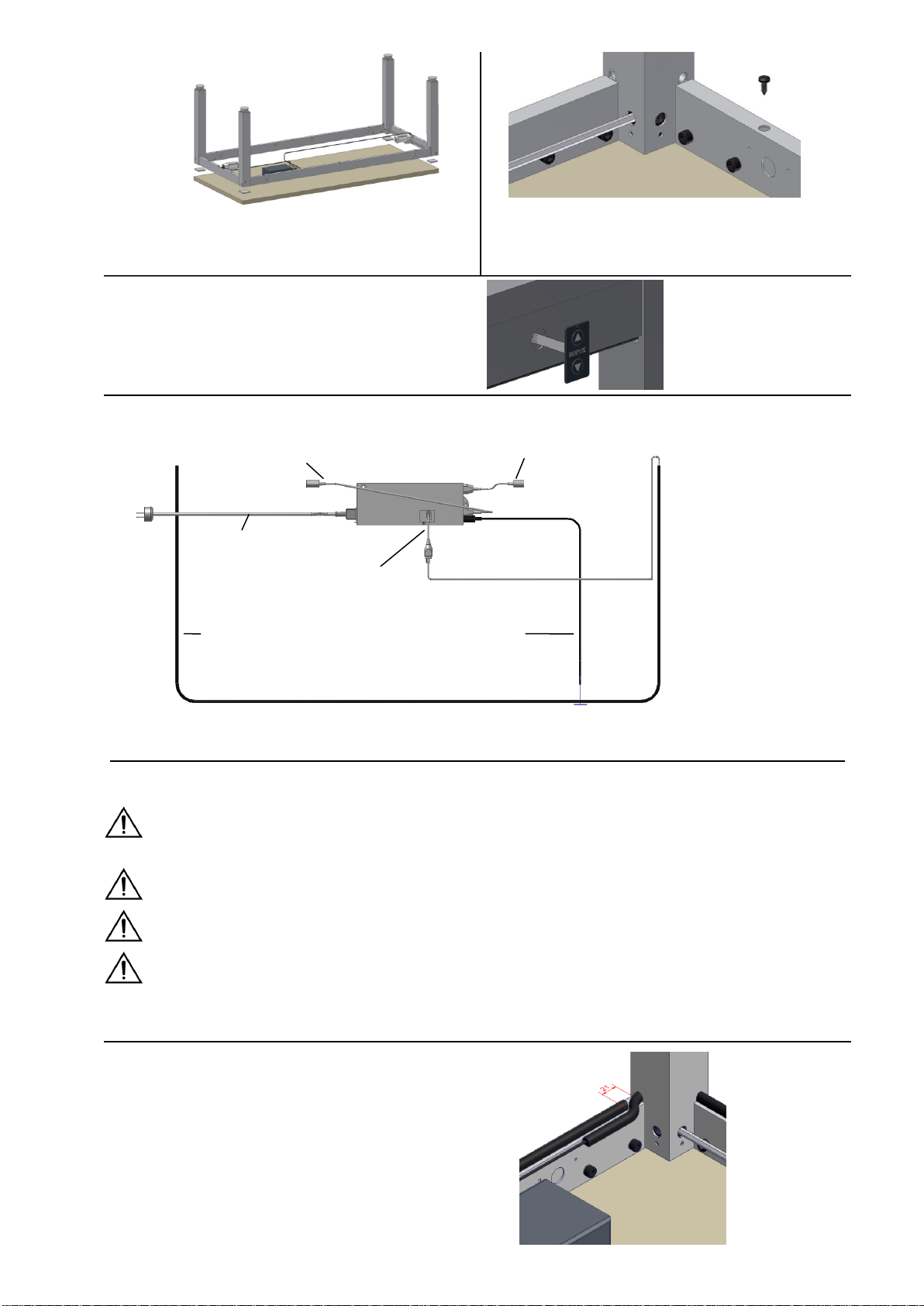

6.1.9 Fasten the tabletop with screws through the
holes of the fascias.
6.1.8 Place the frame on the table top and push
the cover plates between legs and table top.
Centre the frame in relation to the table top.
6.1.11 Connection to control unit
6.1.10 Mounting of fixed control switch
Pull the cable through the front
fascia and insert it into the control
unit.
6.2.1 Push the safety strip through all four legs
and fit it on the underside of the fascia by
means of the double-adhesive tape
provided.
Remove the protection paper of the tape
and press on the safety strip. Observe the
minimum bending radius (2cm inside)
See separate instructions for mounting
and handling of the safety strip.
Motor cabel M1
Motor cabel M2
Adapter cable
for safety strip
mains cable
Cable for control
switch
Safety strip (Options)

Page 10
© ROPOX 2019
6.3 Performance test
After mounting and prior to use all functions of the table must be tested. After that a
performance test must be carried out at least once a year by competent personnel:
Testing prior to switching on power:
1. Check that the mounting instructions have been observed.
2. Check that all bolts have been tightened.
3. Check that all cables have been connected correctly and that the plugs have been
pressed home.
4. There must be no load on the table.
5. There must be no objects or the like preventing the table from moving freely within the
range of height adjustment.
Start-up Procedure
1. Connect the net cable and turn on the power
2. Connect the motor cables to M1 and M2
3. Connect the control switch to HS
4. Press DOWN on the control switch, move the frame to bottom position, check that the
movement is even and smooth. Make sure that the hose connections follow the
movement of the frame and that they do not get squeezed. The frame is now reset.
5. Press UP on the control switch, move the frame to top position and check that the
movement is even and smooth. Make sure that the hose connections follow the
movement of the frame and that they do not get squeezed.
If a safety strip has been mounted under the tabletop it must be tested:
Press the DOWN button and let the table move 2-5cm downward while activating the
safety strip. The table must now stop the downward movement, move1-2cm upward and
stop.
When all these tests have been carried out the table is ready for use.
See ”Safety in use, section 9”.

Page 11
© ROPOX 2019
7. List of components
Set of legs H1, 50-41120:
1 set
Set of legs H2, 50-41220:
1 set
Front fascias for L=xxx cm, 50-43xxx:
1 set
Side fascias for W=xxx cm, 50-45xxx:
1 set
Control unit (26,5x10,5x3,7cm) 50-41500:
230VAC, incl. mains cable (300cm) 1 pc.
Contained in control unit:
Control switch, small press pad (3x6cm) 30-67840:
Control switch, standard 1 pc.
Incl. 150cm cable
Adhesive plate 96000155: 5 pcs.
Strips black 96000165: 5 pcs.
Angle plate for control unit 50*40000-039: 1 pc.
Motor 96000553: 2 pcs.
Motor cable 96000573: 2 pcs.
Allen screw M8x16 95010003: 16 pcs.
Screw ø4.8x13 95091012: 6 pcs.
Screw ø4.2x6.5 95090806: 2 pcs.
Spring 50-40000-040: 2 pcs.

Page 12
© ROPOX 2019
8. Options
Split cable for control switch 96000629: 1 pc.
To be used if more than one control switch is required
Infrared control 30-67847: 1 pc.
Remote control via infrared receiver (cable 250cm)
Operational range 150-200cm
Safety strip 30-69xxx:
1 pc.
Brake wheels, grey (4 wheels) 50-41600:
Increase the table height by 7.5cm 1 set
Increased lifting power, set of legs H1, 50-41320:
Max. load 250kg evenly distributed 1 set
(To be ordered with main order)
For frames with increased lifting power the gear housing
will be green and black
Increased lifting power, set of legs H2, 50-41420:
Max. load 250kg evenly distributed 1 set
(To be ordered with main order)
For frames with increased lifting power the gear housing
will be green and black

Page 13
© ROPOX 2019
9. Safety in use
➢4Single must only be used by persons, who have read and understood these
instructions.
➢The frame is provided with an infrared remote control, which must always be kept out of
reach of children.
➢4Single is an electrically operated height-adjustable table and we recommend the use of
a safety strip in order to prevent damage and accidents. However, even if this strip has
been fitted, always make sure that there are no persons, animals or objects under the
table during use.
➢4Single is an activity table and should not be used as a lifting table or person lifter.
➢Always use the table in a manner excluding the risk of damage to persons or property.
The person operating the table is responsible for avoiding damage or injury.
➢Children or persons with reduced observation capability should only operate the table
when supervised.
➢If the table is used in publicly accessible locations where children or persons with
reduced observation capability may get near the table, the person operating the table
must pay attention to those present in order to prevent dangerous situations.
➢Make sure that there is free space above and below the table to allow height adjustment.
➢Do not operate the table in case of defects or damage.
➢Do not overload the table and make sure that the load distribution is correct.
➢Do not use the table in an explosive environment.
➢In connection with inspections, service or repairs always remove loads from the table.
➢When installing power or water connections, the regulations of the national authorities
must be observed.
➢Modifications, which may influence the operation or construction of the table, are not
allowed.
➢Installation, service and repairs must be carried out by competent personnel.
➢If the table has not been assembled according to these mounting instructions the right to
complain may become void.
➢Only use Ropox original spare parts as replacement parts. If other spare parts are used,
the right to complain may become void.

Page 14
© ROPOX 2019
10. Cleaning/maintenance
10.1 Cleaning of frame
Clean the frame with a wrung cloth with lukewarm water and a mild detergent. Do not use
enchants or abrasives or grinding cloths, brushes or sponges
Dry the frame after cleaning.
10.2 Maintenance
The frame is maintenance-free and the moving parts have been lubricated for life. For reasons
of safety and reliability we recommend inspection of the frame once a year:
➢Check that all bolts have been tightened.
➢Check that the table moves freely and without problems from bottom to top position.
➢Resetting of frame: Press the DOWN button and adjust the frame to bottom position.
Press the DOWN button again and keep it pressed for 5 sec. to reset the control unit.
Check that the movement is smooth and even. Make sure that the mains cable moves
freely.
➢Check that water connection hoses and draining hoses, if available, are tight and
functional.
➢Check that cable to hotplate, if available, is undamaged and may move freely.
➢Check that all cables have been mounted correctly and are undamaged.
After each inspection, fill in the service schedule. See 10.3
Only use Ropox original spare parts for replacement of parts. If other spare parts are used, the
right to complain may become void.
WARNING
The frame must NOT be connected to mains voltage during cleaning. Do
NOT flush electrical components with water.
Inspections, service and repairs must be carried out by competent personnel.

Page 15
© ROPOX 2019
10.3 Service schedule, operation and maintenance
11. Trouble shooting
11.1 The frame seems loose or unstable
➢The screws assembling the frame have not been securely tightened.
➢Tighten all screws, cf. mounting instructions.
11.2 The height of the frame cannot be adjusted (adjustment seems very
difficult)
➢Check mains voltage to control unit and that the power has been switched on.
➢Check cables and plug-in connections between control unit and motors.
➢Check cable and plug-in connection between control unit and control switch.
➢Check connection of cables for safety strip to control unit and safety strip.
(If no safety strip has been fitted, there must be a short-circuit plug on the safety strip
cable. See mounting instructions fig. 6.2.2).
➢If a safety strip has been fitted:
Check that the safety strip has not been activated.
Remove the short-circuit plug from the safety strip to the Y-cable of the control unit. See
mounting instructions fig. 6.2.2). If the table works without connection of the safety strip,
the safety strip has been activated.
11.3 The frame does not move straight
➢If the frame does not move straight, it must be reset, see Maintenance, section 10.2
If there has been a power failure, the table must always be reset before use.
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Dato:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:
Service and maintenance Serial No.
Date:
Signature:
Remarks:

Page 16
© ROPOX 2019
12. Complaints
See General Terms of Sale and Delivery on www.ropox.com
ROPOX A/S
Ringstedgade 221
DK –4700 Naestved
Tel.: [phone] Fax.: [phone]
E-mail: [email protected]
www.ropox.com
