Ross Vision Crosspoint Module User manual

Ross Video Limited
Crosspoint Module
Installation Guide
V I S I O N

2• Crosspoint Module Installation Guide
Crosspoint Module Installation Guide
• Ross Part Number: 4800DR-345-02
• Release Date: July, 2010. Printed in Canada
The information contained in this document is subject to change without notice or
obligation.
Copyright
©2010 Ross Video Limited. All rights reserved.
Contents of this publication may not be reproduced in any form without the
written permission of Ross Video Limited. Reproduction or reverse engineering of
copyrighted software is prohibited.
Patents
This product is protected by the following US Patents: 4,205,346; 5,115,314;
5,280,346; 5,561,404; 7,034,886; 7,508,455. This product is protected by the
following Canadian Patents: 2039277; 1237518; 1127289. Other patents pending.
Notice
The material in this document is furnished for informational use only. It is subject to
change without notice and should not be construed as commitment by Ross Video
Limited. Ross Video Limited assumes no responsibility or liability for errors or
inaccuracies that may appear in this document.
Trademarks
•
®
is a registered trademark of Ross Video Limited.
• Ross, ROSS, ROSS®, MLE, Vision, Octane, Squeeze & Tease, Squeeze
& Tease WARP, OverDrive, RossGear, openGear, DashBoard Control
System, and SoftMetal are registered and unregistered trademarks of Ross
Video Limited.
• Windows is a registered trademark of Microsoft Corporation in the United
States and other countries.
• All other product names and any registered and unregistered trademarks
mentioned in this document are used for identification purposes only and
remain the exclusive property of their respective owners.
Important Regulatory and Safety Notices to Service
Personnel
Before using this product and any associated equipment, refer to the "Important
Safety Instructions" listed in the front of your Engineering Manual to avoid
personnel injury and to prevent product damage.

Crosspoint Module Installation Guide • 3
Product may require specific equipment, and/or installation procedures to be carried
out to satisfy certain regulatory compliance requirements. Notices have been
included in this publication to call attention to these specific requirements.
General Handling Guidelines
• Careful handling, using proper ESD precautions, must be observed.
• Power down the system before PCB removal.
ESD Susceptibility: Avoid handling the switcher circuit
boards in high static environments such as carpeted areas,
and when synthetic fiber clothing is worn. Touch the frame
to dissipate static charge before removing boards from the
frame, and exercise proper grounding precautions when
working on circuit boards.
Environmental Information
The equipment that you purchased required the extraction and use of natural
resources for its production. It may contain hazardous substances that could
impact health and the environment.
To avoid the potential release of those substances into the environment and to
diminish the need for the extraction of natural resources, Ross Video encourages
you to use the appropriate take-back systems. These systems will reuse or recycle
most of the materials from your end-of-life equipment in an environmentally
friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please
contact your local or regional waste administration.
You can also contact Ross Video for more information on the environmental
performances of our products.

4• Package Contents
Package Contents
The contents of a Crosspoint Module kit is listed below. If any items are missing, or
damaged, contact Ross Video Technical Support.
Qty Part# Item
1 V-110M Crosspoint Module
1 727-024R Module Control Link Cable (Black, CAT5e, 2’ long)
1 727-025R Module Control Link Cable (Black, CAT5e, 1’ long)
1 4800CR-375 Module Power Cable Adapter
5 650-005R Retaining Nuts

Removing a Module • 5
Removing a Module
To remove an existing module, you must first disconnect the communications and
power cables from the existing module, and then remove the module. If you are
removing a blank module plate, there are no communications or power cables to
disconnect.
Warning Hazardous Voltages: Hazardous voltages are
present in the control panel as long as any of the power
supplies are connected to the AC power.
1. Power down the control panel. The frame can remain on during this
procedure. Refer to your Vision switcher documentation for information on
shutting down the control panel.
2. Unplug the Primary and Redundant (if installed) power from the control
panel.
3. Lift up on the control panel lid to gain access to the control panel tub.
4. Identify the module, or blank module plate, that you want to remove.
5. Disconnect the Module Power Cable from the existing module you want to
remove. This 4-conductor ribbon cable delivers power to all the modules
in the row. When removing it, ensure that you do not accidentally unplug it
from any neighboring modules.
PMC Board
To Front of Control Panel
Power Connector
Figure 1: Power Connector
6. Disconnect both of the Module Control Link Cables from the existing
module you want to remove. These CAT5e cables deliver all the command
signals to and from the module, as well as the other modules in the same
row.
7. Remove the four (4) Retaining Nuts located at each corner of the existing
module, or blank module plate, and keep them in a safe place. A ¼ inch hex
driver or wrench is required.
8. Remove the existing module, or blank module plate, from the control panel.

6• Installing a Crosspoint Module
Installing a Crosspoint Module
To install the Crosspoint module, you must remove the plate from the Crosspoint
module, install the plate into the module slot in the control panel, and then install the
Crosspoint module onto the plate.
1. Remove the five (5) Retaining Screws securing the plate to the Crosspoint
module and remove the plate.
Retaining Screw Holes
Figure 2: Crosspoint Module and Plate
2. Slide the Crosspoint plate into the open module slot that you want to install
the module into.
3. Install the four (4) Retaining Nuts located at each corner of the Crosspoint
plate to a maximum torque of 5 in-lbs (6 cm-kg). A ¼ inch hex driver or
wrench is required.
Front of Control Panel
Retaining Nuts
Figure 3: Crosspoint Module Plate Retaining Nuts
4. Align the Crosspoint module so the Retaining Screw Holes on the
Crosspoint module line up with the mounts on the Crosspoint plate.
5. Using the screws obtained from removing the Crosspoint plate from the
Crosspoint module, secure the Crosspoint module to the Crosspoint plate.
Next, you must install the Module Control Link cables and the Module Power cable
to the Crosspoint module.

Cabling a Crosspoint Module • 7
Cabling a Crosspoint Module
If you are installing the Crosspoint module into a slot on the right-hand side of the
control panel, the Module Power Cable must be twisted to properly connect to the
Power Connector on the Crosspoint module. In this case, you may want to replace
the Module Power Cable with the longer cable provided (4800CR-361).
1. Connect and secure the existing Module Control Link Cable to the PREV
port on the first module (1). This CAT5e cable with an RJ-45 connector on
either end is already installed in the control panel.
1 2
Front of Control Panel
Module Control
Link Cable

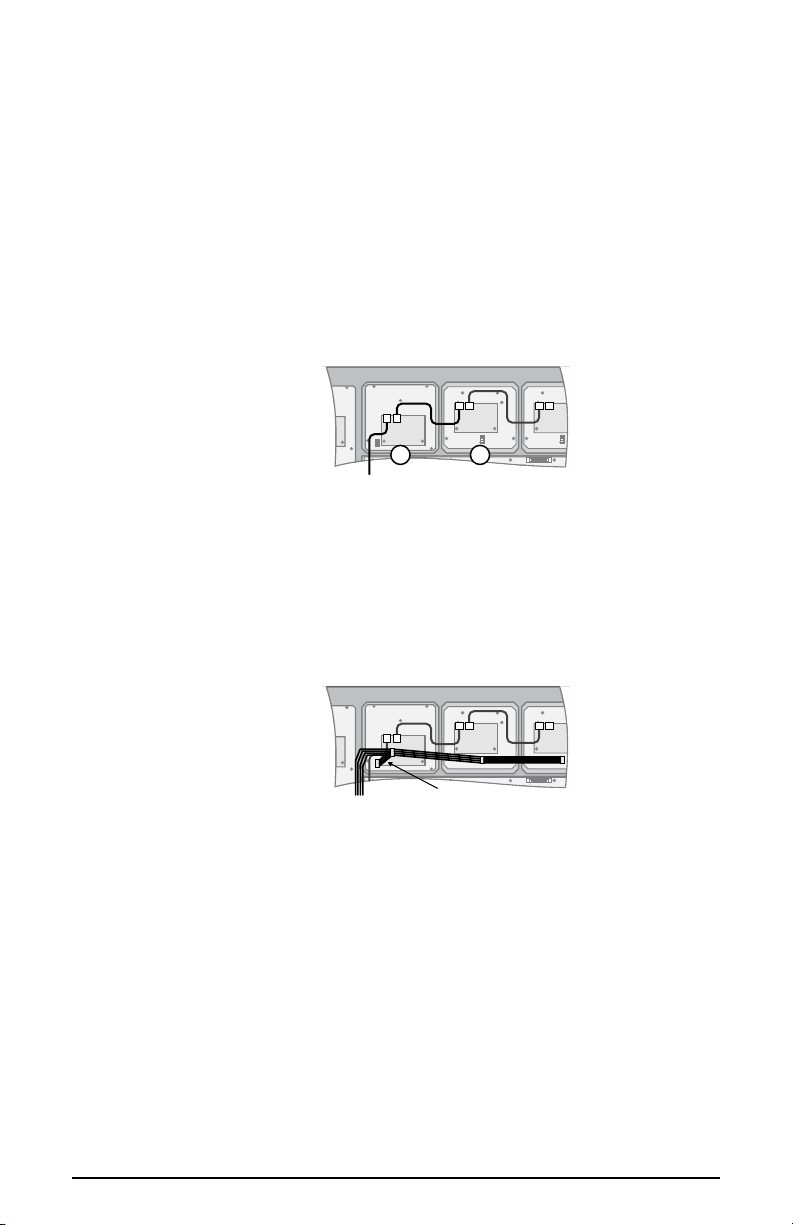

Figure 4: Module Control Link Cable
2. Connect and secure the free end of the Module Control Link Cable
connected to the PREV port of the second module (2), to the NEXT port on
the first module (1).
3. Connect the black and white end of the Module Power Cable Adapter to the
Module Power Cable.
Front of Control Panel
Module Power
Cable
Module Power
Cable Adapter
Figure 5: Module Power Cable Adapter
4. Connect the orange end of the Module Power Cable Adapter to the
Crosspoint module.
5. Ensure that the Module Power Cable is properly connected to the remaining
modules.

8• Upgrading a PMC
Upgrading a PMC
The Panel Module Controllers (PMCs) may need to be upgraded if you perform a
software upgrade or replace a module. If PMCs need to be upgraded, the message
PMCs need to be upgraded; please go to Panel Modules
menu is displayed on the Main Menu.
1. Press HOME > More > Setup > More > Panel Modules .
A warning is displayed, asking you if you want to enter the menu. Press
Yes to display the Panel Modules Menu.

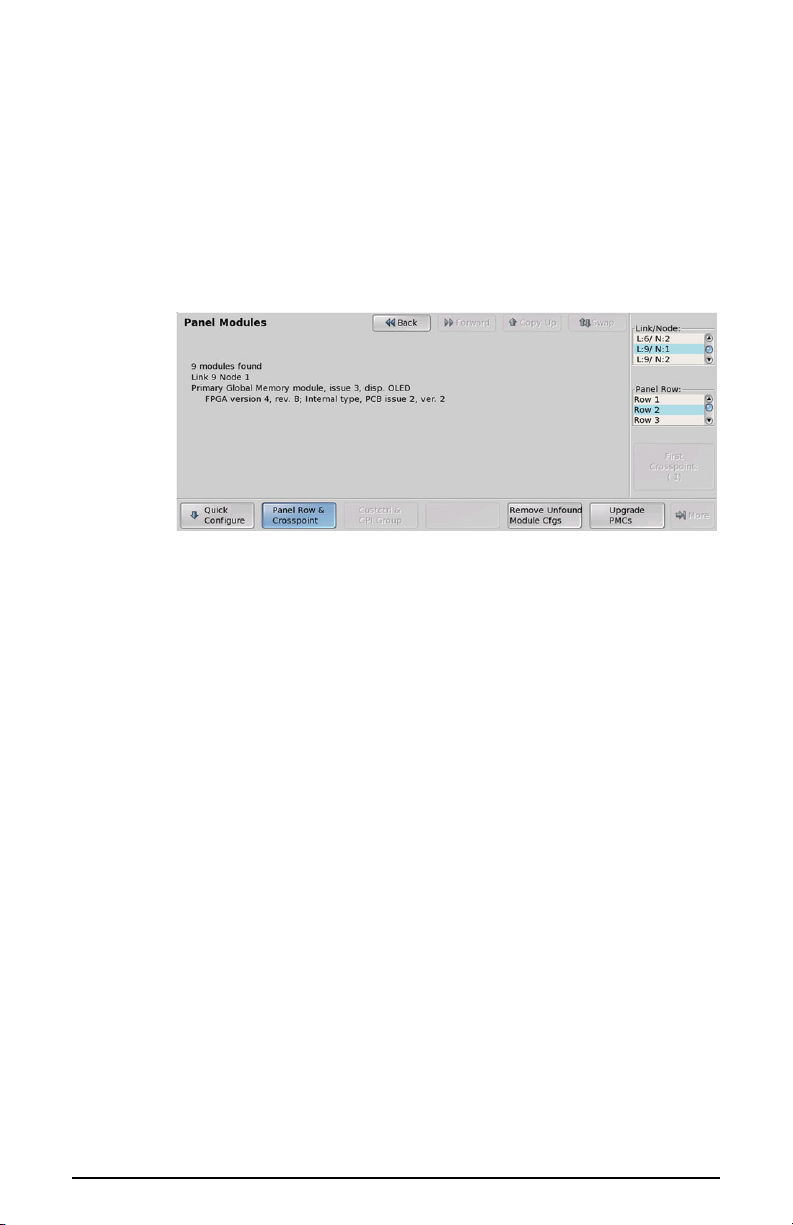

Figure 6: Panel Modules Menu - Panel Row & Crosspoint
2. Press Upgrade PMCs.
The switcher starts upgrading the PMC on the control panel.

Mapping a Single Module • 9
Mapping a Single Module
If you are mapping a single modules to a panel row, you can use select the link and
node that you installed the module on and assign it to a panel row.
1. Press HOME > More > Setup > More > Panel Modules .
A warning is displayed, asking you if you want to enter the menu. Press
Yes to display the Panel Modules Menu.
Figure 7: Panel Modules Menu - Panel Row & Crosspoint
2. Use the Link/Node knob to select the link and node that the module you
want to assign to a row is installed on. You can also press a button on the
module to go to the link and node.
3. Press Panel Row & Crosspoint.
4. Use the Panel Row knob to select the panel row that you want to assign
the module to. You can select either an internal row (Row 1 to Row 8), or
an external row (Row 1 to Row 16).
5. Use the First Crosspoint knob to select the number of the first crosspoint
button on the module you are setting up. Each crosspoint module has 8
buttons, so the first button on module 1 is 1, the first button on module 2 is
9. If the module does not have crosspoint buttons, this knob is gray.
6. Set up a Custom Control module as follows:
a) Use the Link/Node knob to select the link and node that the module
you want to assign to a row is installed on. You can also press a button
on the module to jump to the link and node.
b) Press Custctrl & GPI Group.
c) Use the First Custctrl knob to select the number of the first custom
control button on the module you are setting up. Each custom control
module has 8 buttons, so the first button on module 1 is 1, the first
button on module 2 is 9. If the module does not have custom control
buttons, this knob is gray.

10 • Mapping a Single Module
Figure 8: Panel Modules Menu - Custctrl & GPI Group
