Roxell FLEX-AUGER FA 55 User manual

030-051603000031 *03000031*
Original use and assembly guide
Use and Assembly Guide
Instructions
for the user Components Installation
instructions
EN ENGLISH

FLEX-AUGER TABLE OF CONTENTS ROXELL - 031 - 0516
TABLE OF CONTENTS
TABLE OF CONTENTS
GENERAL INFORMATION
PART I : INSTRUCTIONS FOR THE USER
GENERAL SAFETY RULES I-3.......................................................
OPERATOR'S GUIDE I-4............................................................
MAINTENANCE I-5.................................................................
TROUBLE SHOOTING GUIDE I-6....................................................
WIRING DIAGRAM AUTOMATI OUTLET I-7...........................................
FLEX AUGER MIX I-81...............................................................
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY
PART II : COMPONENTS
GENERAL VIEW II-2.................................................................
COMPONENT NUMBERS II-3........................................................
GENERAL LAY-OUT CDS-SYSTEM II-4...............................................
GENERAL LAY-OUT CDS-SYSTEM : STANDARD - FA 75/90/125 II-4.....................
GENERAL LAY-OUT CDS-SYSTEM : BROILER CAGES - FA 90/125 II-5...................
COMPONENT NUMBERS II-5........................................................
SUSPENSION- AND LINE COMPONENTS II-6.........................................
POWER UNIT II-7..................................................................
CONTROL UNIT FA 55 - 03501236 II-8................................................
CONTROL UNIT W/O SAFETY SWITCH FA 55 - 03501244 II-9...........................
CONTROL UNIT FA 75 - 03103256 II-10................................................
CONTROL UNIT FA 90 F/FA75 - 03202553 II-11.........................................
CONTROL UNIT FA 90 - 03202496 II-12................................................
CONTROL UNIT II-13.................................................................
EXTENSION BOOT FA 55 - 03501350 II-14..............................................
EXTENSION BOOT FA 55 - 03501350 II-15..............................................
EXTENSION BOOT FA 75 - 03103884 II-16..............................................
EXTENSION BOOT FA 75 - 03103884 II-17..............................................
EXTENSION BOOT FA 90 - 03202652 II-18..............................................
EXTENSION BOOT FA 90 - 03202652 II-19..............................................
EXTENSION BOOT FA 125 - 03701092 II-20............................................
THUMPER ASS'Y - 03000007 II-21.....................................................
PELLET GUIDES FA 75-FA 55 - 03101425 II-21..........................................
PELLET GUIDES FA 90 - 03200854 II-21................................................
PELLET GUIDE DOUBLE - 03102910 II-21..............................................
PELLET GUIDES FA 125 - 03700564 II-21...............................................
CLOSING PLATE KIT FOR INTAKE BOOT - 13000146 II-22...............................
FEED INTAKE BOOT FA 55 - 03501335 II-22............................................
FEED INTAKE BOOT FA 75 - 03103850 II-23............................................
FEED INTAKE BOOT FA 90 - 03202629 II-24............................................
FEED INTAKE BOOT 90F/FA75 - 03202694 II-25......................................
FEED INTAKE BOOT FA 125 - 03700531 II-26...........................................
DOUBLE INTAKE BOOT FA 55 - 03501343 II-27.........................................
DOUBLE INTAKE BOOT FA 75 - 03103868 II-28.........................................
DOUBLE INTAKE BOOT FA 90 - 03202637 II-29.........................................
DOUBLE INTAKE BOOT FA 90-FA75 - 03000569 II-30....................................
DOUBLE INTAKE BOOT FA 90-FA55 - 03000593 II-31....................................
DOUBLE INTAKE BOOT FA 75-FA55 - 03000882 II-32....................................
TANDEM IN LINE FA 75 - 03103876 II-33...............................................
TANDEM IN LINE FA 90 - 03202645 II-34...............................................
TANDEM IN LINE FA125 - 03700580 II-35...............................................
RETURN TANDEM FA 75 - 03102969 II-36..............................................
RETURN TANDEM FA 90 - 03202009 II-37..............................................
RETURN BOX FOR CDS MODEL FA 75 - 03102977 II-38.................................

FLEX-AUGER
ROXELL - 031 - 0516
RETURN BOX FOR CDS FA 90 - 03202025 II-39.........................................
RETURN TANDEM BOOT FA 125 - 03700572 II-40......................................
THUMPER FOR RETURN TANDEM - 03102951 II-41.....................................
PELLET GUIDES TANDEM RETURN - 03202470 II-41....................................
THUMPER ASSEMBLY FA 125- 03700556 II-41..........................................
UPPER BOOT 15_PE - BLACK 03000577 II-42..........................................
QUADRUPLE BOOT - 03102845 II-42..................................................
COVER ASS'Y FOR UPPER BOOT - 03001195 II-42.....................................
TRANSFER PLATE ASS'Y - PE - BLACK - 03000585 II-42.................................
OUTLET DROP ASS'Y W/SHUT-OFF MODEL 55 II-43....................................
OUTLET DROP ASS'Y W/SHUT-OFF MODEL 75 II-43....................................
OUTLET DROP ASS'Y W/SHUT-OFF MODEL 90 II-43....................................
OUTLET DROP ASS'Y W/SHUT-OFF MODEL 125 II-44...................................
TELESCOPICAL DROP TUBE - 03100435 II-44..........................................
EXCENTRIC DROP ASS'Y - MODUL. CONTROL UNIT. - 04905402 II-45....................
EXTENSION MODULAR CONTROL UNIT - 04904249 FA 90 II-46..........................
CLOSING PLATE KIT FOR MODULAR CONTROL UNIT - 04904280 FA 90 II-46.............
EXTENSION MODULAR CONTROL UNIT Ø125 - 04909238 II-47..........................
CLOSING PLATE KIT FOR MODULAR CONTROL UNIT 125 - 04909600 II-47...............
EXTENSION FOR INTAKE BOOT II-48.................................................
CONNECTION KIT FOR MODULAR CONTROL UNIT FA55 - 04904736 II-48................
CONNECTION KIT FOR MODULAR CONTROL UNIT FA 90- 04904751 II-49................
CONNECTION KIT FOR MODULAR CONTROL UNIT FA 125- 04904759 II-50...............
SENSOR HOLDER + CONN. KIT - 03103074 II-51.......................................
SENSORS II-51......................................................................
HOPPER LEVEL SWITCH - 03100864 II-52..............................................
LEVEL SWITCH FOR TUBE - 03000551 II-52............................................
DROP TUBE LEVEL SWITCH W/DELAY - 03100872 II-53.................................
DROP TUBE LEVEL SWITCH - 03101102 II-53..........................................
SAFETY SWITCH - 13000757 II-53.....................................................
DROP TUBE LEVEL SWITCH W/DELAY II-53...........................................
DROP TUBE LEVEL SWITCH II-53.....................................................
SAFETY SWITCH II-53................................................................
MOTOR STARTER II-54..............................................................
AUTOMATIC OUTLET - Ø 56-24VDC(I) - 04906954 II-55..................................
AUTOMATIC OUTLET - Ø75 - 24VDC(I) - 04906962 II-56.................................
AUTOMATIC OUTLET - Ø89 - 24VDC(I) - 04906913 II-57.................................
AUTOMATIC OUTLET - Ø 125-24VDC(I) - 04909364 II-58.................................
GENERAL VIEW FLEX-AUGER MIX II-59...............................................
COMPONENT NUMBERS II-59........................................................
FLEX-AUGER MIX - 03000536 II-60....................................................
POWER UNIT II-61..................................................................
CONTROL UNIT FLEX AUGER 125 MIX - 03001211 II-62.................................
TUBE ANCHOR WELDMENT - 13701412 II-63..........................................
CONTROL PANEL FOR FLEX-AUGER MIX II-63.........................................
GENERAL LAY-OUT OVERHEAD SYSTEM II-64.........................................
MOTOR COVER MOUNTING KIT Ø90 - 03000900 II-65...................................
MOTOR COVER MOUNTING KIT Ø125 - 03001219 II-65..................................
COVER - FLEX-AUGER FILL SYSTEM 182X182MM - 15902513 II-66.......................
MOTOR COVER - TOP PLATE Ø90 - 03000902 II-66.....................................
MOTOR COVER - SIDE PLATE - 03000904 II-66.........................................
CONNECTION CONTROL UNIT-BIN - SUSPENDED - 03000874 II-66......................
EXTENSION BOOT COVER MOUNTING KIT - Ø90 II-67..................................
EXTENSION BOOT COVER MOUNTING KIT Ø125 - 03001227 II-67.......................
MOTOR COVER - F. PLATE L - 03000894 II-68..........................................
MOTOR COVER - F. PLATE R - 03000896 II-68..........................................
MOTOR COVER - F. PLATE L - 03701204 II-68..........................................
MOTOR COVER - F. PLATE R - 03701220 II-68..........................................
CONNECTION CONTROL UNIT-BIN - FIXED- 03000866 II-69.............................

FLEX-AUGER TABLE OF CONTENTS ROXELL - 031 - 0516
EXTENSION BOOT FOR OVERHEAD FA90 - 03202678 II-70..............................
EXTENSION BOOT FOR OVERHEAD FA90- 03202678 II-71..............................
EXTENSION BOOT FOR OVERHEAD FA90- 03202678 II-71..............................
EXTENSION BOOT FOR OVERHEAD FA125- 03701228 II-72.............................
SPARES SET BEAR.CAP HOLD II-73..................................................
PART III : INSTALLATION INSTRUCTIONS
GENERAL VIEW III-2.................................................................
COMPONENT NUMBERS III-3........................................................
GENERAL LAY-OUT CDS-SYSTEM III-4...............................................
GENERAL LAY-OUT CDS-SYSTEM : STANDARD III-4...................................
GENERAL LAY-OUT CDS-SYSTEM : BROILER CAGES III-5.............................
COMPONENT NUMBERS III-5........................................................
TOOLS III-6.........................................................................
GENERAL TECHNICAL INFORMATION III-7............................................
GUIDELINES FOR DESIGNING THE FLEX AUGERIII-9................................
FLEX AUGERFROM HOPPER TO HOUSE III-10.......................................
RETURN FLEX AUGERTO HOPPER - CDS III-11......................................
POSITION OF THE CONTROL UNIT DROP TUBE III-11...................................
LOCATION OF THE OUTLETS - CDS - STANDARD III-12.................................
LOCATION OF THE OUTLETS - CDS - BROILER CAGE III-13.............................
BIN LOCATION III-14..................................................................
ELBOW DIAGRAMS III-14.............................................................
ELBOW DIAGRAM FLEX-AUGER MODEL 55-75-90 III-15.................................
ELBOW DIAGRAM FLEX-AUGER MODEL 125 - R = 1700 III-16............................
ELBOW DIAGRAM FLEX-AUGER MODEL 125 - R = 2200 III-17............................
GRAPH WITH MAXIMUM LENGTHS - MODEL 55 III-18...................................
GRAPH WITH MAXIMUM LENGTHS - MODEL 75 III-19...................................
GRAPH WITH MAXIMUM LENGTHS - MODEL 90 III-20...................................
GRAPH WITH MAXIMUM LENGTHS - MODEL 125 - 33M III-21.............................
GRAPH WITH MAXIMUM LENGTHS - MODEL 90/125 - CDS BROILER CAGE III-22..........
GRAPH WITH MAXIMUM LENGTHS - MOD. 90 - HEAVY DUTY AUGER (HD) III-22..........
TRANSPORT LINE LOCATION III-23....................................................
DISTANCE BETWEEN SUSPENSION POINTS III-23......................................
TO INSTALL THE SUSPENSION POINTS III-24..........................................
SUSPENSION COMPONENTS III-24....................................................
SUSPENSION IN A HOUSE WITH SEPARATED PENS III-25..............................
CONTROL UNIT ASSEMBLY AND INSTALLATION III-26..................................
TO INSTALL THE MULTIPLE CONTROL UNIT III-27......................................
EXTENSION BOOT ASSEMBLY AND INSTALLATION III-28...............................
TO MAKE THE DROP HOLES IN THE TUBES III-29......................................
TO INSTALL THE TUBES III-30.........................................................
TO INSTALL THE OUTLETS III-33......................................................
TO INSTALL THE AUTOMATIC OUTLET III-35...........................................
TO REMOVE THE DROP III-35.........................................................
POSITION OF THE DROP TUBES III-37.................................................
POSITION OF THE CONTROL UNIT DROP TUBE III-37...................................
TO INSTALL THE THUMPER - MODEL 55 / 75 / 90 III-38..................................
TO INSTALL THE BOOT ASSEMBLY III-38..............................................
TO INSTALL THE BOOT ASSEMBLY III-39..............................................
QUADRUPLE BOOT ASSEMBLY III-40..................................................
TO CONNECT THE TRANSPORT SYSTEM TO THE BIN III-41.............................
TO INSTALL THE AUGER III-44........................................................
TO CONNECT THE AUGER III-45......................................................
BEARING CAP HOLDER III-46.........................................................
FLOW REGULATION MODEL 75 & 90 III-46.............................................
TO INSTALL THE THUMPER - FLOW REGULATION - MODEL 125 III-47....................
TO INSTALL THE DROP TUBES III-48..................................................
TO ADJUST THE TELESCOPICAL TUBE III-49...........................................

FLEX-AUGER
ROXELL - 031 - 0516
TO INSTALL THE RETURN TANDEM SYSTEM (MODEL 75 & 90) III-50.....................
TO INSTALL THE TANDEM IN LINE (MODEL 75/90) III-51.................................
TO INSTALL THE TANDEM IN LINE (MODEL 125) III-52..................................
REDUCING THE CAPACITY III-52......................................................
TO INSTALL THE TUBE III-53..........................................................
AUGER STRETCHING (STRAIGHT THROUGH TANDEM) III-54............................
TO INSTALL THE HOPPER LEVEL SWITCH III-55........................................
TO INSTALL THE DROP TUBE LEVEL SWITCH III-55....................................
TO INSTALL THE SENSOR ON A FLAT SURFACE III-56..................................
TO INSTALL THE SENSOR ON A DROP TUBE III-56.....................................
TO INSTALL THE DROP TUBE LEVEL SWITCH IN A LINE WITH EXTENSION BOOT III-57...
TIME DELAY III-58....................................................................
ELECTRICITY .... WATCH OUT ! III-58..................................................
ELECTRICAL SYMBOLS III-59.........................................................
WIRING DIAGRAM FOR 1X230V III-60..................................................
WIRING DIAGRAM FOR 3X230V III-61..................................................
WIRING DIAGRAM FOR 3X400V III-62..................................................
WIRING DIAGRAM CDS FEED SUPPLY SYSTEM III-63...................................
WIRING DIAGRAM AUTOMATIC OUTLET III-64..........................................
FLEX-AUGER FEED MIX III-65.........................................................
GENERAL LAY-OUT OVERHEAD SYSTEM III-69.........................................
FLEX-AUGER OVERHEAD III-70.......................................................
ASSEMBLY III-71/73.....................................................................
ASSEMBLY III-74/75.....................................................................
MOTOR PROTECTION III-76...........................................................
MAXIMUM CABLE LENGTHS TO THE MOTORS III-77....................................

ROXELL - 2313
DISCLAIMER :The original, authoritativeversion ofthis manualis theEnglish versionproducedby
ROXELLbvba.Subsequentchangestoanymanualmadebyanythirdpartyhavenotbeenreviewednorauthenticatedby
Roxell. Such changes may include, but are not limited to, translation into languages other than English, and additions to or
deletionsfromtheoriginalcontent.Roxelldisclaimsresponsibilityforanyandalldamages,injuries,warrantyclaimsand/or
anyotherclaimsassociatedwithsuchchanges,inasmuchassuchchangesresultincontentthatisdifferentfromtheauthoritat-
iveRoxell--publishedEnglishversionofthemanual. For current productinstallationandoperationinformation, pleasecon-
tactthecustomerserviceand/ortechnicalservicedepartmentsofRoxell.Shouldyouobserveanyquestionablecontentinany
manual, please notify Roxell immediately in writing to: ROXELL bvba -- Industrielaan 13, 9990 Maldegem -- Belgium.

ROXELL - 0516
GENERAL INFORMATION
THESE INSTRUCTIONS MUST BE READ, UNDERSTOOD AND ALL POINTS OBSERVED BY THE
USER, THE RESPONSIBLE AND OPERATING PERSONNEL.
1. OBEY THE LEGAL REGULATIONS AND THE APPLICABLE RULES!
This concerns, among other things, the European directives transposed into national legislation and/or the laws,
safety and accident prevention regulations that apply in the user's country.
During assembly, operation and maintenance of the installation the legal regulations concerned and the applicable
technical rules must be obeyed.
2. INTENDED USE
The installation has been designed solely for intensive livestock use and has been developed according to the ap-
plicable rules of good workmanship. Extra loading of the product istherefore prohibited. Any other use is considered
to be improper use. The manufacturer is not responsible for damage resulting there from. The user bears sole re-
sponsibility.
3. NOT-INTENDED USE
All use different than described in point 2” intended use” is at the responsibility of the end user.
4. LIABILITY
The (Extended) Warranty will not apply if any of the following has occurred: failure to conduct incoming goods
inspection with regards to the Products, improper handling, transportation, modification or repair; accident, abuse
or improper use; improper assembly, installation, connection or maintenance (having regard to Roxell’s most
current assembly, installation, connection and maintenance manuals); force majeure; negligence, lack of
supervision or of maintenance on the part of customer; normal wear and tear; use of cleansing agents and
disinfectants that are excluded in Roxell’s most current use and maintenance manuals; use of cleansing agents and
disinfectants in violation with the instructions received from the suppliers; or use of the Products in an ATEX-
surrounding.
The (Extended) Warranty shall not apply in the event of a defectcaused either bymaterials or accessories supplied
by or services rendered by Customer; or by an intervention by a person or entity which is not authorised or qualified
for carrying out such intervention. Furthermore, the (Extended) Warranty will only apply if the Products are used in
livestock houses and if all parts or components of the Products are supplied by Roxell.
Roxell will not be liable for any damages caused due to improper use, assembly, installation, connection or
maintenance of the Products. In this respect, the Customer expressly acknowledges that (i) all use, assembly,
installation, connection or maintenance must be donein accordance with Roxell’s most current assembly,
installation, connection and maintenance manuals and (ii) the electrical installation on which the Products must be
connected must be done in accordance with applicable local legislation on electrical installations. Furthermore, the
Products must be tested both mechanically and electrically in accordance with state of the art techniques and
applicable local legislation.
5. PERSONNEL QUALIFICATIONS
USER:
The person who uses a function or operation of a product for their work or who works on the product. The user must
be able to read the instructions for use and fully understand them. The user has knowledge of the functioning and
construction of the installation.
TECHNICALLY TRAINED PERSON:
An expert who can assemble and maintain the installation (mechanically/electrically), and resolve malfunctions.
Onthe basis of his/hertechnicaltrainingandexperience,he/shehas sufficient knowledge to be ableto assess activ-
ities, recognise possible dangers and rectify dangerous situations.

ROXELL - 0516
6. INFORMATION ABOUT THE RESIDUAL RISKS - USED SAFETY SIGNS
There are three levels of danger, which you can recognize from the signal word
* DANGER
* WARNING
* CAUTION
The nature and source of the imminent danger and possible consequences of not obeying warnings is stated here!
DANGER
DANGER indicates a direct imminent dange
r
that can result in a serious or even
fatal accident if the safety measures are not respected.
WARNING
WARNING indicates a possible imminent danger that can result in a serious acci-
dent or damage to the product if the safety measures are not respected.
CAUTION
CAUTIONindicates possible, dangerous situations that can result in minor physical
injury or material damage if the safety measures are not respected.
This symbol refers to supporting information.
not allowed
allowed
7. STORAGE
Put all parts to be assembled in a room or at a location where the not yet assembled components are protected
against weather influences.
8. TRANSPORT
Depending on the size of the parts and according to local circumstances and local legislation, the parts of the ma-
chine have to be transported with a forklift.
The forklift must be operated by a qualified person and in accordance with the rules of good workmanship.
When lifting the load, always check if the center of gravity of the load is stable.

ROXELL - 0516
9. DISMANTLING
Dismantle the installation and its components in accordance with the environmental legislation of the country or the
local authorities applicable at that time. All functioning products and exchange parts must be stored and disposedof
in accordance with the applicable environmental regulations.
Environmental information for customers in the European Union
European directive 2002/96/EC amended by the Directive 2008/34/EC requires that equipment that
bears this symbol on the product or packaging must not be disposed of with unsorted household
waste. This symbol indicates that the product must be disposed of separately. Your are yourself re-
sponsible for the destruction of this and other electrical and electronic equipment via the disposal
channels designated for that purpose by the national or local government. The correct destruction
and recycling of this equipment prevents anynegative consequences for the environment and health.
For more information about destroying your old equipment, contact your local authorities or waste
disposal service.
Information about waste disposal - electrical/electronic material for companies
1. In the European Union
If you have used the product for commercial purposesand you want to dispose of it,contact Roxell who will give you
information about the return of the product. It is possible that you willhave to pay a disposal charge for the return and
recycling. Small products (and small quantities) can be processed by the local collection agencies.
2. In other countries outside the European Union
If you want to dispose of this product, contact the local authorities for information concerning the correct disposal
procedure.
10. THE LEVEL OF NOISE EMISSION
The noise level of the installation in operation does not exceed 70dB(A).
11. LOCK OUT TAG OUT – LOCK METHOD GENERAL
- Everyone needs his own lock and tag (label), which can’t be removed by other persons.
- Inform all persons who are influenced by the procedure.
- Localize all sources of energy (electric, hydraulic, pneumatic).
- Switch off.
- Lock out and tag out.
- Check if the source of energy is switched off.
- Remove any remaining energy.
12. USE PERSONAL PROTECTIVE EQUIPMENT.
Ensure you wear personal protective equipment (gloves, dust masks...).
13. SUFFICIENT LIGHTING - ILLUMINANCE
-A minimum illuminance of 200 lux is necessary during usage, maintenance and installation.
- Provide at the installation (portable) emergency lighting in case of power failure.
14. ELECTRICAL EQUIPMENT, CONTROL PANELS, COMPONENTS AND DRIVE
UNITS
- To operate control panels, there must be atleast70cmoffreespace.
- Control panels must always remain closed. The key of the control panel must be in possession of an au-
thorized person.
- The necessary measures must be taken by the user to keep out rats, mice and other vermin from the
control panels
- If electrical equipment, control panels, components and drive units are damaged, the system must be
stopped IMMEDIATELY!
- Electrical equipment, control panels, components and drive units should NEVER be sprayed with water or
other liquid!
- Electrical equipment, control panels, components and drive units should NEVER be covered with any ma-
terial.

I-1
PART I
INSTRUCTIONS FOR THE USER

FLEX-AUGER - INSTRUCTIONS FOR THE USER ROXELL - 031- 0516
I-2

FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-3
1. Beforeyoudoanyrepair,ormaintenanceworks,alwaysdisconnecttheelectricitysup-
plybymeansofthemainswitch.
2. Ensure you wear personal protection equipment (gloves, dust masks).
3. The system starts automatically.
Neveruse your handsat dangerouslocations(feed intake boots, drive units, control units
or outlet holes in the tubes) before you have completelyswitchedoffthe transport system
andmadesurethatnobody can switch it on without your knowledge.
4. Take care that neither strangers nor children can open the bin boot.
5. Never allow unauthorized persons to enter the house in your absence.
6. If the auger stalls : immediately switch off the system. Carefully read the trouble shooting
guide and strictly follow instructions. Contact a technically trained person.
An auger under tension can cause very serious injuries when released.
7. Regularly check the elbow/trough and/or tube connections. Tighten if necessary.
8. Ensure that the hopper cover (grill) or cover on the 100 kg hopper closes properly.
9. Regularly check that the control unit and/or the motor handy box are properly closed.
GENERAL SAFETY RULES
IMPORTANT
Flex Auger Nr. : 031...
Transportsysteem voor droogvoeder van dieren
Transport system of dry feed for animals
Carefull read the following instructions before you
INSTALL the system
This SYMBOL will be used to draw your attention to matters that
are of GREAT IMPORTANCE for your SAFETY.
It means : WARNING - follow the safety instructions :
disconnect the current - re-read the safety rules.
In short : BE ALERT.IGNORING these instructions can cause
SERIOUS INJURIES or even DEATH.
DANGER

FLEX-AUGER - INSTRUCTIONS FOR THE USER ROXELL - 031- 0516
I-4
OPERATOR'S GUIDE
ACTIONS IN GREY BACKGROUND MUST BE DONE BY A TECHNICALLY TRAINED PERSON.
1. Never let the Flex-Auger run without feed. When the Flex-Auger runs empty, the life time ot the system
is reduced considerably.
2. Open the slide valve under the bin completely when the system runs with mash or pellets. Always use a thumper
when feeding mash. Always use pellet guides when feeding pellets (close the flow regulator).
3. THE LEVEL SWITCH IS INSTALLED LOW INSIDE THE LAST FEEDING TROUGH OR HOPPER.
See that there are enough animals in the last pen : they empty the trough completely, so that fresh feed will be
supplied at all times.
4. The restrictor on the boot anchor adjusts the amount of feed taken away by the auger.
Start any new system with the restrictor in minimum position. Let the system run a while before you adjust the
feed flow, allowing the auger to be cleaned by the feed.
You obtain minimum feed flow by moving the restrictor as far as possible away from the anchor.
In a Flex-Auger system with EXTENSION BOOT, the second part must convey more feed than the first part.
Adjust the restrictor in the intake boot with restrictor (beneath the weigher, daybin, bin....) if necessary.
5. If the Flex-Auger starts from a tandem system : empty one bin after another. Never feed from both bins at the
same time. When one of the bins is empty, remove the thumper (if used).
6. Maximum running time per day :4 hours (system without elbows) / 2 hours (system with elbows). For layer
feed and any feed other than commercial feed or poultry and pigs, the maximum running times are considerably
shorter !

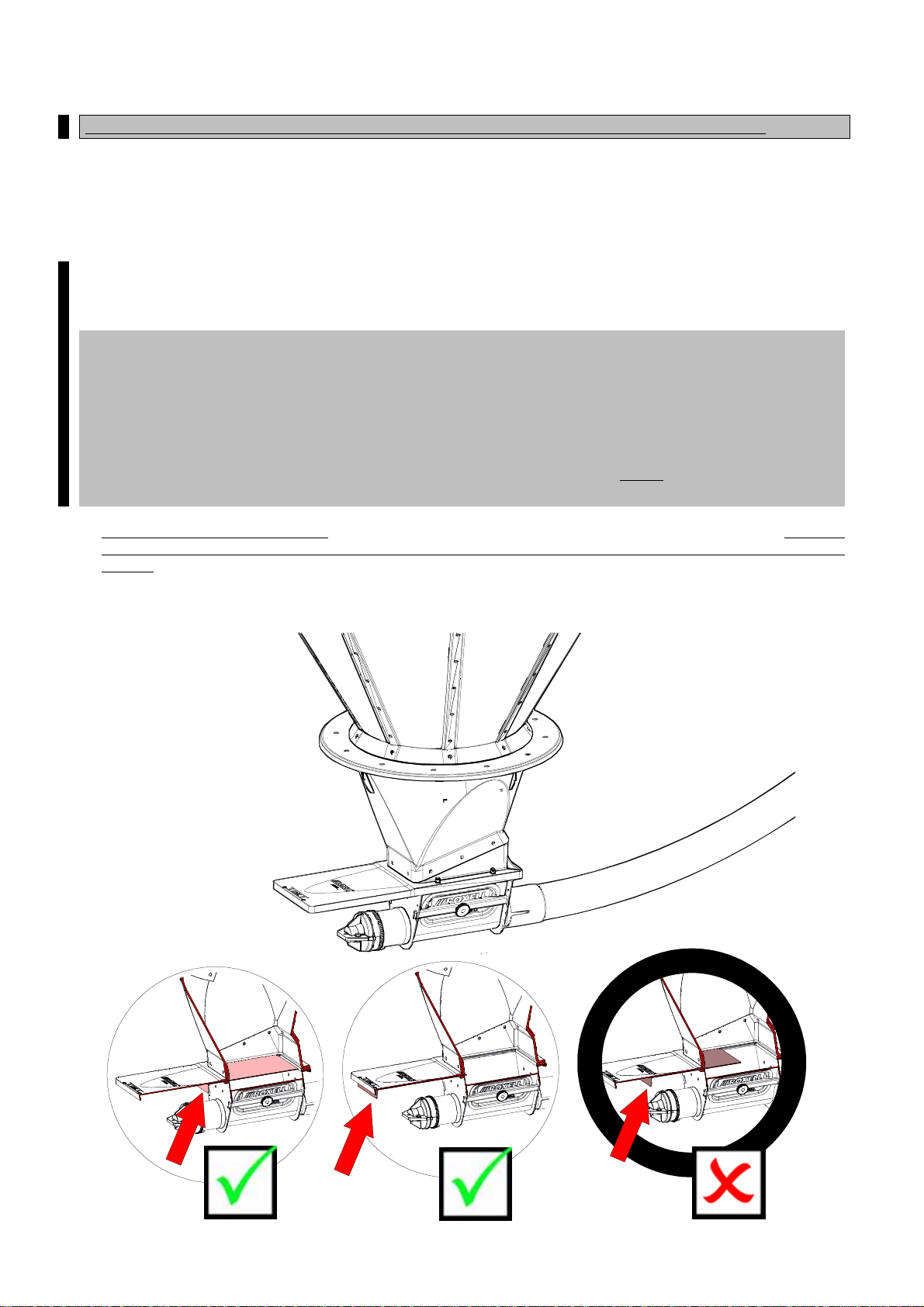

7. Useoftheslidevalve:

FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-5
ATTENTION : Contact ROXELL your supplier for professional advice when using following feeds :
CCM (Corn Cob Mix) - Feed mixed with CCM - Soya - Soya lumps - Wet feed.
Without explicite authorization, all our warranties will expire and no claims will be accepted.
Also contact Roxell if you want to use strongly grating feeds like hen feed etc...
MAINTENANCE INSTRUCTIONS
Switch off the main switch first.
Use personal protective equipment.
DANGER
3-monthly
6-monthly
Yearly
ACTIONS IN GREY BACKGROUND MUST BE DONE BY A TECHNICALLY TRAINED PERSON.
1. Power unit
- Make fan dust-free X
- Check possible damages to electrical wiring X
2. Suspension
- Check suspension of tubes and motors X
3. Sensors/switches
- Check operation of safety switch X
- Check electrical wiring X
4. Lines
- Check screws and bolts in the system after the first month and after
each batch. Tighten if necessary. X
- Keep tubes level. X
- Remove all feed from the system when the system will be out of use for a
period.

FLEX-AUGER - INSTRUCTIONS FOR THE USER ROXELL - 031- 0516
I-6
TROUBLE SHOOTING GUIDE
Switch off the main switch first.
Use personal protective equipment.
DANGER
ACTIONS IN GREY BACKGROUND MUST BE DONE BY A TECHNICALLY TRAINED PERSON.
PROBLEM CAUSE CORRECTIVE ACTION
1. Transport system
does not run. No supply voltage. Check fuses and/or reset circuit breakers. Check
cut-off-switches and current lead to the house. Re-
pair if necessary.
Defective level switch. Check correct installation of the level switch. Find
cause of possible feed bridging in control unit.
Check level switch and replace if necessary.
Defective safety switch in control
unit. Check operation of safety switch. Replace if neces- sary.
Defective motor. Replace motor.
2. Motor overloads af-
ter running for a
short while.
Wrong motor. Check motor power. Replace motor if necessary.
Voltage too low (motor runs too
slowly and overheats). Check current supply to motor. Use wires with cor- rect diameter for the connection.
Foreign object in auger. Motor
runs, then stalls. ATTENTION ! Disconnect the auger carefully and
pull it out of the tubes. Remove the object. Clean
auger and tubes. Check fat content, percentage of
moisture etc... of the feed.
Motor runs in reverse (runs, then
stalls : no feed is conveyed). Disconnect power. Change wires. Motor shaft on the back of the motor must turn clockwise. Check
the auger for damages.
Motor overheats. Replace motor.
NOTE :NEVER SET THERMAL-MAGNETIC PROTECTION HIGHER THAN THE VALUE MENTIONED ON THE
MOTOR LABEL !
3. Motor runs, but au-
ger does not turn. Broken bolt or worn-out set screw
in drive shaft. Replace bolt or set screw.
4. Auger wears holes
in straight tubes. Augerkinkedorpoorlybrazed. See instructions.
5. Elbows wear out. Auger too short or too long. Adjust auger length. Install an extension boot if
necessary.
6. Auger runs errati-
cally. Boot bearing jammed or worn out. Replace bearing.
Auger too long. Shorten auger. Close all outlets. Remove bearing
and anchor. Disconnect auger. Let system run for
a short while. Cut auger at rear end of boot. Rein-
stall.
Poorsuspensionofthetubesor too
many elbows. Provide more suspension points. Adjust height. Decrease number of elbows.
Kinked and/or poorly brazed auger
scrapes along the tubes. See auger brazing.
7. Transport system
short cycles contin-
ually.
- Level switch not installed on
the right spot in 100kg hopper.
- Sensor in tube.
- Adjust level switch position.
- Use a sensor VC11 or VC12 if necessary.
8. Feed bridging in ex-
tension boot. Not enough feed drop from last out-
let before the extension boot. Provide 100 % feed drop.
Time set too short on relay. See instructions.
9. Second part (past
the extension boot)
does not start.
Defective level switch on first part. Check operation of level switch. Replace if neces-
sary.

FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-7
WIRING DIAGRAM AUTOMATIC OUTLET
Feedback of OPEN/CLOSE signal by digital input or relay.
BothsignalsOPEN&CLOSEwhichcomefromtheAutomaticDropcanbeconnectedtoa24VDCrelay.
In MFII application the feedback can be directly connected to a IDM.
Declaration signalling LED
24VDC+Close LED Blue
Motor OPEN LED Blue blink
Motor Alarm LED Red
Motor Calibration LED Green
With blocking motor alarm LED Red
Remove DROP.
Remove possible blocked feed.
Switch 24VDC OFF.
Switch 24VDC ON.
Calibration starts automatically.
LED Blue
Technical specifications
Voltage 24 VDC20%
Motor Current Stand-by 20 mA
Motor Current OPEN/CLOSE 150 mA
Motor Current Alarm 400 mA
Relais output 24VDC 100 mA
Max. Cable Length 200 M
Min. Cable Section 0.5mm2max.100 M
Min. Cable Section 0.75mm2max. 200 M
Remark
After interruption of voltage in “OPEN position, the input will not be noticed for a 15 sec. period, so the
“OPEN position" retains for 15 sec..
THE AUTOMATIC OUTLET STARTS AUTOMATICALLY. NEVER PUT YOUR HANDS IN
THE OUTLET OR IN THE DROP HOLE BEFORE MAKING SURE THAT THE CURRENT
IS SWITCHED OFF.
DANGER
ATTENTION : Contact ROXELL for professional advice when using following feeds:
CCM (Corn Cob Mix).
Feed mixed with CCM.
Soya.
Soya lumps.
Wet feed.
Without explicite authorization, all our warranties will expire and no claims will be accepted.
Also contact Roxell if you want to use strongly grating feeds like hen feed etc...

FLEX-AUGER - INSTRUCTIONS FOR THE USER ROXELL - 031- 0516
I-8

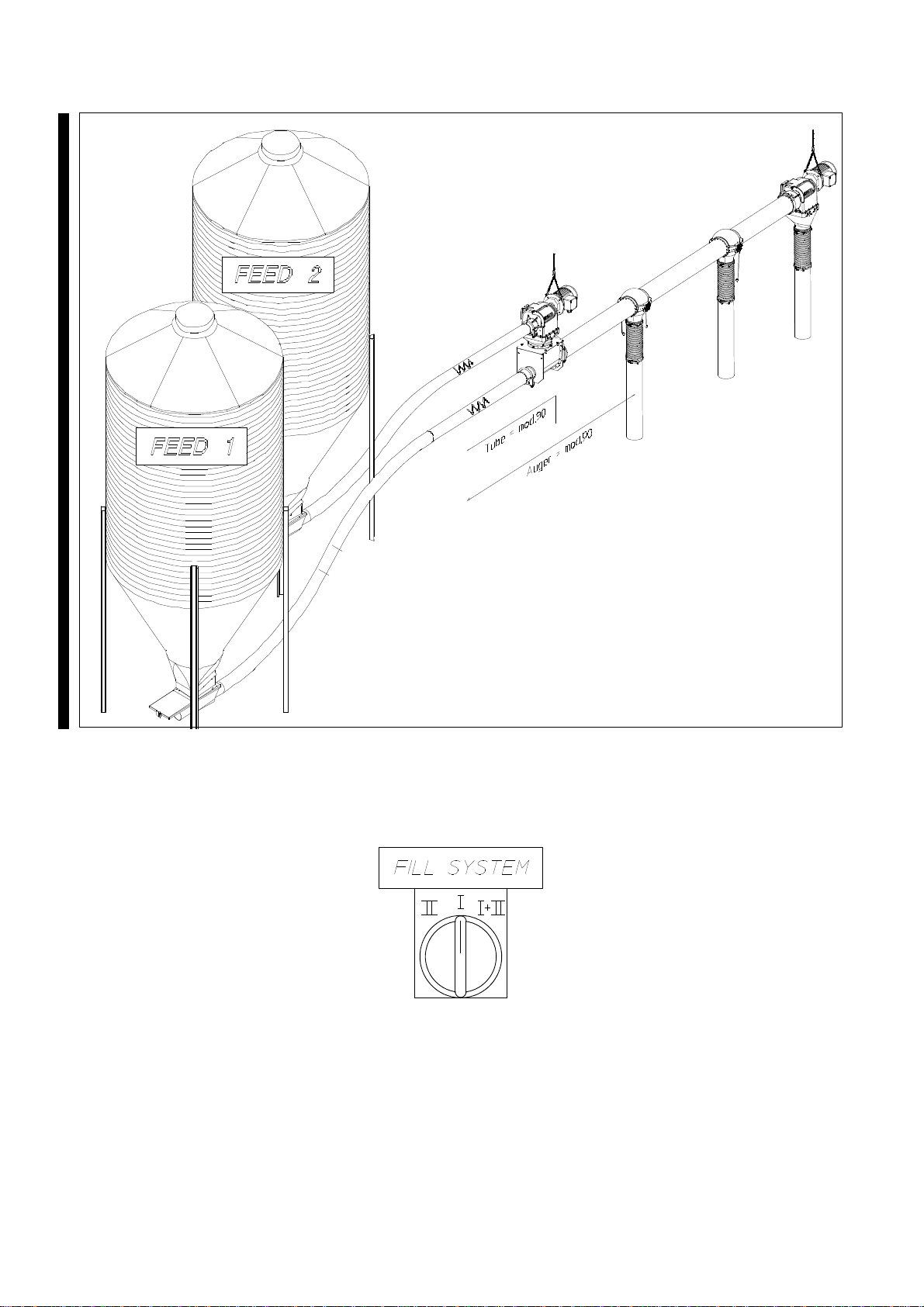

FLEX-AUGER MIX: HOW TO CALIBRATE THE SYSTEM ?
FIGURE 1.
Feed II
Bin II
Feed I
Bin I
First of all make sure that all Flex-Augers are ready for use.
- Let the Flex-Augers run during some minutes.
- The tubes must be completely filled and the slide of the
transfer assembly must be completely open.
Outlet 125
1. CAPACITY OF FLEX-AUGER I
- Open the outlet just after the mixing point.
- Put a sack or a wheel barrow under the drop tube of that outlet.
- PuttheFlex-AugerswitchonpositionI.
- Let Flex-Auger I run during 20 seconds and weigh the feed in the sack or the wheel barrow (= ”X” kg).
- Capacity of Flex-Auger I = ”X” kg x 180 = .. kg/hour.
REPEAT THE 2 PRECEDING STEPS TO CHECK YOUR FIRST MEASURING.
2. CAPACITY OF FLEX-AUGER II IN FUNCTION OF THE FREQUENCY
- Take the grey drop of Flex-Auger II out of the Flex-Auger Mix feed intake boot.
- Useadroptubetoletthefeedflowintoasackorwheelbarrow.

FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-9

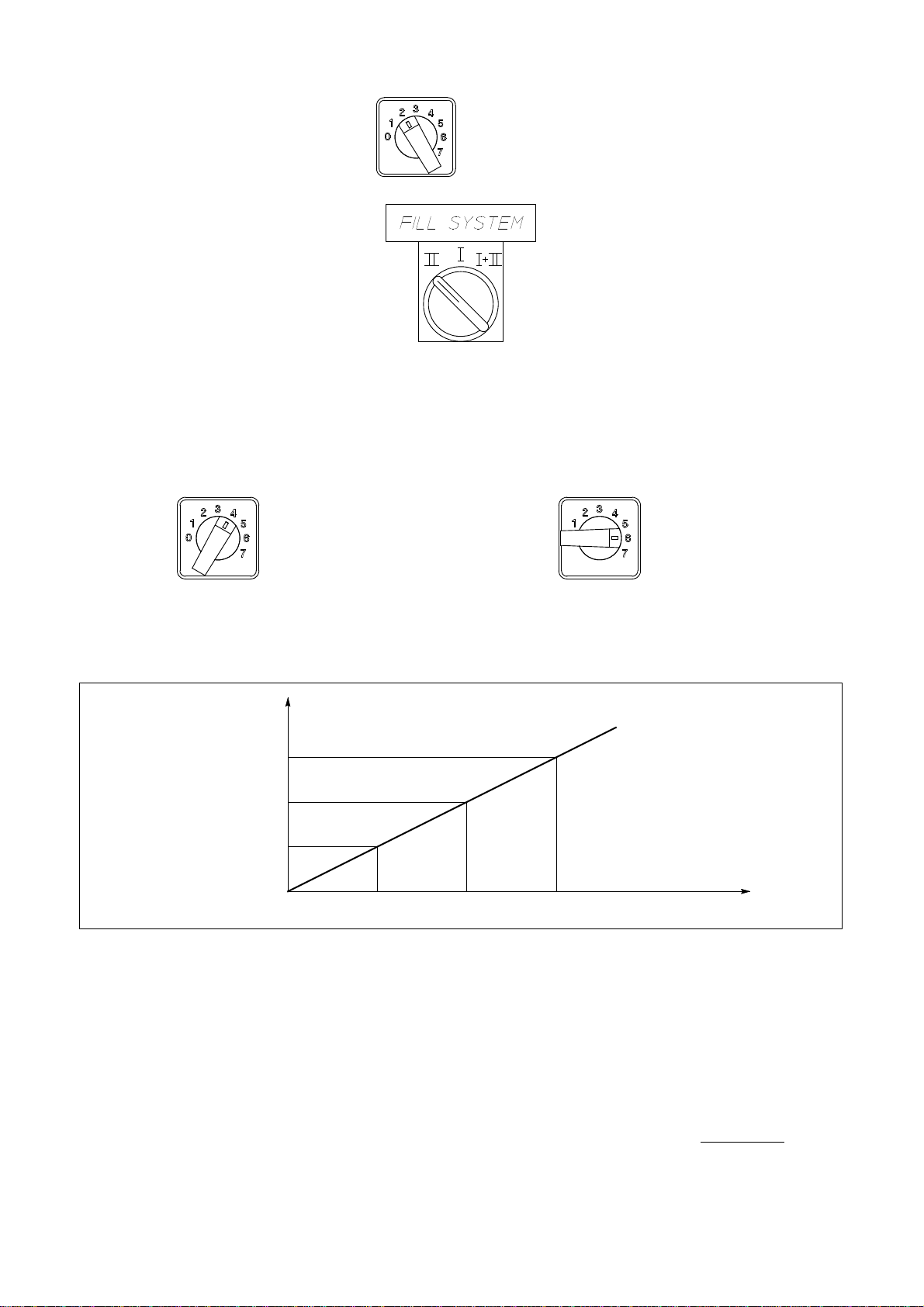

- Put the frequency switch on position 2 (= 20 Hz).
=20Hz.
- Put the Flex-Auger switch on position II and let Flex-Auger II run during 20 seconds.
- Weigh the feed in the sack or wheel barrow (= ”Xa” kg).
- Capacity of Flex-Auger II with frequency 20 Hz = ”Xa” kg x 180 = .. kg/hour.
- REPEAT THE 2 PRECEDING STEPS TO CHECK YOUR FIRST MEASURING.
- Follow the same procedure with the frequency switch on positions 4 (40 Hz = ”Xb” kg) and 6 (60 Hz = ”Xc”
kg).
- Capacity of Flex-Auger II with frequency 40 Hz = ”Xb” kg x 180 = .. kg/hour.
- Capacity of Flex-Auger II with frequency 60 Hz = ”Xc” kg x 180 = .. kg/hour.
= 40Hz. = 60Hz.
- Cap.FAII-60Hz
- Cap.FAII-40Hz
- Cap.FAII-20Hz
Put these three measurings in the empty graph you have received together with the control panel.
Cap. FA II - 40 Hz
Cap. FA II - 20 Hz
FIGURE 2. 20 40 60 F(Hz)）
Cap. Kg/hour
Cap. FA II - 60 Hz
3. DETERMINE THE REQUIRED PERCENTAGES/CAPACITIES
Position 0 = STOP
Position 1 = % = Capacity II - p1
Position 2 = % = Capacity II - p2
Position 3 = % = Capacity II - p3
Position 4 = % = Capacity II - p4
Position 5 = % = Capacity II - p5
Position 6 = % = Capacity II - p6
Position 7 = % = Capacity II - p7 X(%)xCap I
100 −X(%)
Formula :Cap II =

FLEX-AUGER - INSTRUCTIONS FOR THE USER ROXELL - 031- 0516
I-10
Example :
Position1=5%
Capacity I = 2500 kg/hour
Cap II - p1 = 5 x 2500
100 −5= 131kg/hour
4. DETERMINE THE CORRECT FREQUENCIES
Use the graph Capacity FA II in function of the frequency.
FIGURE 3.
F1 F2 F3 F(Hz)
Cap
Kg/h
Cap II - P1
P2
P3
P4
P5
P6
F6F5
F4
Min. 10 Hz Max. 130 Hz
P7
P0 F7
5. HOW TO PROGRAM THIS ON THE FREQUENCY REGULATOR ?
You must program the following parameters :
P1001 = F1
P1002 = F2
P1003 = F3
P1004 = F4
P1005 = F5
P1006 = F6
P1007 = F7
First press the Pbutton.
Go to parameter P1001 with 
Press P
Change the value with and (value = frequency, for example 12 Hz)
Press Pto confirm that value.
Go to parameter P1002 with 
Repeat the above steps.
Same procedure for the other parameters P1003, P1004, P1006 and P1007.
AfterP1007yougotoP000with
Press Pto quit the programme.
