Roxell Swii'Flo User manual

02205284 *02205284*022-0821
®
User Guide
EN ENGLISH
Original User Guide

ROXELL - 022 - 1020
Swii'Flo-USER'S GUIDE -EUG
0
TABLE OF CONTENTS
TABLE OF CONTENTS
DISCLAIMER
GENERAL INFORMATION
WATER QUALITY 1...............................................................
GENERAL SAFETY RULES HANDWINCH 3..........................................
2.2. MINIMUM PRESSURE AND FLOW 4............................................
2.3. MINIMUM HEIGHT OF WATER TANK 4..........................................
2.4. DIAMETER OF SUPPLYING TUBES 4...........................................
3. WATER PANEL 5...............................................................

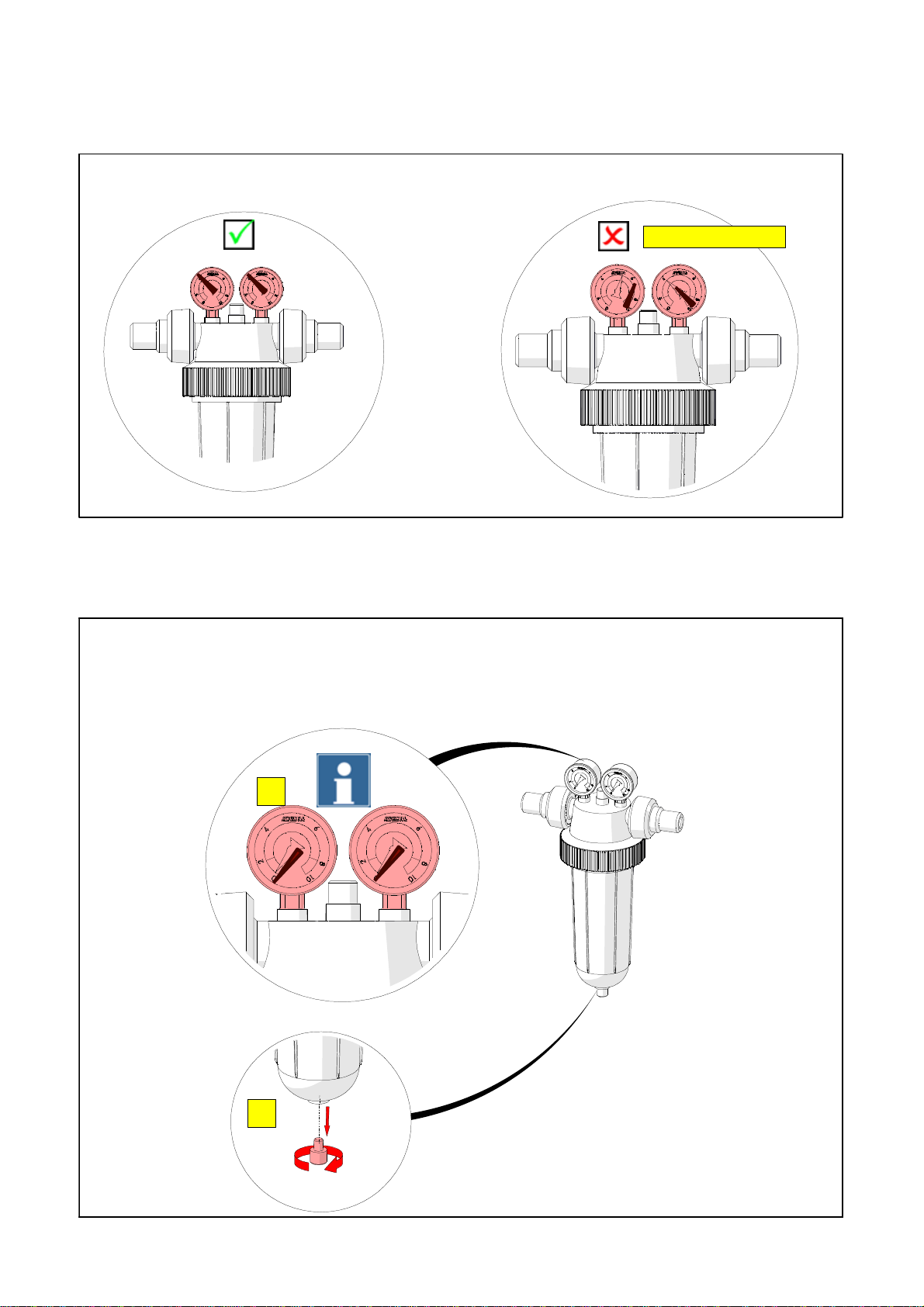

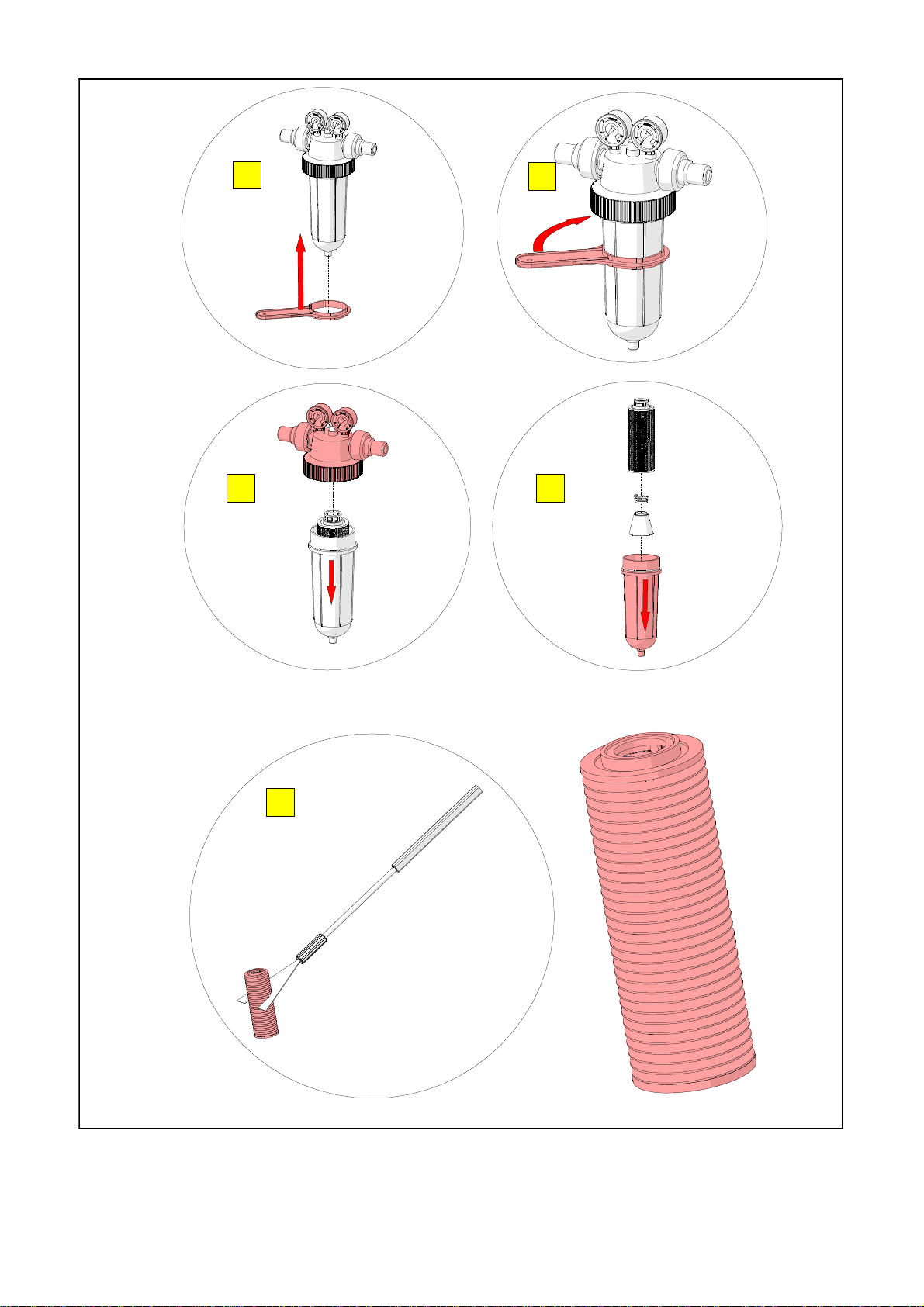

3.1. FILTER CLEANING, WHEN, HOW? 6............................................
3.2. OPERATION OF THE VALVES 9................................................
NORMAL OPERATION 9...........................................................
OPERATION WITH MEDICATOR 10.................................................
TO CHECK AND TO CLEAN THE MEDICATOR 11.....................................
DIVIDED HOUSES - NORMAL OPERATION 12........................................
DIVIDED HOUSES - OPTION: MEDICATION 13........................................
4. TO ADJUST THE LINE HEIGHT 14................................................
4.1. TO ADJUST HEIGHT OF COMPLETE LINE 14.....................................
4.2. TO ADJUST LINE WITH 3 HOLE STRING ADJUSTER 15...........................
4.3. TO ADJUST LINE WITH THE SUSPENSION SCREW 15............................
5. OPERATION OF THE SYSTEM 16.................................................
5.1. MODE OF THE PRESSURE REGULATOR 16......................................
5.2. TO REGULATE THE PRESSURE 16..............................................
5.3. TO USE THE END UNIT 18......................................................
5.4. TO USE THE INTERMEDIATE SHUT OFF VALVE 18...............................
5.5. FLOW OF NIPPLES 19..........................................................
6. TO CLEAN THE SYSTEM 21......................................................
6.1. MANUAL FLUSHING 21.........................................................
6.2. FLUSHING USING THE OVERFLOW 22..........................................
6.3. AUTOMATIC FLUSHING (OPERATION EXPLAINED IN CONTROLLER MANUAL) 23..
7. TO ADMINISTER VACCINE OR MEDICATION 24....................................
8. PERCH PROTECTION AND THE SYSTEM 26.......................................
8.1. ELECTRICAL PERCH PROTECTION 26..........................................
8.2. SPINSOFT 26..................................................................
MAINTENANCE INSTRUCTIONS 27..................................................
TROUBLE SHOOTING GUIDE 28....................................................
HOUSE CHART 31.................................................................
HAND WINCH: TROUBLE SHOOTING GUIDE - MAINTENANCE 33......................
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY
EC-DECLARATION OF CONFORMITY

ROXELL - 0921
DISCLAIMER : The original, authoritative version of this manual is the English version produced by
ROXELL bv. Subsequent changes to any manual made by any third party have not been reviewed nor authenticated by
Roxell. Such changes may include, but are not limited to, translation into languages other than English, and additions to or
deletions from the original content. Roxell disclaims responsibility for any and all damages, injuries, warranty claims and/or
any other claims associated with such changes, inasmuch as such changes result in content that is different from the authoritat-
ive Roxell--published English version of the manual. For current product installation and operation information, please con-
tact the customer service and/or technical service departments of Roxell. Should you observe any questionable content in any
manual, please notify Roxell immediately in writing to: ROXELL bv -- Industrielaan 13, 9990 Maldegem -- Belgium.

General information
IMPORTANT: These instructions must be read, understood and all points observed by the user, the responsible and
operating personnel.
Obey the legal regulations and the applicable rules
This concerns, among other things, the European regulations and directives transposed into national legislation and/or
the laws, safety and accident prevention regulations that apply in the user's country.
During assembly, operation and maintenance of the installation the legal regulations concerned and the applicable
technical rules must be obeyed.
Intended use
The installation has been designed solely for intensive livestock use and has been developed according to the applicable
rules of good workmanship. Extra loading of the product is therefore prohibited. Any other use is considered to be
improper use. The manufacturer is not responsible for damage resulting therefrom. The user bears sole responsibility. The
manufacturer can determine from the system data whether the product was used in accordance with the specified use.
Not-intended use
All use different than described in Intended Use is at the responsibility of the end user.
Liability
The (extended) warranty will not apply if any of the following has occurred: failure by the customer to inspect the
delivered goods and report visible defects within 8 days of delivery with respect to the products, improper handling,
transportation, modification or repair; accidents, defective or improper use; improper or defective assembly, installation,
connection or maintenance (having regard to Roxell’s most current assembly, installation, connection and maintenance
manuals); improper modifications or manipulations of the operating system, hardware or any other software of the
product by the customer; force majeure; negligence, lack of supervision or of maintenance on the part of customer;
normal wear and tear; use of cleansing agents and disinfectants that are excluded in Roxell’s most current use and
maintenance manuals; use of cleansing agents and disinfectants in violation with the instructions received from the
suppliers; or use of the products in an ATEX- surrounding.
The (extended) warranty shall not apply in the event of a defect caused either by materials or accessories supplied by or
services rendered by the customer; or by an intervention by a person or entity which is not authorized or qualified for
carrying out such intervention. Furthermore, the (extended) warranty will only apply if the products are used in livestock
houses and if all parts or components of the products are supplied by Roxell.
Roxell will not be liable for any damages caused due to improper or defective use, assembly, installation, connection or
maintenance of the products. In this respect, the customer expressly acknowledges that (i) all use, assembly, installation,
connection or maintenance must be done in accordance with Roxell’s most current assembly, installation, connection
and maintenance manuals and (ii) the electrical installation on which the products must be connected must be done
in accordance with applicable local legislation on electrical installations. Furthermore, the products must be tested
both mechanically and electrically by the customer in accordance with state of the art techniques and applicable local
legislation.
Personnel qualifications
User
The person who uses a function or operation of a product for their work or who works on the product. The user must
be able to read the instructions for use and fully understand them. The user has knowledge of the functioning and
construction of the installation.
page 1
Roxell – – 0821 – General information

page 2
Technically trained person
An expert who can assemble and maintain the installation (mechanically/electrically), and resolve malfunctions. On
the basis of his/her technical training and experience, he/she has sufficient knowledge to be able to assess activities,
recognize possible dangers and rectify dangerous situations.
Storage
Put all parts to be assembled in a room or at a location where the not yet assembled components are protected against
weather influences.
Transport
Depending on the size of the parts and according to local circumstances and local legislation, the parts of the machine
have to be transported with a forklift.
The forklift must be operated by a qualified person and in accordance with the rules of good workmanship. When lifting
the load, always check if the center of gravity of the load is stable.
Dismantling
Dismantle the installation and its components in accordance with the environmental legislation of the country or the
local authorities applicable at that time. All functioning products and exchange parts must be stored and disposed of in
accordance with the applicable environmental regulations.
Environmental information for customers in the European Union
The European legislation requires that equipment marked with this symbol on the product or
packaging must not be collected with unsorted household waste.
This symbol indicates that the waste electrical and electronic equipment (WEEE) cannot be disposed
of in the regular household waste. We highly recommend that you bring your product to an official
collection point so that an expert can remove the waste electrical and electronic equipment. Inform
yourself of local legislation on separate collection of waste electrical and electronic equipment.
Respect the local regulations and never dispose of the product together with household waste.
Information about waste disposal - electrical/electronic material for companies
1. In the European Union
If you have used the product for commercial purposes and you want to dispose of it, contact Roxell, who will give
you information about the return of the product. It is possible that you will have to pay a disposal charge for the
return and recycling. Small products (and small quantities) can be processed by the local collection agencies.
2. In other countries outside the European Union
If you want to dispose of this product, contact the local authorities for information concerning the correct
disposal procedure.
The level of noise emission
The noise level of the installation in operation does not exceed 70 dB(A).
– General information Roxell – – 0821

LOTOTO = Lock Out - Tag Out - Try Out
Before you begin: Everyone needs his own lock and tag (label), which can’t be removed by other persons. Inform all the persons who
are influenced by the procedure.
1To block
- Localize all sources of energy (electric, hydraulic, pneumatic).
- Switch off.
- Take the relevant installation or process out of operation and lock it against reuse. You can do this by placing a
padlock or other blocking mechanism (Lock Out).
2To mark
Attach a sign, label or sticker to the padlock or blocking mechanism to reveal the nature and the expected duration of
the work to other persons (Tag Out).
3To check
- Check if the source of energy is switched off.
- Remove any remaining energy.
- Check that the installation or process is actually safe (Try Out).
Use personal protective equipment
Ensure you wear personal protective equipment (gloves, dust masks...).
Illuminance - sufficient lighting
•A minimum illuminance of 200 lux is necessary during usage, maintenance and installation.
•Provide at the installation (portable) emergency lighting in case of power failure.
Electrical equipment, control panels, components and drive units
•To operate control panels, there must be at least 70 cm of free space.
•Control panels must always remain closed. The key of the control panel must be in possession of an authorized
person. Only an electrically trained person (see above) shall carry out maintenance activities inside the control
panels.
•The necessary measures must be taken by the user to keep out rats, mice and other vermin from the control panels.
•If electrical equipment, control panels, components and drive units are damaged, the system must be stopped
immediately!
•Electrical equipment, control panels, components and drive units should never be sprayed with water or other
liquid!
•Electrical equipment, control panels, components and drive units should never be covered with any material.
page 3
Roxell – – 0821 – General information

page 4
Information about the residual risks - used safety signs
There are three levels of danger, which you can recognize from the following signal words:
•DANGER
•WARNING
•CAUTION
The nature and source of the imminent danger and possible consequences of not obeying warnings is stated here!
Symbol Meaning
DANGER indicates a direct imminent danger that can result in a serious or even fatal accident if
the safety measures are not respected.
WARNING indicates a possible imminent danger that can result in a serious accident or
damage to the product if the safety measures are not respected.
CAUTION indicates possible, dangerous situations that can result in minor physical injury or
material damage if the safety measures are not respected.
This symbol refers to supporting information.
Allowed
Not allowed
This symbol will be used to draw your attention to matters that are of great importance for
your safety. It means: warning - follow the safety instructions. Disconnect the current and
read the safety rules. In short: be alert. Ignoring these instructions can cause serious injuries
or even death.
– General information Roxell – – 0821

Swii'Flo-USER'S GUIDE -EUGROXELL-022-1020
1
WATER QUALITY
Warning
The health of the animals depends on the quality of their daily drinking water.
The water quality depends on:
The phosphate, nitride, nitrite, chloride, iron, calcium and other concentrations.
The deposits in the lines.
The administration of medication.
Cleaning and disinfection.
Have the water checked at regular intervals!
Maximum allowable concentration:
Ammonia <1mg/l (3.78mg/GAL) Sulfates <100mg/l (378mg/GAL)
Chlorides < 200 mg/l (757mg/GAL) Iron < 0,2 mg/l (0.76mg/GAL)
Phosphates < 0,01 mg/l (0.038mg/GAL) Salt < 1 mg/l (3.78mg/GAL)
Manganese < 0,1 mg/l (0.38mg/GAL) pH-value 5-8
Nitrate < 0,25 mg/l (0.95mg/GAL) Hardness
(_DH)
<15
Nitrite < 0,1 mg/l (0.38mg/GAL)
Source: European Water Framework Directive 2000/60/EC
Phosphates/Nitrogens:
Algal growth:
Algae are organisms that use carbon dioxide as source of carbon for the production of new cell material. The
required energy is provided by sunlight.
Algae blooms occur in standing or slowly moving water, usually having a high phosphate and nitrogen load
(ammonia and nitrate).
Optimal growth temperature for algae:
18-45°C, pH value: 5-8.
Algae death due to lack of light and/or nutrients leads to mineralization by bacteria with oxygen consumption.
Impact on
water
pH increase due to large amounts of carbon dioxide that are extracted from the water.
Impact on
system
Cause: Loosened micro culture substances.
Effect: Valve/nipples leakages.
Action Remove deposits using stabilized hydrogen peroxide (H2O2) based products.
Nitrate/Nitrite:
Nitrate concentration > 0.25 mg/l: sandy soils with intensive livestock farming.
Ammonia concentration > 1 mg/l: in peaty soils.
Water from these soils usually has higher nitrite content. Unfit for consumption!
Impact on health
Danger
Direct consumption of nitrite is deadly!
Nitrate is converted to ammonia in the body. One of the intermediate compounds is
nitrite.
When the chemical reaction is not completed (for some time), death ensues.
Action Nitrate concentration ≤0.25 mg/l / Nitrite concentration ≤0.1 mg/l!

ROXELL - 022 - 1020
Swii'Flo-USER'S GUIDE -EUG
2
Iron:
When water is pumped to the surface, iron occurs in its soluble ferrous form.
The insoluble ferrous ions oxidize upon exposure to air or dissolved oxygen.
These and other chemical reactions cause insoluble gelatinous deposits.
Impact on
water
Hardly any impact on health.
Neutralizes the effectiveness of medication.
Alters the taste, resulting in decreased water consumption.
Impact on
system
Cause: Gelatinous compounds.
Effect: Harmful to nipples, electric water valves if used.
Action Eliminate the iron from the system if iron content > 0.2 mg/l!
Calcium:
Hardness:
Any deposits in the lines will usually remain there.
If a chemical reaction takes place between mineral substances present, some inorganic compounds can
serve as energy and nutrient source for the micro-organisms living in the water.
Impact on health Not harmful.
Alters the taste, resulting in decreased water consumption.
Impact on
system
Cause: Water becomes more conductive.
Effect: Corrosion and calcium deposits.
Action Soften the water.
Medication
Harmful
effects of
medication
Some substances in the medication may loosen the organic deposits in the lines.
Antibiotics: high risk of strong and rapid growth of moulds that use the sugar of some
medicines as nutrient, resulting in gelatinous deposits.
Impact on health Products lose their effectiveness.
Impact on
system
Cause: Some substances in the medication may loosen the organic deposits in the li
nes.
Effect: Nipple leakages.
Cause: Gelatinous deposits.
Effect: Obstructions.
Action Make sure lines are clean before administering medication.
Clean the drinking system at regular intervals.
Disinfect and flush properly after each medication.
Residues of cleaning agents may reduce the effectiveness of the medicines.
Cleaning and disinfection
Keep in mind the strength of the solutions and follow the supplier’s instructions for use!
Always read the instructions of cleaning agents and disinfectants!
Check whether the product may be used in an occupied house!
Be aware of the implications of the combined use of different types of cleaning agents and disinfectants!
Calcium and iron
deposits (inorganic)
Remove by using acid agents.
Bacteria and moulds Remove by using a chlorine-based disinfectant.
Organic
deposits
Remove by using an alkaline cleaning agent.
Clean and disinfect the lines at regular intervals. Most agents only work properly with regular cleaning.
Disinfect and flush properly after each medication.

SPARKcupSwii'Flo-USER'S GUIDE -EUGROXELL - 022025 - 1020
3
DANGER: Getting jammed by the handle may cause SERIOUS
INJURIES.
1. PAY ATTENTION when WINCHING UP or WINCHING DOWN the drinking lines:
-STOP the handling in case of any malfunctioning.
-NEVER stand UNDERNEATH the load when winching up or putting down the drink
ing lines.
2. NEVER ALLOW UNAUTHORIZED PERSONS ENTER the house during your ab
sence.
3. DON'T wear loose clothing.
4. Only adults may handle the hand winch.
5. Only use the hand winch for suspension of a ROXELL drinking line.
6. Only use the hand winch with the supplied handle.
7. ALWAYS check the condition of the hand winch and the cable before operating.
Aravelled, kinked or damaged cable must be replaced IMMEDIATELY.
Aloose or damaged hand winch must be replaced IMMEDIATELY.
8. ALWAYS check before use, if the cable tie on the drum weldment is ok.
9. ALWAYS check before use, if the cable is not damaged.
10. ALWAYS check that there are at least 4 cable windings on the drum weldment.
11. NEVER touch the cable and the rotating parts of the hand winch when in use.
12. Only use the hand winch when NOBODY is standing underneath the load.
13. ALWAYS look at the load while using the hand winch.
14. Always turn the handle fluently.
15. PREVENT that the load makes a shocking movement.
16. Don't use water tocleanthehandwinch.
Handlier voor drinklijnen voor pluimvee
Hand winch for drinking lines for poultry
FORBIDDEN:NEVER use the hand winch to lift persons.
HAND WIN
C
H
DANGER
IMPORTANT
GENERAL SAFETY RULES
Carefully read the following instructions before USING
the system

ROXELL --022 -- 0714
Swii’Flo-- USER'S GUIDE -- E U G
4
2.2. MINIMUM PRESSURE AND FLOW
Max. ingoing pressure is 9 bar!
WARNING
Pressure range: Roxell Water panel & pump suitable for:
Water tank Pump
Regular operation: 0,4 Bar 2-3Bar Restriction /
Light programme
No restriction /
no light programme
Automatic flushing: -2-3Bar
Flow: 10 l/min/line 5 regulators 8 regulators
FIGURE 1.
WATER TANK
2.3. MINIMUM HEIGHT OF WATER TANK
4m
As short as possible!
2.4. DIAMETER OF SUPPLYING TUBES
Water supply specification after filter
Inside diameter inch
Pressure regulator
in front
2-3 lines / house:
Pressure regulator
central Pump capacity
2-3 lines / house: 1" 1" 3Bar-50l/min
4-5 lines / house: 1" 11/2" 3Bar-50l/min
6-7 lines / house: 11/2" 11/2" 3Bar-80l/min
Dn Fe ( " ) PVC ( " ) PVC ( mm )
s
d
D
DDxd Dxs
1" 1" 1"x3/4" Ø32x2.4mm
11/2" 11/2" 11/2"x11/4" Ø50x3.7mm

Swii’Flo-- USER'S GUIDE -- E U G
ROXELL --022 -- 2313
5
3. WATER PANEL
FIGURE 2.
1”
Non return valve
Pressure restrictor
Ball valve
Key for filter
Filter
Medicator
Bypass valve

ROXELL --022 -- 2313
Swii’Flo-- USER'S GUIDE -- E U G
6
3.1. FILTER CLEANING, WHEN, HOW?
FIGURE 3.
CLEANING
FIGURE 4.
General rule: when the difference between the inlet and outlet gauges > 0.5 bar!
FIGURE 5.
1
2
TO CLEAN THE FILTER:
Check if there is no pressure on the system, gauges on 0:
Drain the remaining water in the filter:

Swii’Flo-- USER’S GUIDE -- EUG
ROXELL --022 -- 2313
7
FIGURE 6.
4
3
5 6
7
Clean with water.
REGULAR CLEANING:

ROXELL --022 -- 2313
Swii’Flo-- USER'S GUIDE -- E U G
8
FIGURE 7.
See topic 2.1 Cleaning and disinfection.
OR: INTENSIVE CLEANING:
78
9
10
11
12

Swii’Flo-- USER'S GUIDE -- E U G
ROXELL --022 -- 2313
9
3.2. OPERATION OF THE VALVES
FIGURE 8.
1” 1”
1”
1”
NORMAL OPERATION
3/4” 3/4”
3/4”

ROXELL --022 -- 0513
Swii’Flo-- USER'S GUIDE -- E U G
10
FIGURE 9.
1”
1” 1”
1”
3/4”
3/4”
OPERATION WITH MEDICATOR
3/4” 3/4” 3/4”

Swii’Flo-- USER'S GUIDE -- E U G
ROXELL --022 -- 2313
11
FIGURE 10.
1”
1”
1”
3/4”
3/4”
TO CHECK AND TO CLEAN THE MEDICATOR
3/4” 3/4” 3/4”

ROXELL --022 -- 0513
Swii’Flo-- USER'S GUIDE -- E U G
12
FIGURE 11.
1”
1”
1”
1”
3/4” 3/4”
1”
DIVIDED HOUSES - NORMAL OPERATION

Swii’Flo-- USER'S GUIDE -- E U G
ROXELL --022 -- 2313
13
FIGURE 12.
1”
1”
1”
1”
3/4”
3/4”
1”
DIVIDED HOUSES - OPTION: MEDICATION
