RS PRO RS-1314 User manual

Instruction Manual
RS-1314
Dual K/J/T/E/N/R/S THERMOMETER
FREN IT DE ES
MXKJTERSN
ALM
T2
T1
T2
min:sec
hour:min
TYPE
LoHi
T1
AVG-MN
F
K

TABLE OF CONTENTS
TITLE PAGE
1. INTRODUCTION .........................................................1
2. SPECIFICATIONS.......................................................2
3. FRONT PANEL DESCRIPTION..................................4
4. OPERATION INSTRUCTIONS ...................................7
5. MAINTENANCE ........................................................13
6. RECALIBRATION PROCEDURE.............................13

EN-1
1. INTRODUCTION
This instrument is a digital thermometer for use with J, K, T,
E, N, R and S-type thermocouples as the temperature
sensor.
Temperature indication follows the international temperature
scale of 1990 (ITS-90).
 Read the following information carefully before attempting to
operate or service the meter. When servicing the meter, use
only specified replacement parts.
 Environment conditions
Altitude up to 2000 meters
Relatively humidity 80% max.
Operating ambient temperature: 0 to 50°C (32 to 122°F)
U.S. Pat. No. 446,135
Safety symbols
Complies with EMC directive 89/336/EEC

EN-2
2. SPECIFICATIONS
2-1 Electrical Specifications
Measurement Range:
J - type: -150.0°C to +1090.0°C (-200.0°F to +1994.0°F)
K - type: -150.0°C to +1370.0°C (-200.0°F to +1999.9°F)
T - type: -150.0°C to +400.0°C (-200.0°F to +752.0°F)
E - type: -150.0°C to +870.0°C (-200.0°F to +1598.0°F)
N - type: -150.0°C to +1300.0°C (-200.0°F to +1999.9°F)
R - type: 2.0°C to +1767.0°C (+35°F to +1999.9°F)
S - type: 2.0°C to +1767.0°C (+35°F to +1999.9°F)
Resolution:
J-, K-, T-, E-, and N-type: 0.1°C/°F/K
R- and S-type: 1.0°C/°F/K (0.1°C/°F/K only for reference)
Measurement Accuracy:
J-, K-, T-, E-, and N-type: ±[0.05% of reading +0.5°C (0.9°F)]
[Below -100°C (-148°F): add 0.15% of reading for J, K, E,
and N; and 0.45% of reading for T]
R-and S-type: ±[0.05% of reading +2°C (4°F)]
NOTE
This basic accuracy specification does not include the error
of the temperature probe. Please refer to the temperature
probe accuracy specification for additional details.
Temperature Coefficient:
0.01% of reading +0.03°C per °C (0.06°F per °F)
Outside the specified +18°C to 28°C (+64°F to 82°F) range:
[Below -100°C (-148°F): add 0.04% of reading for J-, K-, E-
and N-type; and 0.08% of reading for T-type]

EN-3
Maximum Differential Common Mode Voltage: 1V
(Maximum voltage difference between T1 and T2).
Input Protection: 20V maximum input voltage on any
combination of input connectors.
Manual Data Memory capacity: 44 sets.
2-2 General Specifications
Power Supply: Qty. 6 size AAA batteries.
Battery life: approx. 200 hours (carbon zinc battery).
Auto power-off: 30 minutes. (If no key is pressed).
Low Battery Indication: The ( ) symbol is displayed
when the battery voltage drops
below the operating voltage.
Measurement Rate: Once per 1.5 seconds.
Weight: 235 gms. (8.29 oz)
Dimension: 5.91”Lx 2.83”Wx 1.38”H (150x72x35mm)
Operating Temperature: 0 to 50°C (32 to 122°F)
Operating humidity: Below 80% RH
Storage Temperature: -10 to 60°C, 14 to 140°F
Storage humidity: Below 70% RH
Supplied accessories: Qty. 6 AAA Batteries and instruction
manual.

EN-4

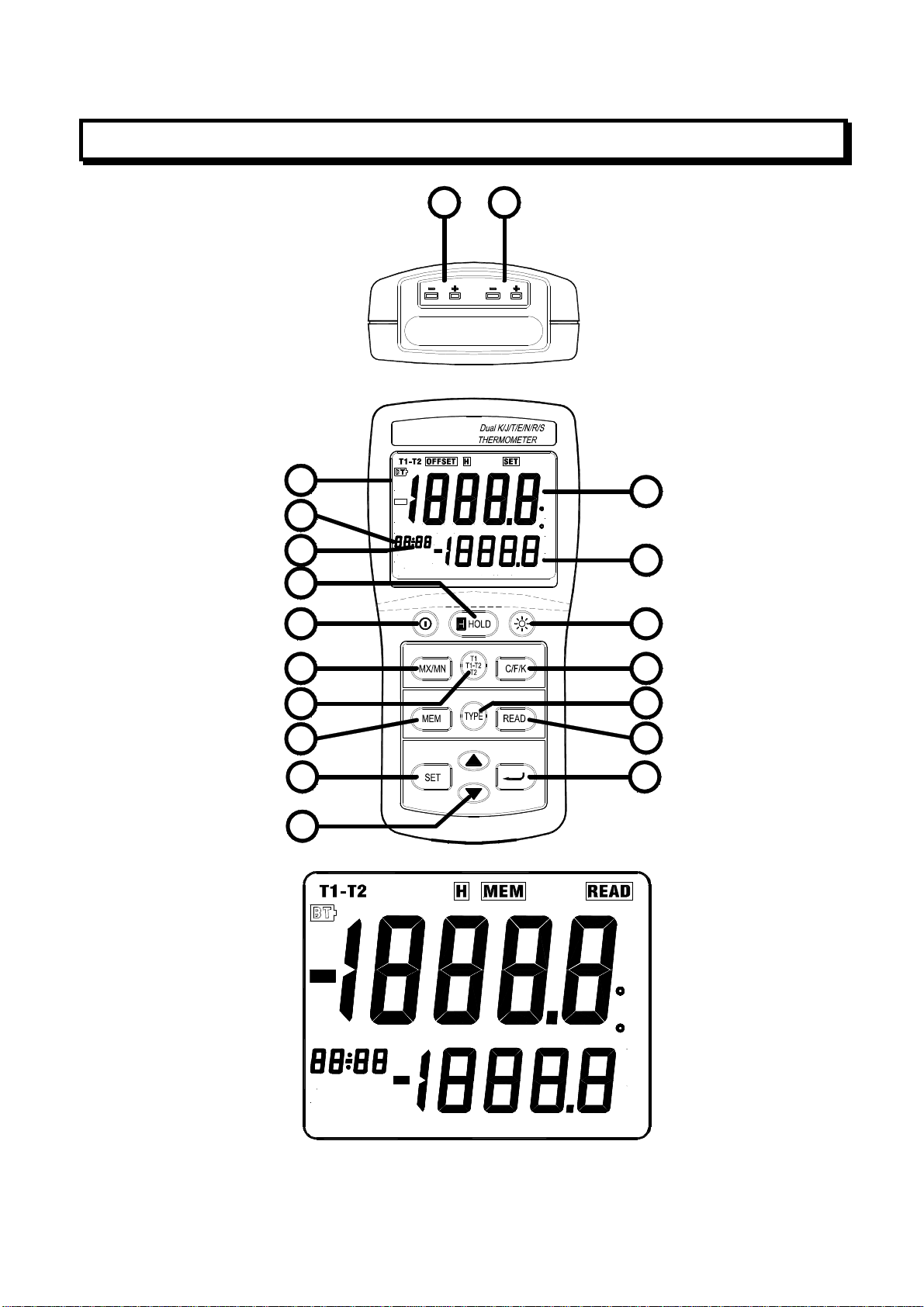

3. FRONT PANEL DESCRIPTION
MXKJTERSN
ALM
T2
T1
T2
min:sec
hour:min
TYPE
LoHi
T1
T1
AVG-MN
F
K
T2
8
7
6
5
3
4
2
D
1
B
11
9
10
13
12
A
14 15
T1
KJTERSN
TYPE
hour
:min
min
:sec
T2
MX
T1
T2
K
MN
AVG
F
ALM
Lo
Hi

EN-5
(1). LCD Display:
A. Main display: T1, T2 or T1-T2 reading.
B. Secondary display: T1 or T2 reading and MAX, MIN or
AVG reading.
C. Time display: Time display (100-hour clock) shows
elapsed time when MAX, MIN or
AVG is on.
D. Auto power-off mark (:).
(2). H HOLD key: Press H HOLD key to freeze or
unfreeze the display reading.
(3). Power key: Press key to turn the meter on or off.
(4). MX/MN key: Press "MX/MN" key to read the maximum,
minimum, and average readings alternately.
Press and hold "MX/MN" key for 2 seconds
to exit MX/MN mode.
(5). T1/T2/T1-T2 key: Press T1/T2/T1-T2 key to toggle
between T1, T2 and T1-T2 in the
main or secondary display.
(6). MEM key: Each press of the "MEM" key stores a single
set of logged data in memory.
(7). SET key:
Press "SET" key to enter alarm setting mode.
Press "SET" key for 2 seconds to exit alarm mode.
(8).  Key:
Press or key to increase or decrease the value
for high/low alarm value settings.
Press or key to increase or decrease the READ
mode memory location.

EN-6
(9). ↵key:
Press "↵" key to store alarm limit value setting.
Press "↵" key to toggle between the "hour:min" and "
min:sec" elapsed time in MX/MN mode.
(10). TYPE key: Press " TYPE " key to select the
thermocouple type (K, J, E, T, R, S or N).
(11). READ key: Press "READ" key to show memory
logged readings. Press “READ” key
again to exit this mode.
(12). C/F/K key: Press C/F/K key to select Celsius (°C),
Fahrenheit (°F) or Kelvin (K) temperature
scale.
(13). key: Press backlight key to turn the backlight on
and off. The backlight turns off after 13
seconds.
(14). T1 input: Thermocouple T1 input.
(15). T2 input: Thermocouple T2 input.

EN-7
4. OPERATION INSTRUCTIONS
WARNING
To avoid electrical shock or p
ersonal injury, do not apply
more than 20Vrms, between the thermocouples (s), or
between any thermocouple and earth ground.

If voltage on the measurement surfaces result in
potentials more than 1V between the two
thermocouples, then measurement errors may occur.
If the potential differences are anticipated between the
thermocouples, use electrically insulated thermocouples.
4-1 Temperature Measurement
Press " " key to turn on the thermometer.
Plug the thermocouple(s) into the thermocouple input(s)
as required. If no thermocouple is plugged into the
selected input or the thermocouple is "open circuit", the
appropriate display will show "- - - -.-".
Press "C/F/K" key to select the desired temperature scale.
Press "TYPE" key to select the thermocouple type
required.
Press "T1/T2/T1-T2" key to determine which of the T1, T2,
and T1-T2 readings appears in the main display or
secondary display.
To measure the temperature, touch the probe sensor on
the object whose temperature is to be measured.
Read the temperature on the display. The display shows
"OL" (overload) when the temperature being measured is
outside the valid measurement range of the meter.

EN-8

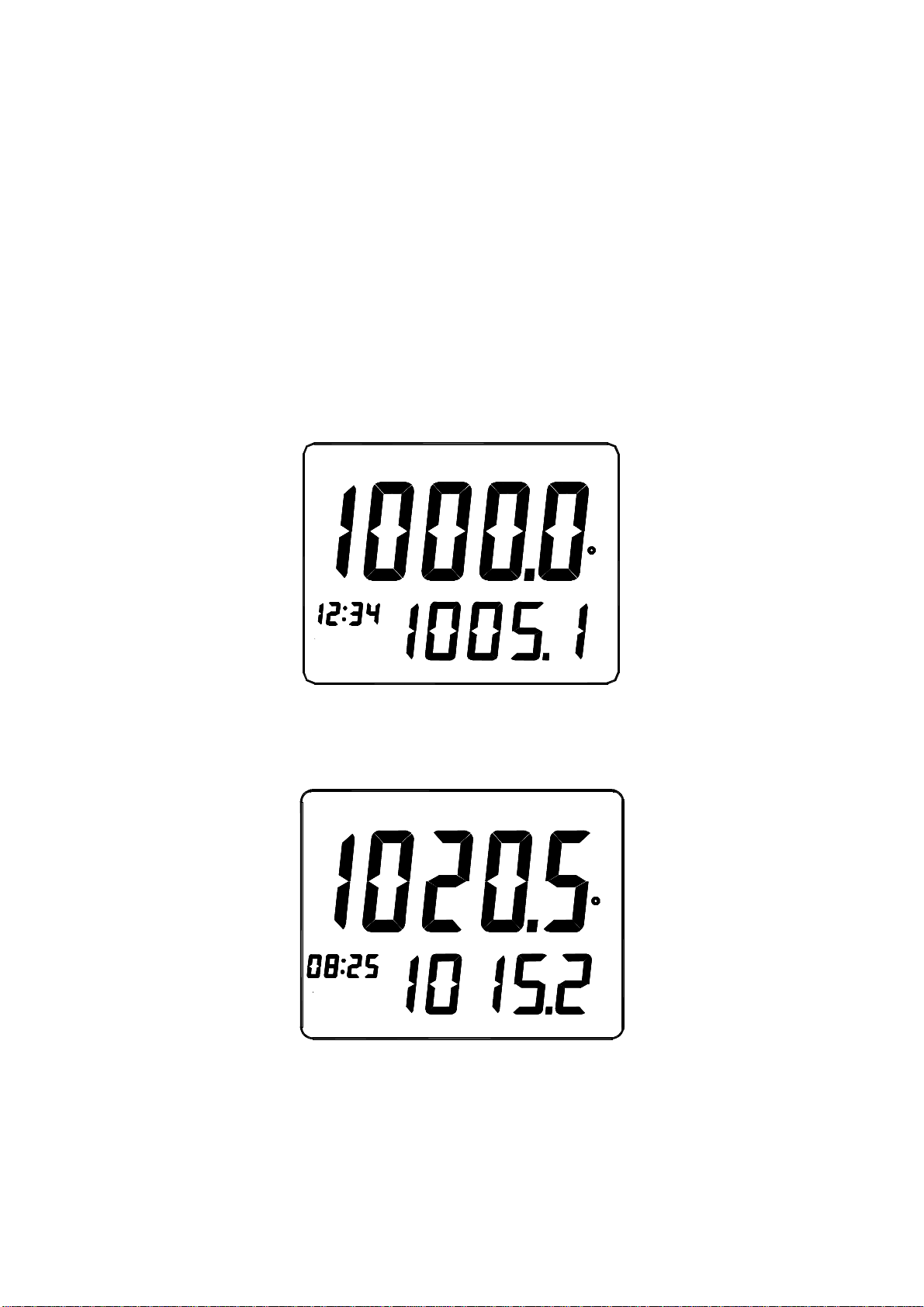

4-2 MAX, MIN and AVG Function Operations
Press "MX/MN" key to enter to MX/MN mode and to step
through the maximum (MAX), minimum (MIN) or the true
average (AVG is a true 9.7 hours recording average)
mode. Auto power-off function will be automatically
disabled.
Press "T1/T2/T1-T2" key to toggle between present
reading of the T1, T2 and T1-T2 on the main display.
Press "MX/MN" key and the MAX, MIN and AVG reading
of T1/T2/T1-T2 will appear on the secondary display.
min
:sec
TYPE
K
T1
MX
AVG
-
MN
T1 present reading + T1 Maximum reading plus elapsed
time + T1 Minimum reading plus elapsed time + T1
Averaging reading plus averaging time
T2
min
:sec
K
TYPE
AVG
MN
-
MX
T2 present reading + T2 Maximum reading plus elapsed
time + T2 Minimum reading plus elapsed time + T2
Averaging reading plus averaging time.

EN-9
TYPE
min
:sec
K
MX
MN
-
AVG
T1-T2 present reading + T1-T2 Maximum reading plus
elapsed time + T1-T2 Minimum reading plus elapsed time
+ T1-T2 Averaging reading plus averaging time.
Press "MX/MN" key for 2 seconds to exit MX/MN mode.
In MX/MN mode, the "C/F/K" and "TYPE" key are not
active.
4-3 To Erase the Memory of Datalogger
Press and hold down the "MEM" key until the beeper
sound twice and all readings in memory will be cleared.
4-4 To Trigger "One by One Datalogging"
Press the "MEM" key once and one set of readings will be
stored in memory The LCD display shows " MEM " and a
memory location number (01 to 44).

EN-10
Press "READ" key to enter the manual memory data
mode. The LCD display will show "READ " and a memory
location number.
Press ""or "" key to scroll through the logged
readings.
Press "READ" key again to exit READ mode.
TYPE
K
T2
T1

EN-11
4-5 Alarm Function Operations
The ALARM function only operates on the main display
temperature value. The resolution of the set value is one
degree and independent of the temperature units.
Press "SET" key once to enter to Alarm High limit value
setting mode. The LCD display will show "ALM Hi" mark.
Hi
ALM
Press ""or ""key, until the display shows the
desired alarm high limit values and then press "↵" key to
store the high limit value. Repeat to enter the alarm
low limit value setting and the LCD display will show
"ALM Lo" mark.
ALM
Lo
Press "" or "" key, until the display shows the desired
alarm Low limit value. Press "↵" key to store the Low
limit value and exit the setting mode.

EN-12

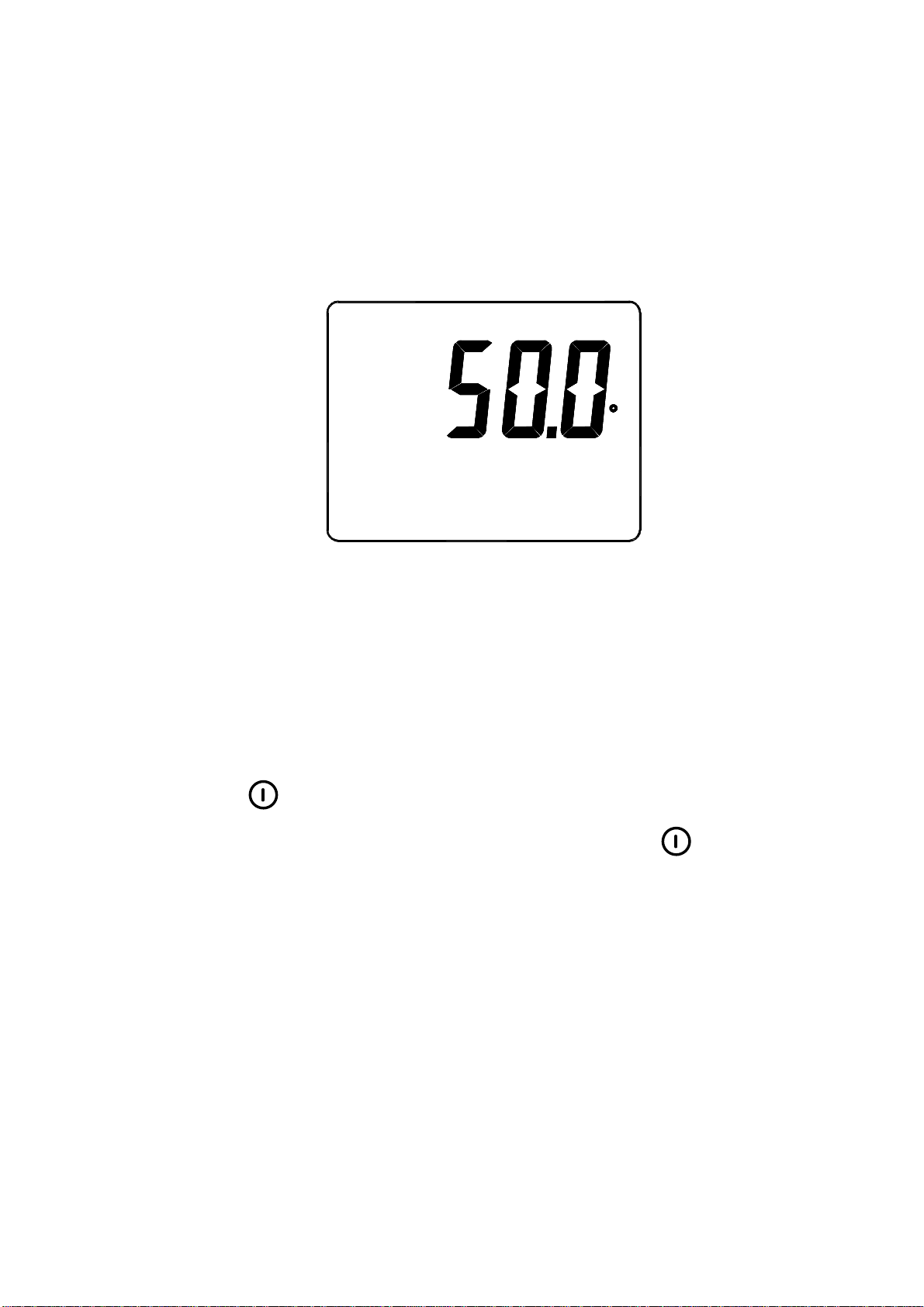

To enter ALARM mode, press "SET" key for 2 seconds
then release it. The LCD display will show "ALM" mark.
When the main display measured temperature value is
greater than the setting high temperature value or below
the setting low temperature value, the beeper will sound
continuously.
T1
ALM
To exit the ALARM function, press the "SET" key for 2
seconds then release it.
4-6 How to Disable Auto Power-off Function
The meter will automatically turn off if no key press
occurs for 30 minutes.
Press " " key to turn off the meter.
Press and hold down "↵" key then press " " key to turn
on the meter. The auto power-off function will be
disabled.
The auto power off mark ":" on the time display will not be
visible.
Auto power-off mode is automatically re-enabled each
time the meter is turned on. Auto power off is
automatically disabled in "MX/MN" and continuous data-
logging modes.

EN-13
5. MAINTENANCE
5-1 Cleaning:
Periodically clean the case with a damp cloth and mild
detergent.
Do not use abrasives or solvents. Clean and dry as
required.
5-2 Battery Replacement:
When LCD display shows “ ”, the battery has had
insufficient power to support an accurate test. Replace
the batteries with Qty. 6 type AAA cells.
6. RECALIBRATION PROCEDURE
The thermometer should be calibrated once a year to
ensure its continued accuracy. Contact RS Components for
further details of calibration service. The address is given at
the end of these instructions.
