Instruction Manual
RS-9862S
Stock No: 200-3700
IR Thermometer 2200oC, TFT color LCD, video/camera
function
EN

1
IR Thermometer 2200oC, TFT color LCD, video/camera function / English
1. Introduction
Thank you for purchasing the IR VIDEO Thermometer which is capable of non-contact (infrared)
temperature measurements with visual camera at the touch of a button. The built-in laser pointer increases
target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic
operation.
The IR VIDEO Thermometer can be used to measure the surface temperature of the objects that is improper
to be measured by traditional (contact) thermometer (such as moving object, the surface with electricity
current or the objects which are uneasy to be touched.)
Proper use and care of this meter will provide years of reliable service.
2. Features
• 2.2” TFT LCD display
• 640*480 pixels (30 million pixels)
• Micro SD memory card
• Image (JPEG) and video (AVI)
• Humidity and Air Temperature
• Dual laser targeting
• Type-K thermocouple probe
• Adjustable emissivity
• High accuracy
• Fast response time
• Dewpoint temperature and Wet bulb temperature

2 3

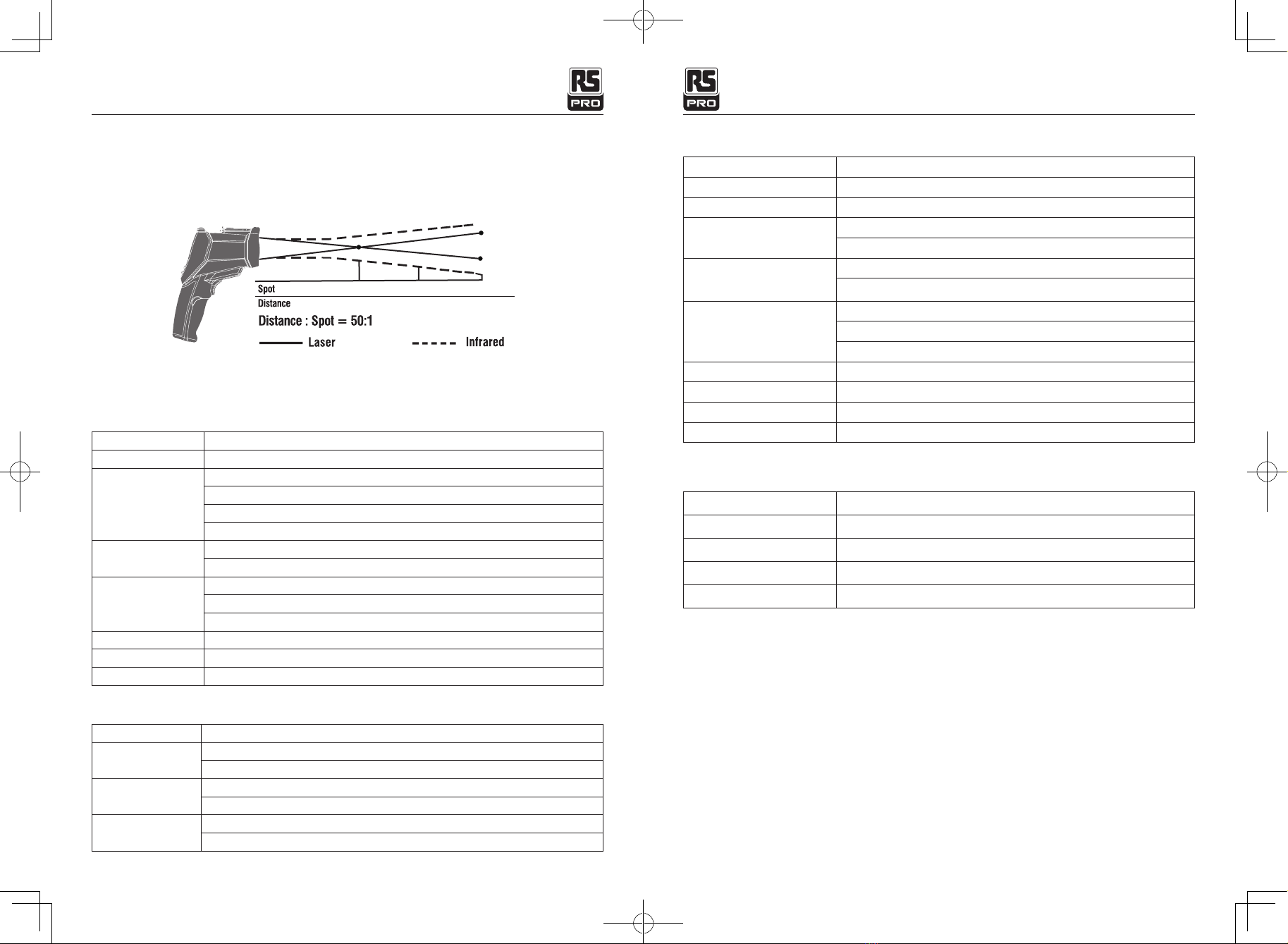

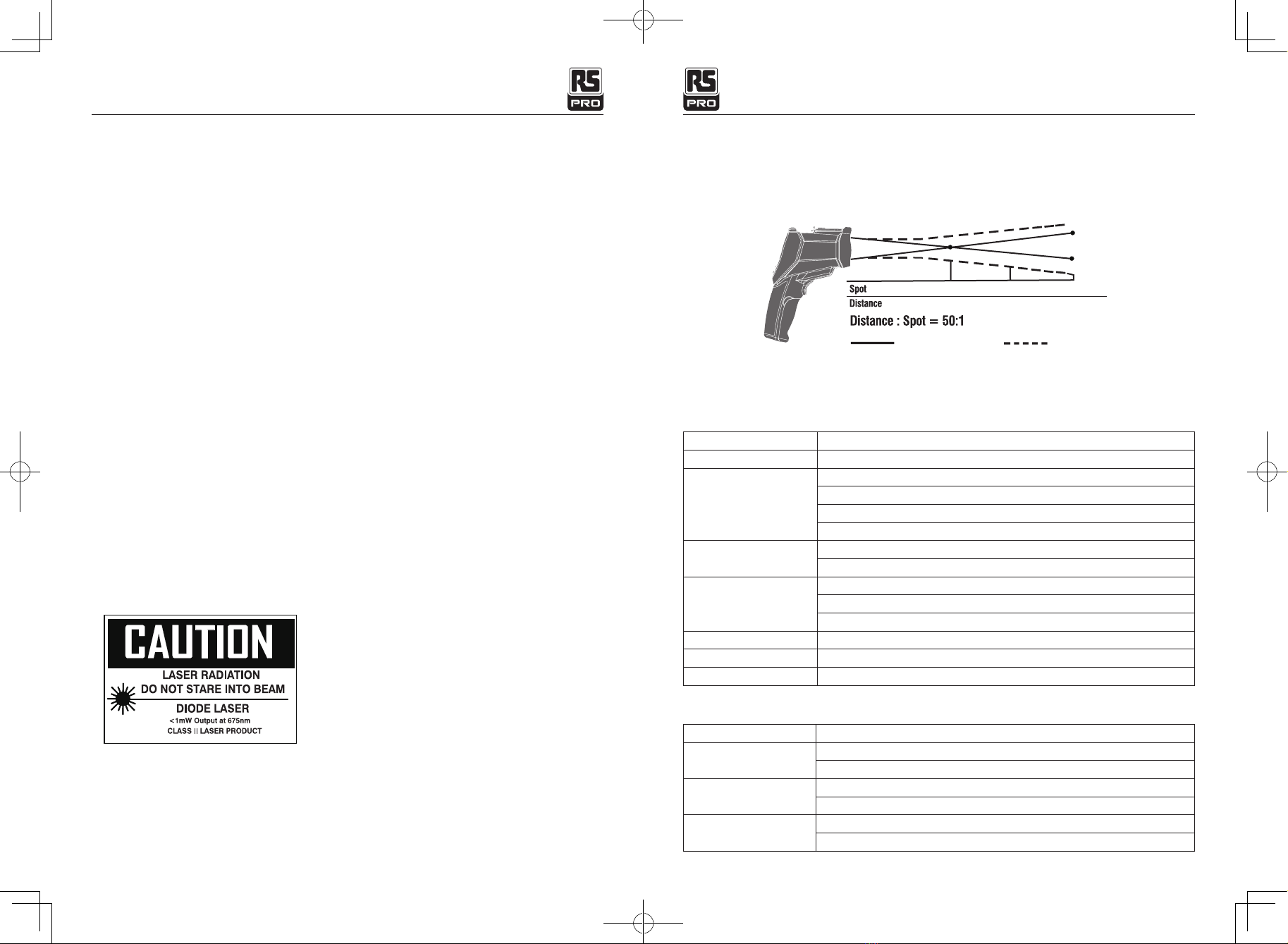

3. Distance & Spot Size
As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes
larger. The relationship between distance and spot size for each unit is listed below. The focal point for
each unit is 914mm (36”). The spot sizes indicate 90% encircled energy.
4. Specications
IR temperature measurement
1in(25,4mm)
50in(1270mm)
2in(50,8mm)
100in(2540mm)
3in(76,2mm)
150in(3810mm)
Temperature Range -58 to 3992˚F (-50 to 2200˚C)
D: S 50:1
Accuracy
±1%±1.8˚F (±1.0˚C) 68 to 932˚F (20 to 500˚C)
±1.5% 932 to 1832˚F (500 to 1000˚C)
±2.0% 1832 to 4172˚F (1000 to 2300˚C)
±6.3˚F (±3.5˚C) -58 to 68˚F(-50 to 20˚C)
Display resolution 0.1˚F (0.1˚C) <1000
1˚F (1˚C) >1000
Repeatability
±2.7˚F (1.5˚C) -58 to 68˚F (-50 to 20˚C)
±0.5% or ±0.9˚F (0.5˚C) 68 to 1832˚F (20 to 1000˚C)
±1.0% 1832 to 4172˚F (1000 to 2300˚C)
Response Time 150mS
Spectral Response 8 ~14um
Emissivity Digitally adjustable from 0.10 to 1.00
Temperature Range -58 to 2498˚F (-50 to 1370˚C)
Accuracy ±1%±1.8˚F (±1.0˚C) 68 to 932˚F (20 to 500˚C)
±1.5% 932 to 1832˚F (500 to 1000˚C)
Display resolution ±0.5%±2.7˚F (1.5˚C) 32 to 2498˚F (0 to 1370˚C)
±4.5˚F (2.5˚C) -58 to 32˚F (-50 to 0˚C)
Display resolution 0.1˚F (0.1˚C) <1000
1˚F (1˚C) >1000
Type-k temperature measurement
Air Temperature Range 32 to 122˚F (0 to 50˚C)
Dewpoint Temperature Range 32 to 122˚F (0 to 50˚C)
Relative Humidity Range 0 to 100% RH
Air temperature Accuracy ±0.9˚F (0.5˚C) 10 to 40˚C
±1.8˚F (1.0˚C) others
Dewpoint temperature
Accuracy
±0.9˚F (0.5˚C) 10 to 40˚C
±1.8˚F (1.0˚C) others
Relative Humidity Accuracy
±3%RH 40% to 60%
±3.5%RH 0% to 40% and 60% to 80%
±5%RH 0% to 20% and 80% to 100%
Operating Temperature 32 to 122˚F (0 to 50˚C)
Storage Temperature 14 to 140˚F (-10 to 60˚C)
Relative Humidity 10 to 90%RH non-condensing
Display 2.2” 320*240 color LCD with backlight
Battery Rechargeable battery
Battery Life About 4 hours continuous use
Battery Charge Time About 2 hours with AC adapter or USB connection
Size (H*W*L) 205mm*62mm*155mm
Weight 410g
Air temperature and Relative Humidity measurement
POWER
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

4 5
Enter
Esc
1
24
3
5
12
11
8
6
7
10
9
5. Front Panel And Button Description
Item-Description
1-LCD Display
2-BUTTONS
3-Battery Cover
4-Measurement Trigger
5-Retractable Lens Cover
6-Visual camera
7-Laser
8-IR sensor
9-Type-k thermocouple socket
10-USB computer interface socket
11-Micro SD memory card
12-Battery
3
4
1
2
Esc
Enter
Item-Description
1-UP or Picture button
2-ESC button
3-Down or VIDEO button
4-Mode button

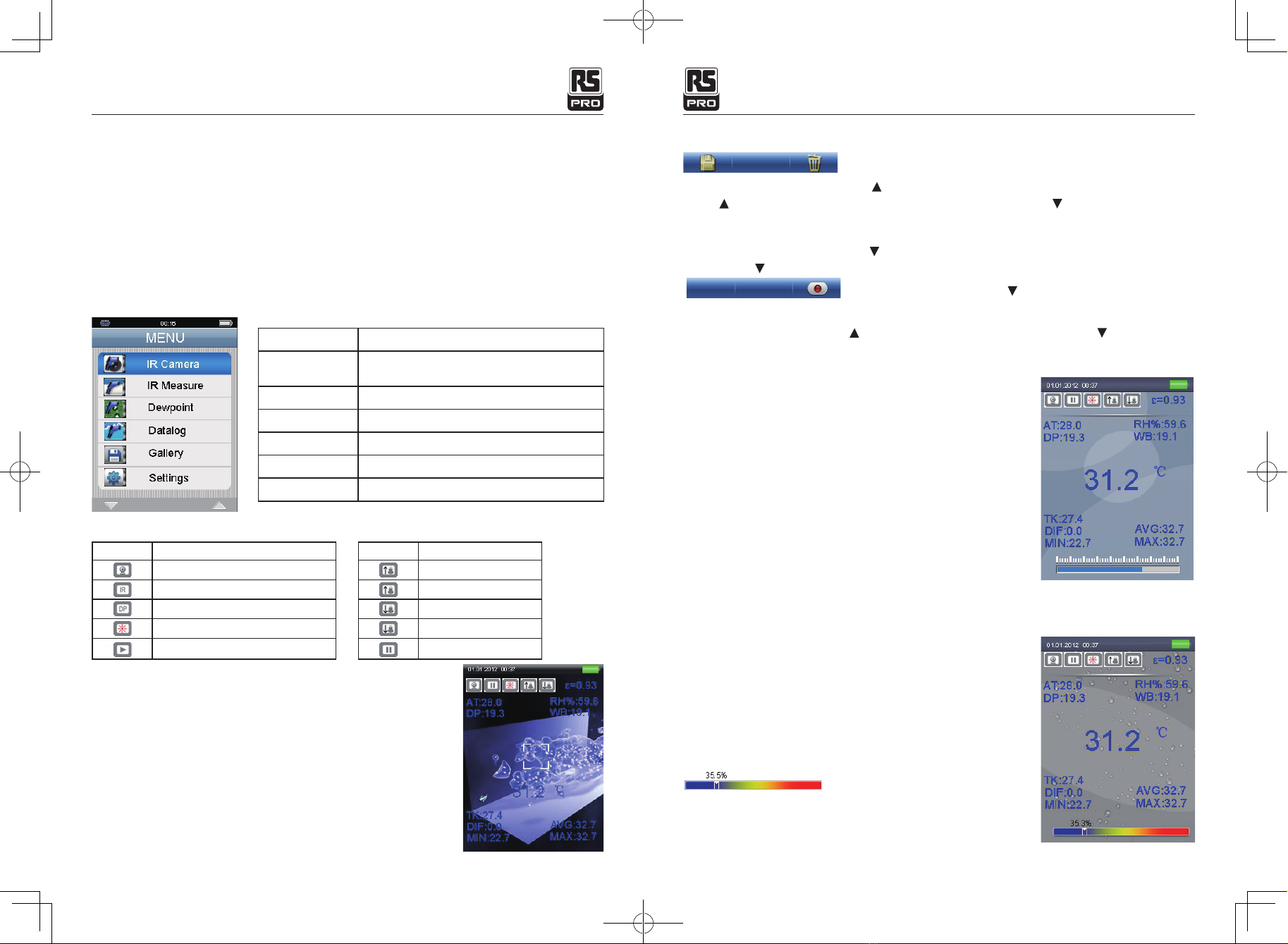

6. Menu Overview
Power on or power off
On the power off mode, press and hold ESC button, until the LCD is on, then the unit will power on.
On the power on mode, Press and hold the ESC button, until the LCD is off, then the unit will power off.
6-1. Measurement Mode
The IR VIDEO thermometer has six modes.
On the power on mode, press the ESC button, the unit will display the six modes. You can use UP or DOWN
button to select any mode you need.
Items Description
CAM mode measure the IR temp., air temp. & air humi. with camera
IR mode measure the IR temp. very fast
DEWPOINT measure the IR temp. and dewpoint temp.
DATALOG Datalog mode.
GALLERY display the picture/datalog and video
SETTINGS setting parameter.
Symbols
Symbols Description
CAM mode
IR mode
DEWPOINT mode
Laser
Scan
Symbols Description
High alarm
High alarm working
Low alarm
Low alarm working
Hold
6-2. CAM Mode
Use to measure IR temp, air temp, air humi, dewpoint temperature and
wet bulb temperature with camera. It can display the IR MAX temp.,
MIN temp., DIF temp., AVG temp.
Press and hold trigger to measure the temperature. This mode can take
picture and take video.
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

6 7
6-2-1. Take Picture Function
On the CAM mode, press the button to enter picture taking, then press SAVE with button to save
pictures, or press CENCEL with button to cancel.
6-2-2. Take Video Function
On the CAM mode, press the button to enter video taking mode, then press START with button to take
videos,
press STOP with button to stop the video.
Zoom
Long press the button to zoom -, Long press the button to zoom + .
6-2-3. IR Mode
Use to measure IR temp, air temp, air humi, dewpoint temperature
and wet bulb temperature without camera.
It can display the IR MAX temp., MIN temp., DIF temp., AVG temp.
Press and hold trigger to measure the temperature
6-2-4. DEWPOINT Mode
measure the IR temp. and dewpoint temp.
Press and hold trigger to measure the temperature.
This is that the IR temperature and dewpoint temperature close to
the percentage of
6-2-5. Data Log
In the DATALOG mode, first set the parameter, like high alarm value,
low alarm value, interval time, and the line color, then press the
trigger to start logging. The unit will automatically record data,
press the ESC buttom to esc the DATALOG mode, then the data will
automatically save.
6-2-6. Gallery
Items Descriptions
Video Play the saved videos
Photo Display the saved pictures
Datalog Display the data log and view
Press the and button to select the picture, video or Logs. Then
press the ENTER button to enter.
• Video playback
Press the ENTER button to pause or play,press the button to last
file, press the button to next file.
• Photo view
Press the ENTER button to open the menu, press the button to
last a sheet of photo, press the button to next a sheet of photo.
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

8 9
6-3. Settings
Items Settings Description
Languages
Date/Time
Units
Memory
Beeper
Auto screen-off
Auto power-off
System default setting
System upgrade
Press the and button to select the Items, Then press the
ENTER button to enter
6-3-1. Languages
Press the and button to select the language, press ESC button
to esc and save the select the language.
6-3-3. Units
Press the and button to select the units, press the ESC button
to esc and save.
6-3-2. Date/Time
Press the and button to select the date or time, Then press
the ENTER button to enter, Press the and button to adjust the
value, press the ESC button to esc and save.
6-3-4. Memory
Press the and button to select the Memory device, press the
ENTER button to enter.
Press the and button to select the Items, Then press the
ENTER button to enter, press the ESC button to esc and save.
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

10 11

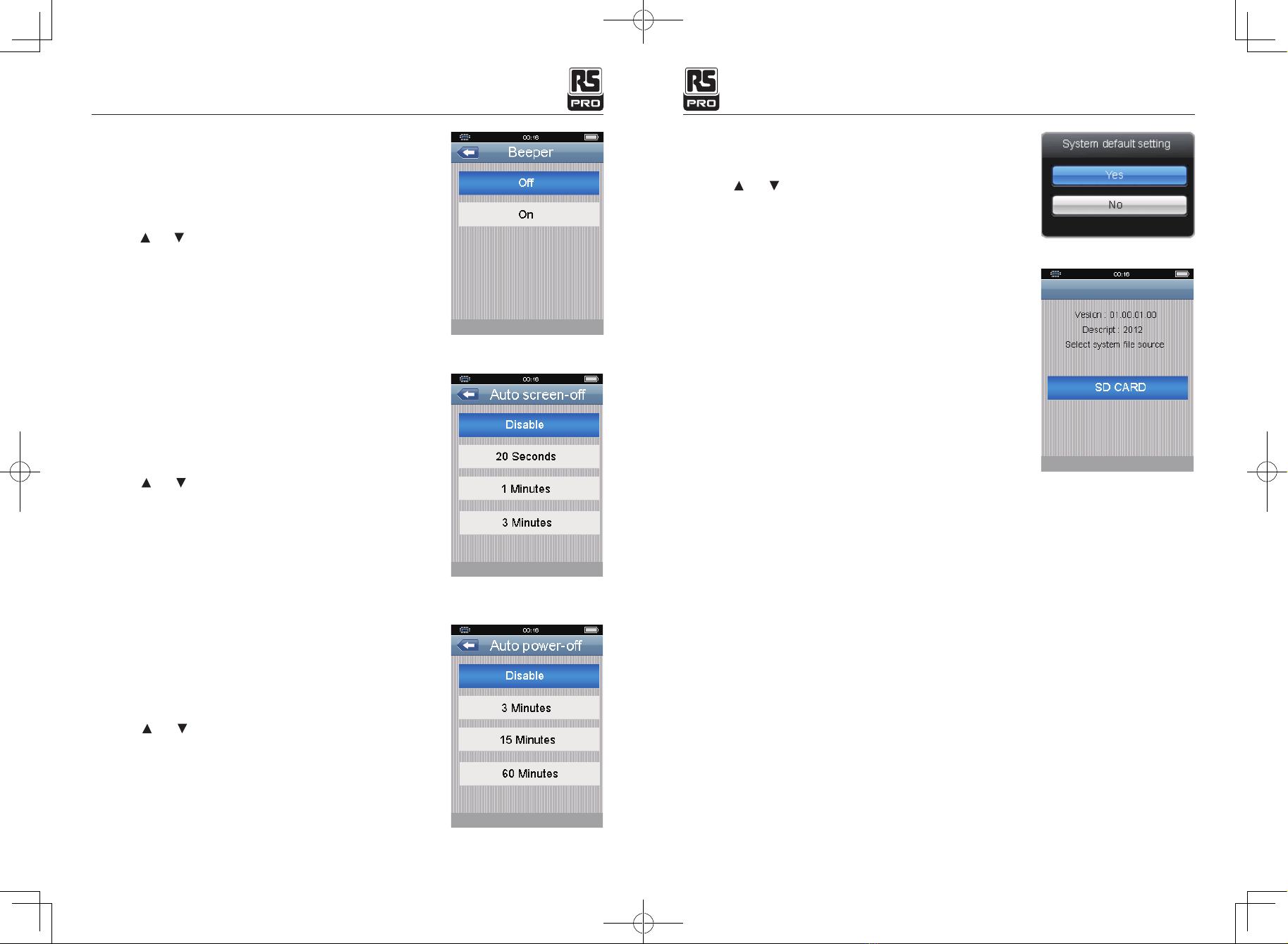

6-3-5. Beeper
Press the and button to select the beeper status, press ESC
button to esc and save the select the beeper status.
6-3-6. Auto Screen-off
Press the and button to select the screen auto off time or
never screen auto off, press the ESC button to esc and save.
6-3-7. Auto Power-off
Press the and button to select the auto power off time or
never auto power off, press the ESC button to esc and save.

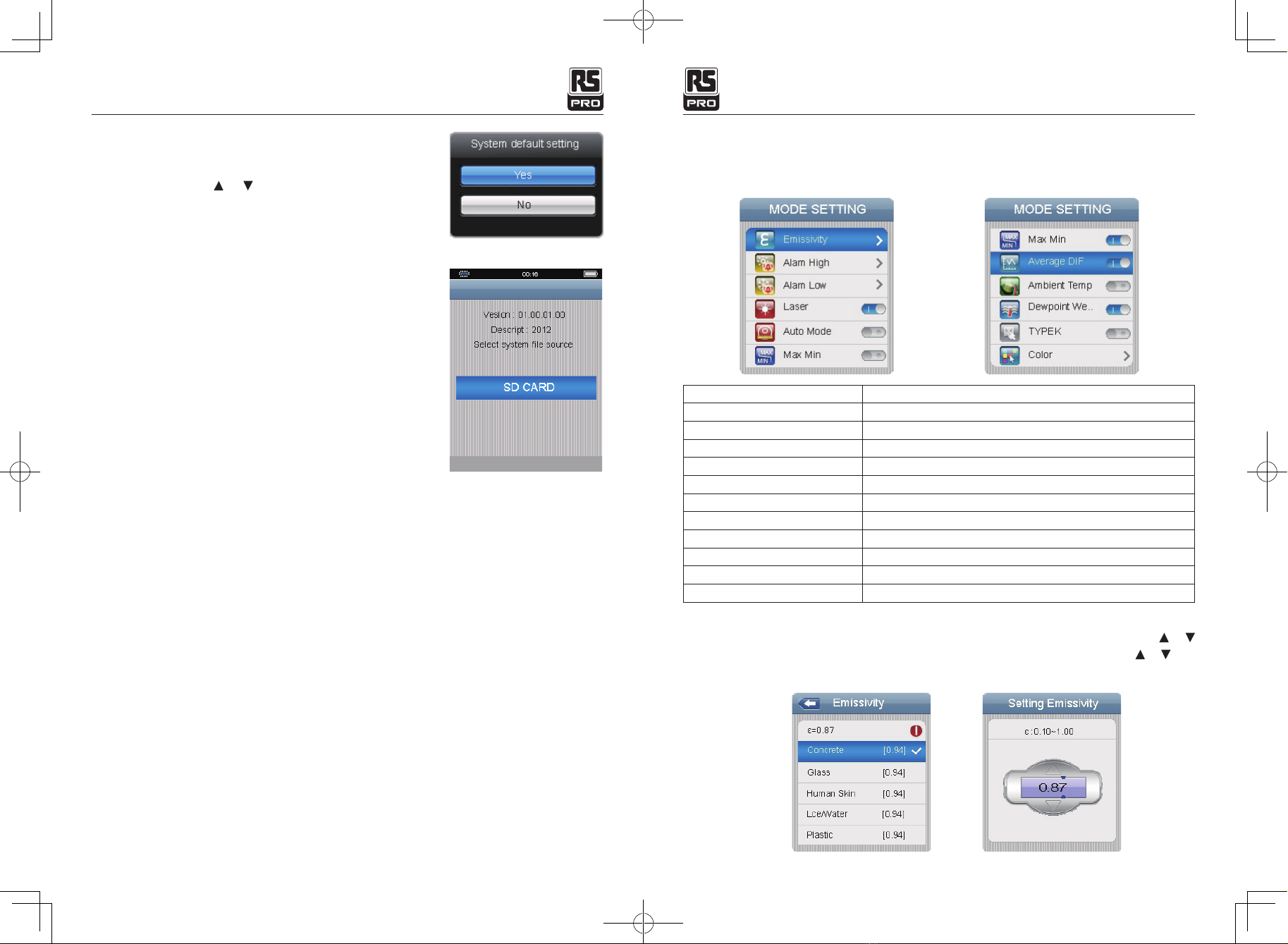

6-3-8. System Default Setting
Press the and button to select the Items, press the ENTER
button to enter, press the ESC button to esc.
6-3-9. System Upgrade
Press the ENTER button to enter, press the ESC button to esc.
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

12 13
Items Descriptions
Emissivity set Set the emissivity
Alarm High On or off the high alarm and set the value
Alarm Low On or off the low alarm and set the value
Laser Able or disable of laser
Auto Mode Lock to continue measure
Max/Min Display the max. or min. IR temperature
Average/Dif Display the average or difference of IR temp.
Ambient TEMP/% RH Display the air temperature and humidity
Dewpoint/wet bulb Display the dewpoint and wet bulb temperature
Type k Enable or disable the type-k input

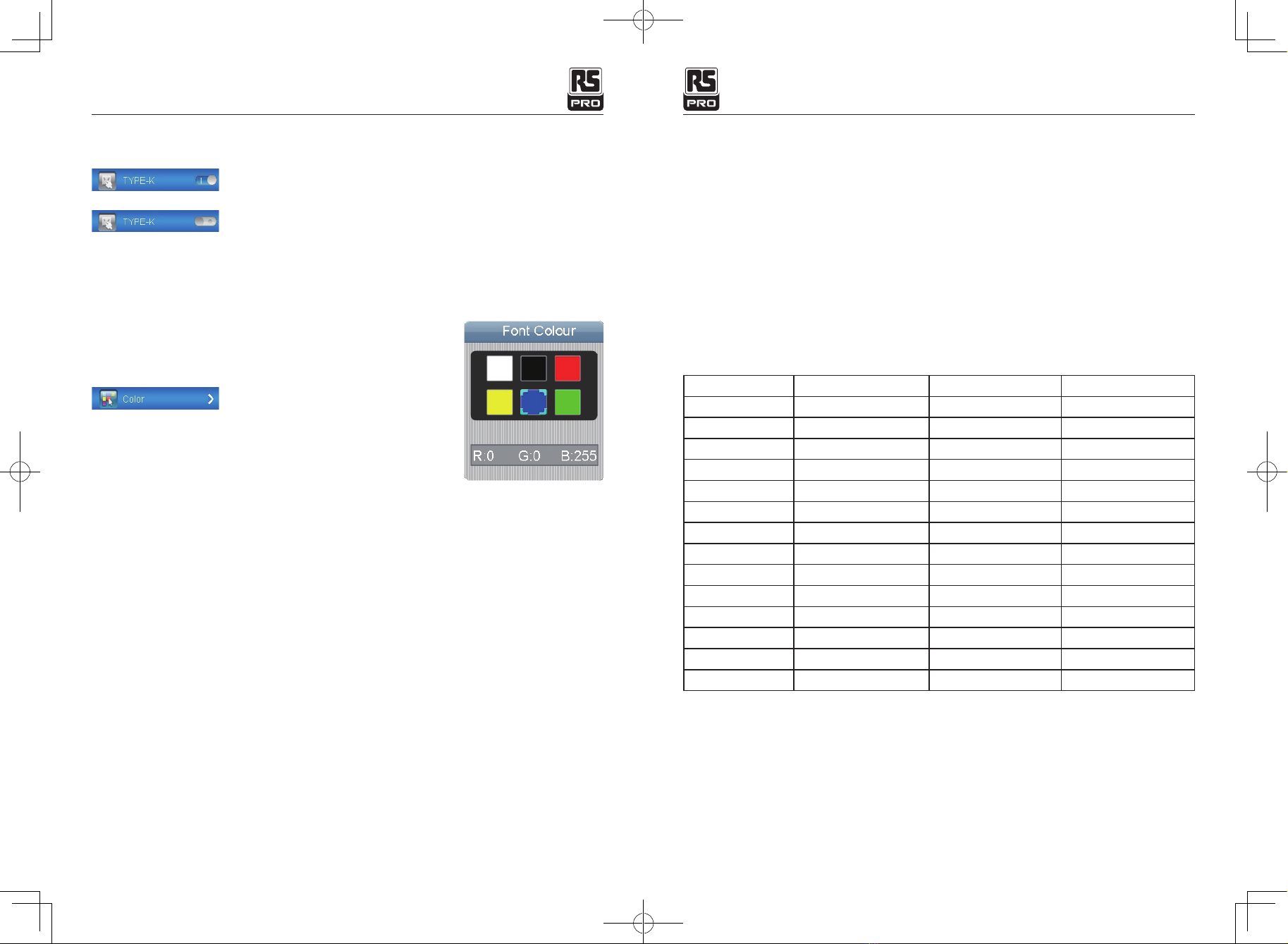

Color Font color

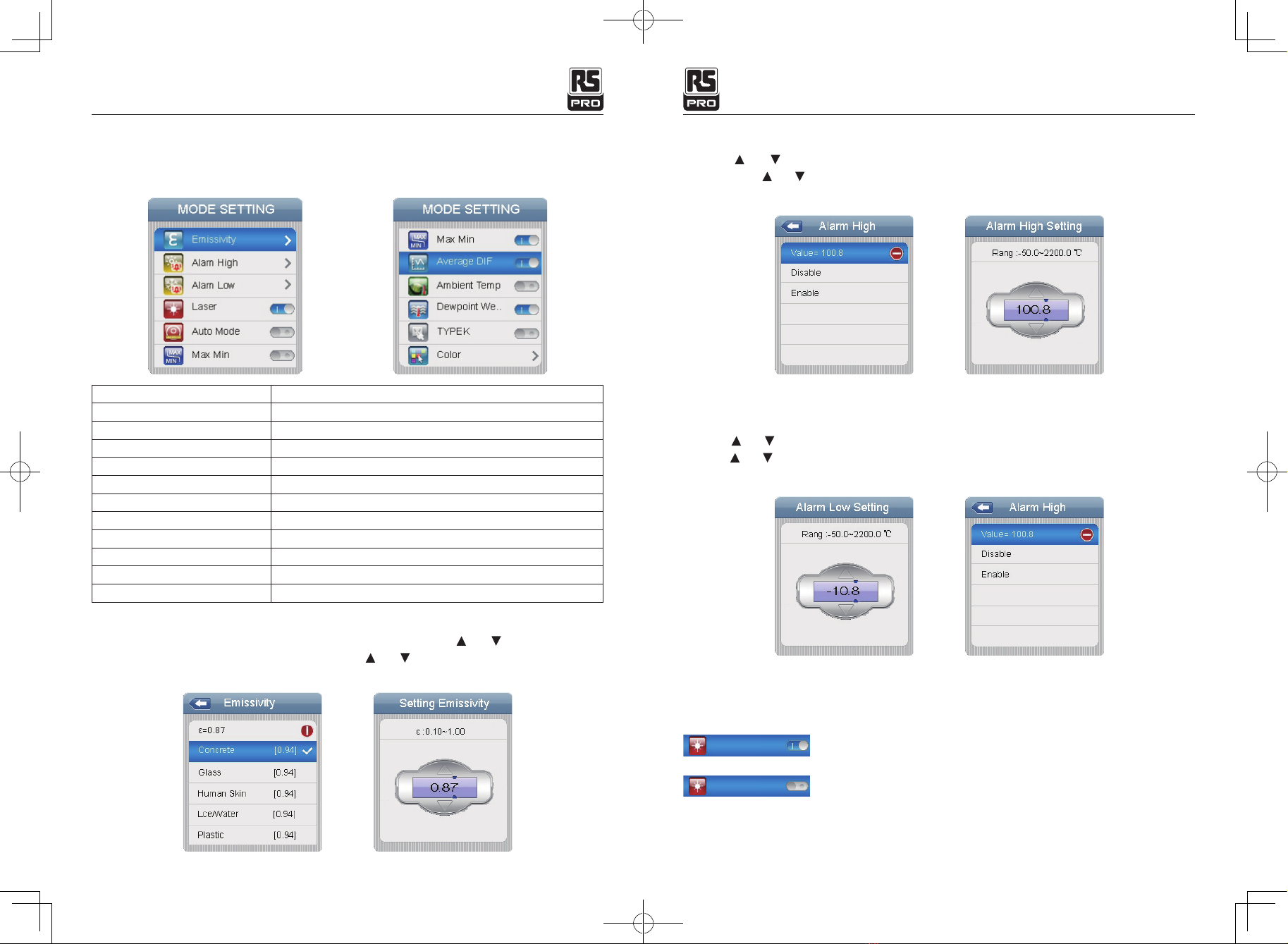

7. Function
On any mode, press the ENTER button into the menu.
Measure set
7-1. Emissivity set
ON the first Item, press the ENTER button to adjust emissivity, Press the and button to adjust the
value, then press the ENTER button conform. Press the and button to select the emissivities of the
materials, press the ESC button to esc and save.
7-2. Alarm High
Press the and button to on or off the high alarm. ON the first Item, press the ENTER button to
adjust,press the and button to adjust value. Press the ENTER button to conform, press the ESC button
to esc and save.
7-3. Alarm Low
Press the and button to on or off the low alarm. ON the first Item, press the ENTER button to adjust,
press the and button to adjust value. Press the ENTER button to conform, press the ESC button to esc
and save.
7-4. Laser
• Enable
Laser
• Disable
Laser
Press the ENTER button to enable or disable laser, press the ESC button to esc and save.
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

14 15
7-5. Auto Mode
• Enable
• Disable
Press the ENTER button to enable or disable Auto Mode, press the ESC button to esc and save.
7-6. Max/Min
• Enable
• Disable
Press the ENTER button to enable or disable Max/Min, press the ESC button to esc and save.
7-7. Average/Dif
• Enable
• Disable
Press the ENTER button to enable or disable Average/Dif, press the ESC button to esc and save.
7-8. Ambient TEMP/% RH
• Enable
• Disable
Press the ENTER button to enable or disable Ambient TEMP/% RH, press the ESC button to esc and save.
7-9. Dewpoint/wet bulb
• Enable
• Disable
Press the ENTER button to enable or disable Dewpoint/wet bulb, press the ESC button to esc and save.
7-10. Type k
• Enable
• Disable
Press the ENTER button to enable or disable Type k, press the ESC button to esc and save.
NOTE: If insert Type-k probe, Enable will be selected by default. Users can select the Disable, prohibiting
LCD display
7-11. Type-k temperature
Color
• Press the ENTER button to enter selected color.
• Font color
8. Notes
• How it Works
Infrared thermometers measure the surface temperature of an object. The unit’s optics sense emitted,
reflected, and transmitted energy, which is collected and focused onto a detector. The unit’s electronics
translate the information into a temperature reading, which is display on the unit. In units with a laser, the
laser is used for aiming purposes only.
• Field of View
Make sure that the target is larger than the unit’s spot size. The smaller the target is, the closer you should
be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size.
• Distance & Spot Size
As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes
larger. See: Fig: 1.
• Locating a hot Spot
To find a hot spot aim the thermometer outside the area of interest, then scan across with an up and down
motion until you locate hot spot
• Reminders
1. Do not use the unit to measure shiny or polished metal surfaces (stainless steel, aluminum, etc.).
See Emissivity2. The unit cannot be measured through transparent surfaces such as glass. It will measure
the surface temperature of the glass instead.
3. Steam, dust, smoke, etc., Can prevent accurate measurement by obstructing the unit’s optics.
IR Thermometer 2200oC, TFT color LCD, video/camera function / EnglishIR Thermometer 2200oC, TFT color LCD, video/camera function / English

16
• Emissivity
Emissivity is a term used to describe the energy-emitting characteristics of materials.
Most (90% of typical applications) organic materials and painted or oxidized surfaces have an emissivity of
0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces.
To compensate, cover the surface to be measured with masking tape or flat black paint. Allow time for the
tape to reach the same temperature as the material underneath it. Measure the temperature of the tape or
painted surface.
Substance Thermal emissivity Substance Thermal emissivity
Asphalt 0.90 to 0.98 Cloth (black) 0.98
Concrete 0.94 Human skin 0.98
Cement 0.96 Lather 0.75 to 0.80
Sand 0.90 Charcoal (powder) 0.96
Earth 0.92 to 0.96 Lacquer 0.80 to 0.95
Water 0.92 to 0.96 Lacquer (matt) 0.97
Ice 0.96 to 0.98 Rubber (black) 0.94
Snow 0.83 Plastic 0.85 to 0.95
Glass 0.90 to 0.95 Timber 0.90
Ceramic 0.90 to 0.94 Paper 0.70 to 0.94
Marble 0.94 Chromium oxides 0.81
Plaster 0.80 to 0.90 Copper oxides 0.78
Mortar 0.89 to 0.91 Iron oxides 0.78 to 0.82
Brick 0.93 to 0.96 Textiles 0.90
• Emissivity Values
9. Maintenance
• Repairs or service are not covered in this manual and should only be carried out by qualified trained
technician.
• Periodically, wipe the body with a dry cloth. Do not use abrasives or solvents on this instrument.
• For service, use only manufacturer’s specified parts.

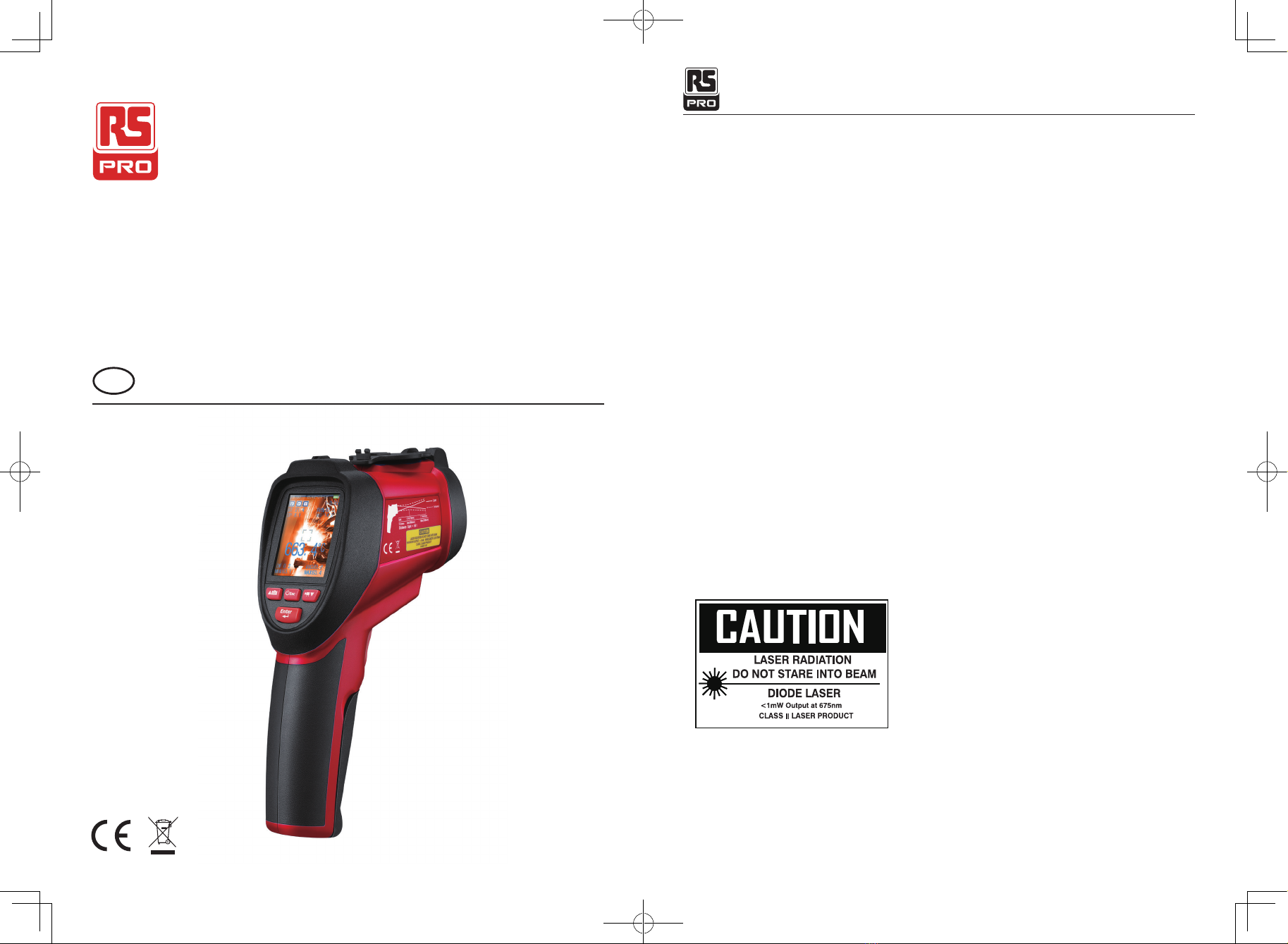

Manuel d'instructions
RS-9862S
Numéro de Stock: 200-3700
Thermomètre IR 2200oC, LCD de couleur TFT, avec la
fonction vidéo / caméra
FR
IR Thermometer 2200oC, TFT color LCD, video/camera function / English
