Instruction Manual
RS-8806S
Stock No:2010210
Non-Contact Forehead IR Thermometer
EN
RadioShack Cat. No.
2201005
For products purchased
through RadioShack:
General Wireless Operations Inc.
900 Terminal Rd, Door 244
Fort Worth, Texas 76106
USA
www.radioshack.com

Non-Contact Forehead IR Thermometer
1
1.General Description
Non-Contact Forehead IR Thermometer is specially designed to take
the body temperature of a person regardless of room temperature.
Depending on various skin types and thickness, there may be temperature
difference.
2.Safety Information
•This device must only be used for the purposes described in this
instruction manual
•This device must only be used in an ambient temperature range
between 10 and 40°C
•Do not expose this thermometer to electic shocks.
•Do not expose this thermometer to extreme temperature conditions
of >50°C or <0°C
•Do not use the device in relative humidity higher than 85%.
•Do not use the device near large electromagnetic fields such as
found with cordless or cell phones.
•Keep the device away from water and heat, including direct
sunlight.
•Do not drop or knock the device, and do not use if damaged.
•It may affect the accuracy of measurements when the forehead is
covered by hair, perspiration, cap or scarf. (See Part 10-4)
•Keep the Measuring distance as 1cm-10cm (0.39in-3.9in). (See Part
10-4)
•When the body infrared thermometer should be left in that room
during 15 to 20 minutes before using.
•It may affect the accuracy of measurements when the forehead is
covered by perspiration or other factors, please take the
temperature behind the ear lobe. (See Part 10-5)
•Clean the glass with a cotton bud lightly moistened with 70%
alcohol.

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
2 3
Importance:
•Before taking of the temperature make sure to remove hair and
perspiration from the forehead.
•Selecting “Body” mode to measure the body temperature; Selecting
“Surface” mode to measure the surface temperature.
•Use of this thermometer is not intended as a substitute for consultation
with your physician.
•Should a problem occur with your device,please contact your retailer.
Do not attempt to repair the device yourself.
•According to EMC standard, the medical electronic products should
be maintained specially.
3.Features
•Precise non-contact measurements
•User selectable ºC or ºF
•Selectable Body and Surface temp
•Set Alarm value
•Memorization of the last 32 measurements
•Automatic Data Hold & Auto power off
•Display Resolution 0.1ºC(0.1ºF)
•Backlight LCD display
Measurement Method
Rectal
Oral
Axillary
Ear
Normal Temp °C
36.6 to 38
35.5 to 37.5
34.7 to 37.3
35.8 to 38
Normal Temp °F
97.8 to 100.4
95.9 to 99.5
94.4 to 99.1
96.4 to 100.4
Age
0-2 years
3-10 years
11-65 years
>65 years
Temp °C
36.4 to 38.0
36.1 to 37.8
35.9 to 37.6
35.8 to 37.5
Temp °F
97.5 to 100.4
97.0 to 100.0
96.6 to 99.7
96.4 to 99.5
4.Intended Use
Non-Contact Forehead IR Thermometer is designed for body surface
and forehead temperature measurement for infants and adults without
contact to human body.
Non-Contact Forehead IR Thermometer can also be used to measure
the temperature of a baby-bottle or bath, or room temperature (by
using the Surface Temp function).
Normal Temperatures According To Measurement Method
The temperature of the human body varies throughout the day. It can
also be influenced by numerous external factors: age, sex, type and
thickness of skin…
Normal Temperatures According To Age

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
4 5
5.Configuration
1-IR Sensor
2-LCD Display
3-Mode Selection
4-Down Button
5-Up Button
6-Mode Button
7-Measurement Trigger
8-Battery Cover
6.Indicator
1-Surface mode Symbol
2-Body mode Symbol
3-Digital readout
4-Battery Symbol
5-The order number
6-Save data readout
7-Temperature °C(Celsius)/
°F(Fahrenheit) Scale
8-Buzzer symbol
1
2
3
5
8
7
4
6
1
2
7
3
6
5
4
8
7.Technical Specifications
Non-contact Body Infrared Thermometer Precision
Normal Conditions of Use
Display Resolution
Operating Temperature
Storage Temperature
Humidity Rate
Power
Size
Weight
0.1°C (0.1°F)
10 to 40°C (50 to 104°F)
0 to 50°C (32 to 122°F)
<85%
DC 3V (2 x “AAA” batteries)
128 x 74x 36 mm / 5x 2.9 x 1.4 in (L x W x H)
Gross 125.4g / Net 104.5g
(0.39 in – 3.9 in)
32 to 35.9°C / 93.2 to 96.6°F
36 to 39°C / 96.8 to 102.2°F
39 to 42.5°C / 102.2 to 108.5°F
±0.3°C / 0.5°F
±0.2°C / 0.4°F
±0.3°C / 0.5°F
According to ASTM
Standard E1965-1998
(2003)
Measuring Range
In Body Mode
In Surface Temp Mod
A
Emissivity Fixed at 0.99
ccuracy
Measuring Distance
Automatic Stop
32.0 to 42.5°C (90 to 108°F)
0 to 60°C (32 to 140°F)
±0.3°C (0.54°F)
1 cm – 10 cm
7 sec.

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
6 7
8.Description of Symbols
Body
Surface
The device is in accordance with Medical Device Directive
93/42/EEC
The device is in accordance with FCC Part 15 Subpart
B:2007/Radio Frequency Devices IC Regulation ICEC-003:
2004 Interference-causing Equipment Standard-Digitial
Apparatus
3V DC power supply
Type B equipment
In order to protect the environment, please recycle the
battery according to the local regulations
Indication of Mode
Attention,consult accompanying documents
9.Use
9-1.Install battery
9-2.For the first use or when inserting new batteries wait between
10 minutes for the warm-up of the apparatus and when inserting
the new batteries.
9-3.If the device is not used for a long time, once you turn it on again,
the device will test the room temperature first and will delay
turning on for one or two seconds.

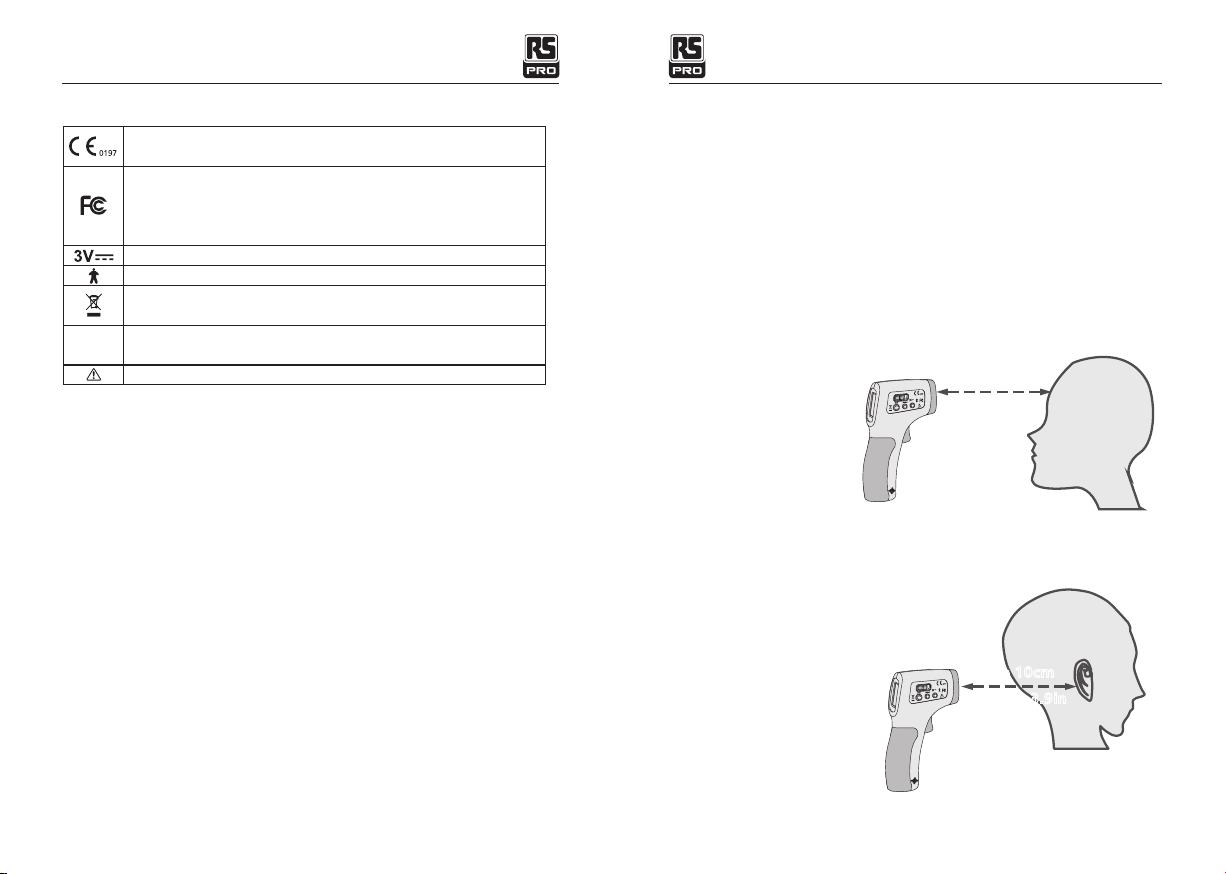

9-4.Aim towards the forehead (see the diagram below for the
positioning), from a distance of 5cm(2in), press the measuring
key, the temperature is displayed immediately. Making sure there
is no hair, perspiration, cosmetic or cap covered on the forehead.
9-5.When the room temperature is significantly different, or there is
perspiration on the forehead, You can take the temperature behind
the ear lobe. Making sure there is no hair, perspiration, cosmetic
or cap covered.
1 to 10cm
0.39 to 3.9in
1 to 10cm
0.39 to 3.9in

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
8 9
10.Measuring Operation
10-1.Choosing The Temperature Unit – F1 Function
Press “MODE” button for 2 seconds, the screen displays: F1. Select
“DOWN” for degrees Celsius, “UP” for degrees Fahrenheit.
10-2.Alarm Setup – F2 Menu
Press “MODE“ touch for 2 seconds, the screen displays: F1. Press
twice “MODE“ touch to get F2. Select “UP” to increase the
threshold by 0.1°C (0.1°F), “DOWN“ to reduce it by 0.1°C (0.1°F).
Note: The alarm threshold default value is 38°C (100.4°F).
10-3.Total Difference – F3 Menu
To adjust the total variation of your the Non-contact Body Infrared
Thermometer.
Press “MODE” button for 2 seconds, the screen displays: F1. Press
“MODE“ button two times to get F3. Select “UP“ to increase the
difference by 0.1°C (0.1°F), “DOWN“ to reduce itby 0.1°C (0.1°F). In
the cases of seasonal or environmental changes a verification and
adjustment should be carried out.
Note: This function is only effective - Body
10-4.Buzzer ON/OFF – F4(F3) Menu
Press “MODE” button for 2 seconds, the screen displays: F1. Press
three(two) times “MODE“ button to get F4(F3).
Select “UP” to open the buzzer (a sound icon “ “ is displayed on
the LCD screen), press “DOWN“ to stop it (the icon disappear).
10-5.Exiting The Setting Mode
Press “MODE“ button until the screen turns off.
10-6.The Non-contact Body Infrared Thermometer is specially designed
to take the body temperature of a human being. For this, use the
Body mode. Measurement range for Body mode: 32 to 42.5°C (86
to 108°F)
You can also use the Non-contact Body Infrared Thermometer to measure
the temperature of an area or an object, a food, a liquid or a room
temperature. For this, use the Surface mode. Measurement range for
Surface mode: 0 to 60°C (32 to 140°F)
Important: The area temperature differs from the internal body
temperature. To obtain the internal temperature always use the Body
mode.
Please make sure to select the Body mode for an internal temperature
reading and the Surface mode for an external area reading (bottle,
bath, room…).
10-7.Data Memory
Data memory automatically after temperature measurements, which
will display at the right corner of LCD. Press “UP“ or “DOWN“ button
to display the last temperature measurement.
Under the condition of power off, press “UP“ and “DOWN“ button
together for two seconds, to display the last temperature measurement.
At this mode if change the order number to 0 and press “MODE“
button, then delete all memory data.
10-8.Changing The Batteries
Display: when the LCD screen displays “ “, the battery is used.
Operation: Open the lid and change the batteries, taking great care
with the correct positioning. A mistake with this could cause damage
to the apparatus and compromise the guarantee of your Non-contact
Body Infrared Thermometer. Never use rechargeable batteries. Use
only batteries for single usage.
Remove the battery from the instrument if it is not required for extended
periods of time in order to avoid damage to the thermometer resulting
from a leaking battery.

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
10 11
10-9.Longevity Use
The Non-contact Body Infrared Thermometer was conceived for an
intense and professional use, its longevity is guaranteed for 40000
takings.
11.Advice
•The protective glass over the lens is the most important and fragile
part of the thermometer, please take great care of it.
•Do not recharge non rechargeable batteries, do not throw in fire.
•Do not expose the thermometer to sunlight or water.
12.Maintenance and Cleaning
•The Infrared Sensor is the most precise part, must be protected
carefully.
•Clean the device with a cotton bud lightly moistened with 70%
alcohol.
•Do not clean the device with corrosive detergent.
•Keep the device away from water or other liquid.
•Store the device in a dry environment, and keep it away from dust
and direct sunlight.
13.Troubleshooting
If you happen to have one of the following problems while using
the non-contact forehead IR thermometer please refer to this
breakdown service guide to help resolve the problem. If the problem
persists please contact our customer service.
The screen displays the body temperature inferior to 32°C (89.6°F)
If you’re on Surface mode the 32°C(89.6°F) temperature displayed is
showing the external temperature that your body releases.
The screen displays the message “HI“
When using the Non-contact Body Infrared
Thermometer the message HI can show on
the screen.
The analysis is above the measurement range
selected, either superior to 42.5°C (108°F) in
Body mode or superior to 60°C (140°F) in
Surface mode.
The screen displays the message “LO“
When using the Non-contact Body Infrared
Thermometer the message Lo can show on
the screen.
The temperature analyzed is under the
measuring range selected, either less than
32°C (90°F) in Body mode or less than 0°C
(32°F) in Surface mode.

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
12 13
This message displays in various cases – please find below a list
of the main cases.
Reasons for “LO” or “HI”
message display
Temperature reading hampered
by hair, perspiration…
Temperature hampered by an air
flux.
The measuring distance is too
far.
From high/low temperature
condition to room temperature
Advice
Make sure that there is no
obstruction prior to taking a
temperature.
Make sure there is no air flux as
this could interfere with the infrared
system.
Please respect the measuring
distance (between 1 to 10cm
– 0.39 to 3.9 in).
Waiting for 10 minutes before
taking the body temperature
14.This appliance conforms to the following standards:
•EN 980: Graphical symbols for use in the labeling of medical devices
•EN 1041:Information supplied by the manufacturer with medical
diveces
•EN 60601-1: Medical electrical equipment Part 1: General requirements
for safety (IEC:60601-1:1998)
•EN 60601-1-2: Medical electrical equipment Part 1-2: General
requirements for safety Collateral standard Electromagnetic
compatibility Requirements and test (IEC 60601-1-2:2001)
EMC Statement
This device has been tested and homologated in accordance with
EN60601-1-2:2007 for EMC. This does not guarantee in any way that
the device will not be affected by electromagnetic interference. Avoid
using the device in high electromagnetic environment.
The MEDICAL DELECTRICAL EQUIPMENT needs special precautions
regarding EMC and needs to be installed and put into service according
to the EMC information provided in the ACCOMPANYING DOCUMENTS.
The manufacturer reserves the right to alter the specifications of the
product without prior notification.
The manufacturer allows himself the right to modify without any
preliminary opinion the technical specifications of the product.
Guidance and manufacturer’s declaration - electromagnetic emissions
The Model Number or Type Number - by manufacturer is intended for use in
the electromagnetic environment specified below. The customer or the user
of the Model Number or Type Number - by manufacturer should assure that
it is used in such an environment.
Emissions test
RF emissions
CISPR 11
RF emissions
CISPR11
Harmonic emissions
lEC 61000-3-2
Voltage fluctuations /
flicker emissions
lEC 61000-3-3
Compliance
Group 2
Class B
Not applicable
Not applicable
Table 201 –Declaration - electromagnetic emissions
Electromagnetic environment -
guidance
The Model Number or Type Number
- by manufacturer must emit
electromagnetic energy in order
to perform its Intended function.
Nearby electronic equipment may
be affected.
The Model Number or Type Number
- by manufacturer Is suitable for
use in all establishments other than
domestic and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic purposes.

Non-Contact Forehead IR ThermometerNon-Contact Forehead IR Thermometer
14 15
Guidance and manufacturer’s declaration — electromagnetic immunity
The Model Number or Type Number - by manufacturer is intended for use in
the electromagnetic environment specified below. The customer or the user
of the Model Number or Type Number - by manufacturer should assure that
it is used in such an environment.
Immunity test
Electrostatic
discharge (ESD)
lEC 61000-4-2
IEC 60601
test level
±6 kV contact
±8 kV air
Table 202 - Declaration - electromagnetic immunity
Compliance
level
±6 kV contact
±8 kV air
Electromagnetic
environment - guidance
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30 %.
Guidance and- manufacturer’s declaration. Electromagnetic immunity
The Model Number or Type Number - by manufacturer is intended for use
in the electromagnetic environment specified below. The customer or the
user of the Model Number or Type Number - by manufacturer should
assure that it is used in such an environment.
Immunity
test
Electromagnetic environment - guidance
Portable and mobile RF communications equipment should be used no
closer to any part of the Model Number or Type Number - by manufacturer,
including cables, than the recommended separation distance calculated
from the equation applicable to the frequency of the transmitter.
Conducted RF
lEC 61000-4-6
IEC 60501
test level
3 Vrms
150 kHz to
80 Mhz
Table 204 - Declaration - electromagnetic immunity
Compliance
level
3 Vrms
Recommended separation
distance
d = 1,2 p√
Radiated RF
lEC 61000-4-3
where P is the maximum output power rating of the transmitter
In watts (W) according to the. transmitter manufacturer and d is the
recommended separation distance in meters (m).
Field strengths from fixed RF transmitters, as determined by an electromagnetic
site survey, should be less than the compliance level in each frequency
range
Interference may occur In the vicinity of equipment marked with the following
symbol:
3 V/m
80 MHz to
2.5 GHz
3 V/m , 80MHz to 800MHzd = √1,2p
, 800MHz to 2,5MHzd = √2,3p
NOTE I At 80 MHz end 800 MHz. the higher frequency range
applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
Field strengths from fixed transmitters, such as base stations for
radio (cellular/cordless) telephones and land mobile radios,
amateur radio, AM and FM radio broadcast and TV broadcast
cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured
field strength in the location in which the Model Number or Type
Number - by manufacturer is used exceeds the applicable RF
compliance level above, the Model Number or Type Number
- by manufacturer should be observed to verify normal
operation. If abnormal performance is observed, additional
measures may be necessary, such as reorienting or relocating
the Model Number or Type Number - by manufacturer.
Over the frequency range 150 kHz to 80 MHz, field strengths
should be less than [Vi] V/m.
d = 1,2 p√
d = 2,3 p√

Non-Contact Forehead IR Thermometer
16
Recommended separation distances between
portable and mobile RF communications equipment and the Model Number
or Type Number - by manufacturer
The Model Number or Type Number - by manufacturer is intended for use
in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the Model Number or Type Number
- by manufacturer can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the Model Number or Type
Number - by manufacturer as recommended below, according to the
maximum output power of the communications equipment.
Rated maximum
output power
of transmitter W
0,01
0,1
1
10
100
Separation distance according to frequency of
transmitter m
150 kHz to
80 MHz
0.12
0.38
1.2
3.8
12
Table 206 - Recommended separation distances between portable
and mobile
RF communications equipment and the Model Number or Type
Number - by manufacturer
80 MHz to
800 MHz
0.12
0.38
1.2
3.8
12
d = 1,2 p√d = 1,2 p√
800 MHz to
2,5 GHz
0.23
0.73
2.3
7.3
23
d = 2,3 p√
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in meters (m) can be estimated using
the equation applicable to the frequency of the transmitter, where P is the
maximum output power rating of the transmitter in watts (W) accordable
to the transmitter manufacturer.
NOTE I At 80 MHz and 800 MHz. the separation distance for the higher
frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures,
objects and people.
