Ruijie RG-ES1 Series Installation and operating manual

Ruijie RG-ES1 Series Switches
Hardware Installation and Reference Guide
Document Version: V1.0
Date: 2022.06.21
Copyright © 2022Ruijie Networks

Copyright
Copyright © 2022 Ruijie Networks
All rights are reserved in this document and this statement.
Without the prior written consent of Ruijie Networks, any organization or individual shall not reproduce, extract,
back up, modify, or propagate the content of this document in any manner or in any form, or translate it into
other languages or use some or all parts of the document for commercial purposes.
,, and other Ruijie networks logos
are trademarks of Ruijie Networks.
All other trademarks or registered trademarks mentioned in this document are owned by their respective
owners.
Disclaimer
The products, services, or features you purchase are subject to commercial contracts and terms, and some or
all of the products, services, or features described in this document may not be available for you to purchase or
use. Except for the agreement in the contract, Ruijie Networks makes no explicit or implicit statements or
warranties with respect to the content of this document.
The content of this document will be updated from time to time due to product version upgrades or other
reasons, Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.
This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and
reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is
completely free of errors or omissions, and all the information in this manual does not constitute any explicit or
implicit warranties.

I
Preface
Intended Audience
This document is intended for:
⚫Network engineers
⚫Technical support and servicing engineers
⚫Network administrators
Technical Support
⚫The official website of RuijieReyee: https://www.ruijienetworks.com/products/reyee
⚫TechnicalSupportWebsite:https://www.ruijienetworks.com/support
⚫Case Portal:https://caseportal.ruijienetworks.com
⚫Community: https://community.ruijienetworks.com
⚫Technical Support Email: [email protected]
Conventions
1. Signs
This document also uses signs to indicate some important points during the operation. The meanings of these
signs are as follows:
Caution
Analert that calls attention to safety instruction that if not understood or followed can result in personal injury.
Warning
An alert that calls attention to important rules and information that if not understood or followed can result in
data loss or equipment damage.
Note
An alert that calls attention to essential information that if not understood or followed can result in function
failure or performance degradation.
Instruction
An alert that contains additional or supplementary information that if not understood or followed will not lead to
serious consequences.
Specification
An alert that contains a description of product or version support.

II
2. Note
This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for
cables and connectors. It is intended for users who want to understand the above and have extensive
experience in network deployment and management, and assume that users are familiarwith related terms and
concepts.

Hardware Installation and Reference Guide Overview
1
1 Overview
1.1 Introduction
Video surveillance has been widely popularized, and more and higher requirements are raised for surveillance
security switches that are indispensable for video data transmission. Ruijie launches the Reyee RG-ES1 Series
to provide customers with next-generation unmanaged surveillance security switches that feature diversified
specifications, stable quality, and high-costperformance.
The RG-ES1 series switches include the following models:
Model
10/100Base-TX
Auto-sensing Ethernet
Port
10/100/1000Base-T
Auto-sensing Ethernet Port
1000Base-X
SFP Port
Console
Port
RG-ES106D-P
6（Ports 1-4 support
PoE/PoE+）
N/A
N/A
N/A
RG-ES110D-P
8（Ports 1-8 support
PoE/PoE+）
2
N/A
N/A
RG-ES110GDS-P
N/A
8（Ports 1-8 support
PoE/PoE+）
2
N/A
RG-ES116G
N/A
16
N/A
N/A
RG-ES124GD
N/A
24
N/A
N/A
RG-ES118S-LP
16（Ports 1-16support
PoE/PoE+）
2
2(Combo)
N/A
RG-ES118GS-P
N/A
16（Ports 1-16support
PoE/PoE+）
2
N/A
RG-ES126S-LP
24（Ports 1-24 support
PoE/PoE+）
2
1(Combo)
N/A

Hardware Installation and Reference Guide Overview
2
1.2 RG-ES106D-P
1.2.1 Package Contents
Table 1-1 Package Contents
Item
Quantity
RG-ES106D-P Host
1
Power Adapter
1
Power Cord
1
Quick Start Guide
1
Warranty Card
1
Instruction
The preceding table lists items delivered in normal cases. The actually delivered items may vary with the
contract. Carefully check your goods against the package contents or contract. Contact the seller if you have
any questions or find any errors.
1.2.2 Product Appearance
RG-ES106D-P provides 6 10/100Base-TX auto-sensing Ethernet ports on the front panel, and a port mode
switch-over button, a system status LED, a power socket and a grounding pole on the back panel.

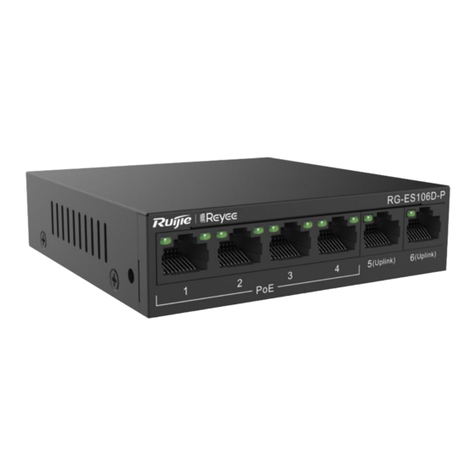

Figure 1-1 Appearance of RG-ES106D-P
1.2.3 Ports - Front Panel
Figure 1-2 shows the front panel of an RG-ES106D-P switch. For the detailed meanings of numbers 1 to 4, see
the following table.

Hardware Installation and Reference Guide Overview
3
Figure 1-2 Front Panel of RG-ES106D-P
Item
Description
Copper port status indicator
Copper port status indicator. The statuses are as follows:
Solid green: The port is connected at 10/100 Mbps.
Blinking green: The port is receiving or sending traffic at 10/100
Mbps.
Off: The port is not connected.
PoE status indicator
PoE status indicatorfor ports 1-4. The statuses are as follows:
Solid green: PoE is operational.
Off: PoE does not supply power.
RJ-45 10/100Base-TX PoE port
10/100Base-TX adaptive Ethernet port that supports PoE power supply.
The copper port uses an RJ45 connector.
RJ-45 10/100Base-TX
auto-sensing Ethernet port
10/100Base-TX adaptive Ethernet port. The copper port uses an RJ45
connector.
1.2.4 Ports - Rear Panel
Figure 1-3 shows the rear panel of an RG-ES106D-P switch. For detailed meanings of numbers 1 to 4, see the
following table.
Figure 1-3 Back Panel of RG-ES106D-P

Hardware Installation and Reference Guide Overview
4
Item
Description
Port mode
switch-over button
Support switchover in three modes:
Left：Flow Control On
Middle: Flow Control Off
Right: Port Isolation. When this mode is enabled, ports 1-4 are isolated from
each other, but can communicate with ports 5-6.
System status
indicator (PWR)
System status indicator. The statuses are as follows:
Solid green: The system is operational.
Off: The switch is not powered on.
DC power socket
Used to Connect the DC power adapter（51 VDC/1.25 A）
Grounding pole
Used to fasten the ground cable.
1.2.5 Technical Specifications
Table 1-2 Technical Specifications of an RG-ES106D-P Switch
Product Model
RG-ES106D-P
Ports
6 10/100Base-TX auto-sensing Ethernet ports, ports 1-4 support PoE/PoE+.
Power Supply
AC input
Rated voltage range: 100 VAC to 240 VAC
Maximum voltage range: 90 VAC to 264 VAC
Frequency: 50/60Hz
Rated current: 1.5 A
Adapter output
Rated voltage range: 51 VDC
Rated current range: 1.25 A
PoE
Support PoE and PoE+.
Ports 1-4 are PoE/PoE+-capable with the maximum power output of 30W per port. Ports
5-6 do not support PoE or PoE+.
The overall maximum output power of PoE/PoE+ is 58W.
Power
Consumption
Less than 7W with no PoE load
Less than 67W with PoE full load
Operating
Temperature
0°C to 45°C(32°F to 113°F)

Hardware Installation and Reference Guide Overview
5
Storage
Temperature
-40°C to 70°C(-40°F to 158°F)
Operating
Humidity
10% to 90% RH (non-condensing)
Storage Humidity
5% to 95% RH (non-condensing)
Port Mode
Support switchover in three modes:
Flow Control On
Flow Control Off
Port Isolation. When this mode is enabled, ports 1-4 are isolated from each
other, but can communicate with ports 5-6.
Fan
Not supported
Temperature
Warning
Not supported
Accessing Optical
Module
Information
Not supported
EMC
GB/T 9254.1-2021
EN 55032:2015
EN 55035:2017
EN IEC61000-3-2:2019
EN 61000-3-3:2013
Draft ETSI EN 300 386 V2.2.0 (2020-10)
Security
Standards
GB 4943.1-2011
EN 62638-1
Earth Leakage
Current
≤1.5mA
Dimensions
(W x D x H)
100 mm x 100 mm x 26 mm (3.94 in. x 3.94 in. x 1.02 in.)
Weight
(With Package)
0.66 kg (1.46 lbs)
Caution
●The RG-ES106D-P switch may cause radio interference in the living environment.
●It is not recommended to deploy RG-ES106D-P switch in places where children may appear.

Hardware Installation and Reference Guide Overview
6
1.2.6 Heat Dissipation Solution
The RG-ES106D-Padopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a
minimum clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once every
3 months to avoid dust from blocking vents.
1.3 RG-ES110D-P
1.3.1 Package Contents
Table 1-3 Package Contents
Item
Quantity
RG-ES110D-P Host
1
Power Adapter
1
Power Cord
1
Quick Start Guide
1
Warranty Card
1
Instruction
The preceding table lists items delivered in normal cases. The actually delivered items may vary with the
contract. Carefully check your goods against the package contents or contract. Contact the seller if you have
any questions or find any errors.
1.3.2 Product Appearance
RG-ES110D-P provides 8 10/100Base-TX auto-sensing Ethernet ports, 2 10/100/1000Base-T auto-sensing
Ethernet ports, and LED indicators on the front panel, and a power socket, a port mode switch-over button and
a grounding pole on the back panel.
Figure 1-4 Appearance of RG-ES110D-P

Hardware Installation and Reference Guide Overview
7
1.3.3 Ports - Front Panel
Figure 1-5 shows the front panel of an RG-ES110D-P switch. For the detailed meanings of numbers 1 to 5, see
the following table.
Figure 1-5 Front Panel of RG-ES110D-P
Item
Description
System status indicator (PWR)
System status indicator. The statuses are as follows:
Solid green: The system is operational.
Off: The switch is powered off.
Copper port status indicator
Copper port status indicator. The statuses are as follows:
Solid green: The port is connected at 10/100/1000 Mbps.
Blinking green: The port is receiving or sending traffic at
10/100/1000 Mbps.
Off: The port is not connected.
PoE status indicator
PoE status indicatorfor ports 1-8. The statuses are as follows:
Solid green: PoE is operational.
Blinking green: PoE is overloaded.
Off: PoE does not supply power.
RJ-45 10/100Base-TX PoE port
10/100Base-TX adaptive Ethernet port that supports PoE power supply.
The copper port uses an RJ45 connector.
RJ-45 10/100/1000Base-T
auto-sensing Ethernet port
10/100/1000Base-T adaptive Ethernet port. The copper port uses an RJ45
connector.
1.3.4 Ports - Rear Panel
Figure 1-6 shows the rear panel of an RG-ES110D-P switch. For detailed meanings of numbers 1 to 3, see the
following table.

Hardware Installation and Reference Guide Overview
8
Figure 1-6 Back Panel of RG-ES110D-P
Item
Description
Grounding pole
Used to fasten the ground cable.
Port mode
switch-over button
Support switchover in three modes:
Left: Flow Control On
Middle: Flow Control Off
Right: Port Isolation. When this mode is enabled, ports 1-8 are isolated from
each other, but can communicate with ports 9 and 10.
DC power socket
Used to Connect the DC power adapter（53.5 VDC/2.24 A）
1.3.5 Technical Specifications
Table 1-4 Technical Specifications of an RG-ES110D-P Switch
Model
RG-ES110D-P
Ports
8 10/100Base-TX auto-sensing Ethernet ports (Auto MDI/MDIX), and support PoE/PoE+
2 10/100/1000Base-T auto-sensing Ethernet ports (Auto MDI/MDIX)
Power Supply
AC input
Rated voltage range: 100 VAC to 240 VAC
Maximum voltage range: 90 VAC to 264 VAC
Frequency: 50/60Hz
Rated current: 1.6 A
Adapter output
Rated voltage range: 53.5 VDC
Rated current range: 2.24 A

Hardware Installation and Reference Guide Overview
9
EEE
Port1-8：Supported
Port9-10：Not Supported
PoE
Support PoE and PoE+.
Ports 1-8 are PoE/PoE+-capable with the maximum power output of 30W per port. Ports
9-10 do not support PoE or PoE+.
The overall maximum output power of PoE/PoE+ is 110W.
Power
Consumption
Less than 8W with no PoE load
Less than 129W with PoE full load
Operating
Temperature
0°C to 45°C(32°F to 113°F)
Storage
Temperature
-40°C to 70°C(-40°F to 158°F)
Operating
Humidity
10% to 90% RH (non-condensing)
Storage Humidity
5% to 95% RH (non-condensing)
Port Mode
Support switchover in three modes:
Flow Control On
Flow Control Off
Port Isolation. When this mode is enabled, ports 1-8 are isolated from each
other, but can communicate with ports 9 and 10.
Fan
Not supported
Temperature
Warning
Not supported
Accessing Optical
Module
Information
Not supported
EMC Standards
GB/T 9254.1-2021
EN 55032:2015
EN 55035:2017
EN IEC61000-3-2:2019
EN 61000-3-3:2013
Draft ETSI EN 300 386 V2.2.0 (2020-10)
Security
Standards
GB 4943.1-2011
EN 62638-1

Hardware Installation and Reference Guide Overview
10
Earth Leakage
Current
≤1.5mA
Dimensions
(W x D x H)
190 mm x 100 mm x 28 mm (7.48 in. x 3.94 in. x 1.1 in.)
Weight
(With Package)
1.3 kg (2.87 lbs)
Caution
●The RG-ES110D-P switch may cause radio interference in the living environment.
●It is not recommended to deploy RG-ES110D-P switch in places where children may appear.
1.3.6 Heat Dissipation Solution
The RG-ES110D-Padopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a
minimum clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once every
3 months to avoid dust from blocking vents.
1.4 RG-ES110GDS-P
1.4.1 Package Contents
Table 1-5 Package Contents
Item
Quantity
RG-ES110GDS-P Host
1
Mounting bracket
2
Foot pad
4
Screw (M4X8)
8
Power cord
1
User Manual
1
Warranty Card
1
Instruction
The preceding table lists items delivered in normal cases. The actually delivered items may vary with the
contract. Carefully check your goods against the package contents or contract. Contact the seller if you have
any questions or find any errors.

Hardware Installation and Reference Guide Overview
11
1.4.2 Product Appearance
RG-ES110GDS-P provides 8 10/100/1000Base-T auto-sensing Ethernet ports, 2 1000Base-X SFP ports, a port
mode switch-over button and LED indicators on the front panel, and a power socket and a grounding pole on
the back panel.
Figure 1-7 Appearance of RG-ES110GDS-P
1.4.3 Ports - Front Panel
Figure 1-8 shows the front panel of an RG-ES110GDS-P switch. For the detailed meanings of numbers 1 to 6,
see the following table.
Figure 1-8 Front Panel of RG-ES110GDS-P
Item
Description
System status indicator (PWR)
System status indicator. The statuses are as follows:
Solid green: The system is operational.
Off: The switch is powered off.

Hardware Installation and Reference Guide Overview
12
Item
Description
Port status indicator
RJ-45 port status:
○Solid green: The port is connected at 10/100 Mbps.
○Blinking green: The port is receiving or sending traffic at
10/100 Mbps.
○Off: The port is not connected.
SFP port status:
○Off: The port is not connected.
○Solid orange: The port is connected at 100 Mbps.
○Blinking orange: The port is receiving or sending traffic at 100
Mbps.
○Solid green: The port is connected at 1000 Mbps.
○Blinking green: The port is receiving or sending traffic at 1000
Mbps.
PoE status indicator
PoE status indicator for ports 1-8. The statuses are as follows:
Solid green: PoE is operational.
Blinking green: PoE is overloaded.
Off: PoE does not supply power.
Port mode switch-over button
Support switchover in three modes:
Flow Control On
Flow Control Off
Port Isolation. When this mode is enabled, ports 1-8 are isolated
from each other, but can communicate with ports 9 and 10.
RJ-45 10/100/1000Base-T
auto-sensing Ethernet port
10/100/1000Base-T adaptive Ethernet portthat supports PoE power
supply. The copper port uses an RJ45 connector.
100/1000Base-T SFP port
SFP port. For details about applicable transceiver modules, see
Transceiver Modules.
1.4.4 Ports - Rear Panel
Figure 1-9 shows the rear panel of an RG-ES110GDS-P switch. For detailed meanings of numbers 1 to 2, see
the following table.

Hardware Installation and Reference Guide Overview
13
Figure 1-9 Back Panel of RG-ES110GDS-P
Item
Description
Grounding pole
Used to fasten the ground cable.
AC power port
Connect to AC power cables
1.4.5 Technical Specifications
Table 1-6 Technical Specifications of an RG-ES110GDS-P Switch
Model
RG-ES110GDS-P
Ports
8 10/100/1000Base-T auto-sensing Ethernet ports (Auto MDI/MDIX), and support
PoE/PoE+
2 1000Base-X SFP ports
Power Supply
AC input:
Rated voltage range: 100 VAC to 240 VAC
Maximum voltage range: 90 VAC to 264 VAC
Frequency: 50/60Hz
Rated current: 2.5 A
EEE
Not Supported
PoE
Support PoE and PoE+.
Ports 1-8 are PoE/PoE+-capable with the maximum power output of 30W per port. Ports
9-10 do not support PoE or PoE+.
The overall maximum output power of PoE/PoE+ is 120W.
Power
Consumption
Less than 8W with no PoE load
Less than 142W with PoE full load
Operating
Temperature
0°C to 45°C(32°F to 113°F)
Storage
Temperature
-40°C to 70°C(-40°F to 158°F)

Hardware Installation and Reference Guide Overview
14
Operating
Humidity
10% to 90% RH (non-condensing)
Storage Humidity
5% to 95% RH (non-condensing)
Port Mode
Support switchover in three modes:
Flow Control On
Flow Control Off
Port Isolation. When this mode is enabled, ports 1-8 are isolated from each
other, but can communicate with ports 9 and 10.
Fan
Not supported
Temperature
Warning
Not supported
Accessing Optical
Module
Information
Not supported
EMC Standards
GB/T 9254.1-2021
EN 55032:2015
EN 55035:2017
EN IEC61000-3-2:2019
EN 61000-3-3:2013
Draft ETSI EN 300 386 V2.2.0 (2020-10)
Security
Standards
GB 4943.1-2011
EN 62638-1
Earth Leakage
Current
≤1.5mA
Dimensions
(W x D x H)
280 mm x 180 mm x 44 mm (11.02 in. x 7.09 in. x 1.73 in.)
Weight
(With Package)
2.26 kg (4.98lbs)
Caution
●The RG-ES110GDS-P switch may cause radio interference in the living environment.
●It is not recommended to deploy RG-ES110GDS-P switch in places where children may appear.

Hardware Installation and Reference Guide Overview
15
1.4.6 Heat Dissipation Solution
The RG-ES110GDS-P adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain
a minimum clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once
every 3 months to avoid dust from blocking vents.
1.5 RG-ES116G
1.5.1 Package Contents
Table 1-7 Package Contents
Item
Quantity
RG-ES116G Host
1
Foot pad
4
Screw (M3X4)
8
Mounting bracket
2
Power cord
1
User Manual
1
Warranty Card
1
Instruction
The preceding table lists items delivered in normal cases. The actually delivered items may vary with the
contract. Carefully check your goods against the package contents or contract. Contact the seller if you have
any questions or find any errors.
1.5.2 Product Appearance
RG-ES116G provides 16 10/100/1000Base-T auto-sensing Ethernet ports, a port mode switch-over button and
LED indicators on the front panel, and a power socket and a grounding pole on the back panel.
Figure 1-10 Appearance of RG-ES116G

Hardware Installation and Reference Guide Overview
16
1.5.3 Ports - Front Panel
Figure 1-11 shows the front panel of an RG-ES116G switch. For the detailed meanings of numbers 1 to 4, see
the following table.
Figure 1-11 Front Panel of RG-ES116G
