Sanuvox GC S300-G2 User manual

INSTALLATION, MAINTENANCE & OPERATION
GUIDE
MODEL GC S300-G2
STAND ALONE UVC / HEPA
AIR PURIFIER
ITEM # 101275

SAFETY PRECAUTIONS
Installation and servicing our equipment can be hazardous. Only trained
and qualified service personnel should install, repair, or service equipment.
Untrained personnel can perform basic maintenance functions
such as changing lamps and filters. All other operations should be
performed by trained service personnel. When working on equipment,
observe precautions in the literature, tags and labels attached to the
unit or accessory, and other safety precautions that may apply.
Follow all safety codes. Wear safety glasses and work gloves.
Before installing the GC S300-G2 Purifier or performing
maintenance or service on the air purifier,
disconnect power cord from the unit.
_________________________________
Never expose eyes or skin to ultra-violet light from any source.
The GC S300-G2 must be unplugged before performing
maintenance or service. Personal injury may result.
_________________________________
Do not touch lamp glass without gloves. Reduced performance
of lamp may result. Clean lamp after handling.
_________________________________
Lamp contains a small quantity of mercury.
If a lamp breaks, clean and dispose of with care.
_________________________________
Use only specified replacement Lamps with your Sanuvox Purifier.
Use of an incorrect Lamp can result in damage to the Purifier
and/or Lamp.
_________________________________
UV rays may destroy certain types of filters (polymer or plastic),
please keep unit away from shining directly on plastic.
WARNING
UV lamp can be disposed/recycled after use
as any other fluorescent bulb.
NOTICE

SANUVOX - MODEL GC S300-G2 - 3
LIMITED PARTS WARRANTY
WARRANTY
This Sanuvox Technologies Inc. product is
warrantied to be free from defects in material
and workmanship under normal use and
maintenance for a period of 3 years from the
date of original installation and for a period of 2
years in commercial use for the UV Lamp.
A new or remanufactured part to replace the
defective part will be provided without charge
for the part itself, through a qualied servicing
Sanuvox Technologies Inc. dealer or distributor,
PROVIDED the defective part is returned to our
distributor. The replacement part assumes the
unused portion of the warranty

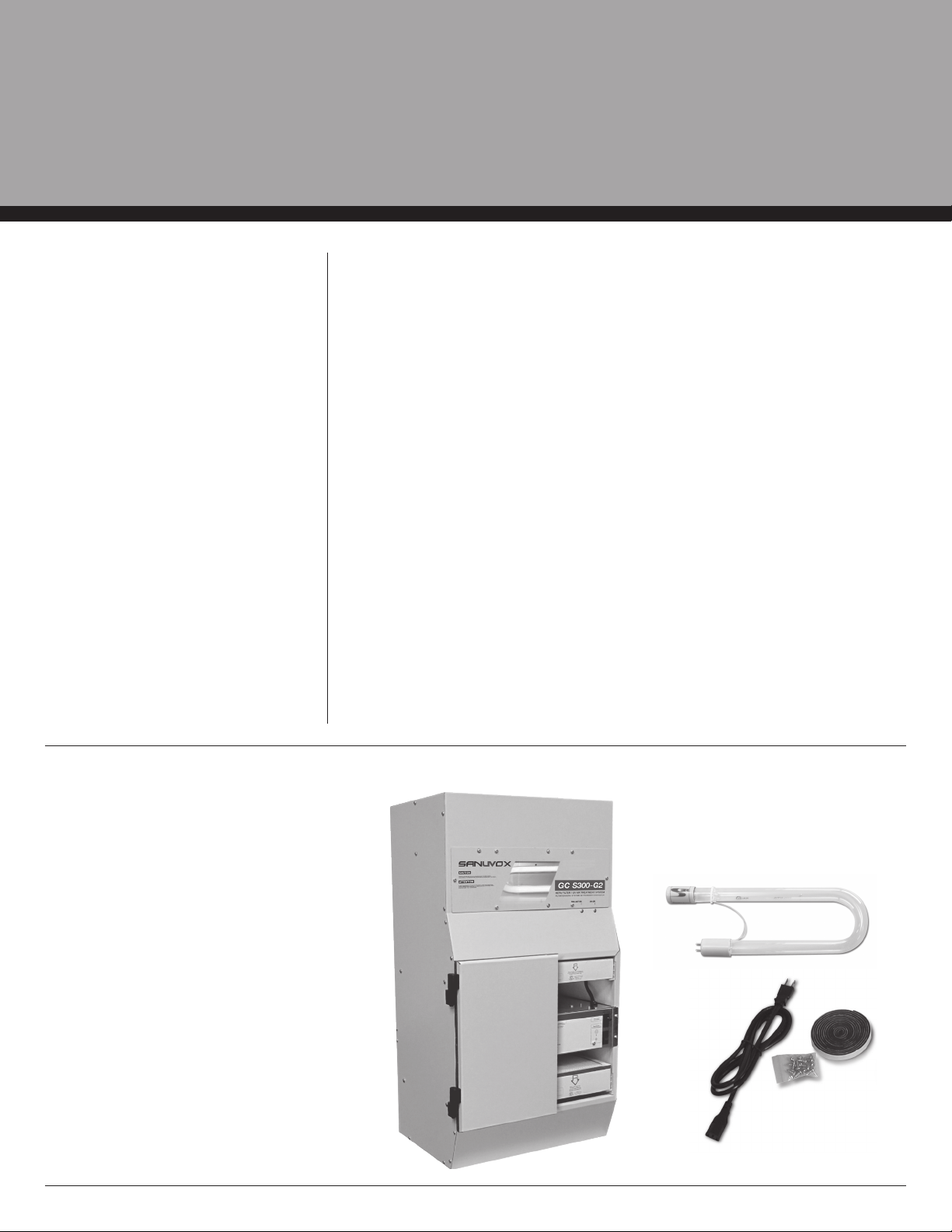

BOX CONTENT INCLUDES:
• GC S300-G2 HEPA/UV AIR PURIFIER
• Power cord, 5 FT
• Plenum seal, 7.5 FT
• Screws, (16) 8 x 32 x 1/2"
• Template
• 2 Ultraviolet UVC Lamps
J Type 10.5" (266.7 mm)
• Pre-Filter
• HEPA Filter
• 2 collars
• Uninsulated ex ducting
TABLE OF CONTENTS
1. GETTING STARTED
1.1 Unpacking and inspection 3
1.2 Technical data 4
2. INSTALLATION GUIDE
2.1 Installing the unit 5
2.2 Installing the UV Lamps 6
3. OWNER’S OPERATION GUIDE
3.1 General Operating Information 7
4. MAINTENANCE GUIDE
4.1 Changing lters 8
4.2 Cleaning unit 8
4.3 Troubleshooting 8
4.4 Electrical Wiring Diagram 8
1.1. UNPACKING AND INSPECTION
INSTALLATION GUIDE

4 - SANUVOX - MODEL GC S300-G2
SPECIFICATIONS
MODEL GC S300-G2
Filtration Stage 1 Prelter
Filtration Stage 2 HEPA lter
Weight 43 lb (19.5 kg)
Plenum Mount 16" x 3.5" (406mm x 89mm)
Port Openings
Collar Mount 8" (203mm) Round
Port Openings
Installation type Plenum, Floor Mount or Wall
Mount**
Electrical Supply 120 VAC @ 60 Hz
Power Consumption 270 W
Certification CCSAUS
Air flow data 220-300 CFM
UV Lamp 2 Proprietary UV-C
“J” Lamps
** Installation requires inlet / outlet louvers
(sold individually). Part# MSCLOU1
IMPORTANT INFORMATION
Sanuvox Technologies Inc. reserves the right
to modify the product without prior notice.
Please consult your local authorities as to
whether the installation requires the services
of a certied technician or electrician.
DIMENSIONS AND CLEARANCE
INSTALL ATION
RETURN AIR PLENUM INSTALLATION
RETURN AIR PLENUM AND STAND ALONE INSTALLATIONS*
WITH COLLAR MOUNT KIT
17"
432 mm
30"
770 mm
4"
97 mm
13"
327 mm
31"
795 mm
17"
432 mm
8"
203 mm
30"
770 mm
4"
97 mm
13"
327 mm
12"
305 mm
31"
795 mm
Stage 1
Stage 2
Power Connection
12"
305 mm
Stage 1
Stage 2
17"
432 mm
30"
770 mm
4"
97 mm
13"
327 mm
31"
795 mm
17"
432 mm
8"
203 mm
30"
770 mm
4"
97 mm
13"
327 mm
12"
305 mm
31"
795 mm
Stage 1
Stage 2
Power Connection
12"
305 mm
Stage 1
Stage 2
17"
432 mm
30"
770 mm
4"
97 mm
13"
327 mm
31"
795 mm
17"
432 mm
8"
203 mm
30"
770 mm
4"
97 mm
13"
327 mm
12"
305 mm
31"
795 mm
Stage 1
Stage 2
Power Connection
12"
305 mm
Stage 1
Stage 2
17"
432 mm
30"
770 mm
4"
97 mm
13"
327 mm
31"
795 mm
17"
432 mm
8"
203 mm
30"
770 mm
4"
97 mm
13"
327 mm
12"
305 mm
31"
795 mm
Stage 1
Stage 2
Power Connection
12"
305 mm
Stage 1
Stage 2
17"
432 mm
30"
770 mm
4"
97 mm
13"
327 mm
31"
795 mm
17"
432 mm
8"
203 mm
30"
770 mm
4"
97 mm
13"
327 mm
12"
305 mm
31"
795 mm
Stage 1
Stage 2
Power Connection
12"
305 mm
Stage 1
Stage 2
17"
432 mm
30"
770 mm
4"
97 mm
13"
327 mm
31"
795 mm
17"
432 mm
8"
203 mm
30"
770 mm
4"
97 mm
13"
327 mm
12"
305 mm
31"
795 mm
Stage 1
Stage 2
Power Connection
12"
305 mm
Stage 1
Stage 2
Front View
Front View
Side View - Clearance
Side View - Clearance
Back View
Back View
INSTALLATION GUIDE
1.2. TECHNICAL DATA

SANUVOX - MODEL GC S300-G2 - 5
2.1 INSTALLING THE UNIT
TIPS FOR INSTALLER
It is recommended that the ltration unit
has a devoted outlet with 115V. It is not
recommended to connect unit with an
extension cord. If no outlet is available please
call an electrical contractor to have one
installed.
MAKE SURE TO INSTALL
FILTER ACCORDING TO AIR
FLOW DIRECTION FOR
MAXIMUM PERFORMANCE
Check for this symbol on each lter and it is
located on the units motor plate.
STEP 1:
Mount Hepa
STEP 2:
Finishing
Figure 2.1a - Install unit using all supplied
fastening hardware.
Figure 2.2a - Remove protective plastic covers
from all lters and install in proper location.
Figure 2.2b - Replace door and insert power cord
into the receptacle of the HEPA and the other end
into a wall outlet.
INSTALLATION GUIDE
Stage 1: Pre-Filter
Stage 2: HEPA Filter

6 - SANUVOX - MODEL GC S300-G2
INSTALLATION GUIDE
2.2 UV LAMP INSTALLATION
STEP 1:
The UV Lamps are packaged in the lter section of the GC S300-G2. Remove the rst UV lamp from the packaging material. The lamp is fragile, use extreme
care. Do not touch the glass on the lamp with bare hands. Use the enclosed gloves when handling the lamp. Handle lamp from the ceramic ends.
STEP 2:
Remove the screws holding the front plate of the GC S300-G2 to access the clamp assembly.
STEP 4:
Replace the front plate with the screws
removed in (2) above.
STEP 5:
Repeat the same process for the second lamp.
STEP 3:
Position lamp inside the aluminum enclosure. Route 4-pronged end of lamp through clamp. Clamp is tightened by moving lever perpendicular to the
clamp. Connect the female plug to the lamp. The plug ts in one direction only. If the plug will not connect to the lamp, turn the plug 90 degrees.

SANUVOX - MODEL GC S300-G2 - 7
3. GENERAL OPERATING INFORMATION
DOOR SWITCH
MODE SELECTOR
OPERATIONS
SMART SYSTEM
LED STATUS DISPLAY
FUNCTION
The HEPA/UV air purier is comprised of a fan,
speed selection switch, 2 stages of ltration
and the cabinet enclosure system. The fan
pulls air through the prelter and pushes
the same air through the HEPA lter which
removes 99.97% of particles that are 0.3μm
or larger in size.
The GC S300-G2 HEPA/UV Purier is designed
to kill bacteria, viruses, odor causing mold and
fungus as well as chemical odors and VOC's
that pass through the unit. The ultra-violet band
light inhibits and kills mold, fungus, bacteria,
viruses and microbial growth on 100% of
the air owing through the unit. The actual
percentage of destruction depends on the
velocity of the air, and the pollutant(s) treated.
LED DISPLAY
The UV Lamp will function when the blower is
in operation. There are two LED indicators on
the front panel. The Amber LED indicates that
the UV Lamp is on; the Red LED indicates that
the Ballast is functioning. If the Ballast (Red)
LED is on, and the Lamp (Amber) LED is off,
the UV lamp is not functioning. If both LED
lights are off, the ballast is not functioning.
RECOMMENDED OPERATION
The return plenum mount model operates in
conjunction with your forced air HVAC system.
A forced air distribution system continuously
circulates the air inside your home. The HEPA/
UV air purier operates on the principal of
bypass ltration, which means that a portion of
the air being returned to the furnace is ltered
on each pass. Over time all the air in the home
will pass through the unit. It is recommended
that the furnace blower be in operation
whenever the system is in operation.
For stand-alone attic installation, the HEPA/
UV air purier must be operated continuously
whenever a part of the system is located in an
unconditioned space to avoid condensation in
the ductwork when the temperature is below
freezing (32°F ,0°C).
Maintenance of the unit should be performed
at regular intervals to keep the benets of the
HEPA/UV air purier.
OPERATION MODE OPTIONS
The unit features two speeds of operation. The
speed selection switch is located on the front of
the motor assembly. At lowest speed the unit will
provide 200 CFM of clean air while at highest
speed, the unit will provide 300 CFM of clean air.
It is recommended that the unit be operated on
the highest speed at all times to maximize the
benets of the HEPA/UV air purier.
An access door is provided at the front of the
unit to permit access to the lters and speed
selection switch. Opening the latch on the right
side of the unit will permit the door to swing
open. A safety door interlock switch cuts the
power to the motor. If necessary, the door can
be removed from the cabinet hinges by holding
the top part of the door with one hand and gently
tapping on the bottom edge of the door with the
other hand to release the door from its hinges.
OWNER’S OPERATION GUIDE
• II
• I
Maximum Filtration
Normal Filtration

8 - SANUVOX - MODEL GC S300-G2
4. GENERAL MAINTENANCE INFORMATION
WHEN SHOULD I SERVICE MY UNIT?
SERVICE AND ACCESSORIES
Detailed maintenance information is located
on the front decal of motor plate.
PRE-FILTER
Replace lter every 3 to 6 months or as needed.
HEPA FILTER
Replace lter every 2 to 5 years or as needed.
Check regularly to maintain maximum
performance from your HVAC system.
For replacement lters, contact your local
HVAC contractor.
UV LAMP
Replace lamps every 2 years. Lamps are
available through your local HVAC contractor.
INSIDE THE UNIT
Once a year or as needed, clean the interior of
the unit (Wall and Motor Plate) with a mild and
non-abrasive soap. It is recommended to use
products that are environmentally friendly.
IMPORTANT: ALWAYS UNPLUG UNIT
BEFORE SERVICING
4.1 CHANGING FILTERS
After opening the unit’s door, grasp both
edges of lter and pull with equal force to
slide out the lter.
4.3 TROUBLESHOOTING
PROBLEM SUGGESTIONS
Unit does not operate. • Is power cord fully inserted in the unit’s connector?
• Is outlet powered?
• Is door interlock switch operating?
Unit operates only on one speed. • Possible loose wire inside electrical box,
contact your local contractor.
Unit vibrates. • Check for excessive dust buildup or missing balancing weight
on the impeller wheel.
4.4 ELECTRICAL WIRING DIAGRAM
4.2 CLEANING
Once a year or as needed, clean the interior
of the unit (Wall and motor plates) using
mild non-abrasive soap and water. It is
recommended to use products that are
environmentally friendly.
INSTALLATION GUIDE
M
L
Door
Interlock
Brown
N
Blue
Black
2.5uf
7.5uf
G
Speed
Selection
UV Power
Supply cord for
optional UV modul
e

SANUVOX - MODEL GC S300-G2 - 9
3-YEAR WARRANTY — Except for the UV Lamp and Ballast, this
Sanuvox Technologies Inc. product is warrantied to be free from defects
in material and workmanship under normal use and maintenance for
a period of three years from the date of original installation. A new
or remanufactured part to replace the defective part will be provided
without charge for the part itself, through a qualied servicing Sanuvox
Technologies Inc. dealer or distributor, PROVIDED the defective part is
returned to our distributor. The replacement part assumes the unused
portion of the warranty.
COMMERCIAL LAMP WARRANTY — The Sanuvox Technologies Inc.
Ultra-Violet Lamps are warrantied to be free from defects and operate
for 2 years after installation, under normal use and maintenance in a
commercial application. A new lamp to replace the defective lamp will be
provided without charge for the part itself, through a qualied servicing
Sanuvox Technologies Inc. dealer or distributor, PROVIDED the defective
part is returned to our distributor. The replacement part assumes the
unused portion of the warranty.
3-YEAR BALLAST WARRANTY — The Sanuvox Technologies Inc.
Electronic Ballast is warrantied to be free from defects and operate for
three (3) years after installation, under normal use and maintenance
in a residential or commercial application. A new ballast to replace
the defective ballast will be provided without charge for the part itself,
through a qualied servicing Sanuvox Technologies Inc. dealer or
distributor, PROVIDED the defective part is returned to our distributor.
The replacement part assumes the unused portion of the warranty.
THIS WARRANTY DOES NOT INCLUDE ANY ADDITIONAL LABOR
ALLOWANCE OR OTHER COSTS incurred for diagnosis, repairing,
removing, installing, shipping, servicing, or handling of either defective
parts of replacement parts. SUCH COSTS MAY BE COVERED BY a
separate warranty provided by the installer.
LIMITATIONS OF WARRANTIES — ALL IMPLIED WARRANTIES
(INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY) ARE
HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE
LIMITED WARRANTY IS GIVEN. THE EXPRESSED WARRANTIES MADE
IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED,
ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER
PERSON WHATSOEVER.
SANUVOX WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing
instruction or owner's manual.
2. Damage or repairs required as a consequence or faulty installation or
application by others.
3. Failure to start due to voltage condition, blown fuses, open circuit
breakers or other damages due to the inadequacy or interruption or
electrical service.
4. Damage or repairs needed as a consequence of any misapplication,
abuse, improper servicing, unauthorized alteration, or improper
operations.
5. Damage as a result of oods, winds, res, lightning, accidents,
corrosive atmosphere, or other conditions beyond the control of
Sanuvox Technologies Inc.
6. Parts not supplied or designated by Sanuvox Technologies Inc.
7. Sanuvox Technologies Inc. products installed outside the continental
USA, Alaska, Hawaii, and Canada.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR
COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states
do not allow the exclusion of incidental or consequential damages, so
the above limitation may not apply to you.
Model number: _________________________________________
Date of installation: ______________________________________
Name of owner: ________________________________________
Unit serial number: ______________________________________
Installed by: ___________________________________________
Address of installation:____________________________________
Sanuvox Technologies Inc.
146, rue Barr, St-Laurent, QC H4T 1Y4 Canada
T. 1-888-SANUVOX F. 1-888-582-6475
www.sanuvox.com [e-mail]
GC S300-G2
LIMITED PARTS AND LAMP WARRANTY

Sanuvox Technologies Inc.
146, Barr Street, St-Laurent, QC H4T 1Y4 Canada
T. 1-888-SANUVOX ■F. 1-514-382-6475 ■www.sanuvox.com ■[e-mail]
