AFFIRM COLLECTION
Bowfront Executive
Desk 72" x 36"
Classic Cherry finish | Model 426285
How can we help you? To reach our customer service, visit sauder.com/commercial-oce/service
to chat with a live rep or email us.
Prefer the phone? Give us a ring at
877-996-7539 .
Our award-winning team is available Monday-Friday - 8:30 a.m. to 5 p.m. EST (except holidays).

Table of Contents Assembly Tools Required
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Hardware Identification
Part Identification
Optional Accessories
Hardware Usage Guide
Assembly Steps
Français
Español
Safety
Warranty
2
3
4
6
5-14
15-17
18-20
21-22
23

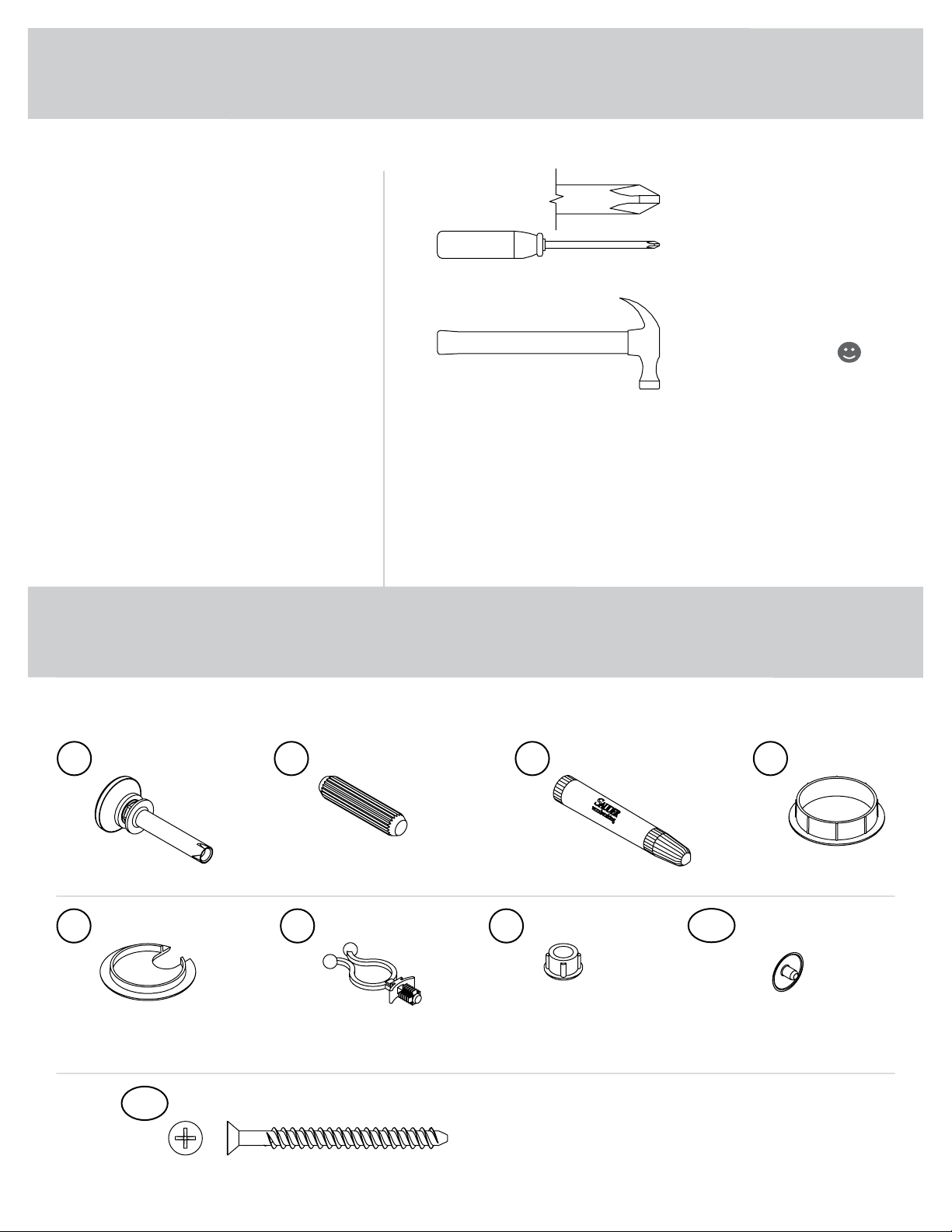

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
BLACK 1-15/16" FLAT HEAD SCREW - 6
113S
LEVELER - 8
46E WOOD DOWEL - 22 42F TOUCH-UP PEN - 1
9M GROMMET - 2 2P
HOLE PLUG - 8
15P
CORD CLIP - 2
9P
GROMMET CAP- 2
3P TWIST-LOCK®
FASTENER COVER - 23
114P
426285 www.sauder.com/commercial-oce/servicePage 2

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
A RIGHT END (1)
B LEFT END (1)
C TOP (1)
D RIGHT UPRIGHT (1)
E BACK (2)
F MODESTY PANEL (1)
G LEFT UPRIGHT (1)
A
B
C
D
E
F
GE
426285www.sauder.com/commercial-oce/service Page 3

Optional Accessories (sold separately)
å This piece of furniture accommodates one or more of the following optional accessories (sold separately).
å Powered Grommet (Item 427829)
The Powered Grommet is designed to replace any existing grommet provided with your furniture.
å To purchase the Powered Grommet, scan this QR code. (Or go to sauder.com)
å Articulating Keyboard Shelf (Item 426468)
The Articulating Keyboard Shelf is designed to be fastened to the underside of your desk, desk return, or credenza top.
å To purchase the Articulating Keyboard Shelf, scan this QR code. (Or go to sauder.com)
å LED Light (Item 426494)
The LED Light is designed to be fastened to the underside of a hutch.
å To purchase the LED Light, scan this QR code. (Or go to sauder.com)
426285 www.sauder.com/commercial-oce/servicePage 4

Step 1 Look for this icon. It means a video assembly tip is
available at www.sauder.com/service/tips
Find the numbered video or scan the QR code. 0
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.

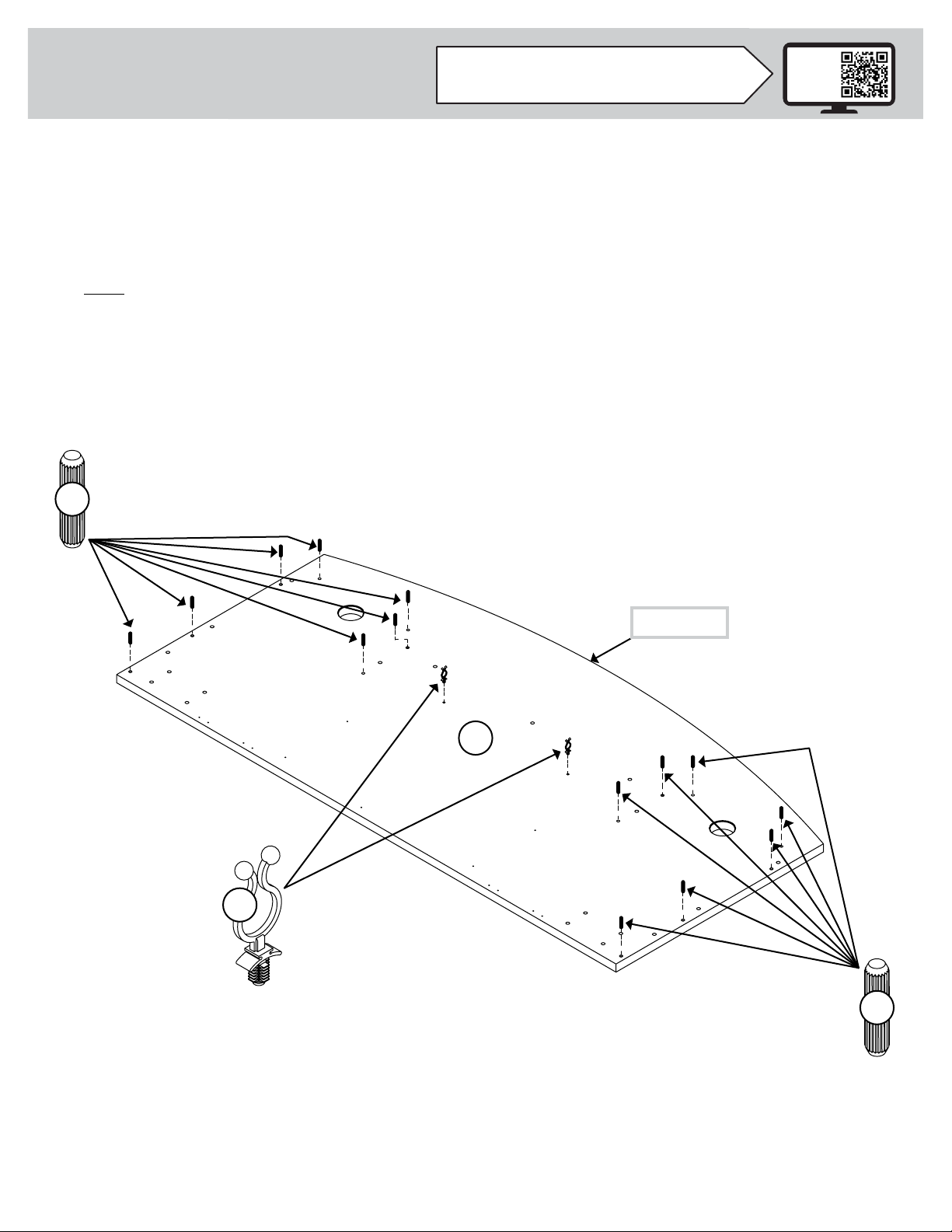

å Insert fourteen WOOD DOWELS (42F) into the exact
holes shown in the TOP (C).
å NOTE: You may need to gently tap the WOOD DOWEL in
with your hammer.
å Push two CORD CLIPS (9P) into the TOP (C).
42F
9P
42F
C
Curved edge
426285www.sauder.com/commercial-oce/service Page 5

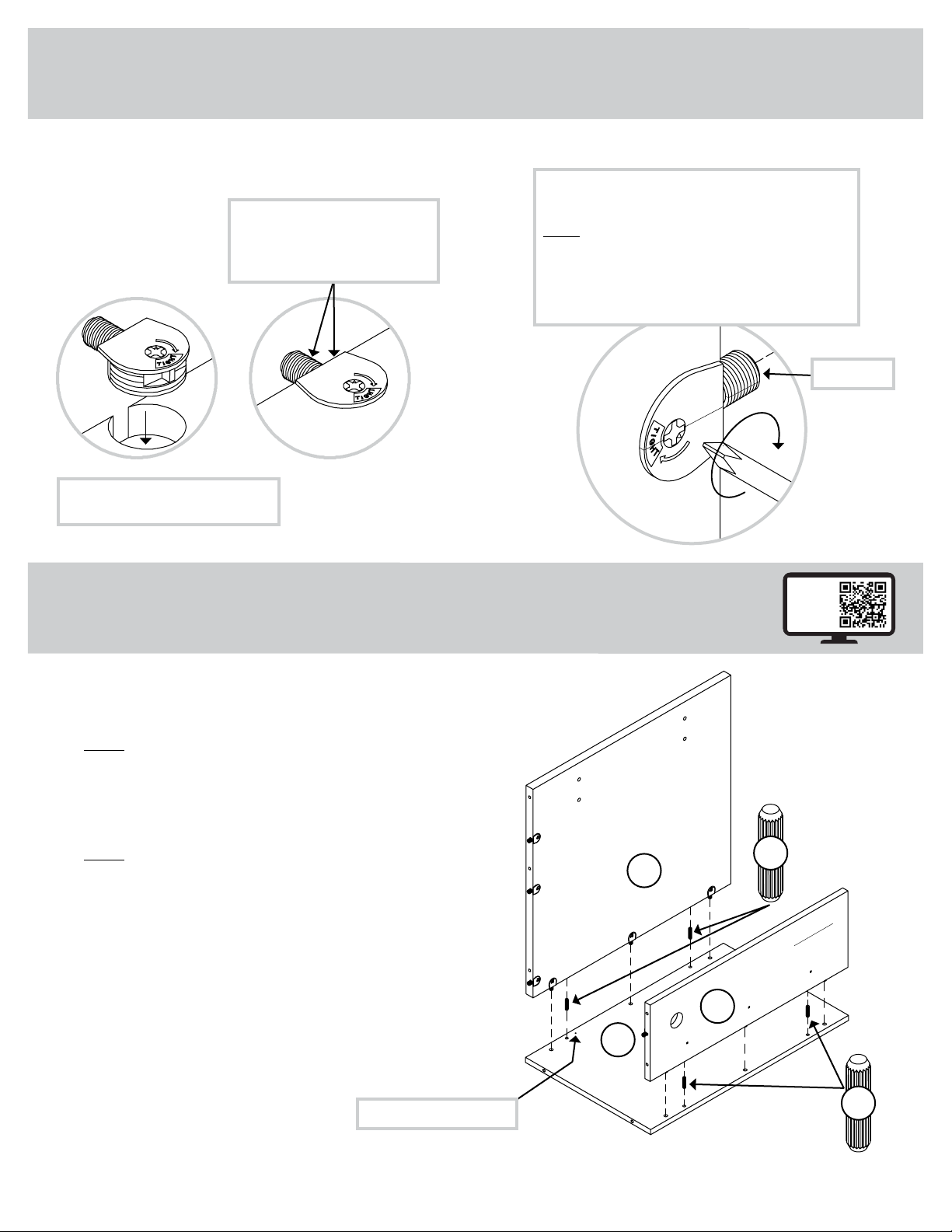

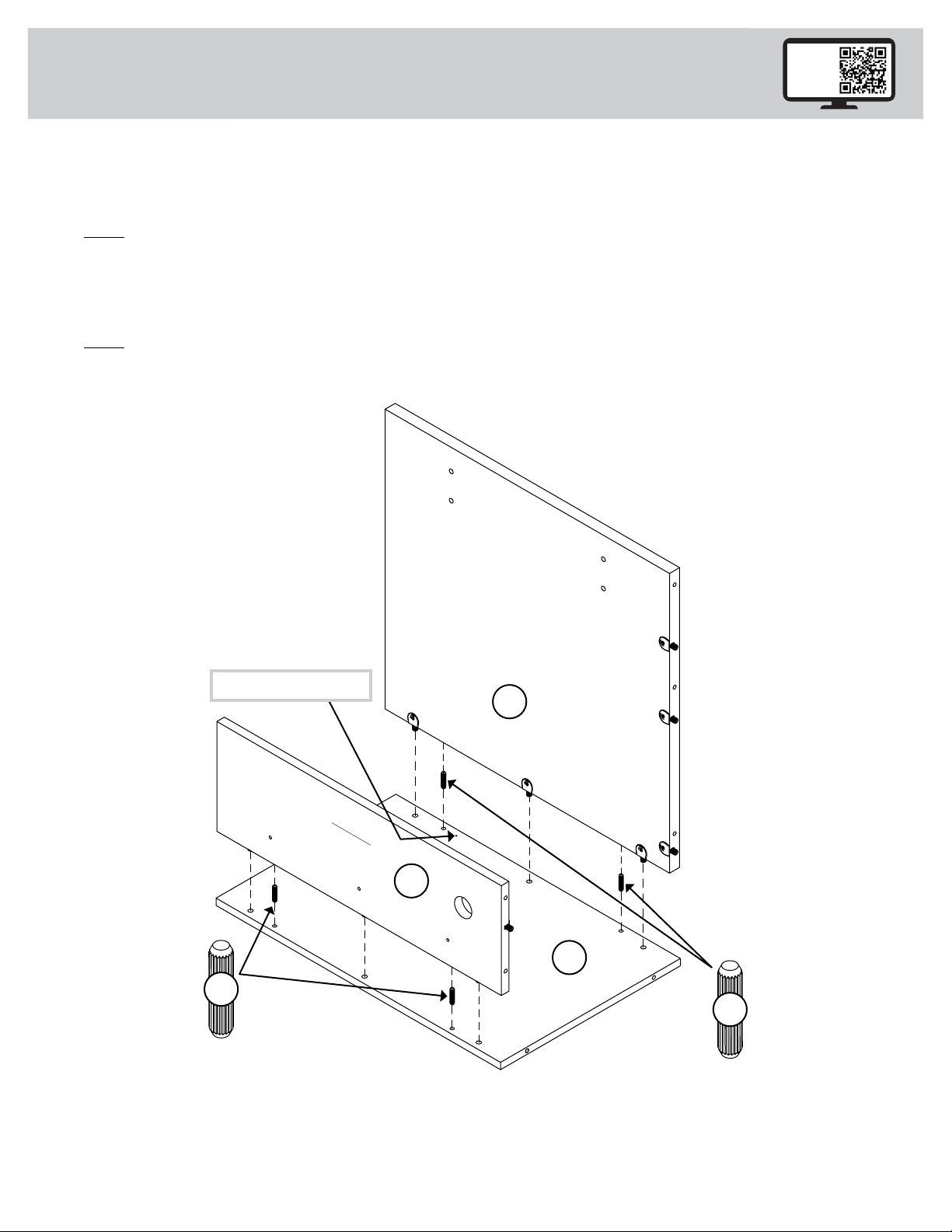

å Insert four WOOD DOWELS (42F) into the exact holes
shown in one BACK (E).
å NOTE: You may need to gently tap the WOOD DOWEL in
with your hammer.
å Fasten the RIGHT END (A) and RIGHT UPRIGHT (D) to
the BACK (E). Tighten six TWIST-LOCK® FASTENERS.
å NOTE: Be sure the WOOD DOWELS in the BACK insert
into the END and UPRIGHT.
Hardware Usage Guide
1. Insert the dowel end of the FASTENER into the
hole of the adjoining part.
NOTE: The dowel end of the FASTENER must
remain fully inserted in the hole of the adjoining
part while locking the FASTENER.
2. Tighten the FASTENER with a Phillips
screwdriver as tight as possible.
Dowel end
2.
Push a TWIST-LOCK® FASTENER
into the large hole in the part.
1.
HOW TO USE A TWIST-LOCK®FASTENER
Step 2 2
If the TWIST-LOCK® FASTENER
is already inserted in the part,
be sure both the dowel end and
fastener edge are straight.
A
D
E
42F
42F
Surface with
TWIST-LOCK®
FASTENERS
Surface without
TWIST-LOCK®
FASTENERS
This hole must be here.
426285 www.sauder.com/commercial-oce/servicePage 6

å Fasten the RIGHT END (A) and RIGHT UPRIGHT (D) to
the TOP (C). Tighten four TWIST-LOCK® FASTENERS.
å NOTE: Be sure the WOOD DOWELS in the TOP insert
into the END, UPRIGHT, and BACK (E).
Step 3 2
A
C
D
E
Curved edge
426285www.sauder.com/commercial-oce/service Page 7

å Fasten the MODESTY PANEL (F) to the TOP (C). Tighten
three TWIST-LOCK® FASTENERS.
Step 4 2
C
F
Surface with
TWIST-LOCK®
FASTENERS
426285 www.sauder.com/commercial-oce/servicePage 8

å Insert four WOOD DOWELS (42F) into the exact holes
shown in one BACK (E).
å NOTE: You may need to gently tap the WOOD DOWEL in
with your hammer.
å Fasten the LEFT END (B) and LEFT UPRIGHT (G) to the
BACK (E). Tighten six TWIST-LOCK® FASTENERS.
å NOTE: Be sure the WOOD DOWELS in the BACK insert
into the END and UPRIGHT.
Step 5 2
B
G
E
42F
42F
Surface with
TWIST-LOCK®
FASTENERS
Surface without
TWIST-LOCK®
FASTENERS
This hole must be here.
426285www.sauder.com/commercial-oce/service Page 9

å Fasten the LEFT END (B) and LEFT UPRIGHT (G) to the
TOP (C). Tighten four TWIST-LOCK® FASTENERS.
å NOTE: Be sure the WOOD DOWELS in the TOP insert
into the END, UPRIGHT, and BACK (E).
Step 6 2
C
B
E
G
426285 www.sauder.com/commercial-oce/servicePage 10
