Savant Savant SmartLighting 2 User manual

The Savant®SmartLighting 2 controller with PoE (SSL-P002) Quick Reference Guide provides
all the steps necessary to operate the SSL-P002. The SSL-P002 supports up to 40 keypads
through the SKL-4000 and 12 keypads through the SKL-1000. The SSL-P002 supports Power
over Ethernet (PoE) using the PoE IEEE 802.3af standard.
Box Contents
(1) SSL-P002
(1) Installation Kit (075-0134-xx)
(8) Screws #6 x 1/4 Phillips (039-0143-xx)
(2) Side mount brackets (071-0625-xx)
(1) Quick Reference Guide (this document)
Required System Component
Savant Keypad Link:
•SKL-1000
•SKL-4000
Savant Modules
Savant Keypads
Station Bus Cabling
•100 ft/30.48 meters (CBL-4100)
•250 ft/76.20 meters (CBL-4250)
•500 ft/152.40 meters (CBL-4500)
•1000 ft/304.8 meters (CBL-41000)
Optional Accessories
(1) Power Supply 5V 12W 2.5A with 4.0mm connector (PWR-5025-xx)
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 90% Relative Humidity (non-condensing)
Maximum BTUs
10 BTU/hour
Dimensions and Weight
Dimensions and Weight
Height
1.59 in/4.04 cm
Width
4.32 in/10.96 cm
Depth
6.50 in/16.51 cm
Weight
3.00lb/1.36kg
Rack Space
1U
Power
Power
PoE
RJ-45 10/100/1000 Base-T, Power over Ethernet using the
PoE IEEE 802.3af standard
Nominal Power
3 watts
Maximum Power
5 watts
Optional Power Supply
5V DC | 120 VAC 60 Hz | 240 VAC 50 Hz
Compliance
Compliance
Safety and Emissions
FCC Part 15 | CE Mark | C-Tick
RoHS
Compliant

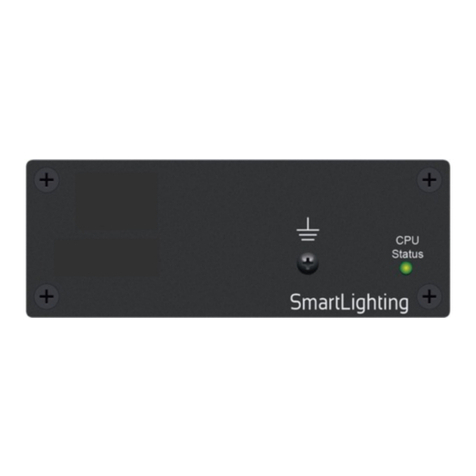

Front View of SSL-P002
Ground Connector - used to connect to a suitable ground reference
when using Power over Ethernet.
CPU Status LED
GREEN indicates the system is operating normally.
GREEN flashing indicates the embedded system is ready (running
with DHCP IP address), but the Host has not established
communications with the embedded system.
OFF indicates the embedded processor is resetting or is booting the
embedded firmware.
RED indicates the Host has determined the firmware needs to be
updated, but a problem occurred during the process that will initiate a
reset.
RED flashing indicates the embedded firmware is running, but has not
received a DHCP IP Address.
AMBER indicates the Host is currently updating the embedded
firmware.
AMBER flashing indicates the embedded system has a valid link-local
IP Address and is waiting to connect to the Host.
Rear View of SSL-P002
1
2
3 4 5
6
7
1
Reset Button
Resets to factory default DHCP mode.
Press and hold the rest button for 5+ seconds.
2
Ethernet
Link/Activity LED
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established
3
Ethernet Speed LED
Green indicates an Ethernet speed of 100 Mb.
Off indicates an Ethernet speed of 10 Mb.
4
Station
Defaults to RS-422 for communication with SKL-1000 or the
SKL-4000.
5
5VDC
Provides optional 5V DC input power
6
Module
RJ-45 port used to transmit and receive serial binary data
transmission to the bus. Defaults to RS-422 and used to
communicate to lighting modules in the Module Enclosures.
7
Ethernet/PoE
RJ-45 10/100/1000 Base-T, auto negotiating port.
Supports Power over Ethernet using PoE IEEE 802.3af
standard.
NOTE: The SSL-P002 Station port defaults to RS-422 but is configurable to RS-232 by a Savant
dealer. For more details, see Changing the Serial Port.
RS-232 Pinouts
1 — Not Used
5 — RXD
2 — Not Used
6 — TXD
3 — Not Used
7 — CTS
4 — GND
8 — RTS
RS-422/RS-485 Pinouts
1 — RS+
5 — Not Used
2 — RS-
6 — TX-
3 — TX+
7 — Not Used
4 — GND
8 — Not Used
Savant SmartLighting 2
(SSL-P002)
Quick Reference Guide
009-0668-00
SSL-P002-01
!!1of 2

Interconnect the Network
The SSL-P002 requires business class/commercial grade network equipment in order to handle
the IP traffic between Savant SmartSystems™ and Savant SmartLighting network equipment.
When configuring the network ensure that all of the connected Savant units (including SSL-P002
and HST-4001) are on the same local area network (subnet or LAN). When on the same
network, Savant units locate each other using the Bonjour®network protocol.
Network Changes Require Rebooting SSL-P002
The embedded processor used in the SSL-P002 controller, needs to be rebooted after switching
to a new network with a new IP address range. If you do not reboot, the controller will not
recognize the network and IP address changes. The Status LED on the front panel of the
controller will start to flash.
Changing the Serial Port
The SSL-P002 has serial ports labelled Station and Module,which you may want to change
depending on your configuration. The Type options for the these serial ports are: RS-232 or
RS-422. The option, RS-422, supports both RS-422 and RS-485.
To change the type configured for a serial port on an SSL-P002 using a Web interface, do the
following.
1. From the Savant supported Web browser on your SDE, enter the IP address of your
SmartLighting controller.
2. Log in to the controller’s Web interface:
User name: RPM
Password: RPM
3. Select Serial Ports in the left sidebar.
4. Make the appropriate selections for your configuration.
5. Click Set.
Mounting Installation
The SSL-P002 can be placed on a 1U rack shelf- or wall-mounted using the side-mounting
brackets (included).
Wall Mounting
Side mounting brackets are shipped with the SSL-P002.
Use the supplied screws to install the brackets to the SSL-P002 as shown.
Side-mounted Brackets Used to Install the SSL-P002 on a Wall
Additional Documentation
Additional Documentation for the SSL-P002 is available at: savantsystems.com
Products > Savant Lighting Control
!!!2of 2020414
