OWNER’S MANUAL
(To Be Retained by Owner After Installation
by Authorized Savaria Dealer)
Part No. 000846
29-m08-2018
Eclipse Gearless
Residential Elevators

2
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
IMPORTANT
Ensure that only an Authorized Savaria Dealer installs and services the Savaria™
Eclipse Gearless Residential Elevator. Under no circumstances is anyone other
than a dealer with Savaria training and authorization to install, adjust, service
or modify any mechanical or electrical device on this equipment. Failure to
follow this warning can result in safety system compromises or defeat; this can
result in serious injury or death. Savaria accepts no liability for property
damage, warranty claims or personal injury, including death, in this
circumstance.
Passenger safety is the result of countless details in the equipment’s design,
manufacture, and installation. After installation, reliable operation and
continual safe operation requires regular service and inspection at least twice
per year, or more frequently where usage, environment, or local jurisdiction
requires. As the Owner, you are responsible for ensuring that regular service
and inspections occur in a timely manner.
Refer to this manual for specifications, operating instructions and maintenance
of the Eclipse Gearless Residential Elevator.
Upon completion of installation, the dealer must provide you with the
following information and ensure it is recorded in this manual. In addition,
either the dealer or you must keep any service and/or maintenance records in
the Maintenance Record section of this manual.
WARRANTY
Ensure your Authorized Savaria Dealer provides you with a copy of the
manufacturer’s limited parts warranty and documentation relating to any
Dealer labour warranty.
-------------------------------------------------------------------------------------------------
FOR OWNER’S RECORDS
Customer Name: _________________________________________
Installing Dealer: _________________________________________
Dealer’s Telephone Number: _______________________________
Date Installed: ___________________________________________
Serial/Job Number: _______________________________________

3
Part No. 000846, 29-m08-2018 Eclipse Gearless Owner’s Manual
Table of Contents
TO ENSURE SAFE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Operating from the Landing Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Operating from the Cab Operating Panel (COP) Controls . . . . . . . . . .11
5. EMERGENCY LIGHTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6. MANUAL LOWERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7. RESET BUTTON PENDANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Maintenance Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

4
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
TO ENSURE SAFE OPERATION
To ensure safe operation of this equipment, pay careful attention to the
important notes below.
• Read this manual carefully before using the equipment.
• To prevent accidents, adhere strictly to the instructions and keep clear
of moving parts at all times.
• Follow instructions on all equipment labels at all times. Replace any
damaged labels immediately.
• Ensure that only qualified personnel perform maintenance and service
on the unit.
• When replacing parts, be sure that only genuine Savaria parts are used.
• This unit is intended for use by a mature person who understands its
proper operation as set out in this manual.
• Prior to operation, make sure that:
• All doors and gates are locked and secure.
• All areas in and around the lift are clear of any obstructions.
• All lights are functioning properly.
• Test your keys and emergency stop button every month.

5
Part No. 000846, 29-m08-2018 Eclipse Gearless Owner’s Manual
1. SPECIFICATIONS
Eclipse Specifications
Load capacity 750 lb (341 kg)
Rated speed 40 ft/min (0.2 m/s) nominal
Maximum travel 50 ft (15.24 m); 60 ft (18.3 m) available where code is not applicable
Maximum # of stops 6 stops
Daily cycle
Normal: 20
Heavy: 30
Excessive: 40
Maximum starts in 1 hour on standard installation: 4
Power supply (circuit
supplied by others)
North America: 230 volt, single phase, 60 Hz, 20 amps
International: 220 volt, single phase, 50 Hz
Lighting supply
(circuit supplied by
others)
120 volt, 60 Hz, 15 amps
Drive system 1 HP gearless motor, 8 mm traction ropes
Operating
temperature
-10°C to +40°C (14°F to 104°F)
Cab sizes
Types 1, 2, 3, 4 and 5:
• 36” x 48” x 80” (914 mm x 1219 mm x 2032 mm)
• 36” x 54” x 80” (914 mm x 1372 mm x 2032 mm)
• 36” x 60” x 80” (914 mm x 1524 mm x 2032 mm)
• 40” x 54” x 80” (1016 mm x 1372 mm x 2032 mm)
Control system Relay logic controller with diagnostic LEDs - closed loop drive
Pit depth required 8” (203 mm); 11” (279 mm) minimum with buffer springs
Minimum overhead
clearance 108” (2743 mm) for standard 80” cab, 124” (3150 mm) for 96” cab
Cab panel finish
Solid melamine or MDF panels (standard)
Unfinished veneer panels, finished recessed veneer panels, solid
hardwood raised panels (optional)
Control panel finish Clear or bronze anodized aluminum (standard)
Stainless steel or brass (optional)
Hall station finish Clear or bronze anodized aluminum (standard)
Stainless steel or brass (optional)
Standard features
Automatic on/off cab lighting
Recessed gate pocket
Digital display in cab operating panel
Clear or bronze anodized aluminum cab entrance trim and handrail
Date plates, capacity tags
Modular rail sections
Unfinished plywood sub-floor
White ceiling with four LED lights

6
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
Eclipse Specifications (continued)
Safety features
Cab gate safety switch
Main controller cab wall access safety switches
Pit run/stop switch and car run/stop switch
Emergency stop and alarm buttons
Automatic gate operation (if equipped) and electrical interlock
operation and lighting in the event of a power failure
Upper and lower limits
Motor access door (locked and switched)
Emergency lights
Final limit switch
Mechanical rail shoring blocks
Options
96” high cab
Accordion car gate (choice of style)
Automatic gate operator (accordion gates only)
Buffer springs (11” pit depth minimum)
Laminate flooring in finished oak, maple, or cherry
Interlocks for doors by others
Keyed on/off hall stations
Oval hall call design
Cab interior in unfinished oak, birch, cherry, or maple veneer
Recessed cab panels in solid cherry, oak, or maple veneer
Raised cab panels in solid cherry, oak, or maple veneer
Telephone cabinet to match cab operating panel
Custom cab size
Ceiling panel to match walls

7
Part No. 000846, 29-m08-2018 Eclipse Gearless Owner’s Manual
2. FEATURES
1 Cab Key Switch (Figure 1-A)
The key switch turns the cab controls ON and
OFF. It is provided to limit the use of the
elevator to authorized persons only.
2 Cab Operating Panel Buttons (Figure 1-B)
Automatic control panel buttons facilitate the
UP/DOWN movement of the cab between
landings. Once the selected landing button is
pressed, the cab will automatically move to the
landing. The cab will stop when the selected
landing is reached.
3 Alarm Button (Figure 1-C)
This button can be pressed at any time to sound
the alarm in case of an emergency.
4 Run/Stop Button (Figure 1-D)
This button can be used at any time to stop the
cab and activate the alarm buzzer.
5 Keypad Phone (Figure 1-E)
For units that have a keypad phone, it will be on
the COP. For units that have a standard phone, it
will located in the phone box (see below).
Figure 1: Sample COP
A
B
CD
E
Figure 2: Standard Phone and Phone Box

8
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
6 Handrail
A single handrail is mounted on the Cab Operating Panel side of the cab.
7 Emergency light
The cab emergency light remains ON in the event of a main power failure. The
emergency light uses a battery back-up system.
8 Landing Hall Call Station Controls (Figure 3)
Hall Call buttons are installed at all landings to move
the cab to the landing from which it is being called. An
optional key switch limits the use of the elevator to
authorized persons only.
9 Landing Door and/or Gate Interlock
The Landing Door/Gate lock prevents the movement of
the cab unless the door/gate is in the closed and locked
position. If the door/gate is not completely closed, the
cab will not move.
10 Emergency Battery Operation
In the event of a building power failure, the system is provided with a
temporary power back-up system to allow the elevator to run down to the next
available landing, or to the first floor landing. On resuming normal building
power, the back-up system will go into standby mode and begin automatic
recharging.

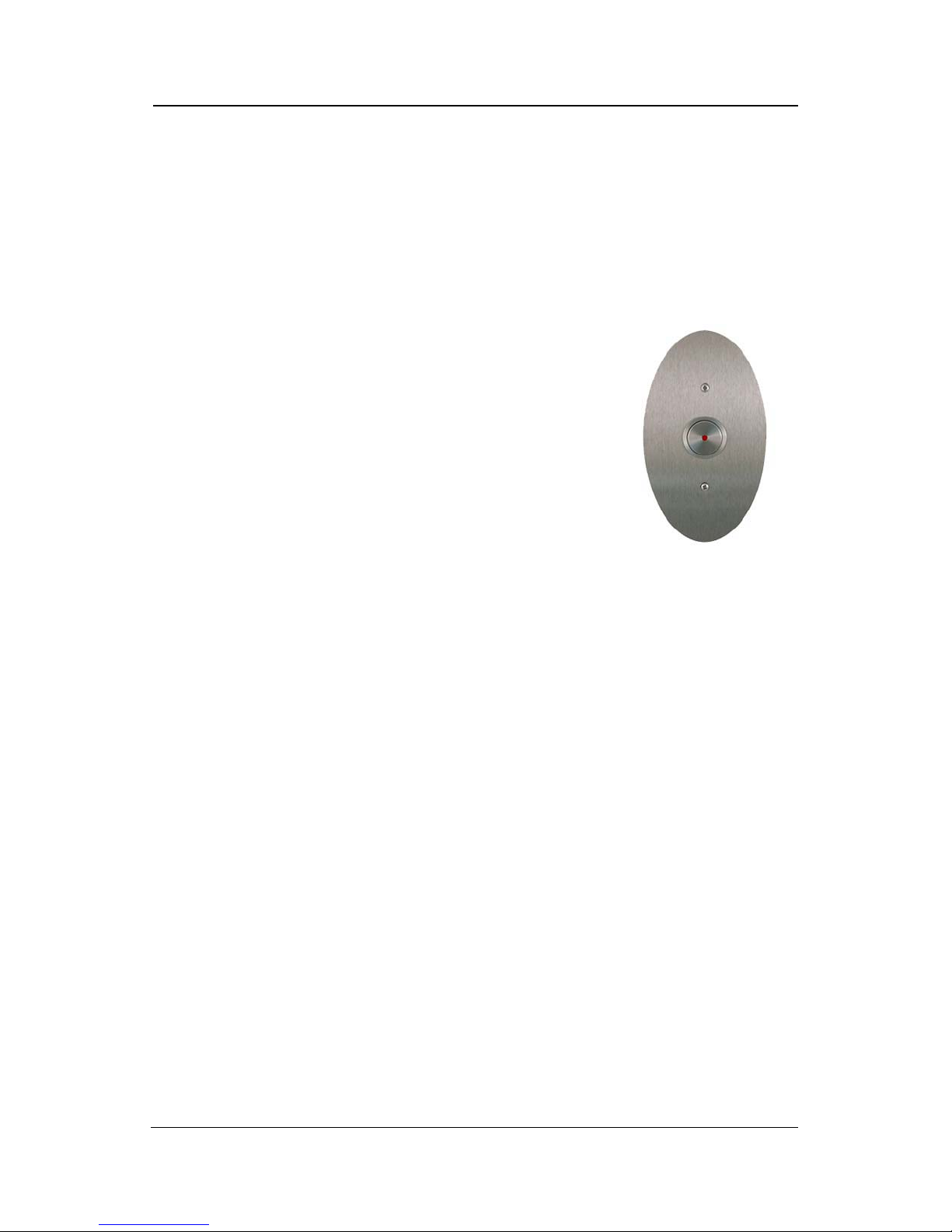

Figure 3: Hall Call

9
Part No. 000846, 29-m08-2018 Eclipse Gearless Owner’s Manual
3. OPTIONS
Automatic Door Opener
1Press the Landing Hall Call button to call the elevator. The entrance door will
open automatically once the elevator stops at the landing.
2Push N Go allows the entrance door to open automatically with a slight
push to the door itself. The door timer is inoperative when this feature is
activated.
Automatic Gate Opener
1Press the Landing Hall Call button to call the elevator. If the entrance door is
equipped with an automatic door opener, it will open automatically once
the elevator stops at the landing; otherwise, open the entrance door
manually.
2The gate will open automatically once the entrance door is fully open.
If the cab is equipped with a gate, the gate must be closed after
exiting the cab. If the gate is left open, all controls will remain
inoperable.
NOTE

10
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
4. OPERATION
With large cabs and high capacity jobs of 750 lbs. (341 kg), the
motor may build up heat during repeated operation. We
recommend a duty cycle of 25% for a full load of 750 lbs. (341 kg)
or an empty cab.
For example, a 40-foot travel elevator should take 1 minute for
full travel in which case we recommend 1 minute running up or
down then let it cool off for 3 minutes. Typical loads of 150 to 400
lbs. (68 to 181 kg) on the cab will generate less heat so the cab
can be run more frequently.
Operating from the Landing Controls
1If equipped with a key switch, insert the key into the key switch on the Hall
Call station and turn the key to the ON position.
2Press the Hall Call button once and release. The elevator will automatically
come to your landing.
3Turn the key (if equipped) to the OFF position and remove the key.
4If equipped with a manual landing door, turn the door handle and pull the
door open.
5If equipped with a manual landing gate, slide the gate open and enter the
cab.
6Once inside the cab, close the gate, insert the key (if equipped) into the key
switch on the Cab Operating Panel, and turn the key to the ON position.
When using the landing controls, the cab can only be moved
(called) to the level from which you are calling. When using the
control buttons in the cab, the cab can be moved to any level.
Wheelchair wheels must be locked at all times when the
elevator is moving.
NOTE
NOTE
WARNING

11
Part No. 000846, 29-m08-2018 Eclipse Gearless Owner’s Manual
Operating from the Cab Operating Panel (COP) Controls
1If equipped with a key switch, insert the key into the key switch on the Cab
Operating Panel and turn the key to the ON position.
2Press the selected Landing button once and release. The elevator will
automatically travel to and stop at the selected landing.
3Turn the key (if equipped) to the OFF position and remove the key.
4Unlock the wheelchair wheels (if applicable) and exit the cab.
If the cab is equipped with a gate, the gate must be closed after
exiting the cab. If the gate is left open, all controls will remain
inoperable.
The outside landing door must be closed after exiting or entering
the cab. If the outside landing door is left open, all controls will
remain inoperable.
5. EMERGENCY LIGHTING
In the event of a main power failure, the emergency cab lights will turn on
automatically. The cab lights will stay on for approximately 15 seconds. When
the lights go off, press any landing button to turn them on again. If you press
the landing button of the level you are at, the lights will turn on and the
elevator will not move.
NOTE

12
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
6. MANUAL LOWERING
In the event of a power failure, the emergency cab lights will turn on. Use the
telephone to call for help. An authorized technician ONLY can then use the
manual lowering device to move the elevator to the landing below.
1Instruct the passenger (s) in the elevator to remain calm and stay well back
from the door of the elevator. Ease their concern by telling them your
intentions.
2Switch the main power disconnect switch to the “OFF” position.
3Locate the manual access door and unlock it with the key. Use the manual
lowering device (hand crank) which moves the counterweight assembly in
the up direction thereby lowering the cab until it reaches the landing below.
4Close and lock the manual access door.
5Open the landing door (using the special emergency key) and assist the
passenger(s) to exit the cab.
After use of any emergency function (access key or manual
lowering device), ensure that all doors/gates are secure and
locked. While the emergency function is in use, DO NOT leave the
area unattended.
7. RESET BUTTON PENDANT
In the event that the elevator is not functioning
properly, try resetting the elevator by pressing the star
(asterisk) key on the Reset Button Pendant. If the
problem persists, contact your Authorized Dealer for
assistance.
NOTE
Figure 4: Reset
Button Pendant

13
Part No. 000846, 29-m08-2018 Eclipse Gearless Owner’s Manual
8. MAINTENANCE
Regular maintenance (performed by your Authorized Savaria Dealer) will keep
your elevator in proper operating condition. Please remember, as the owner of
this elevator, you are responsible for making sure that maintenance and
upkeep are done on a regularly scheduled basis.
If the unit is shut down for an extended period of time, contact
your Authorized Savaria Dealer to perform complete
maintenance before starting up the unit.
IMPORTANT: Please test the phone in your elevator during every maintenance.
If the phone is inactive, please shut down the elevator until the phone line is
active. This applies to all lifts in a hoistway or enclosure models
To ensure proper operating condition of your unit, the items listed below must
be inspected and, if necessary, serviced every six months by your Authorized
Savaria Dealer. Additional inspections may be required depending on usage.
1Tighten all rail and cab fastening bolts.
2Lubricate the door hinges and adjust the door closure if required.
3Lubricate the rails with light grease, such as white lithium.
4For a Gatemate operator, lubricate the shaft and bushing using a general
silicone lubrication spray (lubricate on installation as well).
5Inspect the travelling cable for wear. Replace the cable if any cuts or damage
to the jacket are evident.
6Replace the batteries inside the control panel as indicated on the battery
label.
7Perform the required maintenance to the door locks.
8Activate and test the safety mechanism.
9Check, and if necessary, adjust the motor brake air gap. Refer to the Eclipse
Gearless Maintenance and Troubleshooting Guide (P/N 000866) to do this.
10 Check that the phone is functioning properly.
Units installed in adverse environments will require additional
maintenance on a monthly basis.
NOTE
NOTE

14
Eclipse Gearless Owner’s Manual Part No. 000846, 29-m08-2018
Maintenance Record
Date Time Reason for Call Comments Dealer

Eclipse Gearless
OWNER’S MANUAL
Part No. 000846
Copyright 2018
Savaria Concord Lifts, Inc.
2 Walker Drive
Brampton, Ontario, L6T 5E1, Canada
www.savaria.com
For service or questions about this product, please contact your installing dealer.
DEALER NAME: _________________________________________________
DEALER PHONE: _________________________________________________
Authorized Savaria Dealer
