Savaria Vuelift Mini User manual

Vuelift
Mini
Residential
Elevator
Owner’s
Manual

2
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
FOR OWNER’S RECORDS
Customer Name:
Installing Dealer:
Dealer’s Telephone Number:
Date Installed:
Serial/Job Number:
IMPORTANT
Ensure that only an authorized Savaria Dealer installs and services the Vuelift
Mini Residential Elevator. Under no circumstances is anyone other than a dealer
with Savaria training and authorization to install, adjust, service or modify any
mechanical or electrical device on this equipment. Failure to follow this warning
can result in safety system compromises or defeat; this can result in serious
injury or death. Savaria accepts no liability for property damage, warranty
claims or personal injury, including death, in this circumstance.
Passenger safety is the result of countless details in the equipment’s design,
manufacture, and installation. After installation, reliable operation and
continual safe operation requires regular service and inspection at least twice
per year, or more frequently where usage, environment, or local jurisdiction
requires. As the Owner, you are responsible for ensuring that regular service
and inspections occur in a timely manner.
Refer to this manual for specications, operating instructions and
maintenance of the Vuelift Mini Residential Elevator.
Upon completion of installation, the dealer must provide you with the
following information and ensure it is recorded in this manual. In addition,
either the dealer or you must keep any service and/or maintenance records in
the Maintenance Record section of this manual.
WARRANTY
Ensure your Savaria Dealer provides you with a copy of the manufacturer’s
limited parts warranty and documentation relating to any Dealer
labour warranty.

3
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
TABLE OF CONTENTS
TO ENSURE SAFE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1. Cab Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. GENERAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4. SAFETY FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Safety Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Emergency Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Battery Lowering System and Manual Lowering Device . . . . . . . . . . . . . 9
5A. CLEANING - Metal Rings and Painted Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . .10
Washing (Metal Surfaces) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Dusting (Metal Surfaces) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5B. CLEANING - Acrylic Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Washing (Acrylic Panels) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Dusting (Acrylic Panels) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Polishing (Acrylic Panels). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Neutralizing Static Electricity (Acrylic Panels). . . . . . . . . . . . . . . . . . . . . . .12
Cleaners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5C. CLEANING - Glass Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Washing (Glass Panels) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Dusting (Glass Panels). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Polishing (Glass Panels) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cleaners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6. DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Beep Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7. MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Maintenance Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
TO ENSURE SAFE OPERATION
To ensure safe operation of this equipment, pay careful attention to the
important notes below.
• Read this manual carefully before using the equipment.
• To prevent accidents, adhere strictly to the instructions and keep clear of
moving parts at all times.
• Be aware of any hazards, such as hall doors, car doors, emergency stops,
or timers, especially for small children.
• Follow instructions on all equipment labels at all times. Replace any
damaged labels immediately.
• Ensure that only qualified personnel perform maintenance and service on
the unit.
• When replacing parts, be sure that only genuine Savaria parts are used.
• This unit is intended for use by a mature person who understands its
proper operation as set out in this manual.
• Prior to operation, make sure that:
• All doors and gates are locked and secure.
• All areas in and around the lift are clear of any obstructions.
• All lights are functioning properly.
• Test your keys and emergency stop button every month.
At no time should children under the age of 16
use the elevator/lift while unsupervised.

5
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
1. DESCRIPTION
Figure 1 shows the components of the Vuelift Mini Residential Elevator.
Figure 1
Hoistway
Car
operating
Hoistway
door lock
Hall call
button
Cab with manual
rotating sliding door
door
panel
(COP)

6
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
2. GENERAL SPECIFICATIONS
Vuelift Mini Specifications
Applied code ASME 17.1/CSA B44 - Section 5.3
Load capacity 500 lb (227 kg)
Maximum travel 50 ft (15.24 m); 55 ft (16.76 m) where a variance is
possible
Travel speed 30 ft/min (0.15 m/s)
Daily cycle
Normal: 40
Heavy: 80
Excessive: 150
Maximum starts in 1 hour on standard installation: 20
Maximum levels serviced 6
Minimum overhead 96 in (2.4 m)
Cab
Cab walls: Full clear acrylic or silica glass
Cab interior height: 77.75 in (1.97 m)
Cab weight (acrylic models): 550 lb (250 kg)
Cab weight (glass models): 1000 lb (455 kg)
Cab floor area: 8.25 sq ft (0.76 sq m)
Floor by others (in cab) 1/2 in (12.7 mm) maximum
Footprint 49.75 in (1.26 m) diameter
Acrylic and glass diameter 42.8 in (1.08 m)
Hoistway ring diameter 43.75 in (1.11 m)
Power supply 30A, 230-V, single-phase, 50/60 Hz
Cab lighting 15A, 115V, single-phase, 50/60 Hz
Suspension
Type: Galvanized aircraft cable (2 x 1/4” diameter)
Construction: IWRC 7 x 19 RHRL
Nominal strength: 7000 lb (3175 kg)
Weight of ropes: 0.243 lb/ft (3.616 g/cm)
Travel cable weight: 0.228 lb/ft (3.393 g/cm)
Drive train
Type: Winding drum
Motor: 1.77 HP (1.32 kW) @ 60 Hz with integrated brake
Motor control: Preprogrammed variable frequency
drive

7
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
Distance between
landings 93 in (2362 mm) minimum
Pit depth
Minimum: 3 in (76 mm); 4 in (102 mm) with buffer
springs (required if habitable space below)
Maximum: 12 in (305 mm)
Temperature operating
range
–10 °C to +40 °C (14 °F to 104 °F)
NOTE: For optimal running conditions, each landing of
the unit should be in a climate-controlled
environment.
Safety features
Pit run/stop switch and car top run/stop switch
Emergency stop switch
Safety brakes
Overspeed
Manual lowering
Emergency battery back-up for cab lighting and
lowering
Options
Optional configurations: Type 2 cab
Optional colors:
• White (Texture White PX521W859)
• Silver (Texture Silver PX521S343)
• Custom powder-coat frame
Note that Black is the standard color (Texture Black
PX622N365)
Savaria Link remote monitoring
Pitless option with ramp
Sabbath service
Flood switch
Buffer springs for habitable space below
Buck boost transformer
Up to 6 stops; balcony attachment or thru-floor
configuration
Cab shipped disassembled
Landing door handle painted to match unit
Top header ring in sheet metal painted to match unit

8
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
3. OPERATION
1Press the hall call button.
2When the hall call door unlocks, open the hoistway
door.
3Open the car door and enter the elevator.
4Close the hoistway door and then close the car door.
5Press a button on the Car Operating Panel (COP) to
select a floor.
6When you arrive at the
selected floor, open the car
door and exit the elevator.
7Close the car door and then
close the hoistway door.
Note that you can press the Alarm
button at any time in case of an
emergency.
Note that there is a keypad phone
located on the COP for use in an
emergency.
• To dial a phone number,
press the red ON/OFF
button on the keypad to
turn on the phone.
• Dial the phone number.
• Press the blue VOL key on
the keypad to raise or lower
the volume.
• Press the red ON/OFF
button on the keypad to
turn off the phone.

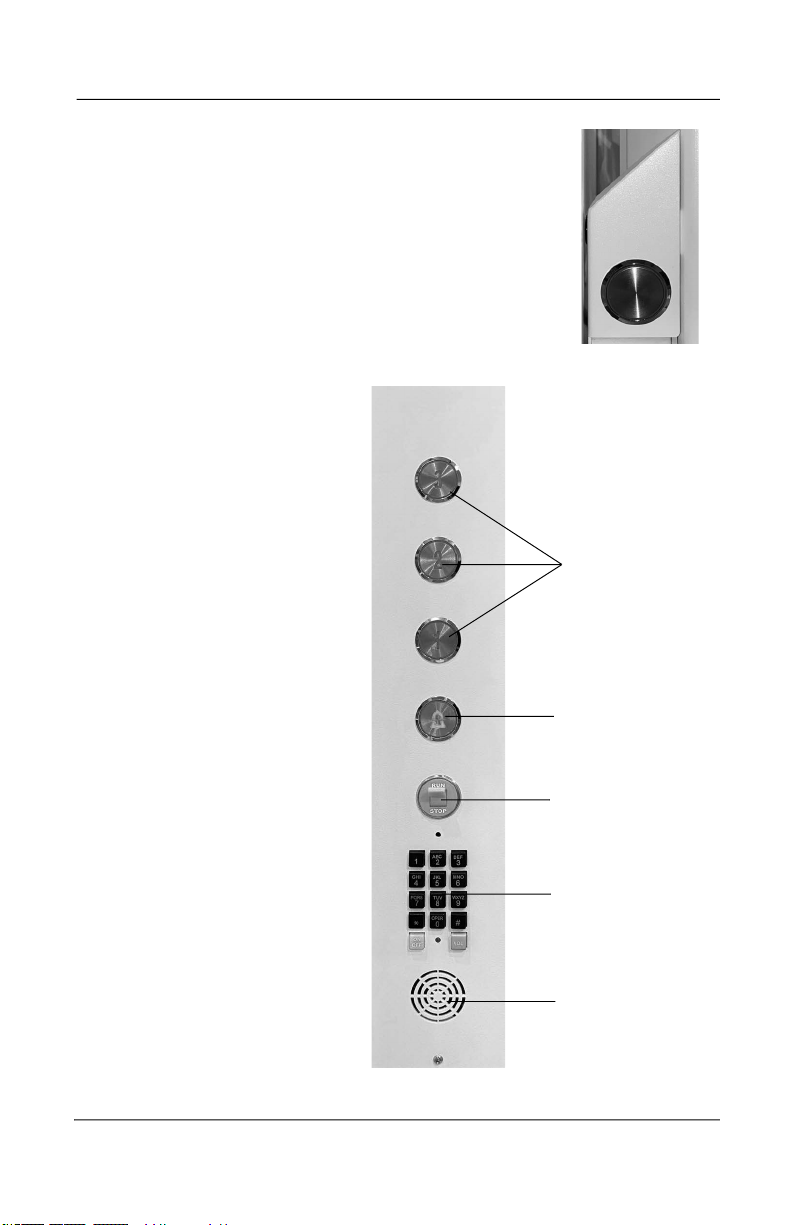

Figure 2
Figure 3
Floor buttons
Alarm button
Emergency phone
Speaker
Run/Stop switch

9
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
4. SAFETY FEATURES
Safety Brakes
The safety brakes (safeties) stop the lift in the event of cable failure.
During operation, cable tension keeps the brake up so the cam does not
interfere with the hoistway rails.
If a cable failure occurs, the brake mechanism comes down and the brake cam
stops movement of the lift.
Emergency Stop
Actuating the red STOP switch during travel will stop the elevator immediately
and activate the alarm. Toggle the switch back to RUN to return the elevator to
normal operation.
Battery Lowering System and Manual Lowering Device
If a power failure occurs, a battery lowering system
will bring the Vuelift Mini to the bottom level.
If the battery fails while operating, there is a manual
lowering device that can be used to bring the Vuelift
Mini to a lower landing level as described below.
1Turn off the main power disconnect.
2Remove the cover on the glass/acrylic in line
with the motor brake at the top landing.
3Insert the manual lowering tool (shown in Figure 4) into the hole in the
glass/acrylic.
4Turn the manual lowering tool clockwise until the unit is at the desired
landing level.
5Make sure the floor of the cab is level (within 2 inches) to the landing.
6Use the special emergency key to manually open the landing door.
The manual lowering device is for emergency use
only. When manually lowering, ensure the car floor
is always within 2 inches (50 mm) of the landing
prior to opening the hoistway door. After use of
any emergency function (access key or manual
lowering device), ensure that all doors/gates are
secure and locked. While the emergency function
is in use, DO NOT leave the area unattended.
Figure 4

10
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
5A. CLEANING - Metal Rings and Painted Surfaces
Washing (Metal Surfaces)
Clean the Metal Rings and Surfaces with a mild soap and water solution
using a new microfiber cloth or with a melamine sponge such as a Mr. Clean
Magic Eraser with water. Use a clean soft cloth, applying only light pressure.
Rinse with clean water and dry by blotting with a damp cloth or chamois.
Not using harsh chemicals will preserve not only the look and texture of the
powder coated metal, but also protect the acrylic sheets.
The fumes from many chemical cleaners (including citrus-based cleaners) will
cause the acrylic to have surface cracks or create cracks that can go all the way
through and can result in safety hazards.
Dusting (Metal Surfaces)
Dust the metal rings and painted surfaces with a soft, damp microfiber cloth or
chamois. Dry, gritty or previously used cloths may cause surface scratches.
Under no circumstances should you ever
attempt to remove panels for cleaning!
DO NOT use any cleaning product anywhere on
the entire unit that contain any amount of citrus,
ammonia or petroleum. This includes Windex ®
and most traditional glass cleaners, as well as
many “natural” cleaning solutions.
DO NOT use window cleaning sprays, kitchen
scouring compounds or solvents such as acetone,
gasoline, benzene, alcohol, carbon tetrachloride,
or lacquer thinner. These can scratch the finish of
the metal and damage nearby acrylic panels.

11
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
5B. CLEANING - Acrylic Panels
Washing (Acrylic Panels)
Wash the acrylic panels with a microfiber cloth damp with water or with acrylic
cleaner (see the list on the next page). Some precautions must be taken to
ensure a long operating life and to maintain the acrylic panel clarity on your
unit, including not using chemicals to clean the acrylic sheets. Use a clean soft
cloth, applying only light pressure. Rinse with clean water and dry by blotting
with a damp cloth or chamois.
Dusting (Acrylic Panels)
Dust acrylic panels with a soft, damp cloth or chamois. Dry or gritty cloths may
cause surface scratches and create a static electric charge on the surface (refer
to the section on Neutralizing Static Electricity on the next page).
Polishing (Acrylic Panels)
Protect the acrylic panels and maintain their surface gloss by occasional
polishing with a good plastic cleaner and polish (refer to the section on
Cleaners for a list of acceptable cleaners and polishes).
Apply a thin, even coat with a soft clean cloth and polish slightly with cotton
flannel or a microfiber towel. Then wipe with a damp cloth to help eliminate
electrostatic charges that can attract dust particles.
Under no circumstances should you ever
attempt to remove panels for cleaning!
DO NOT use any cleaning product anywhere on
the entire unit that contain any amount of citrus,
ammonia or petroleum. This includes Windex ®
and most traditional glass cleaners, as well as
many “Natural” cleaning solutions.
DO NOT use window cleaning sprays, kitchen
scouring compounds or solvents such as acetone,
gasoline, benzene, alcohol, carbon tetrachloride,
or lacquer thinner. These can scratch the sheet’s
surface and/or weaken the sheet causing small
surface cracks called “crazing”.

12
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
Neutralizing Static Electricity (Acrylic Panels)
A static electrical charge can develop on the acrylic panels during handling and
processing. This is not unique to the acrylic panels, but is common to many
materials, particularly plastics.
When the paper or film masking is stripped off the acrylic sheet, a static charge
is created on the sheet surface. Static electricity attracts dust, chips, etc. floating
in the air or on nearby work surfaces and holds these contaminants tightly to
the surface. A compressed air gun will remove some of this surface dirt, but
much of it continues to cling to the sheet.
Several anti-static cleaners for plastics are also available which will reduce static
electricity and dust attraction. Wiping with a soft damp cloth or chamois is all
that is necessary to keep the acrylic panels dust-free between applications of
these cleaners.
Cleaners
Cleaners which MAY BE USED for acrylic panels:
• Plexus® (Anti-Static Cleaner)
• Novus® #1 Acrylic Cleaner and Polish
• ATM Mirage Glass and Acrylic Cleaner
• Zep® Commercial Glass Cleaner (must state for use on Plexiglas®)
• Plexi-Clean (Anti-Static Cleaner)
• Prist Aerospace Anti-Static Acrylic, Plastic & Glass Cleaner
• Cleaners which explicitly state “Safe for use with plastics and acrylic”
Cleaners which MAY NOT BE USED for acrylic panels:
• Windex® Glass Cleaner
• Sprayway Ammonia-Free Glass Cleaner
• Goo-Gone®
For glass panels, use a normal glass cleaner such as Windex® or equivalent.
These above lists are for reference only and are not comprehensive. If you have
any questions about the acceptability of a specific cleaner, please contact your
authorized dealer.
A de-ionizing tool can be used during installation
to eliminate a majority of the static electricity
(causes the dust to fall away).
Damage caused by inappropriate cleaners and
techniques is not covered under warranty.

13
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
5C. CLEANING - Glass Panels
Clean glass panels using a normal glass cleaner such as Windex® or equivalent.
Washing (Glass Panels)
Wash the glass panels with a normal glass cleaner such as Windex® or
equivalent. Use a clean soft, clean and lint-free cloth to remove the dust before
applying the cleaning spray or solution. Apply only light pressure and use a
different cloth to rub the solution on glass. Rinse with clean water and dry by
blotting with a damp cloth or chamois..
Dusting (Glass Panels)
Dust with a soft, damp cloth or chamois.
Polishing (Glass Panels)
Protect the glass and maintain their surface gloss by occasional polishing with
a good cleaner and polish (refer to the section on Cleaners for a list of
acceptable cleaners and polishes).
Apply a thin, even coat with a soft clean cloth and polish slightly with cotton
flannel or a microfiber towel. Then wipe with a damp cloth to help eliminate
electrostatic charges that can attract dust particles.
Cleaners
Cleaners which MAY BE USED:
• Windex® Glass Cleaner
• Clean Choice® Glass Cleaner
• Chemical Guys® Glass Cleaner
• 3M™ Glass Polishing Compound, 60150
These above lists are for reference only and are not comprehensive. If you have
any questions about the acceptability of a specific cleaner, please contact your
authorized dealer.
Note that damage caused by inappropriate cleaners and techniques is not
covered under warranty.
Under no circumstances should you ever
attempt to remove panels for cleaning!

14
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
6. DIAGNOSTICS
Diagnostic beep codes are provided to help you diagnose a problem. All beep
codes that begin with a long beep (on for 2 seconds) are Service codes (contact
your authorized Savaria dealer).
If you press a Hall Call button and hear a beep from the car top, but the car
doesn’t move, refer to the information in the following table.
Beep code Action to take
Service codes
1 long beep (2 seconds) followed by
1 short beep (1/2 second)
Contact your authorized Savaria dealer
for service. There is a problem in one of
the following areas: overload trip, run
timer trip, main safety chain open, door
lock fault, or auto shutdown counter.
1 long beep (2 seconds) followed by
2 short beeps (1/2 second)
Contact your authorized Savaria dealer
for service. There is a problem with
re-level shutdown or the low pressure
switch is activated.
1 long beep (2 seconds) followed by
3 short beeps (1/2 second)
Contact your authorized Savaria dealer
for service. There is a selector fault,
selector encoding error, or position
error.
User codes
1 short beep
(1/2 second)
Make sure the “Stop” switch in the car in
the Run position.
Check that the car gate is closed.
2 short beeps
(1/2 second) Check that the landing door is closed.
3 short beeps
(1/2 second) Manually open and close the gate.

15
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
7. MAINTENANCE
The Vuelift Mini elevator is designed to require minimal maintenance.
A 6-month inspection of certain components is required to maintain the
Factory Warranty. The first required service of the drive train components
(motor/gearbox, drums, etc.) is after 2,000 operational hours (approximately
120,000 trips).
The items that need to be checked during the 6-month inspection are listed in
the Maintenance Schedule.
IMPORTANT: Please test the phone in your elevator during every maintenance.
If the phone is inactive, please shut down the elevator until the phone line is
active.
NOTE: Refer to the Maintenance Procedures for descriptions of the items.
Maintenance Procedures
INSIDE CAR
Car Interior
• Examine the car interior for damage including the ceiling, handrails,
door panels, lighting and floor. Tighten all fasteners in the car panel
and replace as needed.
Car Controls and Panel
• Examine the condition of the car control panels and check the
operation of all lights. Replace all burnt out lights.
Leveling, Stopping, Acceleration and Deceleration
• Run the car to each floor in both directions to observe the leveling
accuracy, stopping, acceleration and deceleration. Adjust as needed.
Car Door Operation
• Observe the door for proper operation including smooth movement,
starts and stops, and alignment.
Ride Floor to Floor
• Run the car from floor to floor and observe for smooth travel and
unusual noises. Adjust or repair as needed.
The 6-month inspection and all maintenance
procedures must be performed by a Qualified
Technician. Contact your Authorized Dealer.
Rail lubrication is NOT allowed for the Vuelift
hoistway or car rails.

16
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
Car Lights and Ventilation
• Verify proper operation of the car emergency light and ensure
adequate ventilation.
Restricted Opening Device Mechanism
• Examine the restricted opening device mechanism (if applicable) for
proper operation and adjust as needed.
OUTSIDE HOISTWAY
Hall Call Stations and Lights
• Examine the hall stations for condition and replace all burnt out lights.
Observe operation of the audible signal when the Emergency Stop is
activated.
Hoistway Doors
• Examine the door panel and clearance between the panel and
entrance frames. Examine proper interlock functionality and
operation. Adjust as needed.
Unlocking Device
• Examine the hoistway door unlocking device for damage. Repair or
adjust as needed.
MACHINE ROOM
Housekeeping
• Clean the machine room floor to prevent slipping and trip hazards, fire
hazards and contamination of the equipment. Ensure the machine
room is not being used for storage and inform the customer of any
violation.
Trash, Used Parts and Oil
• Ensure that all trash is discarded after maintenance is complete.
Controller and Motor Starter
• Examine the controller and motor starter for:
• Cleanliness
• Condition of contacts and remaining contact material
• Fuses for correct size and fit in holders and corrosion in fuse holder
• Relays for worn shunts and signs of overheating
• Evidence of overheating

17
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
TOP OF CAR
Stop Switch
• Verify the car will not run with the stop switch in the STOP position.
Cleanliness
• Clean all debris from the car top.
Top Car Guide
• Examine car rail to hoistway rail conditions at the car top. Note any
abnormal wear patterns or changes in alignment.
Guide Rails
• Examine the car rails for loose fastenings and fit at all joints.
Traveling Cables
• Examine the traveling cables for wear, chafing, kinking and alignment.
Examine the attachment points for secure fastening and looseness.
Door Hangers, Locks, etc.
• Verify the interlock is functioning properly.
• With the door open, attempt to move the car using the hall call and
COP buttons.
• Observe the door closing for any roughness in bearings, inconsistent
operation, or misalignment.
Hoistway Cleaning
• Clean dirt and trash from all horizontal surfaces including the car and
entrance sills.
Other
• Observe any hoistway problems that should be addressed such as:
• Unauthorized equipment installed in the hoistway
• Damage to the hoistway enclosure which would affect its fire
resistance rating
• Evidence of intentional acts
• Any evidence of unauthorized people entering the hoistway
Examine the Ropes
• Examine the car ropes for equal tension, and visually inspect for any
frays or deformation of the ropes which would negatively impact their
strength.
Leaving the Car Top
• Clean up and dispose of debris properly. Return the car to normal
operation and the stop switch to the RUN position.

18
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
PIT OR RAMP AREA
Stop Switch
• Examine the operation and condition of the stop switch. Repair as
needed.
Cleaning
• Clean the pit. Examine the bottom level landing sill and clean as
needed.
Bottom Car Glides
• Examine car rail to hoistway rail conditions at the car bottom. Note any
abnormal wear patterns or changes in alignment.
Traveling Cables
• Examine the traveling cables for wear, chafing, kinking and alignment.
Examine the attachment points for secure fastening and looseness.
Leaving the Pit
• Remove all tools and verify operation of the elevator.
OVERSPEED
Overspeed belt
• Make sure the overspeed belt is in good condition and that it has no
frays or cuts. Check that the ends are secure.
Overspeed system
• Check for any signs of wear in the overspeed system. Remove any dust
or dirt from the belt and pulleys. Do not use harsh chemicals on the
overspeed components; use only mild detergents.
BRAKES
Verify proper operation of the safety brakes and the motor brake. Check with
full load every 12 months.

19
Part No. 001254, 26-m4-2022 Vuelift Mini Owner’s Manual
Page Intentionally left blank
Maintenance Schedule and Record on next pages

20
Vuelift Mini Owner’s Manual Part No. 001254, 26-m4-2022
Maintenance Schedule
Verification by technician Frequency
INSIDE CAR
• Car interior
• Car controls and panel
• Leveling, stop, acceleration and deceleration
• Car door operation
• Ride floor to floor
• Car lights and ventilation
• Restricted opening device mechanism
6 months
OUTSIDE HOISTWAY
• Hall call station and lights
• Hoistway doors
• Unlocking device
6 months
MACHINE ROOM
• Housekeeping
• Trash, used parts, etc.
• Controller and starter
6 months
TOP OF CAR
• Stop switch
• Cleanliness
• Top car guides
• Guide rails
• Traveling cable
• Doors, hangers and locks
• Hoistway cleaning
• Other
• Examine the ropes
• Leaving car top
6 months
PIT (IF APPLICABLE)
• Stop switch and light
• Cleaning
• Bottom car guides
• Traveling cable
• Leaving the pit
6 months
OVERSPEED
• Overspeed belt
• Overspeed system
6 months
BRAKES
• Safety brakes and motor brake 6 months
BRAKES (WITH FULL LOAD)
• Safety brakes and motor brake 12 months
