Saxby Lighting Inova Bollard Manual

Instruction leaflet
Inova Bollard
55617, 55618
www.saxbylighting.com
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Recycling advice
Safety information
Saxby Lighting Ltd. BH23 3PE
This bulb is protected by a shade. This part must be replaced immediately should the shade become
cracked or damaged. This fitting must not be used without the shade in place.
Iss 1 21112014
When changing a bulb, always switch off at the mains
and allow the bulb to cool before handling. Dispose of
used bulbs carefully.
Do not exceed the wattage stated or use a different
shape bulb from that indicated on the fitting.
To access the bulb, simply unscrew the shade. Unscrew
the old bulb from the lampholder and replace with a new
one. Then screw the shade back in place.
Fitting/replacing bulb (not supplied)
Commissioning
• Push the terminal block up into the tube.
• Locatetheproductinpositionandfitthescrewsto
secure in place.
• Replacefuse orcircuitbreaker and switchon.Your
light is now ready for use.
Care and Cleaning
Do not use solvents or abrasive cleaners as these could
damage the finish.
In normal circumstances, stainless steel is very resistant
to corrosion. It does however require maintenance to
preserve the high quality appearance. Wash the product
with warm soapy water, removing all surface deposits.
Rinsewithclearwaterandwithasoftcloth,wipedry.
In some cases, surface corrosion may arise after
installation. This is normally caused by tiny iron particles
left behind after the brushing process when finishing.
Wash and dry as detailed above. Then with a soft cloth
soaked with a protective oil, wipe all over.
Do not clean the units with a pressure washer.
60W E27 GLS
11W ES Energy Saver

Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Install in accordance with IEE Wiring regulations and
currentBuildingRegulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge. If you are in any doubt,
please consult a qualified electrician.
This light fitting should be connected to a circuit with a
30mARCDfitted.
If replacing an existing fitting, make a careful note of
the connections.
This system contains non-replaceable parts and
cannot be serviced. If damage occurs the part should
be scrapped.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
This product is rated at IP44.
This product is not suitable for location in or near a
marine or sea environment.
Specification
Voltage: 240V 50Hz a.c.
Lamp: 1 x Max. 60W E27 GLS
IP rating: 44
Layout
• Planthedesiredlayoutofthisfittingcarefully,
ensuring the cables will reach the distance between
the junction box and the light fitting
• Avoidlocatinganycablesinpositionsthatwould
cause a hazard. Position cables and junction boxes
(not supplied) away from areas where they may be
at risk from being cut, trapped or damaged
• Cablesinwallsmustbeprotectedusingsuitable
conduit or plastic trunking.
• WerecommendthatyouuseH05RN-Fspecification
cable (not supplied) which is an outdoor grade,
rubber sheathed cable. The mains supply cable must
have a minimum cross sectional area of 1.0mm²
• Thesefittingmustbemountedoneitheraconcrete
surface or a paving slab that has been concreted in
position.
Installation
• Youhavecorrectlyidentifiedthewires.
• The connections are tight.
• Noloosestrandshavebeenleftoutoftheconnectionblock.

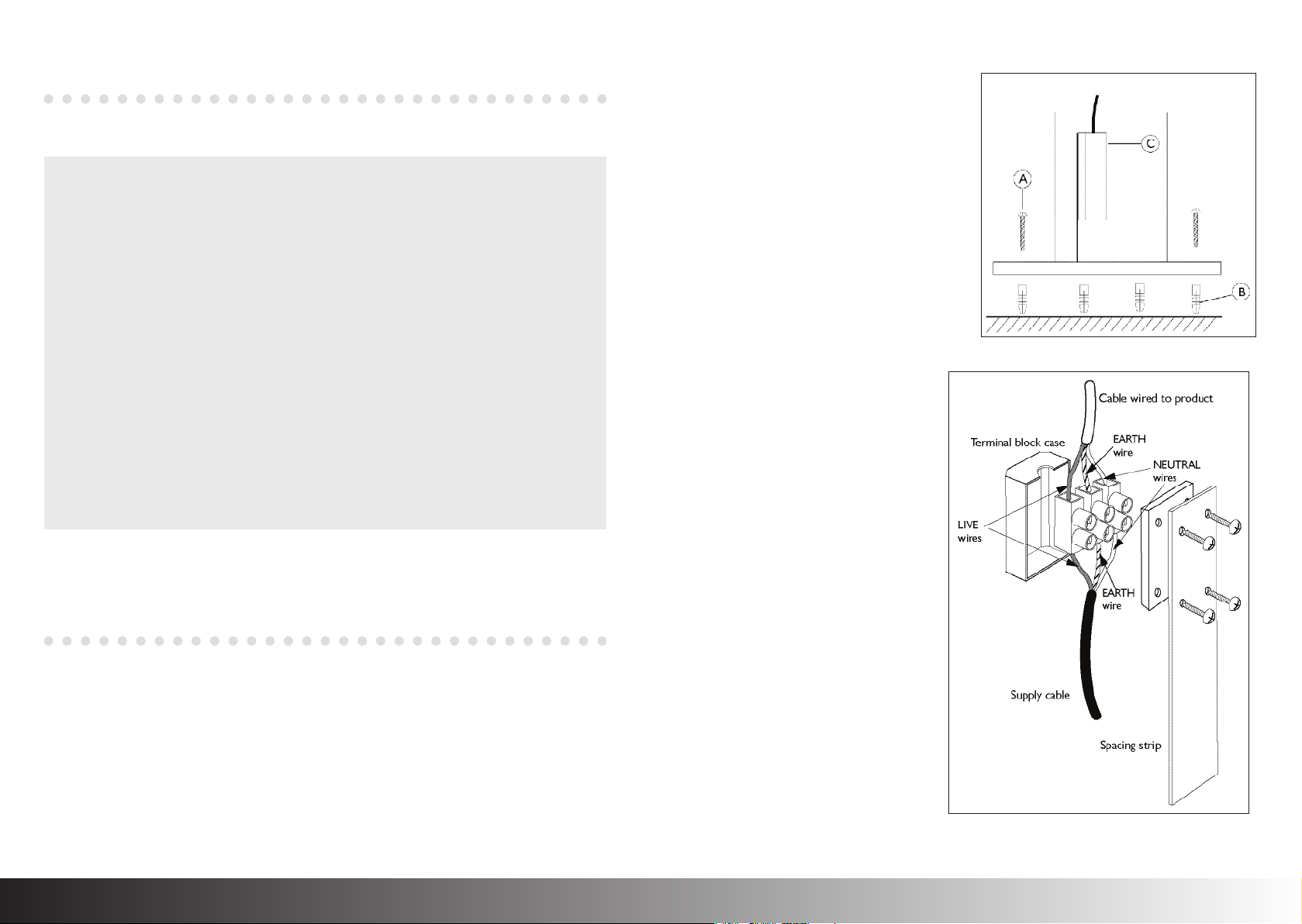

Having correctly identified the wiring from your
existing light fitting, pull the wire through the hole
and connect to the connection block inside the
product in the following way:
• Pull terminal block (D) from inside of tube.
• Unscrew the 4 screws which attach the
black box to the spacing strip. Open the
black box and pull out the terminal block.
• Connect Live input wire to brown wire
on product (or terminal on terminal block
marked ‘L’).
• ConnectNeutralinputwiretobluewire
on product (or terminal on terminal block
marked‘N’).
• Connect Input Earth wire (Green/yellow) to
Earth wire on fitting,
• Check that you have correctly identified the
supply wires, the connections are tight and
that no loose strands have been left out of
the connection block.
• Push terminal block back into the black box
and refit the terminal block cover.
Wiring
Check that...
Existing fittings must be completely removed before
installation of a new product. Before removing the
existing fitting, carefully note the position of each set
of wires.
• Using base plate as a template, mark the fixing
holes onto the mounting surface.
• Drill holes to the necessary size and depth - taking
care not to damage any concealed pipes or wiring
below the mounting surface.
• We recommend fitting this product with screws
(A) which are suitable for use on most surfaces,
however alternative fixings may be required.
• Push the plastic plugs (B) into the mounting holes
as shown.
