INSTRUCTIONS FOR:
ADJUSTABLE JACK SADDLE
Models: ADT1 & ADT2
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
ADT1 & ADT2 - (0001) - (2) - 1007011
1. SAFETY INSTRUCTIONS
IMPORTANT! ENSURE YOU READ AND UNDERSTAND THESE INSTRUCTIONS FULLY BEFORE ATTEMPTING TO USE
THE JACK SADDLE. NOTE THE SAFE OPERATIONAL REQUIREMENTS, DANGERS, WARNINGS AND CAUTIONS.
USE THE SADDLE CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
pWARNING! FAILURE TO APPLY THESE INSTRUCTIONS MAY CAUSE DAMAGE AND/OR SERIOUS PERSONAL INJURY.
FAILING TO FOLLOW INSTRUCTIONS WILL ALSO INVALIDATE YOUR WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
2. INTRODUCTION & SPECIFICATIONS
The ADT1 and ADT2 Adjustable Saddles have been manufactured to a high
specification to fit Sealey Vertical Transmission Jacks, in place of the standard fixed
saddle, thereby increasing the range of transmissions which can be accommodated.
ADT1 ADT2
Rated capacity . . . . . . . . . .300kg . . . . . . .750kg
Saddle width . . . . .140 to 360mm .140 to 425mm
Saddle length . . . . . . . . .350mm . . . . . .530mm
Saddle pitch & tilt . . . . . . . . . .20O. . . . . . . . .20O
pWARNING! Ensure all preliminary checks are carefully carried out before using
saddle and jack. Immediately repair or replace damaged or missing parts (use
authorised service agent). Ensure use of genuine parts only. Unauthorised parts
may be dangerous and will invalidate the warranty.
pWARNING! Follow the safety instructions issued with the transmission jack.
Before use ensure the transmission weight and size do not exceed the capacity of the
saddle or the jack.
pWARNING! Ensure load is placed level and centrally on saddle and is fixed in
place before attempting to lift, lower, or transport.
Always use load restraint chain and attachments to stabilise and secure the
load to the saddle.
DO NOT use the saddle without restraint chain.
DO NOT replace the chain with an inferior form of restraint.
Care should be taken when using the saddle and vertical transmission jack in conjunction
with a vehicle lift to ensure that the vehicle is not lowered whilst the jack is in position.
DO NOT move the jack, with or without a load, with the saddle in the raised position.
DO NOT use the saddle for any purpose other than for vehicle transmissions.
Before storing ensure saddle is clean and free of grease and oil.
NOTE: The use of symbols in this document is to attract your attention to possible danger. The symbols and warnings themselves do not eliminate any danger, nor
are they substitutes for proper accident prevention measures.
ADT1 ADT2
To suit Sealey jacks . . . . .300GA . . . . .1000GA
600GA 1250GA
1000GA 1250GTA
1250GA
1250GTA
01284 757500 E-mail: [e-mail]
01284 703534
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
APPLICATIONS:
SPECIFICATIONS:
ADT1
ADT2

p p
WARNING! DO NOT use saddle if any suspect part is found, or if it is believed to have been subjected to abnormal load or
shock. Immediately remove from service and contact your authorised service agent.
p p
p
WARNING! Always read, understand and implement these safety and operating instructions supplied with the saddle and those
supplied with the jack.
pWARNING! Failure to assemble the saddle correctly may result in serious damage and/or personal injury.
Unpack the product and check contents against the parts listed in these instructions. Should there be any damaged or missing parts
contact your supplier immediately.
Note: Items 6, 7, 8, 12,14 and 15 have been pre-assembled.
3.1. Attach brackets (2) to the base plate (6) with screws (13), washers (11) and nuts (9).
3.2. Attach braces (1) to brackets with screws (13), washers (11) and nuts (9).
3.3. Attach chain (large link end) to one brace with screw (13), washers (11) and nut (9).
3.4. Fit adjuster retainer (3) to diagonally opposite brace using washer (11) and nut (9).
3.5. Slide chain adjuster (5) through retainer and fit wing nut (10).

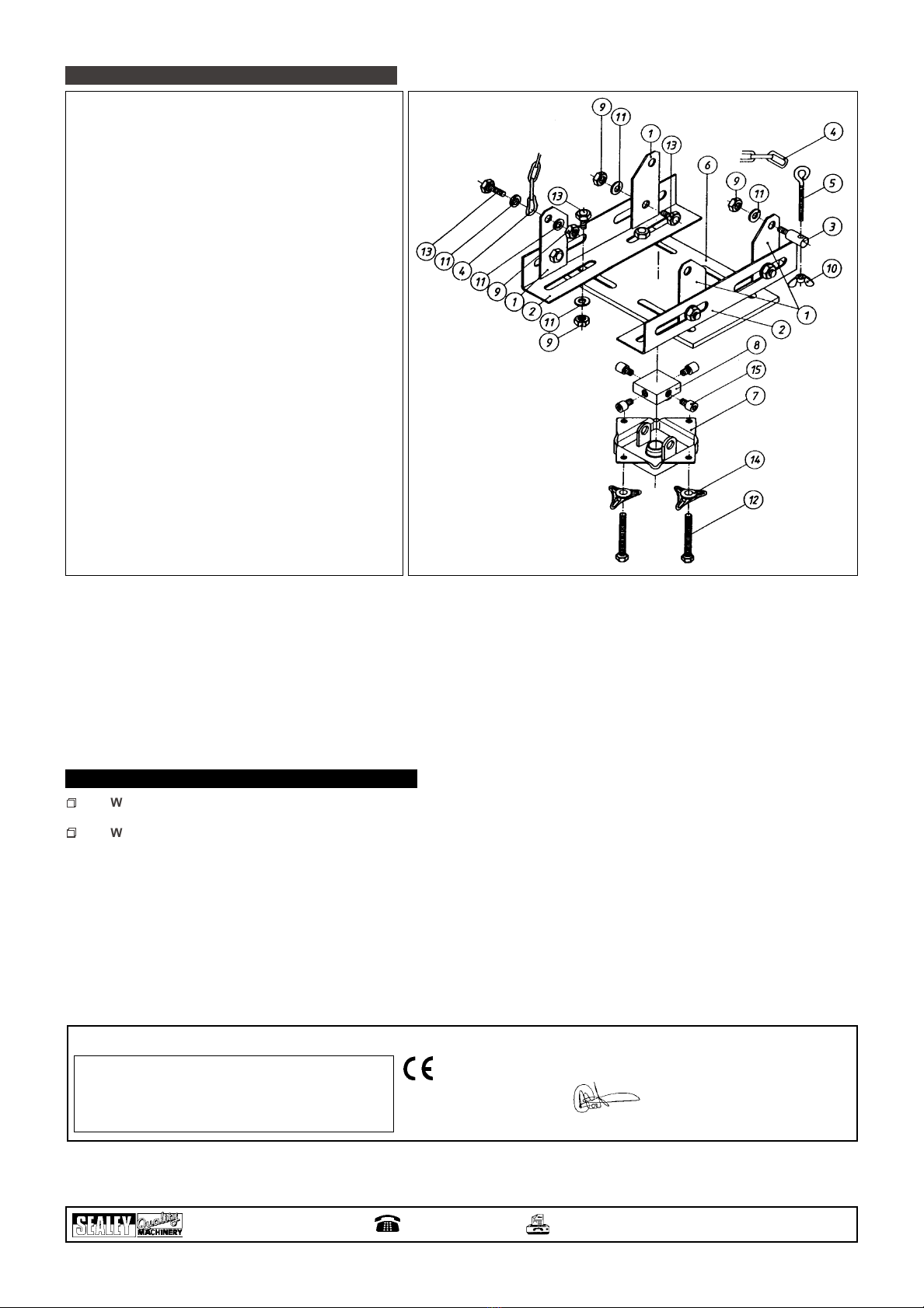

3. PARTS LIST & ASSEMBLY
ADT1 & ADT2 - (0001) - (2) - 100701
4. OPERATING INSTRUCTIONS
4.1. With jack fully down remove existing fixed saddle from jack and fit the ADT1 or ADT2.
4.2. Adjusting the pitch and tilt of saddle will assist you to safely support and transport the transmission.
The saddle may be tilted forward, backward and side to side up to 20Oby operating the appropriate handles (14).
pWARNING! After adjusting the angle of the saddle always make sure that all four adjusting screws are in contact with the underside
of the base plate. This will ensure that the saddle does not move during use, which would endanger both the transmission and the operator.
4.3. Always position brackets (2) and braces (1) to best support/locate transmission and ensure all screws are retightened. Before moving
jack and transmission ensure that restraint chain is in place and tensioned by wing nut (10).
4.4. Periodically lubricate the saddle pivot points and the adjusting screws.
Item Part No. Description
1 - ADT1 100/9057600 Brace
1 - ADT2 100/9059100 Brace
2 - ADT1 100/9057700 Bracket
2 - ADT2 100/9059200 Bracket
3 100/9058000 Retainer, chain adjuster
4 100/9058600 Chain
5 100/9058700 Adjuster, chain
6 - ADT1 100/9058900 Base plate
6 - ADT2 100/9058700 Base plate
7 100/9059800 Housing, universal joint
8 100/9059900 Universal joint
9 100/0200200 Nut
10 100/0200900 Wing nut
11 100/0211600 Washer
12 100/0231900 Screw
13 - ADT1 100/0233400 Screw
13 - ADT2 100/0232300 Screw
14 100/0245200 Handle
15 100/0248700 Screw
Original Date:- 060899
Issue Date:- 060899
Version No:- 1
Date Modified:- 1st issue
Declaration of Conformity We, the sole importer into the UK, declare that the products listed here are in conformity with the following standards and directives.
The construction files for these products are held by the Manufacturer and may be inspected,
by a national authority, upon request to Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK of Sealey Quality Machinery.
Adjustable Jack Saddle
Models: ADT1 & ADT2
98/37/EC Machinery Directive
10th July 2001
01284 757500 E-mail: [e-mail]
01284 703534
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of product. WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required
for any claim. INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
Signed by Mark Sweetman
