Sega Bass Fishing STD User manual

OWNER’S MANUAL
STD VERSION
SEGA ENTERPRISES, USA
1ST PRINTING
JULY-1998
TM
MANUAL NO. 4201-6394-01

Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies
that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman-
ship or materials under normal operating conditions. This also certifies that all Interactive Control
Assemblies are to be free from defects in workmanship and materials under normal operating condi-
tions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to
replace or repair the defective part during the warranty period. For Warranty claims, contact your
Sega Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Ne-
glect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other dam-
ages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other
warranties expressed or implied. Under no circumstance shall it extend beyond the period of time
listed above.

INTRODUCTION OF THE OWNERS MANUAL
GENERAL PRECAUTIONS
1. PRECAUTIONS TO BE HEEDED FOR OPERATION
2. NAME OF PARTS
3. ACCESSORIES
4. ASSEMBLYAND INSTALLATION
5. PRECAUTIONS TO BE HEEDED WHEN MOVING MACHINE
6. CONTENTS OF GAME
7. EXPLANATION OF TESTAND DATA DISPLAY
7-1 COIN METER, INTERNAL SWITCHES, AND SWITCH UNIT
7-2 TEST MODE
7-3 MEMORY TEST
7-4 VIDEO MEMORY TEST
7-5 BOUNDRY TEST
7-6 INPUT TEST
7-7 OUTPUT TEST
7-8 SOUND TEST
7-9 C.R.T. TEST
7-10 TIMER TEST
7-11 GAME ASSIGNMENTS
7-12 COIN ASSIGNMENTS
7-13 VOLUME SETTING
7-14 BOOKKEEPING
7-15 BACKUP DATA CLEAR
8. CONTROL PANEL
8-1 GREASING
8-2 REPLACING THE EXTENSION SPRING
8-3 REPLACING THE TORSION SPRING
8-4 REPLACING THE VOLUME
8-5 REPLACING THE INTERNAL PARTS OF REEL
9. COIN SELECTOR
9-1 TAKING OUT THE COIN SELECTOR
10. MONITOR
10-1 CATUTIONS CONCERNING SAFE HANDLING OF MONITOR
10-2 CLEANING THE CRT SURFACES
10-3 ADJUSTMENT METHOD
10-4 REMOVAL/REPLACEMENT OF MONITOR
11. REPLACEMENT OF FLUORESCENT LAMPAND DISPLAY CARD
11-1 REPLACEMENT OF FLUORESCENT LAMP
11-2 REPLACEMENT OF DISPLAY CARD
12. PERIODIC INSPECTION TABLE
13. TROUBLESHOOTING
14. GAME BOARD
14-1 REMOVING THE GAME BOARD
14-2 COMPOSITION OF THE GAME BOARD
15. DESIGN RELATED PARTS
16. PARTS LIST
17. WIRING DIAGRAMS
1
2~3
4
5
6~7
8~12
13
14~22
23~36
24~26
27
27
28
28
29
29
29
30
30
31
32~34
35
36
36
37~43
37~38
38~39
40~41
42
43
44~46
44
47~52
47~48
48
49~50
51~52
53~54
53
54
55
56
57~58
57
58
59
60~89
XXX
TABLE OF CONTENTS

1
SPECIFICATIONS
Installation space: 37 in.(L) x 30 in.(W)
Height: 65 in.
Weight: Approx. 223 lbs.
Power maximum current: 1.8 Amp AC 120V 60 Hz
MONITOR: 29” 3-mode scan display
SEGA ENTERPRISES, LTD., has for more than 30 years been supplying various innovative and
popular amusement products to the world market. This Owners Manual is intended to provide
detailed descriptions together with all the necessary installation, game settings and parts ordering
information related to the SEGA BASS FISHING U/R, a new SEGA product.
This manual is intended for those who have knowledge of electricity and technical expertise, espe-
cially in ICs, CRTs, microprocessors, and circuit boards. Read this manual carefully to acquire
sufficient knowledge before working on the machine. Should there be a malfunction, non-technical
personnel should under no circumstances touch the interior system. Should the need arise, contact
our main office, or the closest branch office listed below.
SEGA ENTERPRISES, INC. (USA)
Customer Service
45133 Industrial Drive
Fremont, CA 94538
Phone [phone]
Fax [phone]
7:30 am - 4:00 pm, Pacific Standard Time
Monday thru Friday
INTRODUCTION OF THE OWNERS MANUAL

2
General Precautions
Follow Instructions: All operating and use instructions should be followed.
Attachments: Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer’s instructions, and should use only mounting accessories recommended by the manufacturer.
Moving the Product: This product should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the product to overturn.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product
and to protect it from overheating; these openings must not be blocked or covered. The openings should never be blocked
by placing the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your location, consult your local power company. For products intended
to operate from battery power or other sources, refer to the operating instructions.
Grounding or Polarization: This product is equipped with a three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
Power Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the product.
Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in
a risk of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the
product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to danger-
ous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service person-
nel under the following conditions:
a) If the power cord or plug is damaged;
b) If liquid has been spilled, or objects have fallen into the product;
c) If the product has been exposed to rain or water;
d) If the product does not operate normally when following the operating instructions.Adjust only those controls that
are explained in the operating instructions.An improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation;
e) If the product has been dropped or damaged in any way;
f) When the product exhibits a distinct change in performance; this indicates a need for service.
Replacement Parts: When replacement parts are required, be sure the service technician has used replacements parts
specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.

3
Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other prod-
ucts (including amplifiers) that produce heat.
Lithium Battery- Dispose of batteries only in accordance with the battery manufacturer’s recommen-
dations. Do not dispose in an open flame condition, since the battery may explode.
Cleaning: When cleaning the monitor glass, use water or glass cleaner and a soft cloth. Do not apply chemicals such
as benzine, thinner, etc.
Location: This an indoor game machine, DO NOT install it outside.To ensure proper usage, avoid installing indoors
in the places mentioned below:
• Places subject to rain/water leakage, or condensation due to humidity;
• In close proximity to a potential wet area;
• Locations receiving direct sunlight;
• Places close to heating units or hot air;
•In the vicinity of highly inflammable/volatile chemicals or hazardous matter;
• On sloped surfaces;
• In the vicinity of emergency response facilities such as fire exits and fire extinguishers;
• Places subject to any type of violent impact;
• Dusty places.
INSTALLATION PRECAUTIONS
• Verify the amperage of the branch circuit outlet before plugging in the power plug. Do not over-
load the circuit.
• Avoid using an extension cord. If one is required, use an extension cord of type SJT, 16/3 AWG
rated min. 120 VAC, 7A.
• Moving this unit requires a minimum clearance (of doors, etc.) of 32” (W) by 77” (H).
• For the operation of this machine, secure a minimum area of 32” (W) by 42”(D).
REGULATORY APPROVALS
This game has been tested and found to comply with the Federal Communications Commission Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This game has been tested and listed by Underwriters Laboratories, Inc., to ANSI/UL22.
LISTED
UL
®
5K92
AMUSEMENT MACHINE

4
In order to avoid accidents, check the following before starting the operation:
Check if all of the adjusters are in contact with the surface. If they are not,
the cabinet can move and cause an accident.
Do not climb on the product. Climbing on the product can cause falling
down accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are Locked.
To avoid electric shock, short circuit and or parts damage, do not put the
following items on or in the periphery of the product:
Flower vases, flower pots, cups, water tanks, cosmetics, and receptacles/
containers/vessels containing chemicals and water.
1 . PRECAUTIONS TO BE HEEDED FOR OPERATION
PRECAUTIONS TO BE HEEDED FOR OPERATION BEFORE STARTING THE OPERATION
In order to prevent accidents, be sure to comply with the following points before and during operation.
To avoid injury, be sure to provide sufficient space by considering the
potentially crowded situation at the installation location. Insufficient instal-
lation space can cause the player to come into contact with or hit others
and result in injury or trouble.
PRECAUTIONS TO BE HEEDED DURING OPERATION
To avoid injury and accidents, those who fall under the following catagories are not
allowed to play the game:
* Intoxidated persons.
* Those who have high blood pressure or heart problems.
* Those who have experienced muscle convulsion or loss of consciousness when
playing video games, etc.
* Persons susceptible to motion sickness.
* Persons whose acts runs counter to the products warning displays.
To avoid electric shock and short circuit, do not allow customers to put hands and
fingers or extraneous matter in openings of the product or small openings in or
around doors.
To avoid falling down and injury resulting from falling down, immediatly stop the
customer’s leaning against or climbing on the product, etc.
To avoid electric shock and short circuit, do not allow the customers to unplug the
power plug without a justifiable reason.

5
2 . NAME OF PARTS
GAME SPECIFICATIONS
WHEN ASSEMBLED
WIDTH LENGTH HEIGHT WEIGHT
223 LBS.
30” X 37” X 65”
All measurements are in inches

6
3 . ACCESSORIES

7
“CHECK SIDE” Display
FILTER BOARD
CARTON BOX
601-8928 (1)
Used for transporting the GAME BOARD.
{SUPPLIED WITH YOUR GAME}
DO NOT SHIPGAME BOARD WITHOUT
THIS BOX AS IT MAY DAMAGE THE GAME
BOARD AND VOID YOUR WARRANTY.
!!NEVER SHIP MODEL 3 GAME BOARDS
!!NEVER SHIP MODEL 3 GAME BOARDS
OUTSIDE OF CAGE!!
OUTSIDE OF CAGE!!
THE SHIPMENT METHOD DESCRIBED BELOW ONLY
APPLIES TO ‘MODEL 3’BOARDS CONTAINED IN THE
FOLLOWING GAMES:
NO OTHER GAMES BOARDS ARE TO BE SHIPPED IN THE CAGEAS
THEY MAY BE DAMAGED BEYOND REPAIR. PLEASE SHIP THEM
WITHOUT CAGE PROPERLY PROTECTED DURING SHIPPING.
LOST WORLD, VIRTUA FIGHTER 3, SUPER GT, SEGA BASS FISHING, STRIKER 2,
DAYTONA 2, RALLY, HARELY DAVIDSON

8
4 . ASSEMBLING AND INSTALLATION
Note that the tools such as a phillips screwdriver and wrench for M16 hexagon bolt w/24 mm width
across flats are required for the assembly work.
When carrying out the assembly work, follow the procedure in the following 4-item sequence:

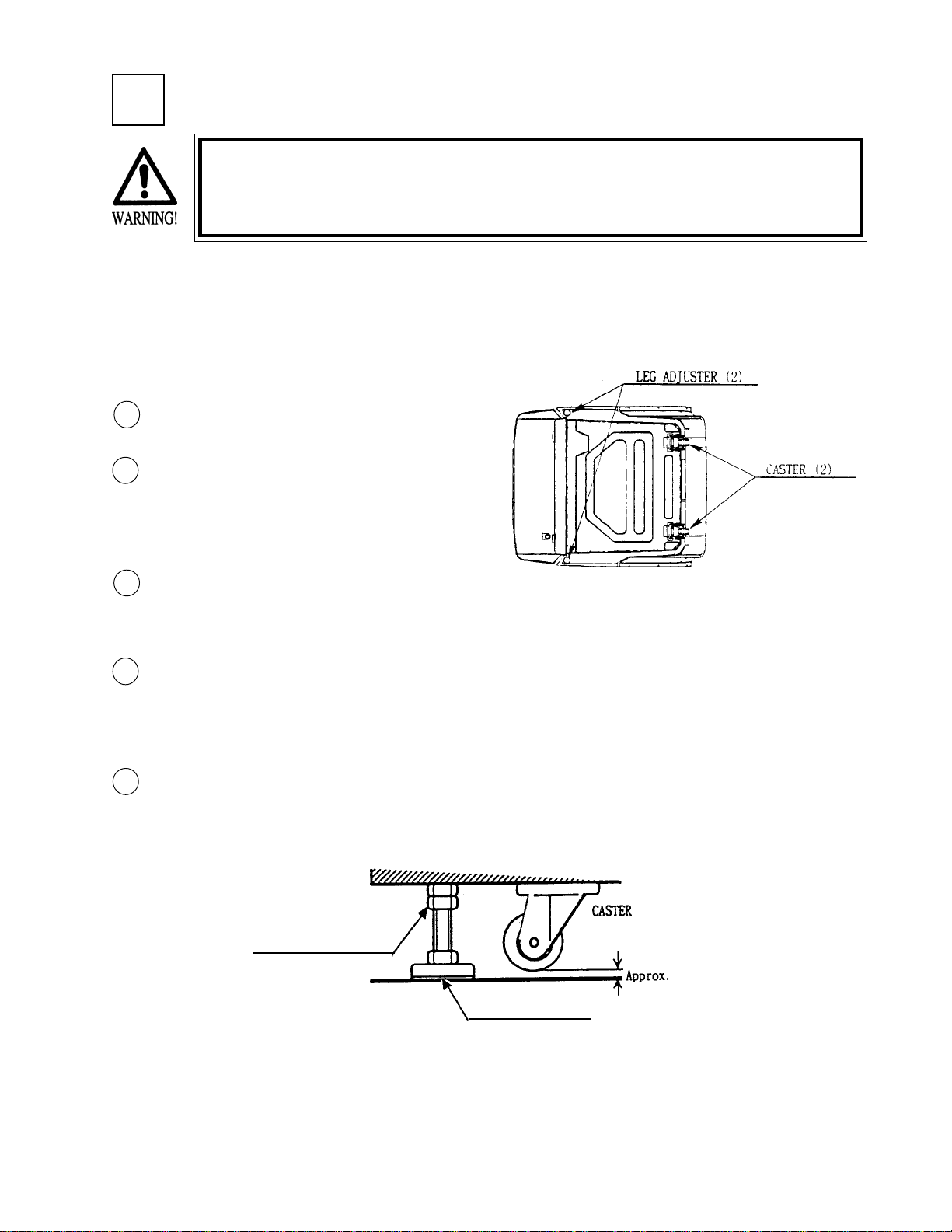

SECURING IN PLACE (ADJUSTER ADJUSTMENT)
POWER SUPPLY
TURNING POWER ON
ASSEMBLING CHECK
Assembling should be performed as per this manual. Since this is a
complex machine, erroneous assembling may cause damage to the
machine, or malfunctioning to occur.
When assembling, be sure to perform work by plural persons.
Depending on the assembly work, there are some cases in which
performing the work by a single person can cause personal injury or
parts damage.
1
2
3
4

9
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Move the machine to the installation position.
Cause all of the leg adjusters to make contact
with the floor. By using a wrench, make
adjustments in the height of the leg adjusters to
ensure that the machine's position is level.
After making adjustments, fasten the leg
adjuster nut upward and secure the height of the
leg adjuster.
This machine has 2 each of casters and adjusters (shown below). When the installation position is determined, cause
the adjusters to come into contact with the floor directly, make adjustments in a manner so that the casters will be
raised approximately 5mm. from the floor and make sure that the machine position is level.
Be sure to have all the Adjusters make contact with the surface. Un-
less the Adjusters come into contact with the surface, the Cabinet
can move of itself, causing an accident.
1
3
2
1
FASTEN UPWARDS
LEG ADJUSTER
1/4” INCH
5
4Depending on the floor surface status of the installation location, the Rear Cabinet may move of itself. As
shown, the NON-SLIP SHEET is attached to the back side of the CAUTION MAT. Ensure that the Adjuster is
installed in the manner to match the position of NON-SLIP SHEET
After making adjustments, fasten the adjuster nut upwards and secure the height of the adjuster
BOTTOM VIEW

10
POWER SUPPLY
Ensure that the Main SW is OFF.
2
1
The AC unit is mounted on the left side of Front Cabinet DX. The AC Unit incorporates the Main SW, Earth Termi-
nal and Inlet. Firmly insert the Power Plug into the Socket Outlet and the other side of the plug to the Inlet. Turn the
Main SW ON to turn power ON.
Ensure that the power cord is not exposed on the surface (passage,
etc.). If exposed, they can be caught and are susceptible to damage.
If damaged, the cord can cause an electric shock or short circuit.
Ensure that the wiring position is not in the customer's passage way
or the wiring has protective covering.
2Connect the Power cord to the Outlet
Socket. Ensure power cord is not in
customer’s passage way or wiring has
protective covering.
TURNING POWER ON
3
To turn power on, turn the AC Unit’s Main SW on.
The Billboard’s Fluorescent Lamp lights up and images will be outputted on the projector.
Background music (BGM) is outputted during ADVERTISE from the speaker. However, this BGM is not emitted if
“No BGM output during ADVERTISE” is set.

11
Selecting the INPUT TEST on the menu screen in the test
mode to display the screen on which each SW and Volume is
tested. Press each switch. (To check the Coin SW, insert a
Coin from the inlet with the Coin Chute Door being opened.)
If the display beside each switch is ON, the switch and wiring
connection are satisfactory. Check the display of each Volume
value. The Volume could have an irregularity caused by
differences between machines and vibration during transporta-
tion. Set the Volume values by referring to Section ?
In the output test mode, carry out lamp test to ascertain that
each lamp lights up satisfactorily.
Selecting the MEMORY TEST on the test mode menu screen
causes the on-board memory to be tested automatically. The
game board is satisfactory if the display beside each IC No.
shows GOOD.
ASSEMBLING CHECK
4
The TEST MENU allows for each part of the cabinet to be checked, the Monitor to be adjusted, and the coin and
game related various functions to be performed.
CPU ROM TEST
GOOD (CROM03 BANK) IC.1 *****
GOOD (CROM02 BANK) IC.2 *****
GOOD (CROM01 BANK) IC.3 *****
GOOD (CROM00 BANK) IC.4 *****
GOOD (CROM13 BANK) IC.5 *****
GOOD (CROM12 BANK) IC.6 *****
GOOD (CROM11 BANK) IC.7 *****
GOOD (CROM10 BANK) IC.8 *****
GOOD (CROM23 BANK) IC.9 *****
GOOD (CROM22 BANK) IC.10 *****
GOOD (CROM21 BANK) IC.11 *****
GOOD (CROM20 BANK) IC.12 *****
GOOD (CROM33 BANK) IC.13 *****
GOOD (CROM32 BANK) IC.14 *****
GOOD (CROM31 BANK) IC.15 *****
GOOD (CROM30 BANK) IC.16 *****
GOOD (CROM3) IC.17 *****
GOOD (CROM2) IC.18 *****
GOOD (CROM1) IC.19 *****
GOOD (CROM0) IC.20 *****
PRESS TEST BUTTON TO EXIT
OUTPUT TEST
>AC MOTOR OFF
CLUTCH OFF
REEL BREAK OFF
EXIT
SELECT WITH SERVICE BUTTON AND
PRESS TEST BUTTON TO EXIT
INPUT TEST
CAST OFF
SELECT OFF
COIN OFF
SERVICE OFF
TEST OFF
ROD X 80H
ROD Y 80H
REEL SPEED 80H
STICK X 80H
STICK Y 80H
PRESS TEST BUTTON TO EXIT

12
12345678901234567890123456789
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
12345678901234567890123456789
123456789012345678901234567890121234567
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
123456789012345678901234567890121234567
123456789012345678901234567890121234567890123
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
123456789012345678901234567890121234567890123
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
C.R.T. TEST 1/2
RED
GREEN
BLUE
WHITE
PRESS TEST BUTTON TO CONTINUE
In the TEST mode menu, selecting C.R.T. TEST allows the
screen (on which the projector is tested) to be displayed.
Although the projector adjustments have been made at the
same time of shipment from the factory, color deviation,
etc., may occur due to the effect caused by geomagnitism,
the location building’s steel frames and other game ma-
chines in the periphery. By watching the test mode screen,
make judgement as to whether an adjustment is needed. If it
is neccessary, adjust the projector by refering to Section 9.
In the TEST mode, selecting SOUND TEST causes the
screen, on which sound related BD and wiring connec-
tions are tested, to be displayed. be sure to check if the
sound is satisfactorily emitted from each of speaker and
the sound volume is appropriate.
SOUND TEST
NO : ( 0 )
SELECT WITH SERVICE BUTTON
PRESS TEST BUTTON TO EXIT
Perform the above inspections also at the time of monthly inspection.
C.R.T. TEST 2/2
PRESS TEST BUTTON TO CONTINUE

13
When moving the machine, be sure to pull out the plug from
the power supply. Moving the machine with the plug as is
inserted can damage the power cord and cause a fire or elec-
tric shock.
When moving the machine on the floor, retract the Adjusters
and ensure that Casters make contact with the floor. During
transportation, pay careful attention so that Casters do not
tread power cords. Damaging the power cords can cause an
electric shock and/or short circuit.
When lifting the cabinet, be sure to hold the catch portions or
bottom part. Lifting the cabinet by holding other portions can
damage parts and installation portions, due to the empty
weight of the cabinet, and cause personal injury.
Use care when handling glass made parts. When the glass is dam-
aged, fragments of glass can cause injury
5 . PRECATIONS TO BE HEEDED WHEN MOVING THE MACHINE

14
The following are operations and responses obtained when the machine functions satisfactorily. Any functioning
different from the following may have been caused by a certain fault. Immediately investigate and eliminate the
cause of malfunctioning to ensure satisfactory operation.
6 . CONTENTS OF GAME
HOW TO PLAY
The ADVERTISE mode appearing on the screen before game play is comprised of the following:
In this game, satisfying the condition of “CLEAR WEIGHT” (the total weight of bass fished up) preset for each area
within the time limit results in a STAGE CLEAR. If you continue when the time is up, however, the current total
weight will remain effective. Clearing all of theAreas allows you to proceed to the Special Stage where huge bass
reside. The player who fishes up big bass can rank among the BIG BASS RANKING players by entering his name.
This game employs an exclusively used Special Controller inclusive of the Game Start Button.

15
1
2
3
Insert a coin(s). Up to 9 credits can be counted at one time. Coins inserted after counting 9 credits will neither
be counted nor returned.
Select a Fishing area from among the 3 Areas of Lake Paradise (a virtual lake). Choose with SELECT LEVER
and decide by START/CAST button.
Then, select the LURE. Select with the SELECT LEVER and decide by START/CAST button. Each type of lure
has specific characteristics (for example, some may be appropriate for a certain depth of water while others may
be suitable for a specific action, time zone, or status of desired bass). By considering these factors, using lures in
the most efficient manner will contribute to increasing the bass fishing-up rate. The characteristics of each type
of lure are as follows:
LODGE
CAPE
INLET

16
SPINNER BAIT (EASY)
Attract bass with this bait while reeling at a constant speed,
or stopping to reel sometimes to allow for blade glistening.
DEEP CRANK (EASY)
This type is used for deep water. Have the lure hit the
bottom and reel, then repeat real and stop action.
SHALLOW CRANK (EASY)
This is used for shallow water. Have the lure hit the bottom
and reel, then repat reel and stop motion.

17
VIBRATION (EASY)
Attract bass by reeling at the constant speed or having the
lure hit an obstacle such as a stone, driftwood, etc. to cause
irregular movements.
MINNOW/ JERK BAIT (NORMAL)
Attract bass by reeling at a constant speed and jerking the
rod to reel so that the lure will look like a small fish
making a quick escape.
PENCIL BAIT (DIFFICULT)
Attract bass to the water surface by reeling the rod while
repeating the slightly twitching motion to have the lure
look like a smalll fish of insects writhing on the surface.
