Sega House of the Dead User manual

Upright Version
Operators’s Manual

HOUSE OF THE DEAD UPRIGHT TABLE OF CONTENTS
INTRODUCTION OF THE OWNERS MANUAL
GENERAL PRECAUTIONS
1. NAME OF PARTS
2. ACCESSORIES
3. ASSEMBLING PRECAUTIONS
4. PRECAUTIONS TO BE HEEDED WHEN MOVING
THE MACHINE
5. CONTENTS OF GAME
6. EXPLANATION OF TEST AND DATA DISPLAY

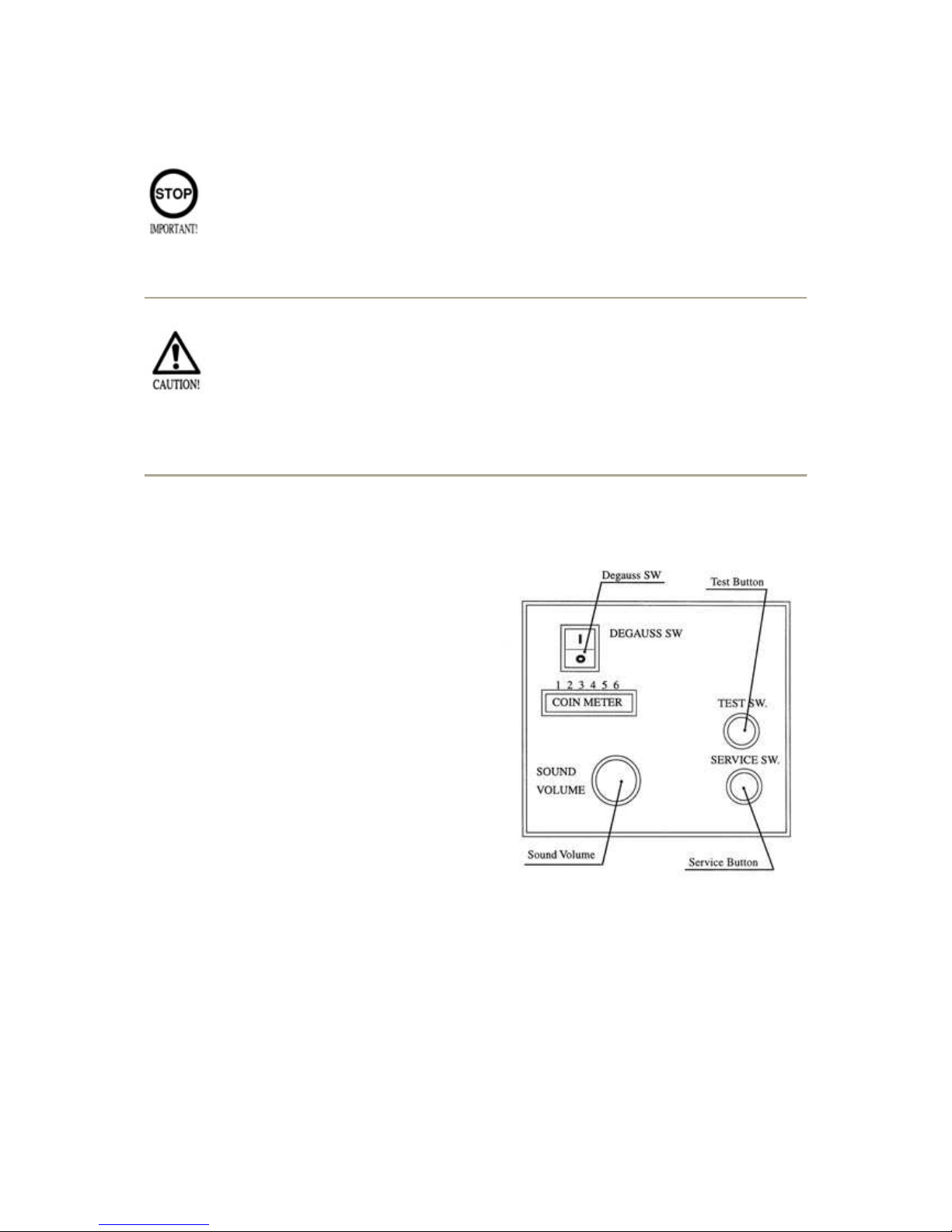

6-1 SWITCH UNIT AND COIN METER
6-2 TEST MODE
6-3 MEMORY TEST
6-4 T.G.P. TEST
6-5 INPUT TEST
6-6 OUTPUT TEST
6-7 SOUND TEST
6-8 C.R.T. TEST
6-9 GAME ASSIGNMENTS
6-10 COIN ASIGNMENTS
6-11 GUN SETTING
6-12 BOOKKEEPING
6-13 BACKUP DATA CLEAR
7. CONTROLLER (GUN)
7-1 REPLACING THE MICRO SWITCH
7-2 REPLACING THE SENSOR BOARD
8. COIN SELECTOR
9. MONITOR
9-1 CAUTION CONCERNING HANDLING
9-2 CLEANING THE SCREEN
9-3 ADJUSTMENT METHOD
10. REPLACEMENT OF FLUORESCENT LAMP AND
LAMPS
10-1 REPLACEMENT OF FLUORESCENT
LAMP
10-2 REPLACEMENT OF LAMPS
11. PERIODIC INSPECTION TABLE
12. TROUBLESHOOTING
13. GAME BOARD
13-1 EXPOSING THE GAME BOARD

13-2 COMPOSITION OF THE GAME BOARD
14. DESIGN RELATED PARTS
15. PARTS LIST
ZMB CABINET STD
ASSY MONITOR
ASSY CONTROL PANEL
CONTROL UNIT
SENSOR UNIT
ASSY SPEAKER
AC UNIT
SW UNIT/COIN METER
ASSY ELEC BASE
ASSY MAIN BD
16. WIRING DIAGRAM

SPECIFICATIONS
Installation space: 67 in.(L) x 47 in.(W)
Height: 89 in.
Weight: Approx. 400 lbs.
Power maximum current: 5 Amp AC 120V 60 Hz AREA
MONITOR: 29 INCH COLOR MONITOR
SEGA ENTERPRISES, LTD., has for more than 30 years been supplying various innovative
and popular amusement products to the world market. This Owners Manual is intended to
provide detailed descriptions together with all the necessary installation, game settings and
parts ordering information related to the HOUSE OF THE DEAD STD, a new SEGA product.
This manual is intended for those who have knowledge of electricity and technical expertise,
especially in ICs, CRTs, microprocessors, and circuit boards. Read this manual carefully to
acquire sufficient knowledge before working on the machine. Should there be a malfunction,
non-technical personnel should under no circumstances touch the interior system. Should the
need arise, contact our main office, or the closest branch office listed below.
SEGA ENTERPRISES, INC. (USA)
Customer Service
45133 Industrial Drive
Fremont, CA 94538
Phone [phone]
Fax [phone]
7:30 am - 4:00 pm, Pacific Standard Time
Monday thru Friday
INTRODUCTION OF THE OWNERS MANUAL

General Precautions
Follow Instructions: All operating and use instructions should be followed.
Attachments: Do not use attachments not recommended by the product manufacturer as they
may cause hazards.
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or
sold with the product. Any mounting of the product should follow the manufacturer's
instructions, and should use only mounting accessories recommended by the manufacturer.
Moving the Product: This product should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product to overturn.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable
operation of the product and to protect it from overheating; these openings must not be
blocked or covered. The openings should never be blocked by placing the product in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your location, consult
your local power company. For products intended to operate from battery power or other
sources, refer to the operating instructions.
Grounding or Polarization: This product is equipped with a three-wire grounding-type plug, a
plug having a third (grounding) pin. This plug will only fit into a grounding-type power
outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-
type plug.
Power Cord Protection: Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where they exit from the product.
Overloading: Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.

Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a) If the power cord or plug is damaged;
b) If liquid has been spilled, or objects have fallen into the product;
c) If the product has been exposed to rain or water;
d) If the product does not operate normally when following the operating instructions. Adjust
only those controls that are explained in the operating instructions. An improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation;
e) If the product has been dropped or damaged in any way;
f) When the product exhibits a distinct change in performance; this indicates a need for
service.
Replacement Parts: When replacement parts are required, be sure the service technician has
used replacements parts specified by the manufacturer or that have the same characteristics as
the original part. Unauthorized substitutions may result in fire, electric shock, or other
hazards.
Safety Check: Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating
condition.
Heat: The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
Lithium Battery- Dispose of batteries only in accordance with the battery manufacturer's
recommendations. Do not dispose in an open flame condition, since the battery may explode.
Cleaning: When cleaning the monitor glass, use water or glass cleaner and a soft cloth. Do not
apply chemicals such as benzine, thinner, etc.
Location: This an indoor game machine, DO NOT install it outside. To ensure proper usage,
avoid installing indoors in the places mentioned below:
· Places subject to rain/water leakage, or condensation due to humidity;
· In close proximity to a potential wet area;
· Locations receiving direct sunlight;
· Places close to heating units or hot air;
·In the vicinity of highly inflammable/volatile chemicals or hazardous matter;

· On sloped surfaces;
· In the vicinity of emergency response facilities such as fire exits and fire extinguishers;
· Places subject to any type of violent impact;
· Dusty places.
Installation Precautions
· Verify the amperage of the branch circuit outlet before plugging in the power plug. Do not
overload the circuit.
· Avoid using an extension cord. If one is required, use an extension cord of type SJT, 16/3
AWG rated min. 120 VAC, 7A.
· Moving this unit requires a minimum clearance (of doors, etc.) of 32" (W) by 77" (H).
· For the operation of this machine, secure a minimum area of 32" (W) by 42"(D).
Regulatory Approvals
This game has been tested and found to comply with the Federal Communications
Commission Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This game has been tested and listed by Underwriters Laboratories, Inc., to ANSI/UL22.

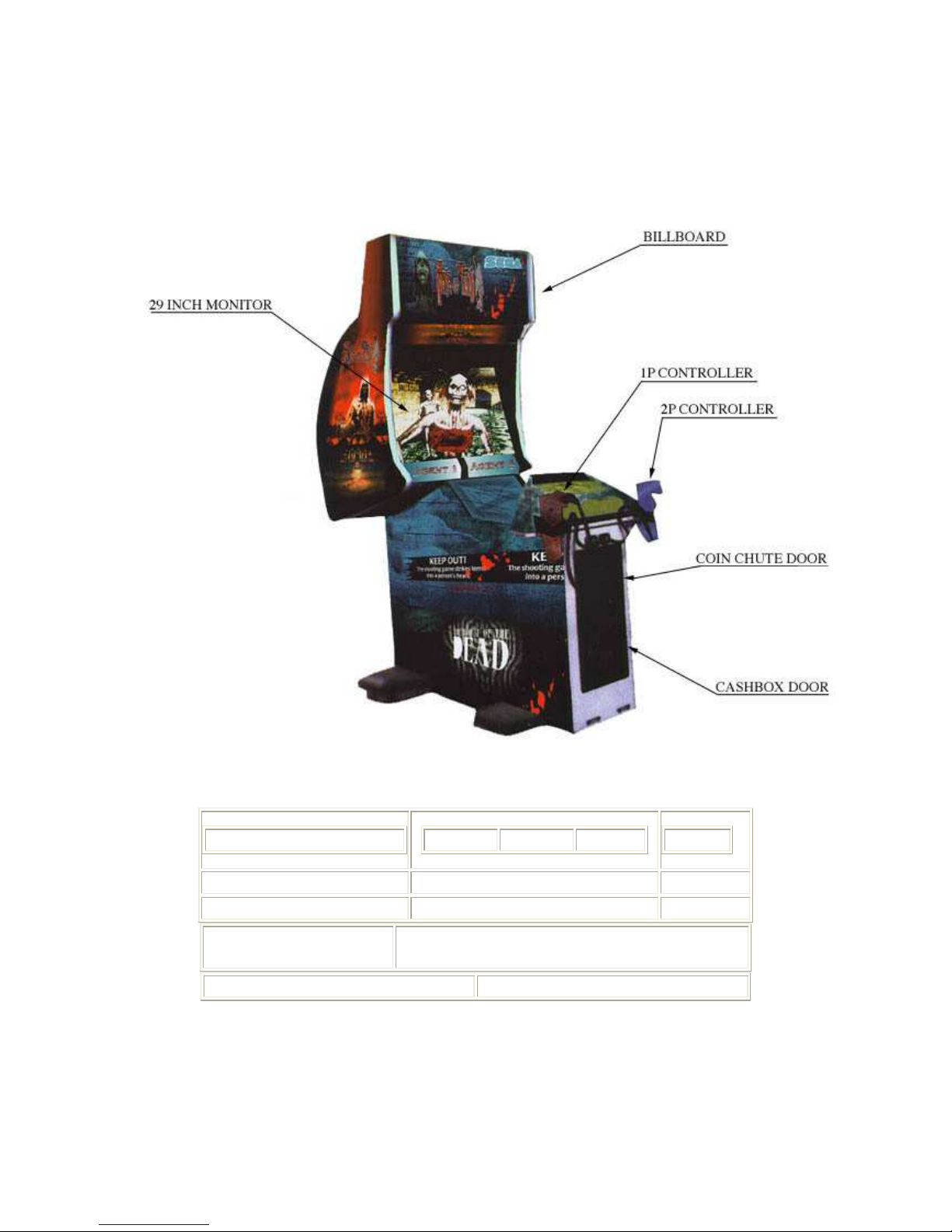

1. NAME OF PARTS
Game Specifications
Width Length Height Weight
PACKAGED GAME 34 x 65 x 80 500 lbs.
ASSEMBLED GAME 67 x 47 x 89 400 lbs.
MONITOR 29" NANAO COLOR MONITOR (med
resolution 24k)
GAME POWER REQUIREMENTS
5 Amp 120V 60Hz

2. ACCESSORIES
Below is a list of items that are packaged with the HOUSE OF THE DEAD STD game. If you
have purchased a game withoout recieving the following accessories please contact your
distributer.

3. ASSEMBLING PRECAUTIONS
Assembling should be performed as per this manual. Since this is a complex
machine, erroneous assembling may cause damage to the machine, or malfunctioning to
occur. When assembling, be sure to perform work by plural persons. Depending on the
assembly work, there are some cases in which performing the work by a single person
can cause personal injury or parts damage.
Note that the tools such as a Phillips screwdriver and wrench for M16 hexagon bolt w/24 mm
width across flats are required for the assembly work.
When carrying out the assembly work, follow the procedure in the following 3-item
sequence:

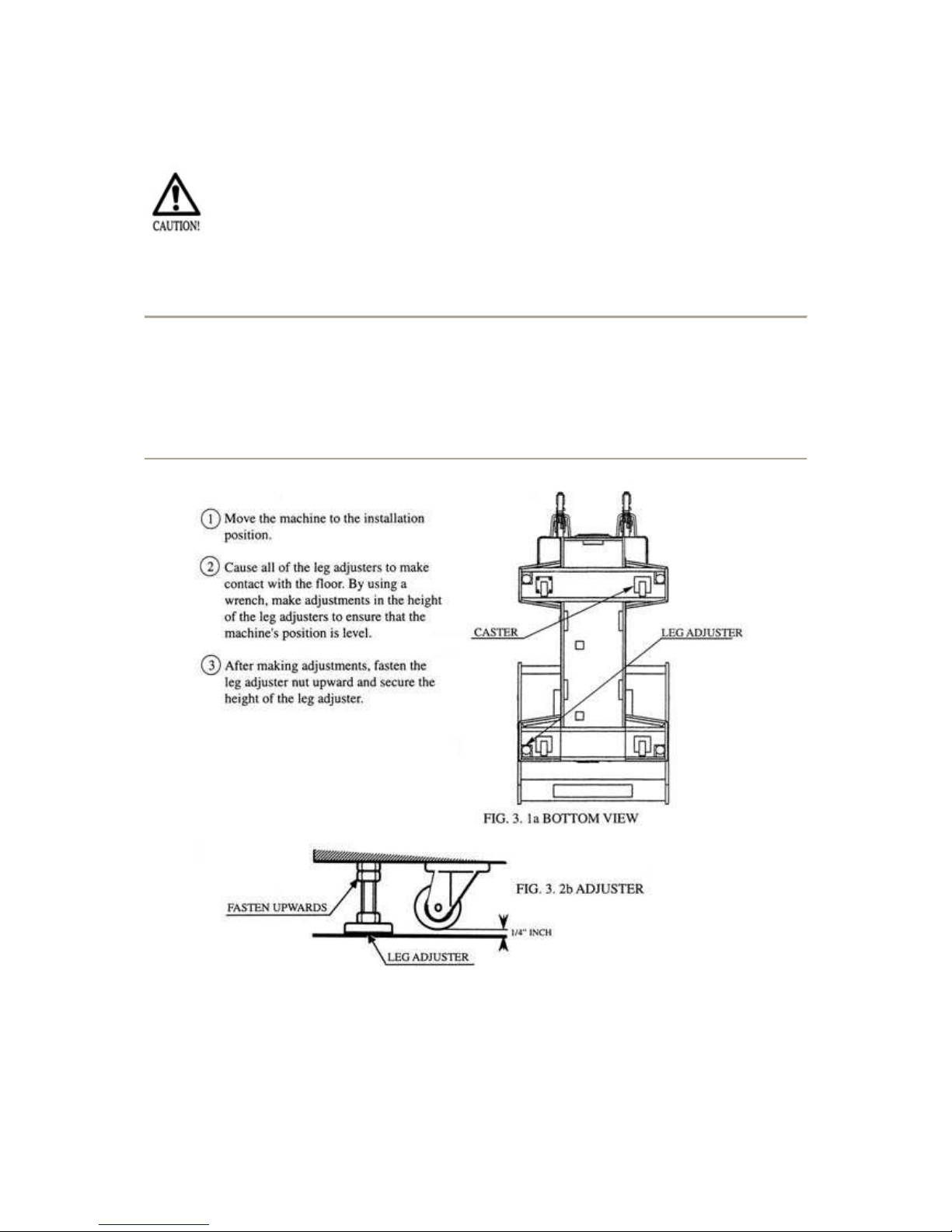

[1.] SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Be sure to have all the Adjusters make contact with the surface. Unless the
Adjusters come into contact with the surface, the Cabinet can move of itself, causing an
accident.
This machine has 4 each of casters and adjusters (fig. 3.1a). When the installation position is
determined, cause the adjusters to come into contact with the floor directly, make adjustments
in a manner so that the casters will be raised approximately 5mm. from the floor and make
sure that the machine position is level.

[2.] POWER SUPPLY
Ensure that the power cord is not exposed on the surface (passage, etc.). If
exposed, they can be caught and are susceptible to damage. If damaged, the cord can
cause an electric shock or short circuit. Ensure that the wiring position is not in the
customer's passage way or the wiring has protective covering.
The AC Unit is mounted on the left side of the FRONT CABINET . The AC Unit
incorporates the Main SW. Firmly insert the Power Plug into the Socket Outlet. Turn the
Main SW ON to turn power ON.
1) Ensure that the main power SW is OFF.
REPLACEMENT AND ADJUSTMENT OF FUSE
In order to prevent electrical shock, be sure to turn power off before performing
work by touching the interior parts of the the product. Be careful so as not to damage
wirings. Damaged wirings can cause an electrical shock or short circuit accident. Be
sure to use fuses meeting specified rating. Using fuses exceeding the specified rating can
cause a fire or electrical shock. After eliminating the cause of the fuse blowing,
continued use with the fuse as is blown can cause generation of heat resulting in fire.
1.> Unplug the unit.
2.> Remove the AC Switch Panel on the left side of the Front Cabinet.
3.> The 3 fuses are now visible. Replace the blown fuse. Always replace the fuses with the same type and
current rating for continued protection.
4.> By using the reverse procedure reinstall the AC Switch Panel.

[3.] ASSEMBLY CHECK
In the TEST MODE, ensure that the assembly has been made correctly and IC BD is satisfactory (refer to
Section 6). In the test mode, perform the following test:

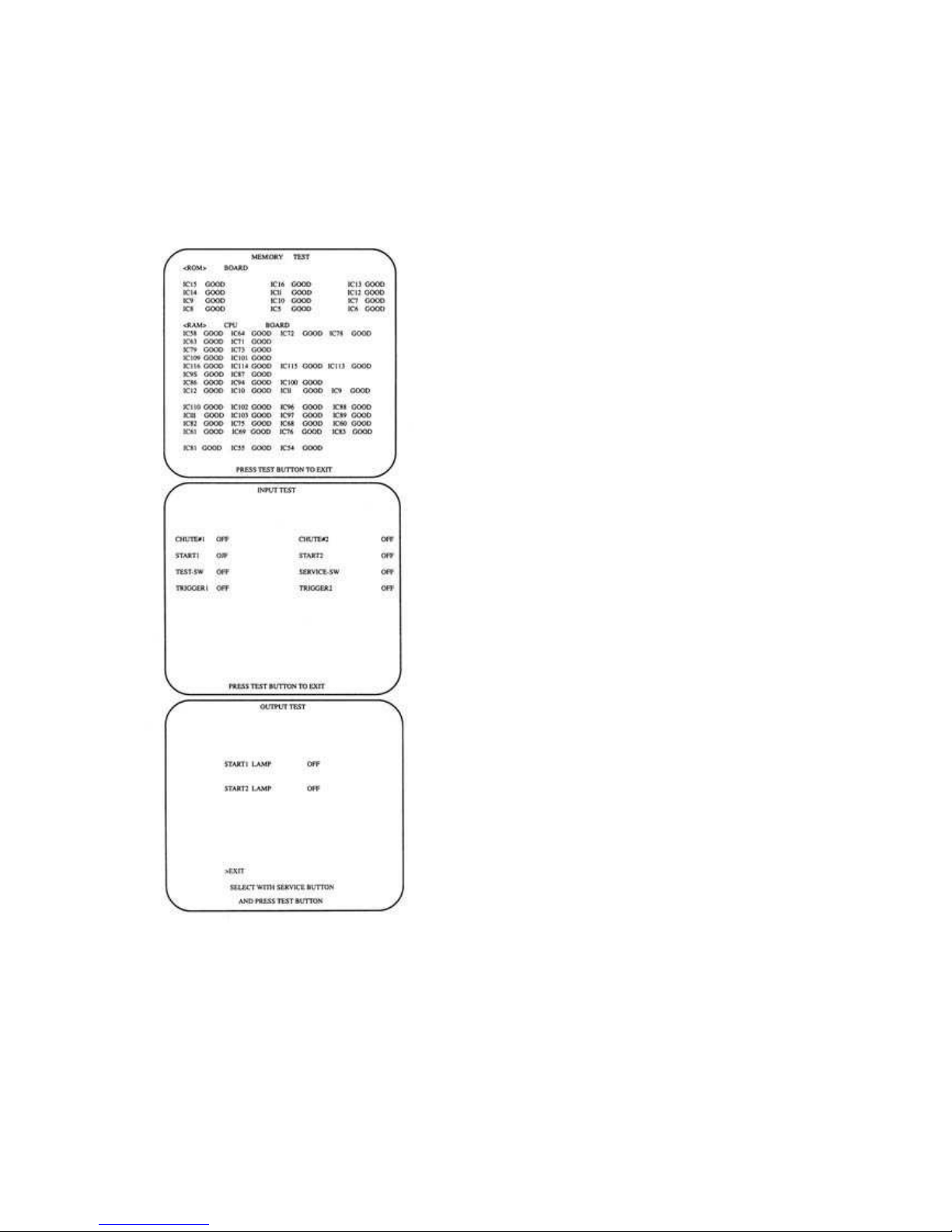

Selecting the MEMORY TEST on the test mode menu screen
causes the on-board memory to be tested automatically. The game
board is satisfactory if the display beside each IC No. shows
GOOD.
Selecting the INPUT TEST on the test mode menu screen causes
the screen (on which each switch is tested) to be displayed. Press
each switch. For the coin switch test, insert a coin from the coin
inlet with the coin chute door being open. If the display beside
each switch indicates "ON," the switch and wiring connections are
satisfactory.
Select "OUTPUT TEST" from the Test Menu in the Test Mode to
have the Lamp Test Screen displayed. Check if each lamp lights
up satisfactorily.

[3.] ASSEMBLY CHECK cont'd

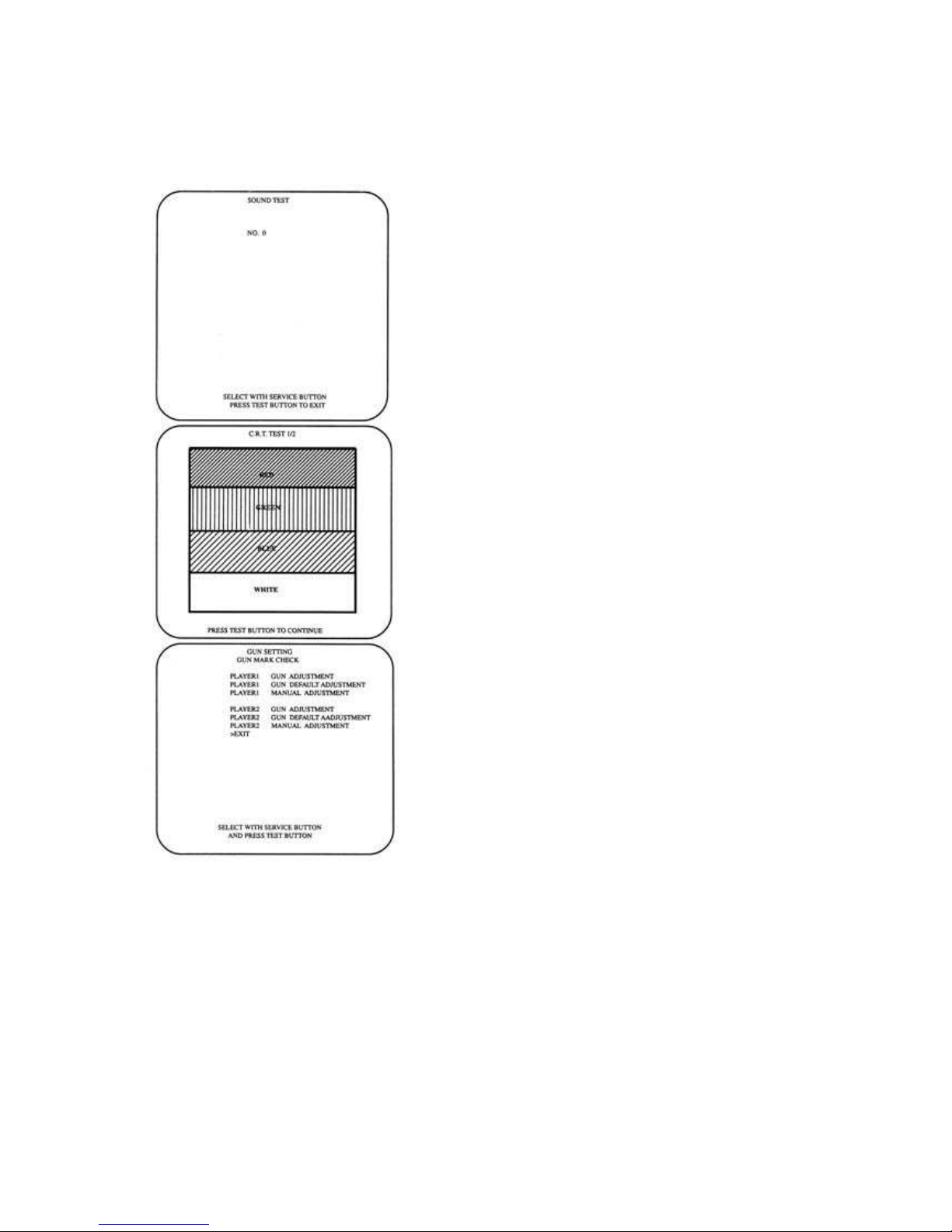

In the Test Mode, selecting SOUND TEST causes the screen, on
which the sound related BD and wiring connections are tested, to be
displayed. Be sure to check if the sound is emitted from each
speaker and the sound volume is appropriate.
In the TEST MODE menu, selecting C.R.T. TEST allows the screen
(on which the monitor is tested) to be displayed. Although the
monitor adjustments have been made at the time of shipment from
the factory, color deviation, etc., may occur due to the effect caused
by geomagnitism, the location building's steel frames and other
game machines in the periphery. By watching the test mode screen,
make adjustment as to whether an adjustment is needed. If it is
necessary, adjust the monitor by referring to Section 9. In case of
color deviation due to the monitor's magnetization, use DAMAGE
SW (see Section 6).
On the menu screen in the test mode, selecting GUN SETTING
displays the screen on which gun setting is set. Check to see if there
is any problem for playing game.
Perform the above inspection also at the time of monthly inspection.

4. PRECATIONS TO BE HEEDED WHEN MOVING
THE MACHINE
When moving the machine, be sure to pull out the plug from the power supply.
Moving the machine with the plug as is inserted can damage the power cord and cause a
fire or electric shock.
When moving the machine on the floor, retract the Adjusters and ensure that Casters
make contact with the floor. During transportation, pay careful attention so that Casters
do not tread power cords. Damaging the power cords can cause an electric shock and/or
short circuit.
When lifting the cabinet, be sure to hold the catch portions or bottom part. Lifting the
cabinet by holding other portions can damage parts and installation portions, due to the
empty weight of the cabinet, and cause personal injury.
Use care when handling glass made parts. When the glass is damaged, fragmentsof glass
may cause injury.

5. CONTENTS OF GAME
1.> Inserting a coin(s) causes the credit display on the bottom of the screen to count. Inserting
one credit worth of coin(s) changes the message on the bottom of the screen from the
"INSERT COIN(S)" to "PRESS START BUTTON" and both of the start buttons will flash.
2.> Pressing either of the start buttons determines which side (left or right) you are playing
on. Press the START button to start the game.
3.> After starting the game, the Title of the Stage being started and the purpose of game are
displayed.
° The life points and the number of bullets of the left-hand side player (1P) are displayed on the lower left-hand
side of the screen, and those of the right-hand side player (2P), on the lower right-hand side of the screen.
° The player loses one life if he shoots a hostage by mistake.
° The gun holds bullets. When it runs out of ammo, "RELOAD" is displayed on the screen. At this time, point
outside the screen and pull the trigger to reload.
° The enemy's axes, knives, drum cans, barrels, etc., can be shot down for your defense.
° Shooting the background scenery can cause Special Items to appear sometimes. The Special Items can be
captured by shooting. Capturing an item allows you to earn points or recovers life points (explanations as regards
to the Items are given later).
° When the life point becomes zero, the game is over.
° Downing the boss character awaiting you at the end of each stage results in clearing that particular stage. The
player cannot defeat the boss until his life meter becomes zero (the boss character's life meter).

4.> If you would like to join in the game at anytime while the other person is playing, insert a
coin(s) and press the start button. Also, when credits allowing the game to be played still
remain, the start button on the other side will keep flashing. The player can participate i the
game by pressing the flashing button.
5.> When the life point becomes zero, if you want continue, insert a coin(s) required to
continue and press the start button. If credits allowing the player to continue still remain, you
can continue by merely pressing the start button.
6.> At the time of game over, if the player's score ranks 10th or higher, hi/her name can be
entered.
CONCERNING SPECIAL ITEMS
LIFE> The life point increases by one. The upper limit of Life Point
can be set to 3, 4, and 5.
COIN or GOLDEN FROG> Capturing either of these items increases the Life Point.
KNACK OF PLAY
°Accurately shoot at the head: In each stage, the head is the weak point of
enemy characters other than the Boss. Hitting the head greatly decreases the
enemy's life points and can down the enemy quickly. In the latter half of the
stages, the higher the stage level you proceed to, the more important the
shooting accuracy becomes.
°Look for your favorite routes: The stage has various routes which are
determined by the player's action. Some routes have less enemy appearance,
frequent life recovery, etc. You can master a knack of play by looking for
your favorite routes.
°Memorizing the enemy's appearance position: Since the enemy's appearance pattern is the same every time,
you can also master a knack of play by memorizing such pattern through repeated game play.

6. EXPLANATION OF TEST AND DATA DISPLAY
By operating the switch unit, periodically perform the tests and data check. When installing the machine intially
or collecting cash, or when the machine does not function correctly, perform checking in accordance with the
explanations given in this section. The following show tests and modes that should be utilized as applicable.
ITEMS DESCRIPTION SECTIONS
INSTALLATION
OF MACHINE
When the machine is installed, perform the
following:
1.> Check to see that each setting is as per
standard setting made at the time of shipment.
2.> In the INPUT TEST mode, check each SW
and VR.
3.> In the OUTPUT TEST mode, check each
of the lamps.
4.> In the MEMORY TEST mode, check IC's
on the IC Board.
6-9, 6-10
6-5
6-6
6-3, 6-4
MEMORY
Choose MEMORY TEST in the MENU mode
to allow the MEMORY test to be performed.
In this test, PROGRAM RAMs, ROMs, and
ICs on the IC Board are checked. 6-3, 6-4
PERIODIC
SERVICING
Periodically perform the following:
1.> MEMORY TEST
2.> Ascertain each setting.
3.> In the INPUT TEST mode, test the
CONTROL device.
4.> In the OUTPUT TEST mode, check each
of the lamps.
6-3, 6-4
6-9, 6-10
6-5
6-6
CONTROL
SYSTEM
1.>In the INPUT TEST mode, check each SW
and VR.
2.> Adjust or replace each SW and VR.
3.> If the problem can not be solved yet, check
the CONTROL's moves.
6-5
7
7
MONITOR
In the MONITOR ADJUSTMENT mode,
check to see if the MONITOR adjustment is
appropriately made. 6-8
IC BOARD
1.> MEMORY TEST
2.> In the SOUND TEST mode, check the
sound related ROM's.
6-3, 6-4
6-7
DATA CHECK
Check such data as game play time and
histogram to adjust the difficulty level, etc. 6-12

6 - 1 SWITCH UNIT AND COIN METER
Never touch places other than those specified. Touching places not specified can
cause electric shock and short circuit.
Adjust to the optimum sound volume by considering the environmental
requirements of the installation location. If the COIN METER and the game board are
electrically disconnected, game play is not possible.
Open FRONT DOOR RIGHT, and the switch unit shown appears. The function of each
switch is as follows:
1.> SOUND VOLUME
Controls the speaker volume.
2.> TEST BUTTON (TEST SW)
For the handling of the TEST BUTTON, refer to
the section on the test mode.
3.> SERVICE BUTTON (SERVICE SW)
Give credits without registering on the coin meter.
4.> DEMAGNETIZER SWITCH (DEMAG SW)
Eliminates the unevenness of the on-screen color
of the MONITOR.
5.> SUB POWER SWITCH (POWER SW)
The AC UNIT at the rear of the cabinet has the main power switch. Note that normally, the
SUB POWER SWITCH should be kept in the ON position.

6 - 2 TEST MODE
This mainly checks if the operation of Game BD is accurate, and allows for COIN
ASIGNMENTS/GAME ASSIGNMENTS setting Projector adjustments.
SELECTION OF TEST ITEMS
1.> Push the TEST BUTTON to cause the following TEST MENU
to appear.
2.> By pushing the SERVICE BUTTON, bring the arrow mark to
the desired item and press the TEST BUTTON.
3.> After the test is complete, move the arrow mark to "EXIT" and
press the TEST BUTTON to return to game mode.
The MEMORY TEST mode is for checking the on-BD memory IC
functioning. "GOOD" is displayed for normal ICs and "BAD" is
dispalyed for abnormal ICs.
° When the test is completed, if the display as shown left, it is
satisfactory.
° After finishing the test, pressing the TEST BUTTON allows the
MENU MODE to return on the screen.
In this test, T.G.P. (on screen display related IC) is checked. As shown at the left, if "GOOD" is displayed for all,
it is satisfactory. Press TEST BUTTON to return to the menu screen.
