Sega Rambo User manual

OWNER'S MANUAL
IMPORTANT
• Before using this product, read this manual carefully to understand the
contents herein stated.
• After reading this manual, be sure to keep it near the product or in a
convenient place for easy reference when necessary.
800 ARTHUR AVENUE, ELK GROVE VILLAGE, IL 60007-5215
Phone: [phone] Facsimile: 847-427-1065
WEB: WWW.SAU.SEGA.COM
© SEGA
All manufacturers, cars, names, brands and associated imagery featured in this game are trademarks and/or
copyrighted materials of their respective owners. All rights reserved.
550-30-303
1ST PRINTING SEP. 2008
SEGA AMUSEMENTS U.S.A., INC.
TM

TABLE OF CONTENTS
i
TABLE OF CONTENTS
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
TABLE OF CONTENTS....................................................................................... i
INTRODUCTION ................................................................................................ iv
1HANDLING PRECAUTIONS ......................................................................... 1
2PRECAUTIONS REGARDING INSTALLATION LOCATION........................ 3
2-1 LIMITATIONS OF USAGE ................................................................................................3
3 PRPRECAUTIONS REGARDING PRODUCT OPERATION ......................... 4
4ASSSEMBLY AND INSTALLATION .............................................................. 7
4-3 FIXATION TO INSTALLATION SITE..............................................................................10
4-4 TURNING ON THE POWER ..........................................................................................12
4-5 CHECKING ASSEMBLY (SETUP) .................................................................................14
5 PRECAUTIONS WHEN MOVING THE MACHINE ..........................................................................18
68GAME DESCRIPTION ......................................................................................................................20
6-1 HOW TO PLAY ...............................................................................................................20
6-2 HINTS FOR PLAYING THE GAME ................................................................................25

ii
TABLE OF CONTENTS
7TEST MODE ................................................................................................ 26
7-1 SWITCH UNIT AND COIN METER ................................................................................28
7-2 SYSTEM TEST MODE ...................................................................................................29
7-3 GAME TEST MODE .......................................................................................................31
7-3-1 GAME TEST MODE Menu....................................................................................31
7-3-2 INPUT TEST ..........................................................................................................33
7-3-3 OUTPUT TEST ......................................................................................................34
7-3-4 GAME ASSIGNMENTS.........................................................................................35
7-3-5 GUN ADJUSTMENT..............................................................................................36
7-3-6 BOOKKEEPING ....................................................................................................41
7-3-7 BACKUP DATA CLEAR ........................................................................................44
810COIN SELECTOR ....................................................................................... 46
9PERIODIC INSPECTION.............................................................................. 47
10 TROUBLESHOOTING................................................................................. 49
11 GAME BOARD ............................................................................................ 51
11-1 REMOVING THE LINDBERGH ....................................................................................51
11-2 CLEANING THE LINDBERGH RED EX.......................................................................52
11-3 COMPOSITION OF THE GAME BOARD.....................................................................55
18
12 PARTS LIST................................................................................................. 56
13 WIRING DIAGRAM...................................................................................... 60

INTRODUCTION
iii
INTRODUCTION
This manual is intended to provide detailed descriptions together with all the necessary information covering the
general operation of electronic assemblies, electro-mechanicals, servicing control, spare parts, etc. for the product,
“PRIMEVAL HUNT DX.”
This manual is intended for the owners, personnel and managers in charge of operation of the product.
Operate the product after carefully reading and sufciently understanding the instructions.
In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician
to touch the internal system. Turn off the power to the machine, making sure to unplug the electrical cord from the
outlet, and contact the ofce listed below or the point of purchase for this product.
Use of this product is unlikely to cause physical injuries or damage to property. However, points that require special
attention are indicated by bold text, the word “IMPORTANT” and the symbol below.
Indicates important information that, if ignored, may result in the mishandling of
the product and cause faulty operation or damage to the product.
Sega Amusements U.S.A., Inc.
800 Arthur Avenue, Elk Grove Village, IL 60007-5215, U.S.A.
TEL: [phone]
TOLL FREE: 1-888-877-2669
FAX: [phone]

iv
INTRODUCTION
Denition of 'Site Maintenance Personnel or Other Qualied Individuals'
Procedures not described in this manual or marked as 'to be carried out by site
maintenance personnel or other qualied professionals' should not be carried
out by personnel without the necessary skill or technology. Work carried out by
unqualied persons may cause serious accidents, including electrocution.
Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance personnel
or other qualied professionals. This manual includes directions for potentially dangerous procedures which should
only be carried out by professionals with the appropriate specialized knowledge.
The site maintenance personnel or other qualied professionals mentioned in this manual are dened as follows:
Site maintenance personnel:
Individuals with experience in maintaining amusement equipment, vending machines, etc., working under the
supervision of the owner/operator of this product to maintain machines within amusement facilities or similar
premises by carrying out everyday procedures such as assembly, maintenance inspections, and replacement of units/
expendable parts.
Activities to be carried out by site maintenance personnel:
Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable
parts.
Other qualied professionals:
Persons employed by amusement equipment manufacturers, or involved in design, production, testing or
maintenance of amusement equipment. The individual should have either graduated from technical school or hold
similar qualications in electrical/electronics/mechanical engineering.
Activities to be carried out by other qualied professionals:
Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.

1
1
1
1
HANDLING PRECAUTIONS
HANDLING PRECAUTIONS
1
When installing or inspecting the machine, be very careful of the following points and pay attention to ensure that
the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the cautionary matters
herein stated can cause personal injury or damage to the machine.
● Before performing work, be sure to turn the power off. Performing the work
without turning the power off can cause an electric shock or short circuit. In the
case work should be performed in the status of power on, this manual always
states to that effect.
● To avoid an electric shock or short circuit, do not plug in or unplug quickly.
● To avoid an electric shock, do not plug in or unplug with a wet hand.
● Do not expose power cords or earth wires on the surface, (oor, passage,
etc.). If exposed, the power cords and earth wires are susceptible to damage.
Damaged cords and wires can cause an electric shock or short circuit.
● To avoid causing a re or an electric shock, do not put things on or damage the
power cords.
● When or after installing the product, do not unnecessarily pull the power cord. If
damaged, the power cord can cause a re or an electric shock.
● In case the power cord is damaged, ask for a replacement through where the
product was purchased from or the ofce herein stated. Using the cord as is
damaged can cause re, an electric shock or leakage.
● Be sure to perform grounding appropriately. Inappropriate grounding can cause
an electric shock.
● Be sure that connections such as IC BD are made properly. Insufcient insertion
can cause an electric shock.
● Specication changes, removal of equipment, conversion and/or addition, not
designated by SEGA are not permitted.
- Failure to observe this may cause a re or an electric shock. Non-compliance
with this instruction can have a bad inuence upon physical conditions of the
players or the onlookers, or result in injury during play.
- SEGA shall not be held responsible for damage, compensation for damage to
a third party, caused by specication changes not designated by SEGA.
● Do not perform any work or change parts not listed in this manual. Doing so may
lead to an accident.
If you need to perform any work not listed in this manual, request work from the
ofce indicated in this manual or the point of purchase, or inquires for details.
● Be sure to perform periodic maintenance inspections herein stated.

2
1
2
1
HANDLING PRECAUTIONS
● For the IC board circuit inspections, only the logic tester is allowed. The use of a
multiple-purpose tester is not permitted, so be careful in this regard.
● Static electricity from your body may damage some electronics devices on the
IC board. Before handling the IC board, touch a grounded metallic surface so
that the static electricity can be discharged.
● This product uses a DLP projector. DLP projector screens scratch easily, so be
careful when cleaning the screen.
● Some parts are not designed and manufactured specically for this game
machine. The manufacturers may discontinue, or change the specications of
such general-purpose parts. If this is the case, SEGA cannot repair or replace a
failed game machine whether or not a warranty period has expired.
CONCERNING THE STICKER DISPLAY
CONCERNING WARNING DISPLAYS
This SEGA product has stickers attached describing the product manufacture No. (Serial No.) and Electrical
Specications. It also has a Sticker describing where to contact for repair and for purchasing parts.
When inquiring about or asking for repairs, mention the Serial No. and Name of Machine indicated on the Sticker.
The Serial Number indicates the product register. Identical machines could have different parts depending on the
date of production. Also, improvements and modications might have been made after the publication of this
manual. In order to ensure you order the correct parts, mention the Serial No. when contacting the applicable places.
This SEGA product has warning displays on stickers, labels and/or printed instructions adhered/attached to or
incorporated in the places where a potentially hazardous situation could arise. The warning displays are intended
for accident prevention for customers and for avoiding hazardous situations relating to maintenance and servicing
work. Some portions of the cabinet contain high voltage and may cause accidents if touched. When performing
maintenance, be very careful of the warning displays. It is especially important that any complex repair and
replacement work not mentioned herein should be performed by those technical personnel who have knowledge of
electricity and technical expertise.
In order to prevent accidents, caution any customer ignoring the warnings to cease and desist immediately.

3
1
3
2
PRECAUTIONS REGARDING INSTALLATION LOCATION
PRECAUTIONS REGARDING INSTALLATION LOCATION
2
This product is an indoor game machine. Do not install it outside. Even indoors,
avoid installing in places mentioned below so as not to cause a re, electric
shock, injury and/or malfunction.
- Places subject to rain or water leakage, or places subject to high humidity in the
proximity of an indoor swimming pool and/or shower, etc.
- Places subject to direct sunlight, or places subject to high temperatures in the
proximity of heating units, etc.
- Places lled with inammable gas or vicinity of highly inammable/volatile
chemicals or hazardous matter.
- Dusty places.
- Sloped surfaces.
- Places subject to any type of violent impact.
- Vicinity of anti-disaster facilities such as re exits and re extinguishers.
- Areas where the temperature exceeds the applicable temperature (ambient
temperature) range of 10 to 30 degrees centigrade.
2-1 LIMITATIONS OF USAGE
● Be sure to check the Electrical Specications. Ensure that this product
is compatible with the location's power supply, voltage, and frequency
requirements. A plate describing Electrical Specications is attached to the
product. Non-compliance with the Electrical Specications can cause a re and
electric shock.
● This product requires a breaker and earth mechanism as part of the location
facilities. Using the product without these can cause a re and electric shock.
● Ensure that the indoor wiring for the power supply is rated at 15 A or higher (AC
single phase 100 V ~ 120 V area), and 7 A or higher (AC 220 V ~ 240 V area).
Non-compliance with the Electrical Specications can cause a re and electric
shock.
● Be sure to use an independent power supply equipped with an earth leakage
breaker. Using a power supply without an earth leakage breaker can cause an
outbreak of re if a power surge occurs.
● Putting many loads on one electrical outlet can cause generation of heat and a
re resulting from overload.
● When using an extension cord, ensure that the cord is rated at 15 A or higher
(AC 100 V ~ 120 V area) and 7 A or higher (AC 220 V ~ 240 V area). Using a cord
rated lower than the specied rating can cause a re and electric shock.

4
1
4
3
PRECAUTIONS REGARDING PRODUCT OPERATION
To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.
PRECAUTIONS REGARDING PRODUCT OPERATION
3
3-1 BEFORE OPERATION
In order to avoid accidents, check the following before starting the operation:
● To ensure maximum safety for the players and the customers, ensure that where
the product is operated has sufcient lighting to allow any warnings to be read.
Operation under insufcient lighting can cause bodily contact with each other,
hitting accident, and/or trouble between customers.
● Be sure to perform appropriate adjustment of DLP projector. For operation of this
machine, do not leave monitor's ickering or deviation as is. Failure to observe
this can have a bad inuence upon the players' or the customers' physical
conditions.
● It is suggested to ensure a space allowing the players who feel sick while
playing the game to take a rest.
● Check if all of the adjusters are in contact with the surface. If they are not, the
cabinet can move and cause an accident.
Ensure that all of the adjusters are in contact with the oor.

5
1
5
3
PRECAUTIONS REGARDING PRODUCT OPERATION
3-2 DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)
To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.
● For safety reasons, do not allow any of the following people to play the game.
- Those who need assistance such as the use of apparatus when walking.
- Those who have high blood pressure or a heart problem.
- Those who have experienced muscle convulsion or loss of consciousness
when playing video games, etc.
- Those who have neck or spinal cord problems.
- Those who are intoxicated or under the inuence of drugs.
- Pregnant women.
- Those who are not in good health.
- Those who do not follow the attendant’s instructions.
- Those who cannot grasp the Control Unit securely because of immobility in
ngers, hands or arms.
- Persons who disregard the product's warning displays.
● Even players who have never been adversely affected by light stimulus might
experience dizziness or headache depending on their physical condition when
playing the game. Small children are especially likely to experience these
symptoms. Caution guardians of small children to keep watch on their children
during play.
● Instruct those who feel sick during play to have a medical examination.
● To avoid injury from falls and electric shocks due to spilled drinks, instruct the
player not to place heavy items or drinks on the product.
● To avoid electric shocks and short circuits, do not allow customers to put
hands and ngers or extraneous matter in the openings of the product or small
openings in or around the doors.
● To avoid falls and resulting injury, immediately stop the customer from leaning
against or climbing on the product, etc.
● To avoid electric shock and short circuit, do not allow customers to unplug the
power plug without a justiable reason.
● Be sure to instruct the adult responsible for their children to watch them.
Children cannot sense danger. Approaching the player during play may result
in accidental contact, collisions or falls. If the Control Unit is pulled from the
Controller Net and dropped on the head, it may cause injury.
● Caution the player not to wrap the Control Unit (Gun) cord around his/her wrist
or neck, as this can lead to serious injury.

6
1
6
3
PRECAUTIONS REGARDING PRODUCT OPERATION
● Immediately stop such violent acts as hitting and kicking the product. Such
violent acts can cause parts damage or cause the cabinet to fall over, resulting
in injury.
● Immediately stop users from leaning or sitting on the Controller Net. Such acts
can lead to injury or damage to parts or the shape of the cabinet.
● Immediately stop users from swinging or reloading the Control Unit in a violent
manner. Such acts may hurt the user or other people around them.
● Playing too close to the cabinet may cause the Control Unit to hit the cabinet
and cause damage. Make sure that players understand to play at a safe
distance from the cabinet.
● Make sure that players understand not to stand too close together when playing
a two player game. Swinging the Control Unit could lead to a player getting hit
and may cause injury.
● Instruct players to hold the Control Unit securely while playing. If the Control Unit
is dropped, it could cause injury to the player.
● Items such as large nger rings can cause injury to the ngers while playing.
Instruct players to remove all accessories that could cause an accident before
playing.
● Instruct players that a single Control Unit is never to be held by two or more
people during play. Otherwise there could be dangerous contact or a collision.
The Control Units for use on 1P side (left side) and 2P side (right side) are different.
Ensure that players do not confuse the right and left side guns when starting play.

7
1
7
6
ASSEMBLY AND INSTALLATION
ASSEMBLY AND INSTALLATION
4
● This work should be carried out by site maintenance personnel or other qualied
professionals. Work performed by non-technical personnel can cause a severe
accident such as electric shock. Failing to comply with this instruction can
cause a severe accident such as electric shock to the player during operation.
● Perform assembly work by following the procedure herein stated. Failure to
comply with the instructions can cause electric shock.
● Perform assembling as per this manual. Since this is a complex machine,
incorrect assembling can cause an electric shock, machine damage and/or
improper functioning as per specied performance.
● When assembling, more than one person is required. Depending on the
assembly work, there are some cases in which working by one person alone
can cause personal injury or parts damage.
● Ensure that connectors are properly connected. Improper connections can
cause electric shock.
● Provide sufcient space so that assembling can be performed. Performing
work in places with narrow space or low ceiling may cause an accident and
assembly work to be difcult.
● To perform work safely and avoid serious accident such as the cabinet falling
down, do not perform work in places where step-like grade differences, a ditch,
or slope exist.
● Be careful not to damage the wires. Damaged wires may cause electric shock
or short circuit or present a risk of re.
● Do not leave power cords, ground wires, or network cables exposed in areas
of heavy foot trafc. Doing so may cause them to become damaged, possibly
resulting in electric shock and/or short circuits. When laying wiring across the
oor, always use safety covers to protect the wires. (Wiring diameter: power
cable - approx. Ø 8.)

8
1
8
6
ASSEMBLY AND INSTALLATION
● Wear appropriate work clothing so that work can be performed safely. Use
gloves and safety shoes to prevent accidents or injuries.
● When installing a wire protection cover over a oor, use a material shaped
so that no one passing by will stumble over it. Using a material that could be
stumbled over might lead to an accidental fall.
● Be careful in handling plastic parts. Be sure not to tighten screws or nuts
too tightly. If such parts are exposed to excessive loads or impact, they
might become damaged, resulting in fragments or cracks that could cause
accidental injury.
● When attaching or removing doors or lids, be careful that your hand or nger
does not get caught in anything.
● To perform work safely and securely, be sure to prepare a step which is in a
secure and stable condition. Performing work without using the step can cause
accidents such as falling down.
Be very careful when handling the DLP projector screen. The screen is easily
damaged but cannot be repaired. If damaged the entire screen must be replaced.

9
1
9
6
ASSEMBLY AND INSTALLATION
Installation and assembly of this product should take place in the following sequence.
4-1 Attaching the Billboard
4-2 Connecting the Rear Cabinet to the DLP Base
4-3 Fixation to Installation Site
4-4 Turning on the Power
4-5 Assembling Check

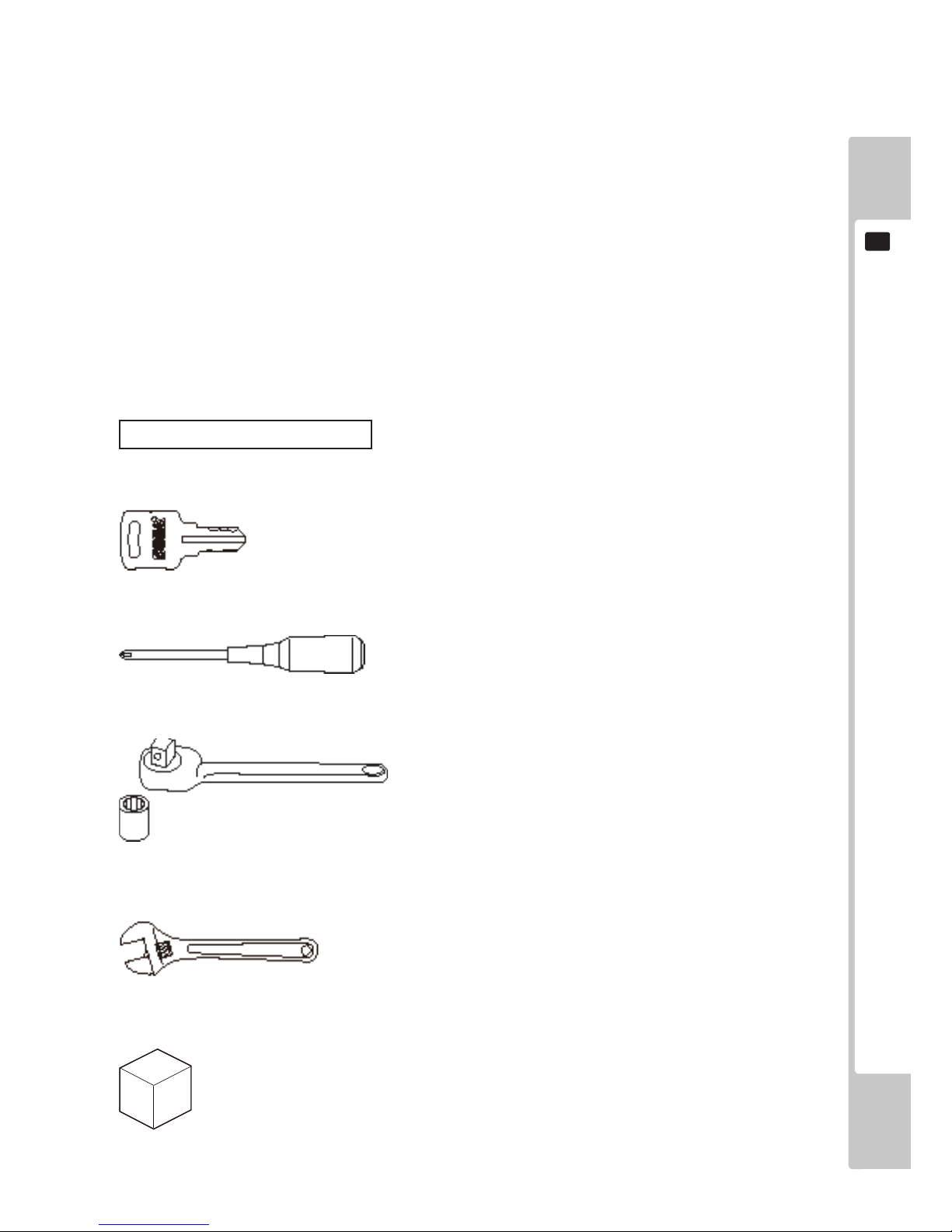

Tools necessary for work
- MASTER KEYS (Accessory)
- Phillips screwdrivers (for M4, M5 screws)
- Sockets for hexagon bolts and nuts (for M8 hexagon bolts)
- Spanner with measuring distance of 24 mm to opposite side (for M16 hexagon bolts)
- Step

10
1
10
6
ASSEMBLY AND INSTALLATION
This product has 3 casters and 4 adjusters. After determining the installation location, have the adjusters contact the
oor directly, and adjust them so the machine will remain in a level position keeping a space of about 5 mm between
the oor and the casters.
1
Move the product to the installation site.
Secure a 200 mm space between the back wall and the back of the cabinet for ventilation.
4-3 FIXATION TO INSTALLATION SITE
Make sure that all the adjusters contact the oor. Otherwise the cabinet could
move, causing an accident.

11
1
11
6
ASSEMBLY AND INSTALLATION
2

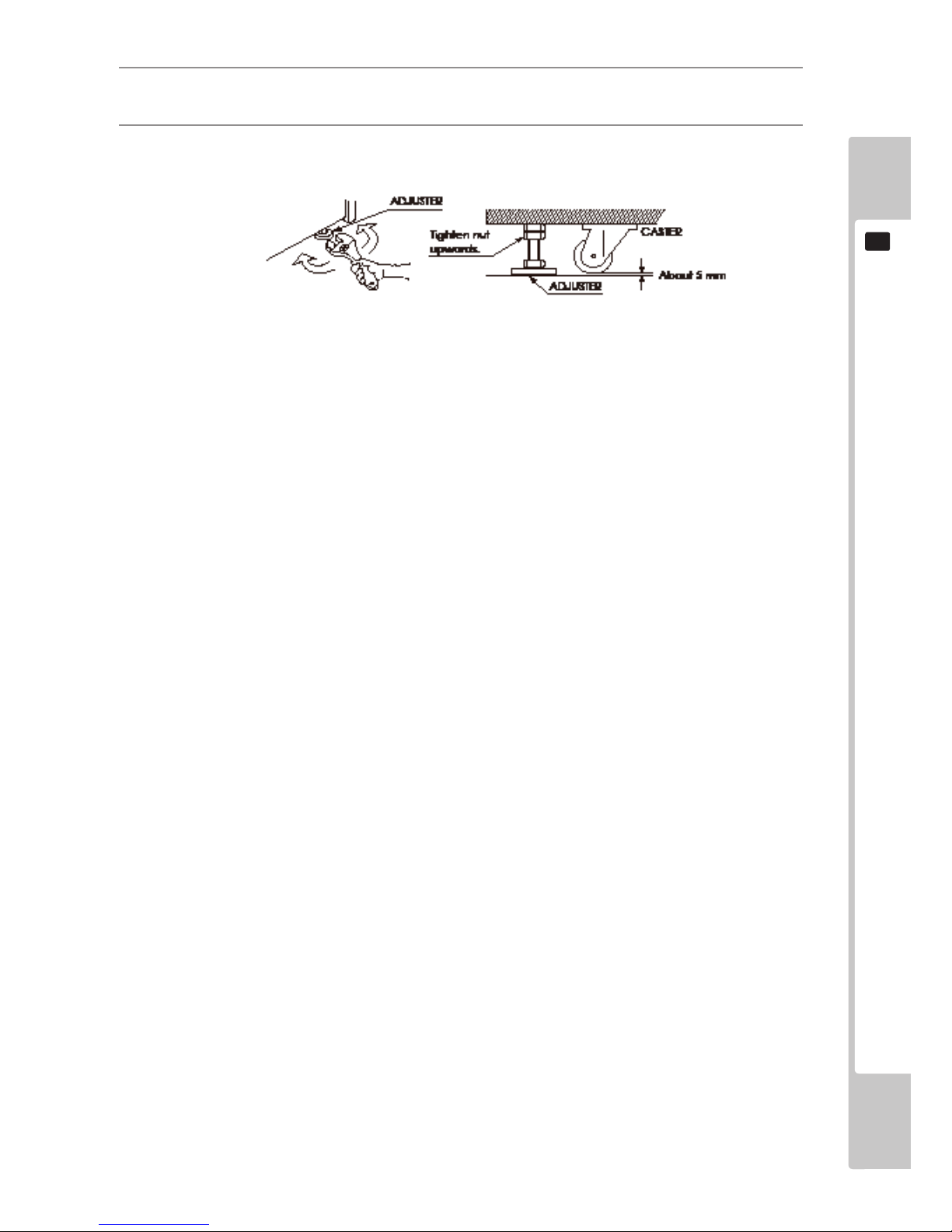

Bring the adjusters into direct contact with the oor. Use a wrench to align the height of the adjusters until
the cabinet is perfectly level.
3
After setting, turn adjuster nuts upwards to tighten them and secure adjuster heights.
6-7 FIG. 03

12
1
12
6
ASSEMBLY AND INSTALLATION
4-4 TURNING ON THE POWER
● Be careful not to damage the DVD wire by getting it caught between objects,
etc. Doing so may cause a short circuit or re.
● The following explanation assumes that the product has been assembled
properly as explained above. If there is an error or if the product operates in a
manner other than as indicated below, cut off the power supply immediately.
Failure to do so may result in a re or electrical shock.
● If you look directly at the laser beam in the DVD DRIVE, you could suffer vision
impairment. Do not look inside the DVD DRIVE.
● Do not use or store the DVD DRIVE or DVD wire in any of the following locations,
as this may result in serious damage.
[Do not use or store in these locations]
- Anywhere which may vibrate or shock the equipment
- In direct sunlight
- In damp or dusty places
- In places with a sharp change in temperature
- Close to anything that gives off heat (a heater, etc.)
- Close to anything with a strong magnetic eld (magnets, monitor, speakers,
radio, etc.)
- Anywhere that is likely to get wet (kitchen, etc.)
- Anywhere with a slope or incline
- Anywhere with corrosive gas in the air (chlorine, hydrogen sulde, ammonia,
sulfur dioxide, etc.)
- Anywhere with strong static electricity
[Do not use in these locations]
- Close to anything that is highly retentive of heat (carpet, sponge, cardboard,
etc.)
- Anywhere that blocks the DVD DRIVE air vent.
● The DVD DRIVE is a delicate piece of equipment. Avoid the following.
- Dropping or shaking it violently.
- Getting water or other liquids on it, or placing small items on top of it.
- Placing large or heavy items on top of it.
- Drinking or smoking close to the DVD DRIVE.

13
1
13
6
ASSEMBLY AND INSTALLATION
● Do not turn off the power to the DVD DRIVE when its access lamp is on or ashing,
as this could cause damage to the device.
● Do not allow any foreign materials, such as liquids, metals or smoke inside the
DVD DRIVE.
● Use a soft, dry cloth to wipe off any dirt or marks on the DVD DRIVE.
- If you need to use a cleaning agent, always use a “neutral” agent diluted in
water.
- Never use products or cleaning agents containing benzene, alcohol, thinners,
etc.
● Do not touch the lens inside the DVD DRIVE. Doing so may prevent it from reading
accurately.
● The chip components on IC boards can be damaged by electrostatic discharge
from the human body. Before handling an IC board, always neutralize any static
charge in the body by touching a grounded metal surface.
● Some parts are not designed and manufactured specically for the kit. The
manufacturers may discontinue, or change the specications of such general
purpose parts. If this is the case, SEGA cannot repair or replace a failed kit
whether or not a warranty period has expired.

14
1
14
6
ASSEMBLY AND INSTALLATION
Refer to 9-1 and start the Test Mode.
Using Test Mode, verify points such as the proper assembly of the machine. Also verify normal operation of the
LINDBERGH RED EX, boards which have been connected, and the product’s various input and output devices. In
Test Mode, conduct the tests described below.

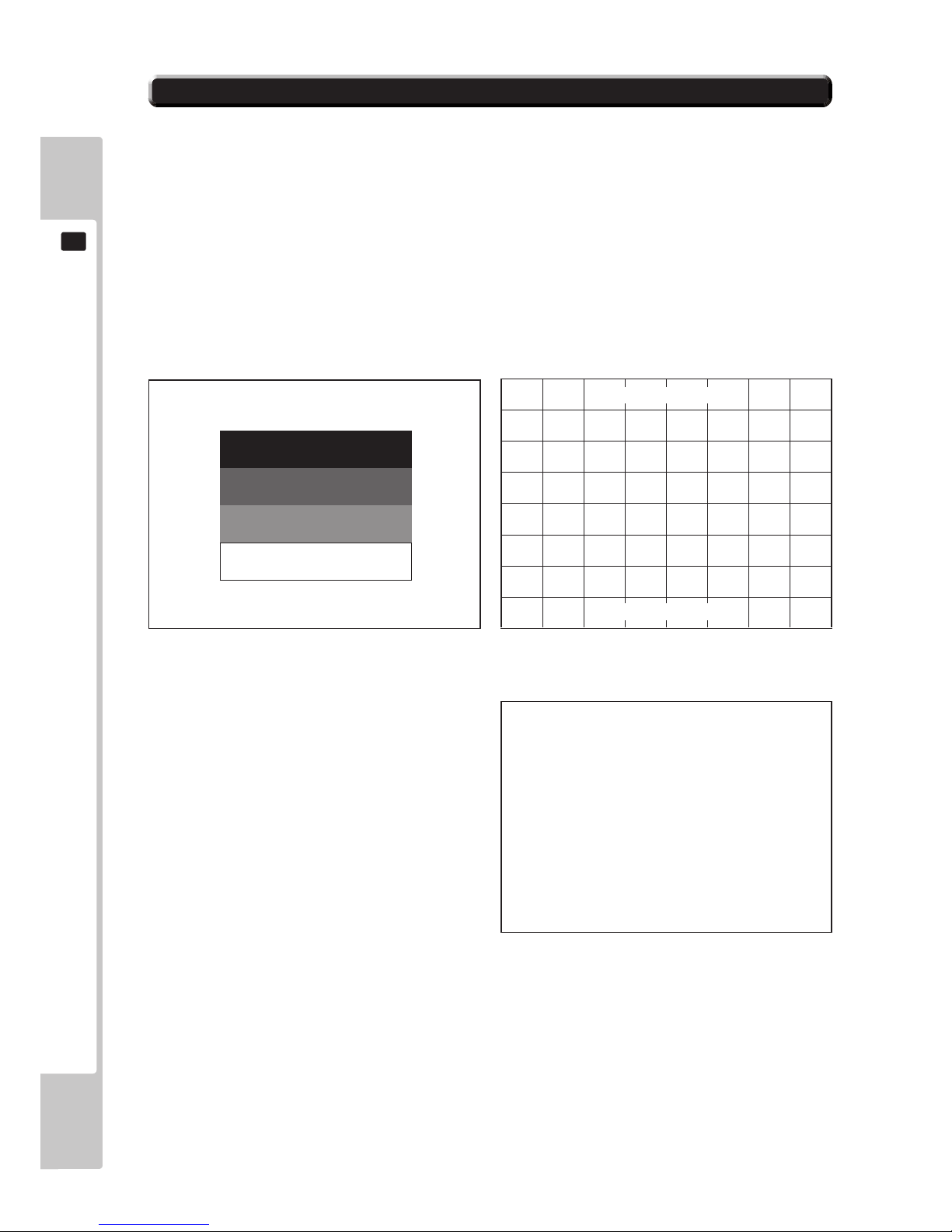

(1) MONITOR TEST
When MONITOR TEST is chosen from System Test Menu Screen, a screen to test the Monitor will be displayed.
Though the Monitor is pre-adjusted at the time of shipment from the factory, view the test screen to determine
whether or not adjustment is necessary. If so, refer to Chapter 11 and adjust the Monitor.
6-11 FIG. 01 6-11 FIG. 02
(2) SPEAKER TEST
When SPEAKER TEST is chosen from System Test
Menu Screen, a screen to test each of the speakers will be
displayed.
The RIGHT SPEAKER and the LEFT SPEAKER are
the only speakers which can be checked by just changing
their respective settings to ON and OFF.
SPEAKER TEST
RIGHT SPEAKER OFF
LEFT SPEAKER OFF
REAR RIGHT SPEAKER OFF
REAR LEFT SPEAKER OFF
CENTER SPEAKER OFF
WOOFER SPEAKER OFF
-> EXIT
SELECT WITH SERVICE AND PRESS TEST
6-11 FIG. 03
MONITOR TEST 1/2
132
PRESS TEST TO NEXT
MONITOR TEST 2/2
PRESS TEST TO EXIT
4-5 ASSEMBLING CHECK
