Overview
This 'Quick Installation Guide' describes the hardware installation and initial
setup of the dongleserver ProMAX.
Table of contents 1.
Do you need assistance? Contact us!
Customers from the United States of America and Canada please contact the
North American support.
Überblick
Dieser 'Quick Installation Guide' beschreibt die Hardware-Installation und
Inbetriebnahme des dongleserver ProMAX.
Inhaltsverzeichnis 17.
Benötigen Sie Hilfe? Kontaktieren Sie uns!
Monday to Thursday
Friday 8:00 a.m. to 4:45 p.m. and 8:00 a.m. to 3:15 p.m. (CET)
[phone]
suppor[email protected]
www.seh-technology.com
Monday to Friday 9:00 a.m. to 5:00 p.m. (EST/EDT)
[phone]
[e-mail]
www.seh-technology.com
Montag–Donnerstag
Freitag 8:00–16:45 Uhr 8:00–15:15Uhr
[phone]
suppor[email protected]
www.seh.de

1 [en] Quick Installation Guide
Contents
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Purpose .....................................................................................................................................2
Scope of Supply .....................................................................................................................2
Accessories...............................................................................................................................3
Technical Data.........................................................................................................................4
LED Display ..............................................................................................................................6
Type Plate.................................................................................................................................6
Safety Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Software Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Getting Started: SEH UTN Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Starting the SEH UTN Manager ......................................................................................11
Finding the UTN Server and Assigning an IP Address............................................12
Adding the UTN Server to the Selection List.............................................................13
Connecting the USB Dongle to the Client..................................................................14
Configuring the UTN Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Locking the UTN Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Regulatory Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Open Source Software License Disclaimer and License Texts . . . . . . . . . . . .36

Quick Installation Guide [en] 2
General Information
Purpose
The USB dongle server 'dongleserver ProMAX’ makes non-network-ready USB
dongles accessible via TCP/IP network.
For this purpose, the USB dongles will be connected to the USB ports of the
dongleserver ProMAX. Then the UTN (UTN = USB to Network) functionality and
the corresponding software tool 'SEH UTN Manager' establish a virtual USB
connection between USB dongle and client. The USB dongle can be used as if it
were connected locally.
The dongleserver ProMAX is configured, monitored and maintained via the
'myUTN Control Center'.
To keep the USB dongles safe, you can lock the housing cover of the
dongleserver ProMAX.
Scope of Supply
Check the package content before getting started:
UTN server Dongleserver 'dongleserver ProMAX'
Key For the lock in the dongle server lid
Quick Installation
Guide The Quick Installation Guide provides a brief description of the installation of
the dongleserver ProMAX.
(This document)
2 power cords Power supply cable
2 mounting brackets 65.5 mm × 43 mm × 29.8 mm
4 screws M4 × 4 mm
SD card Inserted into SD card reader.

3 [en] Quick Installation Guide
Accessories
Value-adding accessories for your dongleserver ProMAX are optionally available
from SEH.
dongleserver ProMAX
Serviceplus Package The ‘dongleserver ProMAX Serviceplus package'
extends the manufacturer's guarantee of your
dongleserver ProMAX from 36 to 60 months. In
addition, you will receive quickly and easily an
advance replacement device in case of a defect.
Detailed information:
https://www.seh-technology.com/services/
service-packages.html
RMK3
(Rack Mount Kit Type 3) For a perfect and safe storage of your dongleserver ProMAX we recommend the Rack
Mount Kit 'RMK3'.
Using the Rack Mount Kit, you can mount the
dongleserver ProMAX into 19" server racks.
Compared to the mounting brackets included in
delivery, the RMK3 allows for a comfortable
access to the dongleserver ProMAX via telescopic
slides. Detailed information:
http://www.seh-technology.com/products/rack-
mount-kits.html

Quick Installation Guide [en] 4
Technical Data
Properties Values
Network connection
logical:
physical: IEEE 802.3 (1000BaseT, 100BaseTX and 10BaseT)
• 2 × RJ-45 (STP, categorie 5 or better)
• Connector 1: primary network connection
• Connector 2: secondary network connection
(backup)
Device connection • 5 × USB 3.0 SuperSpeed (USB ports 1-5)
• 15 × USB 2.0 Hi-Speed (USB ports 6-20)
Power connection 2 × power connection, each
• 100–240 V alternating current
• 1.3 A max.
Power consumption • approx. 5.5 W without USB dongles
• approx. 13 W with 20 USB dongles
• typ. approx. 114 kWh/year
Operating environment ambient temperature: 5–40 °C
relative humidity: 20–80%
activity LED
(yellow)
status LED
(green)
USB ports 1-20
with LED for the USB port
restart button
20
1
reset button
connector for
power supply 2
(at the rear side)
network connector 1
(RJ-45)
(at the rear side)
link LED
(green)
connector for
power supply 1
(at the rear side)
network connector 2
(RJ-45)
(at the rear side)
SD card reader
display panel

5 [en] Quick Installation Guide
Dimensions Width: 422 mm
Height: 44 mm
Depth: 243 mm
Weight: 2950 g (with housing cover)
WARNING
Do not operate all USB ports with maximum load!
The USB ports are grouped:
Group 1 = 1–5
Group 2 = 6–10
Group 3 = 11-15
Group 4 = 16-20
Group 1 can only be loaded with 3.3 A. Groups 2–4 can
only be loaded with 2.2 A each.
If this value is exceeded, USB ports will be deactivated
until the load is sufficiently reduced.
How to fix it:
If USB ports have been deactivated, you must decrease
the load on the UTN server to be able to use all USB
ports again. To do so, remove USB devices.
You must re-activate the USB port which has been
deactivated. All Information on how to do this can be
found in the myUTN User Manual. The documentation is
available via the link on page 9.
Properties Values

Quick Installation Guide [en] 6
LED Display
The LEDs of the UTN server provide information about its status.
Type Plate
The type plate gives important product information, such as hardware and
certification information as well as the serial number. The serial number
contains the production date: nnn YYYY MM nnnnn.
This information helps you e.g. during maintenance and is needed for support
requests as well as for the ’dongleserver ProMAX Serviceplus Package’ 3.
LED Action Color Description
Link 1,
Link 2 permanently off
permanently on
blinks at
irregular
intervals
–
green
green
There is no connection to the network.
There is a connection to the network.
There is a connection to the network
and network data packets are being
exchanged.
Activity blinks at
irregular
intervals
yellow Indicates the exchange of UTN
packets.
Status permanently off
blinks 3 times
blinks 2 times
–
green
green
If the activity LED blinks periodically at
the same time, the BIOS mode is
signalized.
Indicates a Zeroconf IP address.
Indicates an IP address that does not
correspond to 0.0.0.0 or that comes
from outside the Zeroconf range.
USB port
1–20 permanently off
permanently on
permanently on
–
green
orange
No USB dongle is connected to the
respective port.
A USB dongle is connected to the
respective port.
The connection to the respective port
and the attached USB dongle is
activated.
Important:
When the device starts up, the behavior of the LEDs
differs from this description.

7 [en] Quick Installation Guide
Safety Regulations
UTN servers are network devices for use in office environments. The
dongleserver ProMAX is designed for the integration of USB dongles into TCP/IP
networks.
• Read the documentation and make sure that your system meets the require-
ments listed therein.
• Avoid contact with humidity or liquids.
• The device must only be connected and operated if it is in perfect condition.
• Make sure that no-one steps on or stumbles over the cables.
• If the supplied power cord cannot be used in your country, acquire an appro-
priate power cord that suits national provisions. For more information, con-
sult your retailer.
• The device must be connected to a socket with safety contact.
• Position the device in a way that guarantees that the socket for the connec-
tion of the power cord is in the proximity of the device and is easily accessi-
ble. Make sure that the device can be separated easily from the mains. A
damaged power cord must be replaced immediately. For more information,
consult your retailer.
• Do not connect a telephone cable to the RJ-45 connector. The RJ-45 connec-
tor may only be connected to SELV voltages. For the connection to the RJ-45
connector only STP cabling (category 5 or better) may be used. The shielding
must fit flushly to the connector.
• Do not open the housing. Unauthorized modifications to the device can af-
fect the product certification and are forbidden.
• The device must not be directly connected to outdoor lines.
• Electrostatic discharges (ESD) may impair device performance.
• An interruption of the supply voltage may impair device performance or
cause malfunctions.
• Disconnect both power cords in order to put the device into a zero-potential
condition.
Important:
Before starting the installation and the initial setup
procedure as well during the operation of the UTN
server, note the following safety regulations. Their
purpose is to protect yourself and others from personal
injuries, and to avoid damage to the equipment.

Quick Installation Guide [en] 8
Hardware Installation
You can directly connect up to 20 USB dongles to the dongleserver ProMAX.
1. Connect the USB dongle to a USB port of the UTN server.
2. Repeat step 1 if you want to connect more than one USB dongle.
3. Connect the network cable (RJ-45) to network connector1 of the UTN server.
4. Optional: Connect another network cable (RJ-45) to network connector 2 the
UTN server.
This second network connection is for redundancy (backup).
5. Connect the power cord to the UTN server.
The UTN server boots and then is ready for use.
dongleserver
ProMAX
with
USB dongles
network
clients with software tool
'SEH UTN Manager'
UTN connection

9 [en] Quick Installation Guide
Software Installation
The 'SEH UTN Manager' is a software tool developed by SEH Computertechnik
GmbH. The SEH UTN Manager is used to establish and manage connections to
the USB devices and USB dongles connected to UTN servers.
The SEH UTN Manager is available in two versions:
•completeversion:
has a graphical user interface and offers additional features
• minimal version:
command-line interface only
A detailed description can be found in the myUTN User Manual.
The SEH UTN Manager has to be installed on all clients that are intended to
access a USB dongle via the network. Different installation files are available,
depending on the operating system.
First, you have to download the installation file for the SEH UTN Manager from
the website of SEH Computertechnik GmbH:
http://www.seh-technology.com/services/
downloads/download-dongleserver/promax.html
System requirements:
– Windows 7 or later except for Windows Server 20081;
OS X respectively macOS 10.9 or later
– The installation can only be carried out by users with administrative rights.
1. Start the installation file.
2. Install the complete version of the SEH UTN Manager (including graphical
user interface). To do so, follow the installation routine.
The SEH UTN Manager is installed on your client.
1. Windows 7 and Windows Server 2008 R2: KB3033929 (https://technet.microsoft.com/en-us/li-
brary/security/3033929) must be installed.
Important:
The SEH UTN Manager is also available for selected
Linux systems.
All information necessary for installing and using the
SEH UTN Manager in Linux environments can be found
in the myUTN User Manual Linux. The documentation is
available via the link given above.

Quick Installation Guide [en] 10
Getting Started: SEH UTN Manager
After the SEH UTN Manager is started, the network has to be scanned for
connected UTN servers. The network range to be scanned is freely definable;
the search can be effected via multicast and/or in definable IP ranges. The
default setting is multicast search in the local network segment.
All UTN servers found and their connected USB devices or USB dongles are
displayed in the 'network list'. To use devices connected to the UTN server, you
have to add the UTN server to the 'selection list'. The devices shown in the
selection list can then be administrated and the connected USB devices or USB
dongles can be used.
This chapter describes how to do these steps.
• ’Starting the SEH UTN Manager’ 11
• ’Finding the UTN Server and Assigning an IP Address’ 12
• ’Adding the UTN Server to the Selection List’ 13
• ’Connecting the USB Dongle to the Client’ 14
Detailed information on how to use the SEH UTN Manager can
be found in the Online Help. To start the online help, go to the
menu bar and select Help – Online Help.
Important:
Client and UTN server communicate via the UTN port
9200. This port must not be blocked by a security
software (firewall). If necessary, you can change the port
number and use a secure UTN SSL port. A detailed
description can be found in the myUTN User Manual.
The documentation is available via the link on page 9.

11 [en] Quick Installation Guide
Starting the SEH UTN Manager
You recognize the SEH UTN Manager by its icon: . The program is started
with the usual methods of your operating system.
Important:
During the initial configuration, client and UTN server
must be assigned to the same local network segment.

Quick Installation Guide [en] 12
Finding the UTN Server and Assigning an IP Address
Once the UTN server is connected to the network, it checks if it gets an IP
address dynamically via the boot protocols BOOTP or DHCP. If this is not the
case, the UTN server assigns itself an IP address via Zeroconf from the address
range reserved for Zeroconf (169.254.0.0/16).
The UTN servers found by the program will be displayed in the network list. If
required, you can change the TCP/IP parameters of the UTN server.

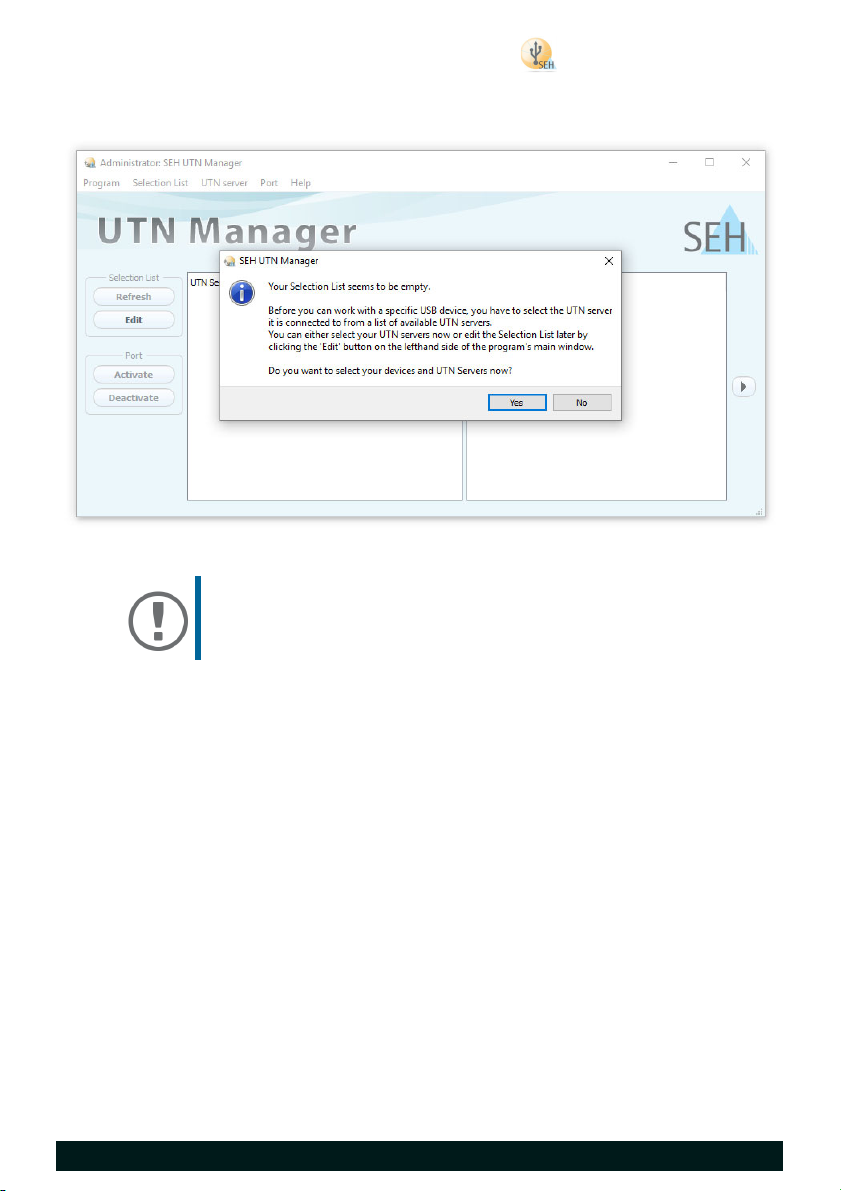

1. Confirm the note dialog Your Selection List seems to be empty with Yes.
If the note dialog is not available and the main dialog appears instead, select Selection List –
Edit in the menu bar.
The Edit Selection List dialog appears.
2. In the network list, select the UTN server.
3. In the shortcut menu, select Set IP Address.
The Set IP Address dialog appears.
4. Enter the relevant TCP/IP parameters.
5. Click OK.
The settings will be saved.

13 [en] Quick Installation Guide
Adding the UTN Server to the Selection List
The selection list displays the UTN servers and the USB devices or USB dongles
connected to their USB ports.
Define the devices you want to use. To do this, you must add the UTN server
including the connected USB devices or USB dongles shown in the network list
to the selection list.
1. In the menu bar, select Selection List – Edit.
The Edit Selection List dialog appears.
2. In the network list, select the UTN server.
3. Click Add.
4. Repeat steps 2 to 3, if necessary.
5. Click OK.
The UTN servers and the connected USB devices or USB dongles are dis-
played in the selection list.
You can extend the search for UTN servers to any network
range. To do this, change the search parameters for the net-
work scan.
Windows: Via Program – Options.
Mac: Via SEH UTN Manager – Preferences.

Quick Installation Guide [en] 14
Connecting the USB Dongle to the Client
To use a USB dongle, a point-to-point connection is established between the
client and the USB port of the UTN server to which the USB dongle is connected.
The USB dongle can then be used as if it were directly connected to the client.
The USB port is shown in the selection list 13.
All provisions (driver installation, etc.) necessary to operate the USB dongle
locally (i.e. connected directly to the client) have been met on the client. Ide-
ally, the USB dongle has been connected and operated on the client locally
according to the instructions of the manufacturer.
The USB port is not connected to another client.
1. In the selection list, select the port.
2. In the menu bar, select Port – Activate.
The connection between the USB dongle and client is established.
Important:
If a USB dongle is connected to a client, the connection
is of a point-to-point type. As long as the connection is
established, other users cannot connect the USB dongle
to their client and thus cannot use it. For this reason, you
have to cut the connection once you do not use the USB
device any longer. To do this, select Port – Deactivate
from the menu bar.

15 [en] Quick Installation Guide
Configuring the UTN Server
The UTN server has a user interface, the dongleserver Control Center, which can
be opened in an Internet browser (Internet Explorer or Safari).
The UTN server can be configured, monitored, and maintained via the
dongleserver Control Center.
1. Open your browser.
2. Enter the IP address of the UTN server as the URL.
The dongleserver Control Center appears in the browser.
Detailed information about the configuration of the UTN
server can be found in the Online Help of the dongleserver
Control Center.
To start the Online Help, click the '?' icon.
Important:
If the dongleserver Control Center is not displayed,
check if a gateway is configured (12) and check the
proxy settings of your browser.

Quick Installation Guide [en] 16
Locking the UTN Server
The dongleserver ProMAX has a lockable lid. With it, you can protect the USB
dongles.
To lock it, insert the straps of the lid into the notches of the housing. The key for
the lock is delivered with the dongleserver ProMAX 2.

17 [de] Quick Installation Guide
Inhalt
Allgemeine Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Verwendungszweck ...........................................................................................................18
Lieferumfang.........................................................................................................................18
Optionales Zubehör ...........................................................................................................19
Technische Daten ................................................................................................................20
LED-Anzeige..........................................................................................................................22
Typenschild............................................................................................................................22
Sicherheitsvorschriften . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Hardware-Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Software-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Erste Schritte mit dem SEH UTN Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
SEH UTN Manager starten................................................................................................27
UTN-Server finden und eine IP-Adresse zuweisen ..................................................28
UTN-Server der Auswahlliste hinzufügen...................................................................29
USB-Dongle mit Client verbinden.................................................................................30
UTN-Server konfigurieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
UTN-Server abschließen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Regulatory Compliance Information (Konformitätserklärungen) . . . . . . . .33
Open Source Software License Disclaimer and License Texts
(Open Source Software-Lizenzen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
