Seville Classics UltraHD 20200 User manual

UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
Quick Reference Guide
Power ON the workbench:
When the workbench is plugged
in, you will hear a "Beep" sound.
The Controller will then show the
current height of the workbench.
The number indicated on the
display may be different to the
actual height, it will need to be
reset.

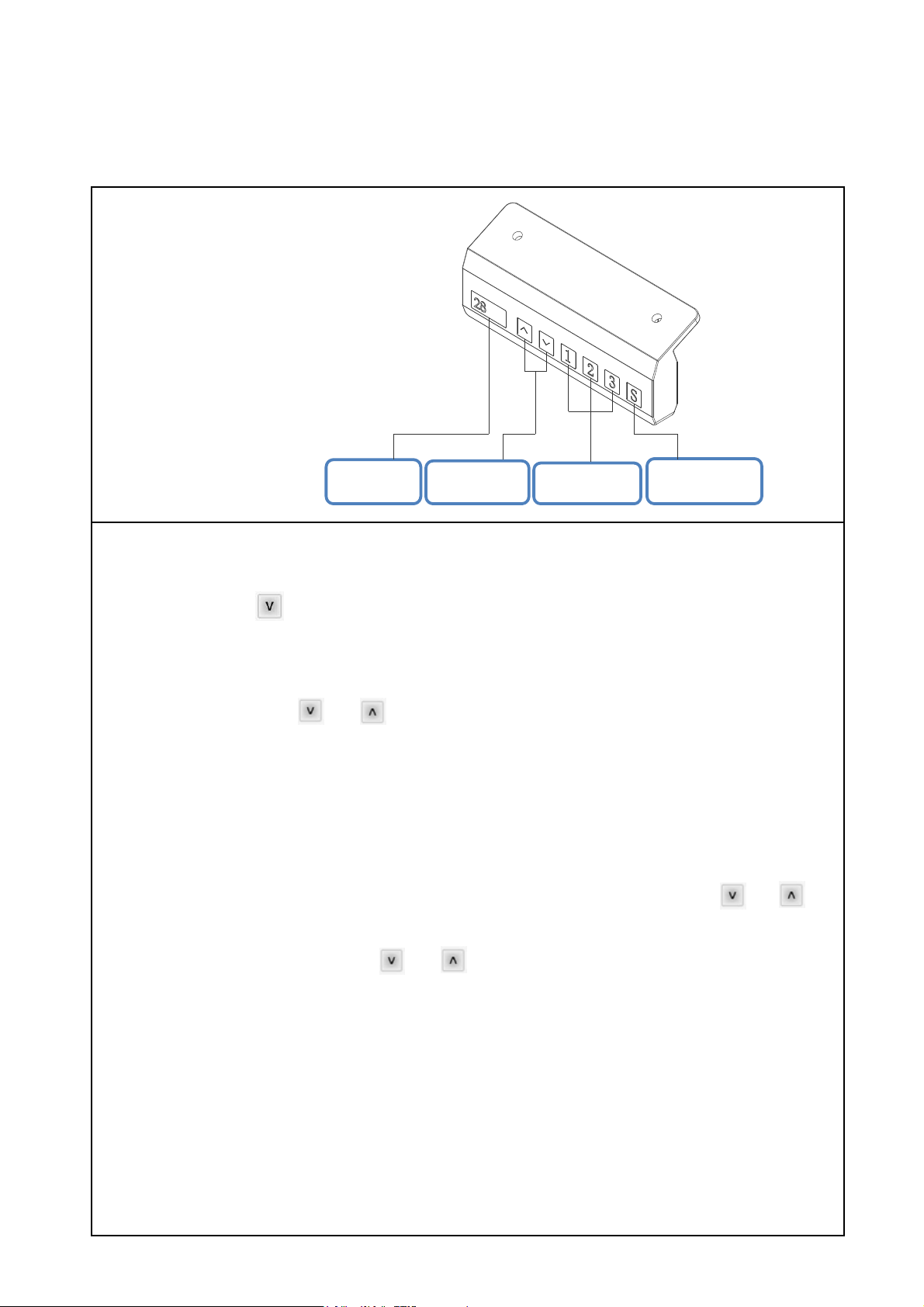

DISPLAY UP/DOWN MEMORY 1/2/3 SAVE MEMORY
How to Reset
Press and HOLD the
button until the workbench reaches it reaches the lowest height. Continue
to press and HOLD for about 5 seconds until you see a number (ie. 29.6) on the display AFTER it
shows “rst” and makes the “beep-beep” sound.
How to Adjust the Height
Press and HOLD either the or to adjust to your desired height of the workbench.
How to Lock/Unlock the Controller
First adjust the workbench height to your desired lock height. Then press and HOLD the and
buttons together for about 5 seconds until “Loc” is displayed.
At this moment, the Controller is locked and the workbench height can’t be adjusted.
In order to unlock, press and HOLD the and buttons together for about 5 seconds until a
number (previously locked height) is displayed.
Power Save Mode
If there is no action for 1 minute, the workbench will enter the power-saving mode. The display
on the Controller will be turned off. Press any button on the Controller to wake the workbench
from “Power Save Mode”.
How to Save the Height in Memory
There are 3 available memory heights you can save - 1, 2 & 3. Adjust the workbench to your
desired height and press the “S” button to display “S-“. Then press any of one the 1, 2 or 3 number
button. When a memory is saved, you will hear “beep-beep” sound.
By repeating the same steps, you can save or override an old saved memory with a new height.
Please see reversed side for the complete list of error codes and troubleshooting steps for
this workbench.

UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
Quick Reference Guide
SC0
SC1
SC2
SC3
R-2
R-3
HOT
R-5
R-6
RST
EX0
EX1
EX2
EX3
EX4
EX5
EX6
EX7
Error Code List
Code Meaning Action
Self-Check Fail - Standby Mode Error
Self-Check Fail - Main Power Error
Self-Check Fail - Save Memory Error
Self-Check Fail - Sensor Error
Table Tilt Alert
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
The desk will run in the opposite direction for 2 inches
automatically, then the alert will clear.
Sync Failure
Overheat Protection
Control system
malfunction
Voltage irregularity
Not reset completely
Driver Short-Circuit Re-plug the power supply. If the alert do not clear, please contact
Customer Service.
Remove some weight from the workbench, then the alert will
clear after 20 seconds.
Please check the connection of the motor cables.
Please contact Customer Service.
Over-Load Protection
Motor Phase Failure
Moving Direction Error
Reset the Controller by following the How to Reset directions on
page 14 of the Assembly Instructions.
Please let the motors cool down for 18 minutes.
Please check the connection between the Controller and the
Control Box.
Please contact Customer Service.
Reset the Controller by following the How to Reset directions on
page 14 of the Assembly Instructions.
The workbench will run in the opposite direction for 2 inches
automatically, then the alert will clear.
Please contact Customer Service.
Check the motor cable connections to the Control Box -
refer to page 8 of the Assembly Instructions.
Please contact Customer Service.
Motor cables not connected
Mechanical Malfunction
Anti-collision
Motor Stalling Alarm
C onta c t C ustomer S upport
Email: [email protected]
Telephone: [phone]
Hours
(M-F) : 8:30 AM - 4:30 PM (PST)

SC220927
ASSEMBLY INSTRUCTIONS
WARNING: Workbench Maximum Loading Capacity is 264 lbs. / 120 kgs.
UltraHD 20200 Dual Motor Electric Height Adjustable
Workbench
48" W x 24" D x 28" - 42" H (1.21m x 0.61 m x 0.71 - 1.06 m)
USER MANUAL
KEEP FOR FUTURE REFERENCE.

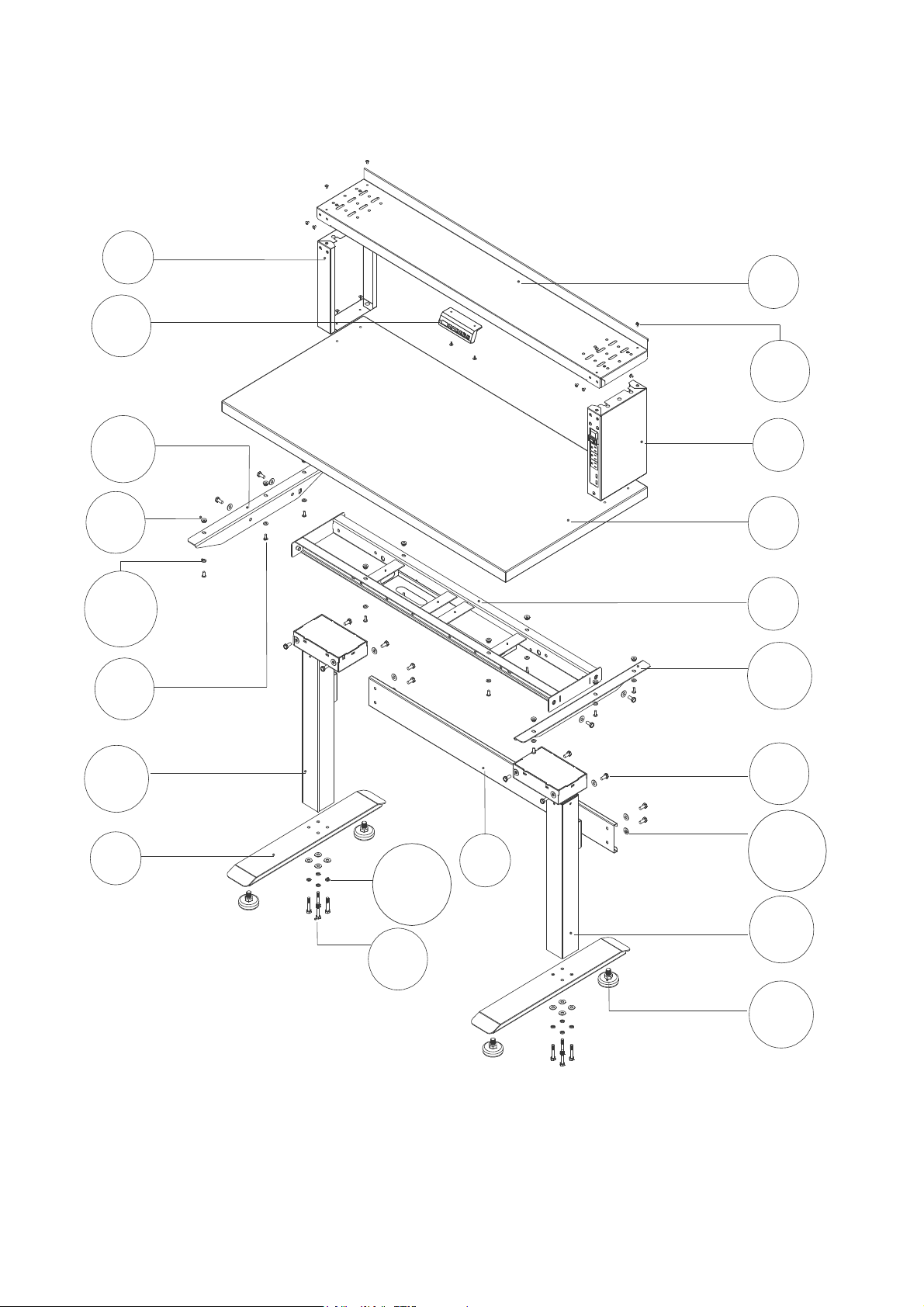

#9
#5
#4
#10
#3
#2
#2-B
#2-A
#27-C
#50
#7-A #40
#1
#7-B
#8
#6-B
#59-A
#70
#14
#69
1
#27-B
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST)

(#7-A) Left Leg x 1 PC (#7-B) Right Leg x 1 PC
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service
department.
(#2-A) Left Support Bracket x 1 PC (#2-B) Right Support Bracket x 1 PC
(#3) Solid Wood Top x 1 PC (#2) Support Beam x 1 PC
(#9) Tool Rack Shelf - Top Panel x 1 PC (#4) Tool Rack Shelf - Left Side Panel x 1 PC
(#8) Feet x 2 PCS (#1) Bottom Connection Bar x 1 PC
2
Note: Control
Box Comes
Attached.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST)

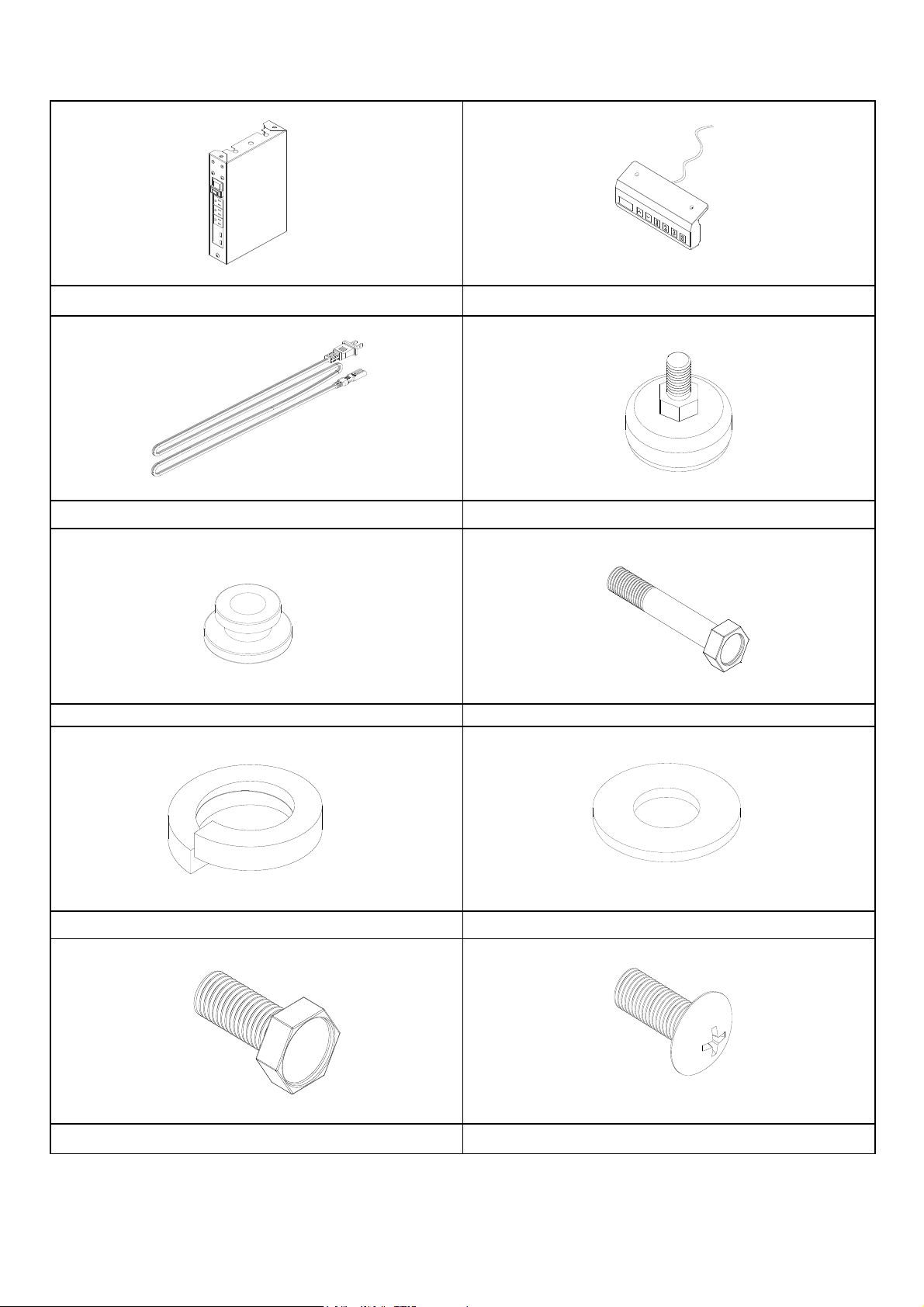

(#5) Tool Rack Shelf - Right Side Panel x 1 PC (#10) Controller x 1 PC
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service
department.
(#59-A) M8 Lock Washer x 8 PCS (#27-B) M8 Flat Washer x 24 PCS
(#40) Hex Bolt (M8 x 18L) x 16 PCS (#50) Screw (M6 x 15L) x 10 PCS
(#11) Power Cord x 1 PC (#6-B) Leveling feet x 4 PCS
(#69) Rubber Buffer x 10 PCS (#70) Hex Bolt (M8 x 45L) x 8 PCS
3
Note: Power Strip
with 3 AC Outlets & 2
USB Ports Attached.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST)

(#14) Screw (M4x10L) x 16 PCS (#27-C) M6 Flat Washer x 10 PCS
(#25) Wrench x 1 PC
(#21) Screw Driver x 1 PC
(#71) Wood Screw (M4x15L) x 2 PCS (#72) Cable Clip x 2 PCS
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service
department.
(#73) Cable Tie x 3 PCS
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 4

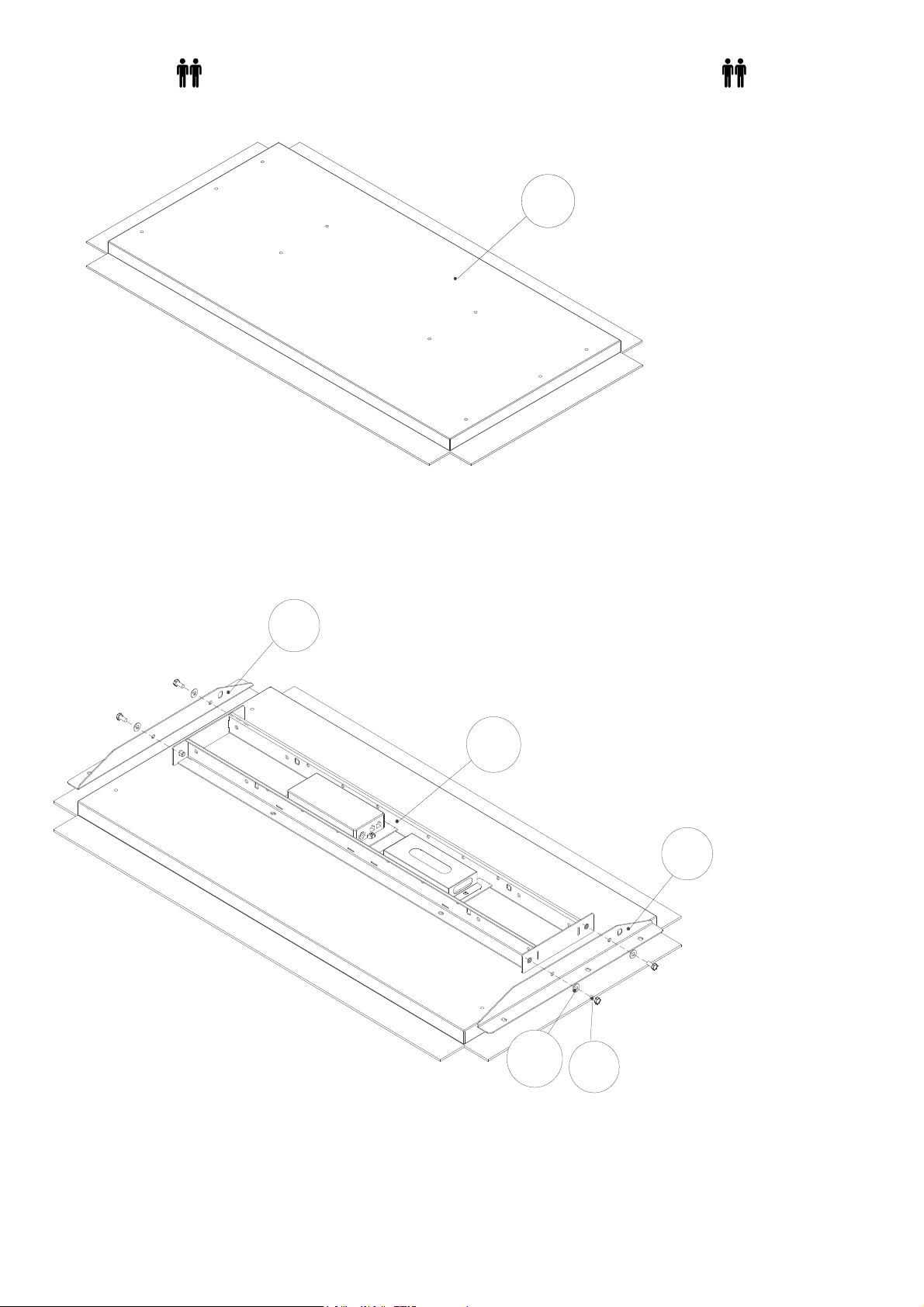

Step 1: Take Solid Wood Top (#3) from the box.
Step 2:
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Position the Solid Wood Top (#3) within the
box so that the holes for the screws become
exposed, keep the top of the wood in the box
to prevent scratching during the setup process.
Install Support Beam (#2) and Left and
Right Support Brackets (#2-A & #2-B). Use
4 pcs of M8 Flat Washers (#27-B) and 4 pcs of
(M8 x 18L) Hex Bolts (#40) to tighten Left
Support Bracket (#2-A) and Right Support
Bracket (#2-B) on each side of the Support
Beam (#2). Displayed in the image on the left.
#2
#2-A
#2-B
#27-B #40
#3
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 5

Step 3: Install Rubber Buffers (#69) on Support
Beam (#2).
Now that the Support Beam (#2) has been
installed. Flip the Support Beam (#2) around
so that the base is facing upward and take 10
pieces of the Rubber Buffers (#69), simply
tighten them on the corresponding oval-
shaped holes located on the Support Beam
(#2). As displayed in the left image.
#69
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
#27-C
#50
Step 4: Install Support Beam (#2) on the Solid Wood Top (#3).
Place the Support Beam (#2) on Solid Wood Top (#3),
and align the screw holes on the Solid Wood Top (#3)
to the corresponding holes on the Support Beam (#2).
Use 10 pieces of M6 Flat Washers (#27-C) and 10
pieces of M6 x 15L Screw (#50) to install Support Beam
(#2) on the Solid Wood Top (#3).
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 6

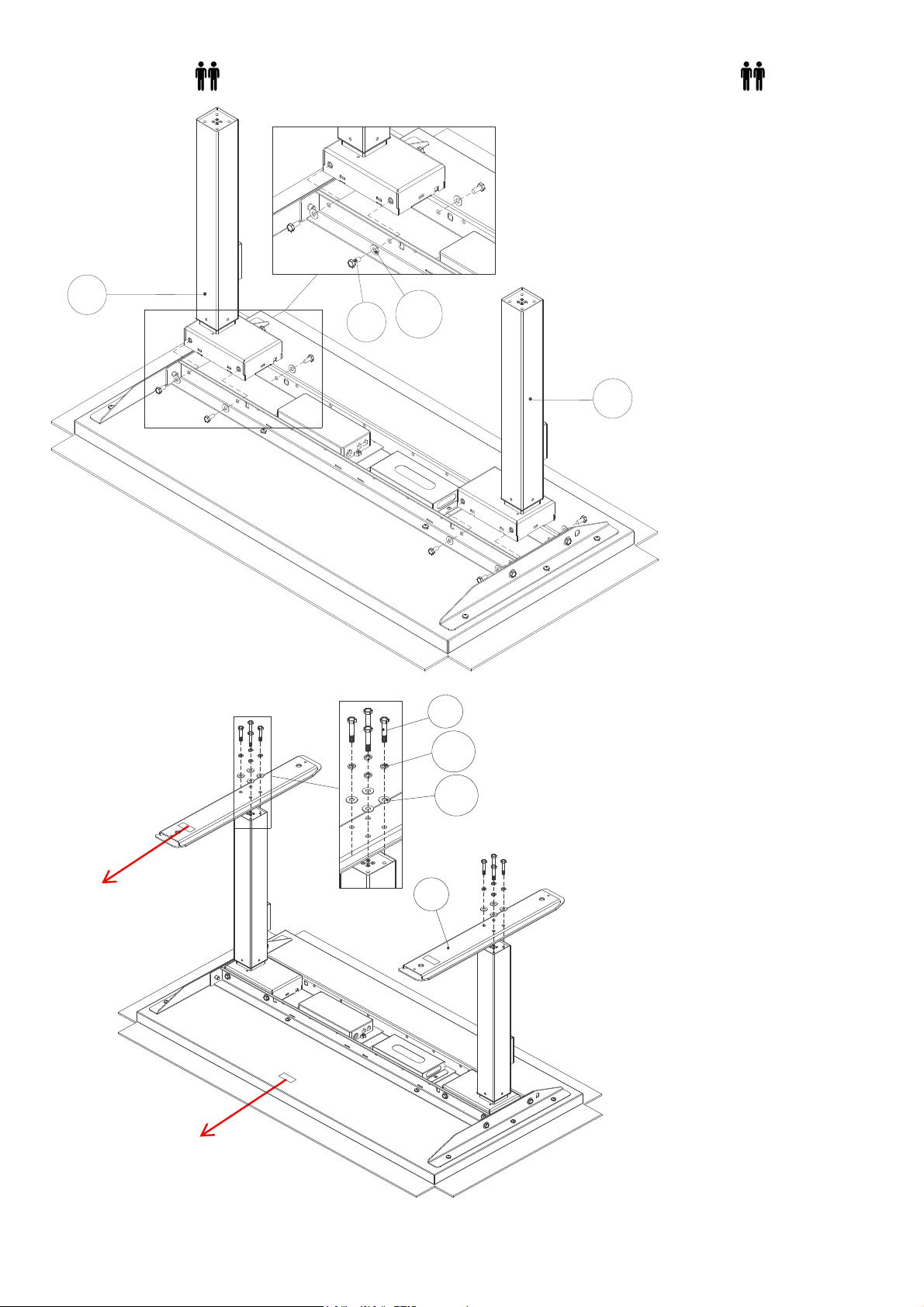

Step 5: Install the legs (#7-A & #7-B).
Step 6: Install the Feet (#8)
To install the Feet (#8), use 8 pcs of Hex Bolt (#70), 8
pcs of Lock Washers (#59-A) and 8 pcs of Flat Washers
(#27-B) to secure the Feet (#8) on the Legs (#7-A & #7-
B) as displayed in the image to the left.
Note: Please refer to the label on both feet to identify
the front side of the feet. and refer to the label on the
base of the wood top to identify the front side of the
workbench.
Place Leg (#7-A) on the left hand side of the Support
Beam (#2), adjust the position of the leg, ensuring that
the holes on both the beam and leg line up. Use 4 pcs of
Hex Bolt (#40) and 4 pcs of Flat Washer (#27-B) to
tighten and secure the leg in place. During the
installation, make sure that all 4 pcs of Hex Bolt (#40) can
fit into the each hole first, then proceed to tighten them.
Repeat this process to install leg (#7-B) on the right hand
side of the Support Beam (#2).
Note: The legs should be perpendicular to wood top
and parallel to its counterpart.
FRONT
FRONT
#7-A
#7-B
#27-B
#40
#70
#59-A
#8
#27-B
7
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST)

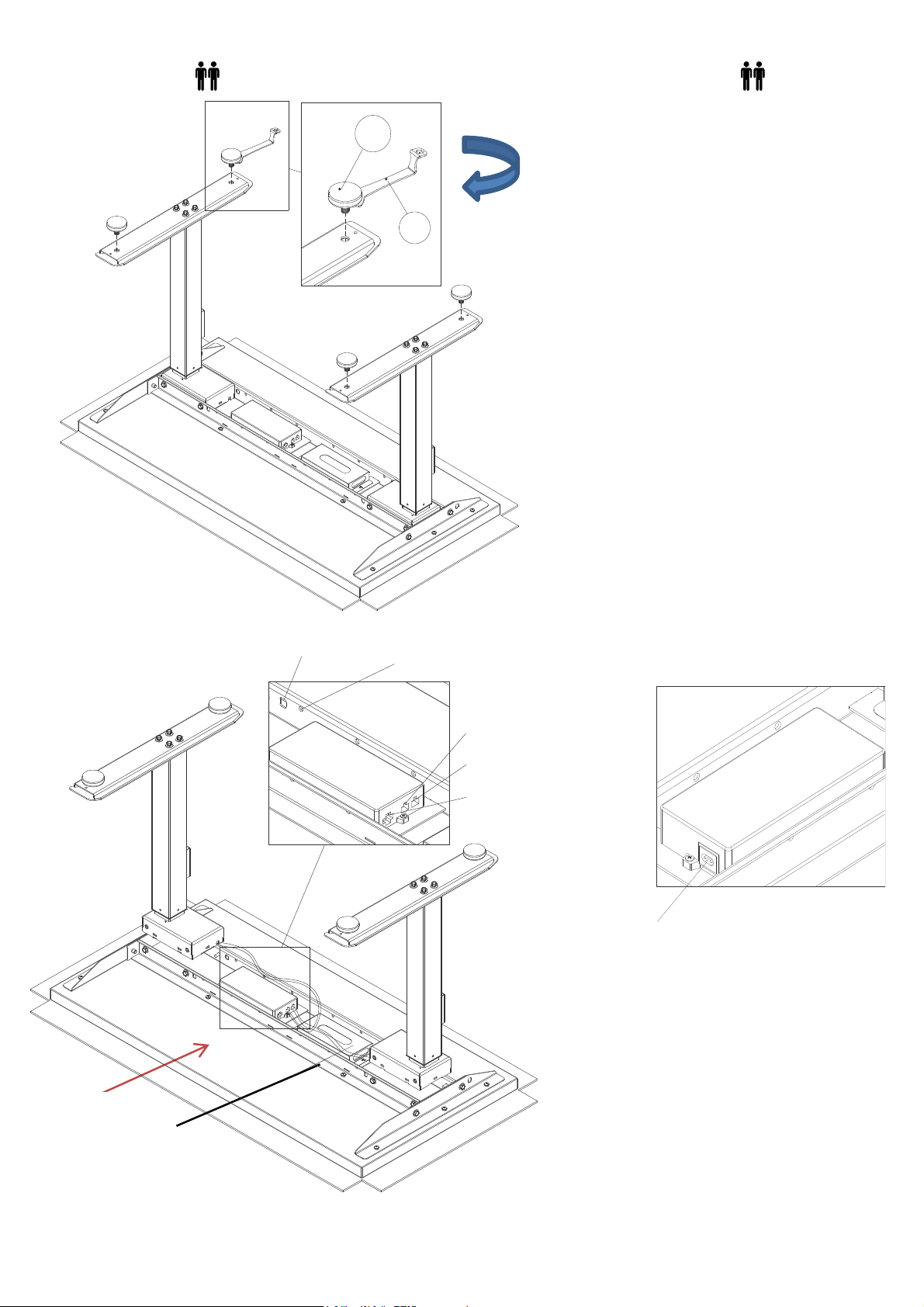

Step 7: Install the Leveling Feet (#6-B).
Step 8: Depicted in the left image is the wiring
diagram of the legs and motor.
Note: You may adjust the length of cables or
organize them with using the cable management
box. All the holes on the Support Beam (#2) with
the exception of the screw holes are available for
you to organize the wires with the included Cable
Tie (#73). You may also use the Cable Clip (#72) to
secure and direct the cables.
Take 4pcs of Leveling Feet (#6-B) and place 2 on
each corresponding location on the Feet (#8.)
Now use Wrench (#25) to fasten them in place,
turning in a clockwise motion.
Power Cord Cable Port
Controller Cable Port 1 Cable Tie Hole
Cable Managment Box
Motor Cable Port 1
Motor Cable Port 2
Controller Cable Port 2
Control Box
(pre-installed)
#25
#6-B
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 8

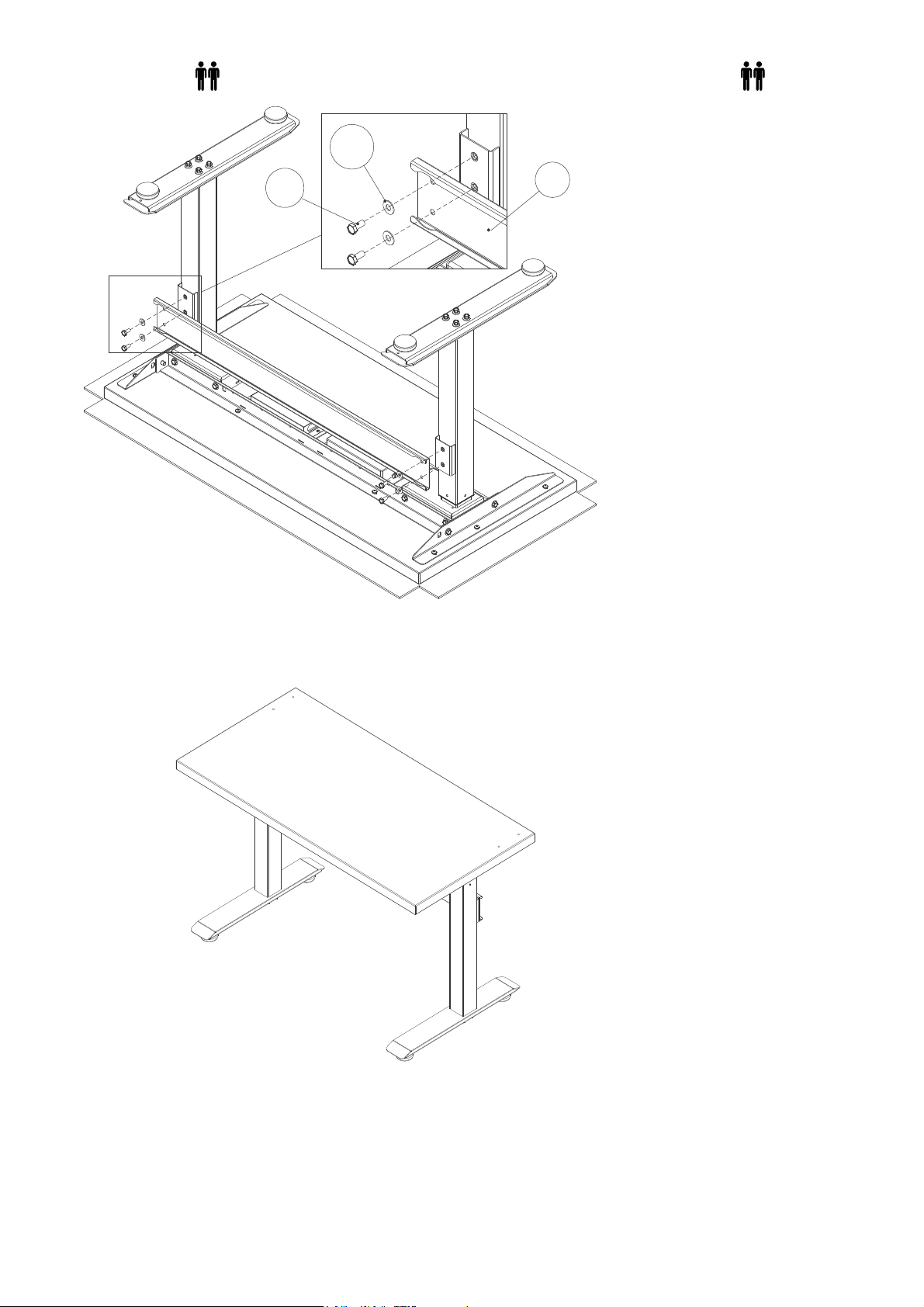

Step 9: Install Bottom Connection Bar (#1)
Place and align the Bottom Connection Bar (#1) on
the back side of the legs (please see the left image
to find corresponding location), use 4pcs Flat
Washer (#27-B) and 4pcs Hex Bolt (#40) to secure
the bar in place.
#40
#27-B
#1
Turn the workbench over,
we recommend 2 people
for this.
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 9

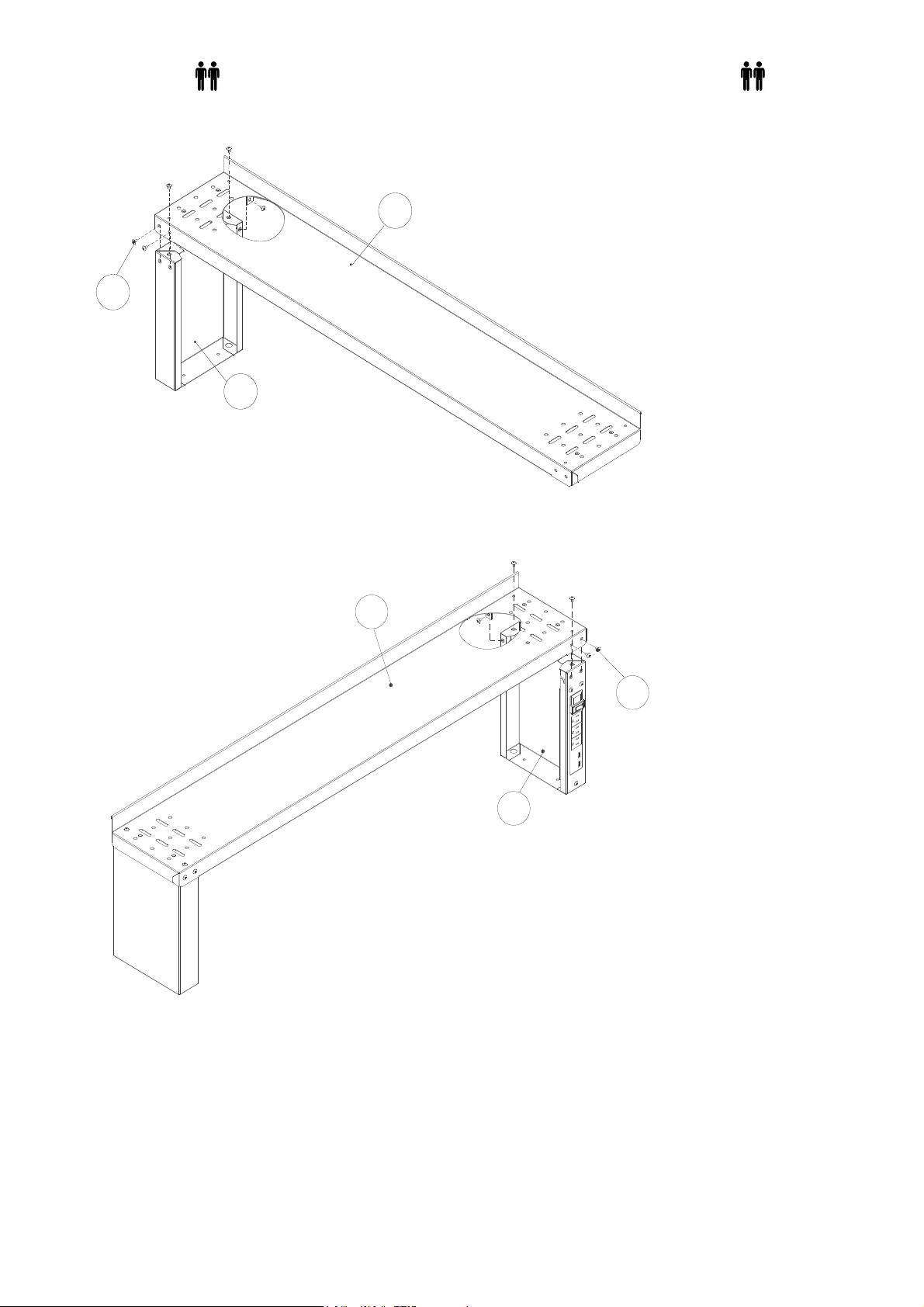

Step 10:
Step 11:
Install Tool Rack Shelf Top Panel (#9) and Left
Side Panel (#4).
Remove Tool Rack Shelf Top Panel (#9) and its Left
Side Panel (#4) from the box, and tighten them
together with 5pcs of M4 x 10L Screws(#14).
Install Tool Rack Shelf Right Side Panel (#5).
Remove Right Side Panel (#5) from the box, and
install it on the tool rack with 5 pcs of M4 x 10L
Screws (#14).
#14
#4
#9
#9
#14
#5
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 10

Step 12: Install the Tool Rack Shelf on the workbench.
Place the completed Tool Rack Shelf on the
workbench as shown on the left, and align the holes
on the Solid Wood Top (#3) to the holes on the base
of the Tool Rack Shelf Left and Right Side Panels (#4 &
#5) install it using 4pcs of M4 x 10L Screws (#14).
#14
#14
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 11

Note: In order to operate the Workbench, you must first initiate a "Reset" using the Controller
(refer to Post Setup Quick Start Instructions or page 14).
A. B.
#10 #71
#10
#14

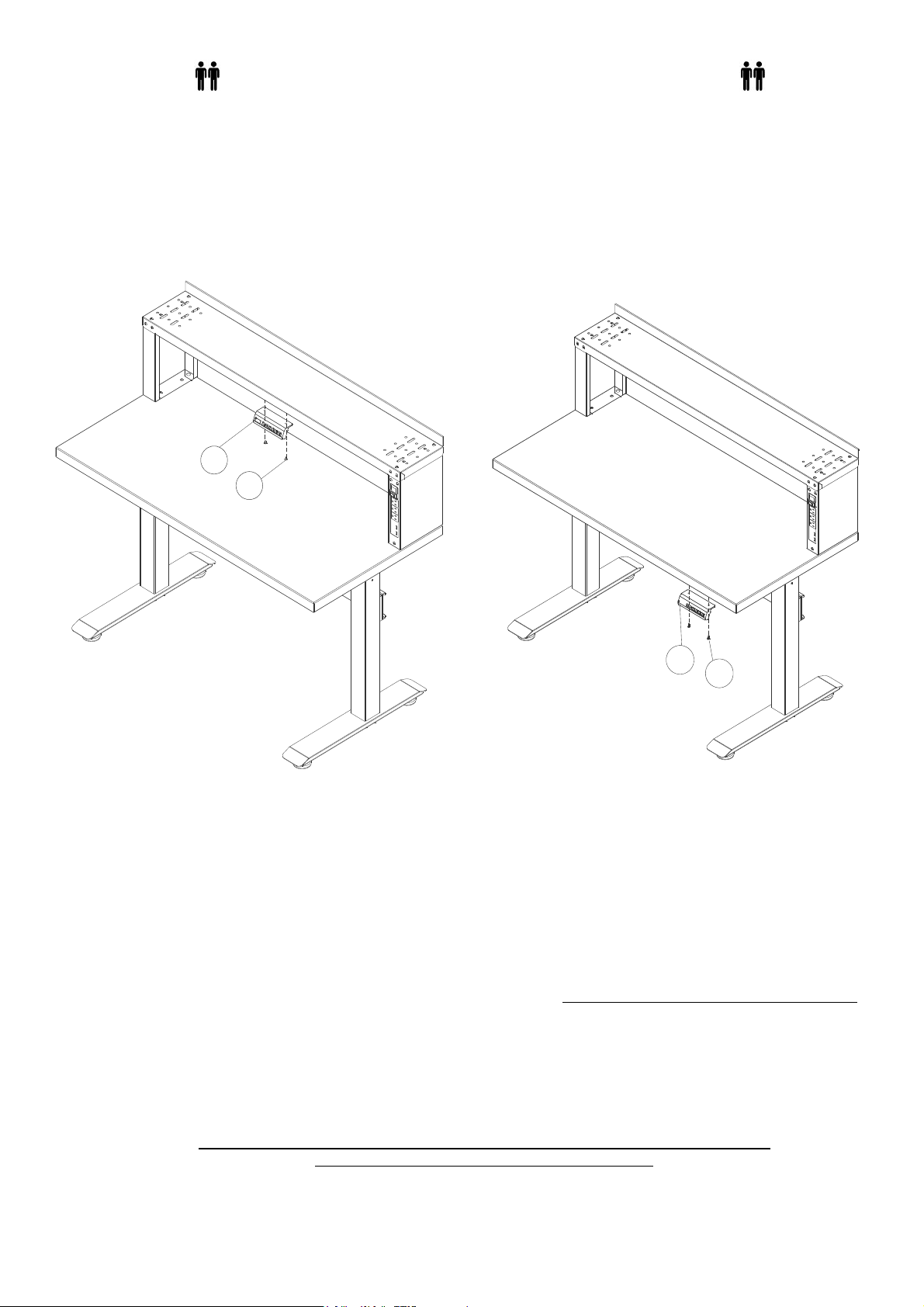

Step 13: Install Power Cord (#11) and Controller (#10).
Please refer to STEP 8for installing Power Cord (#11)
and Insert the Power Cord (#11) on to the control box
(pre-installed).
There are two ways to install the Controller (#10):
A. Install it on the top panel of the Tool Rack Shelf,
place the Controller (#10) in the middle of the top
panel and install it by 2 pcs of M4 x 10L Screws(#14).
B. Install the Controller (#10) under the Wood Board
(#3) by 2pcs of M4 x 15L Wood Screws (#71). Now
insert the cable of the control box (pre-installed) into
the Controller (#10).
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 12

UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Power ON the workbench：
When the workbench is plugged in, you will hear a"Beep" sound.The
Controller will then show the current height of the workbench. The number
indicated on the display may be different to the actual height, it will need to
be reset.
DISPLAY UP/DOWN
ARROW MEMORY 1/2/3 SAVE MEMORY
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 13

UltraHD® Wood Top Care
Our solid wood tops are made with real wood, and while great care is taken to ensure consistent top color
and graining, there may be natural variations between finished products. We hand select the wood for every
workspace top to ensure the material is undamaged and naturally beautiful. If the wood top is received with
excessive damage or splitting, please contact Seville Customer Service for warranty assistance. Variations of
color, and minor scratches in the clear coat finish will not be reason for replacement.
Restore Shallow Scratches or Chips
The wood surface of this product is finished with a polyurethane coat. If the wood top becomes chipped or
scratched, additional clear polyurethane coats can be reapplied to restore a smooth texture and protect
from future damage.
Please follow the manufacturer's instruction on the product for application.
UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 14
How to Reset
Press and HOLD the button until the workbench reaches it reaches the lowest height. Continue to press
and HOLD for about 5 seconds until you see a number (ie. 29.6) on the display AFTER it shows “rst” and makes
the “beep-beep” sound.
How to Adjust the Height
Press and HOLD either the or to adjust to your desired height of the workbench.
buttons
How to Save the Height in Memory
There are 3 available memory heights you can save - 1, 2 & 3. Adjust the workbench to your desired height and
press the “S” button to display “S-“. Then press any of one the 1, 2 or 3 number button. When a memory is
saved, you will hear “beep-beep” sound. By repeating the same steps, you can save or override an old saved
memory with a new height.
How to Lock/Unlock the Controller
First adjust the workbench height to your desired lock height. Then press and HOLD the and
together for about 5 seconds until “Loc” is displayed. At this moment, the Controller is locked and the
buttons together for workbench height can’t be adjusted. In order to unlock, press and HOLD the and
about 5 seconds until a number (previously locked height) is displayed.
Post Setup Quick Start Instructions

UltraHD® Dual Motor Electric Height Adjustable Workbench (Model No. 20200)
*NOTE: We recommend using TWO people to assemble the workbench.
Get help with assembly and report damaged or missing parts.
Email: [email protected]
Telephone: [phone]
Hours (M-F) : 8:30 AM - 4:30 PM (PST) 15
SC1
SC2
SC3
R-2
R-3
HOT
R-5
R-6
RST
EX0
EX1
EX2
EX3
EX4
EX5
EX6
EX7
Error Code List
Code Meaning
Self-Check Fail - Standby Mode Error
Self-Check Fail - Main Power Error
Self-Check Fail - Save Memory Error
Self-Check Fail - Sensor Error
Table Tilt Alert
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
Re-plug the power supply. If the alert does not clear, please
contact Customer Service.
The desk will run in the opposite direction for 2 inches
automatically, then the alert will clear.
Sync Failure
Overheat Protection
Control system
malfunction
Voltage irregularity
Not reset completely
Driver Short-Circuit Re-plug the power supply. If the alert do not clear, please contact
Customer Service.
Remove some weight from the workbench, then the alert will
clear after 20 seconds.
Please check the connection of the motor cables.
Please contact Customer Service.
Over-Load Protection
Motor Phase Failure
Moving Direction Error
Reset the Controller by following the How to Reset instruction on
page 14
Please let the motors cool down for 18 minutes.
Please check the connection between the Controller and the
Control Box.
Please contact Customer Service.
Reset the Controller by following the How to Reset instruction on
page 14
The workbench will run in the opposite direction for 2 inches
automatically, then the alert will clear.
Please contact Customer Service.
Check the motor cable connections to the Control Box - refer to
page 8.
Please contact Customer Service.
Motor cables not connected
Mechanical Malfunction
Anti-collision
Motor Stalling Alarm
Action
SC0

Seville Classics, Inc.
19401 Harborgate Way Torrance, CA 90501 USA
Telephone: [phone] within USA
Fax: [phone]
Hours (M-F): 9:00am - 4:30pm (Pacific Standard Time)
E-mail: [email protected]
Website & Online Store: www.sevilleclassics.com
UltraHD® Tall Storage Cabinet UltraHD® Mega Storage Cabinet
Model No. 16236 (Granite) Model No. 16238 (Granite)
Model No. 20143 (Graphite)
Model No. 20148 (Graphite)
Model No. 20153 (Red) Model No. 20158 (Red)
Model No. 20133 (White)
CONTACT INFORMATION
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our
bilingual (English and Spanish) customer service department at:
***Please visit our website or call and inquire about our additional UltraHD Line***
UltraHD® Line
16

UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench
Model No. 20205 (Granite)
Model No. 20292 (Granite)
Model No. 20293 (Graphite)
UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench
Model No. 20230 (Granite) Model No. 20262 (Granite)
Model No. 20140 (Graphite)
Model No. 20142 (Graphite)
Model No. 20150 (Red) Model No. 20152 (Red)
UltraHD® Rolling Trash Bin UltraHD® Lighted Workcenter
Model No. 20215
Model No. 20247 (Granite)
Model No. 20246 (Graphite)
Model No. 20157 (Red)
UltraHD® Line
17
