SEW-Eurodrive MOVIFIT-MC User manual

Gearmotors \ Industrial Gear Units \ Drive Electronics \ Drive Automation \ Services
MOVIFIT
®
Function Level " Technology "
M anual
FC475000
Edition 08/2006
11501014 / EN

SEW-EURODRIVE – Driving the world

Manual – MOVIFIT® Function Level "Technology"
3
Contents
1 Important Notes................................................................................................. 4
2 Introduction ....................................................................................................... 6
2.1 MOVIFIT®function level ...........................................................................6
2.2 Technology function level with MOVI-PLC®MOVITOOLS®
MotionStudio.............................................................................................7
3 Startup................................................................................................................ 9
3.1 Startup procedure for MOVIFIT®-MC........................................................9
3.2 Startup procedure for MOVIFIT®-SC and -FC........................................10
4 PROFIBUS........................................................................................................ 11
4.1 Configuring the PROFIBUS master ........................................................11
4.2 Application example for a user-programmable IEC application..............13
4.3 Application examples for the transparent mode......................................14
4.4 Parameter setting with PROFIBUS-DPV1 ..............................................21
5 Process Data Description in Transparent Mode .......................................... 29
5.1 Process image for diagnostics................................................................29
5.2 Process image of digital I/Os ..................................................................31
5.3 Process image of drive systems .............................................................33
6 Error Response ............................................................................................... 47
6.1 Fieldbus timeout......................................................................................47
6.2 System error (SYS-F)..............................................................................48
7 Parameter Settings and Diagnostics............................................................. 49
7.1 Preliminary work......................................................................................49
7.2 Integrate MOVIFIT®in MOVITOOLS®-MotionStudio.............................. 50
7.3 Motor/brake startup with MOVIFIT®-SC..................................................56
7.4 Motor/brake startup with MOVIFIT®-FC.................................................. 57
7.5 Hoist startup............................................................................................63
7.6 Parameter list for MOVIFIT®-SC power section......................................64
7.7 Parameter description for MOVIFIT®-SC................................................ 67
7.8 Parameter list for MOVIFIT®-FC power section...................................... 75
7.9 Parameter description for MOVIFIT®-FC................................................79
8 Technical Data................................................................................................. 87
8.1 PROFIBUS specifications.......................................................................87
9 Index................................................................................................................. 88

4
Manual – MOVIFIT® Function Level "Technology"
1Important Notes
Manual
1 Important Notes
Documentation • Read through this manual carefully before you commence installation and startup of
MOVIFIT®.
• This manual assumes that the user has access to and is familiar with the MOVIMOT®
and MOVIFIT®documentation.
• As a prerequisite for fault-free operation and fulfillment of warranty claims, you must
adhere to the information in the documentation.
General safety
notes on bus
systems
You are now in possession of a communication system that lets you adapt MOVIMOT®
and MOVIFIT®frequency inverters and MOVIFIT®motor starters to the particulars of
your system. As with all bus systems, there is a danger of invisible, external (as far as
the inverter/motor starter is concerned) modifications to the parameters which give rise
to changes in the inverter/motor starter behavior. This may result in unexpected (not
uncontrolled) system behavior.
Hoist
applications
•Hoist applications can only be implemented with MOVIFIT®-FC in combination
with the function level "Technology" under the following conditions:
–The MOVIFIT®expert mode for advanced startup/configuration must be
activated.
–A special hoist startup must be performed. This procedure is described in
the section "Motor/brake startup with MOVIFIT®-FC".
•This manual does not replace the detailed operating instructions.
•Only qualified personnel observing all applicable accident prevention guide-
lines and the MOVIFIT®-MC, MOVIFIT®-SC or MOVIFIT®-FC (depending on the
MOVIFIT®version in use) operating instructions may install and take these
units into operation.
•MOVIFIT®-FC is not designed for use as a safety device in hoist applications.
Use monitoring systems or mechanical protection devices as safety equip-
ment to avoid possible damage to property or injury to people.

Manual – MOVIFIT® Function Level "Technology"
5
1
Important Notes
Explanation of
the icons
Always observe the safety and warning information in this documentation.
Electrical hazard
Possible consequences: Severe or fatal injuries.
Hazard
Possible consequences: Severe or fatal injuries.
Hazardous situation
Possible consequences: Slight or minor injuries.
Harmful situation
Possible consequences: Damage to the unit and the environment.
Tips and useful information.

6
Manual – MOVIFIT® Function Level "Technology"
2MOVIFIT® function level
Introduction
2 Introduction
2.1 MOVIFIT
®
function level
The function level describes the functions included in the software for MOVIFIT®units
regarding operation, system control and diagnostics.
The following figure gives an overview of the MOVIFIT®function levels:
59750AEN
Functionality
Function level
Classic
Simple functionality
Control as fieldbus gateway
via MOVILINK
®
Simple handling, compar-
able, e.g. with control of
SEW field distributors
(Z.3, Z.6 etc.)
Classic
System
Configurable industry solution
Target industry: conveyor
technology
Central data storage for
decentralized units
Client/server architecture
Configuration and
diagnostics system
Drive-oriented, conveyor
functions
Reusability of functions
System
Technology
Open programming
Multi-level library concept
Technology
Target industry: machine
design
Configurable function
modules
Programming to IEC 61131
(e.g. in LD, FBD, IL, ST,
SFC)
This manual describes the MOVIFIT®function level "Technology". For information on
the other MOVIFIT®function levels, refer to the MOVIFIT®system description and the
appropriate manuals.

Manual – MOVIFIT® Function Level "Technology"
7
2
Technology function level with MOVI-PLC® MOVITOOLS® MotionStudio
Introduction
2.2 Technology function level with MOVI-PLC
®
MOVITOOLS
®
MotionStudio
User program-
ming using
MOVI-PLC®/
MOVITOOLS®
MotionStudio
Regardless of whether it is used to control a machine module or as a stand-alone
system, demanding drive tasks can easily be configured using the Technology function
level. Direct programming in the MOVI-PLC®development environment lets customers
turn their application-specific requirements into drive applications.
Tasks can be programmed using the standard IEC 61131 languages (LD, FBO, IL, ST,
SFC) (MOVI-PLC®). Furthermore, function blocks from different libraries can be com-
bined into a program to implement complex motion sequences.
The new MOVITOOLS®Motion Studio enables a complete engineering concept. This
software offers all the tools necessary for automation and startup of drives.
57082AEN
PlugIN
Startup
MOVITOOLS
®
MotionStudio
Open MOVITOOLS
®
for older unit series
IEC-Editor
(CoDeSys compatible)
Scope
PlugIN
PDO-Editor PlugIN
Parameter tree
PlugIN
Data management
PlugIN
Application Builder
C
onf
i
g
u
r
a
ti
o
n
S
ta
r
t
u
p
Data backup
Parameter setting
V
i
sualization
Di
a
g
no
s
t
ic
s
Pr
og
r
a
m
mi
n
g
C
o
m
p
at
ibl
e

8
Manual – MOVIFIT® Function Level "Technology"
2Technology function level with MOVI-PLC® MOVITOOLS® MotionStudio
Introduction
Libraries A multi-level library concept guarantees user-friendly programming. SEW-EURODRIVE
offers a complete range of modules, from the standard IEC 61131 functions, through
simple motion blocks, right up to application-specific and customer-specific solutions.
This means you can design individual and customized solutions quickly and easily.
Advantages of
MOVI-PLC®
• Flexible programming of the application
• Standardized programming languages in accordance with IEC 61131-3
• PLCopen libraries for convenient automation
• On request: customized, application-specific programs
• Existing program libraries
• Configuration, startup, monitoring, diagnostics and updates of all SEW components

Manual – MOVIFIT® Function Level "Technology"
9
3
Startup procedure for MOVIFIT®-MC
Startup
3Startup
This publication describes the parameter settings and fieldbus configuration required for
MOVIFIT®in connection with the function level "Technology."

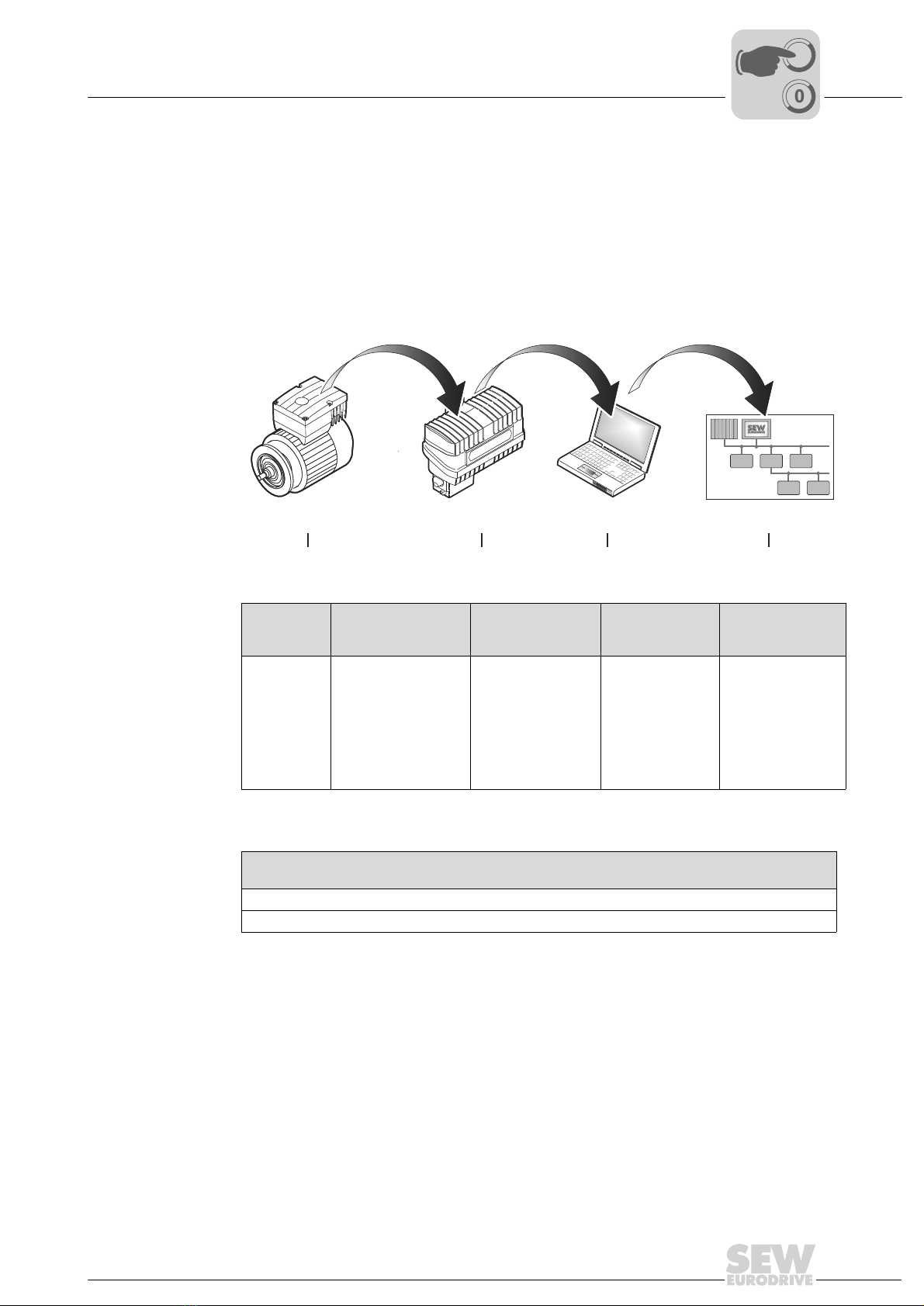

3.1 Startup procedure for MOVIFIT
®
-MC
The following table gives an overview of the MOVIFIT®-MC startup procedure and lists
other application documentation:
Also available for "Technology" function level:
58971AEN
Function
level 1. Startup
MOVIMOT®
2.
Startup
MOVIFIT®-MC
3.
Parameter setting 4. Fieldbus
configuration
Technology
PROFIBUS • MOVIFIT®-MC
operating
instructions
• MOVIMOT®
operating
instructions
MOVIFIT®-MC
operating instructions –•PROFIBUS-DP, see page 11
• For process
data description
in transparent
mode, see page
29
• Error response,
see page 47
5.
Programming and using drive applications
Manual "MOVI-PLC®Programming in the PLC Editor"
Manual "MPLCMotion_MC07 and MPLCMotion_MM Libraries for MOVI-PLC®"
MOVIMOT®
1. 2. 4.
MOVIFIT®-MC Parameter setting
3.
Fieldbus configuration
00
I

10
Manual – MOVIFIT® Function Level "Technology"
3Startup procedure for MOVIFIT®-SC and -FC
Startup

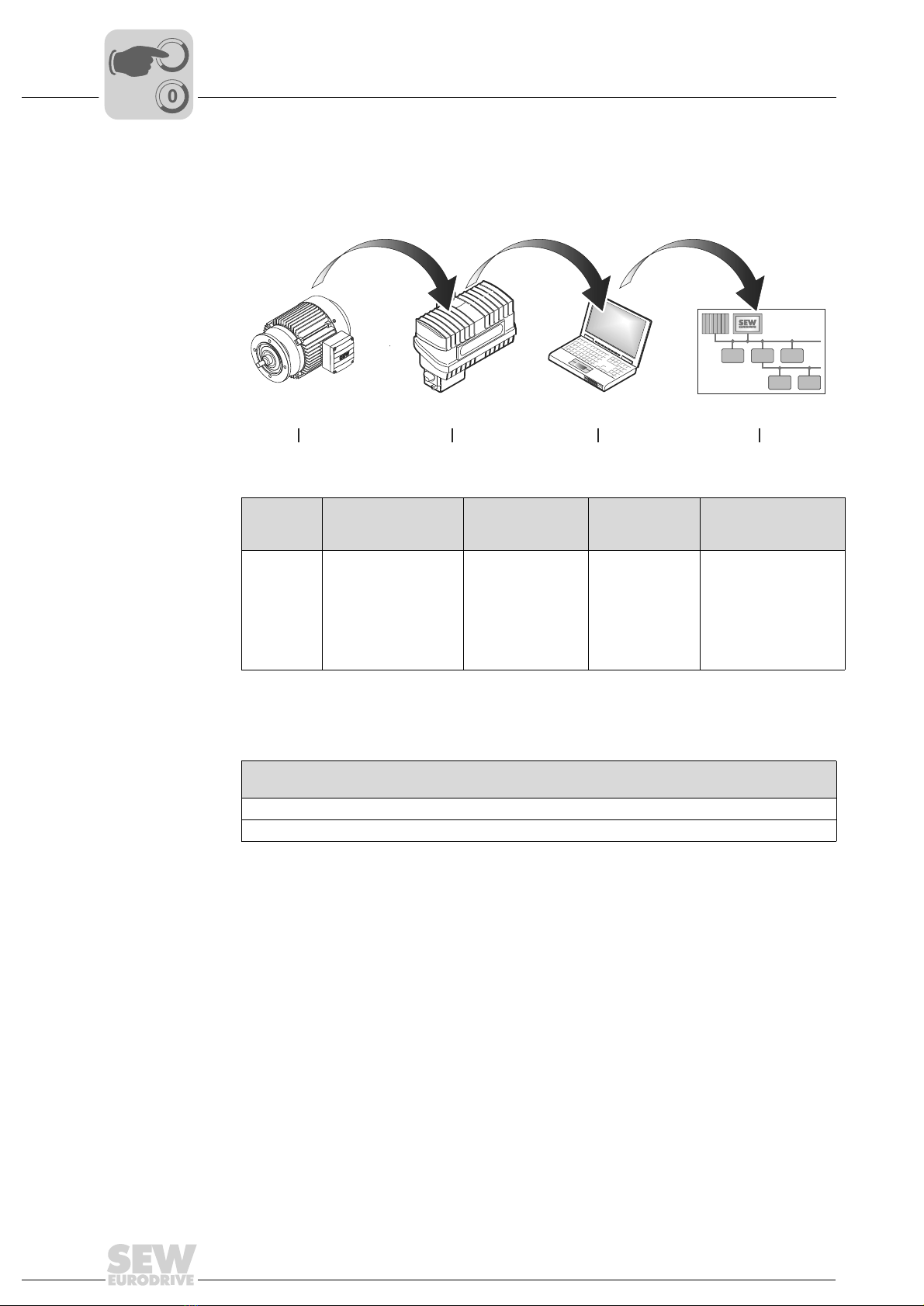

3.2 Startup procedure for MOVIFIT
®
-SC and -FC
The following table gives an overview of the MOVIFIT®-SC/FC startup procedure and
lists other applicable documentation:
Also available for "Technology" function level:
59761AEN
Function
level 1. Startup
Motor
2.
Startup
MOVIFIT®-SC/-FC
3.
Parameter set-
ting1)
1) Parameters only have to be set in the function level "Technology" when the "expert mode" is activated.
4.
Fieldbus
configuration
Technol-
ogy
PROFIBUS
"AC Motors
DR/DV/DT/DTE/DVE,
asynchronous Servo-
motors CT/CV" operat-
ing instructions
• MOVIFIT®-SC
operating
instructions
• MOVIFIT®-FC
operating
instructions
Parameter set-
tings and diag-
nostics, see page
49
• PROFIBUS-DP,see
page 11
• For process data
description in trans-
parent mode, see
page 29
• Error response, see
page 47
5.
Programming and using drive applications
Manual "MOVI-PLC®Programming in the PLC Editor"
Manual "MPLCMotion_MC07 and MPLCMotion_MM Libraries for MOVI-PLC®"
Motor
1. 2. 4.
MOVIFIT®-SC/-FC Parameter settings
3.
Fieldbus configuration
00
I

Manual – MOVIFIT® Function Level "Technology"
11
4
Configuring the PROFIBUS master
PROFIBUS
4 PROFIBUS

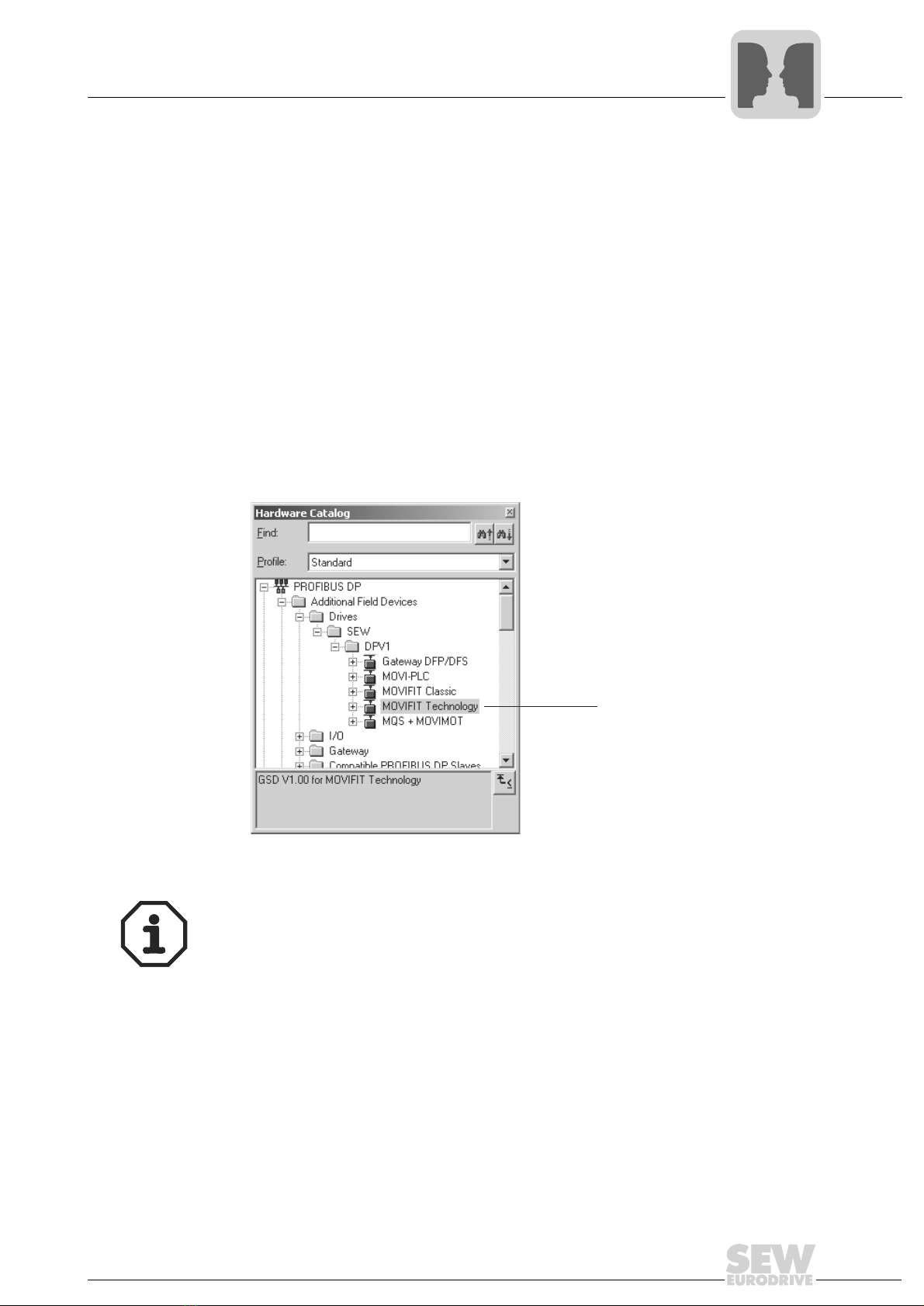

4.1 Configuring the PROFIBUS master
The enclosed disk contains GSD files for configuration of the DP master. These files are
read in with the project planning software of the DP master and are then available for
configuring the DP master. Refer to the manuals for the appropriate project planning
software for details on the procedure.
• Read the information in the PDF files on the GSD file.
• For the MOVIFIT®function level "Technology," install the GSD file
"SEW_600B.GSD" according to the instructions of the project planning software for
the DP master.

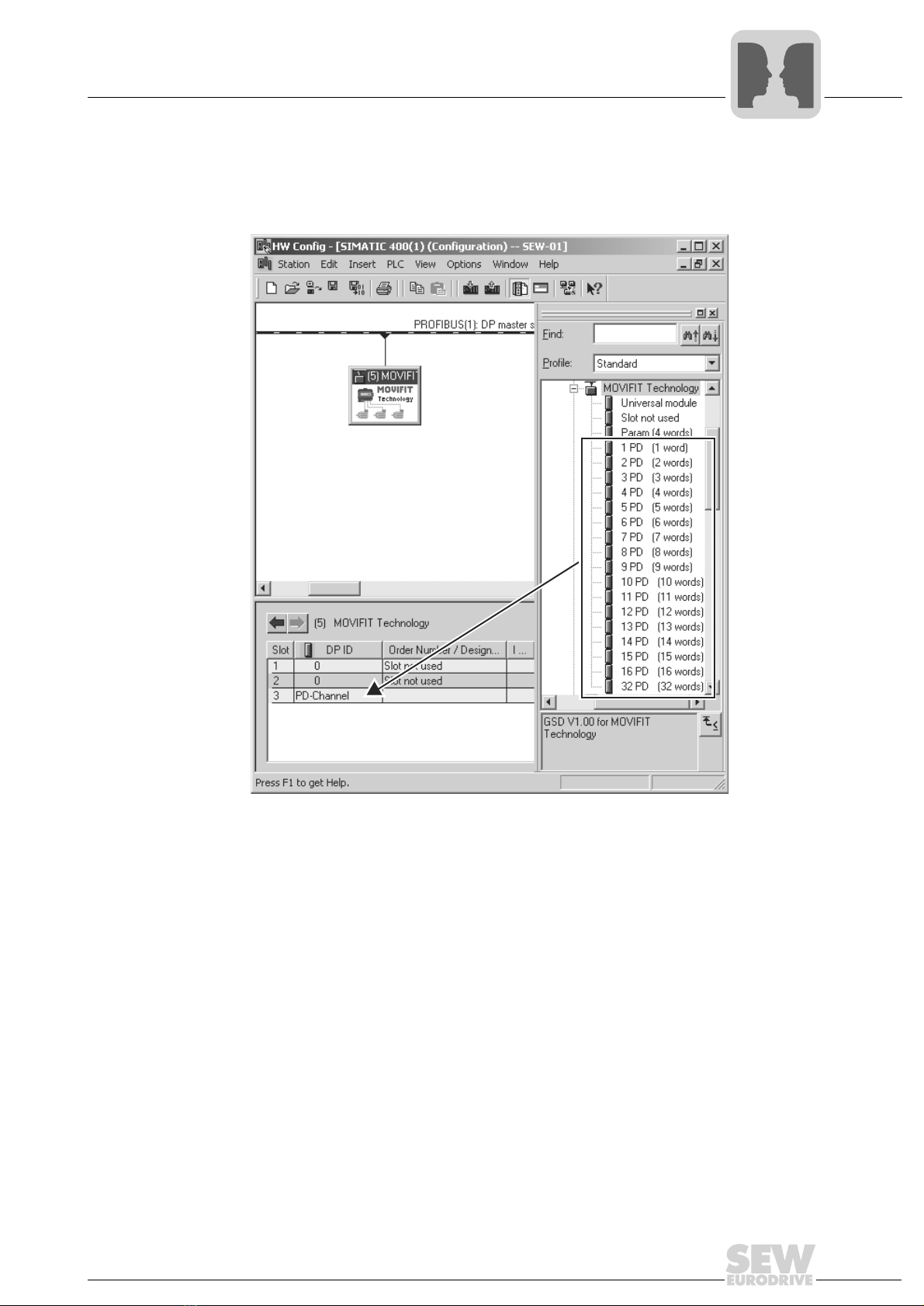

• After successful installation, the device "MOVIFIT®Technology" is displayed in the
list of slave stations.
The following screenshot shows how the MOVIFIT®Technology GSD is displayed in the
STEP7 HW Config.
60006AXX
[1] MOVIFIT®-Technology GSD in STEP7 HW Config
[1]
The latest version of the GSD files is always available on the Internet at the following
address: http://www.sew-eurodrive.com

12
Manual – MOVIFIT® Function Level "Technology"
4Configuring the PROFIBUS master
PROFIBUS
1. Add "MOVIFIT®-Technology" to the PROFIBUS structure and assign the PROFIBUS
address. This address must match the PROFIBUS address you set later in the
MOVIFIT®connection box (see the appropriate MOVIFIT®operating instructions).
The following figure shows how to delete the preassigned process data slots in the
STEP7 HW Config:
2. The GSD configuration is set to 3 process data words as the default. If you want to
exchange a different process data length between the DP master and the MOVIFIT®
technology unit, mark slot 3 for the MOVIFIT®process data.
3. Delete the process data configuration for slot 3 to begin configuration for your appli-
cation. The HW Config now displays the assignment of the slot in plain text.
60007AXX
3.
1.
2.

Manual – MOVIFIT® Function Level "Technology"
13
4
Application example for a user-programmable IEC application
PROFIBUS
4.2 Application example for a user-programmable IEC application
The following figure shows the configuration for a user-programmable IEC application
using the MOVI-PLC integrated in MOVIFIT®technology.
1. Select the process data configuration required for your application.
2. Enter the I/O or periphery addresses for the configured data width.
3. Save the configuration.
4. Extend your application program to include data exchange with the MOVIFIT®units.
5. Save the project and load it into the DP master. Once the DP master has been
started, the LED "BUS-F" of the MOVIFIT®should go out. If this is not the case,
check the wiring and terminating resistors of the PROFIBUS and the configuration,
especially the PROFIBUS address set in the ABOX (see the corresponding
MOVIFIT®operating instructions).
60009AXX

14
Manual – MOVIFIT® Function Level "Technology"
4Application examples for the transparent mode
PROFIBUS
4.3 Application examples for the transparent mode
MOVIFIT®Technology units are delivered as standard with a "transparent mode" pro-
gram. This predefined IEC 61131-3 application works as a gateway and displays all the
connected function units in the PROFIBUS process image. This feature enables trans-
parent access to lower-level units such as I/Os and drive units. Various process image
lengths can be used in PROFIBUS depending on the variants FC, SC and MC.
4.3.1 Compatibility with Classic version
1. The Classic versions provides a consistent process image of all the lower-level
stations connected to PROFIBUS, while the MOVIFIT®-Technology version is a
modular system, which means that address ranges can be assigned individually to
the different function units (DIs, DOs, drives etc.). Consequently, certain basic con-
ditions must be observed when using the same function modules in the DP master.
2. Only 6..8 digital inputs and 0..2 digital outputs are available for the MOVIFIT®-Clas-
sic versions FC and SC, while 12..16 digital inputs and 0..4 digital outputs are avail-
able in all three versions of MOVIFIT®-Technology.
3. As MOVIFIT®-Technology can only be configured with the same input/output data
lengths, reserved information can be transferred via fieldbus, if necessary (see
application examples).

Manual – MOVIFIT® Function Level "Technology"
15
4
Application examples for the transparent mode
PROFIBUS
4.3.2 Application example for the transparent mode with MOVIFIT®-MC
The transparent mode offers the following functionality for MOVIFIT®-MC:
• Control of three MOVIMOT®drives with three process data words each. This means
that the ramp times for acceleration and deceleration are specified cyclically by the
higher-level controller.
• 12/16 digital inputs and 0/4 digital outputs can be used by MOVIFIT®-MC to address
external sensors and actuators. The PLC program switches the combined inputs/out-
puts. "1" signals at the digital outputs DO0..3 set a terminal automatically to a digital
output.
• Cyclical diagnosis of the sensor/actuator channels and the maintenance switch via
special status information "MOVIFIT®status."
The following table shows the configuration example for this MOVIFIT®-MC application.
The following figure shows which process data is transferred via the bus system. Eleven
words are transferred between the fieldbus master and MOVIFIT®-MC as input and out-
put data.
To ensure that the address ranges within the DP master can be assigned to the same
addresses for process input and process output data, the first PO word is transferred as
a reserved word and is not evaluated.
Slot Assignment (DP-ID) Plug-in module
1 „PROFIsafe option“ “Slot not used”
2 “Parameter channel” “Slot not used”
3 “PD channel” “11 PD (11 words)”
60011AEN
Res.
MOVIMOT
®
3MOVIMOT
®
2MOVIMOT
®
1
Status
4DO
Fieldbus
master
MOVIFIT
®
-MC
PO1 PO2 PO3 PO1 PO2 PO3 PO1 PO2 PO3
12DI PI1 PI2 PI3 PI1 PI2 PI3 PI1 PI2 PI3
For information on the coding of process data for MOVIMOT®drives, digital I/Os and
status information (maintenance switches), see section "Process Data Description in
Transparent Mode" from page 29.

16
Manual – MOVIFIT® Function Level "Technology"
4Application examples for the transparent mode
PROFIBUS
The following figure shows the STEP7 configuration example for the MOVIFIT®-MC
transparent mode:
60018AXX

Manual – MOVIFIT® Function Level "Technology"
17
4
Application examples for the transparent mode
PROFIBUS
4.3.3 Application example for the MOVIFIT®-SC transparent mode
The transparent mode offers the following functionality for MOVIFIT®-SC:
• Control of the integrated motor starter for single or dual motor operation via three pro-
cess data words, which means that all the process input data of the motor starter is
available in the PLC at any time.
• 12/16 digital inputs and 0/4 digital outputs can be used by MOVIFIT®-SC to address
external sensors and actuators. The PLC program switches the combined inputs/out-
puts. "1" signals at the digital outputs DO0..3 set a terminal automatically to a digital
output.
• Cyclical diagnosis of the sensor/actuator channels and the maintenance switch via
special status information "MOVIFIT®status."
The following table shows the configuration example for this MOVIFIT®-SC application.
The following figure shows which process data is transferred via the bus system. Five
words are transferred between the fieldbus master and MOVIFIT®-SC as input and out-
put data.
To ensure that the address ranges within the DP master can be assigned to the same
addresses for process input and process output data, the first PO word is transferred as
a reserved word and is not evaluated.
Slot Assignment (DP-ID) Plug-in module
1 „PROFIsafe option“ “Slot not used”
2 “Parameter channel” “Slot not used”
3 “PD channel” “5 PD (5 words)”
60014AEN
SC
Fieldbus
master
PO1 res. res.4DOres.
PI1 PI2 PI3
MOVIFIT
®
-SC
Status 12DI
For information on the coding of process data for MOVIFIT®-SC, digital I/Os and status
information (maintenance switches), see section "Process Data Description in Trans-
parent Mode" from page 29.

18
Manual – MOVIFIT® Function Level "Technology"
4Application examples for the transparent mode
PROFIBUS
The following figure shows the STEP7 configuration example for the MOVIFIT®-SC
transparent mode:
60015AXX

Manual – MOVIFIT® Function Level "Technology"
19
4
Application examples for the transparent mode
PROFIBUS

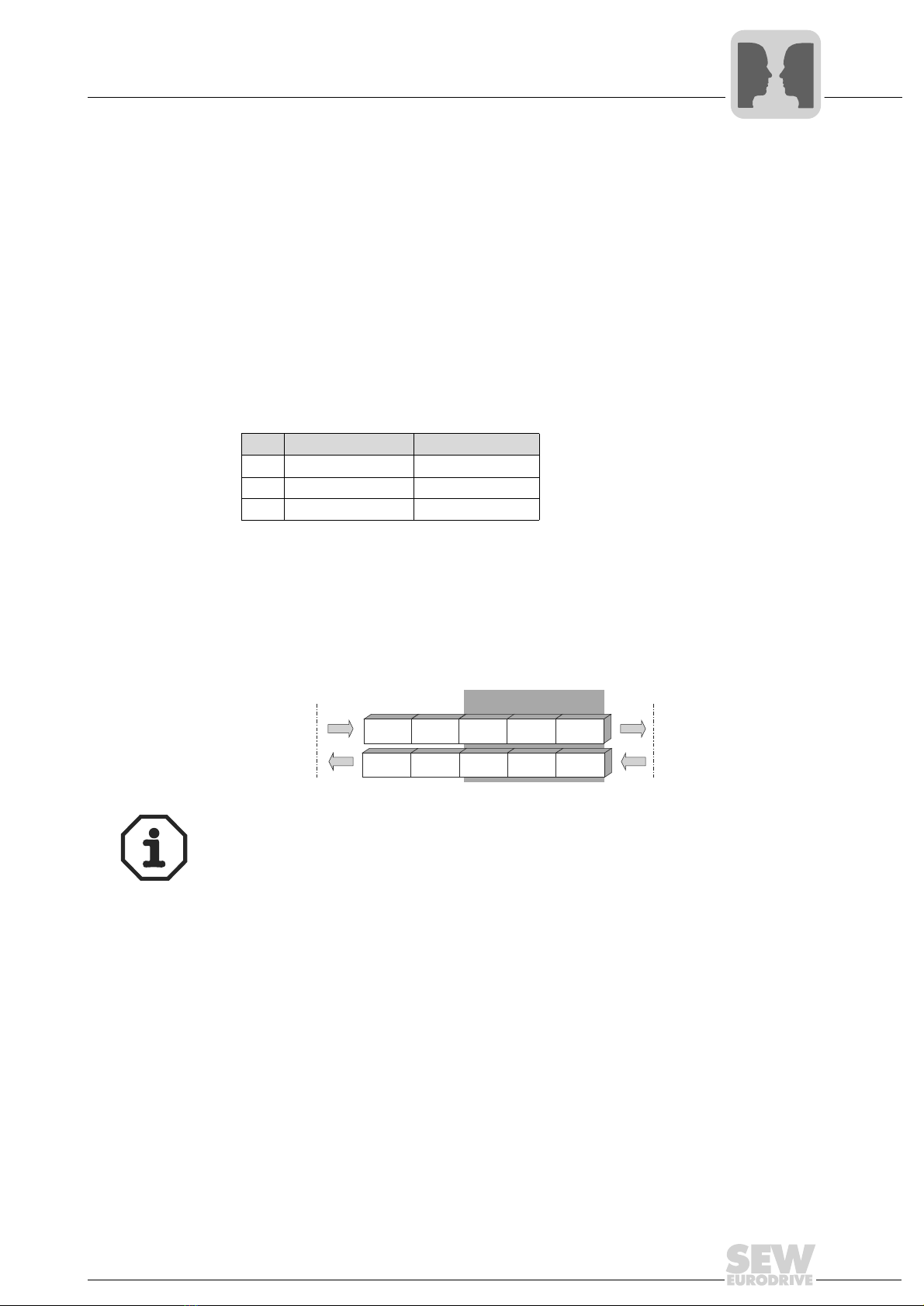

4.3.4 Application example for the MOVIFIT®-FC transparent mode
The transparent mode offers the following functionality for MOVIFIT®-FC:
• Control of the integrated frequency inverter via three process data words. This
means that the ramp times for acceleration and deceleration must be specified cycli-
cally by the higher-level controller.
• 12/16 digital inputs and 0/4 digital outputs can be used by MOVIFIT®-FC to address
external sensors and actuators. The PLC program switches the combined inputs/out-
puts. "1" signals at the digital outputs DO0..3 set a terminal automatically to a digital
output.
• Cyclical diagnosis of the sensor/actuator channels and the maintenance switch via
special status information "MOVIFIT®status."
The following table shows the configuration example for this MOVIFIT®-FC application:
The following figure shows which process data is transferred via the bus system. Five
words are transferred between the fieldbus master and MOVIFIT®-FC as input and out-
put data.
To ensure that the address ranges within the DP master can be assigned to the same
addresses for process input and process output data, the first PO word is transferred as
a reserved word and is not evaluated.
Slot Assignment (DP-ID) Plug-in module
1 „PROFIsafe option“ “Slot not used”
2 “Parameter channel” “Slot not used”
3 “PD channel” “5 PD (5 words)”
60012ADE
Feldbus-
Master
PO1 PO2 PO3
PI1 PI2 PI3
MOVIFIT
®
-FC
MOVIFIT
®
-FC
4DO
12DI
res.
Status
For information on the coding of process data for MOVIFIT®-FC, digital I/Os and status
information (maintenance switches), see section "Process Data Description in Trans-
parent Mode" from page 29.

20
Manual – MOVIFIT® Function Level "Technology"
4Application examples for the transparent mode
PROFIBUS

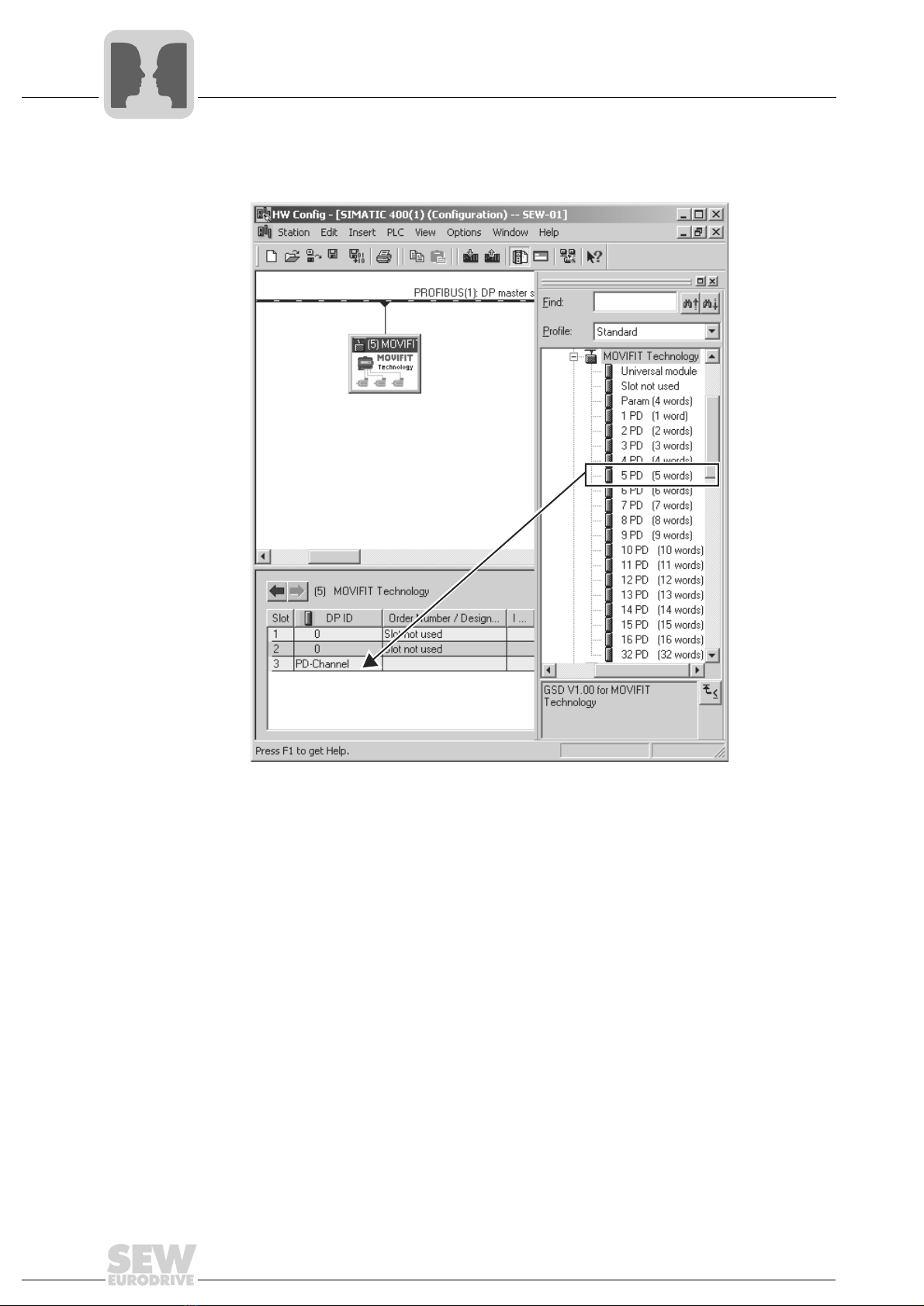

The following figure shows the STEP7 configuration example for the MOVIFIT®-FC
transparent mode:
60013AXX
