Firmware update
Decentralized controller of type SCM
SCM
-B-.2B-.48-000-00
Edition 12/2022

Table of contents
2 Manual – Decentralized controller of type SCM
This documentation has been prepared based on current results. Future communications may differ if new
facts come to light. As a result, the possibility of misinterpretations or mistakes in the technical data cannot be
ruled out.

Table of contents
Manual – Decentralized controller of type SCM 3
Table of contents
1General information .............................................................................................................................. 4
1.1 How to use this documentation................................................................................................ 4
1.2 Content of the documentation.................................................................................................. 4
1.3 Structure of the safety notes .................................................................................................... 4
1.4 Rights to claim under limited warranty..................................................................................... 5
1.5 Other applicable documentation .............................................................................................. 5
1.6 Product names and trademarks............................................................................................... 5
1.7 Copyright notice ....................................................................................................................... 6
2Safety notes ........................................................................................................................................... 7
2.1 Preliminary information ............................................................................................................ 7
2.2 Duties of the user ..................................................................................................................... 7
2.3 Target group............................................................................................................................. 7
2.4 Designated use ........................................................................................................................ 8
3Preparation............................................................................................................................................. 9
3.1 How to get and install SCM Firmware Updater........................................................................ 9
3.2 Establish connection with the drive........................................................................................ 10
4Update firmware .................................................................................................................................. 11
5After the update process .................................................................................................................... 12
5.1 Resolver ................................................................................................................................. 12
5.2 EnDAT 2.2 Encoder ............................................................................................................... 12
6Contact persons .................................................................................................................................. 16

1
General information
4 Manual – Decentralized controller of type SCM
1 General information
1.1 How to use this documentation
This documentation is an integral part of the product. The documentation is intended for all
employees who perform assembly, installation, startup and service work on the product.
Make sure this documentation is accessible and legible. Ensure that persons responsible
for the systems and their operation as well as persons who work on the product inde-
pendently have read through the documentation carefully and understood it. If you are un-
clear about any information or if you require further information, contact SEW-EURO-
DRIVE.
1.2 Content of the documentation
The descriptions in this documentation refer to the current software and firmware at the
time of publication. If you install newer software or firmware, the description may differ. In
this case, contact SEW-EURODRIVE.
1.3 Structure of the safety notes
1.3.1 Meaning of signal words
The following table shows the graduation and meaning of the signal words for safety notes.
Signal word Meaning Consequences if disregarded
DANGER Imminent danger Severe or fatal injuries
WARNING Possible dangerous situation Severe or fatal injuries
CAUTION Possible dangerous situation Minor injuries
NOTICE Possible damage to property Damage to the drive system or its environ-
ment
INFORMATION Useful information or tip: Simplifies the
handling of the drive system.
1.3.2 Structure of section-related safety notes
Section-related safety notes do not apply to a specific action but to several actions pertain-
ing to one subject. The hazard symbols used indicate either a general hazard or a specific
hazard.
This is the formal structure of a safety note for a specific section:
S IG NAL WOR D!
Type and source of danger.
Possible consequence(s) if disregarded.
•Measure(s) to prevent danger.

General information
1
Manual – Decentralized controller of type SCM 5
Meaning of the hazard symbols
The hazard symbols in the safety notes have the following meaning:
Hazard symbol Meaning
General hazard
Warning of dangerous electric voltage
Warning of hot surfaces
Warning of risk of crushing
Warning about suspended load
Warning of automatic startup
1.3.3 Structure of embedded safety notes
Embedded safety notes are directly integrated into the instructions just before the descrip-
tion of the dangerous step.
This is the formal structure of an embedded safety note:
SIGNAL WORD! Type and source of danger. Possible consequence(s) if disregarded.
Measure(s) to prevent danger.
1.4 Rights to claim under limited warranty
Read the information in this documentation. This is essential for error-free operation and
fulfillment of any rights to claim under limited warranty. Read the documentation before you
start working with the product.
1.5 Other applicable documentation
Observe the corresponding documentation for all further components.
1.6 Product names and trademarks
All product names in this documentation are trademarks or registered trademarks of their
respective titleholders.

1
General information
6 Manual – Decentralized controller of type SCM
1.7 Copyright notice
© 2022 SEW-EURODRIVE. All rights reserved. Copyright law prohibits the unauthorized
reproduction, modification, distribution and use of this document – in whole or in part.

Safety notes
2
Manual – Decentralized controller of type SCM 7
2 Safety notes
2.1 Preliminary information
The following basic safety notes are used for the avoidance of injuries and property dam-
age, and they refer primarily to the use of the products documented here. If you also use
other components, also observe the warnings and safety notes that apply to them.
2.2 Duties of the user
As the user, you must ensure that the basic safety notes are observed and complied with.
Make sure that persons responsible for the machinery and its operation as well as persons
who work on the device independently have read through the documentation carefully and
have understood it. If you are unclear about any information or if you require further infor-
mation, contact SEW-EURODRIVE.
As the user, you must ensure that all of the work is only carried out by qualified specialists.
Ensure that the persons who work on the product pay attention to the following regulations,
conditions, documentation, and information:
•National and regional safety and accident prevention regulations
•Warning and safety signs on the product
•All other associated project planning documents, installation notes, startup instructions,
wiring diagrams, and wiring plans
•Do not assemble, install or operate damaged products
•All system-specific specifications and regulations
Ensure that systems in which the product is installed are equipped with additional monitor-
ing and protection devices. Observe the applicable safety regulations and legislation gov-
erning technical work equipment and accident prevention regulations.
2.3 Target group
Any mechanical work may only be performed by adequately qualified specialists. Special-
ists in the context of this documentation are persons familiar with the design, mechanical
installation, troubleshooting, and maintenance of the product who possess the following
qualifications:
•Qualification in the field of mechanical engineering in accordance with the national reg-
ulations
•Familiarity with this documentation
Any electronic work may only be performed by adequately electrically skilled persons.
Qualified electricians in the context of this documentation are persons familiar with electri-
cal installation, startup, troubleshooting, and maintenance of the product who possess the
following qualifications:
•Qualification in the field of electrical engineering in accordance with the national regu-
lations

2
Safety notes
8 Manual – Decentralized controller of type SCM
•Familiarity with this documentation
In addition to that, these persons must be familiar with the valid safety regulations and laws,
as well as with the requirements of the standards, directives, and laws specified in this
documentation. The above-mentioned persons must have the express authorization of the
company to operate, program, configure, label and ground units, systems and circuits in
accordance with the standards of safety technology.
All work in the areas of transportation, storage, operation and waste disposal must be car-
ried out by persons who are trained appropriately. These instructions must enable the per-
sons to carry out the required activities and work steps safely and in accordance with reg-
ulations.
2.4 Designated use
The SCM firmware updater is used to update the firmware of the decentralized controllers
type SCM. To update the firmware, the unit must be in the safe state. After the update
process, the device must be restarted by switching off the supply voltage.
The tool is intended for the following components:
Component Part number
Decentralized controller SCM-B-P2B-048-000-00 28280180
Decentralized controller SCM-B-P2B-X48-000-00 28280199
Decentralized controller SCM-B-C2B-048-000-00 28280202
Decentralized controller SCM-B-C2B-X48-000-00 28280210

Preparation
3
Manual – Decentralized controller of type SCM 9
3 Preparation
3.1 How to get and install SCM Firmware Updater
The latest version of SCM Firmware-Update can be found on the web at:
Link: http://go.sew/os/dud/?tab=software&search=SCM-B
The SCM Firmware Updater always contains only the latest firmware version. Therefore,
always download the latest version from the SEW homepage. The version of the firmware
contained is displayed when the program file is started before the update process.
3.1.1 Backup of drive data
The SCM Firmware Updater saves the device data before the new firmware is installed and
will be restored again after the update process.
3.1.2 Installation of the SCM Firmware-Updater
If the SCM Firmware Updater was not previously installed on the computer, proceed as
follows:
1. Download the SCM Firmware Updater to your Windows device.
2. Unpack the ZIP archive
3. Install the USB device driver as follows:
Installing the device drivers

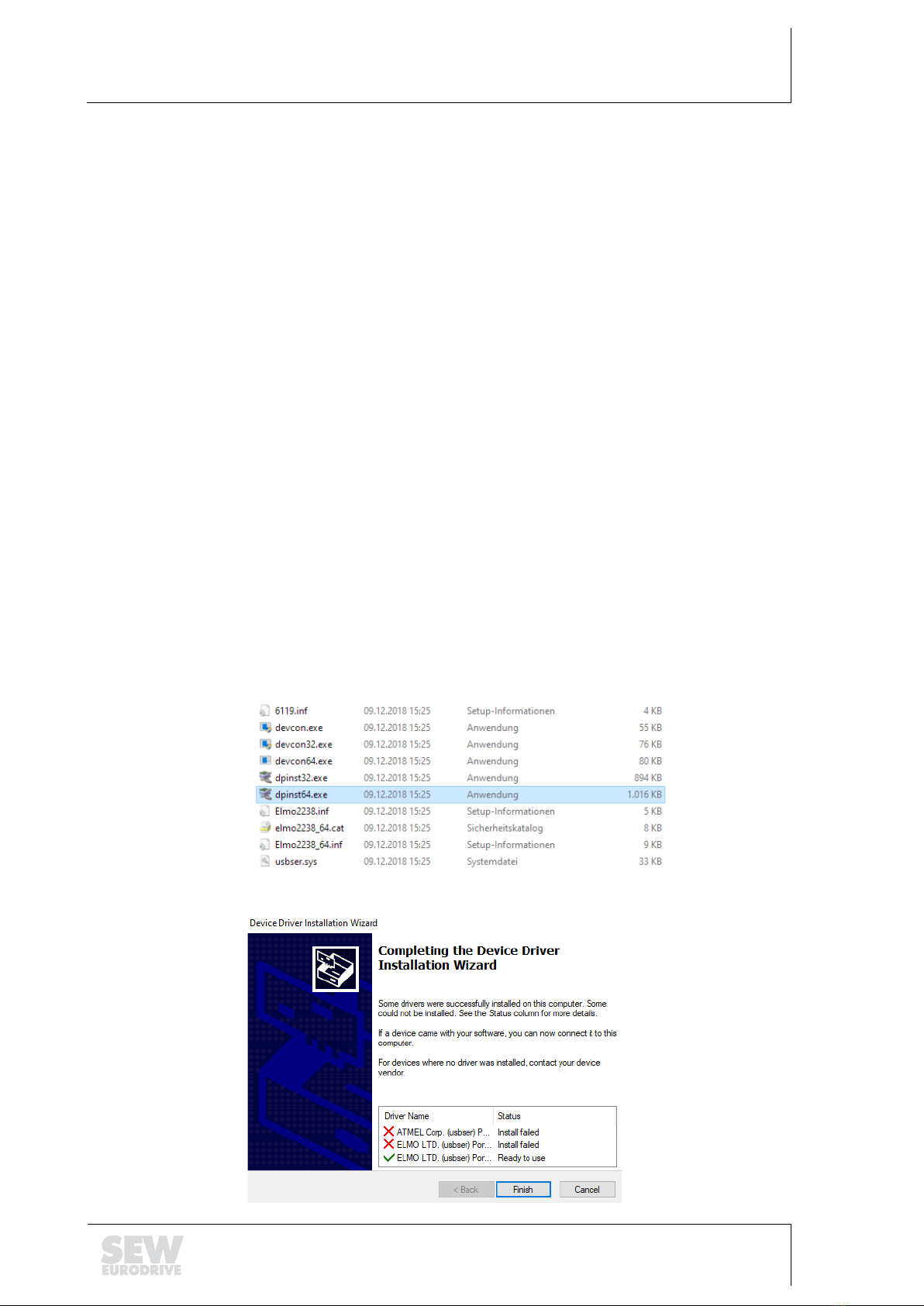

1. To install the drivers, run the device driver installation wizard "dpinst64.exe" and
follow the instructions of the application.
2. If there is already a more recent driver on the PC, the wizard will not overwrite it and
will display the installed drivers in the summary.

3
Preparation
10 Manual – Decentralized controller of type SCM
3.2 Establish connection with the drive
INFOR MATION
The controller has a separation between the voltage potentials and the functional ground
(housing). In most computers, GND is connected to the housing. To prevent damage to
your computer, e.g. due to compensating currents, we always recommend the use of a
USB isolator and an unshielded USB cable.
Recommendation:
USB adapter and micro USB cable
SEW‑EURODRIVE recommends using the following USB adapter and cable, which can
be ordered directly from the manufacturer.
Delock USB Isolator mit 5kV Isolation
62588
Goobay USB-A -> micro USB, 2,0 m
38660
After you have put your machine in STO, you can start connecting the controller and your
computer.
Connect the controller to your computer via a micro USB cable. You can connect both
service ports (X31_1 and X31_2) to your computer at the same time or update one by one.
The SCM Firmware Updater will automatically detect both drives and update them with the
new firmware one by one.
The device must be powered for the update process.
WAR NING!
Accidental restart of the machine or unexpected movement.
An unpredictable function of the drive during or after the update process may endanger
your machine.
•Put the controller into STO and the machine into safe state.

Firmware Update
4
Manual – Decentralized controller of type SCM 11
4 Firmware Update

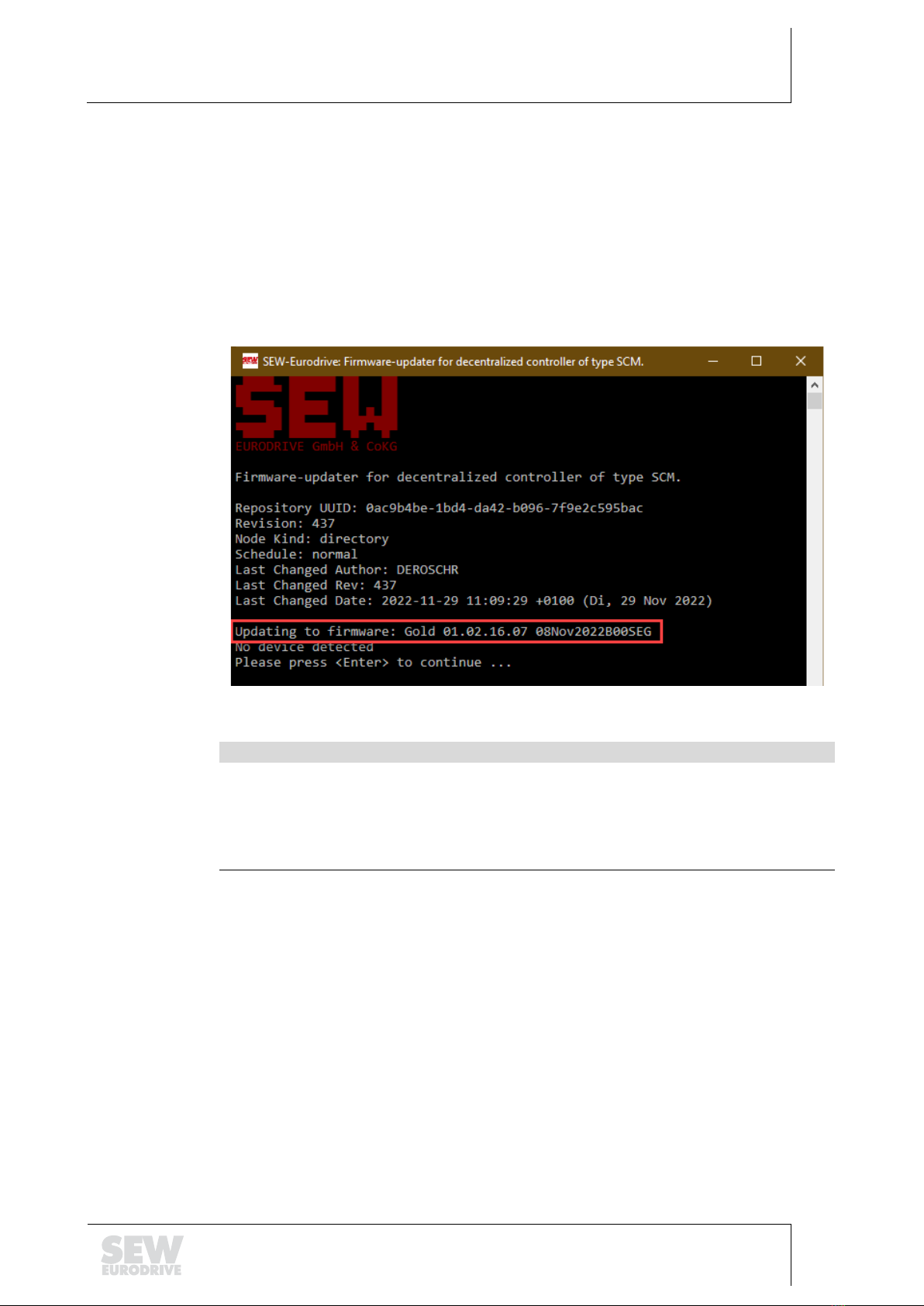

1. Start the "SCM-Firmware-Update.exe" and accept admin query if necessary.
−The updater shows the contained firmware version.
−Then the detected drives with its serial numbers and current version of firmware
are displayed. If the firmware on the drive is newer or equal to the updater version,
no update will be performed.
−If no device was found, check the power supply and the USB connection and start
die application again.
2. To start the update process, enter the password and confirm with <Enter>: scm
NOTIC E !
Do not under any circumstances disconnect the power supply, the USB connection or exit
the program during the update!
The inverter may be irreparably damaged.
•Ensure a stable power supply and do not move the devices during the update.
3. The update process starts:
−Backup of the drive data to hard disk
−Update process
−Restoring drive data back to drive
−The successful completion of the update process reported to you in the program.
−When requested, press <Enter> in the firmware updater to close the program.
4. After the completion of the update process, it is mandatory to restart the controller by
disconnecting the power supply.

5
After the update process
12 Manual – Decentralized controller of type SCM
5 After the update process
After a successful firmware update, we recommend the following steps depending on the
used motor encoder to ensure correct operation of your machine.
5.1 Resolver
5.1.1 Switching on the temperature monitoring
If the temperature monitoring is used, the temperature monitoring may have to be switched
on.
For this purpose, the parameter "CA[60]" must be set to the value 1 via the terminal (Chap-
ter 5.4.1) see the overview in Chapter 5.4.
Setting jumpers
Up to now, the motor temperature has not been monitored. The jumpers S1 and S2 must
be plugged in position 3 (resolver TF monitoring).
If you have not connected the motor temperature sensor or have inserted the jumpers in-
correctly, you will get an error message after the update.

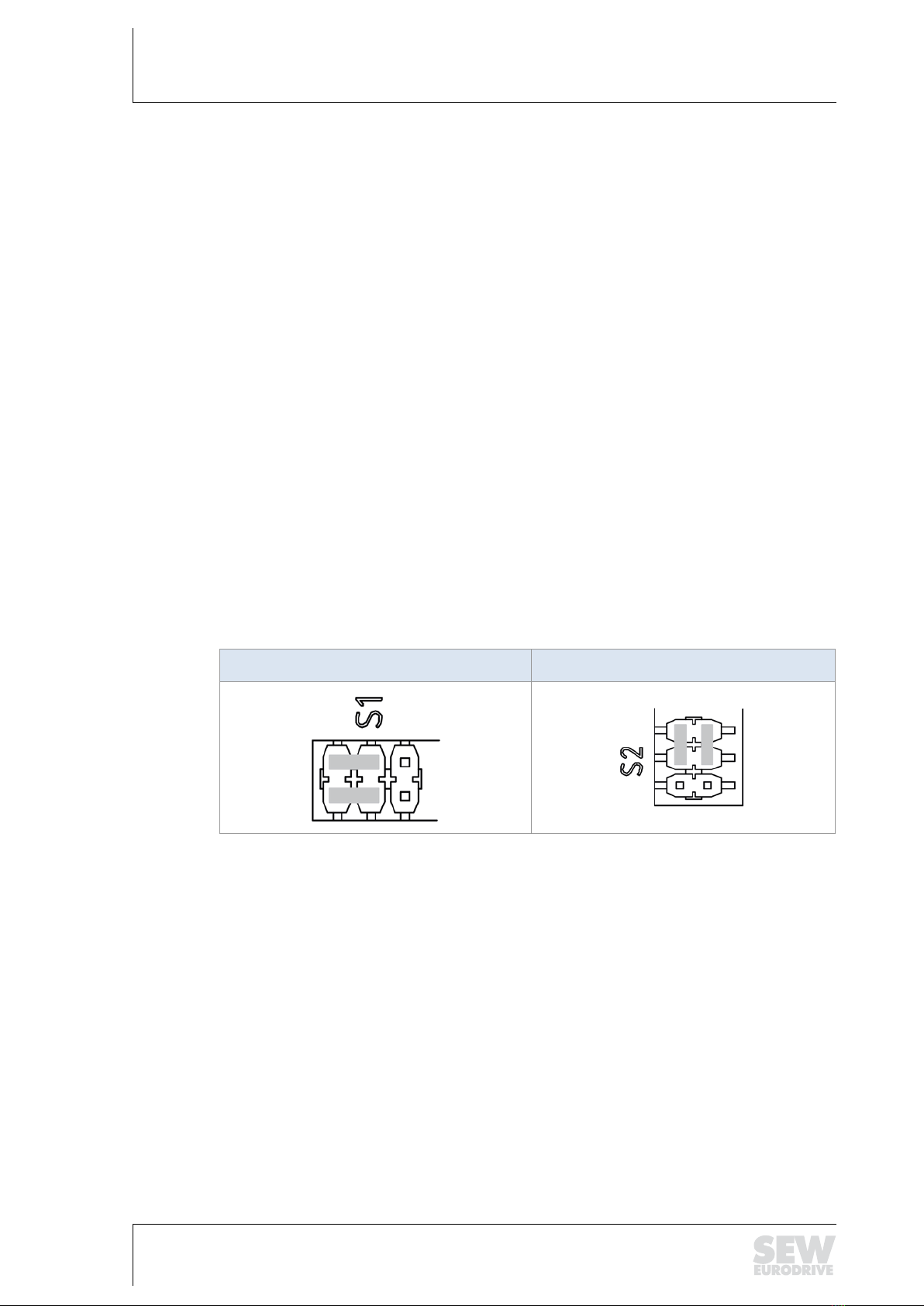

Plug-in position of the jumpers (Extract from operating instructions)
S1 S2
5.1.2 Disabling the temperature monitoring
If the temperature monitoring is not used or the analog input is used for other purposes,
the temperature monitoring must be switched off.
For this purpose, the parameter "CA[60]" must be set to the value 0 via the terminal (Chap-
ter 5.4.1) see the overview in Chapter 5.4.
5.2 EnDAT 2.2 Encoder
5.2.1 Switching on the temperature monitoring
If the temperature monitoring is used, the temperature monitoring may have to be switched
on.
For this purpose, the parameter "CA[60]" must be set to the value 9 via the terminal (Chap-
ter 5.4.1) see the overview in Chapter 5.4.

After the update process
5
Manual – Decentralized controller of type SCM 13
5.2.2 Disabling the temperature monitoring
If the temperature monitoring is not used or the analog input is used for other purposes,
the temperature monitoring must be switched off.
For this purpose, the parameter "CA[60]" must be set to the value 0 via the terminal (Chap-
ter 5.4.1) see the overview in Chapter 5.4.
5.3 Proceeding for machines/projects with existing parameter set
If there is already an existing parameter set for the decentralized controller type SCM that
you load on your SCM during controller startup, the new properties may be disabled. Check
your parameter set or your IEC project and adapt it if necessary.
To switch temperature monitoring on or off, check the line in the parameter set that starts
with "CA[60]=[VALUE]" and check/change the value after the equal sign.
Possible values are: 0, 1, 8, 9, 10 and 11 - see chapter 5.4
5.4 Meaning of parameter CA[60] (related bits)
Parameter CA[60] describes the encoder and temperature monitoring in combination.
The parameter is handled bit-wise. The following bits are relevant for the configuration:
Bit 0 switches on the temperature monitoring
Bit 1 switches the "Gray code" for the SSI sensor
Bit 3 switches on a serial encoder (EnDat 2.2 / SSI)
This results in the following values:
CA[60] Value Function
0 Configuration resolver, temperature monitoring switched off
1 Configuration resolver, temperature monitoring switched on
8 Configuration EnDat or SSI binary, temperature monitoring switched off
9 Configuration EnDat or SSI binary, temperature monitoring switched on
10 Configuration SSI Gray code, temperature monitoring switched off
11 Configuration SSI Gray code, temperature monitoring switched on
5.4.1 Instructions how to read and change the CA[60] value

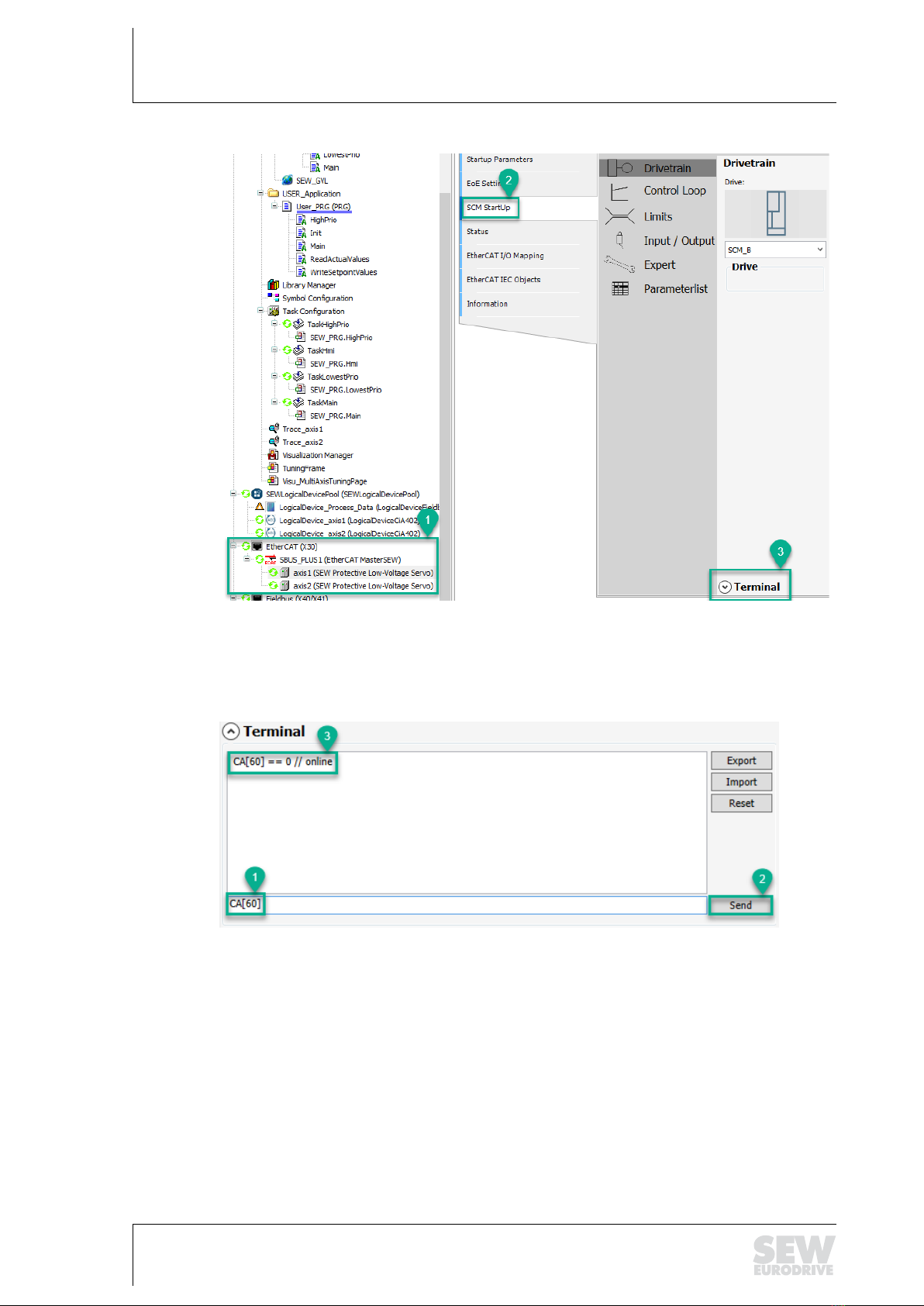

Open Terminal
1. Selection of the axis
2. Selection of SCM StartUp PlugIn
3. Open Terminal

5
After the update process
14 Manual – Decentralized controller of type SCM
Read parameter
1. write parameter name
2. send parameter
3. display of current value: "CA[60]" (see chapter 5.4 Meaning of parameter CA[60])
Modify parameter
1. write parameter name with new value
2. send parameter
3. value is written and displayed

After the update process
5
Manual – Decentralized controller of type SCM 15
Save parameter
To save the parameters permanently the command "save" must be sent.
1. write parameter name with new value
2. send parameter
3. value is written and displayed
5.5 Switch-Off Thresholds XT[x].
The switch-off thresholds can also be read out and adjusted in the terminal. Proceed as
described in chapter 5.4.1.
With the added temperature monitoring, the switch-off thresholds of the overtemperature
or undertemperature of the corresponding encoder configuration are added. These param-
eters are described in the following with the corresponding default values.
Switch-Off Thresholds
Parameter Description Default value
XT[5] EnDat 2.2 overtemperature limit 4368 110°C
XT[6] Resolver or SSI overtemperature limit 1768 140°C
XT[7] EnDat 2.2 undertemperature limit
(short circuit detection)
3000 -100°C
XT[8] Resolver or SSI undertemperature limit
(short circuit detection)
736 -125°C

5
After the update process
16 Manual – Decentralized controller of type SCM
5.6 Possible Errors
Errorcode Errorname Possible cause
0x4210
dec. 16.912
or inverter
error
ErrorID 66
ErrorSubID
16
Motor over-
temperature
Motor temperature too high Check motor environment:
With poor or no cooling. Improve coo-
ling
Temperature sensor defective Measure the resistance of the sensor.
(PTC: low temperature: low re-
sistance / high temperature: high re-
sistance).
Feedback connector loose or feed-
back cable interrupted
Connector / cable check
Motor without temperature sensor Switch off temperature monitoring.
(Chapter 5)
Switch-off threshold for temperature
sensor set too low
Check switch-off threshold (chapter
Fehler! Verweisquelle konnte nicht
gefunden werden.)
Unsupported thermal sensor Contact application department
Only for resolver: The analog input
is used for other purposes.
Switch off temperature monitoring.
(Chapter 5)
0x4220
dec. 16.928
or inverter
error
ErrorID 66
ErrorSubID
32
Motor under-
temperature
Motor temperature too low Check motor environment adjust if
necessary.
Observe the specification of the con-
troller.
Feedback cable has a short circuit Connector / cable check
Motor without temperature sensor Switch off temperature monitoring.
(Chapter 5)
Switch-off threshold for temperature
sensor set too high
Check switch-off threshold (chapter
5.5)

Contact persons
6
Manual – Decentralized controller of type SCM 17
6 Contact persons
Germany
Administration
Production plant
Sales
Bruchsal SEW-EURODRIVE GmbH & Co KG
Ernst-Blickle-Straße 42
76646 Bruchsal
GERMANY
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.de
[e-mail]
Service Competence Centers Central, gear units / mo-
tors
SEW-EURODRIVE GmbH & Co KG
Ernst-Blickle-Straße 1
76676 Graben-Neudorf
GERMANY
Tel. [phone]
Fax [phone]
[e-mail]
Central, electronics SEW-EURODRIVE GmbH & Co KG
Ernst-Blickle-Straße 42
76646 Bruchsal
GERMANY
Tel. [phone]
Fax [phone]
[e-mail]
North SEW-EURODRIVE GmbH & Co KG
Alte Ricklinger Straße 40-42
30823 Garbsen
GERMANY
Tel. [phone]
Fax [phone]
[e-mail]
East SEW-EURODRIVE GmbH & Co KG
Dänkritzer Weg 1
08393 Meerane
GERMANY
Tel. [phone]
Fax [phone]
[e-mail]
South SEW-EURODRIVE GmbH & Co KG
Domagkstraße 5
85551 Kirchheim
GERMANY
Tel. [phone]
Fax [phone]
[e-mail]
West SEW-EURODRIVE GmbH & Co KG
Siemensstraße 1
40764 Langenfeld
GERMANY
Tel. [phone]
Fax [phone]
[e-mail]
Drive Service Hotline/24 h hotline +49 180 5 SEWHELP
[phone]
Additional addresses for service stations in Germany are available on request.
