Sharp AR-285 User manual

CODE: 00ZAR505//A1E
Digital Copier
AR-250
AR-280/281
AR-285/286
AR-335/336
AR-405
MODEL AR-501/505
(AR-280/281) (AR-285/286/335/336) (AR-405)
(AR-250) (AR-501/505)
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[ 2 ] SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
[ 3 ] CONSUMABLE PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
[ 4 ] INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
[ 5 ] EXTERNAL VIEW AND INTERNAL STRUCTURE. . . . . . . . . . 5-1
[ 6 ] SETTING AND ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . 6-1
[ 7 ] SIMULATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
[ 8 ] DISASSEMBLY, ASSEMBLY, MAINTENANCE . . . . . . . . . . . . 8-1
[ 9 ] TROUBLE CODE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
[10] OPERATIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . 10-1
CONTENTS
AR-505

[1] GENERAL
1. Features of copying functions
A. Touch panel
The touch panel with the back-lighted LCD simplifies various opera-
tions. It also shows operation descriptions and paper jam treatment.
B. Various functions of digital system
Different from the conventional analog copiers, this machine employs
the digital system where the image data of a document scanned by
the CCD sensor (which converts photo signals into electrical signals)
are converted into digital signals. This digital system allows the inde-
pendent zooming copy, black-white reversing copy, and centering
copy.
C. Front loading paper tray
The paper trays including the two-step paper feed desk employ a
front loading system to facilitate paper loading.
D. Automatic document feeder as standard
provision
Without opening the document table cover, documents can be auto-
matically fed and copied.
The automatic document feeder provided in the AR-280/285/286/335/
336/405/501/505 allows automatic reversion of documents for duplex
copying as well as simplex copying. (The automatic document feeder
of the AR-280/281 allows only simplex copying.)
E. Step zooming
The zooming function allows selection of the magnification ratio as
follows. Magnification ratio Increment Steps
AR-280/281 25% to 200% 1% 176
AR-250/285/286/335/336 25% to 800% 1% 776
AR-405/501/505 25% to 400% 1% 376
F. Paper/magnification ratio auto selection
When the desired magnification ratio is specified, the suitable paper
size is automatically selected by the original size detection function. If
the copy paper size is specified, then the suitable magnification ratio
is automatically selected.
G. 1-set 2-copy
The right and the left pages of a book, etc. can be copied onto two
sheets of paper continuously.
READY TO COPY. (DOCUMENT FEEDER MODE)
AUTO
EXPOSURE PAPER SELECT
100%
COPY RATIO
AUTO 8/ 11
12
1.8/ 11
2.11 17
12
8/ 11
12
ORIGINAL
Independent zooming copy
Black-white reversing copy
Centering copy
AR-280/285/335 AR-286/336
AR-405 AR-501/505
AUTO IMAGE
ER SELECT COPY RATIO
REVEW
TO 8½X11
100%
8½X11
11 X 11
AR-505
8/6/1999 1 – 1

H. Edge erase copying
Shade at the copy edge can be automatically erased.
I. Binding margin copying
Copying with binding margin can be made.
J. Transparency film with insert sheets
When copying onto transparency film, insert sheets can be placed
following each transparent sheet. The insert sheets can be processed
blank or can be copied with the same image as the transparent
sheets.
K. Copy conditions registration/recall
Nine sets of complicated copying procedures can be stored and re-
called when necessary.
L. Key operator program
The key operator program is used by the key operator to set and
cancel the customer functions.
M. Auto duplex copy
(AR-250/280/281 requires the option)
Duplex copy is made automatically.
N. REPEAT COPY
The REPEAT COPY is used to produce repeated images from an
original on to a single sheet of paper. Border lines can be drawn to
separate repeated images.
O. MULTI SHOT
The MULTI SHOT function is used to copy several originals, collec-
tively in a specified order, onto one sheet.
P. Hi-Fi copy (AR-280/285/335 only)
This function produces high image quality copies.
Q. DATE SIGN
The DATE SIGN function adds the current date to the copies. The
date will be printed at the upper right of the copies.
R. WATERMARK
The WATERMARK function adds a selected watermark such as
“CONFIDENTIAL” and “URGENT” to the copies. The watermark will
be printed in gray tone at the center of copies.
S. SELECT STAMP
The SELECT STAMP function adds a selected string such as “CON-
FIDENTIAL” and “URGENT” to the copies. The string will be printed in
white on a shaded background.
T. PAGE NUMBER
The PAGE NUMBER function adds page numbers to the copies.
234
4
3
2
1
4
1
2
3
1
234
4
3
2
1
4
1
2
3
1
1
2
3
4
INSERTS WITH
PRINTING
INSERTS WITHOUT
PRINTING
KEY OPERATOR PROGRAMS
COPIER MODE
OK
OTHER FUNCTION
SETTINGS TIMER SETTINGS
ACCOUNT CONTROL
ENABLE/DISABLE
SETTINGS
Original Copy
AR-505
1 – 2 8/6/1999

2. System outline (Options)
Copier model
Name Model AR-250 AR-280 AR-281 AR-285 AR-286 AR-335 AR-336 AR-405 AR-501 AR-505
Automatic document
feeder AR-SP1 ❍Standard Standard — — — — — — —
RSPF ————————Standard Standard
Reversing automatic
document feeder AR-RF1 ❍——❍❍Standard Standard — — —
AR-RF2 ———————Standard — —
Stand/500 sheet
paper drawer AR-DE1 ❍❍❍❍❍❍❍———
AR-DE1N ❍❍❍❍❍❍❍❍——
AR-DE7 ————————❍❍
Large capacity tray AR-LC1 ❍❍❍❍❍❍❍❍——
AR-LC1N — ❍❍❍❍❍❍❍❍—
500-sheet paper
drawer AR-CS1 ❍❍❍❍❍❍❍❍——
AR-CS3 ————————❍❍
Desk AR-DD1 ❍❍❍❍❍❍❍—❍❍
AR-DD1N ——————————
2-tray paper exit unit AR-DU1 ❍❍❍—❍—❍———
Exit tray AR-TE1 ❍—❍❍❍❍❍—❍❍
AR-TE2 ————————❍❍
Dual tray output unit AR-TR1 ❍—❍—❍—❍❍——
Finisher AR-FN1 ❍❍❍❍❍❍❍———
AR-FN1N ❍❍❍❍❍❍❍❍——
AR-FN2 ❍❍❍❍❍❍❍❍——
AR-FN3 ————————❍❍
Printer board AR-PB2 ❍❍❍❍❍❍❍❍—❍
AR-SM1 —————————❍
NIC card (10 base
T/2) JX96NCE8 ❍❍❍❍❍❍❍❍—❍
AR-NC1D ❍❍❍❍❍❍❍——❍
NIC card (10 base
T/100 base TX) AR-NC3D ❍❍❍❍❍❍❍❍—❍
AR-NC4D —————— ———
AXIS fixing angle (AXIS scanner) ❍—❍—❍—❍❍—❍
1GB-HDD AR-HD1 ❍—————————
Mounting kit AR-XB3 — — ❍—❍—❍❍——
Document cover AR-VR2 ❍—————————
Tandem connection
cable AR-CA1 —————————❍
AR-505
9/7/1999 1 – 3

AR-250
Duplex module
(AR-DU1)
Stand/500 sheet
paper drawer
(AR-DE1)
Stand/500 sheet
paper drawer
(AR-DE1N)
500-sheet paper drawer
(AR-CS1)
Large capacity tray
(AR-LC1)
Automatic document feeder
(AR-SP1)
Reversing automatic document feeder
(AR-RF1)
Finisher
(AR-FN1) Finisher (AR-FN1N)
Desk(AR-DD1)
Finisher
(AR-FN2)
· Printer expansion kit
(AR-PB2)
· NIC card (10 base T/2) (Provided by Europe)
(JX96NCE8)
· NIC card (10 base T/2) (Provided by local distributors)
(AR-NC1D)
· NIC card (10 base T / 100 base TX)
(AR-NC3D)
· AXIS fixing angle
(AXIS scanner)
· Mounting kit
(AR-XB3)
· 1 GB HDD
(AR-HD1)
Dual tray output unit
(AR-TR1)
Exit tray
(AR-TE1)
Document cover
(AR-VR2)
AR-505
1 – 4 8/6/1999

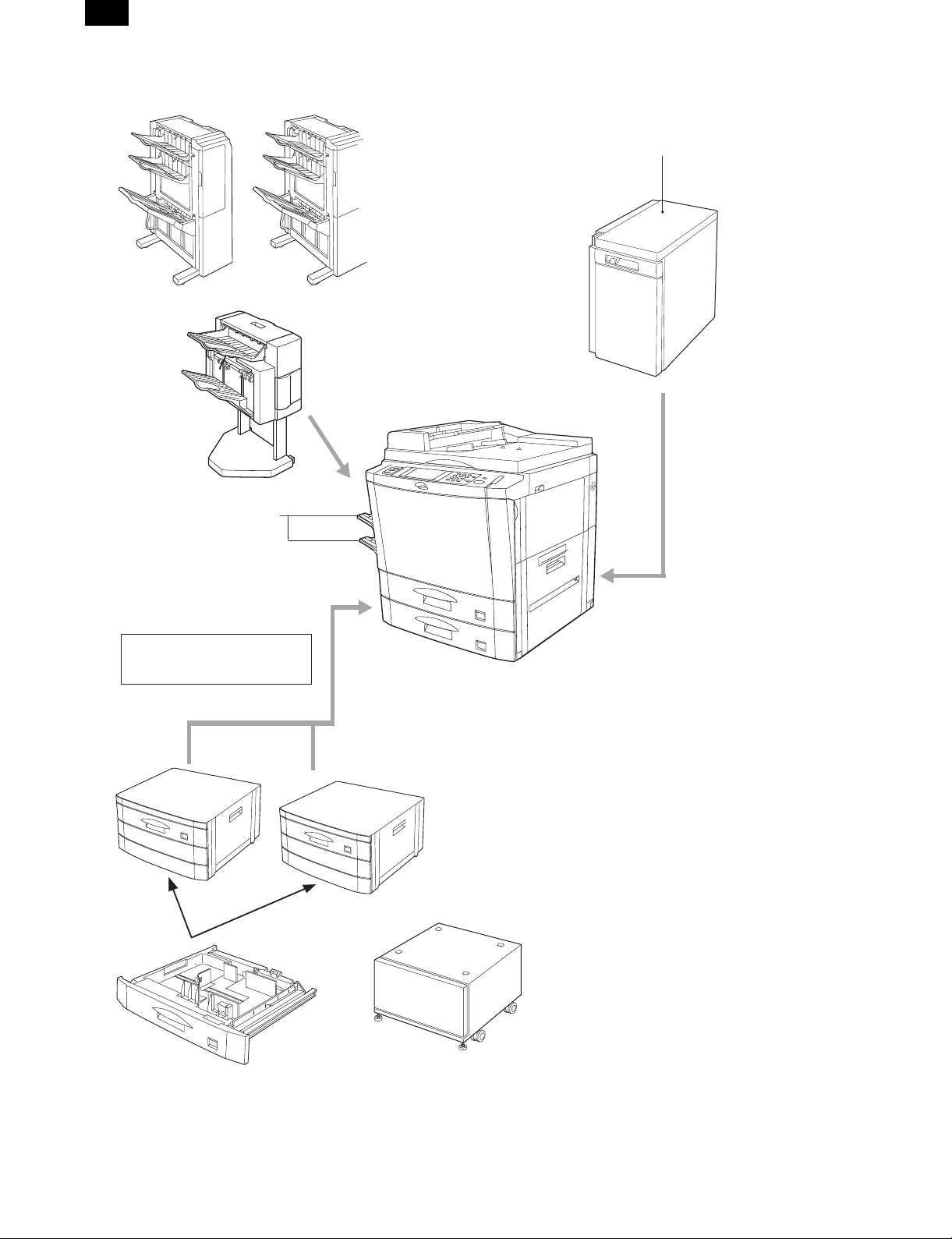

AR-280/285/335
Large capacity (AR-LC1)
EXIT trays
(AR-TE1)
The duplex module (AR-DU1) is
provided as an optional component.
(AR-280)
(AR-LC1N)
Finisher
(AR-FN1) Finisher (AR-FN1N)
Finisher
(AR-FN2)
·
Printer expansion kit
(AR-PB2)
·
NIC card (10 base T/2) (Provided by Europe)
(JX96NCE8)
·
NIC card (10 base T/2) (Provided by local distributors)
(AR-NC1D)
·
NIC card (10 base T / 100 base TX)
(AR-NC3D)
Stand/500 sheet
paper drawer
(AR-DE1)
Stand/500 sheet
paper drawer
(AR-DE1N)
500-sheet paper drawer
(AR-CS1)
Desk(AR-DD1)
AR-505
8/6/1999 1 – 5

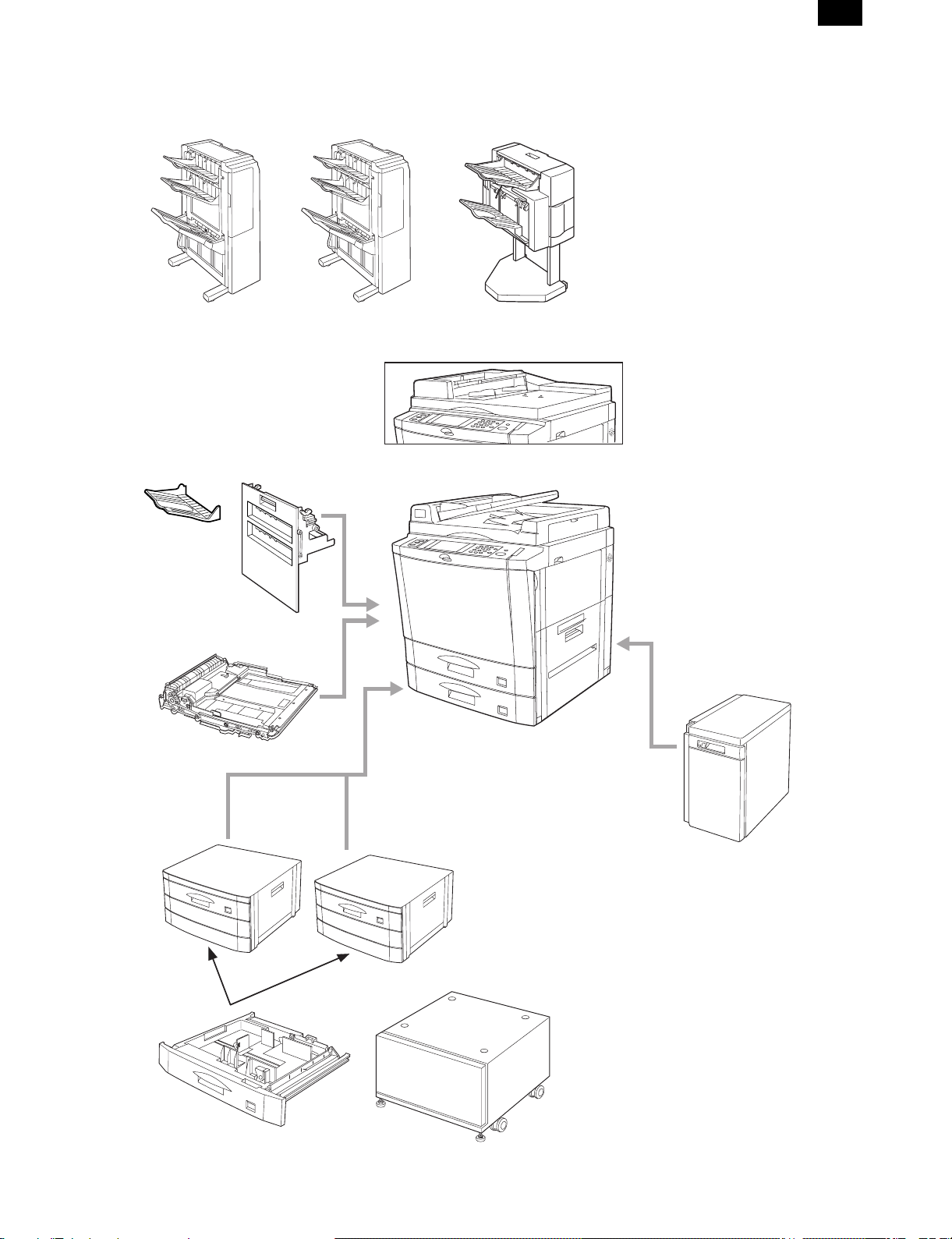

AR-281/286/336
2-tray paper exit unit (AR-281 only)
(AR-DU1)
AR-286/336
AR-281
Desk(AR-DD1)
Finisher
(AR-FN2)
Finisher
(AR-FN1) Finisher (AR-FN1N)
Dual tray output unit
(AR-TR1)
Exit tray
(AR-TE1)
Stand/500 sheet
paper drawer
(AR-DE1) Stand/500 sheet
paper drawer
(AR-DE1N)
500-sheet paper drawer
(AR-CS1)
Large capacity
(AR-LC1)
(AR-LC1N)
·
Printer expansion kit
(AR-PB2)
·
NIC card (10 base T/2) (Provided by Europe)
(JX96NCE8)
·
NIC card (10 base T/2) (Provided by local distributors)
(AR-NC1D)
·
NIC card (10 base T / 100 base TX)
(AR-NC3D)
·
AXIS fixing angle
(AXIS scanner)
·
Mounting kit
(AR-XB3)
AR-505
1 – 6 8/6/1999

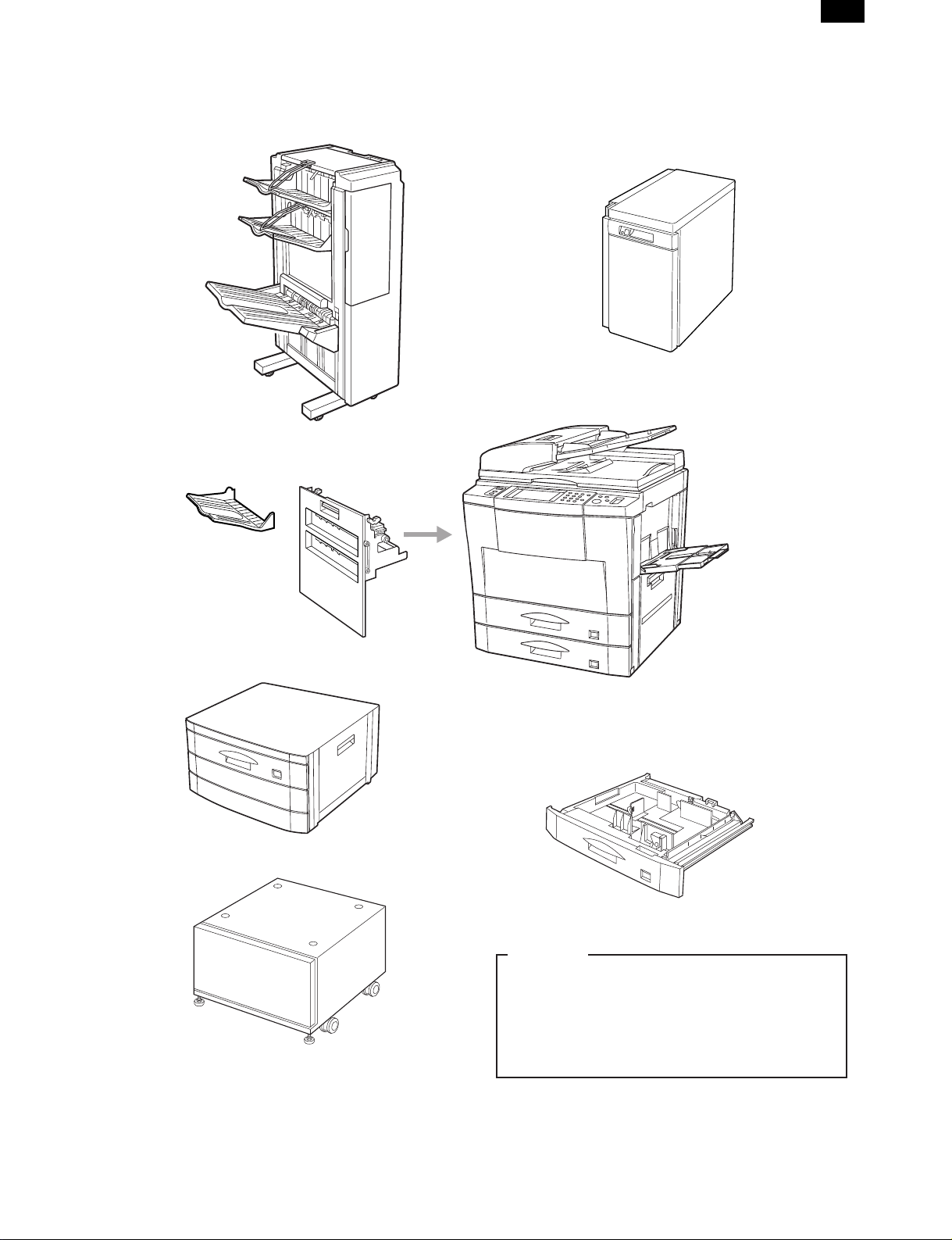

AR-405
Large capacity tray (AR-LC1)
Finisher(AR-FN1N)
Stand/500-sheetpaperdrawer(AR-DE1N)
Printerboard(AR-PB2)
NICcard(10baseT/2)(ProvidedbyEurope) (JX96NCE8)
NICcard (10baseT/2)(ProvidedbyEurope) (AR-NC1D)
NIC card (10baseT/100baseTX) (AR-NC3D)
AXIS fixing angle (AXIS scanner)
Mounting kit (AR-XB3)
Desk(AR-DD1)
500-sheetpaperdrawer(AR-CS1)
Finisher(AR-FN2)
Dual tray output unit
(AR-TR1)
Exit tray
(AR-TE1)
(AR-LC1N)
AR-505
8/6/1999 1 – 7

AR-501/505
Large capacity tray (AR-LC1N)
Stand/500-sheet paper drawer (AR-DE7)
500-sheet paper drawer (AR-CS3)
Finisher (AR-FN3)
·
Printer board (AR-PB2)
·
NIC card (10baseT/2) (Provided by Europe) (JX96NCE8)
·
NIC card (10baseT/2) (Provided by Europe) (AR-NC1D)
·
NIC card (10baseT/100baseTX) (AR-NC3D)
·
Printer board (Expansion memory 16MB x2 SIM) (AR-SM1)
·
AXIS fixing angle (AXIS scanner)
·
Tandem connection cable (AR-CA1)
Desk(AR-DD1)
AR-505 only
Dual tray output unit
(AR-TR1)
Exit tray
(AR-TE1)
(AR-TE2)
AR-505
1 – 8 9/7/1999

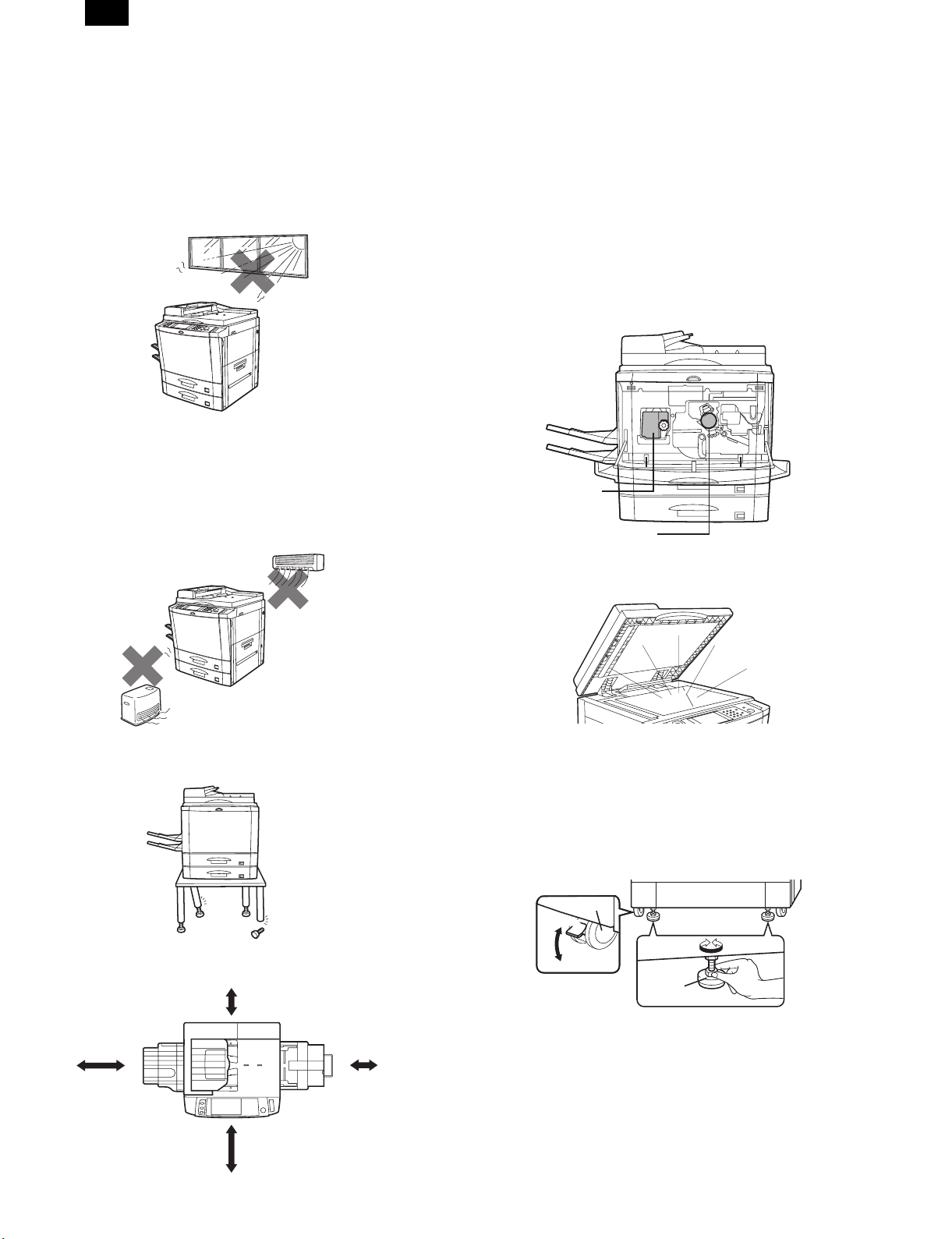

3. Installation requirements
To ensure safety and proper machine performance, please note the
following before initial installation and whenever the machine is to be
relocated.
1) The copier should be installed near an accessible power outlet for
easy connection.
2) Be sure to connect the power cord only to a power outlet that
meets the specified voltage and current requirements.
Also make certain the outlet is properly grounded.
3) Do not install the machine where it is:
•damp or humid,
•exposed to direct sunlight,
•extremely dusty,
•poorly ventilated,
•subject to extreme temperature or humidity changes (e.g., near
an air conditioner or heater).
4) Since a hard disk drive is built into this copier, place the copier on
a firm, level surface. Choose an area which is not subject to any
vibration.
5) Be sure to allow the required space around the machine for serv-
icing and proper ventilation.
A small amount of ozone is produced within the copier during opera-
tion. The emission level is insufficient to cause any health hazard.
NOTE: The present recommended long term exposure limit for
ozone is 0.1 ppm (0.2 mg/m3) calculated as an 8 hr. time-
weighted average concentration.
However, since the small amount that is emitted may have
an objectionable odor, it is advisable to place the copier in a
ventilated area.
Cautions
1) Do not touch the photoconductive drum. Scratches or smudges on
the drum will cause dirty copies.
2) The fusing unit is extremely hot. Exercise care in this area.
3) Since a hard disk drive is built into the copier, be sure to turn the
power switch to the "OFF" position when moving the copier. Take
care not to subject the copier to any vibration or shock.
4) Do not look directly at the light source. Doing so may damage
your eyes.
5) Installation adjusters are provided on the optional stand/500-sheet
paper drawer.When moving the machine with the optional
stand/500-sheet paper drawer, be sure to raise the installation
adjusters. After moving the machine, lower the installation adjust-
ers until they reach the floor to lock the machine in place. (If the
casters are not locked securely, the machine will gradually move
and the cables of the RADF and the SPF are rubbed against the
wall, causing internal disconnection.)
6) When copying is interrupted (for example, because the INTER-
RUPT function has been used, paper or toner has run out, a
misfeed has occurred, etc.), this copier will store the image data of
the originals read prior to the interruption. If copying of secret
documents is interrupted due to the above reasons, be sure to
either resume the interrupted copying by pressing the START key,
or clear the image data by pressing the clear all key after the
interrupt copying is completed or the trouble is cleared, because
the stored data may be printed by other operators.
11-13/16"
(30cm)
23-5/8"
(60cm)
23-5/8"
(60cm) 11-13/16"
(30cm)
Fusing unit
Photoconductive
drum
Lock Release
Adjuster
Lock
Caster
Release
AR-505
8/6/1999 1 – 9

[2] SPECIFICATIONS
1. Machine type
Product
Name CPM Type Document Feeder Paper Exit Memory
RAM HD
AR-250 25 Simplex Desk top – 1 tray 48 MB –
AR-280 28 Simplex Desk top SPF 2 tray 16 MB 1 GB
AR-281 28 Simplex Desk top SPF 1 tray 16 MB 2 GB
AR-285 28 Duplex Desk top RADF 2 tray 16 MB 1 GB
AR-286 28 Duplex Desk top RADF 1 tray 16 MB 2 GB
AR-335 33 Duplex Desk top RADF 2 tray 16 MB 1 GB
AR-336 33 Duplex Desk top RADF 1 tray 16 MB 2 GB
AR-405 40 Duplex Desk top RADF 1 tray 16 MB 2 GB
AR-501 50 Duplex Desk top RSPF 1 tray 48 MB 2 GB
AR-505 50 Duplex Desk top RSPF 1 tray 48 MB 2 GB
∗Memory capacity is of the main body only, excluding optional
expansion memory.
2. Copy speed
A. Basic Speed
per 1 scan AR-250 AR-280
AR-281 AR-285 AR-286 AR-335 AR-336 AR-405 AR-501 AR-505
Single 25
cpm 28 cpm 28 cpm 28 cpm 34 cpm 47 cpm
Multiple 25
cpm 28 cpm 28 cpm 33 cpm 40 cpm 50 cpm
∗Speeds from all the paper feed ports including the normal copy
and the manual feed copy.
B. Normal copy (100%)
AR-250 AR-280
AR-281 AR-285 AR-286 AR-335 AR-336 AR-405 AR-501 AR-505
A4/8.5 ×11 25 28 28 33 40 50
A3/11 ×17 13 14 14 17 19 25
B4/8.5 ×14/
8.5 ×13 15 17 17 21 24 29
B5/A5/
8.5 ×5.5 25 28 28 33 40 50
A4R/B5R/
8.5 ×11 18 20 20 24 27 35
C. Enlargement copy
AR-250 AR-280 AR-281
(800%)
AR-285
AR-286
(800%)
AR-335
AR-336
(800%)
AR-405
(400%)
AR-501
AR-505
(400%)
A4/8.5 ×11 25 28 28 33 40 50
A3/11 ×17 13 14 14 17 19 25
B4/8.5 ×14/
8.5 ×13 15 17 17 21 24 29
B5/A5/
8.5 ×5.5 25 28 28 33 40 50
A4R/B5R/
8.5 ×11 18 20 20 24 27 35
D. Reduction copy (25%)
AR-250 AR-280
AR-281 AR-285 AR-286 AR-335 AR-336 AR-405 AR-501 AR-505
A4/8.5 ×11 25 28 28 33 40 50
A3/11 ×17 13 14 14 17 17 25
B4/8.5 ×14/
8.5 ×13 15 17 17 21 24 29
B5/A5/
8.5 ×5.5 25 28 28 33 40 50
A4R/B5R/
8.5 ×11 18 20 20 24 27 35
E. First Copy time
(1) Basic Speed
Model AR-250 AR-280
AR-281 AR-285 AR-286 AR-335 AR-336 AR-405 AR-501 AR-505
Speed (sec.) 5.2 5.2 5.2 5.2 4.5 4.3
When the paper is fed from the Upper tray on the base unit.
Machines are measured when paper is fed from the upper tray of 2-
tray exit unit.
(2) Detail
AR-250 AR-280
AR-281 AR-285 AR-286 AR-335 AR-336 AR-405 AR-501 AR-505
Upper cassette
(sec.) 5.2 5.2 5.2 5.2 4.5 4.3
Lower cassette
(sec.) 5.7 5.7 5.7 5.7 5.0 4.5
Multi-Baypass
Tray (sec.) 5.3 5.3 5.3 5.3 4.6 4.3
Stand/Upper
paper drawer
(sec.) 6.6 6.6 6.6 6.6 5.9 5.2
Stand/Medium
paper drawer
(sec.) 6.9 6.9 6.9 6.9 6.2 5.5
LCC (sec.) 5.9 5.9 5.9 5.9 5.2 4.7
Refer to each specification for the first copy time when paper is fed
from the document feeder or the optional paper feed tray.
(3) First copy time from the document feeder
Model AR-250 AR-281
AR-286 AR-280 AR-285
AR-335
AR-336 AR-405 AR-501
AR-505
When the SPF is
used (sec.) 7.8 7.8 — — —
When the RADF is
used (sec.) 8.8 — 8.8 7.6 —
When the RSPF is
used (sec.) ————7.0
When the paper is fed from the Upper tray on the base unit.
3. OC/DF
A. Document table
Max. document size A3/11 ×17
Document reference position Center left
Document detection Yes
Detection size Inch Series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R, 8.5 ×5.5
AB Series A3, B4, A4, A4R, A5
Australia A3, 216 ×330, A4, A4R, A5 (Note 1)
B5 areas A3, B4, A4, A4R, B5, B5R
OR guide
display
Inch Series 11, 8.5, 5.5
AB Series A3/A4, B4/B5, A4R/A5, B5R,
11, 8.5 (Note 2)
(Note 1) For areas other than Australia, "B4/8.5 ×11" can be
changed to "8.5 ×13" by the simulation.
(Note 2) The display of 8.5" for AB series is of the line display only.
There is no size display.
B. SPF (AR-280/281)
(1) Document set
Set direction Face down
Set position Center reference
Set quantity A4/8.5 ×11 30 sheets 30 sheets of 80g/m2must be set.
For 80 ∼128g/m2, paper of max.
4.7mm thick can se set.
Greater than
the above. 15 sheets
AR-505
2 – 1 8/6/1999

(2) Document transport
Document transport system Sheet through type
Document feed sequence Top take-up feed
(3) Document Size
Document Size AB Series A3 ∼A5
Inch Series 11 ×17 ∼8.5 ×5.5
Paper Weight 50 ∼128g/m2(14 ∼34 lbs.)
(4) Multi quantity
Multi quantity In the high fidelity mode, multi copy is inhibited.
(5) Document mix feed
Mix paper feed Allowed.
Random paper feed Not allowed.
No linkage with AMS is made.
(6) Document detection
Detection
size
Inch Series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R, 8.5 ×5.5
AB Series A3, B4, A4, A4R, A5
Australia A3, A4, A4R, A5, 216 ×330 (Note 1)
Document
guide display
Inch Series 11, 8.5, 5.5
AB Series A3/A4, B4/B5, A4R/A5, B5R, 8.5
(Note 2)
(Note 1) For areas other than Australia, "B4/8.5 ×11" can be
changed to "8.5 ×13" by the simulation.
(Note 2) The display of 8.5" for AB series is of the line display only.
There is no size display.
(7) Stream mode
Stream mode The stream mode can be selected by the key
operation program. (Only group mode)
(8) Document reverse
Document reverse No
(9) Display section
Display section No
C. RADF (AR-285/286/335/336/405)
(1) Document set
Set direction Face up
Set position Center reference
Set quantity A4/8.5 ×11 50 sheets 35 ∼80g/m2:
Thickness Less than 6.5 mm
Greater than
the above 30 sheets 80 ∼128g/m2:
Thickness Less than 5 mm
(50 sheets of 80g/m2)
(2) Document transport system
Document transport system Belt system
Document fed sequence Lower take-up paper feed
(Face up paper feed)
(3) Document size
Document size AB Series A3 ∼A5
Inch Series 11 ×17 ∼8.5 ×5.5
Weight 35 ∼128g/m2(10 ∼34 lbs.)
(4) Document stop system
Document stop system Stopper system
(Position control for single copy )
(Duplex copy)
(5) Document detection on the tray
Document detection on the tray Yes
Detection size
Inch Series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R, 8.5 ×5.5, 8.5 ×13
AB Series A3, B4, A4, A4R, A5, 8.5 ×13
B5 area A3, B4, A4, A4R, B5, B5R, A5
Australia A3, B4, A4, A4R, A5, 216 ×330
Document guide
display
Inch Series 11, 8.5, 5.5
AB Series A3/A4, B4/B5, A4R/A5, B5R, 8.5
(Note)
(Note) AB series 8.5" display is of line display only. Size display is
not made.
When setting Sim, "8.5 ×14" and "8.5 ×13" are separately detected.
(7) Document mix feed
Document
mix feed Mix paper feed Possible (Same width size)
Random paper feed Possible
No linkage with AMS is made.
(8) Document reversion
Document reversion Yes
(9) Display
Display section LED display Document feed display section
Document remaining display
(10) Stream mode
Stream mode The stream mode can be selected by the key
operation program. (Only group mode)
D. RSPF (AR-501/505)
(1) Document set
Set direction Face up
Set position Center reference
Set quantity Less than 80g/m250 sheets
Greater than the above Thickness Less than 6 mm
(2) Document transport
Document transport system Sheet through type
Document feed sequence Top take-up feed
(3) Document size
Document Size AB Series A3 ∼A5
Inch Series 11 ×17 ∼8.5 ×5.5
Paper Weight Simplex 50 ∼128g/m2(14 ∼34 lbs.)
Duplex 50 ∼110g/m2(14 ∼29 lbs.)
(4) Document detection
Detection size Inch Series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R, 8.5 ×5.5
AB Series A3, B4, A4, A4R, A5, B5, B5R
(5) Others
Dimensions (W x D x H) 576 x 505 x 142 mm
Weight About 13.5 kg
Super supply DC 24V, DC 5V
(Supplied from main body)
Zooming ratio 100 to 400%
Document exchange speed Max. 50 sheets/minute
Power consumption DC24V: 48W, DC5V: 2W
AR-505
8/6/1999 2 – 2

4. Paper feed
A. Outline of paper feed
Copy size
(Max. ∼Min.) AB Series A3 ∼A6R, Postcard
Inch Series 11 ×17 ∼8.5 ×5.5
Paper feed system 2 Tray + Manual Feed Tray
Paper feed capacity 500 ×2 + 50 (80g/m2)
Remaining
detection
Paper feed
tray section
Level detection available
0∼25%, 25%∼50%, 50%∼85%,
85%∼
Manual
Feed Tray Empty detection only available
B. Details of paper feed section
(1) Paper feed tray
Paper feed
size
AB Series A3/B4/A4/A4R/B5/B5R/A5
Inch Series 11 ×17/8.5 ×14/8.5 ×13/
8.5 ×11/8.5 ×11R/5.5 ×8.5
Paper weight 56 ∼105g/m2(15 ∼28 lbs.)
Paper size selection User operation (slide switch system)
Slide switch AB Series A5/A4/A4R/B4/A3/B5/8.5 ×11/
EXTRA
Inch Series 11 ×17/8.5 ×14/8.5 ×13/8.5 ×11/
8.5 ×11R/5.5 ×8.5/A4/EXTRA
Cassette
attachment/detachment Only the lower cassette possible
When the slide switch is set to "Special", the operation is made on the
set size of the key operator program.
(Sizes of 13" in AB series and B5 are set with the key operator pro-
gram.)
(2) Manual Feed Tray
Manual feed tray type Folding, complete attachment
Paper size
AB Series A3 ∼A6R
Inch Series 11 ×17 ∼8.5 ×5.5
Paper
Weight
52 ∼128g/m2(14 ∼34 lbs.), 176g/m2
(index paper), 200g/m2(cover paper)
(For greater than 105g/m2, 28lbs, the
size is A4 or smaller. For greater than
128g/m2(34 lbs) portrait feed only.
Paper kind
Multi feed Standard paper, special paper
Single feed Standard paper, special paper, No. 2
original paper
Special
paper
OHP, label paper, reproduction paper,
index paper, cover paper
For multi and back surface copy, only
the single paper feed is allowed.
Detection
size
AB Series A3/B4/A4/A4R/B5/B5R/A5/A6R
Inch Series 11 ×17/8.5 ×14/8.5 ×11/
8.5 ×11R/5.5 ×8.5/7.25 x 10.5
Manual feed
tray guide
display
AB Series A3/A4, B4/B5, A4R/A5, A5R, B5R, 11,
8.5 (NOTE 1)
Inch Series 11, 8.5, 5.5
(Note 1) For 11" ×8.5" of AB series, only the line is displayed and
the size is not displayed.
(3) Dehumidifying heater
Yes/No No
5. Multi copy
Multi max. quantity 999
6. Warm up
AR-250/280
/281/285/
286/335/336 AR-405 AR-501/505
Warm up time Less than
65 sec Less than 75 sec About 150 sec
Pre-heat yes/no Yes
Jam recovery
time
About 10sec (Leaving the
machine for 60 sec after
opening the door, standard
condition, polygon stop.)
About
30 sec
7. Copy magnification ratio
AR-250/280/281/
285/286/335/336 AR-405/501/505
AB
Series
25, 50, 70, 81, 86, 100,
115, 122, 141, 200, 400,
800%
25, 50, 70, 81, 86, 100,
115, 122, 141, 200,
400%
5R + 6E
Inch
Series
25, 50, 64, 77, 95, 100,
121, 129, 141, 200, 400,
800%
25, 50, 64, 77, 95, 100,
121, 129, 141, 200,
400%
5R + 6E
Zoom width 25 ∼800% 25 ∼400%
Independent
magnification
width
25 ∼800% for
horizontal/vertical
(25 ∼800%
(high fidelity copy))
25 ∼400% for
horizontal/vertical
8. Exposure
Exposure mode Auto, character, character/photo, photo
Manual steps 9 steps
Resolution Read 400 dpi
Write 600 dpi
Gradation Read 256 gradations
Write 2 gradations (Default)
Toner save mode Set with the key operator program.
(In U.K., it is treated by a serviceman.)
9. Print area
A. Max. print area
Max. area AB Series 416 ×293 mm
Inch Series 428 ×275 mm
B. Loss width
Void area
AR-501
AR-505 Lead edge 4 mm or less, rear edge 4 mm
or less, FR total 5 mm or less
Other
models Lead edge 3 mm or less, rear edge 4 mm
or less, FR total 5 mm or less
Image Loss Less than 5 mm
10. Paper exit
A. Paper exit form
AR-280/285/335 AR-250/281/286/336/
405/501/505
Paper exit form 2-tray paper exit 1-tray paper exit
AR-505
2 – 3 8/6/1999

B. Paper exit section
AR-280/285/
335 AR-250/281/ 286/336/ 405 AR-501/505
Paper exit tray
capacity Upper Tray 250 sheets
Lower Tray 100 sheets —
Paper exit
surface
(Face up/Face
down)
Upper Tray Face up Face up &
Face down
Lower Tray Face up —
C. Paper size
Size Paper Weight
Upper
Tray AB Series A3 ∼A6R 50 ∼128g/m2,
176g/m2, 200g/m2
Inch Series 11 ×17 ∼8.5 ×5.5
Lower
Tray AB Series A3 ∼A5 50 ∼105g/m2
Inch Series 11 ×17 ∼8.5 ×5.5
Duplex pass section : 56 ∼105g/m2
11. Duplex module
(AR-285/AR-335/336/405/501/505)
A. Auto duplex unit
AR-250/280/281 AR-285/286/335/
336/405/501/505
Auto Duplex Unit Option
(AR-DU1) Standard
B. Paper size
Paper size AB Series A3, B4, A4, A4R, B5, B5R, A5
Inch Series 11 ×17, 8.5 ×14, 8.5 ×13, 8.5 ×11,
8.5 ×11R, 7.25 ×10.5R
Paper Weight 56 ∼105g/m2(Same as the paper feed
section of the main body)
C. Capacity
Capacity 1 Sheet (Single Pass Method)
12. Shipping form
A. Packing form
Body Body/accessories
B. Paper size
First Tray AB Series A3
Inch Series 11 ×17
Second Tray AB Series A3
Inch Series 11 ×17
13. Additional functions
A. Main body functions
APS
AMS AMS by flow scan with DF is not allowed.
Auto tray switching
1 scan multi copy
Rotation copy
Pre-heat Conditions are set with the key operation.
Auto shut off Conditions are set with the key operation.
Message display
Key operator program
Communication (RIC)
Process control
Coin vendor Only the connector is provided on the
PWB.
B. Copy function
AR-250/280/281/
285/286/335/336 AR-405 AR-501/505
Job call/
registration 9
Dept. control Max. 50 dept. Max. 500 dept.
(Only the copy function is controlled.)
Binding margin Shift width AB series: 10mm, Inch series: 1/2" with
adjustment (Binding direction selectable)
Edge erase AB series: 10mm, Inch series: 1/2" with adjustment
Center erase
1-set, 2-copy
Independent
zooming 25 ∼800% for vertical/horizontal 25 ∼400% for vertical/horizontal
White/black
reversion All surface only (only in the manual mode)
Cover paper Cover/back cover/cover and back cover
OHP insert paper Insert paper copy Yes/No
selectable Only 1 face-up paper exit is possible
Centering
Multi shot (Nin1) Paper feed size is up to A4.
Repeat copy
Date print Time setting by the key operation.
Stamp function
Middle binding HD is required for AR-250.
Page print HD is required for AR-250.
14. Options
AR-250 AR-280 AR-285
AR-335 AR-336 AR-405 AR-501 AR-505
Document
feeder
SPF Option Standard — — —
RADF Option — Standard Standard —
RSPF — — — — Standard
Paper
feed
1 tray desk
(AR-DE1) Option Option Option Option Option
(AR-DE7)
Large capacity
tray (AR-LC1) Option Option Option Option Option
(AR-LC1N)
Tray module
(AR-CS1) Option Option Option Option Option
Desk (AR-DD1) Option Option Option Option Option
Duplex
module
Auto duplex
module
(AR-DU1) Option Option Standard Standard Standard
Finishing
Dual tray output
unit (AR-TR1) Option Standard Standard Option —
Finisher
(AR-FN1) Option Option Option Option —
Finisher
(AR-RN2) Option — — Option —
FN3 Option — — — Option
15. Other specifications
Photoconductor kind OPC drum
Photoconductor dia. 65 φ
Process cleaning Blade
Exposure lamp No-electrode xenon lamp
Developing system Dry, 2-component magnetic brush
development
Charging system DC negative scorotron (saw tooth
electrode)
Transfer system DC positive control
Separation system AC corotron/DC bias separation pawl/
Separation lamp (AR-501/505 only)
Fusing system Heat roller
Fusing cleaning Yes (AR-501/505 only)
AR-505
8/6/1999 2 – 4

16. Outlook
W x D x H (mm) Machine occupying
dimensions Weight
AR-250 600 ×695 ×658 1292 ×630 About 81 kg
AR-280 600 ×695 ×698 1292 ×695 About 89 kg
AR-281 600 ×695 ×735 1292 ×695 About 87 kg
AR-285/335 600 ×695 ×750 1292 ×695 About 98 kg
AR-286/336 600 ×695 ×718 1292 ×695 About 101 kg
AR-405 600 ×700 ×750 1292 ×700 About 98 kg
AR-501/505 600 ×700 ×773 1292 ×700 About 102 kg
17. Power supply
Voltage 100 V, 110 V, 120 V, 127 V, 220-230 V, 240 V
Frequency 50/60 Hz Common
18. Power consumption
AR-280/285/
335 AR-250/281/ 286/336/405 AR-501/505
Max. power
consumption Less than
1440 W Less than 1440 W Less than 1590 W
19. Environmental measures
A. EnergyStar
AR-250 AR-280/285 AR-281/286 AR-335 AR-336 AR-405 AR-501/505
Low power mode (Pre-heat mode) Less than
101.25 W Less than 112.8 W Less than 112.8 W Less than 132.05 W Less than 132.05 W Less than 159 W Less than 197.5 W
Recovery time Less than 30 sec Less than
1 min
Sleep mode
(Power save mode)
Power
consumption Less than
15 W Less than 15 W Less than 15 W Less than 15 W Less than 15 W Less than 15 W Less than 20 W
Shift time Max. 240 min (Default 60 min) Max. 240 min
(Default
90 min)
20. Combination of functions
AR-280/285/335
Inde-
pend-
ent
zoom-
ing
AMS Water
mark Stamp Page print Date print Black- white
rever-
sion
Cen-
tering Edge erase Bind- ing
mar-
gin
1-set
2-
copy
(Docu
-ment
table
only)
Mid-
dle
bind-
ing
Re-
peat Multi shot
(DF
only)
OHP
insert
paper
Cover
inser-
tion
(DF
only)
Hi-Fi
copy Du- plex
copy
direc-
tion
switch
Offset Group Sort Staple
sort
S →S ❍❍❍❍❍❍❍❍❍❍❍▲❍❍❍❍❍✕❍❍❍❍
S (Even number) →D ❍❍❍❍❍❍❍❍❍❍❍▲❍❍✕❍✕❍❍❍❍❍
S (Odd number) →D (DF only) ❍❍❍❍❍❍❍❍❍❍✕▲❍❍✕❍✕❍❍❍❍❍
S →D (Auto) ❍❍❍❍❍❍❍❍❍❍❍▲❍❍✕❍✕❍❍❍❍❍
D →D (DF only) ❍❍❍❍❍❍❍❍❍❍✕▲❍❍✕❍✕✕❍❍❍❍
D →S (DF only) ❍❍❍❍❍❍❍❍❍❍✕▲❍❍❍❍❍✕❍❍❍❍
Staple sort ❍❍❍❍❍❍❍❍❍❍❍✕❍❍✕❍✕❍❍✕✕
Sort ❍❍❍❍❍❍❍❍❍❍❍❍❍❍∆❍∆❍❍✕
Group ❍❍❍❍❍❍❍❍❍❍❍❍❍❍∆❍❍❍❍
Offset ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
Duplex copy direction switch ❍❍❍❍❍❍❍❍❍❍✕❍✕✕✕❍✕
Hi-Fi copy (∗)❍❍✕✕✕✕✕✕❍❍❍✕✕✕❍❍
Cover insertion (DFonly) ❍❍❍❍❍❍✕❍❍❍✕✕✕✕✕
OHP insert paper ❍❍❍❍❍❍✕❍❍❍❍✕✕✕
Multi shot (DF only) ✕✕❍❍❍❍✕❍❍❍✕✕✕
Repeat ❍✕❍❍❍❍❍❍❍❍✕✕
Middle binding ✕❍❍❍❍❍✕❍❍❍✕
1-set 2-copy (Document table only) ❍❍❍❍❍❍✕❍❍❍
Binding margin ❍❍❍❍❍❍❍❍❍
Edge erase ❍❍❍❍❍❍❍❍
Centering ❍❍❍❍❍❍❍
Black-white reversion ❍❍✕❍❍❍
Date print ❍❍❍❍❍
Page print ❍❍❍❍
Stamp ❍❍✕
Water mark ❍❍
AMS ❍
▲Follows the setting on the middle binding display.
∆Only one set of copies available.
∗Combination with SPF mode is inhibited.
AR-505
2 – 5 8/6/1999

AR-250/281/286/336/405
Inde-
pend-
ent
zoom-
ing
AMS Water
mark Stamp Page print Date print Black- white
rever-
sion
Cen-
tering Edge erase Bind- ing
mar-
gin
1-set 2-
copy
(Docu-
ment
table
only)
Mid-
dle
bind-
ing
Re-
peat Multi shot OHP insert
paper
Cover
inser-
tion
(DF
only)
Du-
plex
copy
direc-
tion
switch
Offset Group Sort Staple
sort
S →S
PPPPPPPPPPPVPPPPPPPP
S →D (Auto)
PPPPPPPPPPPVPPPPPPPP
D →D (DF only)
PPPPPPPPPPVPPPPPPP
D →S (DF only)
PPPPPPPPPPVPPPPPPPP
Staple sort
PPPPPPPPPPPPPPPP
Sort
PPPPPPPPPPPPPP
∆
PPP
Group
PPPPPPPPPPPPPP
∆
PPP
Offset
PPPPPPPPPPPPPPPPP
Duplex copy direction switch
PPPPPPPPPPPP
Cover insertion (DF only)
PPPPPPPPP
OHP insert paper
PPPPPPPPPP
Multi shot (DF only)
PPPP PPP 
Repeat
PPPPPPPPP
Middle binding
PPPPP PPP 
1-set 2-copy (Document table only)
PPPPPP PPP
Binding margin
PPPPPPPPP
Edge erase
PPPPPPPP
Centering
PPPPPPP
Black-white reversion
PP PP P
Date print
PPPPP
Page print
PP PP
Stamp
PP 
Water mark
PP
AMS
P
V Follows the setting on the middle binding display.
∆Only one set of copies available.
AR-501/505
Inter-
rupti-
on ∗Tan-
dem
copy ∗Inde-
pend-
ent
zoom-
ing
AMS Water
mark Stamp Page print Date print Black- white
rever-
sion
Cen-
tering Cen- ter
erase
Edge
erase Bind- ing
mar-
gin
1-set
2-copy
(Docu-
ment
table
only)
Mid-
dle
bind-
ing
Re-
peat Multi shot OHP insert
paper
Cover
inser-
tion
(DF
only)
Du-
plex
copy
direc-
tion
switch
Offset Group Sort Stap-
le sort
S →S
PPPPPPPPPPPPPPVPPPP PPPP
S →D
PPPPPPPPPPPPPVPPPPPPPP
D →D (DF only)
PPPPPPPPPPPPVPPPPPPP
D →S (DF only)
PPPPPPPPPPPPPVPPPP PPPP
Staple sort
PPPPPPPPPPPPPPPPP
Sort
PPPPPPPPPPPPPPPPP
∆
PPP
Group
PPPPPPPPPPPPPPPP
∆
PPP
Offset
PPPPPPPPPPPPPPPPPPP
Duplex copy direction switch
PPPPPPPPPPPPPP
Cover insertion (DF only)
PPPP PPPPPPP 
OHP insert paper
PPPPPPPPPPPP 
Multi shot
PPPPPPPPP 
Repeat
PPPPPPPPPPP
Middle binding
PPPPPPPPPP
1-set 2-copy (Document table
only)
P PP PP P PP PPP
Binding margin
PPPPPPPPPPPP
Edge erase
PPPPPPPPPPP
Center erase
PPPPPPPPPP
Centering
PPPPPPPP
Black-white reversion
PPPPPPP
Date print
PPPPPPP
Page print
PPPPPP
Stamp
PPPP
Water mark
PPPP
AMS
PPP
Independent zooming
PP
Tandem copy

V Follows the setting on the middle binding display.
∆Only one set of copies available.
When making an interruption, the number of documents is limited.
Single copy: Max. 20 sheets (A3/B4 document: 10sheets)
Duplex copy: Max. 10 sheets (A3/B4 document: 5 sheets)
∗This function is valid in the AR-505 only.
AR-505
10/13/1999 2 – 6

[3] CONSUMABLE PARTS
1. Consumable Parts List
A. USA
AR-250/280/281/285/286/335/336
No. ITEM CONTENTS LIFE MODEL NAME REMARKS
AR-280/285/
335 AR-250/281/ 286/336
1Drum OPCDrum ×1 160K AR-330DR AR-336DR
2 Developer (Black) Developer (800g) ×10 80K (×10) AR-330MD
(AR330ND) AR-336MD (AR-336ND) AR-330MD = (AR-330ND) ×10 AR-336MD = (AR-336ND) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 17.5K (×10) AR-330MT
(AR-330NT) AR-400MT (AR-400NT) AR-330MT = (AR-330NT) ×10 AR-400MT = (AR-400NT) ×10
4 Upper Heat Roller Kit Upper Heat Roller Fusing Separation Pawl (upper)
Heat Roller Gear
×1
×4
×1160K AR-330UH Replacement of fusing separation
pawl for every 80 K should be done
using those supplied separately.
5 Lower Heat Roller Kit Lower Heat Roller
Fusing Separation Pawl (lower) ×1
×2160K AR-330LH Replacement of fusing separation
pawl for every 80 K should be done
using those supplied separately.
6 80K Maintenance Kit Cleaner Blade
Charging Plate Unit
Drum Separation Unit
×1
×1
×180K AR-330KA1 AR-400KA
7 Cleaner Blade Cleaner Blade ×10 80K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
8 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1
Common with S55,S55 N
9 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2
Common with S54
SF-LS12= (SF-SC12) ×3
9 Upper Heat Roller Upper Heat Roller ×1 160K AR-330HU
10 Fusing Separation Pawl
(upper) Fusing Separation Pawl (upper) ×4×10 80K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 160K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 160K AR-330HR
13 Fusing Separation Pawl
(lower) Fusing Separation Pawl (lower) ×2×10 80K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 80K (×10) SF-240DP SF240DP=SF-240EP
(incl.2 pawls) ×10
15 Screen Grid Screen Grid ×10 80K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 80K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 160K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 80K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-405
No. ITEM CONTENTS LIFE MODEL NAME REMARKS
1Drum OPCDrum ×1 180K AR-400DR
2 Developer (Black) Developer (800g) ×10 90K (×10) AR-400MD AR-400MD = (AR-400ND) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400MT AR-400MT = (AR-400NT) ×10
4 Upper Heat Roller Kit Upper Heat Roller Fusing Separation Pawl (upper)
Heat Roller Gear
×1
×4
×1180K AR-330UH Replacement of fusing separation pawl for
every 80 K should be done using those
supplied separately.
5 Lower Heat Roller Kit Lower Heat Roller
Fusing Separation Pawl (lower) ×1
×2180K AR-330LH Replacement of fusing separation pawl for
every 80 K should be done using those
supplied separately.
6 90K Maintenance Kit Cleaner Blade Charging Plate Unit
Drum Separation Unit
×1
×1
×190K AR-400KA1
7 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
8 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1
Common with S55,S55 N
9 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
9 Upper Heat Roller Upper Heat Roller ×1 180K AR-330HU
10 Fusing Separation Pawl (upper) Fusing Separation Pawl (upper) ×4×10 90K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 180K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 180K AR-330HR
13 Fusing Separation Pawl (lower) Fusing Separation Pawl (lower) ×2×10 90K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 90K (×10) SF-240DP SF240DP=SF-240EP (incl.2 pawls) ×10
15 Screen Grid Screen Grid ×10 90K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 90K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 180K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 90K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-505
3 – 1 8/6/1999

AR-501/505
No. ITEM CONTENTS LIFE MODEL NAME REMARKS
1Drum OPCDrum ×1 250K AR-500DR
2 Developer (Black) Developer (800g) ×10 250K (×10) AR-500MD
(AR500ND) (AR-500ND) ×10 = AR-500MD
3 Toner (Black) Toner Cartridge (700g) ×10 25K (×10) AR-500MT
(AR-500NT) (AR-500NT) ×10 = AR-500MT
4 Upper Heat Roller Kit Upper Heat Roller
Fusing Separation Pawl (upper)
Heat Roller Gear
×1
×4
×1250K AR-505UH
5 Lower Heat Roller Kit Lower Heat Roller
Fusing Separation Pawl (lower) ×1
×2250K AR-505LH
6 125K Maintenance Kit Cleaner Blade
Charging Plate Unit
Drum Separation Unit
Upper CL Roller Unit
×1
×1
×1
×1125K AR-505KA1
7 Cleaner Blade Cleaner Blade ×10 125K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
8 Curl Adjustment Roller Curl Adjustment Roller ×10 250K (×10) AR-505KR AR-505KR= (AR-505JR) ×10
9 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1/FN1N/FN3
Common with S55,S55 N
10 Upper Heat Roller Upper Heat Roller ×1 250K AR-505HU
11 Fusing Separation Pawl (upper) Fusing Separation Pawl (upper) ×4×10 125K (×10) AR-505UP AR-505UP=AR-505TP (incl.4 pawls) ×10
12 Heat Roller Gear Heat Roller Gear ×10 250K (×10) SF-216HG SF216HG= (SF216JG) ×10
13 Lower Heat Roller Lower Heat Roller ×1 250K AR-505HR
14 Fusing Separation Pawl (lower) Fusing Separation Pawl (lower) ×2×10 125K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
15 Drum Separation Pawl Drum Separation Pawl ×2×10 125K (×10) AR-505DP AR-505DP=AR-505EP (incl.2 pawls) ×10
16 Screen Grid Screen Grid ×10 125K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
17 Charging Plate Charging Plate ×10 125K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
18 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
19 Busing Busing ×2×10 250K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
20 Ozone Filter Ozone Filter ×10 125K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
21 Ozone Filter 50 Ozone Filter 50 ×10 125K (×10) AR-505FL AR-505FL= (AR-505JL) ×10
22 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
B. Canada
AR-250/280/281/285/286/335/336
No. ITEM CONTENTS LIFE MODEL NAME REMARKS
AR-280/285/
335 AR-250/281/ 286/336
1Drum OPCDrum ×1 160K AR-330DR AR-336DR
2 Developer (Black) Developer (800g) ×10 80K (×10) AR-330MD
(AR330ND) AR-336MD (AR-336ND) AR-330MD = (AR-330ND) ×10 AR-336MD = (AR-336ND) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 17.5K (×10) AR-330MT
(AR-330NT) AR-400MT (AR-400NT) AR-330MT = (AR-330NT) ×10 AR-400MT = (AR-400NT) ×10
4 80K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
80K AR-330KA AR-400KA
5 160K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
160K AR-330KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2
Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 80K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 160K AR-330HU
10 Fusing Separation Pawl
(upper) Fusing Separation Pawl (upper) ×4×10 80K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 160K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 160K AR-330HR
13 Fusing Separation Pawl
(lower) Fusing Separation Pawl (lower) ×2×10 80K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 80K (×10) SF-240DP SF240DP=SF-240EP
(incl.2 pawls) ×10
15 Screen Grid Screen Grid ×10 80K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 80K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 160K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 80K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-505
8/6/1999 3 – 2

AR-405
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1Drum OPCDrum ×1 180K AR-400DR
2 Developer (Black) Developer (800g) ×10 80K (×10) AR-400MD AR-400MD = (AR-400ND) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400MT AR-400MT = (AR-400NT) ×10
4 90K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
90K AR-400KA
5 180K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
180K AR-330KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 180K AR-330HU
10 Fusing Separation Pawl (upper) Fusing Separation Pawl (upper) ×4×10 90K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 180K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 180K AR-330HR
13 Fusing Separation Pawl (lower) Fusing Separation Pawl (lower) ×2×10 90K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 90K (×10) SF-240DP SF240DP=SF-240EP (incl.2 pawls) ×10
15 Screen Grid Screen Grid ×10 90K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 90K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 180K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 90K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-505
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1Drum OPCDrum ×1 250K AR-500DR
2 Developer (Black) Developer (800g) ×10 250K (×10) AR-500MD
(AR500ND) (AR-500ND) ×10 = AR-500MD
3 Toner (Black) Toner Cartridge (700g) ×10 25K (×10) AR-500MT
(AR-500NT) (AR-500NT) ×10 = AR-500MT
4 125K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
Cleaning Roller
Upper CL Roller Unit
×1
×1
×3
×4
×2
×1
×1
×1
×1
125K AR-505KA
5 250K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
Curl Adjustment Roller
×1
×1
×1
×1
×1
×1
250K AR-505KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1/FN1N/FN3
Common with S55,S55 N
7 Cleaner Blade Cleaner Blade ×10 125K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
8 Upper Heat Roller Upper Heat Roller ×1 250K AR-505HU
9 Fusing Separation Pawl (upper) Fusing Separation Pawl (upper) ×4×10 125K (×10) AR-505UP AR-505UP=AR-505TP (incl.4 pawls) ×10
10 Heat Roller Gear Heat Roller Gear ×10 250K (×10) SF-216HG SF216HG= (SF216JG) ×10
11 Lower Heat Roller Lower Heat Roller ×1 250K AR-505HR
12 Fusing Separation Pawl (lower) Fusing Separation Pawl (lower) ×2×10 125K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
13 Drum Separation Pawl Drum Separation Pawl ×2×10 125K (×10) AR-505DP AR-505DP=AR-505EP (incl.2 pawls) ×10
14 Screen Grid Screen Grid ×10 125K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
15 Charging Plate Charging Plate ×10 125K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
16 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
17 Busing Busing ×2×10 250K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
18 Ozone Filter Ozone Filter ×10 125K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
19 Ozone Filter 50 Ozone Filter 50 ×10 125K (×10) AR-505FL AR-505FL= (AR-505JL) ×10
20 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
21 Curl Adjustment Roller Curl Adjustment Roller ×10 250K (×10) AR-505KR AR-505KR= (AR-505JR) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-505
3 – 3 8/6/1999

C. Europe / U.K. / Australia / New Zealand
AR-250/280/281/285/286/335/336
No. ITEM CONTENTS LIFE MODEL NAME REMARKS
AR-280/285/
335 AR-250/281/ 286/336
1Drum OPCDrum ×1 160K AR-330DM AR-331DM
2 Developer (Black) Developer (800g) ×10 80K (×10) AR-330LD
(AR330DV) AR-336LD (AR-336DV) AR-330LD = (AR-330DV) ×10 AR-336LD = (AR-336DV) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 17.5K (×10) AR-330LT
(AR-330T) AR-400LT (AR-400T) AR-330LT = (AR-330T) ×10 AR-400LT = (AR-400T) ×10
4 80K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
80K AR-330KA AR-400KA
5 160K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
160K AR-330KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 80K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 160K AR-330HU
10 Fusing Separation Pawl
(upper) Fusing Separation Pawl (upper) ×4×10 80K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 160K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 160K AR-330HR
13 Fusing Separation Pawl
(upper) Fusing Separation Pawl (lower) ×2×10 80K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 80K (×10) SF-240DP SF240DP=SF-240EP
(incl.2 pawls) ×10
15 Screen Grid Screen Grid ×10 80K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 80K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 160K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 80K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-405
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1Drum OPCDrum ×1 180K AR-400DM
2 Developer (Black) Developer (800g) ×10 90K (×10) AR-400LD AR-400LD = (AR-400DV) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400LT AR-400LT = (AR-400T) ×10
4 90K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
90K AR-400KA
5 180K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
180K AR-400KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11
Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 180K AR-400HU
10 Fusing Separation Pawl (upper) Fusing Separation Pawl (upper) ×4×10 90K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 180K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 180K AR-330HR
13 Fusing Separation Pawl (upper) Fusing Separation Pawl (lower) ×2×10 90K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 90K (×10) SF-240DP SF240DP=SF-240EP (incl.2 pawls) ×10
15 Screen Grid Screen Grid ×10 90K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 90K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 180K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 90K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-505
8/6/1999 3 – 4
