Shure ULX-D Quad User manual

ULX-D Dual and Quad
Wireless Microphone System
User guide for Shure ULXD Dual and Quad wireless system. Includes setup instructions, specifications, and troubleshooting.
Version: 4 (2020-E)

Shure Incorporated
2/70
Table of Contents
ULX-D Dual and Quad Wireless Microphone System 4
IMPORTANT SAFETY INSTRUCTIONS 4
WARNING 5
Important Product Information 5
LICENSING INFORMATION 6
Information to the user 6
Australia Warning for Wireless 6
Quickstart Instructions 6
General Description 7
Dual and Quad Receiver Models 8
Hardware Interface 8
Receiver 9
Receiver Home Screen 11
Transmitters 12
Boundary and Gooseneck Base Transmitters 14
Advanced Transmitter Features 15

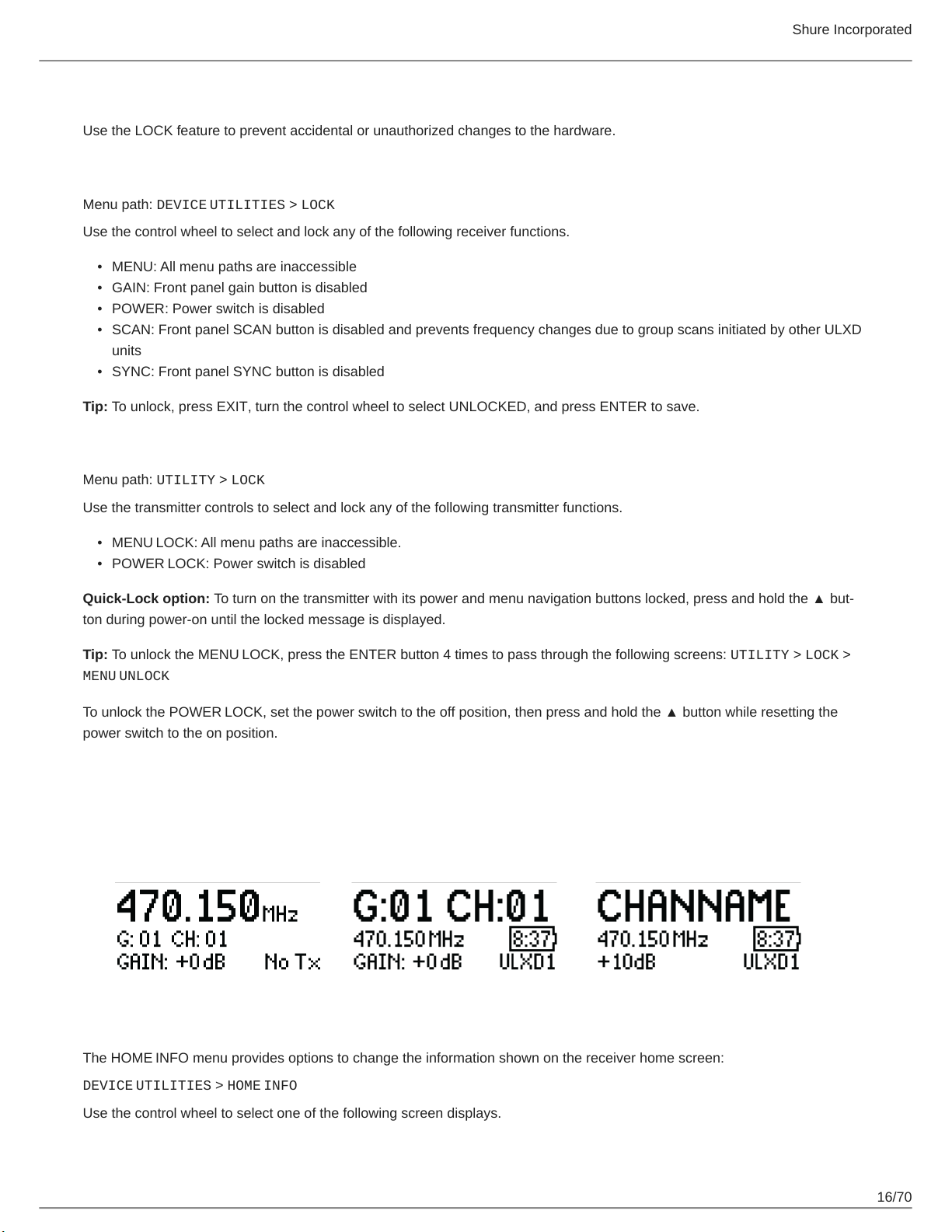

Locking Controls and Settings 16
Home Screen Display Options 16
Menu Screens 17
Transmitter IR Presets 23
Creating a System Preset 24
Batteries 24
Battery Runtime Charts 25
Shure SB900 Rechargeable Battery 25
Shure SB900 Runtime 26
Important Tips for Care and Storage of Shure Recharge
able Batteries 26
Installing the Battery Contact Cover 26
Setting Receiver Gain 26
Receiver Gain Controls 26
Reading the Audio Meter 27
Muting a Receiver Channel Audio Output 27
Transmitter Input Clip 27
Audio Summing 28
Receiver Output Level 29
Scan and Sync 29
Multiple System Setup 30
Manual Frequency Selection 31
RF 31
Transmitter RF Power 31
Interference Detection 31
High Density Mode 32
Frequency Diversity 32
Setting Regional TV Format 33
Custom Groups 33
Audio Signal Encryption 34
RF Cascade Ports 34
Antenna Bias 34
Networking ULX-D Receivers 35
Network Control Software 35
IP Address Configuration 36
Networking Acronyms 36
Overview of Dante Network Modes 37
Network Connection and Configuration Examples 37
Assigning Network Device IDs for Shure Control and
Dante Control 43
Configuring Audio Routes with the Dante Controller 44
Network Troubleshooting 46
Restoring Dante Factory Settings 46

Shure Incorporated
3/70
System Reset 47
Firmware 47
Firmware Versioning 47
Updating the Receiver 47
Updating the Transmitter 48
Connecting to an External Control System 48
Setting the Gateway to Allow Cross Subnet Routing 48
Managing Your System with Shure Software 48
Troubleshooting 49
Power 49
Gain 49
Cables 49
Interface Locks 49
Encryption Mismatch 49
Firmware Mismatch 50
Radio Frequency (RF) 50
Accessories 51
Furnished Accessories 51
Optional Accessories 53
Specifications 54
ULXD4D & ULXD4Q 55
ULXD1 57
ULXD2 58
Tables and Diagrams 59
Batteries 60
Frequency Range and Transmitter Output Power 61
Certifications 68
Information to the user 69

Shure Incorporated
4/70
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
ULX-D Dual and Quad
Wireless Microphone System
IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
with the manufacturer’s instructions.
DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.
Explanation of Symbols

Shure Incorporated
5/70
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Caution: risk of electric shock
Caution: risk of danger (See note.)
Direct current
Alternating current
On (Supply)
Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION
Stand-by
Equipment should not be disposed of in the normal waste stream
WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified
service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting.
WARNING: Danger of explosion if incorrect battery replaced. Operate only with AA batteries.
Note: Use only with the included power supply or a Shure-approved equivalent.
WARNING
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
Follow instructions from manufacturer
Only use Shure charger to recharge Shure rechargeable batteries
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
Do not short circuit; may cause burns or catch fire
Do not charge or use battery packs other than Shure rechargeable batteries
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
Do not immerse the battery in liquid such as water, beverages, or other fluids.
Do not attach or insert battery with polarity reversed.
Keep away from small children.
Do not use abnormal batteries.
Pack the battery securely for transport.

Shure Incorporated
6/70
1.
2.
•
•
•
•

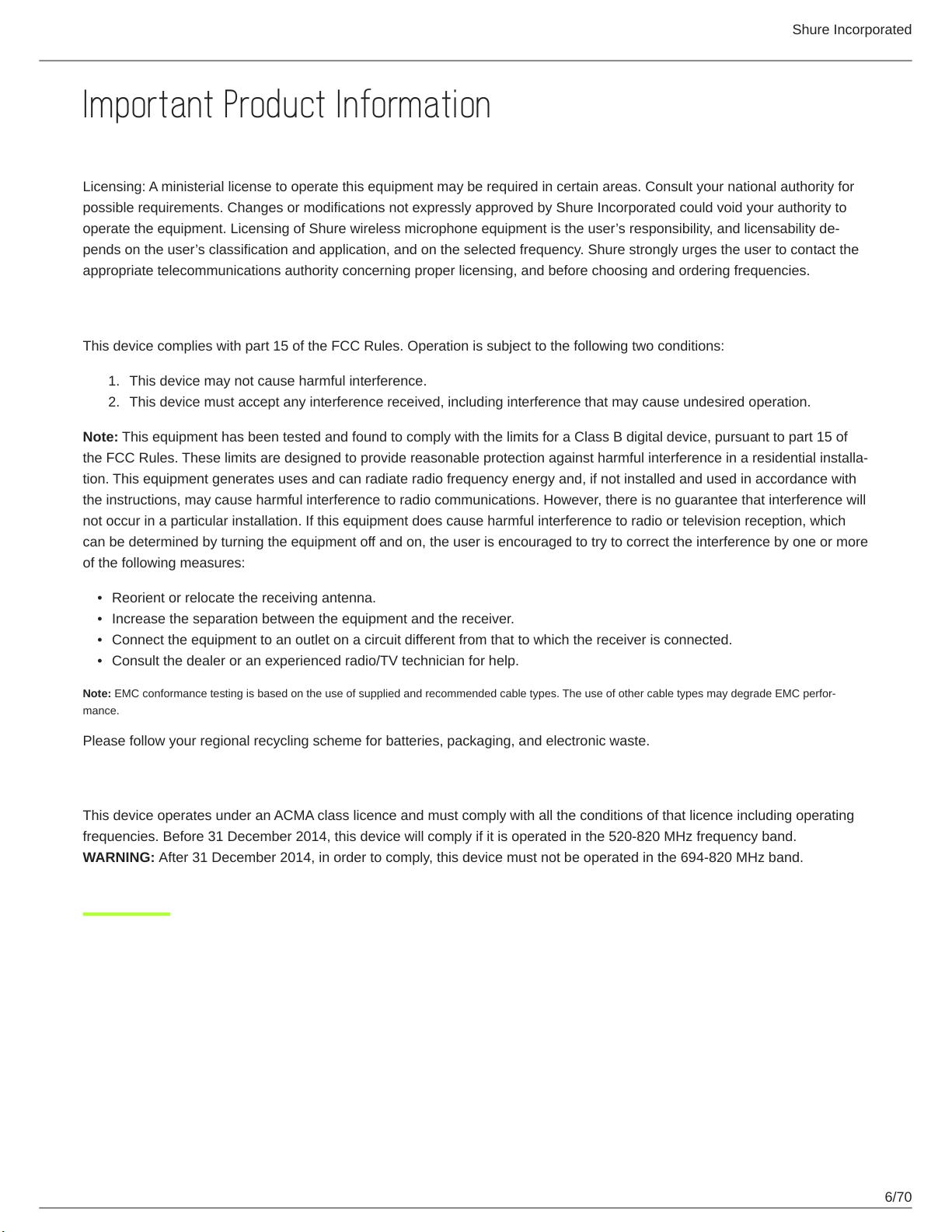

Important Product Information
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for
possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to
operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de
pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the
appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
Information to the user
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa
tion. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC perfor
mance.
Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
Australia Warning for Wireless
This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating
frequencies. Before 31 December 2014, this device will comply if it is operated in the 520-820 MHz frequency band.
WARNING: After 31 December 2014, in order to comply, this device must not be operated in the 694-820 MHz band.

Shure Incorporated
7/70

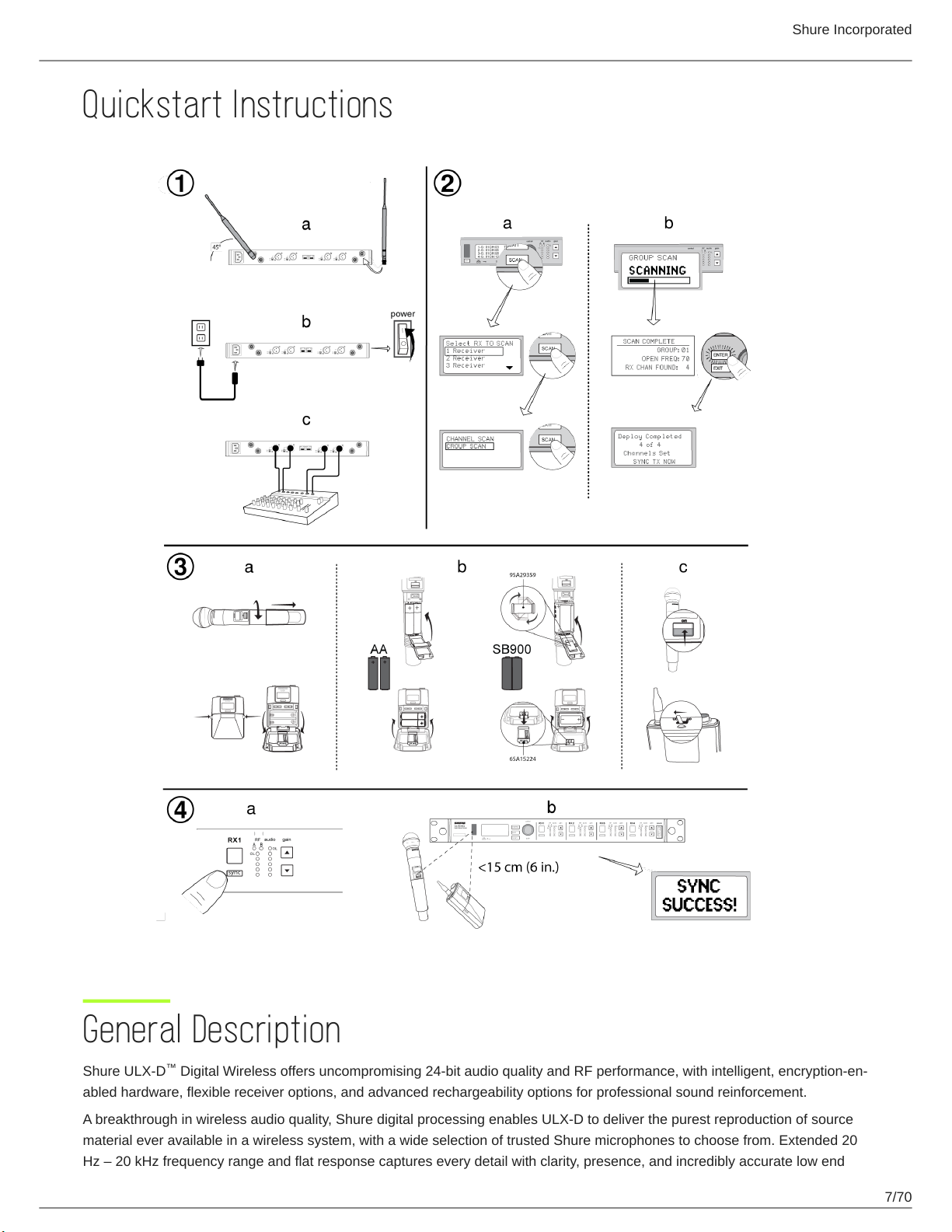

Quickstart Instructions
General Description
Shure ULX-D Digital Wireless offers uncompromising 24bit audio quality and RF performance, with intelligent, encryptionen
abled hardware, flexible receiver options, and advanced rechargeability options for professional sound reinforcement.
A breakthrough in wireless audio quality, Shure digital processing enables ULX-D to deliver the purest reproduction of source
material ever available in a wireless system, with a wide selection of trusted Shure microphones to choose from. Extended 20
Hz – 20 kHz frequency range and flat response captures every detail with clarity, presence, and incredibly accurate low end
™

Shure Incorporated
8/70

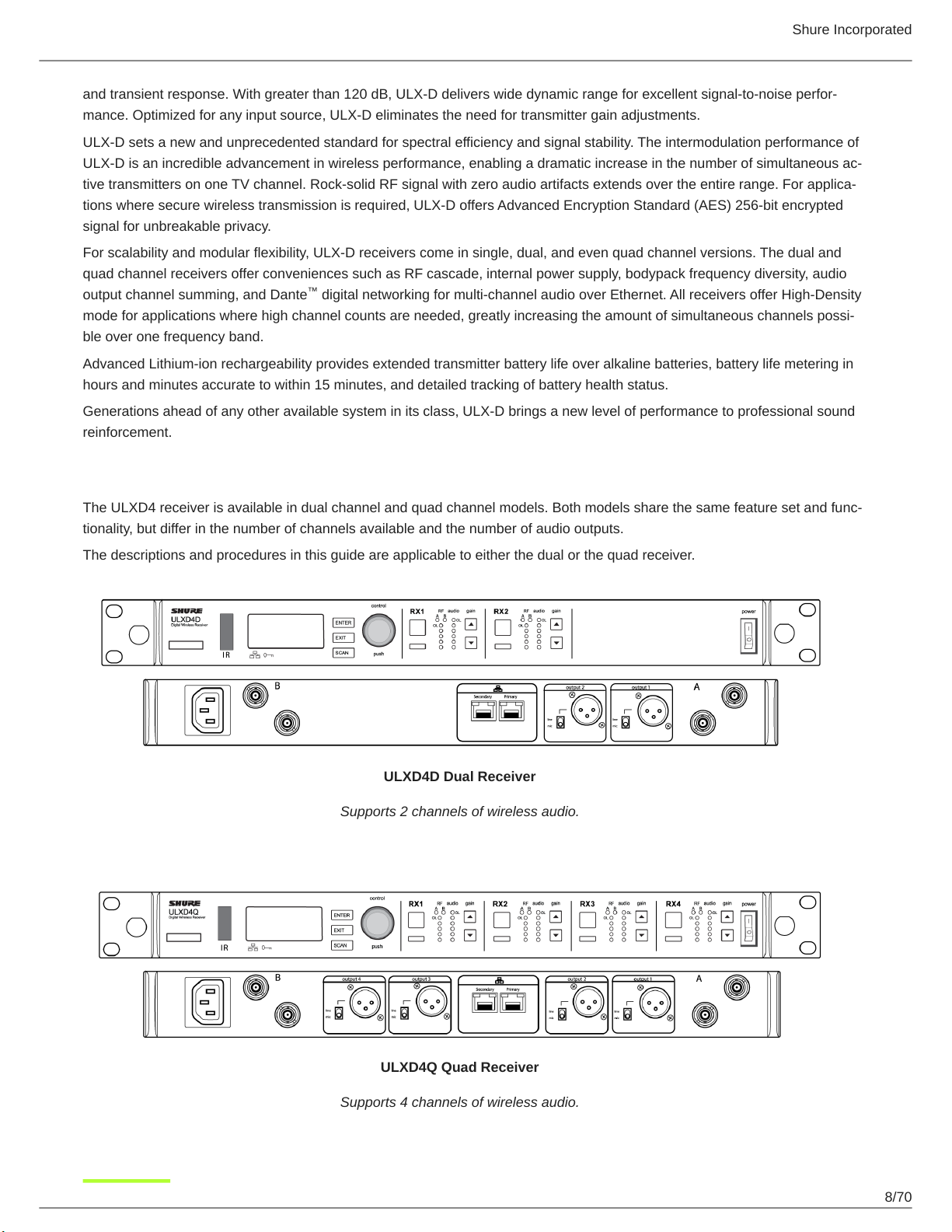

and transient response. With greater than 120 dB, ULXD delivers wide dynamic range for excellent signaltonoise perfor
mance. Optimized for any input source, ULX-D eliminates the need for transmitter gain adjustments.
ULX-D sets a new and unprecedented standard for spectral efficiency and signal stability. The intermodulation performance of
ULXD is an incredible advancement in wireless performance, enabling a dramatic increase in the number of simultaneous ac
tive transmitters on one TV channel. Rocksolid RF signal with zero audio artifacts extends over the entire range. For applica
tions where secure wireless transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256-bit encrypted
signal for unbreakable privacy.
For scalability and modular flexibility, ULX-D receivers come in single, dual, and even quad channel versions. The dual and
quad channel receivers offer conveniences such as RF cascade, internal power supply, bodypack frequency diversity, audio
output channel summing, and Dante digital networking for multi-channel audio over Ethernet. All receivers offer High-Density
mode for applications where high channel counts are needed, greatly increasing the amount of simultaneous channels possi
ble over one frequency band.
Advanced Lithium-ion rechargeability provides extended transmitter battery life over alkaline batteries, battery life metering in
hours and minutes accurate to within 15 minutes, and detailed tracking of battery health status.
Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound
reinforcement.
Dual and Quad Receiver Models
The ULXD4 receiver is available in dual channel and quad channel models. Both models share the same feature set and func
tionality, but differ in the number of channels available and the number of audio outputs.
The descriptions and procedures in this guide are applicable to either the dual or the quad receiver.
ULXD4D Dual Receiver
Supports 2 channels of wireless audio.
ULXD4Q Quad Receiver
Supports 4 channels of wireless audio.
™

Shure Incorporated
9/70
◦
◦
Hardware Interface
Receiver
Front Panel
①Infrared (IR) Sync Window
Sends IR signal to the transmitter for sync.
②Network Icon
Illuminates when the receiver is connected with other Shure devices on the network. IP Address must be valid to enable
networked control.
③Encryption Icon
Illuminates when AES-256 encryption is activated.
④LCD Panel
Displays settings and parameters.
⑤Scan Button
Press to find the best channel or group.
⑥Menu Navigation Buttons
Use to navigate and select parameter menus.
⑦Control Wheel
Push to select a channel or menu item
Turn to scroll through menu items or to edit a parameter value
⑧Channel Select Button
Press to select a channel.
⑨Sync Button
Press the sync button while the receiver and transmitter IR windows are aligned to transfer settings from the receiver to the
transmitter.
⑩RF Diversity LEDs

Shure Incorporated
10/70
◦
◦
◦
◦
◦

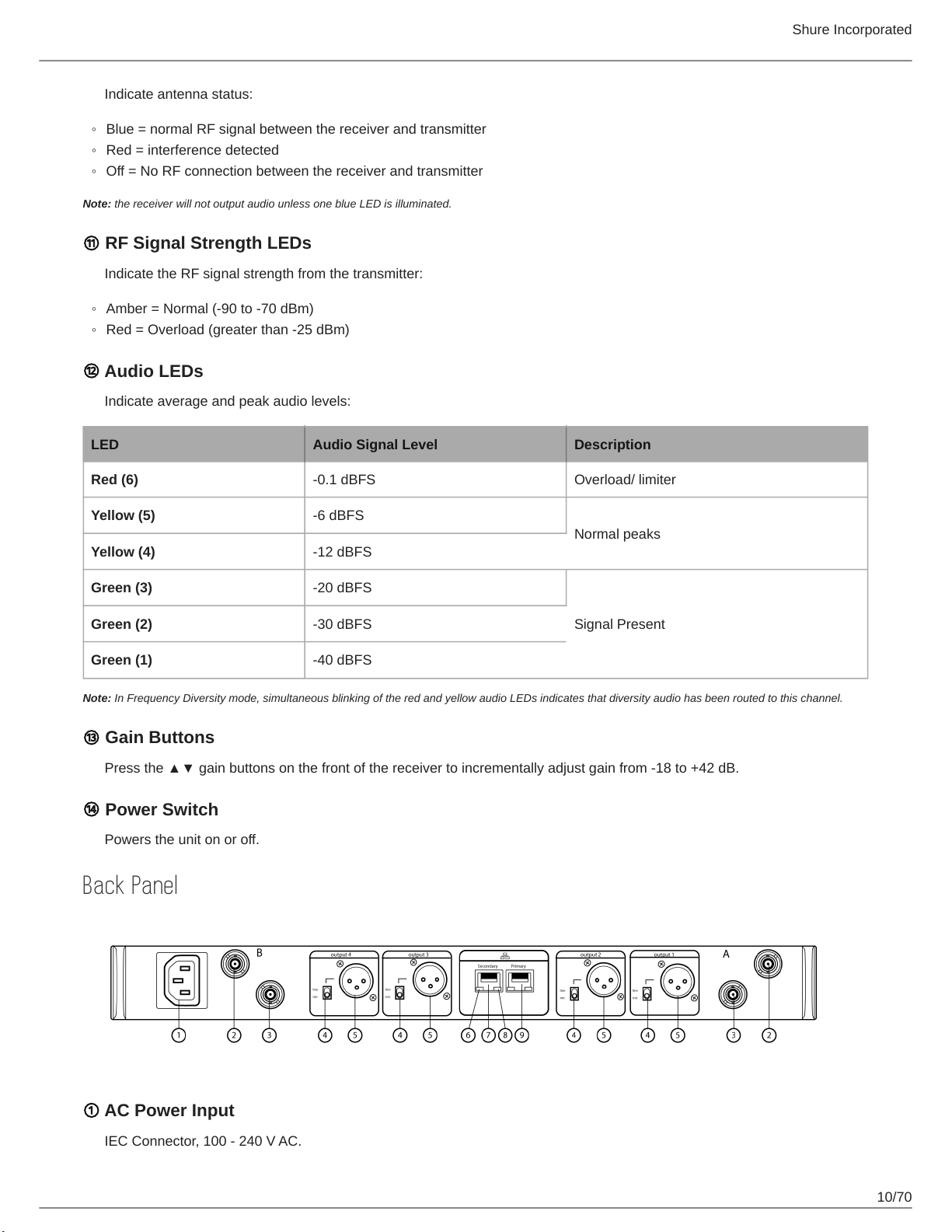

Indicate antenna status:
Blue = normal RF signal between the receiver and transmitter
Red = interference detected
Off = No RF connection between the receiver and transmitter
Note: the receiver will not output audio unless one blue LED is illuminated.
⑪RF Signal Strength LEDs
Indicate the RF signal strength from the transmitter:
Amber = Normal (-90 to -70 dBm)
Red = Overload (greater than -25 dBm)
⑫Audio LEDs
Indicate average and peak audio levels:
LED Audio Signal Level Description
Red (6) -0.1 dBFS Overload/ limiter
Yellow (5) -6 dBFS
Normal peaks
Yellow (4) -12 dBFS
Green (3) -20 dBFS
Signal PresentGreen (2) -30 dBFS
Green (1) -40 dBFS
Note: In Frequency Diversity mode, simultaneous blinking of the red and yellow audio LEDs indicates that diversity audio has been routed to this channel.
⑬Gain Buttons
Press the ▲▼ gain buttons on the front of the receiver to incrementally adjust gain from -18 to +42 dB.
⑭Power Switch
Powers the unit on or off.
Back Panel
①AC Power Input
IEC Connector, 100 - 240 V AC.

Shure Incorporated
11/70
◦
◦
◦
◦
◦
•
•
②RF Antenna Diversity Input Jack (2)
For antenna A and antenna B.
③RF Cascade Jack (2)
Passes the RF signal from Antenna A and Antenna B to one additional receiver.
④Mic/Line Switch (one per channel)
Applies a 30 dB pad in mic position.
⑤Balanced XLR Audio Output (one per channel)
Connect to a mic or line level input.
⑥Network Status LED (Green)
One per network port.
Off = no link
On = network link
Flashing = network link active
⑦Ethernet/Dante Network Secondary Port
Connect to an Ethernet network to enable remote device control via WWB6 software. Also carries Dante digital audio and
control signals for audio distribution, monitoring, and recording - see Dante Network topic.
⑧Network Speed LED (Amber)
One per network port.
Off = 10/100 Mbps
On = 1 Gbps
⑨Ethernet/Dante Network Primary Port
Connect to an Ethernet network to enable remote device control via WWB6 software. Also carries Dante digital audio and
control signals for audio distribution, monitoring, and recording - see Dante Network topic.
Receiver Home Screen
The home screen displays the following information for each receiver channel:
Group and Channel
Transmitter Status: NoTx or TxOn, battery icon/remaining battery life
Press the SEL button to access a channel menu screen.

Shure Incorporated
12/70
◦
◦
◦
◦
◦

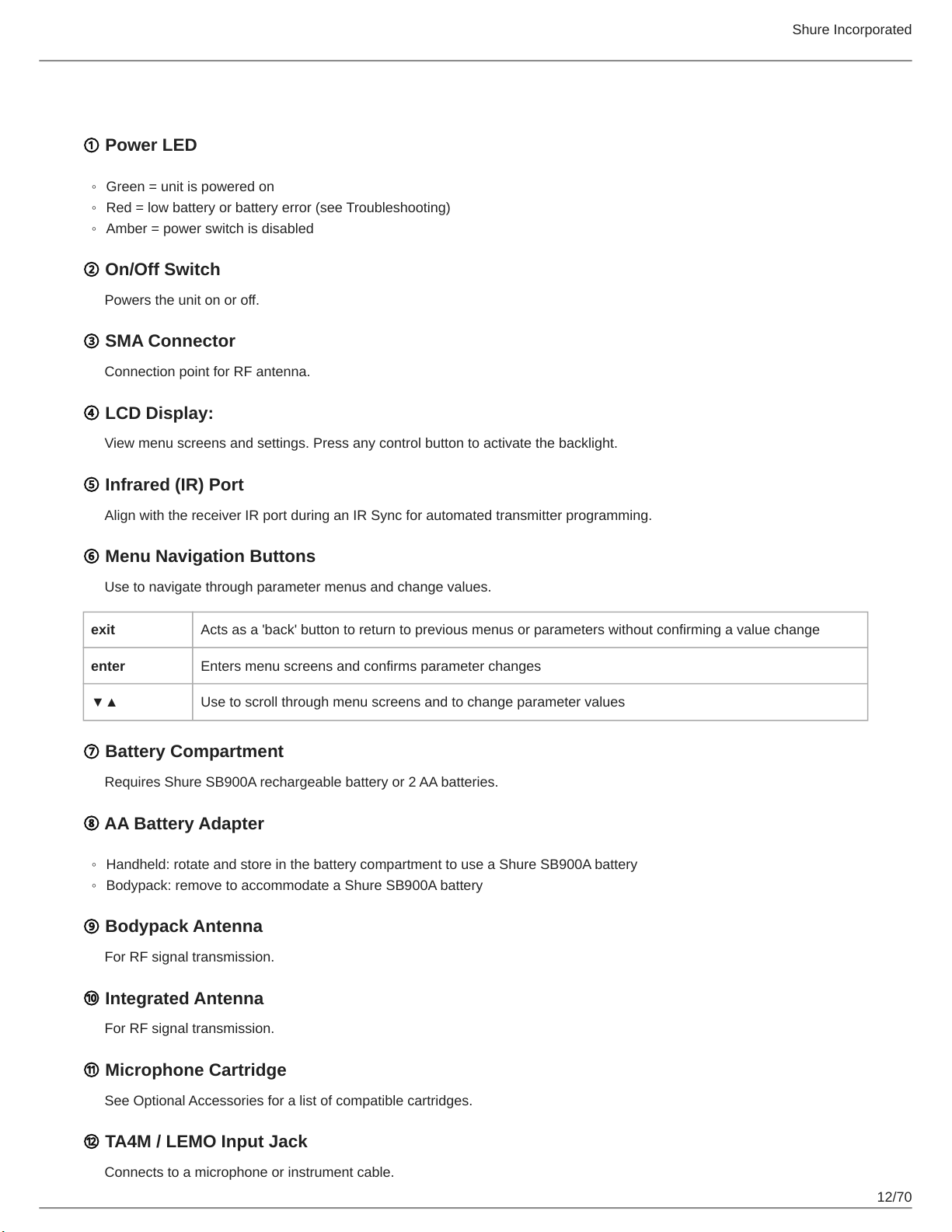

Transmitters
①Power LED
Green = unit is powered on
Red = low battery or battery error (see Troubleshooting)
Amber = power switch is disabled
②On/Off Switch
Powers the unit on or off.
③SMA Connector
Connection point for RF antenna.
④LCD Display:
View menu screens and settings. Press any control button to activate the backlight.
⑤Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter programming.
⑥Menu Navigation Buttons
Use to navigate through parameter menus and change values.
exit Acts as a 'back' button to return to previous menus or parameters without confirming a value change
enter Enters menu screens and confirms parameter changes
▼▲ Use to scroll through menu screens and to change parameter values
⑦Battery Compartment
Requires Shure SB900A rechargeable battery or 2 AA batteries.
⑧AA Battery Adapter
Handheld: rotate and store in the battery compartment to use a Shure SB900A battery
Bodypack: remove to accommodate a Shure SB900A battery
⑨Bodypack Antenna
For RF signal transmission.
⑩Integrated Antenna
For RF signal transmission.
⑪Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
⑫TA4M / LEMO Input Jack
Connects to a microphone or instrument cable.

Shure Incorporated
13/70

Shure Incorporated
14/70
◦
◦
◦
◦
Boundary and Gooseneck Base Transmitters
①Power Button
Press to power on; press and hold to power off.
②Mute/Active Button
Four settings are available for the mute/active button:
Toggle: Press to switch between active and mute states
Push-to-Mute: Hold button to mute microphone
Push-to-Talk: Hold button to activate microphone
Disabled: Button functionality off
③Mute LED
Indicates whether microphone is active or muted. The following settings are available:
Active Muted
Green* Red*
Red Off
Red Flashing red
*MX400R series gooseneck microphones (red LED) do not offer this setting.

Shure Incorporated
15/70
◦
◦
◦
◦
1.
2.
3.

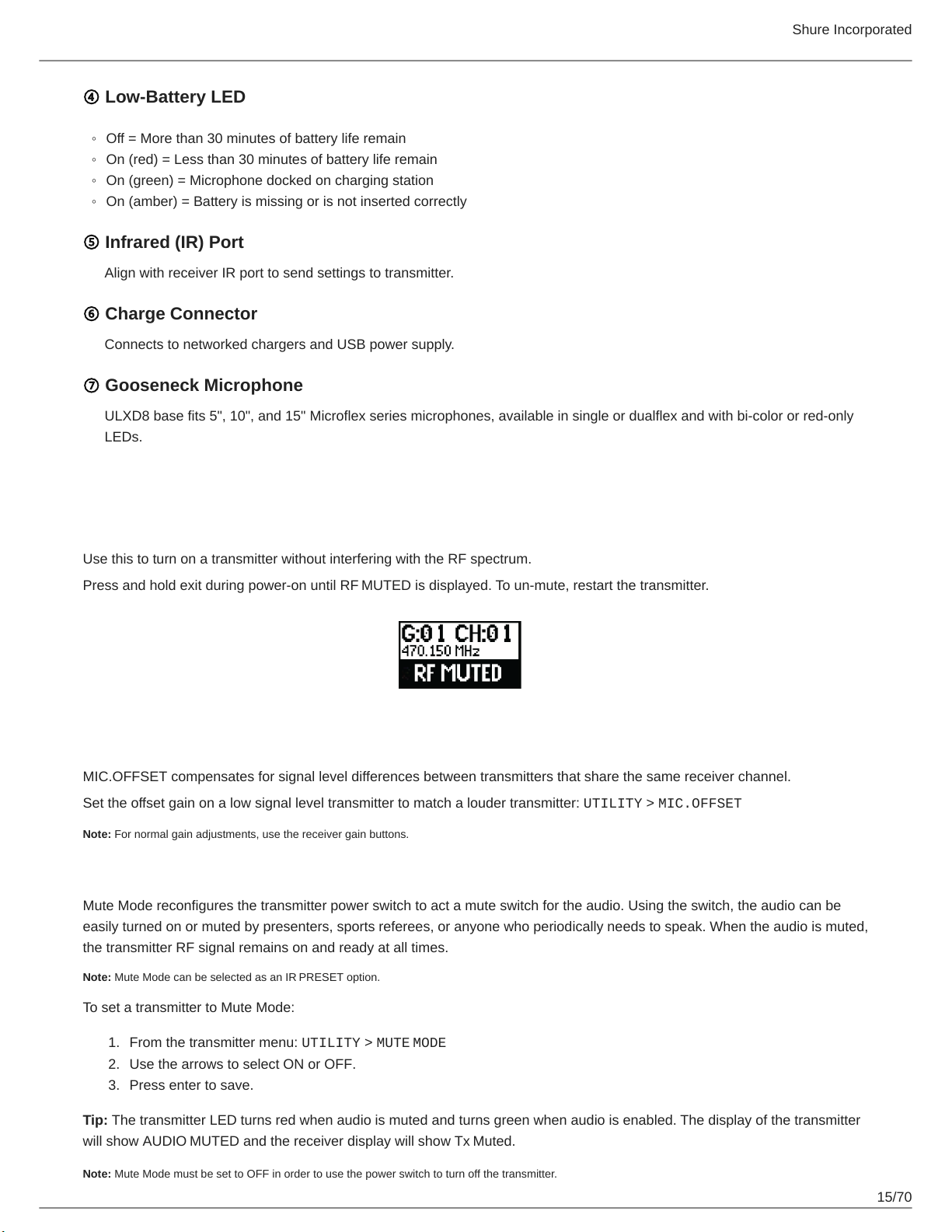

④Low-Battery LED
Off = More than 30 minutes of battery life remain
On (red) = Less than 30 minutes of battery life remain
On (green) = Microphone docked on charging station
On (amber) = Battery is missing or is not inserted correctly
⑤Infrared (IR) Port
Align with receiver IR port to send settings to transmitter.
⑥Charge Connector
Connects to networked chargers and USB power supply.
⑦Gooseneck Microphone
ULXD8 base fits 5", 10", and 15" Microflex series microphones, available in single or dualflex and with bi-color or red-only
LEDs.
Advanced Transmitter Features
RF MUTE
Use this to turn on a transmitter without interfering with the RF spectrum.
Press and hold exit during power-on until RF MUTED is displayed. To un-mute, restart the transmitter.
MIC.OFFSET
MIC.OFFSET compensates for signal level differences between transmitters that share the same receiver channel.
Set the offset gain on a low signal level transmitter to match a louder transmitter: UTILITY > MIC.OFFSET
Note: For normal gain adjustments, use the receiver gain buttons.
Transmitter Audio Mute Mode
Mute Mode reconfigures the transmitter power switch to act a mute switch for the audio. Using the switch, the audio can be
easily turned on or muted by presenters, sports referees, or anyone who periodically needs to speak. When the audio is muted,
the transmitter RF signal remains on and ready at all times.
Note: Mute Mode can be selected as an IR PRESET option.
To set a transmitter to Mute Mode:
From the transmitter menu: UTILITY > MUTE MODE
Use the arrows to select ON or OFF.
Press enter to save.
Tip: The transmitter LED turns red when audio is muted and turns green when audio is enabled. The display of the transmitter
will show AUDIO MUTED and the receiver display will show Tx Muted.
Note: Mute Mode must be set to OFF in order to use the power switch to turn off the transmitter.

Shure Incorporated
16/70
•
•
•
•
•
•
•
Locking Controls and Settings
Use the LOCK feature to prevent accidental or unauthorized changes to the hardware.
Receiver
Menu path: DEVICE UTILITIES > LOCK
Use the control wheel to select and lock any of the following receiver functions.
MENU: All menu paths are inaccessible
GAIN: Front panel gain button is disabled
POWER: Power switch is disabled
SCAN: Front panel SCAN button is disabled and prevents frequency changes due to group scans initiated by other ULXD
units
SYNC: Front panel SYNC button is disabled
Tip: To unlock, press EXIT, turn the control wheel to select UNLOCKED, and press ENTER to save.
Transmitter
Menu path: UTILITY > LOCK
Use the transmitter controls to select and lock any of the following transmitter functions.
MENU LOCK: All menu paths are inaccessible.
POWER LOCK: Power switch is disabled
Quick-Lock option: To turn on the transmitter with its power and menu navigation buttons locked, press and hold the ▲ but
ton during power-on until the locked message is displayed.
Tip: To unlock the MENU LOCK, press the ENTER button 4 times to pass through the following screens: UTILITY > LOCK >
MENU UNLOCK
To unlock the POWER LOCK, set the power switch to the off position, then press and hold the ▲ button while resetting the
power switch to the on position.
Home Screen Display Options
Receiver
The HOME INFO menu provides options to change the information shown on the receiver home screen:
DEVICE UTILITIES > HOME INFO
Use the control wheel to select one of the following screen displays.

Shure Incorporated
17/70
◦
◦
◦
◦
◦

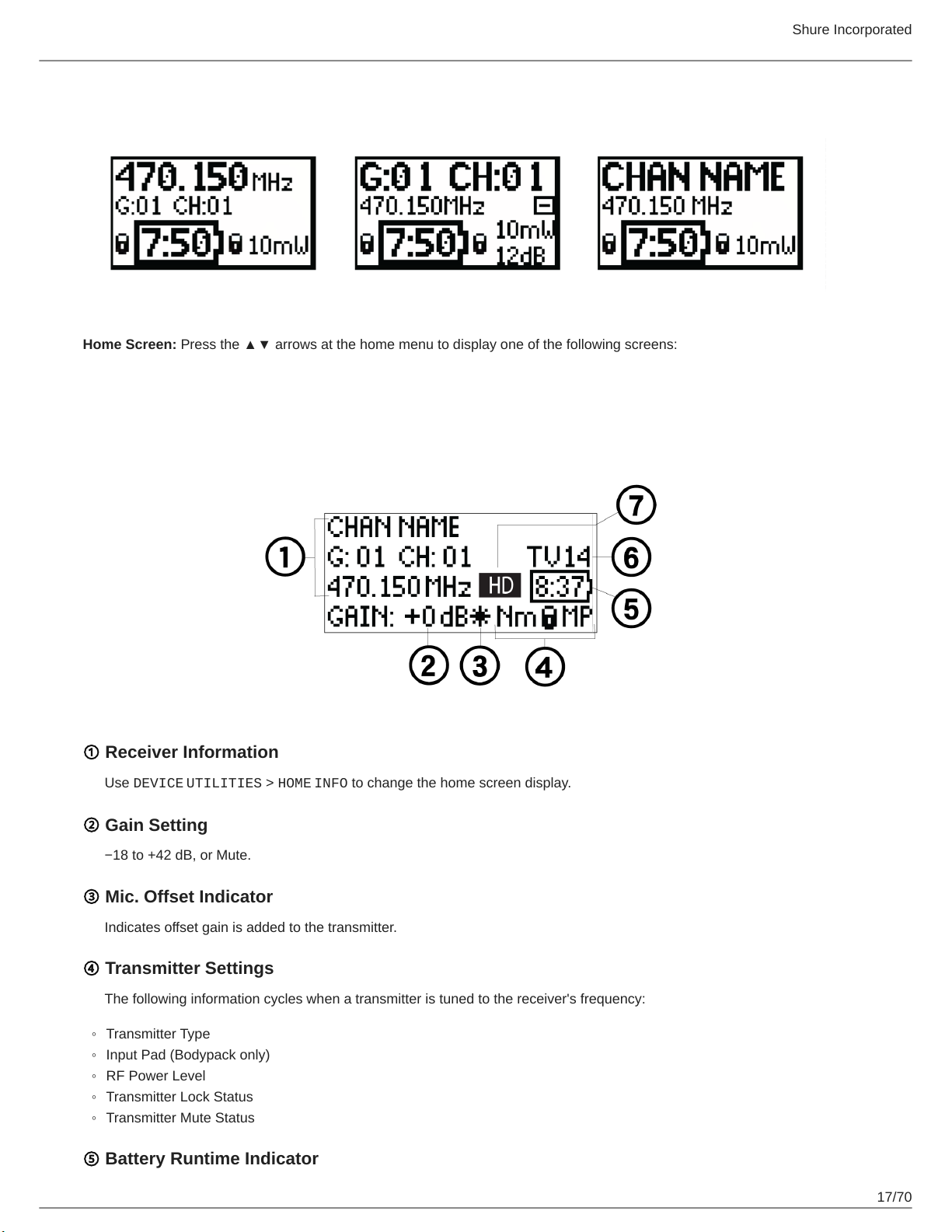

Transmitter
Home Screen: Press the ▲▼ arrows at the home menu to display one of the following screens:
Menu Screens
Receiver Channel
①Receiver Information
Use DEVICE UTILITIES > HOME INFO to change the home screen display.
②Gain Setting
−18 to +42 dB, or Mute.
③Mic. Offset Indicator
Indicates offset gain is added to the transmitter.
④Transmitter Settings
The following information cycles when a transmitter is tuned to the receiver's frequency:
Transmitter Type
Input Pad (Bodypack only)
RF Power Level
Transmitter Lock Status
Transmitter Mute Status
⑤Battery Runtime Indicator

Shure Incorporated
18/70
Shure SB900 battery: runtime is displayed in minutes remaining.
AA batteries: runtime is displayed with a 5-bar indicator.
⑥TV Channel
Displays the TV channel that contains the tuned frequency.
⑦High Density Mode Icon
Displayed when High Density mode is enabled.

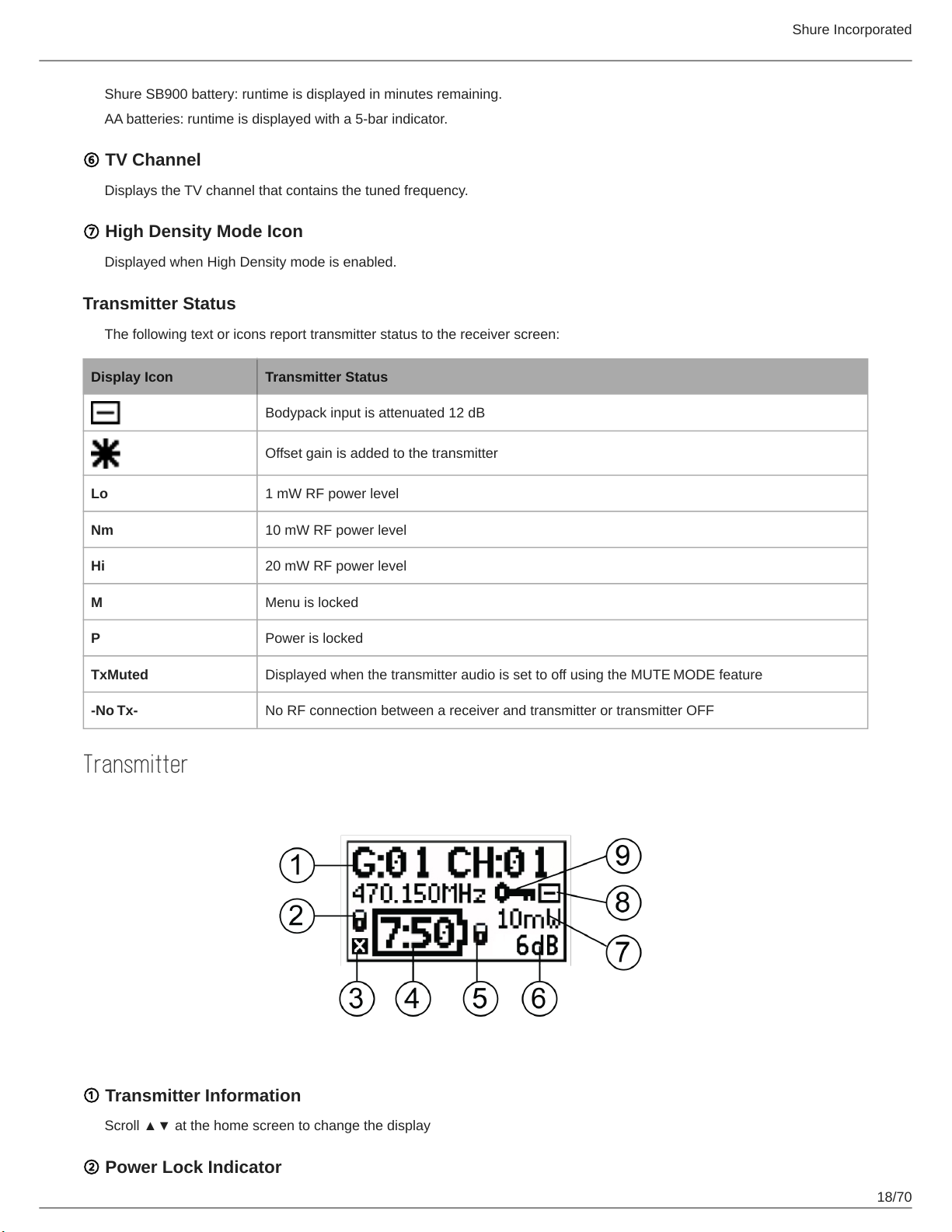

Transmitter Status
The following text or icons report transmitter status to the receiver screen:
Display Icon Transmitter Status
Bodypack input is attenuated 12 dB
Offset gain is added to the transmitter
Lo 1 mW RF power level
Nm 10 mW RF power level
Hi 20 mW RF power level
MMenu is locked
PPower is locked
TxMuted Displayed when the transmitter audio is set to off using the MUTE MODE feature
-No Tx- No RF connection between a receiver and transmitter or transmitter OFF
Transmitter
①Transmitter Information
Scroll ▲▼ at the home screen to change the display
②Power Lock Indicator

Shure Incorporated
19/70
◦
◦
1.
2.
3.
4.
•
•
•
Indicates power switch is disabled
③Transmitter Audio Muted Indicator
Displayed when the transmitter audio is set to off using the MUTE MODE feature.
④Battery Runtime Indicator
Shure SB900 battery: runtime is displayed in hours:minutes remaining
AA Batteries: runtime is displayed with a 5-bar indicator
⑤Menu Lock Indicator
Indicates menu navigation buttons are disabled
⑥Mic. Offset
Displays microphone offset gain value
⑦RF Power
Displays RF power setting
⑧Bodypack Input Pad
The input signal is attenuated 12 dB
⑨Encryption Icon
Indicates encryption is enabled on the receiver and has been transferred to the transmitter from a sync
Adjusting Receiver Display Brightness and Contrast
Adjust BRIGHTNESS and CONTRAST settings to improve visibility in challenging lighting environments.
From the receiver menu: DEVICE UTILITIES > DISPLAY
Press the control wheel to select CONTRAST or BRIGHTNESS.
Turn the control to adjust the selected parameter.
Press ENTER to save changes.
Editing Receiver Channel Name
To edit a receiver channel name, choose EDIT NAME from the menu.
Turn the control wheel to edit a highlighted character
Press the control wheel to advance to the next character
Press ENTER to save changes
Note: The channel name is transferred to a transmitter during a sync.
Receiver Menu Descriptions
RADIO
Displays Group, Channel, Frequency, and TV information. Use the control wheel to edit values
G:

Shure Incorporated
20/70
Group for the selected frequency
CH:
Channel for the selected frequency
FREQUENCY
Selected frequency (MHz)
TV:
Displays the TV channel for the selected frequency
AUDIO
GAIN
Use the control wheel or gain buttons to adjust the channel gain from -18 to 42 dB, in 1 dB increments.
MUTE
Mutes the receiver audio output.
EDIT NAME
Use the control wheel to assign and edit the selected receiver channel name.
IR PRESETS
BODYPACK / HANDHELD
BP PAD
Sets the audio input attenuation options: KEEP, 0, -12.
LOCK
Sets the lock options: KEEP, Power, Menu, All, None
RF POWER
Sets the transmitter RF power level: KEEP, 10mW=Nm, 1mW=Lo, 20mW=Hi.
BATT
Sets the transmitter battery type to ensure accurate metering: KEEP, Alkaline, NiMH, Lithium
BP OFFSET
Adjustable gain to compensate for signal level difference between transmitters: KEEP, 0 to 21 dB in 3 dB increments
HH OFFSET
Adjustable gain to compensate for signal level difference between transmitters: KEEP, 0 to 21 dB in 3 dB increments
MUTE MODE
