SIMATIC industrial PC
PC – PROFINET IRT
CP 1625 / CP 1625Dev
Operating Instructions
04/2018
A5E
43075902-AA
Preface
Safety information
1
Product overview
2
Mounting
3
Installing/connecting
4
Configuration
5
Technical specifications
6
Standards, approvals and
EMC guidelines
A
Siemens Automation Parts

Siemens AG
Division Digital Factory
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E43075902-AA
Ⓟ
04/2018 Subject to change
Copyright © Siemens AG 2018.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 3
Preface
The CPs 1625 are PCIe expansion boards for SIMATIC IPCs. The cards have two LAN
interfaces.
The development board CP 1625Dev is specifically offered for customer-specific
PROFINET IRT interfaces.
Delivery variants
The following table shows the different delivery variants:
Designation
Description
MLFB
CP 1625
1 x PN IRT PCIe interface with 2 ports
6ES7648-2CF10-1AA0
CP 1625Dev
1 x PN IRT PCIe SOC1 Developer Board with 2 ports
6ES7648-2CF10-1BA0
Scope of validity of the documentation
This documentation is valid for the following products:
●CP 1625
●CP 1625Dev
Conventions
"CP 1625Dev" means that the section applies
only
to the "CP 1625Dev".
"CP 1625" includes the "CP 1625" and the "CP 1625Dev".
Notes
Please also observe notes marked as follows:
Note
Notes contain important information on the produc
t, handling the product or on part of the
documentation to which you should pay particular attention.
Trademarks
The following names identified by ® and possibly some names without this identifier are
registered trademarks of Siemens AG:
SIMATIC NET, HARDNET, SOFTNET, CP 1612, CP 1613, CP 1625, CP 5612, CP 5613,
CP 5614, CP 5622
Siemens Automation Parts

Preface
CP 1625 / CP 1625Dev
4Operating Instructions, 04/2018, A5E43075902-AA
Content of this documentation
These operating instructions contain information on the installation of the communications
processor CP 1625.
You can find additional information here:
●TIA Portal documentation
●Software Controller
You can find additional information on using the CP 1625 for development purposes here:
●PROFINET Driver Commissioning Manual
(https://support.industry.siemens.com/cs/ww/de/view/86655396/en)
Updated operating instructions on the Internet
You will find the current version of these operating instructions on the Product Support
(https://support.industry.siemens.com/cs/ww/en/view/109756564) Internet pages
Further documentation
The documents listed below contain more detailed information on commissioning and using
the communications processors. You will find this documentation on the Product Support
pages on the Internet.
●
NET Industrial Ethernet/PROFINET System Manual
You will find detailed information on the structure of an industrial Ethernet network in this
document.
Entry ID: (https://support.industry.siemens.com/cs/ww/en/view/27069465)
●
SIMATIC PROFINET System Description Manual
This provides you with basic knowledge of the following PROFINET IO topics: Network
components, data exchange and communication, PROFINET IO, component-based
automation, application example of PROFINET IO and component-based automation.
Entry ID: (https://support.industry.siemens.com/cs/ww/en/view/19292127)
●
From PROFIBUS DP to PROFINET IO Manual
Read this document if you want to transfer an installed PROFIBUS system to a
PROFINET system.
Entry ID: (https://support.industry.siemens.com/cs/ww/en/view/19289930)
Specialist terms
You will find explanations of many specialist terms that are used in this documentation in the
SIMATIC NET glossary.
Entry ID: (http://support.automation.siemens.com/WW/view/en/50305045)

Preface
CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 5
Siemens Industry Online Support
You can find current information on the following topics quickly and easily here:
●
Product support
All the information and extensive know-how on your product, technical specifications,
FAQs, certificates, downloads, and manuals.
●
Application examples
Tools and examples to solve your automation tasks – as well as function blocks,
performance information and videos.
●
Services
Information about Industry Services, Field Services, Technical Support, spare parts and
training offers.
●
Forums
For answers and solutions concerning automation technology.
●
mySupport
Your personal working area in Industry Online Support for messages, support queries,
and configurable documents.
This information is provided by the Siemens Industry Online Support in the Internet
(http://www.siemens.com/automation/service&support).
Siemens Automation Parts

CP 1625 / CP 1625Dev
6Operating Instructions, 04/2018, A5E43075902-AA
Table of contents
Preface ................................................................................................................................................... 3
1 Safety information................................................................................................................................... 7
1.1 General safety instructions ...................................................................................................... 7
1.2 Security information ................................................................................................................. 8
2 Product overview .................................................................................................................................... 9
2.1 Hardware and software requirements...................................................................................... 9
2.2 View of front panel ................................................................................................................. 10
2.3 Communications processor CP 1625 .................................................................................... 12
2.3.1 Interfaces and display elements ............................................................................................ 12
2.3.2 Properties............................................................................................................................... 13
2.4 Communications processor CP 1625Dev.............................................................................. 14
2.4.1 Interfaces and display elements ............................................................................................ 14
2.4.2 Properties............................................................................................................................... 18
3 Mounting............................................................................................................................................... 19
3.1 Installing the holding plate ..................................................................................................... 19
4 Installing/connecting ............................................................................................................................. 20
4.1 Installing and connecting the CP 1625 .................................................................................. 20
5 Configuration ........................................................................................................................................ 22
6 Technical specifications ........................................................................................................................ 23
A Standards, approvals and EMC guidelines ............................................................................................ 25
A.1 Standards and approvals ....................................................................................................... 25
A.2 Electromagnetic compatibility ................................................................................................ 29
Index .................................................................................................................................................... 30

CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 7
Safety information
1
1.1
General safety instructions
Repairs
WARNING
Damage to the device
Incorrectly performed repairs may result in substantial damage to equipment or endanger
the user.
Only authorized personnel are permitted to repair the device.
ESD guidelines
Modules containing electrostatic sensitive devices (ESDs) can be identified by the following
label:
Strictly follow the guidelines mentioned below when handling modules which are sensitive to
ESD:
●Before working with modules with ESD, you need to ensure that you are free of
electrostatic charge (e.g. by touching a grounded object).
●All devices and tools must be free of static charge.
●Always pull the mains connector and disconnect the battery before installing or removing
modules which are sensitive to ESD.
●Handle modules fitted with ESDs only by their edges.
●Do not touch any connector pins or conductors on modules containing ESDs.
Siemens Automation Parts

Safety information
1.2 Security information
CP 1625 / CP 1625Dev
8Operating Instructions, 04/2018, A5E43075902-AA
1.2
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens' products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be
connected to an enterprise network or the internet if and to the extent such a connection is
necessary and only when appropriate security measures (e.g. firewalls and/or network
segmentation) are in place.
For additional information on industrial security measures that may be implemented, please
visit (https://www.siemens.com/industrialsecurity).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure
to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under (https://www.siemens.com/industrialsecurity).

CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 9
Product overview
2
Principle
The following table provides an overview of the components of the CP 1625 and
CP 1625Dev:
Components
CP 1625
CP 1625Dev
Strain relief
x
x
Adhesive feet - 4 units
-
x
Terminal block for 24 V DC power supply
-
x

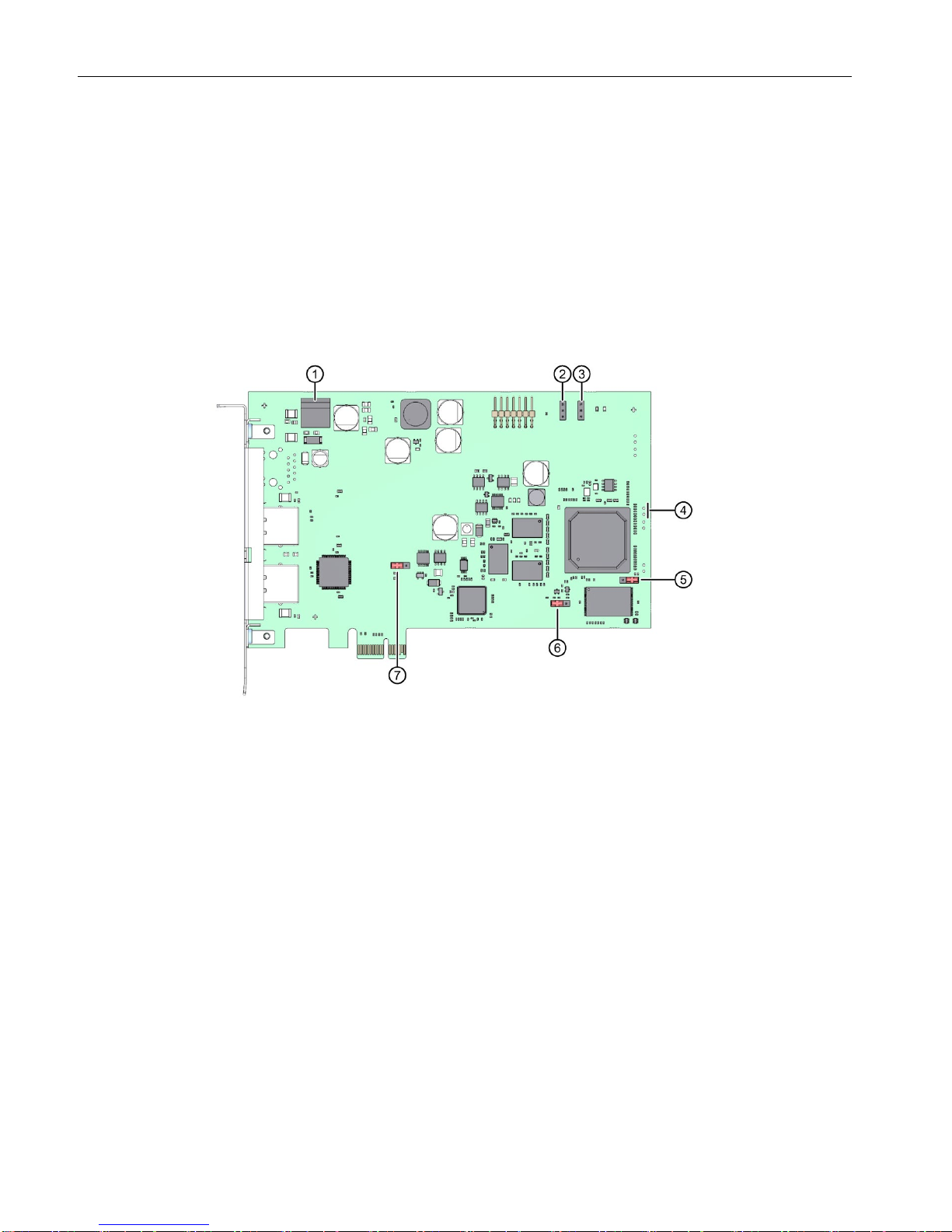

Advanced interface configuration

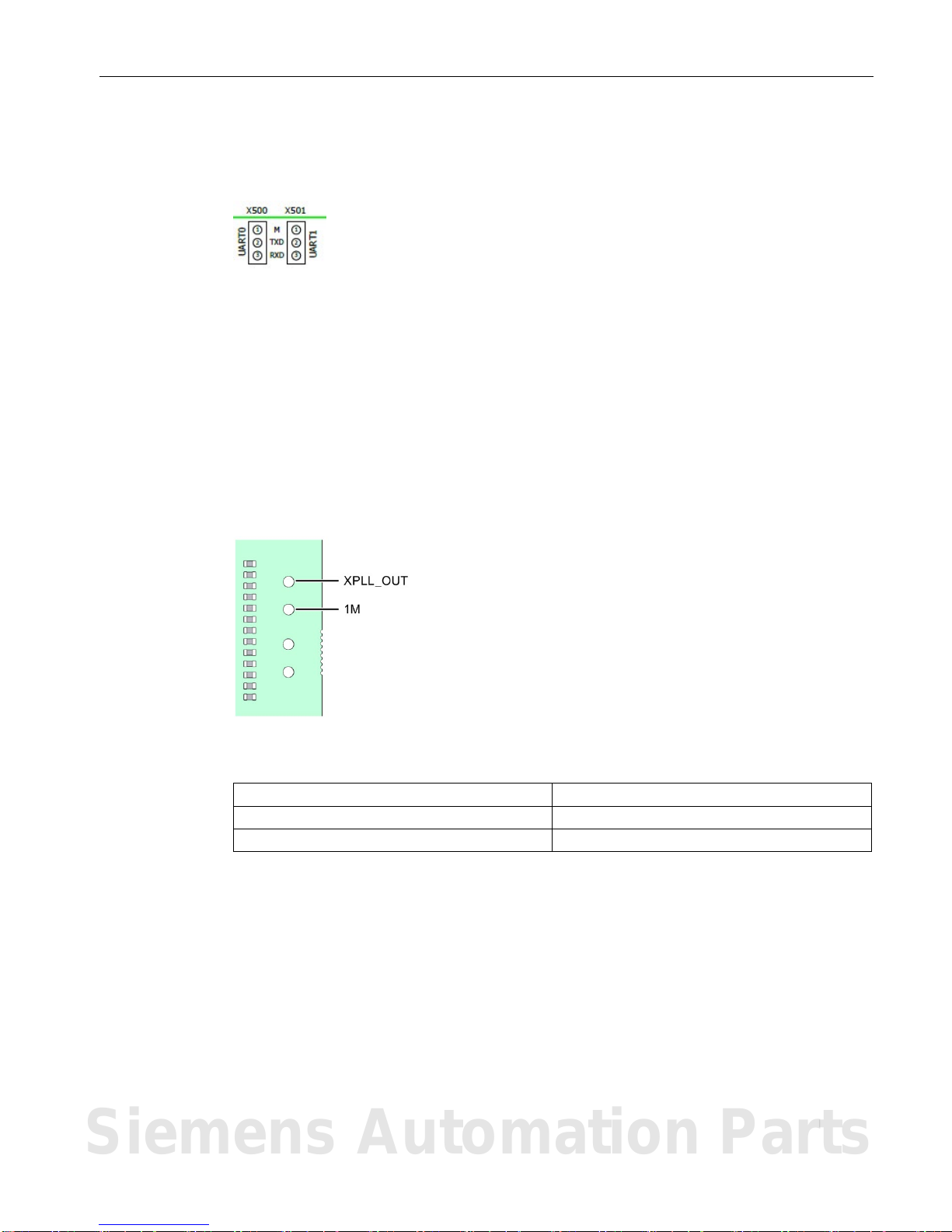

•X500: UART0
•X501: UART1
•X602: Interface for PROFINET certification

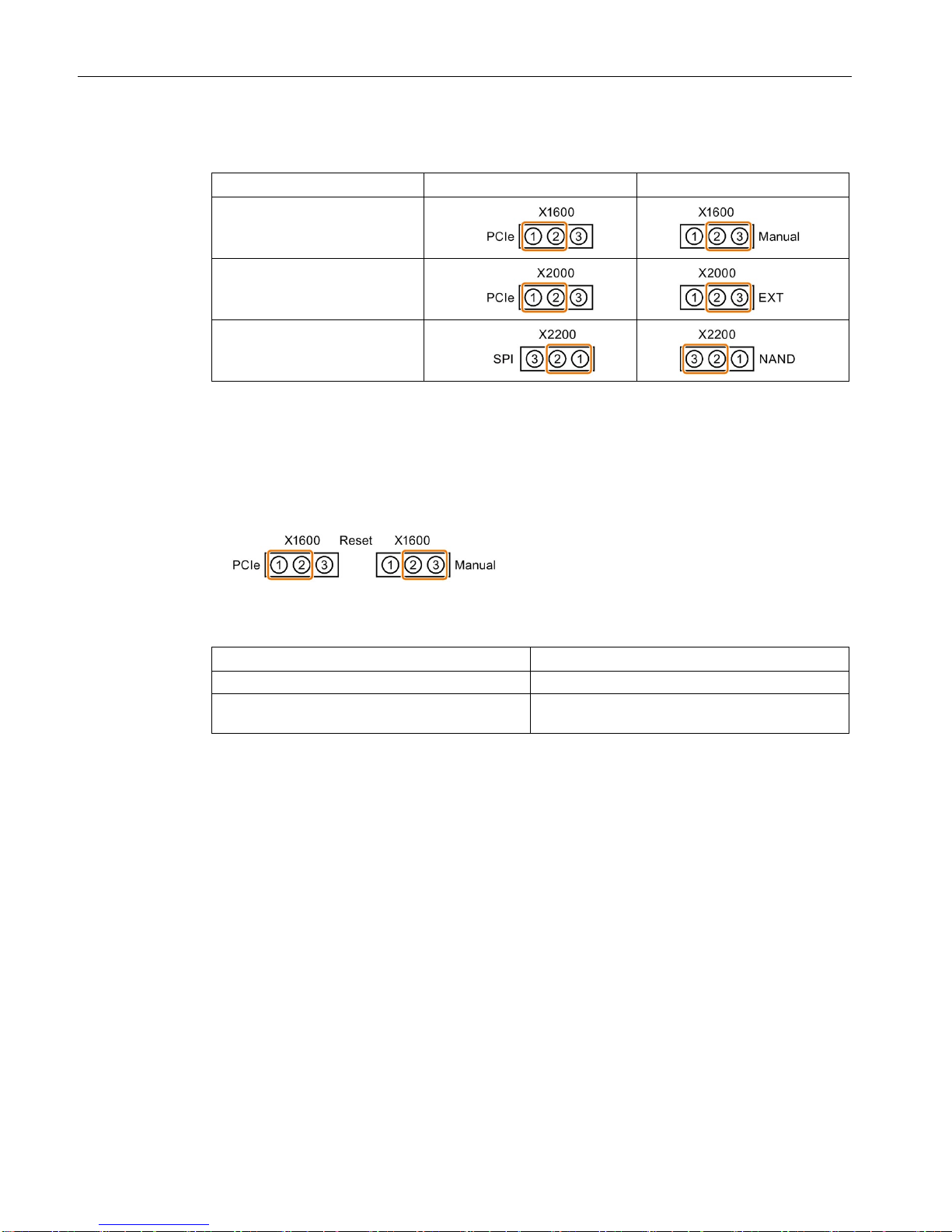

•X2200: Jumper for selecting boot source
•X1600: Jumper for selecting restart behavior
•X2000: Jumper for selecting power supply source
- x
Note
If the consignment is incomplete, contact your supplier or your local Siemens office.
2.1
Hardware and software requirements
Hardware requirement
The CP 1625 requires a short PCIe slot with master capabilities for operation.
Software requirement
The CP 1625 requires additional software for operation, e.g. CPU 1507S or a dedicated
SDK.
Siemens Automation Parts

Product overview
2.2 View of front panel
CP 1625 / CP 1625Dev
10 Operating Instructions, 04/2018, A5E43075902-AA
2.2
View of front panel
Connection elements
The following figure shows the front panel of the communications processor CP 1625:
①
Port 1 of the X1 interface
②
Port 2 of the X1 interface

Product overview
2.2 View of front panel
CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 11
RJ45 sockets
The connection of the CP 1625 to the LAN (
L
ocal
A
rea
N
etwork) is made via one of the two
RJ45 sockets on the front panel of the communications processor.
The two sockets lead to the integrated real-time switch.
Note
Short-circuiting the LAN ports
If you accidentally short
-circuit the two LAN ports of the communications processor, this
leads to a malfunction o
f the network and the communications processor.
To restore the full scope of functions, you may need to reset the communications processor
or the Software Controller.
LEDs of the RJ45 sockets
Two LEDs can be found in the frame of each RJ45 socket.
●The green LED lights up when a connection is established (Link LED).
●The yellow LED lights up during sending and receiving (Activity LED).
Siemens Automation Parts

Product overview
2.3 Communications processor CP 1625
CP 1625 / CP 1625Dev
12 Operating Instructions, 04/2018, A5E43075902-AA
2.3
Communications processor CP 1625
2.3.1
Interfaces and display elements
Appearance
The following figure shows the most important interfaces of the communications processor
CP 1625.
Figure 2-1 View of the CP 1625 interfaces

Product overview
2.3 Communications processor CP 1625
CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 13
2.3.2
Properties
Properties
The CP 1625 is a PCIe module for the connection of PCs to Industrial Ethernet.
Note
The PROFINET ports must not be connected directly to the Internet.
The essential properties are as follows:
●Optimized for PROFINET IRT
●With Ethernet-Real-Time-ASIC SOC-1
●Two RJ45 sockets for connecting end devices or other network components
●Front LEDs on the RJ45 sockets for efficient self-diagnostics of connection and data
exchange (Link and Activity LED)
●Integrated 2-port real-time switch
●Automatic hardware detection is supported
Ethernet
The CP 1625 is intended for operation in Ethernet networks.
It also has the following features:
●Connections are designed for 100BASE-TX
●Data transmission speed of 100 Mbps in full/half duplex is supported
●Autonegotiation (can also be turned off)
●Autocrossing
Siemens Automation Parts

Product overview
2.4 Communications processor CP 1625Dev
CP 1625 / CP 1625Dev
14 Operating Instructions, 04/2018, A5E43075902-AA
2.4
Communications processor CP 1625Dev
2.4.1
Interfaces and display elements
Appearance
The following figure shows the most important interfaces, jumpers and LEDs of the
communications processor CP 1625Dev.
①
X80
Connection for an external 24 V DC power supply
②
X500
UART0
③
X501
UART1
④
X602
Interface for PROFINET certification
⑤
X2200
Jumper for selecting boot source
⑥
X1600
Jumper for selecting restart behavior
⑦
X2000
Jumper for selecting power supply source
Figure 2-2 CP 1625Dev

Product overview
2.4 Communications processor CP 1625Dev
CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 15
Interfaces X500 (UART0) and X501 (UART1)
The interface has the numbers ②and ③in the figure above.
①
M
Ground
②
TXD
Connection for outgoing data (RS232 interface)
③
RXD
Connection for incoming data (RS232 interface)
Figure 2-3 X500-X501
Interface X602
If PROFINET certification of a device based on CP 1625Dev is required, the certification
authority uses the XPLL_OUT signal. The signal is available on the circuit board for
measuring purposes.
The interface is designated with the number ④in the figure above.
Figure 2-4 X602
Signal
Pin
XPLL_OUT (SYNC Out)
2
GND (1M)
1
Siemens Automation Parts

Product overview
2.4 Communications processor CP 1625Dev
CP 1625 / CP 1625Dev
16 Operating Instructions, 04/2018, A5E43075902-AA
Overview for use of the X1600, X2000 and X2200 interfaces/jumpers
Interface/jumper
CP 1625Dev connected
CP 1625Dev external
X1600
X2000
X2200
Interface/jumper X1600
At interface X1600 you use the jumper to set whether the CP 1625Dev should perform a
restart via the PCIe bus or be manually restarted.
The interface is designated with the number ⑥in the figure above.
Figure 2-5 X1600
Pin assignment
Description
Pins 1 and 2
Restart via PCIe bus
Pins 2 and 3 Manual restart (with external use of the
CP 1625Dev)

Product overview
2.4 Communications processor CP 1625Dev
CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 17
Interface/jumper X2000
At interface X2000 you use the jumper to set whether the CP 1625Dev should be operated in
an IPC or externally in Development mode.
The interface is designated with the number ⑦in the figure above.
Figure 2-6 X2000
Pin assignment
Description
Pins 1 and 2
Power supply via PCIe bus
Pins 2 and 3
Power supply over X80 (with external use of the CP 1625Dev)
NOTICE
Damage to the IPC or the CP 1625Dev
Damage can occur if the jumper is inserted incorrectly on the X2000 interface and the IPC
is then connected to a 24 V DC power supply.
Set the position of the jumper on the X2000 interface according to the use of the CP 1625.
Interface/jumper X2200
At interface X2200 you use the jumper to set whether the SOC1 is to boot from NAND flash.
The interface is designated with the number ⑤in the figure above.
Figure 2-7 X2200
Pin assignment
Description
Pins 1 and 2
Boot from SPI flash (with use of the PCIe bus)
Pins 2 and 3
Boot from NAND flash (with external use of the CP 1625Dev)
Siemens Automation Parts

Product overview
2.4 Communications processor CP 1625Dev
CP 1625 / CP 1625Dev
18 Operating Instructions, 04/2018, A5E43075902-AA
2.4.2
Properties
The CP 1625 is a PCIe module for the connection of PCs to Industrial Ethernet.
Note
The PROFINET ports must not be connected directly to the Internet.
The essential properties are as follows:
●Optimized for PROFINET IRT
●With Ethernet-Real-Time-ASIC SOC-1
●Two RJ45 sockets for connecting end devices or other network components
●Front LEDs on the RJ45 sockets for efficient self-diagnostics of connection and data
exchange (Link and Activity LED)
●Integrated 2-port real-time switch
●Automatic hardware detection is supported
●24 V DC power supply for operation outside of the PC housing
●Two UART interfaces are available over the header
●Pushbutton for manually restarting the board
●Two LEDs on the board that signal an error or maintenance (Error and Maintenance LED)
●NAND flash
●SYNC Out signal available via the solder joint
●DDR2 memory technology up to 256 MB RAM
External power supply
The CP 1625Dev has the "X80" interface for infeed of an external 24 V DC power supply.
Note
Only for stand
-alone operation outside an IPC.
Ethernet
The CP 1625Dev is intended for operation in Ethernet networks.
It also has the following features:
●Connections are designed for 100BASE-TX
●Data transmission speed of 100 Mbps in full/half duplex is supported
●Autonegotiation (can also be turned off)
●Autocrossing

CP 1625 / CP 1625Dev
Operating Instructions, 04/2018, A5E43075902-AA 19
Mounting
3
3.1
Installing the holding plate
For use in environments with increased mechanical loads, we recommend mounting of the
holding plate included in the scope of delivery. This improves the mechanical stability of the
plug-in connection. You fasten the outgoing cables to the holding plate with cable ties.

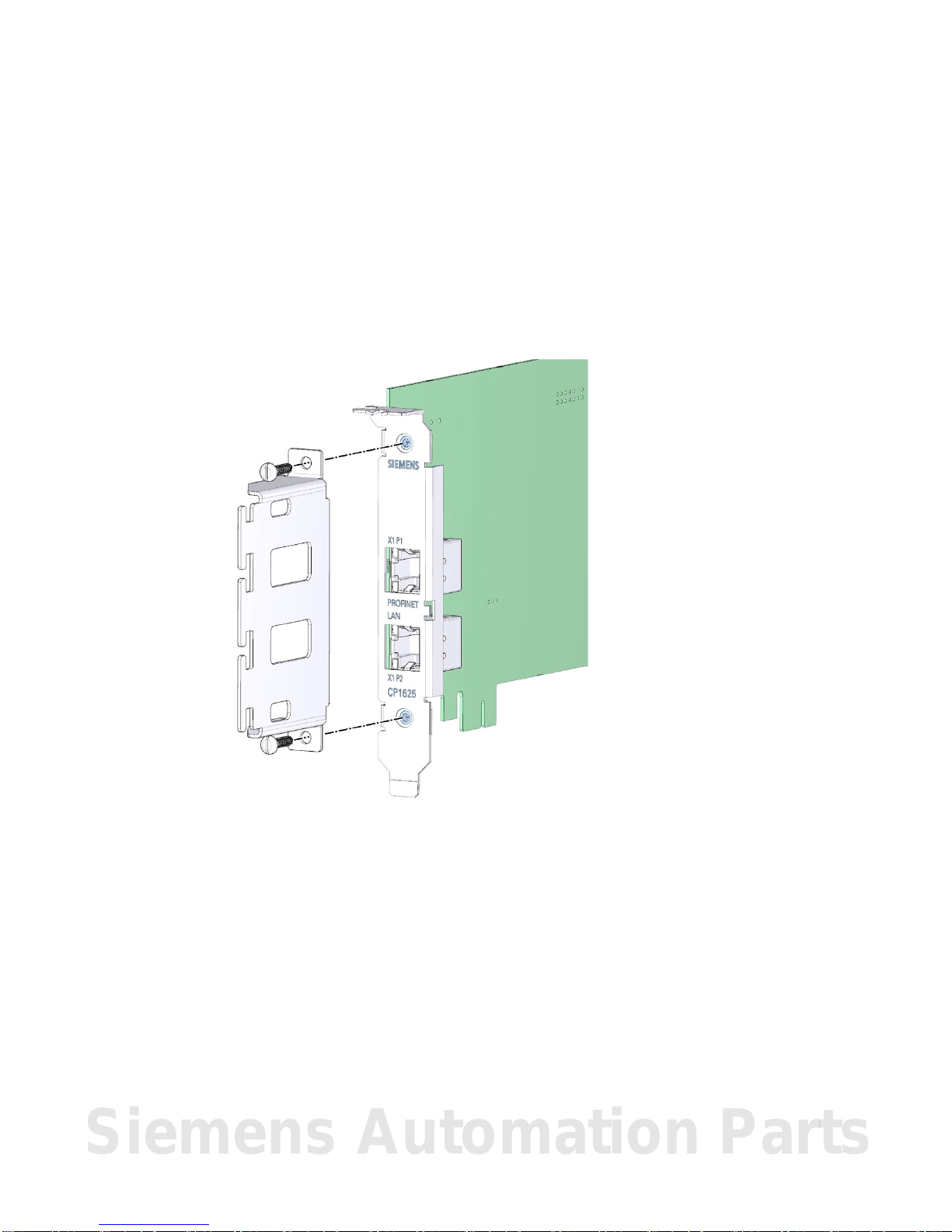

Figure 3-1 Correct mounting of holding plate
Siemens Automation Parts

CP 1625 / CP 1625Dev
20 Operating Instructions, 04/2018, A5E43075902-AA
Installing/connecting
4
4.1
Installing and connecting the CP 1625
Maximum configuration
A maximum of one CP 1625 is permitted per PC.
Prerequisites and requirements
WARNING
Do not commission damaged parts
Only put undamaged parts into operation!
●Before installing the CP in your PC, read your PC manual, for example, the section
"Procedure for installing PCIe modules". Observe the instructions described in the
manual for your PC.
●If available, enable the plug-and-play mechanism in the BIOS of your PC.
●Before installation, make sure that the jumpers are set correctly on the CP 1625Dev. You
can find information on this in the section: Interfaces and display elements (Page 14)
.
●The communications processor CP 1625 requires a PCIe slot with master capability.
