Siemens SINAMICS G130 User manual

Operating Instructions · 03/2013
Cabinet design and EMC
SINAMICS G130
SINAMICS
s

 
Cabinet design and EMC
_
_________________
_
_
_________________
_
_
_____________
_
____
_
_________________
_
_
_________________
_
SINAMICS
SINAMICS G130
Cabinet design and EMC
Operating Instructions
Control version V4.6
03/2013
A5E00427629A
Safety information
1
General
2
Basic information about EMC
3
EMC-compliant design and
control cabinet configuration
4
Cabinet air conditioning
5

Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E00427629A
Ⓟ 05/2013 Technical data subject to change
Copyright © Siemens AG 2004 - 2013.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 3
Table of contents
1 Safety information...................................................................................................................................... 5
1.1 Warnings........................................................................................................................................5
1.2 Safety and operating instructions...................................................................................................6
1.3 Components that can be destroyed by electrostatic discharge (ESD) ..........................................7
2 General...................................................................................................................................................... 9
2.1 Safety information ..........................................................................................................................9
2.2 Directives .....................................................................................................................................10
2.3 Standards.....................................................................................................................................11
3 Basic information about EMC .................................................................................................................. 15
3.1 Introduction to EMC .....................................................................................................................15
4 EMC-compliant design and control cabinet configuration ........................................................................ 19
5 Cabinet air conditioning ........................................................................................................................... 21
5.1 General ........................................................................................................................................21
5.2 Ventilation ....................................................................................................................................22

Table of contents
Cabinet design and EMC
4 Operating Instructions, 03/2013, A5E00427629A

Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 5
Safety information 1
1.1 Warnings
WARNING
Dangerous electrical voltage
Hazardous voltages are present when electrical equipment is in operation.
Severe personal injury or substantial material damage may result if these warnings are not
observed.
Only qualified personnel are permitted to work on or around the equipment.
These personnel must be thoroughly familiar with all the warnings and maintenance
procedures described in these operating instructions.
The successful and safe operation of this device is dependent on correct transport, proper
storage and installation, as well as careful operation and maintenance.
National safety guidelines must be observed.
DANGER
Five safety rules
When carrying out any kind of work on electrical devices, the "five safety rules" according to
EN 50110 must always be observed:
1. Disconnect the system.
2. Protect against reconnection.
3. Make sure that the equipment is de-energized.
4. Ground and short-circuit.
5. Cover or enclose adjacent components that are still live.
Note
Use of copper cables for a UL-approved system
For a UL-approved system use 60/75°C copper conductors only.

Safety information
1.2 Safety and operating instructions
Cabinet design and EMC
6 Operating Instructions, 03/2013, A5E00427629A
1.2 Safety and operating instructions
DANGER
Dangerous electrical voltage
This equipment is used in industrial high-voltage installations. During operation, this
equipment contains rotating and live, bare parts. For this reason, it could cause severe
injury or significant material damage if the required covers are removed without
authorization, if the equipment is used or operated incorrectly, or if it has not been properly
maintained.
When the machines are used in non-industrial areas, the installation location must be
protected against unauthorized access (protective fencing, appropriate signs).
Preconditions
The persons responsible for the safety of the plant must ensure that the following conditions
are met:
● Basic planning work for the system and all work relating to transportation, assembly,
installation, commissioning, maintenance and repairs is carried out by qualified personnel
and checked by responsible, suitably skilled personnel.
● The Operating Instructions and machine documentation are always available.
● The technical specifications regarding the applicable installation, connection,
environmental, and operating conditions are always observed.
● The plant-specific assembly and safety guidelines are observed and personal protection
equipment is used.
● Unqualified personnel are forbidden from using these machines and working near them.
These Operating Instructions are intended for qualified personnel and only contain
information and notes relating to the intended purpose of the machines.
The Operating Instructions and machine documentation are written in different languages as
specified in the delivery contracts.
Note
Support by SIEMENS service centers
We recommend engaging the support and services of your local Siemens service center for
all planning, installation, commissioning and maintenance work.

Safety information
1.3 Components that can be destroyed by electrostatic discharge (ESD)
Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 7
1.3 Components that can be destroyed by electrostatic discharge (ESD)
CAUTION
Components sensitive to electrostatic charge
The board contains components that can be destroyed by electrostatic discharge. These
components can be easily destroyed if not handled properly. If you do have to use
electronic boards, however, please observe the following:
You should only touch electronic boards if absolutely necessary.
When you touch boards, however, your body must be electrically discharged
beforehand.
Boards must not come into contact with highly insulating materials (such as plastic
parts, insulated desktops, articles of clothing manufactured from man-made fibers).
Boards must only be placed on conductive surfaces.
Boards and components should only be stored and transported in conductive packaging
(such as metalized plastic boxes or metal containers).
If the packaging material is not conductive, the boards must be wrapped with a
conductive packaging material (such as conductive foam rubber or household aluminum
foil).
The necessary ESD protective measures are clearly illustrated in the following diagram:
● a = conductive floor surface
● b = ESD table
● c = ESD shoes
● d = ESD overall
● e = ESD wristband
● f = cabinet ground connection
● g = contact with conductive flooring
g ga
b
e
d
c
d
a
c
d
b
c a
e
f
f f f f
6LWWLQJ 6WDQGLQJ 6WDQGLQJVLWWLQJ
Figure 1-1 ESD protective measures

Safety information
1.3 Components that can be destroyed by electrostatic discharge (ESD)
Cabinet design and EMC
8 Operating Instructions, 03/2013, A5E00427629A

Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 9
General 2
The modular concept of SINAMICS G130 makes it impossible to describe each individual
combination. This section instead aims to provide some basic information and general rules
on the basis of which special device combinations can be constructed and to ensure
electromagnetic compatibility.
The SINAMICS G130 components are designed for installation in enclosures, which can
take the form of cabinet units or control boxes made of steel that provide protection against
shock and other environmental influences. These are also integrated in the EMC concept.
2.1 Safety information
WARNING
Hazards during transport and replacement of components
When transporting the devices and replacing components, note the following:
Some of the devices and components are heavy or top heavy.
Due to their weight, the devices must be handled with care by trained personnel.
Serious injury or even death and substantial material damage can occur if the devices are
not lifted or transported properly.
Note
Prevent the ingress of foreign bodies into the device
When installing the cabinet unit, make sure that no foreign bodies – especially metallic
objects, such as drill swarf, wire end ferrules, or cable cut-offs – fall into the device. If
necessary, cover the ventilation slots.
Note
Comply with all safety regulations
The safety regulations governing shock protection must be observed. See also EN 60204-1.

General
2.2 Directives
Cabinet design and EMC
10 Operating Instructions, 03/2013, A5E00427629A
NOTICE
Only use original Siemens accessories
To ensure that the entire system functions properly, you are advised to use the original
Siemens accessories.
Only original DRIVE-CLiQ cables may be used for wiring the DRIVE-CLiQ nodes.
Before commissioning, check the tightening torque of all the terminal screws.
WARNING
Potentially fatal touch voltage
Cable shields and unused conductors of power cables must be connected to PE potential.
Hazardous voltages can occur if this is not observed.
NOTICE
Limitation of overvoltages
On ungrounded systems and systems with a grounded phase conductor and a line voltage
>600 V AC, measures must be taken on the line side to limit overvoltages to overvoltage
category II in accordance with IEC 61800-5-1.
2.2 Directives
The switchgear cabinet must satisfy the following EC Directives in the European Economic
Area (EEA):
Table 2- 1 Directives
Guideline Description
2006/95/EC Directive of the European Parliament and Council of December 12, 2006, on the approximation
of the laws of the member states relating to electrical equipment designed for use within certain
voltage limits (Low-Voltage Directive)
2004/108/EC Directive of the European Parliament and Council of December 15, 2004, which repeals directive
89/336/EEC, on the approximation of laws of the member states relating to electromagnetic
compatibility (EMC Directive)

General
2.3 Standards
Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 11
2.3 Standards
Note
The standards listed in the table below are non-binding and do not in any way claim to be
complete. The standards listed do not represent a guaranteed property of the product.
Only the statements made in the Declaration of Conformity shall be deemed binding.
Table 2- 2 Fundamental, application-relevant standards in succession: EN, IEC/ISO, DIN, VDE
Standards* Title
EN 1037
ISO 14118
DIN EN 1037
Safety of machinery; avoiding unexpected starting
EN ISO 9001
ISO 9001
DIN EN ISO 9001
Quality management systems - requirements
EN ISO 12100-x
ISO 12100-x
DIN EN ISO 12100-x
Safety of Machinery; General Design Guidelines;
Part 1: Basic terminology, methodology
Part 2: Technical Principles and Specifications
EN ISO 13849-x
ISO 13849-x
DIN EN ISO 13849-x
Safety of machinery; safety-related parts of control systems;
Part 1: General basic design principles
Part 2: Validation
EN ISO 14121-1
ISO 14121-1
DIN EN ISO 14121-1
Safety of Machinery - Risk Assessment;
Part 1: Guidelines
EN 55011
CISPR 11
DIN EN 55011
VDE 0875-11
Industrial, scientific and medical high-frequency devices (ISM devices) -
radio interference - limit values and measuring techniques
EN 60146-1-1
IEC 60146-1-1
DIN EN 60146-1-1
VDE 0558-11
Semiconductor converters; general requirements and line-commutated converters;
Part 1-1: Defining the basic requirements
EN 60204-1
IEC 60204-1
DIN EN 60204-1
VDE 0113-1
Electrical equipment of machines;
Part 1: General definitions
EN 60228
IEC 60228
DIN EN 60228
VDE0295
Conductors for cables and insulated leads
EN 60269-1
IEC 60269-1
DIN EN 60269-1
VDE 0636-1
Low-voltage fuses;
Part 1: General requirements

General
2.3 Standards
Cabinet design and EMC
12 Operating Instructions, 03/2013, A5E00427629A
Standards* Title
IEC 60287-1 to -3 Cables - Calculation of the current carrying capacity
Part 1: Current carrying capacity equations (100 % load factor) and calculating the losses
Part 2: Thermal resistance -
Part 3: Main sections for operating conditions
HD 60364-x-x
IEC 60364-x-x
DIN VDE 0100-x-x
VDE 0100-x-x
Erection of power installations with nominal voltages up to 1000 V;
Part 200: Definitions
Part 410: Protection for safety, protection against electric shock
Part 420: Protection for safety, protection against thermal effects
Part 430: Protection of cables and conductors for over-current
Part 450: Protection for safety, protection against undervoltage
Part 470: Protection for safety; use of protection for safety
Part 5xx: Selecting and erecting electrical equipment
Part 520: Wiring systems
Part 540: Earthing, protective conductor, potential bonding conductor
Part 560: Electrical equipment for safety purposes
EN 60439
IEC 60439
DIN EN 60439
VDE 0660-500
Low-voltage switchgear assemblies;
Part 1: Type-tested and partially type-tested assemblies
EN 60529
IEC 60529
DIN EN 60529
VDE 0470-1
Degrees of protection provided by enclosures (IP code)
EN 60721-3-x
IEC 60721-3-x
DIN EN 60721-3-x
Classification of environmental conditions
Part 3-0: Classification of environmental parameters and their severities; Introduction
Part 3-1: Classification of environmental parameters and their severities; Long-term storage
Part 3-2: Classification of environmental parameters and their severities; Transport
Part 3-3: Classification of environmental parameters and their severities; stationary use, weather
protected
EN 60947-x-x
IEC 60947 -x-x
DIN EN 60947-x-x
VDE 0660-x
Low-voltage switchgear
EN 61000-6-x
IEC 61000-6-x
DIN EN 61000-6-x
VDE 0839-6-x
Electromagnetic compatibility (EMC)
Part 6-1: Generic standard; Immunity for residential, commercial and light-industrial environments
Part 6-2: Generic standards; Immunity for industrial environments
Part 6-3: Generic standards; Generic standard emission for residential, commercial and light-
industrial environments
Part 6-4: Generic standards; Generic standard noise emission for industrial environments
EN 61140
IEC 61140
DIN EN 61140
VDE 0140-1
Protection against electric shock; Common aspects for installation and equipment
EN 61800-2
IEC 61800-2
DIN EN 61800-2
VDE 0160-102
Adjustable-speed electrical power drive systems;
Part 2: General requirements - Rating specifications for low-voltage adjustable frequency a.c.
power drive systems
EN 61800-3
IEC 61800-3
DIN EN 61800-3
VDE 0160-103
Adjustable-speed electrical power drive systems;
Part 3: EMC - Requirements and specific test methods

General
2.3 Standards
Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 13
Standards* Title
EN 61800-5-x
IEC 61800-5-x
DIN EN 61800-5-x
VDE 0160-105-x
Adjustable-speed electrical power drive systems;
Part 5: Safety requirements;
Main section 1: Electrical, thermal and energy requirements
Main section 2: Functional safety requirements
EN 62061
IEC 62061
DIN EN 62061
VDE 0113-50
Safety of machinery;
Functional safety of safety-related electrical, electronic and programmable electronic control
systems
UL 50
CSA C22.2 No. 94.1
Enclosures for Electrical Equipment
UL 508
CSA C22.2 No. 142
Industrial Control Equipment
Process Control Equipment
UL 508C
CSA C22.2 No. 14
Power Conversion Equipment
Industrial Control Equipment
* The technical requirements in the standards listed are not necessarily identical.

General
2.3 Standards
Cabinet design and EMC
14 Operating Instructions, 03/2013, A5E00427629A

Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 15
Basic information about EMC 3
3.1 Introduction to EMC
What is meant by EMC?
Electromagnetic compatibility (EMC) describes the capability of an electrical device to
function satisfactorily in an electromagnetic environment without itself causing interference
unacceptable for other devices in the environment.
EMC therefore represents a quality feature for the
● Internal noise immunity: Resistance to internal electrical disturbances
● External noise immunity: resistance against external electromagnetic disturbances
● Noise emission level: environmental effects caused by electromagnetic emissions
To ensure that the cabinet unit functions satisfactorily in the system, the environment subject
to interference must not be neglected. For this reason, special requirements exist regarding
the structure and the EMC of the system.
Operational reliability and noise immunity
In order to achieve the greatest possible operational reliability and immunity to noise of a
complete system (converter, automation, drive machines etc.), measures must be taken by
the converter manufacturer and the user. Only when all these measures are fulfilled can the
faultless functioning of the converter be guaranteed and the specified legal requirements
(2004/108/EC) be met.

Basic information about EMC
3.1 Introduction to EMC
Cabinet design and EMC
16 Operating Instructions, 03/2013, A5E00427629A
Noise emissions
Product standard EN 61800–3 outlines the EMC requirements for variable-speed drive
systems. It specifies requirements for converters with operating voltages of less than 1000 V.
Different environments and categories are defined depending on where the drive system is
installed.
0HGLXPYROWDJHQHWZRUN
'LVWULEXWLRQ
RIFRQGXFWHG
IDXOWV
,QGXVWULDO
ORZYROWDJHQHWZRUN
3XEOLF
ORZYROWDJHQHWZRUN
0HDVXULQJSRLQWIRU
FRQGXFWHG
IDXOWV
)LUVW
HQYLURQPHQW
6HFRQG
HQYLURQPHQW
(TXLSPHQW
DIIHFWHGE\
IDXOWV
'ULYH
LQWHUIHUHQFH
VRXUFH
/LPLWRIIDFLOLW\
0HDVXULQJSRLQWIRUHPLWWHG
LQWHUIHUHQFH
P

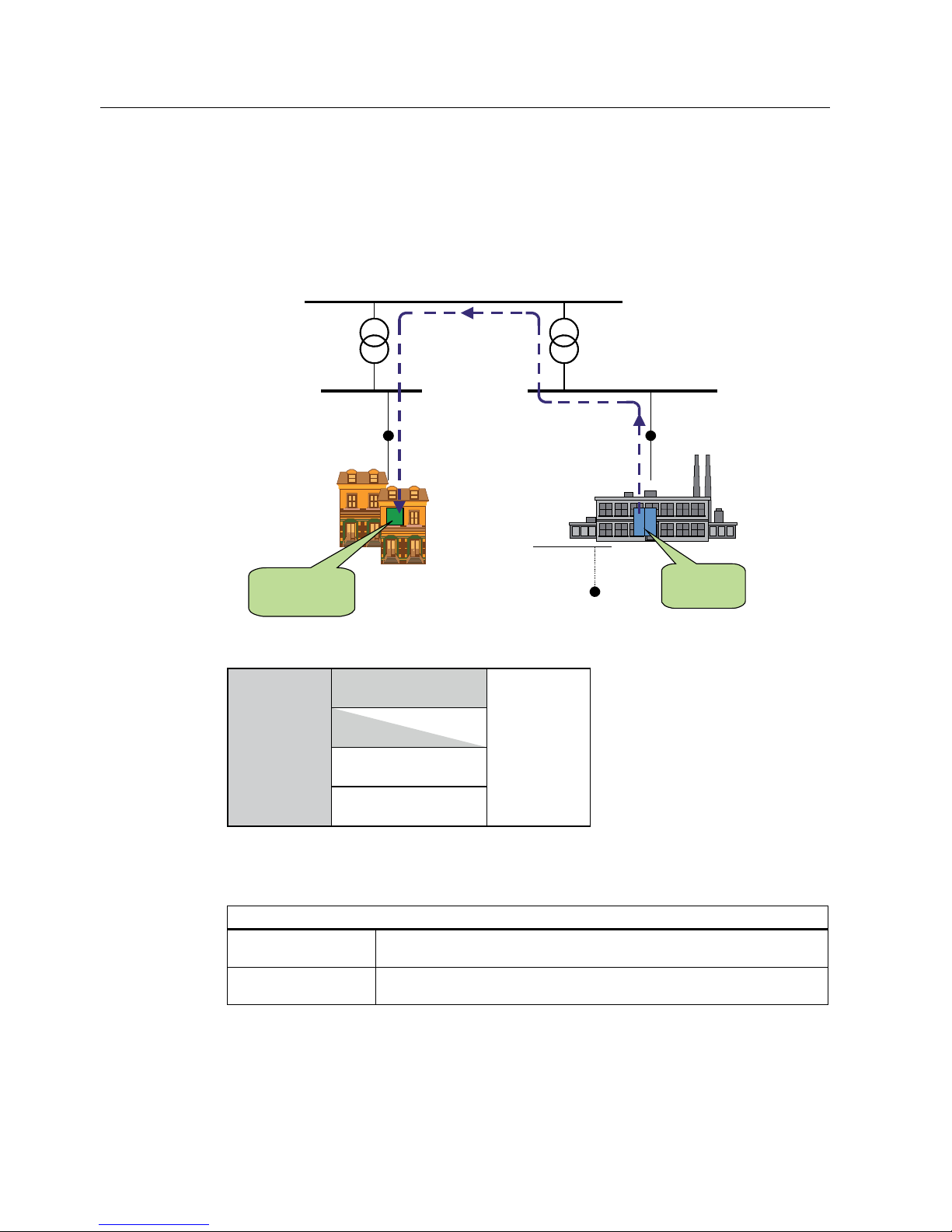

Figure 3-1 Definition of the first and second environments
&
&
&
&
&
)LUVW
HQYLURQPHQW
6HFRQG
HQYLURQPHQW
Figure 3-2 Definition of categories C1 to C4
Table 3- 1 Definition of the first and second environments
Definition of the first and second environments
First environment Residential buildings or locations at which the drive system is connected to
a public low-voltage supply network without a transformer.
Second environment Industrial locations supplied by a medium-voltage network via a separate
transformer.

Basic information about EMC
3.1 Introduction to EMC
Cabinet design and EMC
Operating Instructions, 03/2013, A5E00427629A 17
Table 3- 2 Definition of categories C1 to C4
Definition of categories C1 to C4
Category C1 Rated voltage <1000 V; unrestricted use in the first environment.
Category C2 Rated voltage for stationary drive systems <1000 V; for use in the second
environment. For use in the first environment only when sold and installed
by skilled personnel.
Category C3 Rated voltage <1000 V; use in the second environment only.
Category C4 Rated voltage ≥1000 V or for rated currents ≥ 400 A in complex systems in
the second environment.

Basic information about EMC
3.1 Introduction to EMC
Cabinet design and EMC
18 Operating Instructions, 03/2013, A5E00427629A
