Siemens Profiset 3015 User manual

Profiset 3015
HiPath 1100
User Manual
COV 01.FM Seite 1 Mittwoch, 20. April 2005 12:50 12

1
Contents
Telephone characteristics.................................................................................................. 2
Learning to use your telephone ........................................................................................ 2
Installation ........................................................................................................................... 2
Handset cord................................................................................................................... 2
Line cord ......................................................................................................................... 2
Recommendations for installation.................................................................................... 3
Configuration....................................................................................................................... 3
Setting the ringer volume ................................................................................................ 3
Setting the melody .......................................................................................................... 3
Display contrast .............................................................................................................. 4
Setting the handset volume ............................................................................................ 4
Setting the hands-free volume ........................................................................................ 4
Setting the dialing mode (tone/pulse) ............................................................................. 5
Other configuration options............................................................................................. 5
Receiving calls .................................................................................................................... 6
Dialing numbers .................................................................................................................. 6
Using the numeric keypad to make a call....................................................................... 6
Using the phonebook to make a call .......................................................................... 6
Using the memories to make a call ............................................................................ 6
Using the REDIAL key ............................................................................................... 6
MUTE key ........................................................................................................................ 7
Enabling MOH................................................................................................................. 7
PAUSE key ....................................................................................................................... 7
FLASH key (special features)........................................................................................ 7
Memories.............................................................................................................................. 8
Storing phone number in the memories ......................................................................... 8
Phonebook........................................................................................................................... 8
Storing numbers and names in the phonebook.............................................................. 8
Consulting the phonebook .............................................................................................. 9
Deleting entries from the phonebook.............................................................................. 9
Changing phonebook numbers..................................................................................... 10
Changing the password ................................................................................................ 10
Key lock.............................................................................................................................. 11
Locking or unlocking the telephone .............................................................................. 11
Temporary unlocking of the telephone ......................................................................... 11
Menu Scheme .................................................................................................................... 14

2
Telephone characteristics
This telephone has the following
characteristics:
•Hands-free talking.
•Key lock for collect calls, long-distance
calls, international calls and mobile
phone calls.
•16 memory keys.
•Phonebook for 100 names and numbers.
Learning to use your telephone
1) Display
2) UP ARROW key
3) DOWN ARROW key
4) PHONEBOOK key
5) REDIAL / PAUSE key
6) FLASH key
7) DIAL / SELECT key
8) HANDS-FREE key
9) MUTE key
10) MENU key
11) Numeric keypad
12) Memory keys
13) One-line digit display
14) One-line alphanumeric character
display
Installation
Handset cord
Connect the long end of the handset cord
to the socket marked with the symbol
(item 15). Insert the cord into the cable duct
(item 16) and attach the short end to the
handset.
Line cord
Connect the line cord to the socket marked
with the symbol (item 17). Insert the
cord into the cable duct (item 18). Attach
the other end to the telephone jack (RJ11).
1413
1
15
17
18 16
2
3
5
4
10
9
8
6
11 12

3
Recommendations for installation
Please observe the following guidelines:
•For your own safety and protection, do
not use the telephone in locations with
extreme heat or humidity. The telephone
is designed to operate at temperatures
between +5ºC and +50ºC and is not
water-proof.
•Some parts of the telephone, such as the
rubber feet, may leave marks on
varnished furniture.
•Place the telephone at least one meter
away from devices such as cordless
phones or TV sets. These devices may
cause interference with the telephone.
•Use a damp or antistatic cloth to clean
the telephone. Never use a dry cloth
(danger of electrostatic discharge) or
abrasive cleaning agents.
•When the telephone reaches the end of
its service life, dispose of it in an
environmentally friendly fashion, in
accordance with the local legal
requirements.
Configuration
Once the telephone has been connected to
the line, you can use it to make or receive
phone calls. In its initial state, the display
will be switched off. When the handset is
lifted, the display will show three dashes.
The next few paragraphs describe which
configurations that can be programmed via
the telephone menu. To make any
adjustments, the handset must be off-
hook.
Setting the ringer volume
This telephone has six ringer volume
settings which can be adjusted as follows:
Lift the handset
Press the MENU key
Use the ARROW keys to select the
RING VOLUME option
Press the SELECT key
Use the ARROW keys to select the
desired option (1-low to 6-high)
Press the SELECT key
Press the MENU key
Setting the melody
This telephone has three melody settings
which can be adjusted as follows:
Lift the handset
Press the MENU key
Use the ARROW keys to select the
MELODY option
Press the SELECT key
Use the ARROW keys to select the
desired option (1, 2 or 3)
Press the SELECT key
Press the MENU key

4
Display contrast
Proceed as follows to adjust the contrast of
the display:
Lift the handset
Press the MENU key
Use the ARROW keys to select the
CONTRAST option
Press the SELECT key
Use the ARROW keys to select the
desired option (1, 2 or 3)
Press the SELECT key
Press the MENU key
Setting the handset volume
This telephone allows you to adjust the
handset volume in six different levels. To
set the desired volume, proceed as follows:
Lift the handset
Press the MENU key
Use the ARROW keys to select the
VOLUME RX option
Press the SELECT key
Use the ARROW keys to select the
desired option (1-low to 6-high)
Press the SELECT key
Press the MENU key
Setting the hands-free volume
This telephone allows you to adjust the
hands-free volume in six different levels. To
set the desired volume, proceed as follows:
Lift the handset
Press the MENU key
Use the ARROW keys to select the
VOL HANDS-FREE option
Press the SELECT key
Use the ARROW keys to select the
desired option (1-low to 6-high)
Press the SELECT key
Press the MENU key

5
Setting the dialing mode (tone/pulse)
Your telephone must be set to TONE
dialing or PULSE dialing, depending on the
telephone line it is connected to. The
default factory setting is TONE dialing with
a flash time of 250 ms (DTMF).
Checking the dialing mode:
Press any numeric key. If you can still hear
a dialing tone, change to the other dialing
mode.
Changing the dialing mode:
To set the dialing mode to PULSE or
TONE, proceed as follows:
Lift the handset
Press the MENU key
Use the ARROW keys to select the
MODE option
Press the SELECT key
Use the ARROW keys to select the
desired option (TONE or PULSE)
Press the SELECT key
Press the MENU key
Temporary change of dialing mode:
While the telephone is set to PULSE dialing
it may be necessary to temporarily change
the dialing mode to TONE dialing.
•Example: You want to check your
banking balance using a telebanking
service. Make the call in the usual way,
and once the connection has been
established, press . The dialing mode
will now change to TONE dialing. When
you have finished the call, replace the
handset and the telephone will
automatically revert to PULSE dialing.
Other configuration options
There are other configuration options that
can be accessed by entering codes:
Lift the handset
Press the MENU key
Press the ASTERISK key
Depending on the desired option,
enter one of the codes below
:
•10 deletes the entire phone book
•11 90 ms flash time
•12 100 ms flash time
•13 270 ms flash time
•14 375 ms flash time
•15 600 ms flash time
•16 MUTE (TX only)
•17 activates music on MUTE
•21 English language
•22 Spanish language
:
•23 French language
•24 Portuguese language
•31 1 second pause
•32 2 seconds pause
•33 3 seconds pause
•34 4 seconds pause
•99 returns to the default
configuration
Press the MENU key
Note:
If you accidentally select one of the
configuration options, you can use the code
99 to return to the default configuration.

6
Receiving calls
When you receive a call, the telephone will
emit a warning tone with the melody and
the volume selected. To answer the call, lift
the handset or press the HANDS-FREE key
to activate hands-free talking.
Dialing numbers
Using the numeric keypad to make a call
or
Lift the handset or press the HANDS-
FREE key and wait for the dial tone
:
Dial the desired number using the
numeric keypad
When you dial, the individual digits of the
number dialed will appear on the display
(item 13 on page 2) and the call will be
initiated. If the dialed number has been
stored in the phonebook, the display will
show the name associated with this number
(item 14 on page 2).
After a few seconds, the display will no
longer show the number dialed but the call
timer in MM:SS (minutes and seconds)
format.
Using the phonebook to make a call
or
Lift the handset or press the HANDS-
FREE key and wait for the dial tone
Press the PHONE BOOK key
or
:
Use the ARROW keys to select the
desired entry or use the numeric
keypad (see Consulting the
phonebook on page 9)
Press the DIAL key
Using the memories to make a call
or
Lift the handset or press the HANDS-
FREE key and wait for the dial tone
Select the desired memory (item 12 on
page 2)
Using the REDIAL key
or
Lift the handset or press the HANDS-
FREE key and wait for the dial tone
Press the REDIAL key
Note:
If the last number dialed contains more
than 32 digits, the REDIAL function will not
work properly.

7
MUTE key
When you press the MUTE key during a
call, the microphone is switched off and the
other party cannot hear you. The MUTE
message will appear on the display while
MUTE is activated. To resume a normal
conversation, press the MUTE key
again. While MUTE is enabled, the other
party will hear music on hold (MOH). If
necessary, MOH can be disabled. When
MOH is disabled, you will be able hear the
other party whereas the other party will not
be able to hear you.
Enabling MOH
Lift the handset
Press the MENU key
Use the ARROW keys to select the
MUTE W/ MUSIC option
Press the SELECT key
Use the ARROW keys to select the
desired option (Y- yes or N- no)
Press the SELECT key
Press the MENU key
PAUSE key
This key can be used when the telephone
is connected to a PBX system. It inserts an
interdigit pause (the default is 2 seconds –
to change this setting see Other
configuration option on page 5), starting
with the first digit when you press the
PAUSE key . These pauses are essential
for some systems with extension lines and
can be stored in the phonebook, in
memories and on the REDIAL key . The
display shows the character P above the
number dialed to indicate the pause.
FLASH key (special features)
The FLASH key allows you to use a
number of special features (call forwarding,
call waiting, conference, etc.) provided your
telephone is connected to a digital Central
Office or to a PBX system.
The default flash is 250 ms. It may be
necessary to program a different flash time
(see Other configuration options on page
5). If you are not sure about the correct
flash time, refer to the documentation of
your PBX.
Note:
These features will only be available if you
purchased them from your local operator.

8
Memories
The telephone has 16 memories (item 12
on page 2). Each of these memories can
store up to 32 digits.
Storing phone number in the memories
To store a new number in one of the 16
memories, proceed as follows:
Lift the handset
Press the PHONEBOOK key
Press the SELECT key
:
Enter the phone number to be stored
Press the SELECT key
Press the desired memory key (item
12 on page 2)
If the number is already stored in the
Phonebook, proceed as follows:
Lift the handset
Press the PHONEBOOK key
or
:
Use the ARROW keys to select the
desired register or use the numeric
keypad (see Consulting the
phonebook on page 9)
Press the desired memory key (item
12 on page 2)
Note:
•Stored phone numbers can be
overwritten by storing other phone
numbers in the memory.
•It is possible to store an external
telephone number in one of the
memories when the telephone is
connected to a PBX system. Simply
insert the trunk access code followed by
a pause (PAUSE key ) before the
phone number you want to store.
•You may have to enter the area code
before the phone number.
Phonebook
This telephone features a phonebook with
100 number and name entries. Numbers
can have up to 16 digits and the names
associated with them can have up to 16
characters. The names will be arranged in
alphabetical order.
Storing numbers and names in the
phonebook
You can use the keypad to store numbers
and their associated names:
Key : “space” 1
Key : A B C 2
Key : D E F 3
Key : G H I 4
Key : J K L 5
Key : M N O 6
Key : P Q R S 7
Key : T U V 8
Key : W X Y Z 9
Key : 0
Key :
Key : - #
By pressing the same key repeatedly, you
can cycle through the various characters
assigned to a key. If the same key is not
pressed again for two seconds, the phone
will assume that the last character is the
one to be selected and the cursor will go to
the next position. To delete a character,
press the ARROW key or .

9
Note:
•To be able to store numbers in the
phonebook, you may have to enter the
area code before the phone number.
•It is possible to store an external
telephone number in the Phonebook
when the telephone is connected to a
PBX system. Simply insert the trunk
access code followed by a pause
(PAUSE key ) before the phone
number you want to store
•When the phonebook is full and the
phonebook key is pressed to store a
new entry, the message “FULL
PHONEBOOK” will be displayed.

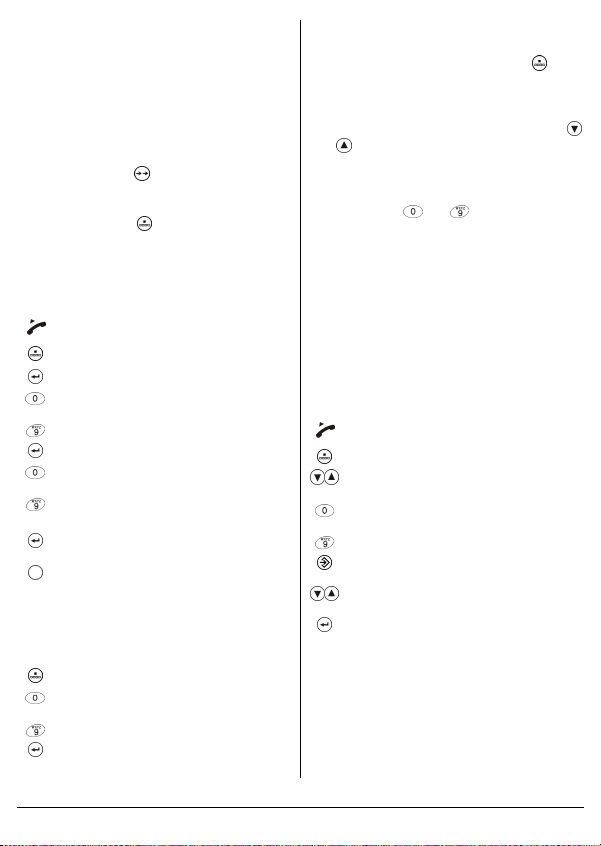

To store a new entry, proceed as follows:
Lift the handset
Press the PHONEBOOK key
Press the SELECT key
:
Enter the phone number to be stored
Press the SELECT key
:
Enter the name to be stored
or
Press the SELECT key to store the
entry in the phonebook or one of the
memories (item 12 on page 2), or
simultaneously in the phonebook and
in the memory
During a call, you can store the number
dialed as follows:
Press the PHONEBOOK key
:
Enter the name to be stored
Press the SELECT key
Consulting the phonebook
To consult the phonebook, lift the handset
and press the PHONEBOOK key . The
first entry is “< INSERT NEW >” (see
Storing numbers and names in the
phonebook on page 8). It can be used to
enter new names. The ARROW keys
and can be used to navigate through the
phonebook in alphabetical order (when you
reach the last entry, the phonebook returns
to the first entry, and vice versa). The
numeric keys to can be used to
enter letters. Much in the same way as for
entering names; the display moves to the
first entry with the first letter selected (or the
following letter if no entry begins with the
first letter). The display will show the name
and number of each entry.
Deleting entries from the phonebook
To delete entries from the phonebook,
proceed as follows:
Lift the handset
Press the PHONEBOOK key
or
:
Use the ARROW keys or the numeric
keypad (see Consulting the
phonebook on page 9) to select the
entry to be deleted
Press the MENU key
Use the ARROW keys to select the
ERASE option
Press the SELECT key
To delete the entire Phonebook, enter the
code 5 and proceed as described under
Other configuration options on page 5.

10
Changing phonebook numbers
To change numbers in the phonebook,
proceed as follows:
Lift the handset
Press the PHONEBOOK key
or
:
Use the ARROW keys or the numeric
keypad (see Consulting the
phonebook on page 9) to select the
entry to be changed
Press the MENU key
Use the ARROW keys to select the
CHANGE NUMBER option
Press the SELECT key
:
Enter the new phone number to be
stored
Press the SELECT key
Password
The key lock function is protected by a 4-
digit password. The default password is
1234 and can be changed. During
password entry, a hyphen ("-") will be
displayed for each of the digits entered.
You can use the ARROW key or to
delete the last digit.
Changing the password
Lift the handset
Press the MENU key
Use the ARROW keys to select LOCK
OPTIONS
Press the SELECT key
: Enter the password (4 digits)
Press the SELECT key
Use the ARROW keys to select the
CHANGE PASSWORD option
Press the SELECT key
: Enter the new password (4 digits)
Press the SELECT key
: Repeat the new password (4 digits)
Press the SELECT key
Replace the handset
If the entered password does not match the
programmed password, the menu will
return to LOCK OPTIONS. If the password
was repeated incorrectly, the menu will
return to the CHANGE PASSWORD option.

11
Key lock
This telephone features a key lock for
mobile phone calls (CELL), long-distance
calls (LONG DISTANCE), international calls
(INTERNATIONAL) and collect calls
(COLLECT CALL). When the lock for long-
distance calls is enabled, users cannot
make calls to numbers that begin with 0.
When the lock for international calls is
enabled, users cannot make calls to
numbers that begin with 00. When the lock
for mobile phones is enabled, users cannot
make calls to numbers that begin with 8 or
9. And when the lock for collect calls is
enabled, a release signal is sent after the
handset has been lifted or after hands-free
talking has been activated, to release the
connection. This may generate some noise
but will not affect normal calls in any way.
The message “LOCKED” will be displayed
when you dial a locked number.
Note:
The lock for mobile phone calls may not
work properly in some countries due to the
numbering plan for mobile phones used in
these countries.
Locking or unlocking the telephone
Lift the handset
Press the MENU key
Use the ARROW keys to select the
LOCK OPTIONS option
Press the SELECT key
:
Enter the password (4 digits)
Press the SELECT key
Use the ARROW keys to select the
desired option
•TOTAL LOCK
•LONG DISTANCE
•INTERNATIONAL
•CELL
•COLLECT CALL
Press the SELECT key
Use the ARROW keys to select the
desired option (Y- yes or N- no)
Press the SELECT key
or
Press the MENU key to exit or the
ARROW KEYS to select another lock
option
Note:
If the long-distance call lock (LONG
DISTANCE) is enabled, the telephone will
also be locked for international calls
(INTERNATIONAL).
Temporary unlocking of the telephone
If you know the password, you can unlock
the telephone to make calls. Once a call is
completed, the telephone will revert to the
most recent lock state. To unlock the
telephone temporarily, proceed as follows:
Lift the handset
Press the SELECT key
: Enter the password (4 digits)
Press the SELECT key
: Dial the desired telephone number

12

13

14
Menu Scheme
Level 1 Level 2 Level 3
RING VOLUME 1 to 6
MELODY 1 to 3
CONTRAST 1 to 3
VOLUME RX 1 to 6
VOL HANDS-FREE 1 to 6
MODE TONE
PULSE
MUTE W/ MUSIC S
N
LOCK OPTIONS TOTAL LOCK Y
N
LONG DISTANCE Y
N
INTERNATIONAL Y
N
CELL Y
N
COLLECT CALL Y
N
CHANGE PASSWORD PASSWORD

15

16
Quick Reference Guide
FUNCTION PROCEDURE
+ Lift the handset and press the MENU key
+
Use the ARROW keys to select one of the following options
and press the SELECT key:
•RING VOLUME (1 to 6)
•MELODY (1 to 3)
•CONTRAST (1 to 3)
•VOLUME RX (1 to 6)
•VOL HANDS-FREE (1 to 6)
•MODE (TONE or PULSE)
•MUTE W/ MUSIC (Y or N)
•TOTAL LOCK, LONG DISTANCE, INTERNATIONAL,
CELL, COLLECT CALL
CONFIGURING THE
TELEPHONE:
•RING VOLUME
•MELODY
•CONTRAST
•RECEPTION VOLUME
•HANDS-FREE VOLUME
•DIALING MODE
•MUTE WITH MUSIC
•LOCK OPTIONS
+ Use the ARROW keys to select the desired configuration
and press the SELECT key
Using the numeric keypad
or Lift the handset or press the HANDS-FREE key and wait for
the dial tone
... Dial the desired number
Using the phonebook
or Lift the handset or press the HANDS-FREE key and wait for
the dial tone
Press the PHONEBOOK key
or
...
Use the ARROW keys to select the desired entry or use the
numeric keypad
DIALING CALL NUMBERS
Press the DIAL key
REDIAL To redial the last dialed number, press the REDIAL key
TEMPORARY CHANGE OF
DIALING MODE (TONE /
PULSE) After establishing a call, change to TONE by pressing the
key (for example to use telebanking services)
or
+
Lift the handset or press the HANDS-FREE key and press
the SELECT key
...
+ Enter the password and press the SELECT key
TEMPORARY UNLOCKING OF
THE TELEPHONE
... Dial the desired telephone number
MUTE Press the MUTE key to disable voice transmission. To
enable voice transmission, press the MUTE key again
+ Lift the handset and press the PHONEBOOK key
...
+
Enter the phone number to be stored and press the
SELECT key
STORING NUMBERS AND
NAMES IN THE PHONEBOOK
...
+ Enter the name to be stored and press the SELECT key

17

18

Ref. No.: A31003-K1250-B822-1-7619 • Printed in Brazil • 20.04.05
© Siemens Ltda.• Rua Pedro Gusso, 2635 •Curitiba-PR/BR •
Subject to availability. Right of modification reserved.
*1PA31003-K1250-B822-1-7619*
1P A31003-K1250-B822-1-7619
The information provided in this document contains merely general descriptions or
characteristics of performance which in case of actual use do not always apply as described or
which may change as a result of further development of the products.
An obligation to provide the respective characteristics shall only exist if expressly agreed in the terms of contract.
Bac01.fm Seite 68 Mittwoch, 20. April 2005 12:49 12
