Silverline 991471 User manual

Version date: ..20 silverlinetools.com
XXXXXX
FR Scie circulaire 18 V
DE Kreissäge, 18 V
ES Sierra circular, 18 V
IT Sega circolare 18 V
NL 18 V cirkelzaag
PL Ręcznapilarkatarczowa18V
18V Circular Saw
991471

2

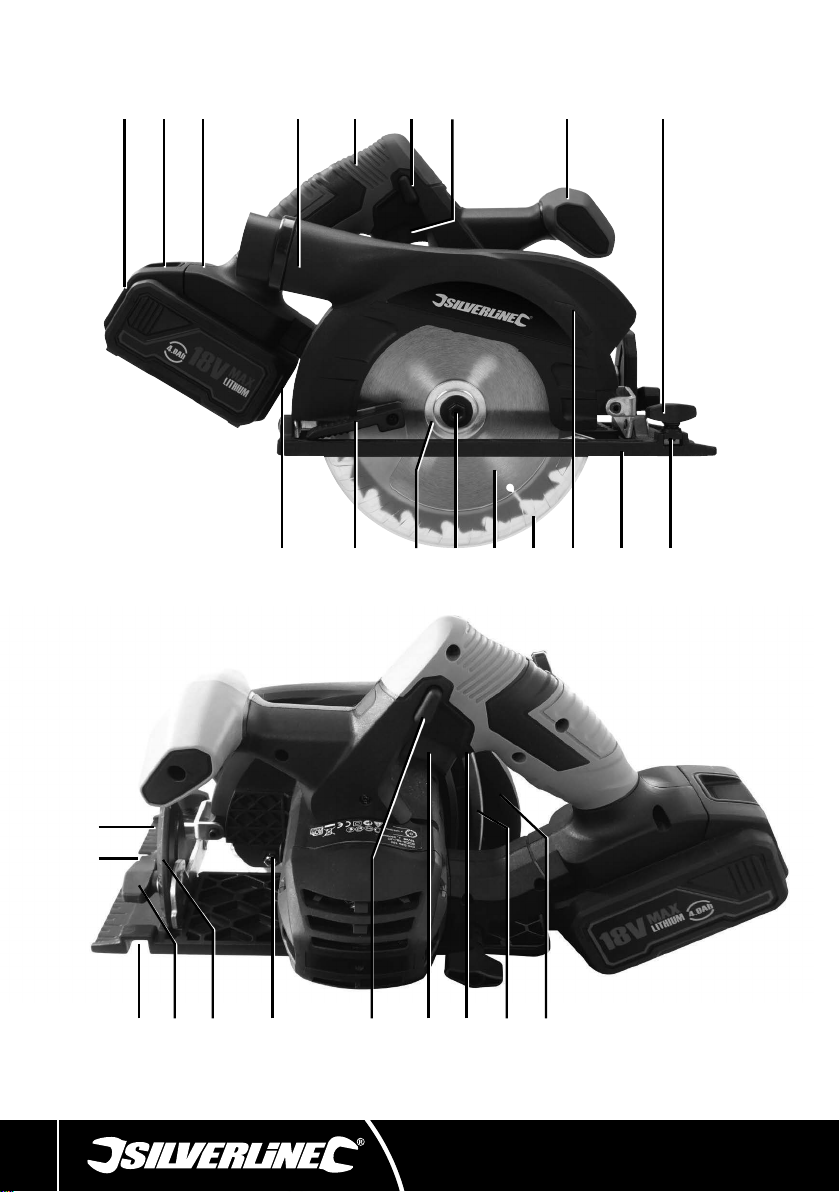

1 2 3 4 5 6 8
1011121314151718
10 21 22 23 6 7 24 25 26
20
19
16
97

silverlinetools.com
3
Fig. I
Fig. III
a
b
c
Fig. IV
30 3331 32
27
29
28
Fig. II

4

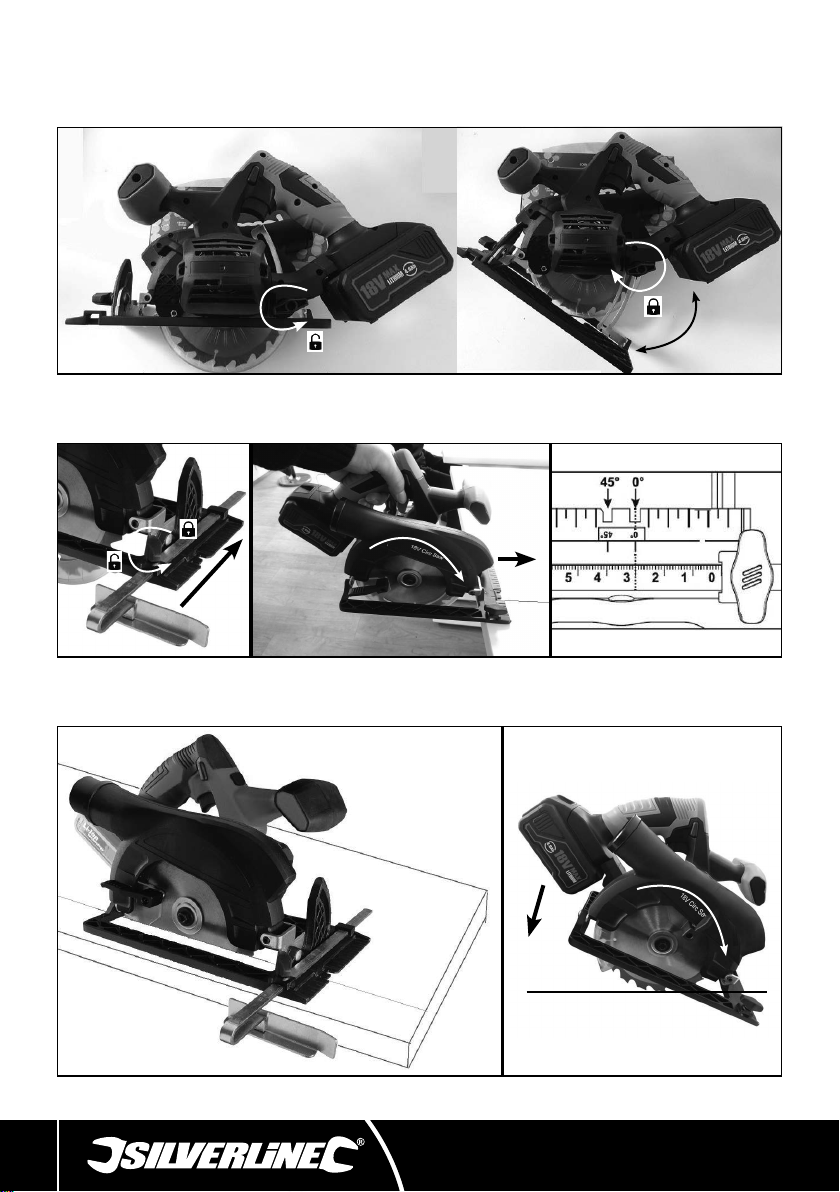

Fig. V
Fig. VI
Fig. IX Fig. X
Fig. VII Fig. VIII
c
c
a
a
b
b

silverlinetools.com
5
English ................06
Français ...............16
Deutsch................27
Español................38
Italiano................48
Nederlands ..........58
Polski ..................68

EN#
Original#Instructions#
silverlinetools.com#
6#
Introduction*
Thank#you#for#purchasing#this#Silverline#product.#This#manual#contains#
information#necessary#for#safe#and#effective#operation#of#this#product.#This#
product#has#unique#features#and,#even#if#you#are#familiar#with#similar#
products,#it#is#necessary#to#read#this#manual#carefully#to#ensure#you#fully#
understand#the#instructions.#Ensure#all#users#of#the#product#read#and#fully#
understand#this#manual.#Keep#these#instructions#with#the#product#for#future#
reference.#
Description*of*Symbols*
The#rating#plate#on#your#tool#may#show#symbols.#These#represent#important#
information#about#the#product#or#instructions#on#its#use.#
Technical*Abbreviations*Key*
V# Volts#
~, a.c.#Alternating#current#
A,#mA Ampere,#milli-Amp#
Ah#Amp#hours#(battery#capacity)#
n0#No#load#speed#
Hz#Hertz#
⎓ d.c.#Direct#current#
W,kW Watt,#kilowatt#
min-1Operations#per#minute#
dB(A)Decibel#sound#level#(A#weighted)#
m/s2#Metres#per#second#squared#(vibration#magnitude)#
Specification*
Voltage:#
18V⎓#
No#load#speed:#
3800min-1#
Blade#diameter:#
150mm#
Blade#Kerf:#
1.6mm#
Blade#bore#diameter:#
16mm#
Supplied#blade:#
24T#
Bevel#adjustment:#
0-45O
Cutting#capacity#at#90°:#
48mm#
Cutting#capacity#at#45°:#
36mm#
Dust#Port#
Adaptor:#
Inner#
Diameter#
31.5mm#
Outer#
Diameter#
35.5mm#
Protection#class:#
Ingress#protection:#
IPX0##
Dimensions#(L#x#W#x#H):#
352#x#248#x#202mm#
Weight:#
2.8 kg#
Battery:#
Cell#type:#
Li-ion#
Voltage:#
18V⎓##
Capacity:#
4Ah#
Charger:#
Input#power:#
230V~*50Hz,#1.2A#
Output#power:#
22V⎓,#2.4A#
Charging#time:#
2#hours#
Cord#length:#
1.8m#
Protection#class:#
Ingress#protection:#
IPX0##
As#part#of#our#ongoing#product#development,#specifications#of#
Silverline#products#may#alter#without#notice.#
Sound*&*vibration*information#
Sound#pressure#LPA#
85.1dB(A)#
Sound#power#LWA#
96.1dB(A)#
Uncertainty#K#
3dB#
Weighted#Vibration#ah#
1.97 m/s2
Uncertainty#K#
1.5 m/s2 #
The#sound#intensity#level#for#the#operator#may#exceed#85dB(A)#and#sound#
protection#measure#are#necessary.#
*WARNING:#Always#wear#ear#protection#where#the#sound#level#
exceeds#85dB(A)#and#limit#the#time#of#exposure#if#necessary.#If#sound#levels#
are#uncomfortable,#even#with#ear#protection,#stop#using#the#tool#
immediately#and#check#the#ear#protection#is#correctly#fitted#and#provides#
the#correct#level#of#sound#attenuation#for#the#level#of#sound#produced#by#
your#tool.#
*WARNING:#User#exposure#to#tool#vibration#can#result#in#loss#of#sense#
of#touch,#numbness,#tingling#and#reduced#ability#to#grip.#Long-term#
exposure#can#lead#to#a#chronic#condition.#If#necessary,#limit#the#length#of#
time#exposed#to#vibration#and#use#anti-vibration#gloves.#Do#not#operate#the#
tool#with#hands#below#a#normal#comfortable#temperature,#as#vibration#will#
have#a#greater#effect.#Use#the#figures#provided#in#the#specification#relating#
to#vibration#to#calculate#the#duration#and#frequency#of#operating#the#tool.#

EN#
Original#Instructions#
silverlinetools.com#
7#
Sound#and#vibration#levels#in#the#specification#are#determined#according#to#
international#standards.#The#figures#represent#normal#use#for#the#tool#in#
normal#working#conditions.#A#poorly#maintained,#incorrectly#assembled,#or#
misused#tool,#may#produce#increased#levels#of#noise#and#vibration.#
www.osha.europa.eu#provides#information#on#sound#and#vibration#levels#in#
the#workplace#that#may#be#useful#to#domestic#users#who#use#tools#for#long#
periods#of#time.#
General*Power*Tool*Safety*Warnings*
WARNING:*Read*all*safety*warnings,*instructions,*illustrations*and*
specifications*provided*with*this*power*tool.!Failure!to!follow!all!
instructions!listed!below!may!result!in!electric!shock,!fire!and/or!serious!
injury.#
Save*all*warnings*and*instructions*for*future*reference.#
The!term!“power!tool”!in!the!warnings!refers!to!your!mains-operated!
(corded)!power!tool!or!battery-operated!(cordless)!power!tool.#
1) Work*area*safety
a) Keep*work*area*clean*and*well*lit.#Cluttered!or!dark!areas
invite!accidents.#
b) Do*not*operate*power*tools*in*explosive*atmospheres,*
such*as*in*the*presence*of*flammable*liquids,*gases*or*
dust.!Power!tools!create!sparks!which!may!ignite!the!dust!or
fumes.#
c) Keep*children*and*bystanders*away*while*operating*a
power*tool.!Distractions!can!cause!you!to!lose!control.
2) Electrical*safety
a) Power*tool*plugs*must*match*the*outlet.*Never*modify*the
plug*in*any*way.*Do*not*use*any*adapter*plugs*with*
earthed*(grounded)*power*tools.!Unmodified!plugs!and
matching!outlets!will!reduce!risk!of!electric!shock.#
b) Avoid*body*contact*with*earthed*or*grounded*surfaces,*
such*as*pipes,*radiators,*ranges*and*refrigerators.!There!is
an!increased!risk!of!electric!shock!if!your!body!is!earthed!or!
grounded.#
c) Do*not*expose*power*tools*to*rain*or*wet*conditions.
Water!entering!a!power!tool!will!increase!the!risk!of!electric
shock.#
d) Do*not*abuse*the*cord.*Never*use*the*cord*for*carrying,*
pulling*or*unplugging*the*power*tool.*Keep*cord*away*
from*heat,*oil,*sharp*edges*or*moving*parts.*Damaged!or
entangled!cords!increase!the!risk!of!electric!shock.#
e) When*operating*a*power*tool*outdoors,*use*an*extension
cord*suitable*for*outdoor*use.#Use!of!a!cord!suitable!for
outdoor!use!reduces!the!risk!of!electric!shock.#
f) If*operating*a*power*tool*in*a*damp*location*is*
unavoidable,*use*a*residual*current*device*(RCD)*protected*
supply.!Use!of!an!RCD!reduces!the!risk!of!electric!shock.
3) Personal*safety
a) Stay*alert,*watch*what*you*are*doing*and*use*common*
sense*when*operating*a*power*tool.*Do*not*use*a*power*
tool*while*you*are*tired*or*under*the*influence*of*drugs,*
alcohol*or*medication.!A!moment!of!inattention!while
operating!power!tools!may!result!in!serious!personal!injury.
b) Use*personal*protective*equipment.*Always*wear*eye*
protection.!Protective!equipment!such!as!a!dust!mask,!non-
skid!safety!shoes,!hard!hat!or!hearing!protection!used!for!
appropriate!conditions!will!reduce!personal!injuries.#
c) Prevent*unintentional*starting.#Ensure*the*switch*is*in*the
OFF-position*before*connecting*to*power*source*and/or*
battery*pack,*picking*up*or*carrying*the*tool.!Carrying
power!tools!with!your!finger!on!the!switch!or!energising!
power!tools!that!have!the!switch!ON!invites!accidents.#
d) Remove*any*adjusting*key*or*wrench*before*turning*the*
power*tool*ON.!A!wrench!or!a!key!left!attached!to!a
rotating!part!of!the!power!tool!may!result!in!personal!injury.
e) Do*not*overreach.*Keep*proper*footing*and*balance*at*all
times.#This!enables!better!control!of!the!power!tool!in
unexpected!situations.#
f) Dress*properly.*Do*not*wear*loose*clothing*or*jewellery.
Keep*your*hair*and*clothing*away*from*moving*parts.
Loose!clothes,!jewellery!or!long!hair!can!be!caught!in!
moving!parts.#
g) If*devices*are*provided*for*the*connection*of*dust*
extraction*and*collection*facilities,*ensure*these*are*
connected*and*properly*used.!Use!of!dust!collection!can
reduce!dust-related!hazards.#
h) Do*not*let*familiarity*gained*from*frequent*use*of*tools*
allow*you*to*become*complacent*and*ignore*tool*safety*
principles.!A!careless!action!can!cause!severe!injury!within!a
fraction!of!a!second.#
4) Power*tool*use*and*care
a) Do*not*force*the*power*tool.*Use*the*correct*power*tool*
for*your*application.!The!correct!power!tool!will!do!the!job
better!and!safer!at!the!rate!for!which!it!was!designed.#
b) Do*not*use*the*power*tool*if*the*switch*does*not*turn*it*ON
and*OFF.!Any!power!tool!that!cannot!be!controlled!with!the
switch!is!dangerous!and!must!be!repaired.#
c) Disconnect*the*plug*from*the*power*source*and/or*
remove*the*battery*pack,*if*detachable,*from*the*power*
tool*before*making*any*adjustments,*changing*accessories,
or*storing*power*tools.!Such!preventive!safety!measures
reduce!the!risk!of!starting!the!power!tool!accidentally.#
d) Store*idle*power*tools*out*of*the*reach*of*children*and*do*
not*allow*persons*unfamiliar*with*the*power*tool*or*these
instructions*to*operate*the*power*tool.!Power!tools!are
dangerous!in!the!hands!of!untrained!users.#
e) Maintain*power*tools*and*accessories.*Check*for*
misalignment*or*binding*of*moving*parts,*breakage*of*
parts*and*any*other*condition*that*may*affect*the*power*
tool’s*operation.*If*damaged,*have*the*power*tool*repaired
before*use.!Many!accidents!are!caused!by!poorly
maintained!power!tools.#
f) Keep*cutting*tools*sharp*and*clean.!Properly!maintained
cutting!tools!with!sharp!cutting!edges!are!less!likely!to!bind
and!are!easier!to!control.#
g) Use*the*power*tool,*accessories*and*tool*bits,*etc.*in*
accordance*with*these*instructions,*taking*into*account*
the*working*conditions*and*the*work*to*be*performed.!Use
of!the!power!tool!for!operations!different!from!those!
intended!could!result!in!a!hazardous!situation.#
h) Keep*handles*and*grasping*surfaces*dry,*clean*and*free*
from*oil*and*grease.!Slippery!handles!and!grasping!surfaces
do!not!allow!for!safe!handling!and!control!of!the!tool!in!
unexpected!situations.#
5) Battery*tool*use*and*care
a) Recharge*only*with*the*charger*specified*by*the*
manufacturer.!A!charger!that!is!suitable!for!one!type!of
battery!pack!may!create!a!risk!of!fire!when!used!with!
another!battery!pack.#
b) Use*power*tools*only*with*specifically*designated*battery
packs.!Use!of!any!other!battery!packs!may!create!a!risk!of
injury!and!fire.#
c) When*battery*pack*is*not*in*use,*keep*it*away*from*other*
metal*objects,*like*paper*clips,*coins,*keys,*nails,*screws*or
other*small*metal*objects,*that*can*make*a*connection*
from*one*terminal*to*another.!Shorting!the!battery!
terminals!together!may!cause!burns!or!a!fire.#
d) Under*abusive*conditions,*liquid*may*be*ejected*from*the*
battery;*avoid*contact.*If*contact*accidentally*occurs,*flush*
with*water.*If*liquid*contacts*eyes,*additionally*seek*
medical*help.!Liquid!ejected!from!the!battery!may!cause
irritation!or!burns.#

EN#
Original#Instructions#
silverlinetools.com#
8#
e) Do*not*use*a*battery*pack*or*tool*that*is*damaged*or*
modified.!Damaged!or!modified!batteries!may!exhibit
unpredictable!behaviour!resulting!in!fire,!explosion!or!risk!of
injury.#
f) Do*not*expose*a*battery*pack*or*tool*to*fire*or*excessive*
temperature.!Exposure!to!fire!or!temperature!above!131°C
may!cause!explosion.#
g) Follow*all*charging*instructions*and*do*not*charge*the*
battery*pack*or*tool*outside*the*temperature*range*
specified*in*the*instructions.!Charging!improperly!or!at
temperatures!outside!the!specified!range!may!damage!the
battery!and!increase!the!risk!of!fire.#
6) Service
a) Have*your*power*tool*serviced*by*a*qualified*repair*person*
using*only*identical*replacement*parts.!This!will!ensure!that
the!safety!of!the!power!tool!is!maintained.#
b) Never*service*damaged*battery*packs.!Service!of!battery!
packs!should!only!be!performed!by!the!manufacturer!or!
authorised!service!providers.#
Circular*Saw*Safety*
Cutting#procedures!
a) DANGER:*Keep#hands#away#from#cutting#area#and#the
blade.#Keep#your#second#hand#on#auxiliary#handle,#or#motor
housing.#If!both!hands!are!holding!the#saw,!they!cannot!be
cut!by!the!blade.#
b) Do#not#reach#underneath#the#workpiece.#The!guard!cannot
protect!you!from!the!blade!below!the!workpiece.!
c) Adjust#the#cutting#depth#to#the#thickness#of#the#workpiece.!
Less!than!a!full!tooth!of!the!blade!teeth!should!be!visible!
below!the!workpiece.!
d) Never#hold#piece#being#cut#in#your#hands#or#across#your#leg.#
Secure#the#workpiece#to#a#stable#platform.#It!is!important!to
support!the!work!properly!to#minimise!body!exposure,!blade
binding,!or!loss!of!control.#
e) Hold#the#power#tool#by#insulated#gripping#surfaces#only,#
when#performing#an#operation#where#the#cutting#tool#may#
contact#hidden#wiring#or#its#own#cord.#Contact!with!a!"live"
wire!will!also!make!exposed!metal!parts!of!the!power!tool!
"live"#and!could!give!the!operator!an!electric!shock.#
f) When#ripping,#always#use#a#rip#fence#or#straight#edge#guide.
This!improves!the!accuracy!of!cut!and!reduces!the!chance!of!
blade!binding.!
g) Always#use#blades#with#correct#size#and#shape#(diamond#
versus#round)#of#arbour#holes.#Blades!that!do!not!match!the
mounting!hardware!of!the!saw!will!run#eccentrically,!
causing!loss!of!control.#
h) Never#use#damaged#or#incorrect#blade#washers#or#bolts.#The
blade!washers!and!bolt!were!specially!designed!for!your!
saw,!for!optimum!performance!and!safety!of!operation.!
i) Even#when#this#tool#is#used#as#prescribed#it#is#not#possible#
to#eliminate#all#residual#risk#factors.#If!you!are!in!any!doubt
as!to!the!safe!use!of!this!tool,!do!not!use!it.!
Further*Safety*Instructions*For*All*Saws*
Kickback#Causes#and#Related#Warnings:#
-#kickback#is#a#sudden#reaction#to#a#pinched,#bound#or#misaligned#saw#blade,
causing#an#uncontrolled#saw#to#lift#up#and#out#of#the#workpiece#toward#the#
operator;#
-#when#the#blade#is#pinched#or#bound#tightly#by#the#kerf#closing#down,#the#
blade#stalls#and#the#motor#reaction#drives#the#unit#rapidly#back#toward#the
operator;#
-#if#the#blade#becomes#twisted#or#misaligned#in#the#cut,#the#teeth#at#the#
back#edge#of#the#blade#can#dig#into#the#top#surface#of#the#wood#causing#the
blade#to#climb#out#of#the#kerf#and#jump#back#toward#the#operator#
Kickback*is*the*result*of*saw*misuse*and/or*incorrect*operating*procedures*
or*conditions*and*can*be*avoided*by*taking*precautions*as*follows:*
a) Maintain*a*firm*grip*on*the*saw*and*position*your*arms*to
resist*kickback*forces.*Position*your*body*to*either*side*of*
the*blade,*but*not*in*line*with*the*blade.#Kickback!could!
cause!the!saw!to!jump!backwards,!but!kickback!forces!can!
be!controlled!by!the!operator,!if!proper!precautions!are!
taken.#
b) When*the*blade*is*binding,*or*when*interrupting*a*cut*for*
any*reason,*release*the*trigger*and*hold*the*saw*
motionless*in*the*material*until*the*blade*comes*to*a*
complete*stop.*Never*attempt*to*remove*the*saw*from*the
work*or*pull*the*saw*backward*while*the*blade*is*in*
motion*or*kickback*may*occur.#Investigate!and!take
corrective!actions!to!eliminate!the!cause!of!blade!binding.!
c) When*restarting*a*saw*in*the*workpiece,*centre*the*saw*
blade*in*the*kerf*and*check*that*the*saw*teeth*are*not*
engaged*into*the*material.#If!saw!blade!is!binding,!it!may
walk!up!or!kickback!from!the!workpiece!as!the!saw!is!
restarted.!
d) Support*large*panels*to*minimise*the*risk*of*blade*pinching
and*kickback.*Large!panels!tend!to!sag!under!their!own
weight.!Supports!must!be!placed!under!the!panel!on!both!
sides,!near!the!line!of!cut!and!near!the!edge!of!the!panel#
e) Do*not*use*dull*or*damaged*blades.#Unsharpened!or
improperly!set!blades!produce!narrow!kerf!causing!
excessive!friction,!blade!binding!and!kickback.!
f) Blade*depth*and*bevel*adjusting*locking*levers*must*be*
tight*and*secure*before*making*a*cut.#If!blade!adjustment
shifts!while!cutting,!it!may!cause!binding!and!kickback.!
g) Use*extra*caution*when*sawing*into*existing*walls*or*other
blind*areas.#The!protruding!blade!may!cut!objects!that!can
cause!kickback.!
Lower#guard#function#
a) Check#the#lower#guard#before#each#use#and#do#not#use#if#it#
does#not#close#freely,#ensuring#that#the#blade#does#not#
touch#any#part#of#the#guard#or#tool#in#all#angles#and#depths
of#cut.#Never#clamp#or#tie#the#lower#guard#in#the#open#
position.#
b) Check#the#operation#of#the#lower#guard#spring.#If#the#guard#
and#the#spring#are#not#operating#correctly,#they#must#be#
serviced#before#use.#The#lower#guard#may#operate#
sluggishly#due#to#damaged#parts,#gummy#deposits,#or#a#
build-up#of#debris.#
c) The#lower#guard#should#be#retracted#manually#only#for#
special#cuts#such#as#‘plunge#cuts’#and#‘compound#cuts.’#
Raise#the#lower#guard#by#the#retracting#handle#and#as#soon
as#the#blade#enters#the#material,#the#lower#guard#must#be#
released.#For#all#other#sawing,#the#lower#guard#should#
operate#automatically.#
d) Ensure#that#the#lower#guard#is#covering#the#blade#before#
placing#the#saw#down.#An#unprotected,#coasting#blade#will#
cause#the#saw#to#‘propel#backwards’,#cutting#whatever#is#in
its#path.#Be#aware#of#the#time#it#takes#for#the#blade#to#stop#
after#the#switch#is#released.#Do#not#use#abrasive#wheels,#
doing#so#will#void#the#warranty.#
Guard#function#
a) Check#guard#for#proper#closing#before#each#use.#Do#not#
operate#the#saw#if#guard#does#not#move#freely#and#enclose#
the#blade#instantly.#Never#clamp#or#tie#the#guard#so#that#the

EN#
Original#Instructions#
silverlinetools.com#
9#
blade#is#exposed.#If!saw!is!accidentally!dropped,!guard!may!
be#bent.!Check!to!make!sure!that!guard!moves!freely!and!
does!not!touch!the!blade!or!any#other!part,!in!all!angles!and!
depths!of!cut.#
b) Check#the#operation#and#condition#of#the#guard#return#
spring.#If#the#guard#and#the#spring#are#not#operating#
properly,#they#must#be#serviced#before#use.#Guard#may
operate!sluggishly!due!to!damaged!parts,!gummy!deposits,
or!a!build-up!of#debris.#
c) Assure#that#the#base#plate#of#the#saw#will#not#shift#while#
performing#the#“plunge#cut”#when#the#blade#bevel#setting#is
not#at#90°.#Blade!shifting!sideways!will!cause#binding!and!
likely!kick!back.#
d) Always#observe#that#the#guard#is#covering#the#blade#before#
placing#saw#down#on#bench#or#floor.#An!unprotected,
coasting!blade!will!cause!the!saw!to!walk!backwards,#
cutting!whatever!is!in!its!path.!Be!aware!of!the!time!it!takes
for!the!blade!to!stop!after#switch!is!released.#
Additional*Circular*Saw*Safety*
•Do#not#allow#anyone#under#the#age#of#18#years#to#operate
this#saw#
•When#operating#the#saw,#use#safety#equipment#including
safety#goggles#or#shield,#ear#protection,#dust#mask#and#
protective#clothing#including#safety#gloves#
•Hand-held#power#tools#may#produce#vibration.#Vibration#
can#cause#disease.#Gloves#may#help#to#maintain#good#blood
circulation#in#the#fingers.#Hand-held#tools#should#not#be#
used#for#long#periods#without#a#break#
•Whenever#possible,#use#a#vacuum#dust#extraction#system#to#
control#dust/waste#
•Do#not#attempt#to#cut#material#thicker#than#detailed#in#the
Specifications#section#of#this#manual#
•Adjust#the#cutting#depth#to#the#thickness#of#the#workpiece
i.e.#less#than#a#full#tooth#of#the#blade#should#be#visible
below#the#workpiece#
•Ensure#that#work#is#correctly#supported.#Large#panels#may#
sag#under#their#own#weight#and#bind#the#saw#blade.#
Supports#must#be#placed#under#the#panel#on#both#sides,#
close#to#the#line#of#cut#and#near#the#edge#of#the#panel#
•Ensure#all#supports#and#power#cables#are#completely#clear
of#the#cutting#path#
•Always#secure#the#workpiece#to#a#stable#platform,#ensuring#
body#exposure#is#minimised,#avoiding#blade#binding,#or#loss
of#control#
•Always#stand#at#an#angle#to#the#tool#when#operating
•Be#aware#that#the#blade#will#project#from#the#underside#of
the#workpiece#
•Do#not#reach#beneath#the#workpiece#where#the#guard
cannot#protect#you#from#the#blade#
•Note#the#direction#of#rotation#of#the#motor#and#the#blade
•Inspect#the#workpiece#and#remove#all#nails#and#other#
embedded#objects#prior#to#starting#work#
•Do#not#attempt#to#cut#material#that#contains#embedded#
objects#unless#you#know#that#the#cutting#tool#fitted#to#your
machine#is#suitable#for#the#job#
•Do#not#apply#any#sideways#or#twisting#force#to#the#blade
whilst#cutting#
•If#a#cut#does#not#extend#to#the#edge#of#the#workpiece,#or#if
the#blade#binds#in#the#cut,#allow#the#blade#to#come#to#a#
complete#stop#and#lift#the#saw#out#of#the#workpiece#
•Do#not#attempt#to#free#a#jammed#blade#before#first#
disconnecting#the#machine#from#power#
•Do#not#move#the#saw#backwards#at#any#time#whilst#cutting
•Beware#of#projected#waste.#In#some#situations,#waste#
material#may#be#projected#at#speed#from#the#cutting#tool.#It
is#the#user’s#responsibility#to#ensure#that#other#people#in#
the#work#area#are#protected#from#the#possibility#of#
projected#waste#
•If#you#are#interrupted#when#operating#the#saw,#complete#
the#process#and#switch#off#before#diverting#your#attention
•Periodically#check#that#all#nuts,#bolts#and#other#fixings#have
not#loosened,#tighten#where#necessary#
Avoid#blade#overheating##
•Always#check#the#condition#of#the#blade#prior#to#any#cutting#
operations.#Ensure#the#blade#is#sharp#and#is#the#correct#type
of#blade#for#the#material.#If#the#blade#is#blunt,#replace#or#
have#professionally#sharpened#(if#applicable)#
•During#cutting#operations,#run#the#tool#without#load#for#15-
20#second#intervals#to#ensure#the#air#cools#the#blade#
•Take#extra#care#when#cutting#hardwood.#Harder#materials#
generate#more#resistance#and#more#heat#on#the#blade#and#
motor,#so#ensure#more#frequent#air-cooling#intervals#are#
applied#
Fitting#cutting#tools#
•Ensure#cutting#tools#are#correctly#and#securely#fitted#and#
check#that#wrenches#/#adjusters#are#removed#prior#to#use
•Only#use#cutting#tools#recommended#for#your#machine
•Do#not#attempt#to#modify#cutting#tools
•Ensure#blades#are#sharp,#in#good#condition#and#correctly
fitted#
•Do#not#attempt#to#sharpen#blades#that#are#not#suitable#for#
sharpening,#these#may#include#specially#hardened#blades#or
blades#made#from#hardened#alloys#typically#containing#
tungsten#
•Blades#that#can#be#sharpened#should#be#sharpened#only#
according#to#the#blade#manufacturer’s#instructions.#These#
may#include#a#limited#number#of#times#the#blade#can#be#
sharpened#
•Sharpened#blades#should#be#more#thoroughly#inspected#
before#use#and#replaced#immediately#if#there#is#any#doubt
about#their#condition#and#suitability#for#use#
•In#the#event#blades#encounter#an#embedded#object#in#use
that#the#blades#are#not#suitable#for,#blades#should#be#
replaced#immediately#
•Cutting#tools#and#workpieces#may#become#hot#in#use.#Do#
not#attempt#to#change#tools#until#they#have#been#allowed#
to#cool#completely#
Control#of#dust#and#swarf#
•Do#not#allow#dust#or#swarf#to#build#up.#Sawdust#is#a
fire#hazard,#and#some#metal#swarf#is#explosive#
•Be#especially#careful#when#cutting#wood#and#metal.
Sparks#from#metal#cutting#are#a#common#cause#of#
wood#dust#fires#
•Where#possible,#use#a#dust#extraction#system#to
ensure#a#safer#working#environment#
WARNING:#The#dust#produced#from#working#with#some#materials#can#
be#toxic.#Beech,#oak,#mahogany#and#teak#natural#woods,#man-made#
composite#woods#and#some#surface#treatments,#including#paint#with#lead,#
are#toxic.#Lead-based#paint#is#common#in#buildings#built#before#1960.#
Always#wear#suitable#respiratory#protection;#for#example,#a#respirator#face#
mask.#Use#a#dust#extraction#system#or#regularly#vacuum#the#work#area#to#
prevent#the#build-up#of#dust.#In#addition,#vacuum#the#work#area#after#the#
work#has#been#completed.#Most#dust#is#a#fire#hazard.#Overhead#work#
surfaces#have#an#increased#safety#risk#for#dust.#
Laser*Safety**
The#laser#used#in#this#device#is#a#Class#2#laser#with#maximum#power#of#
≤1mW#and#a#wavelength#of#650Nm.##
These#lasers#do#not#normally#present#an#optical#hazard,#although#staring#at#
the#beam#may#cause#flash#blindness.##

EN#
Original#Instructions#
silverlinetools.com#
10#
WARNING:#Avoid#direct#eye#contact.##
A#hazard#may#exist#if#you#deliberately#stare#into#the#beam,#please#observe#
all#safety#rules#as#follows:#
•The#laser#shall#be#used#and#maintained#in#accordance#with#the
manufacturer’s#instructions#
•Do#not#switch#on#the#laser#light#until#the#tool#is#ready#to#cut
•Never#aim#the#beam#at#any#person,#and#particularly#not#into#the
eyes#of#any#person#or#animal,#or#any#object#other#than#the#
workpiece#
•Always#ensure#the#laser#beam#is#aimed#at#a#sturdy#workpiece#
without#reflective#surfaces.#i.e.#wood#or#rough-coated#surfaces#are#
acceptable.#Reflective#sheet#steel#or#similar#is#not#suitable#for#laser
use#as#the#reflective#surface#could#direct#the#beam#back#at#the#
operator#
•Do#not#change#the#laser#light#assembly.#Repairs#must#only#be#carried
out#by#the#laser#manufacturer#or#an#authorised#agent.#DO*NOT
exchange*with*a*different*type*of*laser
Battery*and*Charger*Safety*
Use#the#Battery#Charger#correctly#
•Refer#to#the#section#of#this#manual#relating#to#use#of#the
Battery#Charger#(30)#before#attempting#to#charge#the#
Battery#(1)#
•Do#not#attempt#to#use#the#Battery#Charger#with#any
batteries#other#than#those#supplied.#
•Keep#your#Battery#Charger#clean;#foreign#objects#or#dirt#may
cause#a#short#or#block#air#vents.#Failure#to#follow#these#
instructions#may#cause#overheating#or#fire#
•If#the#supply#cord#is#damaged,#it#must#be#replaced#by#the
manufacturer,#its#service#agent#or#similarly#qualified#
persons#in#order#to#avoid#a#hazard#
•Examine#the#Battery#Charger#regularly#for#damage,#
especially#the#cord,#plug#and#enclosure.#If#the#Battery#
Charger#is#damaged,#it#must#not#be#used#until#it#has#been
repaired#
•Children#should#be#supervised#to#ensure#that#they#do#not
play#with#the#appliance#
WARNING:#Do#not#attempt#to#recharge#non-rechargeable#batteries.*
Battery#Safety##
WARNING:*Li-ion#batteries,#if#incorrectly#used,#stored#or#charged#are#a#
fire,#burn#and#explosion#hazard.#
•Keep#the#battery#out#of#reach#of#children
•Only#charge#Li-ion#batteries#designed#specifically#for#this
charger#
•Only#use#Li-ion#batteries#provided#with#this#product#or
specifically#designed#to#be#compatible#
•Allow#batteries#to#cool#for#15#minutes#after#charging#or#
heavy#use.#Failure#to#follow#these#instructions#may#cause
overheating#or#fire#
•When#not#in#use#batteries#should#be#stored#at#room
temperature#(approximately#20˚C)#
•Ensure#battery#contacts#cannot#accidentally#short#in#
storage.#Keep#batteries#clean;#foreign#objects#or#dirt#may
cause#a#short.#Keep#away#from#other#metal#objects,#for#
example#paperclips,#coins,#keys,#nails#and#screws#
•Under#abusive#conditions,#liquid#may#be#ejected#from#the#
battery.#This#liquid#may#cause#skin#irritation#or#burns.#Avoid
contact.#If#contact#accidentally#occurs,#flush#with#water.#If#
liquid#contacts#eyes,#seek#medical#help#
•Do#not#open,#disassemble,#crush,#heat#above#60°C#or
incinerate.#Do#not#dispose#of#in#fire#or#similar*
•Do#not#get#batteries#wet#or#immerse#in#water
Product*Familiarisation*
1. Battery
2. Battery#Release
3. Battery#Mount
4. Dust#Extraction#Port
5. Main#Handle
6. Switch#Safety#Lock
7. ON/OFF#Switch
8. Auxiliary#Handle
9. Parallel#Guide#Adjustment#Knob
10. Parallel#Guide#Mounting#Slots
11. Base#Plate
12. Blade#Direction#Indicator
13. Blade#Guard
14. Blade
15. Blade#Securing#Bolt
16. Blade#Securing#Flange
17. Guard#Retraction#Lever
18. Battery#Charge#Indicator
19. Bevel#Angle#Scale
20. Guide#Notch
21. Bevel#Locking#Knob
22. Bevel#Angle#Guide
23. Spindle#Lock#Button
24. Depth#Locking#Knob
25. Cutting#Depth#Guide
26. Depth#Guide#Scale
27. Dust#Port#Adaptor
28. Parallel#Guide
29. Hex#Key
30. Battery#Charger
31. Red#LED
32. Green#LED
33. Charger#Terminals
Intended*Use*
Hand-held,#battery-powered,#circular#saw#for#cross,#rip#and#bevel#cutting#of#
hard#and#softwood#timber,#and#wood-based#sheet#material.#Suitable#for#
creating#pocket/plunge#cuts#when#used#carefully#by#a#skilled#operator.#
The#tool#must#ONLY#be#used#for#its#intended#purpose.#Any#use#other#than#
those#mentioned#in#this#manual#will#be#considered#a#case#of#misuse.#The#
operator,#and#not#the#manufacturer,#shall#be#liable#for#any#damage#or#
injury#resulting#from#such#cases#of#misuse.#The#manufacturer#shall#not#be#
liable#for#any#modifications#made#to#the#tool,#nor#for#any#damage#resulting#
from#such#modifications.#
Unpacking*Your*Tool*
•Carefully#unpack#and#inspect#your#product.#Fully#familiarise
yourself#with#all#its#features#and#functions#
•Ensure#all#parts#of#the#product#are#present#and#in#good
condition#
•If#any#parts#are#missing#or#damaged,#have#such#parts
replaced#before#attempting#to#use#this#product#
Before*Use*
WARNING:#ALWAYS#remove#the#battery#before#attaching#or#changing#
any#accessories,#or#making#any#adjustments.#
Removing#the#Battery#
To#remove#the#Battery#(1),#press#the#Battery#Release#(2)#and#slide#the#
Battery#out#of#the#Battery#Mount#(3)#(Fig.#I#(a-b))#

EN#
Original#Instructions#
silverlinetools.com#
11#
Installing#a#charged#Battery#
1. To#fit#a#charged#Battery#(1),#slide#it#into#the#Battery#Mount
(3)#(Fig.#I#(c))
Note:#The#Battery#will#fit#only#in#one#direction,#which#is#determined#by#its#
shape#and#the#design#of#the#Battery#Mount.#However,#if#the#Battery#does#
not#slide#into#the#Battery#Mount#easily,#do#not#force#it.#Instead,#pull#the#
Battery#out#of#the#Battery#Mount#again,#check#for#correct#position,#and#try#
again#gently.#
2. Push#the#Battery#into#the#Battery#Mount#until#it#locks#into#
place#securely#
Setting#up#the#Charger#
1. If#fitted,#remove#the#Battery#(1)#from#the#Battery#Charger
(30)#(Fig.#II#(b))
2. Connect#the#Battery#Charger#to#the#mains#power#supply
Note:#The#Green#LED#(32)#on#the#Battery#Charger#will#illuminate#to#indicate#
that#the#Charger#is#powered.*
WARNING:#The#Battery#Charger#is#designed#for#indoor#use#only#and#
must#not#be#exposed#to#moisture#and#rain.#
Charging#the#Battery#
WARNING:#Failure#to#follow#the#correct#procedure#when#charging#the#
Battery#(1)#will#result#in#permanent#damage.#
Note:#Normal#charging#time#is#1#hour#for#a#recently#fully-discharged#Battery,#
but#if#the#Battery#has#been#left#in#a#discharged#state#for#some#time,#it#may#
take#extended#time#to#charge.#
1. Slide#a#discharged#or#partially#discharged#Battery#onto#the
Battery#Charger#(30)#(Fig.#II#(a))#
Note:#Make#sure#the#Battery#and#Battery#Charger#are#lined#up#
correctly.#If#the#Battery#does#not#slide#onto#the#Battery#Charger#
easily,#don’t#force#it.#Instead,#remove#the#Battery,#then#check#that#
the#top#of#the#Battery#and#the#Battery#Charger#slot#are#clean#and#
undamaged#and#that#the#Charger#Terminals#(33)#are#not#bent.#
2. Once#charging#commences,#only#the#Red#LED#(31)#will
illuminate#
Note:#If#the#Red#LED#is#not#constantly#illuminated#after#an#
uncharged#Battery#is#inserted#into#the#Charger,#the#Battery#or#
Charger#may#be#faulty.#Recheck#the#Battery#is#fully#inserted#in#the#
Battery#Charger.#If#the#fault#persists#do#not#use#and#contact#your#
authorised#Silverline#distributer.#
3. When#the#Battery#is#fully-charged,#only#the#Green#LED#(32)
will#be#illuminated#
Battery#Charge#Level##
The#Battery#has#a#built-in#Battery#Charge#Indicator#(18).#Pressing#on#the#
button#to#the#right#will#indicate#the#charge#level.#The#number#of#bars#that#
illuminate#when#the#button#is#pressed#indicate#the#charge#level;#1#bar#
indicating#a#low#charge,#3#bars#indicating#a#full#charge.#
IMPORTANT:#When#a#low#charge#level#is#indicated,#be#aware#the#tool#may#
stop#operating#while#in#use.#This#may#be#dangerous.#It#is#recommended#to#
always#ensure#the#Battery#has#a#good#charge#level.#
Notes#about#battery#charging#
IMPORTANT:#Batteries#are#an#expendable#supply#whose#capacity#shortens#
over#time.#Always#adhere#to#the#correct#handling#and#charging#instructions#
in#the#manual.#If#the#battery#does#not#hold#charge#or#working#time#is#
shortened,#purchase#a#genuine#Silverline#replacement.##
•The#battery#should#be#charged#at#ambient#temperatures
between#10°C#and#40°C#(ideally#around#20°C)#
•After#charging,#allow#15#minutes#for#the#battery#to#cool#
before#use#
•Ensure#that#the#charger#is#disconnected#from#the#mains
supply#after#use,#and#is#stored#correctly#
•Do#not#leave#batteries#on#charge#for#extended#periods#and
never#store#batteries#on#charge#
•The#charger#monitors#battery#temperature#and#voltage#
while#charging.#Remove#the#battery#once#charging#has#been#
completed#to#maximise#charge#cycles#of#the#battery#and#not
waste#power#
•Batteries#can#become#faulty#over#time,#individual#cells#in#
the#battery#can#fail,#and#the#battery#could#short.#The#
charger#will#not#charge#faulty#batteries.#Use#another#
battery,#if#possible,#to#check#correct#functionality#of#the#
charger#and#purchase#a#replacement#battery#if#a#faulty#
battery#is#indicated#
•Do#not#store#Lithium-ion#battery#packs#in#a#discharged#state
long#term.#This#can#damage#the#Lithium-ion#cells.#For#long-
term#storage,#store#batteries#in#a#high#charge#state#
disconnected#from#the#power#tool#
•The#capacity#of#batteries#will#reduce#over#time.#After#100#
charge#cycles,#the#battery’s#operation#time#and#the#
performance#will#slightly#reduce.#This#decline#will#continue#
until#the#battery#has#minimal#capacity#after#500#charge#
cycles.#This#is#normal#and#not#a#fault#with#the#battery#pack#
Fitting#a#blade#
WARNING:#ALWAYS#ensure#that#the#tool#is#switched#OFF#and#the#
battery#removed,#before#fitting#or#removing#saw#blades.#
WARNING:#ALWAYS#wear#suitable#cut-proof#gloves#when#handling#saw#
blades.#
WARNING:#ONLY#fit#blades#that#are#in#perfect#condition.#Blunt,#bent,#
and#cracked#blades#should#be#discarded#
IMPORTANT:#ALWAYS#use#the#correct#blade#type#for#the#material#to#be#cut#
(refer#to#the#blade#manufacturer’s#guidelines#before#use)#
1. Push#and#hold#the#Spindle#Lock#Button#(23)#inwards
2. Turn#the#Blade#(14)#by#hand#until#you#feel#the#spindle#lock
engage#
3. Unscrew#the#Blade#Securing#Bolt#(15)#anticlockwise,#using
the#supplied#5mm#Hex#Key#(29)#(Fig.#III#(a))#
4. Release#the#Spindle#Lock#Button#and#remove#the#Blade#
Securing#Bolt#and#washer,#and#the#Blade#Securing#Flange
(16)#
5. Use#the#Guard#Retraction#Lever#(17)#to#rotate#the#Blade#
Guard#(13)#out#of#the#way#and#remove#the#Blade#(Fig.#III#(b))
Note:#There#is#a#secondary#flange#located#on#the#spindle
that#is#exposed#when#the#blade#is#removed#(Fig.#III#(c)).#
Ensure#this#remains#in#place#and#is#located#correctly#before#
fitting#the#new#blade.#
6. Fit#the#new#Blade,#ensuring#the#direction#arrow#on#the#
Blade#matches#the#direction#indicated#by#the#Blade#
Direction#Indicator#(12)#
7. Refit#the#Blade#Securing#Flange,#ensuring#a#form-fit#to#the#
flattened#parts#of#the#spindle,#and#refit#the#Blade#Securing
Bolt#and#washer#
8. Press#and#hold#the#Spindle#Lock#Button,#and#tighten#the
Blade#Securing#Bolt#using#the#Hex#Key#
9. Release#the#Spindle#Lock#Button#and#ensure#the#Blade#is
secure#before#use#

EN#
Original#Instructions#
silverlinetools.com#
12#
Adjusting#the#bevel#angle#
Refer#to#Fig.#IV#
1. Loosen#the#Bevel#Angle#Knob#(21).#The#Base#Plate#(11)#will
now#be#free#to#pivot#
2. Select#the#angle#required#(0-45°),#using#the#Bevel#Angle
Guide#(22)#
3. Tighten#the#Bevel#Angle#Knob
Note:*To#ensure#accuracy,#the#angle#between#the#Blade#and#the#Base#Plate#
should#be#checked#using#a#suitable#protractor.*
Adjusting#the#cutting#depth#
Refer#to#Fig.#V#
1. Loosen#the#Depth#Locking#Knob#(24).#The#Base#Plate#(11)#is
now#free#to#adjust#
2. Adjust#the#Base#Plate#to#the#required#cutting#depth#using
the#Cutting#Depth#Guide#(25)#
3. Tighten#the#Depth#Locking#Lever#firmly,#to#lock#the#Base#
Plate#into#position#
Note:#When#set#correctly,#less#than#a#full#tooth#of#the#Blade#should#be#
visible#below#the#workpiece.#
Fitting#the#parallel#guide#
It#is#possible#to#do#a#cut#parallel#to#the#edge#of#the#workpiece#by#installing#
the#Parallel#Guide#(28)#on#the#Base#Plate#(11).#
Refer#to#Fig.#VI#
1. Loosen#the#Parallel#Guide#Adjustment#Knob#(9)
2. Insert#the#Parallel#Guide#into#the#Parallel#Guide#Mounting
Slots#(10)#and#adjust#to#the#required#distance#
3. Tighten#the#Parallel#Guide#Adjustment#Knob
4. Check#the#Parallel#Guide#is#secure
Dust#extraction#
•For#a#cleaner,#safer#work#environment,#and#to#protect#the#
tool#from#dust#and#over-heating,#connect#a#dust#extraction#
system#or#workshop#vacuum#cleaner#to#the#Dust#Extraction
Port#(4)#
Operation*
*WARNING:#ALWAYS#wear#appropriate#safety#equipment.#Use#of#this#
tool#requires#eye#protection,#gloves,#ear#defenders,#and#good#quality#
respiratory#protection.#
#WARNING:*Ensure#you#have#read#and#understood#the#Safety#and#
Before#Use#sections#of#this#manual#before#using#this#tool.#
Switching#ON#&#OFF#
1. Hold#the#tool#securely#by#the#Main#Handle#(5)#and#Auxiliary
Handle#(8)#
2. Ensure#the#tool#is#not#in#contact#with#the#workpiece#before#
switching#ON#
3. Press#and#hold#the#Switch#Safety#Lock#(6)
4. Squeeze#the#ON/OFF#Switch#(7)#to#start#the#tool
5. Release#the#Switch#Safety#Lock
6. Release#the#ON/OFF#Switch#to#stop#the#tool
Making#a#cut#
#WARNING:#Use#ONLY#enough#pressure#to#keep#the#saw#cutting.#
NEVER#force#the#saw;#allow#the#Blade#(14)#and#the#saw#to#do#the#work.#Use#
of#excessive#pressure#that#causes#bending#or#twisting#of#the#Blade#may#
cause#the#Blade#to#break.#
1. Hold#the#saw#securely#and#rest#the#front#edge#of#the#Base
Plate#(11)#on#the#edge#of#the#workpiece#(Fig.#VII#(a))#
2. Check#that#the#Blade#is#not#in#contact#with#the#workpiece,
or#any#other#object#
3. Switch#the#tool#ON#and#allow#to#reach#full#speed
4. Retract#the#Blade#Guard#(13)#(Fig.#VII#(b))#just#enough#to#
allow#the#blade#to#engage#with#the#workpiece#
5. Move#the#saw#forward#until#the#blade#starts#cutting#and
release#the#Blade#Guard#
6. Push#the#saw#smoothly#forward,#across#the#workpiece#(Fig.
VII#(c))#
7. Maintain#a#steady#movement#and#ensure#the#Base#Plate#is
kept#pressed#against#the#workpiece#
NOTE:#The#front#edge#of#the#Base#Plate#features#a#Guide#Notch#(20).#
For#normal#cutting#align#the#notch#marked#‘0˚’#with#the#intended#
cutting#line;#for#45˚#bevel#cutting#align#the#notch#marked#‘45˚’#with#
the#cutting#line#(Fig.#VIII).#
8. Allow#the#Blade#to#pass#through#the#material#and#release
the#ON/OFF#Switch#(7).#
WARNING:*If#the#cut#does#not#reach#the#edge#of#the#workpiece,#
release#the#ON/OFF#Switch#and#allow#the#Blade#to#stop#moving#before#lifting#
out#of#the#cut#
WARNING:*Remove#the#Battery#(1)#and#Blade#when#the#tool#is#to#be#
left#unattended.#
Making#a#plunge#cut#
WARNING:#Plunge#cutting#is#an#advanced#technique#with#higher#risk.#
Only#attempt#plunge#cuts#when#you#are#competent#and#experienced#with#
this#technique.#These#instructions#are#given#as#a#guide#only.#
WARNING:#ONLY#attempt#the#plunge#cutting#procedure#in#soft#
materials#such#as#wood,#plasterboard#and#similar#materials.#DO#NOT#
attempt#plunge#cuts#in#metal#or#hard#materials.#ONLY#use#blades#specifically#
designed#for#plunge#cutting.#If#in#doubt,#refer#to#the#blade#manufacturer’s#
instructions.#
WARNING:#Inspect#both#sides#of#the#surface#you#are#planning#on#
plunge#cutting#into.#Ensure#there#are#no#foreign#objects#on#the#underneath,#
or#objects#that#could#be#damaged.#Be#aware#of#hidden#pipework#and#cables#
when#plunge#cutting#into#drywalls,#ceilings#or#floorboards.#If#pipes#or#cables#
may#be#present,#switch#OFF#all#electrical#circuit#breakers#and#shut#off#water#
and#gas#supplies#at#the#relevant#mains#valves.##
WARNING:#Blindly#plunge#cutting#into#walls,#floors#and#ceilings#may#
lead#to#serious#injury#and#substantial#property#damage.#
1. Mark#out#the#cutting#line
2. Adjust#the#Base#Plate#(11)#to#the#required#depth
3. Position#the#front#of#the#Base#Plate#on#the#workpiece#so#
that#the#Blade#(14)#is#in-line#with#the#cutting#line#(Fig.#IX#(a))
4. Ensure#the#Blade#is#clear#of#the#workpiece
5. Hold#the#tool#securely,#ensuring#you#always#have#full#control
6. Switch#the#tool#ON#and#allow#the#Blade#to#reach#full#speed
7. Adjust#the#Blade#Guard#(13)#to#enable#the#Blade#to#contact
the#workpiece#(Fig.#IX#(b))#

EN#
Original#Instructions#
silverlinetools.com#
13#
8. Pivot#the#saw#on#the#tip#of#the#Base#Plate#until#the#Blade
contacts#the#workpiece#(Fig.#IX#(c))#
9. Release#the#Blade#Guard
10. Continue#to#pivot#slowly,#until#the#Blade#has#fully
penetrated#the#thickness#of#the#workpiece#
9. Once#the#face#of#the#Base#Plate#is#flat#against#the
workpiece,#continue#to#make#the#cut#
Using#the#parallel#guide#
1. To#follow#an#edge,#keep#the#vertical#foot#of#the#Parallel#
Guide,#pressed#against#the#vertical#edge#of#the#workpiece,
as#the#cut#is#made#(Fig.#X)#
2. Do#a#test#on#a#scrap#workpiece#to#check#the#distance
Accessories*
•A#full#range#of#accessories#including#circular#saw#blades,
straight#edges#and#rip-cut#guides,#is#available#from#your#
Silverline#stockist#
•Spare#parts#can#be#obtained#from#toolsparesonline.com
Maintenance*
WARNING:#Always#disconnect#the#tool#from#the#power#supply,#before#
cleaning#or#carrying#out#maintenance.#
General#inspection#
•Regularly#check#that#all#the#fixing#screws#are#tight.#They#may
vibrate#loose#over#time#
•Repairs#should#be#carried#out#by#an#authorised#Silverline
service#centre.#
Lubrication#
•Lubricate#all#moving#parts#with#a#suitable#lubricant#spray,#at
regular#intervals#
Cleaning##
WARNING:#ALWAYS#wear#protective#equipment#including#eye#protection#
and#gloves#when#cleaning#this#tool.#
•Keep#your#tool#clean#at#all#times.#Dirt#and#dust#will#cause
internal#parts#to#wear#quickly,#and#shorten#the#device’s#
service#life#
•Clean#the#body#of#your#tool#with#a#soft#brush,#or#dry#cloth
•Never#use#caustic#agents#to#clean#plastic#parts.#If#dry#
cleaning#is#not#sufficient,#a#mild#detergent#on#a#damp#cloth
is#recommended#
•Water#must#never#come#into#contact#with#the#tool
•Ensure#the#tool#is#thoroughly#dry#before#using#it
•If#available,#use#clean,#dry,#compressed#air#to#blow#through
the#ventilation#holes#(where#applicable)#
Brushes#
•Over#time#the#carbon#brushes#inside#the#motor#may
become#worn#
•Excessively#worn#brushes#may#cause#loss#of#power,
intermittent#failure,#or#visible#sparking#
•If#you#suspect#that#the#brushes#may#be#worn,#have#them
replaced#at#an#authorised#service#centre#
Contact*
For#technical#or#repair#service#advice,#please#contact#the#helpline#on#
(+44)#1935#382#222#
Web:#silverlinetools.com/en-GB/Support#
UK Address:*
Toolstream#Ltd.#Boundary#Way.#Lufton#Trading#Estate.#Yeovil,#Somerset.#
BA22#8HZ,#United#Kingdom#
EU Address:
Toolstream B.V. De Keten, 00004, 5651 GJ, Eindhoven, Netherlands
Storage*
•Store#this#tool#carefully#in#a#secure,#dry#place#out#of#the
reach#of#children#
•For#long-term#storage,#remove#batteries#and#store
separately#
Disposal*
Li-ion#batteries#should#not#be#disposed#of#with#household#waste.#If#you#do#
not#know#of#a#li-ion#battery#recycling#centre#in#your#area,#contact#your#local#
authority#or#original#dealer#for#advice#on#disposal#of#li-ion#batteries.#
Always#adhere#to#national#regulations#when#disposing#of#power#tools#that#
are#no#longer#functional#and#are#not#viable#for#repair.#
•Do#not#dispose#of#power#tools,#batteries#or#other#waste#
electrical#and#electronic#equipment#(WEEE),#with#household
waste#
•Contact#your#local#waste#disposal#authority#for#information#
on#the#correct#way#to#dispose#of#power#tools#and#batteries#

EN#
Original#Instructions#
silverlinetools.com#
14#
Faulty#tool#
Contact#authorised#
Silverline#service#
centre#for#repair#
Slow#cutting#
performance#
Saw#Blade#(14)#not#
suitable#for#the#
material#being#cut#
Fit#compatible#saw#
Blade#
Saw#Blade#blunt#Fit#new#saw#Blade#
Saw#Blade#blunts#
quickly#
Saw#Blade#not#
suitable#for#the#
material#being#cut#
Fit#compatible#saw#
Blade#
Too#much#pressure#
exerted#on#to#the#
tool#
Use#less#pressure#
whilst#moving#the#
tool#
No#cutting#
fluid/cooling#agent#
used#when#cutting#
metal#
Use#a#suitable#
cutting#fluid#when#
cutting#metal#
Troubleshooting*
Problem*Possible*cause*Solution*
No#function#when#
ON/OFF#Switch#(7)#
is#operated#
Trigger#Lock#
engaged#
Press#and#hold#the#
Switch#Lock#before#
pressing#the#
ON/OFF#Switch#
Battery#(1)#
completely#
discharged#
Recharge#Battery#or#
replace#with#a#fully#
charged#Battery#
Defective#Battery#Replace#Battery#
Defective#ON/OFF#
Switch#
Have#the#ON/OFF#
Switch#replaced#by#
an#authorised#
Silverline#service#
centre#
Carbon#brushes#
worn#
Have#the#carbon#
brushes#replaced#by#
an#authorised#
Silverline#service#
centre#

EN#
Original#Instructions#
silverlinetools.com#
15

FR#
silverlinetools.com#
16#
Introduction*
Nous#vous#remercions#d’avoir#choisi#cet#équipement#Silverline.#Ces#
instructions#contiennent#les#informations#nécessaires#au#fonctionnement#
efficace#et#sûr#de#ce#produit.#Veuillez#lire#attentivement#ce#manuel#pour#
vous#assurer#de#tirer#pleinement#avantage#des#caractéristiques#uniques#de#
votre#nouvel#équipement.#Gardez#ce#manuel#à#portée#de#main#et#assurez-
vous#que#tous#les#utilisateurs#l’aient#lu#et#bien#compris#avant#toute#
utilisation.#Veuillez#conserver#ces#instructions#et#consignes#de#sécurité#avec#
le#produit#pour#toute#référence#ultérieure.#
Description*des*symboles*
La#plaque#signalétique#figurant#sur#votre#outil#peut#présenter#des#symboles.#
Ces#symboles#constituent#des#informations#importantes#relatives#au#produit#
ou#des#instructions#concernant#son#utilisation.#
Abréviations*pour*les*termes*techniques*
V#
Volt#
~, a.c.#
Courant#alternatif!
A, mA#
Ampère,#Milliampère#
Ah#
Ampères#par#heure#(Capacité#de#la#batterie)#
n0#
Vitesse#à#vide#
Hz#
Hertz#
⎓, d.c.#
Courant#continu#
W,#kW
Watt,#Kilowatt#
min-1
Opérations#par#minute#
dB(A)#
Puissance#acoustique#en#décibel#(A#pondéré)#
m/s2#
Mètres#par#seconde#au#carré#(magnitude#des#vibrations)#
Caractéristiques*techniques*
Tension#:#
18#V⎓#
Vitesse#à#vide#:#
3#800#min-1#
Diamètre#de#la#lame#:#
150#mm#
Trait#de#scie#:#
1,6#mm
Diamètre#de#l'alésage#de#la#lame#:#
16#mm
Lame#fournie#:#
24#dents#
Réglage#du#biseau#:#
0#-#45°#
Capacité#de#coupe#à#90°#:#
48#mm#
Capacité#de#coupe#à#45°#:#
36#mm#
Adaptateur#pour#
tubulure#d'extraction#
de#la#poussière#:#
Diamètre#
interne#
31,5#mm#
Diamètre#
externe#
35,5#mm#
Classe#de#protection#:#
Indice#de#protection#:#
IPX0##
Dimensions#(L#x#l#x#H)#:#
352#x#248#x#202#mm#
Poids#:#
2,9#kg#
!"##$%&$'(#
Type#de#cellules#:#
Li-ion#
Tension#:#
18#V⎓##
Capacité#:#
4#Ah#
)*"%+$,%'(#
Puissance#d’entrée#:#
230#V -,#50#Hz,#1,2#A#
Puissance#de#sortie#:#
22#V⎓,#2,4#A#
Temps#de#charge#:#
2#heures#
Longueur#du#câble#d’alimentation#:#
1,8#m#
Classe#de#protection#:#
Indice#de#protection#:#
IPX0##
Du#fait#de#l’évolution#constante#de#notre#développement#produit,#les#
caractéristiques#des#produits#Silverline#peuvent#changer#sans#
notification#préalable.#
./01%2"#&1/3'3,%'4$'/&5$",'31/1%$'$#'5&6%"#1&%$#
Pression#acoustique#LPA#:#
85,1#dB#(A)#
Puissance#acoustique#LWA#:#
96,1#dB#(A)#
Incertitude#K#
3#dB##
Vibration#pondérée#ah#
1,97#m/s2#
Incertitude#K#
1,5#m/s2 #
L’intensité#sonore#peut#dépasser#85#dB(A)#et#il#est#nécessaire#que#
l’utilisateur#prenne#des#mesures#de#protection#sonore.#
'789:;.<<9=9>;'(#portez#toujours#des#protections#auditives#lorsque#
le#niveau#d’intensité#est#supérieur#à#85#dB(A)#et#limitez#le#temps#
d’exposition#si#nécessaire.#Si#l’intensité#sonore#devient#inconfortable,#même#
avec#les#protections,#arrêtez#immédiatement#d’utiliser#l’outil,#vérifiez#que#
les#protections#sont#bien#en#places#et#adaptés#avec#le#niveau#sonore#produit#
par#l’outil.#
'789:;.<<9=9>;'(#l’exposition#de#l’utilisateur#aux#vibrations#peut#
entraîner#une#perte#du#toucher,#des#engourdissements,#des#picotements#et#
ainsi#réduire#la#capacité#de#préhension.#De#longues#expositions#peuvent#
également#provoquer#ces#symptômes#de#façon#chronique.#Si#nécessaire,#
limitez#le#temps#d’exposition#aux#vibrations#et#portez#des#gants#anti-
vibrations.#N’utilisez#pas#cet#appareil#lorsque#la#température#de#vos#mains#
est#en#dessous#des#températures#normales,#car#l’effet#vibratoire#en#est#
accentué.#Référez-vous#aux#chiffres#indiqués#dans#les#caractéristiques#
techniques#des#caractéristiques#relatifs#aux#vibrations#pour#calculer#le#
temps#et#la#fréquence#d’utilisation#de#l’appareil.#

FR#
silverlinetools.com#
17#
Les#niveaux#sonores#et#vibratoires#indiqués#dans#la#section#
«#Caractéristiques#techniques#»#du#présent#manuel#sont#déterminés#en#
fonction#de#normes#internationales.#Ces#données#correspondent#à#un#usage#
normal#de#l’appareil,#et#ce#dans#des#conditions#de#travail#normales.#Un#
appareil#mal#entretenu,#mal#assemblé#ou#mal#utilisé#peut#augmenter#les#
niveaux#sonores#et#vibratoires.#Le#site#http:osha.europa.eu/fr#offre#de#plus#
amples#informations#sur#les#niveaux#sonores#et#vibratoires#sur#le#lieu#de#
travail,#celles-ci#pourront#être#utiles#à#tout#particulier#utilisant#des#outils#
électriques#pendant#des#périodes#prolongées.#
Consignes*générales*de*sécurité*relatives*à*
l’utilisation*d'outils*et*appareils*électriques*
8$,&44$?'4&%$'#1,#$3'4$3'@1/3&+/$3'A$'3B@,%&#B'$#'#1,#$3'4$3'&/3#%,@#&1/3'
A&3C$/3B$3'A"/3'4$'C%B3$/#'2"/,$4D!Le!fait!de!ne!pas!suivre!toutes!les!
instructions!données!ci-dessous!peut!provoquer!un!choc!électrique,!un!
incendie!et/ou!une!blessure!grave.#
8$,&44$?'@1/3$%5$%'@$3'&/3#%,@#&1/3'$#'@1/3&+/$3'A$'3B@,%&#B'C1,%'%B0B%$/@$'
,4#B%&$,%$D#
L’expression!«!appareil!électrique!»!employée!dans!les!présentes!consignes!
recouvre!aussi!bien!les!appareils!filaires!à!brancher!sur!secteur!que!les!
appareils!sans!fils!fonctionnant!avec!batterie.#
EF <B@,%&#B'3,%'4"'?1/$'A$'#%"5"&4
a) ="&/#$/&%',/$'?1/$'A$'#%"5"&4'C%1C%$'$#'6&$/'B@4"&%B$D#Des
zones!encombrées!et!mal!éclairées!sont!sources!d’accidents.
b) >$'C"3',#&4&3$%'AG"CC"%$&43'B4$@#%&H,$3'A"/3'A$3'
$/5&%1//$2$/#3'$IC413&03J'#$43'H,GK'C%1I&2&#B'A$'4&H,&A$3J
A$'+"?'1,'A$'C1,33&L%$3'&/04"22"64$3D!Les!appareils
électriques!produisent!des!étincelles!susceptibles!
d’enflammer!la!poussière!ou!les!vapeurs!présentes.#
c) M41&+/$%'4$3'$/0"/#3'$#'#1,#$'C$%31//$'3$'#%1,5"/#'K'
C%1I&2&#B'C$/A"/#'4G,#&4&3"#&1/'AG,/'"CC"%$&4'B4$@#%&H,$D
Ceux-ci!pourraient!vous!distraire!et!vous!faire!perdre!la!
maîtrise!de!l’appareil.#
NF <B@,%&#B'B4$@#%&H,$
a) O$3'C%&3$3'A$3'"CC"%$&43'B4$@#%&H,$3'A1&5$/#'@1%%$3C1/A%$
",I'C%&3$3'A,'3$@#$,%D'>$'21A&0&$?'P"2"&3'4"'C%&3$'$/'
",@,/$'0"Q1/D'>$'P"2"&3',#&4&3$%'AG"A"C#"#$,%'3,%'4"'C%&3$'
B4$@#%&H,$'AG"CC"%$&4'2&3'K'4"'#$%%$D!Des!prises!non
modifiées,!adaptées!aux!boîtiers!de!prise!de!courant,!
réduiront!les!risques!de!décharge!électrique.#
b) M5&#$%'4$'@1/#"@#'@1%C1%$4'"5$@'4$3'3,%0"@$3'2&3$3'K'4"'#$%%$
#$44$3'H,$'#,R",IJ'%"A&"#$,%3J'@,&3&/&L%$3'$#'%B0%&+B%"#$,%3D
Le!risque!de!décharge!électrique!est!plus!important!si!votre!
corps!est!mis!à!la!terre.#
c) >$'C"3'$IC13$%'51#%$'"CC"%$&4'B4$@#%&H,$'K'4"'C4,&$'1,'K'
4G*,2&A&#BD!L’infiltration!d’eau!dans!un!appareil!électrique
augmentera!le!risque!de!décharge!électrique.#
d) >$'C"3'2"4#%"&#$%'4$'@1%A1/'B4$@#%&H,$D'>G,#&4&3$?'P"2"&3'4$
@1%A1/'B4$@#%&H,$'C1,%'C1%#$%J'#&%$%'1,'AB6%"/@*$%'
4G"CC"%$&4'B4$@#%&H,$D')1/3$%5$?'4$'@1%A1/'B4$@#%&H,$'K'
4GB@"%#'A$'4"'@*"4$,%J'A$'4G$33$/@$J'A$'61%A3'#%"/@*"/#3'1,'
A$'C&L@$3'$/'21,5$2$/#D'Un!cordon!électrique
endommagé!ou!entortillé!accroît!le!risque!de!décharge!
électrique.#
e) 7,'@"3'1S'4G"CC"%$&4'B4$@#%1C1%#"#&0'3$%"&#',#&4&3B'K'
4G$I#B%&$,%J'3$%5$?T51,3'AG,/$'%"441/+$'"CC%1C%&B$'K',/$
,#&4&3"#&1/'$/'$I#B%&$,%D#Cela!réduit!le!risque!de!décharge
électrique.#
f) <&',/$',#&4&3"#&1/'A$'4G"CC"%$&4'A"/3',/'$/5&%1//$2$/#'
*,2&A$'/$'C$,#'U#%$'B5&#B$J',#&4&3$?',/$'"4&2$/#"#&1/'
C%1#B+B$'C"%',/'A&3P1/@#$,%'A&00B%$/#&$4D!L’utilisation!d’un
disjoncteur!différentiel!réduit!le!risque!de!décharge!
électrique.!
VF <B@,%&#B'A$3'C$%31//$3
a) :$3#$%'5&+&4"/#'$#'0"&%$'C%$,5$'A$'61/'3$/3'41%3'A$'4"'
2"/&C,4"#&1/'A$'4G"CC"%$&4D'>$'C"3',#&4&3$%'AG"CC"%$&4'
B4$@#%&H,$'$/'B#"#'A$'0"#&+,$'1,'31,3'4G&/04,$/@$'A$'
A%1+,$3J'AG"4@114'1,'A$'2BA&@"2$/#3D!Un!moment
d’inattention!pendant!l’utilisation!d’un!appareil!électrique
peut!se!traduire!par!des!blessures!graves.#
b) W1%#$%'A$3'BH,&C$2$/#3'A$'C%1#$@#&1/D'W1%#$%'#1,P1,%3'A$3'
4,/$##$3'A$'C%1#$@#&1/D!Le!port!d’équipements!de!protection
tels!que!des!masques!à!poussières,!des!chaussures!de!
sécurité!antidérapantes,!un!casque!de!sécurité!ou!des!
protections!antibruit,!selon!le!travail!à!effectuer,!réduira!le!
risque!de!blessures!aux!personnes.#
c) M5&#$%'#1,#'AB2"%%"+$'"@@&A$/#$4D#<G"33,%$%'H,$'
4G&/#$%%,C#$,%'2"%@*$T"%%U#'31&#'$/'C13&#&1/'AG"%%U#'XY00F
"5"/#'A$'6%"/@*$%'4G"CC"%$&4'3,%'4G"4&2$/#"#&1/'3$@#$,%D
Porter!un!appareil!électrique!tout!en!maintenant!le!doigt!
posé!sur!l’interrupteur!ou!brancher!un!appareil!électrique!
dont!l’interrupteur!est!sur!la!position!de!marche!(On)!est!
source!d’accidents.#
d) 9/4$5$%'#1,#$'@4B'1,'#1,#'&/3#%,2$/#'A$'%B+4"+$'"5"/#'A$'
2$##%$'4G"CC"%$&4'B4$@#%&H,$'$/'2"%@*$D!Une!clé!ou!un
instrument!de!réglage!resté!fixé!à!un!élément!en!rotation!de
l’appareil!électrique!peut!entraîner!des!blessures!physiques.#
e) >9'W7<'#1,@*$%'Z'<$'#$/&%'#1,P1,%3'$/'C13&#&1/'3#"64$'$#
@1/3$%5$%'4GBH,&4&6%$D#Cela!permet!de!mieux!contrôler
l’appareil!électrique!dans!des!situations!inattendues.#
f) W1%#$%'A$3'5U#$2$/#3'"CC%1C%&B3D'>$'C"3'C1%#$%'A$'
5U#$2$/#3'"2C4$3'1,'A$3'6&P1,I'C$/A"/#3D'["%A$%'4$3'
@*$5$,I'$#'5U#$2$/#3'K'4\B@"%#'A$3'C"%#&$3'216&4$3D#Les
vêtements!amples,!les!bijoux!pendants!ou!les!cheveux!longs
peuvent!être!happés!par!les!pièces!en!mouvement.#
g) <&'4G"CC"%$&4'$3#'C1,%5,'A$'A&3C13&#&03'A$3#&/B3'",'%"@@1%A'
AGBH,&C$2$/#3'AG$I#%"@#&1/'$#'A$'%B@,CB%"#&1/'A$'4"'
C1,33&L%$]3@&,%$J'3G"33,%$%'H,G&43'31&$/#'6&$/'0&IB3'$#'
,#&4&3B3'@1%%$@#$2$/#D!L’utilisation!de!ces!dispositifs!peut
réduire!les!risques!dus!à!la!poussière.#
h) >$'%$4^@*$?'C"3'51#%$'5&+&4"/@$'31,3'C%B#$I#$'H,G,/',3"+$
0%BH,$/#'51,3'A1//$'4G&2C%$33&1/'A$'51,3'3$/#&%'
3,00&3"22$/#'$/'@1/0&"/@$'$#'0"2&4&$%'"5$@'4G"CC"%$&4'$#'
31/',#&4&3"#&1/D!Une!action!inconsidérée!qui!ne!durerait!ne
serait-ce!qu’une!fraction!de!seconde!pourrait!entraîner!un!
accident!impliquant!de!graves!blessures.#
_F `#&4&3"#&1/'$#'$/#%$#&$/'AG"CC"%$&43'B4$@#%&H,$3
a) >$'C"3'3,%@*"%+$%'4G"CC"%$&4'B4$@#%&H,$D'`#&4&3$%'4G"CC"%$&4'
B4$@#%&H,$'"CC%1C%&B'",'#%"5"&4'K'$00$@#,$%D!Un!appareil
électrique!adapté!et!employé!au!rythme!pour!lequel!il!a!été
conçu!permettra!de!réaliser!un!travail!de!meilleure!qualité!
et!dans!de!meilleures!conditions!de!sécurité.#
b) >$'C"3',#&4&3$%',/'"CC"%$&4'B4$@#%&H,$'A1/#'4G&/#$%%,C#$,%'
2"%@*$T"%%U#'$3#'*1%3'3$%5&@$D!Tout!appareil!électrique!dont
la!commande!ne!s’effectue!plus!par!l’interrupteur!marche-
arrêt!est!dangereux!et!doit!être!réparé.#
c) aB6%"/@*$%'4G"CC"%$&4'B4$@#%&H,$'$#]1,'%$#&%$%'4"'6"##$%&$J'
A"/3'4"'2$3,%$'A,'C133&64$J'"5"/#'AG$00$@#,$%'#1,#'%B+4"+$J
@*"/+$2$/#'AG"@@$331&%$'1,'"5"/#'A$'4$'%"/+$%D!De!telles
mesures!préventives!réduiront!les!risques!de!démarrage!
accidentel.#
d) :"/+$%'4$3'"CC"%$&43'B4$@#%&H,$3'&/,#&4&3B3'*1%3'A$'C1%#B$'
A$3'$/0"/#3'$#'/$'C"3'C$%2$##%$'4G,#&4&3"#&1/'A$'@$3'
"CC"%$&43'",I'C$%31//$3'/15&@$3'1,'/G"R"/#'C"3'
@1//"&33"/@$'A$'@$3'&/3#%,@#&1/3D!Les!appareils!électriques
sont!dangereux!dans!les!mains!d’utilisateurs!
inexpérimentés.#
e) 8$&44$%'K'4G$/#%$#&$/'A$3'"CC"%$&43'B4$@#%&H,$3D'8B%&0&$%'H,$'
4$3'B4B2$/#3'%1#"#&03'31&$/#'6&$/'"4&+/B3'$#'/1/'+%&CCB3D'
<G"33,%$%'A$'4G"63$/@$'A$'C&L@$3'@"33B$3'1,'$/A122"+B$3'
3,3@$C#&64$3'A$'/,&%$'",'61/'01/@#&1//$2$/#'A$'4\"CC"%$&4D
<&'4G"CC"%$&4'B4$@#%&H,$'$3#'$/A122"+BJ'4$'0"&%$'%BC"%$%'

FR# # # #
#################################################################silverlinetools.com#
18#
"5"/#'#1,#$',#&4&3"#&1/D!De!nombreux!accidents!sont!causés!
par!l’utilisation!d’appareils!électriques!mal!entretenus.#
f) ["%A$%'4$3'"CC"%$&43'A$'@1,C$'"00b#B3'$#'C%1C%$3D!Des!
appareils!de!coupe!bien!entretenus,!aux!tranchants!bien!
affûtés,!sont!moins!susceptibles!de!se!gripper!et!sont!plus!
faciles!à!contrôler.#
g) `#&4&3$%'4G"CC"%$&4'B4$@#%&H,$J'4$3'"@@$331&%$3'$#'4$3'
"CC"%$&43'K'21/#$%J'$#@DJ'@1/01%2B2$/#'K'@$3'&/3#%,@#&1/3'
$#'3$41/'4G,#&4&3"#&1/'C%B5,$'C1,%'4$'#RC$'AG"CC"%$&4'A1//BJ'
$/'#$/"/#'@12C#$'A$3'@1/A&#&1/3'A$'#%"5"&4'$#'A$'4"'#^@*$'K'
%B"4&3$%D!Toute!utilisation!de!cet!outil!électrique!autre!que!
celle!pour!laquelle!il!a!été!conçu!peut!entraîner!des!
situations!à!risque!et!entraînerait!une!annulation!de!sa!
garantie.#
h) 8$&44$?'K'@$'H,$'4$3'C1&+/B$3'$#'#1,#$'3,%0"@$'A$'
C%B*$/3&1/'A$'4G"CC"%$&4'31&$/#'#1,P1,%3'C%1C%$3J'3L@*$3'$#'
$I$2C#$3'AG*,&4$'$#'A$'+%"&33$D!Une!poignée!ou!une!surface!
de!préhension!rendue!glissante!ne!consentirait!pas!à!
l’utilisateur!de!conserver!une!parfaite!maîtrise!de!son!
appareil!en!toutes!circonstances.#
cF 9/#%$#&$/'$#',#&4&3"#&1/'A$'4"'6"##$%&$'AG"CC"%$&43'B4$@#%&H,$3'3"/3'
0&4'
a) >$'%$@*"%+$?'H,GK'4G"&A$'A,'@*"%+$,%'&/A&H,B'C"%'4$'
0"6%&@"/#D!Un!chargeur!fonctionnant!avec!un!type!de!
batterie!peut!ne!pas!fonctionner!avec!un!autre!et!entraîner!
un!risque!d’incendie.#
b) >G,#&4&3$?'H,$'4$3'6"##$%&$3'3CB@&"4$2$/#'@1/Q,$3'C1,%'
51#%$'"CC"%$&4D!Utiliser!un!autre!type!de!batterie!peut!
entraîner!un!risque!de!blessure!et!d’incendie.#
c) O1%3H,$'4"'6"##$%&$'/G$3#'C"3',#&4&3B$J'@1/3$%5$?T4"'K'
A&3#"/@$'A$3'16P$#3'2B#"44&H,$3'@122$'4$3'#%1261/$3J'
C&L@$3'A$'21//"&$J'@4B3J'@41,3J'5&3'$#'#1,3'4$3'",#%$3'C$#&#3'
16P$#3'2B#"44&H,$3'H,&'C1,%%"&$/#'$/#%"d/$%',/$'@1//$I&1/'
$/#%$'4$3'C1&/#3'A$'@1/#"@#'A$'4"'6"##$%&$D!Court-circuiter!
les!terminaux!d’une!batterie!peut!causer!des!brûlures!et!un!
incendie.#
d) a"/3'A$3'@1/A&#&1/3'"6,3&5$3J'A,'4&H,&A$'C$,#'U#%$'BP$@#B'
A$3'6"##$%&$3'e'B5&#$?'4$'@1/#"@#D'9/'@"3'A$'@1/#"@#'
"@@&A$/#$4J'%&/@$?'K'4G$",D'<&'A,'4&H,&A$'%$/#%$'$/'@1/#"@#'
"5$@'4$3'R$,IJ'A$2"/A$?'@1/3$&4'K',/'2BA$@&/D!Le!liquide!
éjecté!des!batteries!peut!causer!des!irritations!et!des!
brûlures.#
e) `/$'6"##$%&$'1,',/'"CC"%$&4'"6d2BX$F'1,'H,&'",%"&#'B#B'
21A&0&B'/$'A1&#'$/'",@,/'@"3'U#%$',#&4&3BX$FD!Une!batterie!
détériorée!ou!ayant!subi!une!modification!peut!à!tout!
moment!avoir!une!réaction!inattendue!pouvant!résulter!en!
un!incendie!voire!une!explosion,!ce!qui!constitue!un!danger!
et!fait!courir!un!risque!de!blessures!à!l’utilisateur.#
f) >$'P"2"&3'$IC13$%',/$'6"##$%&$'1,',/'"CC"%$&4'B4$@#%&H,$'
",'0$,'/&'4"]4$'31,2$##%$'K'A$3'#$2CB%"#,%$3'
$I@$33&5$2$/#'B4$5B$3D!Toute!exposition!à!une!
température!supérieure!à!131°C!constitue!un!risque!
d’explosion.#
g) <,&5$?'4$3'&/3#%,@#&1/3'A&3C$/3B$3'A"/3'4$'C%B3$/#'2"/,$4'
%$4"#&5$3'",'C%1@BAB'A$'@*"%+$'A$'4"'6"##$%&$'$#'5$&44$?'K'
%$3C$@#$%'4"'C4"+$'A$'#$2CB%"#,%$'&/A&H,B$'C%B5,$'C1,%'
%B"4&3$%'@$##$'@*"%+$D!Le!non-respect!de!ces!consignes!et!de!
la!plage!de!température!spécifiquement!indiquée!pourrait!
entraîner!des!dommages!sur!la!batterie!et!augmente!le!
risque!d’incendie.#
fF 9/#%$#&$/'
a) >$'0"&%$'%BC"%$%'4G"CC"%$&4'B4$@#%&H,$'H,$'C"%',/'
%BC"%"#$,%'H,"4&0&B',#&4&3"/#',/&H,$2$/#'A$3'C&L@$3'A$'
%$@*"/+$'&A$/#&H,$3D!Cela!permettra!d’assurer!la!sécurité!
continue!de!cet!outil!électrique.#
b) `/$'6"##$%&$'C%B3$/#"/#'A$3'3&+/$3'A$'A122"+$3'/$'A1&#'
$/'",@,/'@"3'U#%$'%BC"%B$D!L’entretien!d’une!batterie!ne!
doit!être!réalisé!que!par!le!fabriquant!ou!un!centre!
d’entretien!agréé.#
#
Avertissements*de*sécurité*relatifs*aux*scies*
circulaires*
*
Opérations+de+coupe*
a) a7>[9:'('gardez#les#mains#éloignées#de#la#zone#de#
coupe#et#de#la#lame.#Gardez#votre#seconde#main#sur#la#
poignée#auxiliaire,#ou#sur#le#boîtier#du#moteur.#Si!les!deux!
mains!tiennent!la#scie,!elles!ne!peuvent!pas!être!coupées!par!
la!lame.#
b) Ne#pas#toucher#le#dessous#de#la#pièce#de#travail.#La!garde!de!
protection!ne!peut!pas!protéger!l’utilisateur!en-dessous!de!
la!pièce!de!travail.!
c) Réglez#la#profondeur#de#coupe#selon#l’épaisseur#de#la#pièce#
à#couper.!La!lame!ne!doit!ressortir!sous!la!pièce!à!couper!
que!sur!une!longueur!inférieure!à!la!taille!d’une!dent.!
d) Ne#jamais#tenir#une#pièce#de#travail#dans#les#mains#ou#sur#
vos#jambes#lors#de#la#coupe.#Il#est#impératif#de#verrouiller#la#
pièce#sur#une#plateforme#stable.#Il!est!important!de!bien!
supporter!la!pièce!de!travail!proprement!afin#de#minimiser!
les!risques!de!perte!de!contrôle,!l’arrêt!de!la!lame!et!les!
accidents.#
e) Si#le#produit#est#susceptible#de#rentrer#en#contact#avec#des#
fils#électriques#on#le#câble#d’alimentation,#Tenez#l’outil#
électroportatif#uniquement#par#des#parties#isolées.#Le!
contact!entre!l’outil!et!le!fil!électrique!causera!aux!parties!
en!métal!du!produit!de!devenir!également!électriques#et!
ainsi!causer!un!risque!d’électrocution.#
f) Pour#des#refentes,#utilisez#toujours#un#guide#à#refendre#ou#
le#bord#d’un#guide#droit.#Ceci!améliore!la!précision!de!coupe!
et!réduit!les!risques!de!contact!avec!la!lame.!
g) Utilisez#toujours#les#lames#de#la#taille#recommandée#et#dont#
l’alésage#présente#la#forme#recommandée#(losange#ou#
rond).#Des!lames!non!adaptées!aux!éléments!de!montage!
prévus!sur!la!scie!présenteront!des!défauts!de!concentricité!
et!conduiront#à#une!mauvaise!maîtrise!de!la!machine.#
h) N’utilisez#jamais#de#rondelles#et#boulons#de#lame#inadaptés#
ou#endommagés.#Les!rondelles!et!les!boulons!ont!été!
spécifiquement!conçus!pour!votre!scie,!pour!une!
performance!et!une!sécurité!optimale!en!fonctionnement.!
i) Même!lorsque!l’outil!est!utilisé!comme!indiqué,!il!est!
impossible!d’éliminer!tous!les!facteurs!de!risque!résiduels.!Si!
vous!avez!des!doutes!quant!à!la!manière!sûre!et!correcte!
d'utiliser!cet!outil,!ne!l'utilisez!pas.!
!
Consignes*de*sécurité*supplémentaires*
relatives*aux*scies*
Prévention+et+consignes+de+sécurité+relatives+à+l’effet+rebond++
Le#rebond#est#une#réaction#soudaine#de#l’appareil#survenant#lorsque#la#lame#
vient#se#coincer#ou#se#gripper#dans#la#pièce#à#couper#ou#lorsqu’elle#est#mal#
centrée,#ce#qui#amène#la#scie#à#se#soulever#et#à#être#projetée#vers#
l’utilisateur.#
Lorsque#la#lame#est#pincée#ou#bloquée#par#un#trait#de#scie#qui#se#referme#
sur#elle,#elle#cale#et#la#réaction#du#moteur#entraîne#une#projection#rapide#de#
l’appareil#vers#l’utilisateur.#
Si#la#lame#se#tord#ou#se#décentre#dans#la#coupe,#les#dents#de#la#lame#
peuvent#mordre#dans#la#surface#du#bois#et#faire#sortir#la#lame#du#trait#de#
scie,#avec#projection#de#l’appareil#vers#l’utilisateur.#
O$'%$61/A'C%15&$/#'AG,/$'2",5"&3$',#&4&3"#&1/'$#]1,'A$'C%1@BA,%$3'1,'A$'
@1/A&#&1/3'&/"A"C#B$3'A$'2"/&C,4"#&1/'A$'4G"CC"%$&4J'H,&'C$,5$/#'U#%$'
B5&#B$3'$/'#$/"/#'@12C#$'A$3'C%B@",#&1/3'3,&5"/#$3'('

FR# # # #
#################################################################silverlinetools.com#
19#
a) 9I$%@$?',/$'C%&3$'$/'2"&/'3b%$'$#'0$%2$'A$'4"'3@&$J'$/'
#$/"/#'4$3'6%"3'A$'2"/&L%$'K'%B3&3#$%'",I'01%@$3'A$'%$61/AD'
W4"@$?T51,3'AG,/'@g#B'1,'A$'4G",#%$'A$'4"'4"2$J'2"&3'P"2"&3'
A"/3'31/'C%141/+$2$/#D#Le!rebond!peut!entraîner!un!
sursaut!de!la!machine!vers!l’arrière,!mais!la!mise!en!œuvre!
de!précautions!adéquates!permettra!à!l’utilisateur!de!
maîtriser!les!forces!de!rebond.#
b) O1%3H,$'4"'4"2$'3$'+%&CC$J'1,'41%3'A$'4G&/#$%%,C#&1/'AG,/$'
@1,C$'C1,%',/$'%"&31/'H,$4@1/H,$J'%$4^@*$?'4"'+^@*$##$'$#'
2"&/#$/$?'4"'3@&$'3,%'4"'C&L@$'K'@1,C$%J'3"/3'4"'ABC4"@$%J'
P,3H,GK'"%%U#'@12C4$#'A$'4"'4"2$D'>$'%$#&%$?'P"2"&3'4"'3@&$'
A$'4"'C&L@$'$/'4"'31,4$5"/#'1,'$/'4"'0"&3"/#'%$@,4$%'A"/3'4$'
#%"&#'A$'@1,C$'#"/#'H,$'4"'4"2$'#1,%/$D#Recherchez!la!cause!
du!problème!et!prenez!toutes!les!mesures!permettant!d’y!
remédier.!
c) O1%3'A,'%$AB2"%%"+$'A$'4G"CC"%$&4'A"/3'4"'C&L@$'K'@1,C$%J'
@$/#%$?'4"'4"2$'A$'4"'3@&$'A"/3'4$'#%"&#'A$'@1,C$'$#'5B%&0&$?'
H,$'4$3'A$/#3'A$'4"'3@&$'/$'21%A$/#'C"3'A"/3'4$'2"#B%&",D#
Dans!le!cas!contraire,!la!lame!pourrait!être!projetée!vers!le!
haut!ou!rebondir!au!moment!du!redémarrage!de!la!scie.!
d) 8$&44$?'K'01,%/&%',/'3,CC1%#'"CC%1C%&B'",I'C&L@$3'A$'
+%"/A$'#"&44$'"0&/'A$'2&/&2&3$%'4$'%&3H,$'A$'+%&CC"+$'$#'A$'
%$61/A'A$'4"'4"2$D'Les!pièces!de!grande!taille!ont!tendance!
à!plier!sous!leur!propre!poids.!Les!supports!doivent!être!
placés!de!chaque!côté!de!la!ligne!de!coupe,!à!proximité!de!la!
ligne!de!coupe!et!à!proximité!des!bords!du!panneau.#
e) >G,#&4&3$?'C"3'A$'4"2$3'B21,33B$3'1,'$/A122"+B$3D#Les!
lames!non!affûtées!ou!mal!montées!produisent!des!traits!de!
coupe!plus!étroits,!entraînant!un!excès!de!frottement,!un!
grippage!de!la!lame!et!un!risque!de!rebond.!
f) O$3'4$5&$%3'A$'641@"+$'A$'%B+4"+$'A$'C%101/A$,%'A$'4"2$'$#'
A$'%B+4"+$'A,'6&3$",'A1&5$/#'U#%$'6&$/'3$%%B3'"5"/#'A$'
C%1@BA$%'K'4"'@1,C$D#Tout!dérèglement!de!la!lame!au!cours!
de!la!coupe!peut!être!cause!de!grippage!et!de!rebond.!
g) W%1@BA$%'"5$@',/$'C%,A$/@$'C"%#&@,4&L%$'41%3'A$'4"'@1,C$'
A"/3'A$3'C"%1&3'1,'",#%$3'?1/$3'/1/'5&3&64$3D#La!lame!est!
susceptible!de!venir!couper!des!objets!pouvant!occasionner!
un!rebond.!
!
Fonction+du+carter+inférieur+
a) Vérifiez#le#couvre-lame#inférieur#avant#chaque#utilisation#et#
ne#commencez#pas#l’opération#tant#que#celui-ci#ne#se#
bloque#bien#en#place#sans#aucune#difficulté.#Assurez-vous#
que#la#lame#ne#touche#aucune#partie#du#couvre-lame#ou#de#
l’outil,#peu#importe#l'angle#ou#la#profondeur#de#coupe.#
N'utilisez#jamais#une#pince#de#serrage#ou#autre#système#
d'attache#pour#maintenir#le#couvre-lame#inférieur#sur#
position#ouverte.#
b) Vérifiez#le#bon#fonctionnement#du#ressort#du#couvre-lame#
inférieur.#Si#le#carter#et#le#ressort#ne#fonctionnent#pas#
correctement,#ceux-ci#doivent#être#révisés#avant#toute#
utilisation.#Le#carter#inférieur#peut#fonctionner#lentement#
en#raison#d'éléments#endommagés,#de#dépôts#gommeux#ou#
de#l'accumulation#de#débris.#
c) Le#carter#inférieur#peut#être#rétracté#manuellement#mais#
uniquement#pour#des#coupes#spéciales#telles#que#
"plongeantes"#ou#"composées".#Relevez#le#carter#inférieur#
en#rétractant#la#poignée#et#dès#que#la#lame#pénètre#dans#le#
matériau,#relâchez#le#carter#inférieur.#Pour#toutes#autres#
opérations#de#coupe,#le#carter#inférieur#devrait#fonctionner#
automatiquement.#
d) Assurez-vous#que#le#carter#inférieur#recouvre#bien#la#lame#
avant#de#poser#votre#scie#au#sol#ou#sur#un#établi.#Une#lame#
en#mouvement#qui#n’est#pas#protégée#par#le#carter#de#
protection#projettera#la#scie#vers#l’arrière,#coupant#tout#ce#
qui#se#trouve#sur#son#passage.#Gardez#à#l’esprit#que#la#lame#
de#la#scie#reste#en#mouvement#pendant#un#certain#temps#
après#que#la#gâchette#marche-arrêt#ait#été#relâchée.#
N’utilisez#pas#de#disque#abrasif,#cela#annulera#la#garantie#du#
produit.#
Fonction+du+carter+
a) Vérifier#le#bon#fonctionnement#du#carter#avant#chaque#
usage.#Ne#pas#utiliser#la#scie#si#le#carter#ne#peut#se#déplacer#
librement#et#être#fermé#instantanément.#N'utilisez#jamais#
une#pince#de#serrage#ou#autre#système#d'attache#pour#
maintenir#le#carter#sur#position#ouverte,#exposant#la#lame.#
Si!la!scie!tombe!par!accident,!le!carter!peut!être#
endommagé,!plié!ou!déformé.!Assurez-vous!que!le!carter!
puisse!se!déplacer!librement!et!qu'il!ne!puisse!entrer!en!
contact!avec!la!lame!ou!tout!autre!élément,!peu!importe!
l'angle!ou!la!profondeur!de!coupe.#
b) Vérifiez#le#bon#fonctionnement#et#le#bon#état#du#ressort#du#
carter.#Si#le#carter#et#le#ressort#ne#fonctionnent#pas#
correctement,#ceux-ci#doivent#être#révisés#avant#toute#
utilisation.#Le!carter#peut!fonctionner!lentement!en!raison!
d'éléments!endommagés,!de!dépôts!gommeux!ou!de!
l'accumulation!de#débris.#
c) Veillez#à#ce#que#le#socle#de#la#scie#ne#puisse#se#déplacer#lors#
d'une#coupe#plongeante,#lorsque#l'angle#de#la#lame#n'est#
pas#réglé#sur#90°.#Le!déplacement!latéral!de!la!lame!
entraînera!le#grippage!de!celle-ci,!et!ainsi!le!rebond.#
d) Assurez-vous#que#le#carter#recouvre#bien#la#lame#avant#de#
poser#votre#scie#au#sol#ou#sur#un#établi.#Une!lame!en!
mouvement!qui!n’est!pas!protégée!par!le!carter!de!
protection!projettera!la!scie!vers#l’arrière,!coupant!tout!ce!
qui!se!trouve!sur!son!passage.!Gardez!à!l’esprit!que!la!lame!
de!la!scie!reste!en!mouvement!pendant!un!certain!temps!
après!que!la!gâchette!marche-arrêt!ait!été!relâchée.#
#
Consignes*de*sécurité*supplémentaires*
relatives*aux*scies*circulaires*
• Il#est#interdit#à#toute#personne#de#moins#de#18#ans#d’utiliser#
cette#scie.#
• L’utilisation#d’une#scie#circulaire#demande#le#port#
d’équipements#de#protection#individuelle#tels#que#des#
lunettes#ou#visière#de#sécurité,#des#protections#auditives,#
des#protections#respiratoires,#et#des#vêtements#de#
protection#tels#que#des#gants#de#sécurité.#
• Les#appareils#électroportatifs#produisent#des#vibrations.#Les#
vibrations#peuvent#provoquer#des#maladies.#En#conservant#
la#chaleur,#des#gants#portés#par#l’utilisateur#peuvent#lui#
permettre#de#maintenir#une#bonne#circulation#sanguine#
dans#les#doigts.#Les#appareils#portatifs#ne#doivent#pas#être#
utilisés#pendant#de longues#périodes#ininterrompues.#
• Dans#la#mesure#du#possible,#utilisez#un#système#d’extraction#
des#poussières#pour#contrôler#la#poussière#et#les#déchets#
produits.#
• Ne#tentez#pas#de#couper#des#matériaux#plus#épais#que#ceux#
recommandés#dans#la#section#"Caractéristiques#techniques"#
de#ce#manuel.#
• Adaptez#la#profondeur#de#coupe#en#fonction#de#l’épaisseur#
de#la#pièce#à#couper,#c’est-à-dire#que#la#lame#ne#doit#
ressortir#sous#la#pièce#à#couper#que#par#moins#d'une#dent.#
• Assurez-vous#que#la#pièce#à#couper#se#trouve#sur#des#
supports#adéquats.#Les#grandes#pièces#peuvent#ployer#sous#
leur#propre#poids#et#ainsi#coincer#la#lame.#Les#panneaux#et#
pièces#de#grande#taille#doivent#être#soutenus#de#manière#
adéquate#de#chaque#côté#de#la#ligne#de#coupe,#bien#à#
proximité#de#celle-ci,#ainsi#que#sur#les#bords.#
• Assurez-vous#que#tous#les#supports#et#les#câbles#électriques#
se#trouvent#à#l'écart#de#la#trajectoire#de#coupe.#
• Immobilisez#toujours#la#pièce#à#couper#sur#une#surface#
stable#à#l’aide#d’instruments#vous#laissant#libre#de#vos#
mouvements,#en#les#plaçant#de#manière#qu’ils#n’entraînent#

FR# # # #
#################################################################silverlinetools.com#
20#
pas#le#grippage#de#la#lame#ou#la#perte#du#contrôle#de#la#
machine.#
• Ne#vous#placez#jamais#dans#l’axe#de#la#lame#lors#du#
maniement#de#la#scie.##
• Tenez#compte#du#fait#que#la#lame#ressortira#sous#la#pièce#à#
couper.#
• Ne#placez#pas#vos#doigts#sous#la#pièce#de#travail#car#le#carter#
de#protection#de#la#lame#ne#permettrait#plus#de#vous#en#
protéger.#
• Tenez#compte#du#sens#de#rotation#du#moteur#et#de#la#lame.#
• Examinez#préalablement#la#pièce#de#travail#et#retirez#les#
clous#et#autres#objets#étrangers#avant#de#commencer#à#
travailler.#
• Ne#coupez#aucun#matériau#comportant#des#corps#étrangers#
à#moins#d’être#certain#que#l’accessoire#installé#sur#votre#
appareil#convient#à#ce#travail.#
• N’appliquez#jamais#de#force#latérale#ou#de#torsion#sur#la#
lame#lors#de#la#coupe.#
• Si#la#coupe#entreprise#ne#doit#pas#parvenir#jusqu’au#bord#de#
la#pièce#à#couper,#ou#si#la#lame#se#grippe#en#cours#de#coupe,#
laissez#la#lame#s’arrêter#complètement#avant#de#lever#la#scie#
hors#de#la#pièce.#
• Ne#commencez#jamais#à#dégager#une#lame#coincée#avant#
d’avoir#débranché#l'outil.#
• Ne#faites#jamais#reculer#la#scie#pendant#une#coupe.#
• Attention#aux#projections#de#débris.#Dans#certaines#
circonstances,#des#éclats#de#matériau#peuvent#être#projetés#
à#grande#vitesse.#Il#appartient#à#l’utilisateur#de#s’assurer#que#
toute#personne#également#présente#dans#la#zone#de#travail#
soit#protégée#contre#ces#projections.#
• Si#l’on#vous#interrompt#lors#de#la#coupe.#Terminez#la#tâche#
et#débranchez#l’appareil#avant#de#vous#concentrer#sur#
l’événement.#
• Vérifiez#régulièrement#que#toutes#les#fixations#par#écrous,#
boulons#et#autres#soient#bien#serrées.#
Prévenir+la+surchauffe+de+la+lame++
• Avant#toute#opération#de#coupe,#vérifiez#l’état#de#la#lame.#
Vérifiez#que#la#lame#est#bien#affûtée,#et#compatible#avec#le#
matériau#ainsi#que#la#tâche#à#accomplir.#Si#la#lame#est#
émoussée,#remplacez-là#ou#faites-là#affûter#par#un#
professionnel.#
• Lors#des#opérations#de#coupe,#Faites#tourner#la#lame#à#vide#
à#15-20#secondes#d’intervalles#afin#de#vérifier#que#la#lame#
refroidie#normalement.#
• Prenez#davantage#de#précautions#lorsque#vous#couper#du#
bois#dur.#Les#matériaux#plus#durs#génèrent#plus#de#
résistance#et#plus#de#chaleur#sur#la#lame#et#le#moteur#;#
veillez#donc#à#effectuer#des#intervalles#de#refroidissement#
plus#fréquentes.#
Installation+d’accessoires+de+coupe+
• Assurez-vous#que#les#accessoires#de#coupe#soient#
correctement#et#solidement#installés#avant#utilisation#et#
que#toute#clé#ou#tout#outil#de#réglage#ait#été#retiré.#
• Utilisez#uniquement#des#accessoires#de#coupe#
recommandés#pour#votre#appareil.#
• N’effectuez#aucune#modification#sur#l’accessoire.#
• Assurez-vous#que#les#lames#soient#affûtées,#en#bon#état#et#
montée#proprement.#
• Ne#jamais#essayer#d’affûter#les#lames#qui#ne#sont#pas#
prévues#à#cet#effet.#Ceci#peut#comprendre#les#lames#
renforcées#et#les#lames#en#alliage#d’acier#ou#au#tungstène.#
• Les#lames#pouvant#être#affûtées#doivent#être#affûtées#selon#
les#instructions#du#fabricant.#Cela#peut#inclure#un#nombre#
limité#de#sessions#d’affûtage#de#la#lame.#
• Les#lames#affûtées#doivent#être#inspectées#plus#
régulièrement#et#en#profondeur#avant#usage#et#remplacées#
immédiatement#s’il#y#un#quelconque#doute#concernant#
l’état#de#celles-ci.#
• Dans#le#cas#où#les#lames#rencontrent#un#objet#pour#lequel#
celles-ci#ne#sont#pas#spécialisé,#les#lames#doivent#être#
changée#immédiatement.##
• Sachez#que#les#outils#de#coupe#ainsi#que#les#pièces#de#travail#
peuvent#chauffer#pendant#l’utilisation#de#l’appareil.#Ne#
tentez#pas#de#changer#d’accessoire#tant#que#l’appareil#n’a#
pas#complètement#refroidi.#
Contrôle+de+la+poussière+et+de+la+sciure+
• Ne#laissez#pas#la#poussière#ou#des#copeaux#de#métal#
s’accumuler.#La#sciure#constitue#un#risque#
d’incendie#et#certains#copeaux#métalliques#sont#
explosifs.#
• Faites#particulièrement#attention#lors#de#la#coupe#
du#bois#ou#du#métal#à#l’aide#de#machines#
électriques.#Les#étincelles#causées#par#la#coupe#de#
métal#sont#une#cause#courante#d’incendies#de#
poussière#de#bois.#
• Dans#la#mesure#du#possible,#utilisez#un#système#
d’extraction#de#la#poussière#pour#assurer#un#
environnement#de#travail#plus#sûr.#
789:;.<<9=9>;'(#la#poussière#produite#par#le#travail#sur#certains#
matériaux#peut#être#toxique.#Le#hêtre,#le#chêne,#l’acajou,#le#tek#et#les#bois#
naturels,#les#bois#composites#et#certain#traitement#de#surfaces#tels#que#la#
peinture#au#plomb#sont#toxiques.#Les#peintures#au#plomb#sont#relativement#
présentes#dans#les#bâtiments#construits#dans#les#années#1960.#Portez#
toujours#des#protections#respiratoires#adéquates,#comme#par#exemple#un#
masque#respiratoire#facial.#Servez-vous#également#d’un#système#
d’extraction#des#poussières#ou#bien#aspirez#régulièrement#la#zone#de#travail#
pour#éviter#l’accumulation#de#poussière.#Passez#l’aspirateur#une#fois#que#
vous#avez#terminé#le#travail.#La#plupart#des#poussières#représentent#un#
risque#d’incendie.#Les#risques#de#sécurité#liés#aux#poussières#sont#plus#
importants#quand#les#surfaces#de#travail#sont#situées#au-dessus#de#la#tête#de#
l’utilisateur.#
Consignes*de*sécurité*relatives*aux*lasers**
Le#laser#utilisé#avec#cet#outil#est#un#laser#de#classe#2#avec#une#puissance#
maximale#de#≤#1#mW#et#une#longueur#d'onde#de#650#Nm.##
Ces#lasers#ne#présentent#généralement#pas#de#risques#oculaires,#cependant,#
regarder#directement#les#faisceaux#laser#peut#entraîner#l'aveuglement#
temporaire.##
789:;.<<9=9>;#:#évitez#tout#contact#direct#avec#les#faisceaux#laser.##
Un#danger#peut#survenir#si#vous#regardez#délibérément#dans#le#faisceau.#
Veuillez#suivre#les#consignes#de#sécurité#suivantes#:#
• Le#laser#doit#être#utilisé#et#entretenu#conformément#aux#
instructions#du#fabricant.#
• Ne#pas#mettre#le#laser#en#marche#avant#que#l'outil#ne#soit#prêt#à#
couper.#
• Ne#jamais#diriger#le#faisceau#laser#vers#une#personne,#en#particulier#
vers#les#yeux#de#celle-ci,#d'un#animal#ou#de#tout#autre#objet#autre#
que#la#pièce#de#travail.#
• Veillez#toujours#à#ce#que#le#faisceau#laser#soit#orienté#vers#une#pièce#
de#travail#exempte#de#toute#surface#réfléchissante#(ex.#:#le#bois#et#
autres#matériaux#à#surface#grossière#sont#acceptables).#Les#feuilles#
de#métal#ou#autres#matériaux#similaires#ne#sont#pas#compatibles#
avec#l'utilisation#du#laser#puisque#la#surface#réfléchissante#pourrait#
réfléchir#le#faisceau#laser#et#ainsi#le#diriger#vers#l'opérateur.#
• Ne#pas#remplacer#ou#modifier#le#laser.#Les#réparations#ne#doivent#
être#réalisées#que#par#le#fabricant#du#laser#ou#qu’auprès#d’un#centre#
de#réparation#agréé.#>9'W7<'%$2C4"@$%'4$'4"3$%'"5$@',/'#RC$'A$'
4"3$%'A&00B%$/#D#
#
#
