CONTROLLER GROUNDING REQUIREMENTS
NOTE – For the controller to function properly it is very important to
provide proper building ground connections to the controller.
Examples of a proper building-to-controller ground connection is to attach the
ground cable to:
•The street side of the incoming water main.
•To a grounding rod that has been driven into the pit flooring.
The controller has a common ground bus terminal connection.
All grounds need to land at this common point including building, motor,
transformer, and filter grounds. This prevents ground loops, and will limit the
impedance between the grounds and noise will be channeled back to building
ground.
Providing a proper ground is mandatory and will improve the performance
of the controller.

3
TABLE OF CONTENTS
CONTROLLER GROUNDING REQUIREMENTS...................................................2
TABLE OF CONTENTS...................................................................................................3
KEB INTRODUCTION......................................................................................................4
WIRING .................................................................................................................................................................5
CONSTRUCTION ...............................................................................................................................................6
CONSTRUCTION CONNECTIONS............................................................................................................... 7
POWERING UP ..................................................................................................................................................8
KEB ENCODER INSTALLATION................................................................................9
KEB MOTOR LEARN ..................................................................................................... 10
KEB ENCODER LEARN..................................................................................................11
OPERATION.......................................................................................................................................................12
TROUBLESHOOTING......................................................................................................................................13
APPENDIX ..........................................................................................................................14
APPENDIX ......................................................................................................................... 15
ADVANCED TROUBLESHOOTING......................................................................... 17

4
KEB INTRODUCTION
EQUIPMENT/SETTINGS VERIFICATION

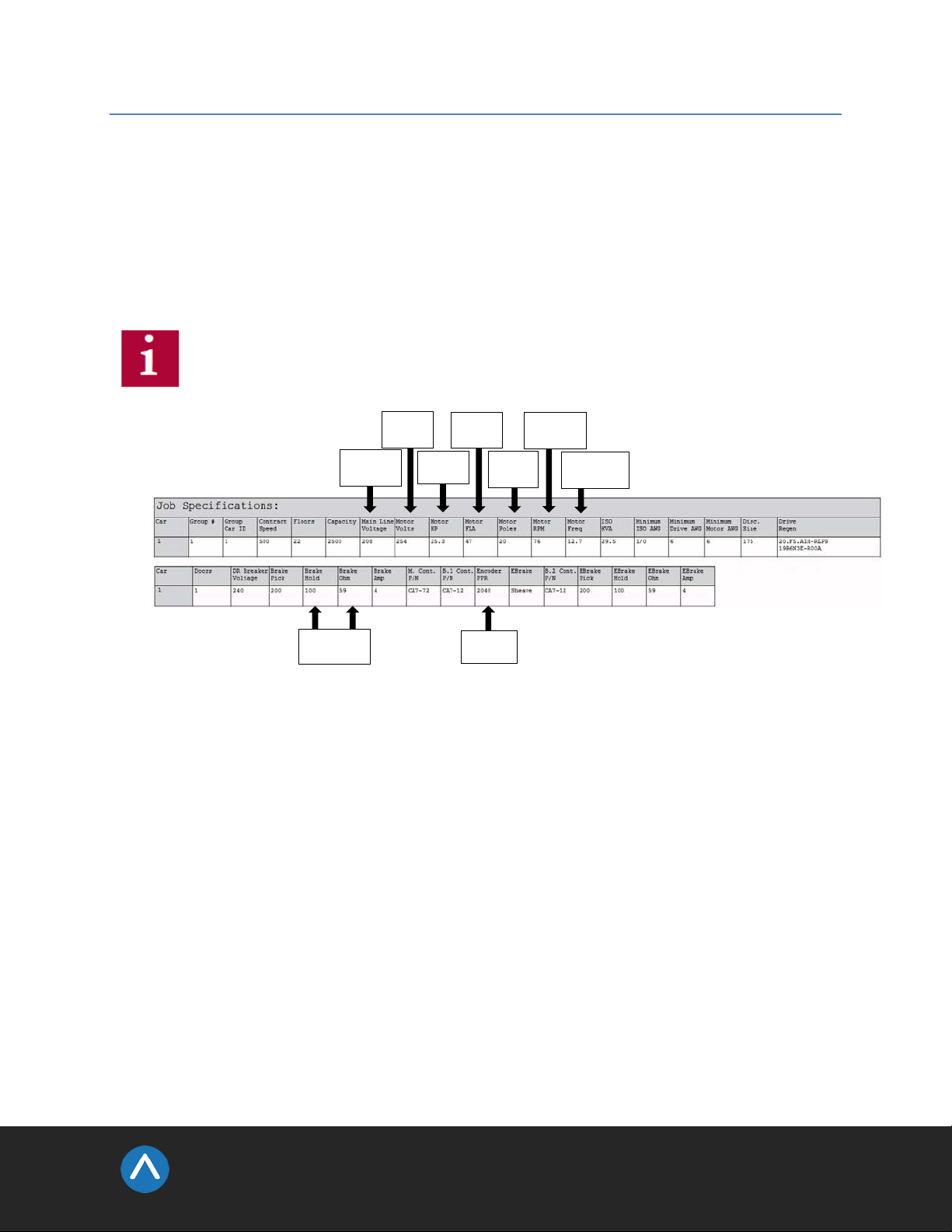

Verify that the Job Specification parameter table on the drawings “Sheet 1:
