Smithco SN FWR-001 Quick start guide

Fairway Ultra 10
Remote Hydraulics Model 12-501-A
Self-Contained Hydraulics
Model 12-500-A
SN FWR-001
March 2015
updated May 2015
Operators
Product Support: Hwy SS & Poplar Ave; Cameron WI 54822
1-800-891-9435 [e-mail]
Parts & Service

Introduction Service Diagrams Parts Accessories Reference
CONTENTS
Introduction ...................................................................................1-5
Introduction.................................................................................. 1
Safe Practices ............................................................................. 2
Specications .............................................................................. 3
Setup ........................................................................................4-5
Service ...........................................................................................5-7
Maintenance .............................................................................6-7
Storage ........................................................................................ 8
Diagrams......................................................................................9-13

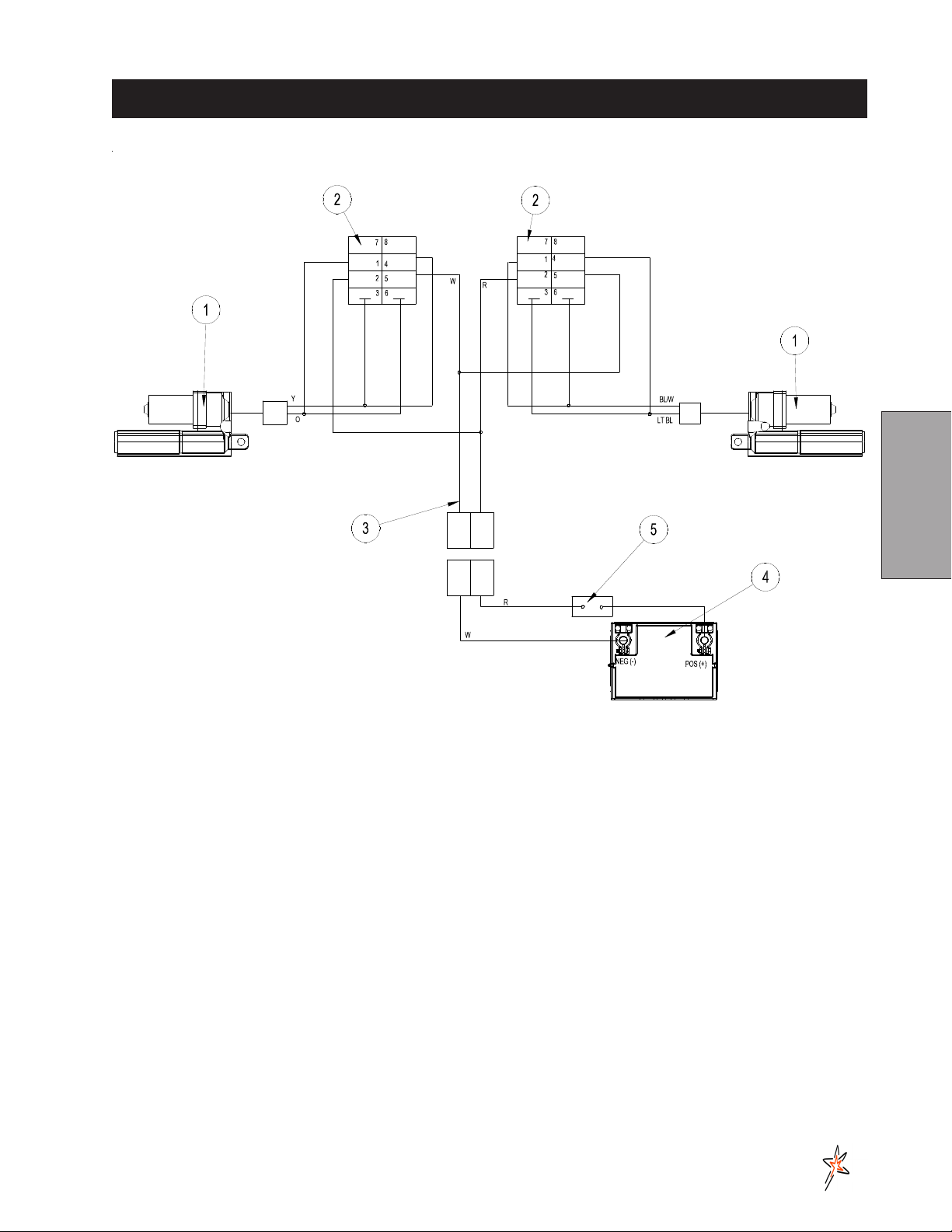

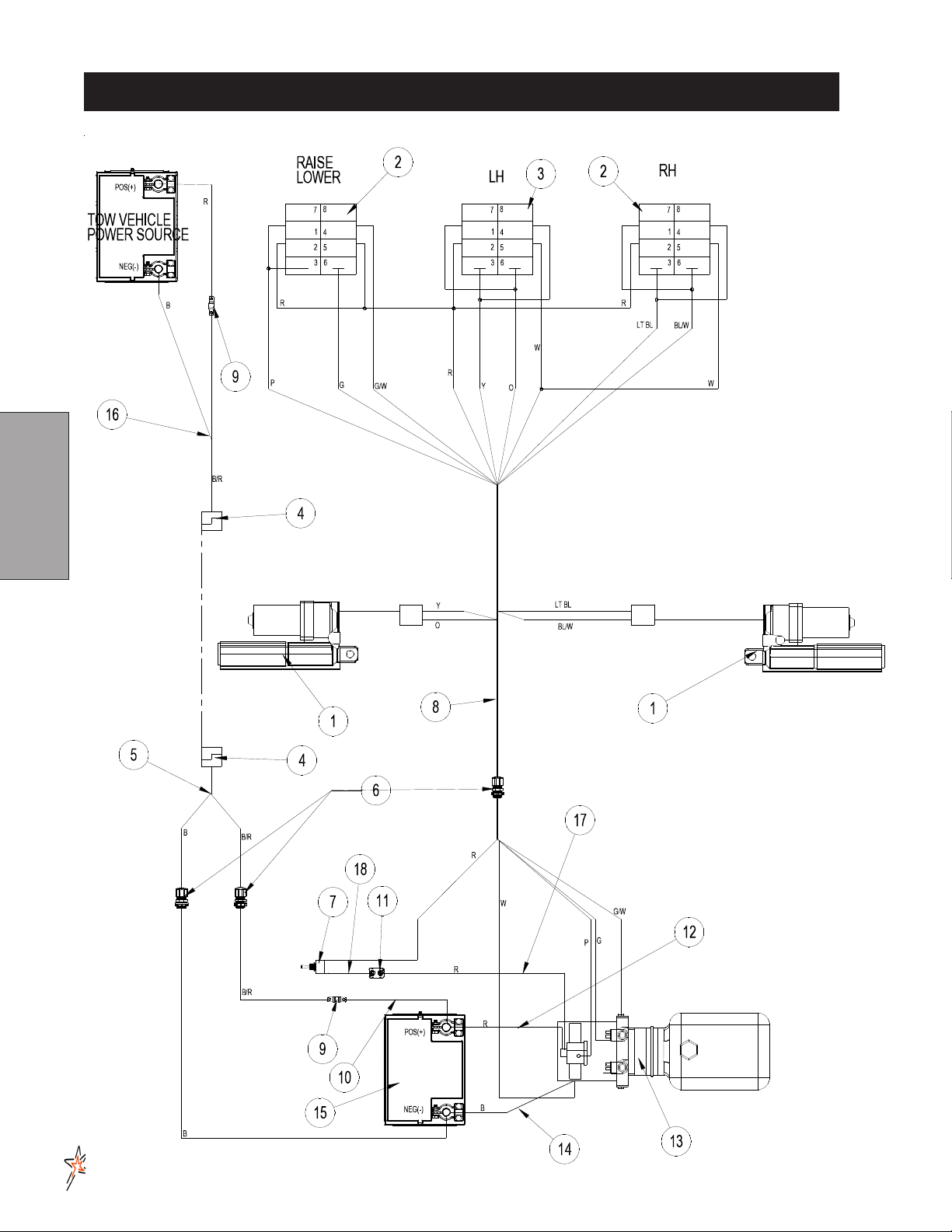

12-501 Wiring .............................................................................. 9
12-500 Wiring ....................................................................... 10-11

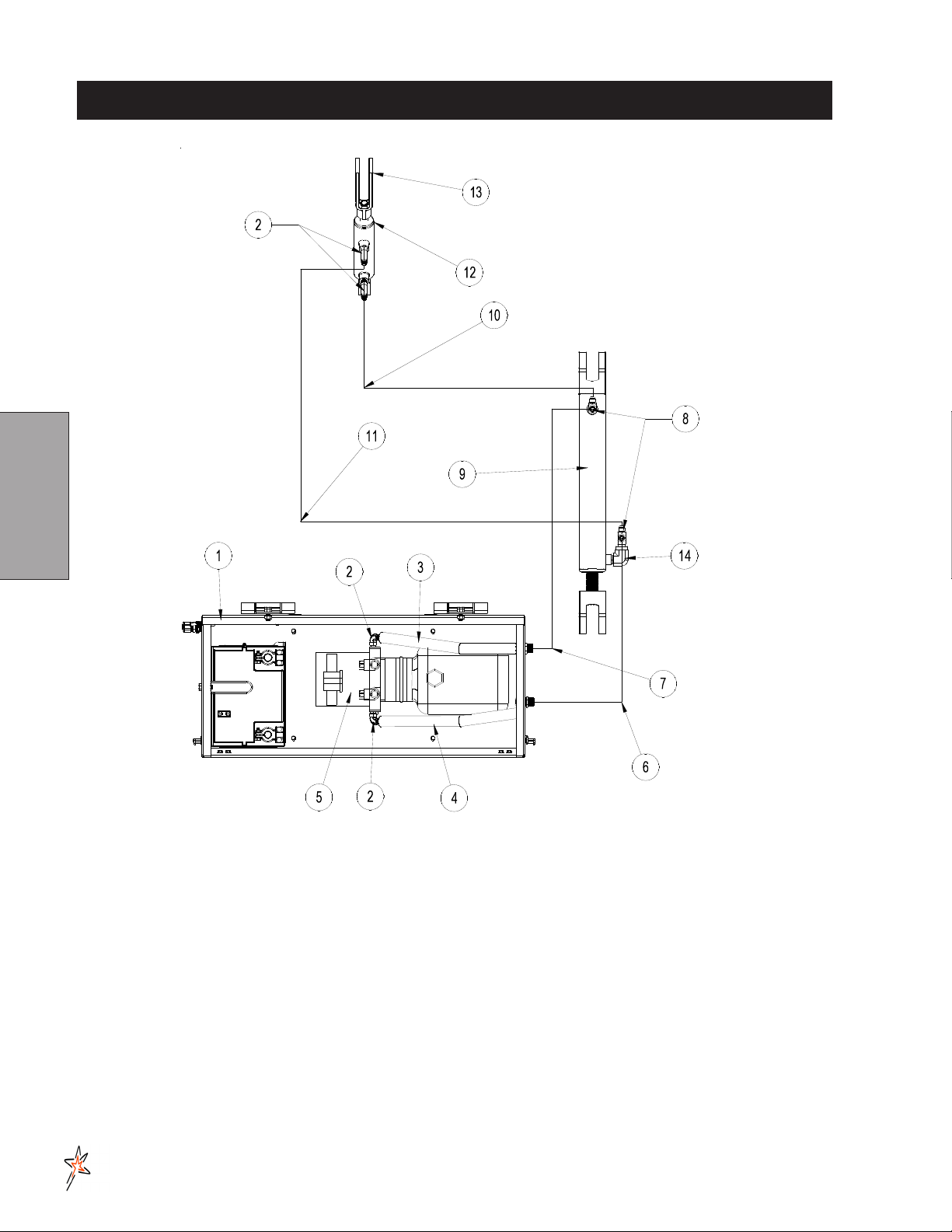

12-500 Hydraulics...................................................................... 12
12-501 Hydraulics...................................................................... 13
Parts ...........................................................................................14-27

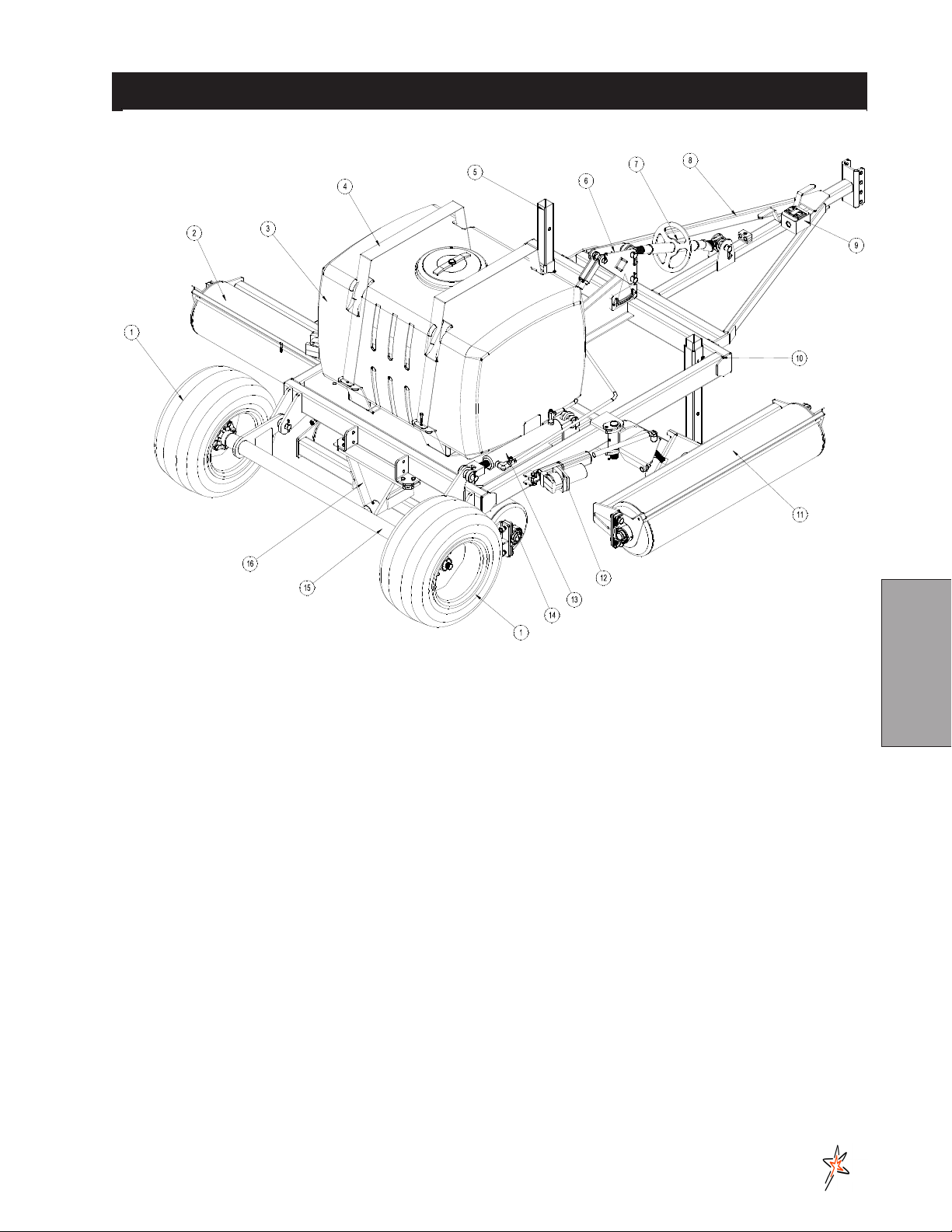

12-500 Main Drawing ................................................................ 14
12-501 Main Drawing ................................................................ 15

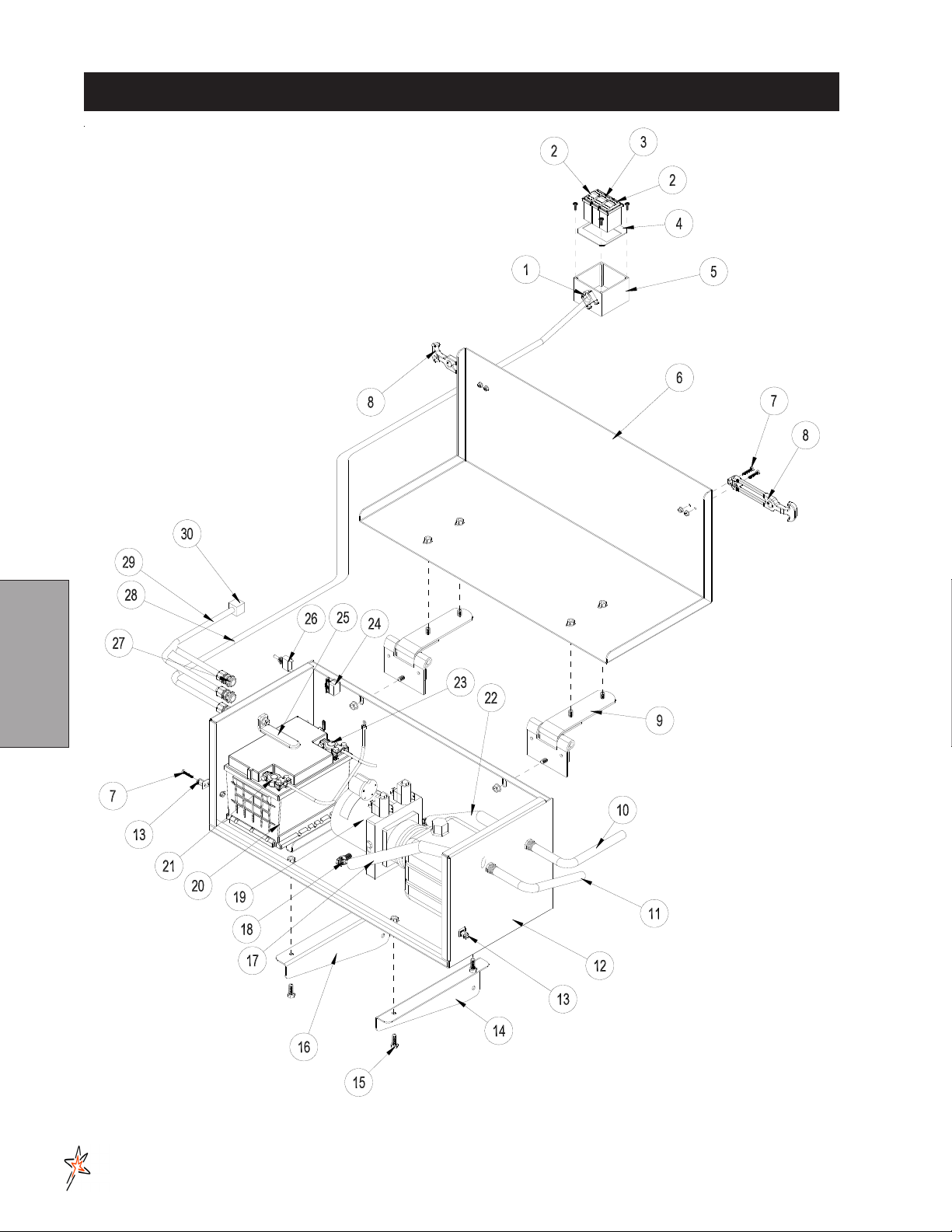

12-500 Power Box ................................................................16-17
Drawbar ................................................................................18-19
Left Roller .............................................................................20-21
Right Roller...........................................................................22-23
Rear Roller / Rear Axle.........................................................24-25
Tank Drawing............................................................................. 26
Hitch Options ............................................................................ 27
Reference...................................................................................28-30
Decal List................................................................................... 28
Quick Reference Replacement Parts ........................................ 30

1
Introduction
INTRODUCTION
Thank you for purchasing a Smithco product.
Read this manual and all other manuals pertaining to the Fairway Ultra 10, FairWay Roller (FWR) carefully as
they contain safety, operating, assembly and maintenance instructions. Failure to do so could result in per-
sonal injury or equipment damage.
Keep manuals in a safe place after operator and maintenance personnel have read them. Right and left sides
are from the operator’s seat, facing forward.
All Smithco machines have a Serial Number and Model Number. Both numbers are needed when ordering
parts.
For product and accessory information, help nding a dealer, or to register your product please contact us at
www.Smithco.com.
Information needed when ordering replacement parts:
1. Model Number of machine
2. Serial Number of machine
3. Name and Part Number of part
4. Quantity of parts
For easy access record your Serial and Model numbers here.
WARNING
Failure to follow cautious operating practices
can result in serious injury to the operator or
other persons. The owner must understand
these instructions, and must allow only trained
persons who understand these instructions to
operate this vehicle.

2
Introduction
SAFE PRACTICES
1. It is your responsibility to read this manual and all publications associated with this machine.
2. Never allow anyone to operate or service the machine or its attachments without proper training and
instructions. Never allow minors to operate any equipment.
3. Learn the proper use of the machine, the location and purpose of all the controls before you operate the
equipment. Working with unfamiliar equipment can lead to accidents.
4. Wear all the necessary Personal Protective Equipment (PPE) to protect our head, eyes, ears, hands
and feet. Operate the machine only in daylight or in good articial light.
5. Inspect the area where the equipment will be used. Beware of overhead obstructions and underground
obstacles. Stay alert for hidden hazards.
6. Never operate equipment that is not in perfect working order or without decals, guards, shields, or other
protective devices in place.
7. Never disconnect or bypass any switch.
8. Never use your hands to search for oil leaks. Hydraulic uid under pressure can penetrate the skin and
cause serious injury.
9. This machine demands your attention. To prevent loss of control or tipping of the vehicle:
A. Use extra caution in backing up the vehicle. Ensure area is clear.
B. Do not stop or start suddenly on any slope.
C. Reduce speed on slopes and in sharp turns. Use caution when changing directions on
slopes.
D. Stay alert for holes in the terrain and other hidden hazards.
E. Operate equipment up and down slopes, never across the face.
F. Before unhitching, lower jack stands and secure pins.
10. Before leaving operator’s position for any reason:
A Disengage all drives.
B. Lower all attachments to the ground.
C. Shut engine o󰀨 and remove the ignition key.
11. Keep hands, feet and clothing away from moving parts. Wait for all movement to stop before you clean,
adjust or service the machine.
12. Keep the area of operation clear of all bystanders.
13. Never carry passengers.
14. Use parts and materials supplied by Smithco only. Do not modify any function or part.
15. Avoid sharp turns. Watch the tires of the tractor while turning to make sure they do not contact the
drawbar of the Fairway Roller .
These machines are intended for professional maintenance on golf courses, sports turf, and any other
area maintained turf and related trails, paths and lots. No guaranty as to the suitability for any task is
expressed or implied.

3
Introduction
SPECIFICATIONS FOR FAIRWAY ULTRA 10
WEIGHTS AND DIMENSIONS
Length 81.5" (2.07 m) Folded Width x 147" (3.73 m) Overall Length
Width 120" (3.05 m) E󰀨ective Rolling Width
125" (3.18 m) Overall Width Extended x 144" (3.66 m) Overall Length
Water Weight Capacity 100 Gallons (378,5 l)
Rolling Weight 2220 lbs (1007 kg)
Dry Weight 12-501 1360 lbs (616.8 kg)
Dry Weight 12-500 1570 lbs (712 kg)
Tongue Weight in Transport 538 lbs (244 kg)
Tongue Weight While Rolling 80 lbs (36,3 kg)
TIRES & WHEELS Two 24 x 13.00 x 12 ( 18 psi (1.3 bar))
GROUND PRESSURE 9.25 psi (with 100 gallons of water)
5.6psi empty
BATTERY (Not Included) Deep Cycle 24F-12 Volt
BCI Group Size 24F
Cold Cranking Amps 600 minimum
Ground Terminal Polarity Negative (-)
Maximum Length 10.25" (26 cm)
Maximum Width 6.88" (17 cm)
Maximum Height 10" (25 cm)
FLUID CAPACITY
Hydraulic Fluid 1.50 Gal (5.68 liter) MileMaster 303 Tractor HYD Fluid or equivilent
TOW VEHICLE
Minimum drawbar power of 20 HP (15 kW)
Heavy Duty Vehicle with 4 wheel brakes
Capable of 550 lb (249.5kg) tongue weight.
ACCESSORIES
TOW OPTIONS 78-244 Clevis
78-536 2" Ball
78-245 2-5/16" Ball
LIFT OPTIONS 12-500 Self Contained Hydraulic Power Unit
12-501 Tractor Hydraulics

4
Introduction
SETUP

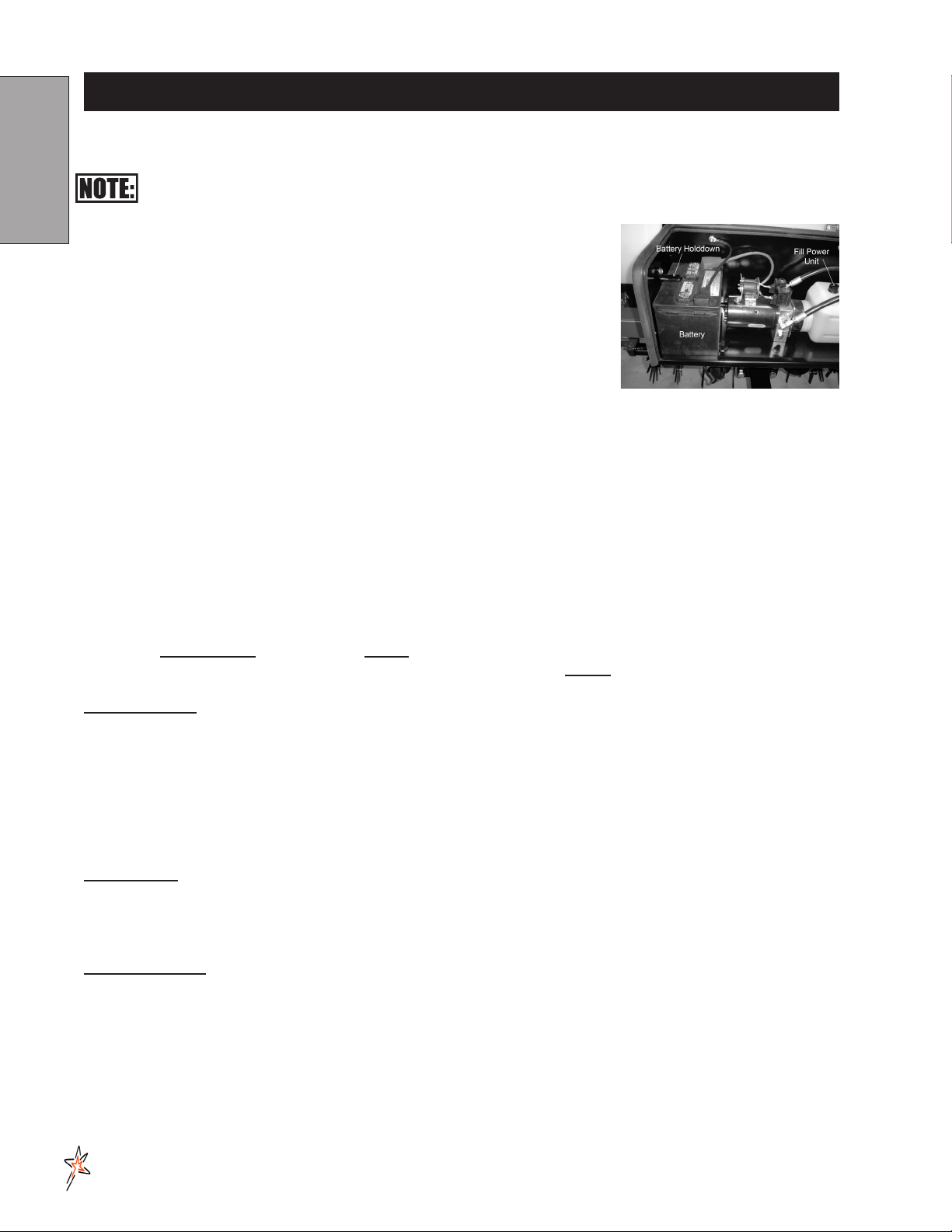

ELECTRIC/HYDRAULIC LIFT SYSTEM 12-500
If you purchased a 12-500 Electric/hydraulic Lift System, it will come installed. Battery not
included.

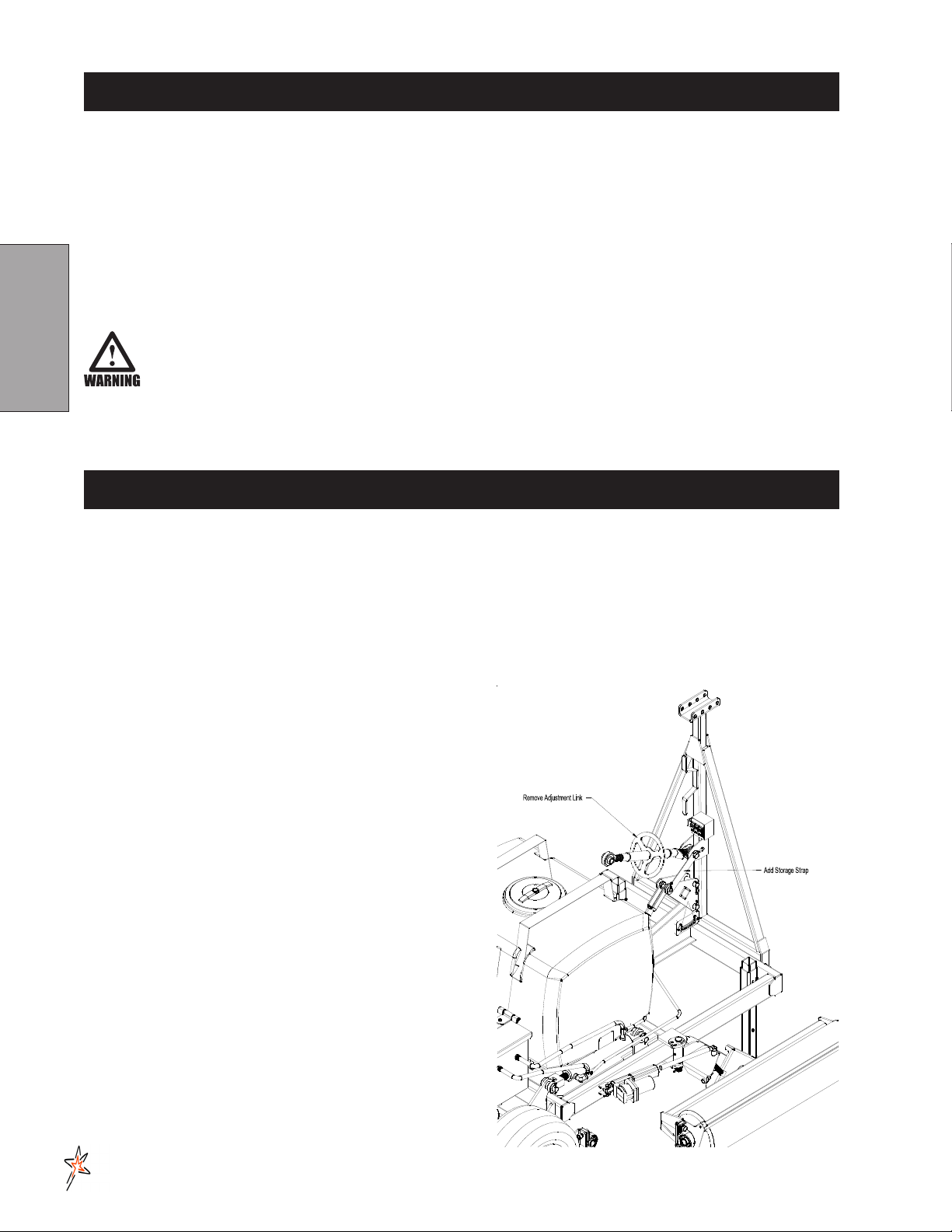

1. If tongue is folded up, remove bracket, unfold
tongue and hook up adjustment link. See Storage section for more
information.
2. Install an Automotive type 24F-12 Volt battery into the Motor Box and
secure with the battery hold-down.
3. Fill the power unit with approximately 1.50 Gal (5.68 liter) MileMaster
303 Tractor HYD Fluid or equivilent.
REMOTE HYDRAULIC LIFT SYSTEM 12-501
1. If tongue is folded up, remove bracket, unfold tongue and hook up adjustment link. See Storage section
for more information.
2. Route the hoses through the trough in front of the ballast tank, secure in the hose clamps on the top of
the tongue.
HILLSIDE OPERATION
Do NOT stop or start suddenly on any slope. Be especially cautious when changing direction. Do NOT oper-
ate on slopes greater than 20°.
IMPORTANT - Roller frame MUST be level in rolling position for proper operation.
- Extend and retract outboard rollers ONLY in raised position.
To Level Frame
1. Connect coupling to tow vehicle hitch and park on level surface.
2. Extend outboard rollers fully.
3. Lower unit completely to ground.
4. Check slope meter reading. Ball should be centered.
5. If ball is not centered in slope meter, release the lock on the adjustable link. Rotate link until ball is
centered on slope gage.
6. Re-lock adjustable link bar.
To Transport
1. Lift roller to highest point.
2. Retract outboard rollers.
3. Tow at a safe speed.
To Roll Fairways
1. Extend outboard rollers.
2. Lower unit fully to ground
3. Tow and roll at a safe speed.

5
Introduction
TOW VEHICLE CHARGING INSTRUCTIONS

6
Maintenance
MAINTENANCE
Before servicing or making adjustments to machine, stop engine on tow vehicle and remove key from igni-
tion. Securely prop FairWay Roller on jack stands.
Use all procedures and parts prescribed by the manufacturer.
Before operating this machine, become familiar with all controls and functions of this unit and the tow vehicle.
Also complete all maintenance requirements and read all safety warnings. By knowing both machines thor-
oughly, how it operates and by doing the prescribed maintenance steps, you can expect relatively trouble-free
operation for years to come.
TOW VEHICLE
You will need a heavy duty vehicle with 4 wheel brakes.
Transport Frame Assembly requires a clevis hitch and a 3/4diameter by 4" pin with some type of lock. Tow
vehicle must be capable of 550 lb tongue weight.
DAILY CHECKLIST
1. Check engine oil level in tow vehicle. Add as needed. DO NOT OVERFILL.
2. Check Fairway Roller for loose or missing nuts, bolts, screws, etc., and tighten or replace as needed..
3. Check that all rollers are in good condition.
4. Grease bearings daily after each use.
5. Check hydraulic hoses for any leaks or loose connections.
6. Check tire pressure. 18 psi (1.3 bar)
7. Check electrical system for loose connections or frayed wiring, including battery cables. Replace any
faulty equipment or tighten if loose.
OPERATION SAFETY
1. Before operation check to see that rollers are rotating properly.
2. When not in use, remove the jack pin and extend the legs to maximum extension, reinsert the jack pin
and secure with a clip. Always use jack stands for safe storage.

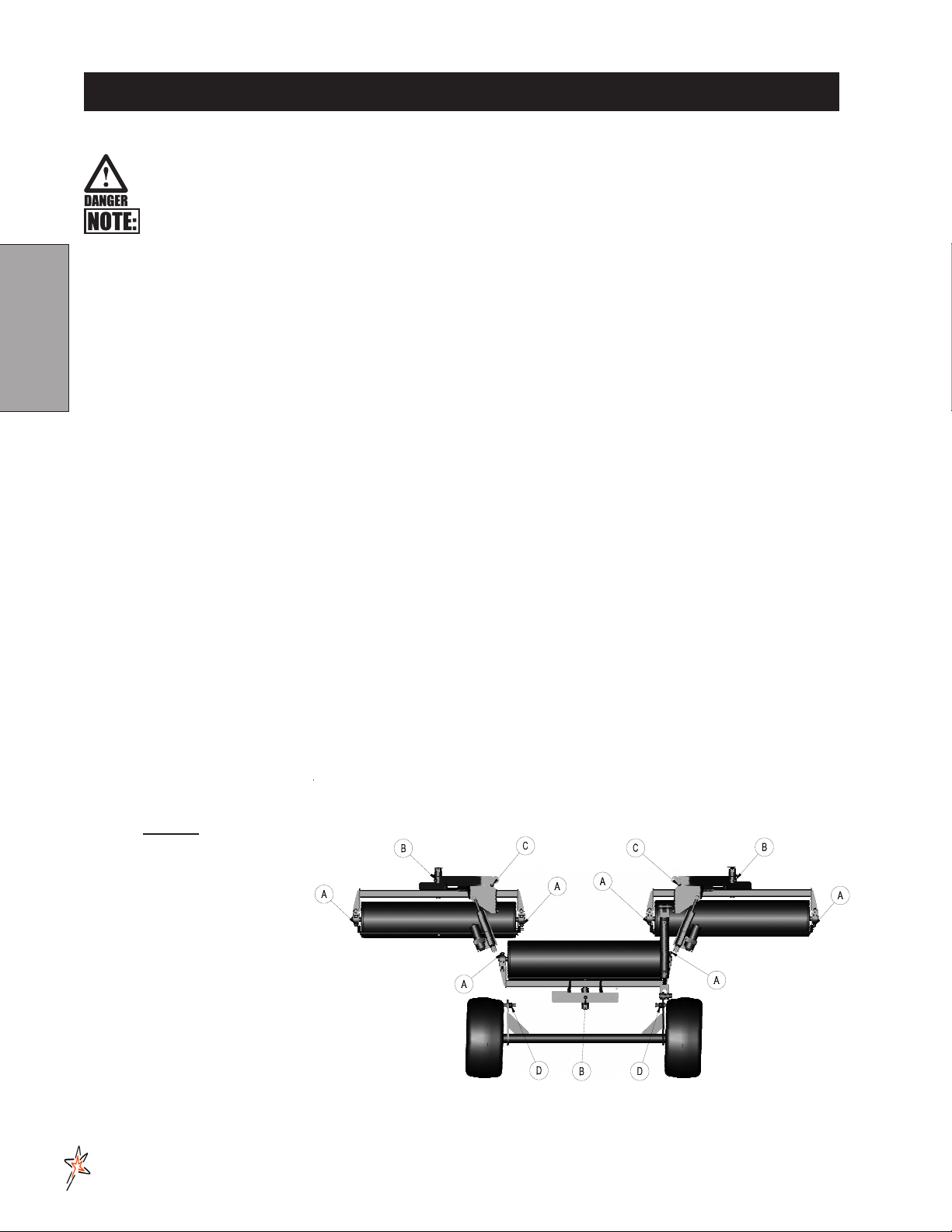

LUBRICATION
Use No. 2 General Purpose
Lithium Base Grease and
lubricate DAILY. The Fair-
way Ultra 10 has 13 grease
ttings, one on each pillow
block (A). One on each Roller
Shaft Housing (B). One on
Right and Left Wing (C). Two
on Rear axle (D). When insert-
ing grease, be careful not to
ruin the seal, if this happens,
replace the seal at once. Be
sure to wipe grease tting
clean before injecting grease.
Give only one or two pumps of
grease at each lubrication.

7
Maintenance
MAINTENANCE
WHEEL MOUNTING PROCEDURE
1. Set park brake on tow vehicle. Turn machine o󰀨 and remove key.
2. Block one of the other wheels.
3. Loosen nuts slightly on wheel to be removed.
4. Lower unit fully to the ground until wheels lift o󰀨 the ground.
5. Remove nuts, remove wheel.
6. Place new wheel on hub lining up bolt holes.
7. Torque nuts to 64-74 ft/lb (87-100Nm) using a cross pattern. Retorque after rst 10 hours and every 200
hours thereafter.
TIRE PRESSURE
Caution must be used when inating a low tire to recommended pressure. Over inating can cause tires to
explode. Tires on the machine should be 18 psi (1.3 bar). Improper ination will reduce tire life considerably.
SERVICE INTERVALS
Before each Use:
Lubricate all bearings on rollers. Use No. 2 General Purpose Lithium Base Grease.
Check tow vehicle uid levels.
Check uid level in power unit. Use Universal Trans-Draulic Oil.
After Each Use:
Inspect hydraulic system for leaks or damage.
Check for loose or missing hardware.
After 10 hours:
Check rollers for wear.
Lubricate all grease ttings
After 50 hours:
Check wheel lug nuts torque to 64-74 ft/lb (87-100Nm).
Inspect tires - Check air pressure 18 psi
After 125 hours:
Lubricate wheel bearings.
After 250 Hours:
Drain oil and ll power unit with approximately 1.25 gallons (4,73 l) Universal Trans-Draulic Oil.
Tire - Torque nuts to 64-74 ft/lb (87-100Nm) using a cross pattern.

8
Maintenance
BATTERY FOR 12-500
Batteries normally produce explosive gases which can cause personal injury. Do not allow ames, sparks or any ignited
object to come near the battery. When charging or working near battery, always shield your eyes and always provide
proper ventilation.
Battery cable should be disconnected before using “Fast Charge”.
Charge battery at 15 amps for 10 minutes or 7 amps for 30 minutes. Do not exceed the recommended charging rate. If
electrolyte starts boiling over, decrease charging.
Always remove grounded (-) battery clamp rst and replace it last. Avoid hazards by:
1. Filling batteries in well-ventilated areas.
2. Wear eye protection and rubber gloves.
3. Avoid breathing fumes when electrolyte is added.
4. Avoid spilling or dripping electrolyte.
Battery Electrolyte is an acidic solution and should be handled with care. If electrolyte is splashed on
any part of your body, ush all contact areas immediately with liberal amounts of water. Get medical
attention immediately.
STORAGE
1. Before storing clean machine thoroughly.
2. Check bolts and nuts, tighten as necessary.
3. Make all repairs that are needed and remove any debris.
4. Store in a clean and dry area.
5. Make sure rollers are on level ground.
6. Lower the jack stands. Secure with pins.
7. Only after FairWay Roller is securely placed on
a level surface should you remove from the tow
vehicle.
8. Tongue can be folded up by removing the ad-
justment link and replacing with storage strap to
minimize storage space.

9
Diagrams
12-501 WIRING
REF# PART# DESCRIPTION QUANTITY
1 12-558 KYB Elec/Hyd Actuator w/ Connectors 2
2 15-725 Mount Panel End 2
15-727 Rocker Switch, No Light 2
3 12-512 Main Wire Harness 12-501 1
4 Battery on Tow Vehicle
5 8975 30 AMP Breaker 1
8977 Red Breaker Boot 1

10
Diagrams
12-500 WIRING

11
Diagrams
12-500 WIRING
REF# PART# DESCRIPTION QUANTITY
1 12-558 KYB Elec/Hyd Actuator w/ Connectors 2
2 15-725 Mount Panel End 2
15-727 Rock Switch, No Light 2
15-728 Centering Switch, Momentary, On-O󰀨-On 2
3 15-729 Mount Panel Middle 1
15-727 Rock Switch, No Light 1
12-728 Centering Switch, Momentary, On-O󰀨-On 1
4 74-271 Power Connector 2
5 74-270 Parallel Battery Cable 212"
74-272 Standard Eyelet 2
6 18-445 Cord Connector 3
7 12-003 Toggle Switch 1
8 12-511 Main Wire Harness 12-500 1
9 74-273 MIDI High AMP Fuse 2
74-276 #10 Ring Terminal 4
10 74-270 Parallel Battery Cable 6"
11 8975 Circuit Breaker, 30AMP 1
8977 Circuit Breaker Boot 1
12 22-055 Battery Cable, Red 1
13 12-546 Power Unit 1
14 76-327 Battery Cable, Black 1
15 Automotive type 24F-12 Volt Battery (not included) 1
16 74-270 Parallel Battery Cable 144"
74-272 Standard Eyelet 2
17 Red 10GA Wire (Part of wire harness) 1
18 Red 10Ga Wire (Part of wire harness) 1

12
Diagrams
12-500 HYDRAULIC DIAGRAM
REF# PART# DESCRIPTION QUANTITY
1 12-530 Motor Box 1
2 18-168 3/8Straight Thread Elbow 4
3 74-229 Hose - 16" 1
4 74-230 Hose - 17" 1
5 12-546 Power Unit 1
6 12-517 Hose 1
7 12-518 Hose 1
8 18-464 Male Run Tee 2
9 12-514 Hydraulic Cylinder 1
10 12-515 Hose 1
11 12-516 Hose 1
12 12-519 Hydraulic Cylinder 1
13 42-040 Yoke End 1
14 18-467 3/8" Street Elbow 1

13
Diagrams
12-501 HYDRAULIC DIAGRAM
REF# PART# DESCRIPTION QUANTITY
1 42-040 Yoke End 1
2 12-519 Hydraulic Cylinder 1
3 18-168 3/8Straight Thread Elbow 2
4 12-515 Hose 1
5 12-516 Hose 1
6 12-514 Hydraulic Cylinder 1
7 74-246 Hose (to remote hydraulics) 2
8 18-464 Male Run Tee 2
9 18-467 3/8" Street Elbow 1

14
Parts
12-500-A MAIN DRAWING
REF# PART# DESCRIPTION QUANTITY
1 78-221 Tire and Wheel 2
16-225-01 Tire
78-221-02 Wheel
2 Left Roller Assembly (see Drawing)
3 12-530 Motor Box 1
74-248 Motor Box Cover 1
4 12-513 100 Gallon Tank 1
5 12-540 Tank Strap 2
6 12-542 Jack Stand 2
18-297 Cap Plug 2
7 12-543 Lift Relay 1
8 42-040 Yoke End 1
9 12-552 Adjustment Link 1
10 12-536 Drawbar 1
11 12-527 Switch Box 1
12-526 Switch Backing Plate 1
12 12-525 Main Frame 1
13 Right Roller Assembly (See Drawing)
14 12-558 KYB Elec/Hyd Actuator w/ connectors 1
15 12-514 Hydraulic Cylinder 1
16 Rear Roller Assembly (See Rear Axle Drawing)
17 15-437 Latch 2
18 12-541 Axle 1

15
Parts
12-501-A MAIN DRAWING
REF# PART# DESCRIPTION QUANTITY
1 78-221 Tire and Wheel 2
16-225-01 Tire
78-221-02 Wheel
2 Left Roller Assembly (see Drawing)
3 12-513 100 Gallon Tank 1
4 12-540 Tank Strap 2
5 12-542 Jack Stand 2
18-297 Cap Plug 2
6 12-543 Lift Relay 1
7 12-552 Adjustment Link 1
8 12-536 Drawbar 1
9 12-527 Switch Box 1
12-526 Switch Backing Plate 1
10 12-525 Main Frame 1
11 Right Roller Assembly (See Drawing)
12 12-558 KYB Elec/Hyd Actuator w/ Connectors 1
13 12-514 Hydraulic Cylinder 1
14 Rear Roller Assembly (See Rear Axle Drawing)
15 12-541 Axle 1
16 12-544 Rear Roller Mount 1

16
Parts
POWER BOX DRAWING (12-500 ONLY)

17
Parts
POWER BOX DRAWING (12-500 ONLY)
REF# PART# DESCRIPTION QUANTITY
1 12-524 Knock Out Clamp 1
2 15-725 Mount Panel End 2
15-727 Rock Switch, No Light 2
15-728 Centering Switch, Momentary, On-O󰀨-On 2
3 15-729 Mount Panel Middle 1
15-727 Rock Switch, No Light 1
15-728 Centering Switch, Momentary, On-O󰀨-On 1
4 12-526 Switch Backing Plate 1
5 12-527 Switch Box 1
6 74-248 Motor Box Cover 1
8947-74 Trim Seal, 74" 1
7 HSM-10-32-112 Machine Screw, 10-32 x 11/86
HNFL-10-32 Flange Lock Nut, 10-32 6
8 15-437 Latch, Complete 2
15-437-02 Handle and Bracket 2
9 74-231 Hinge 2
HB-516-18-100 Bolt,
5/16 -18 x 1 10
HNFL-516-18 Flange Lock Nut, 5/16 - 18 10
10 12-518 Hose 1
11 12-517 Hose 1
12 12-530 Motor Box 1
13 15-437-01 Keeper 2
14 12-529 Right Motor Box Mount 1
15 HB-38-16-100 Bolt,
3/8- 16 x 1 6
HNTL-38-16 Lock Nut, 3/8- 16 6
16 12-528 Left Motor Box Mount 1
17 74-230 Hose 1
18 18-168 Fitting 2
19 12-546 Power Unit 1
20 Not Included Battery - Automotive type 24F-12 Volt
21 76-327 Battery Cable, Negative 1
22 74-229 Hose 1
23 22-055 Battery Cable, Positive 1
24 8975 Circuit Breaker 1
8977 Circuit Breaker Boot, Red 1
25 74-234 Battery Hold Down 1
HB-38-16-100 Bolt,
3/8- 16 x 1 1
HNFL-38-16 Flange Lock Nut, 3/8- 16 1
15-020 Hand Grip 1
26 12-003 Toggle Switch 1
27 18-445 Cord Connector 3
28 12-511 Wire Harness for 12-500 1
29 74-270 Parallel Battery Cable 212"
30 74-271 Multipole Pole Connector 1

18
Parts
DRAWBAR DRAWING
