Smithco SUPER STAR 42-000-D User manual

BUNKER RAKE
OPERATOR’S
MANUAL
SUPER STAR
Model 42-000-D and 42-001-D
SUPER RAKE
Gas Model 13-550-D and 13-551-D
Diesel Model 17-001-D
November, 2003
ENGLISH
SMITHCO PRODUCT SUPPORT
1-800-891-9435
Hwy SS and Poplar Avenue, Cameron WI 54822
E-mail: [email protected]

Introduction Service Diagrams
CONTENTS
Introduction .................................................... 1-13
Introduction...................................................................................... 1
Symbols........................................................................................ 2-3
Safe Practices ................................................................................. 4
Super Star Specifications ................................................................ 5
Super Rake Gas and Diesel Specifications .................................... 6
Setup ............................................................................................... 7
Controls & Instruments Gas Super Rake ........................................ 8

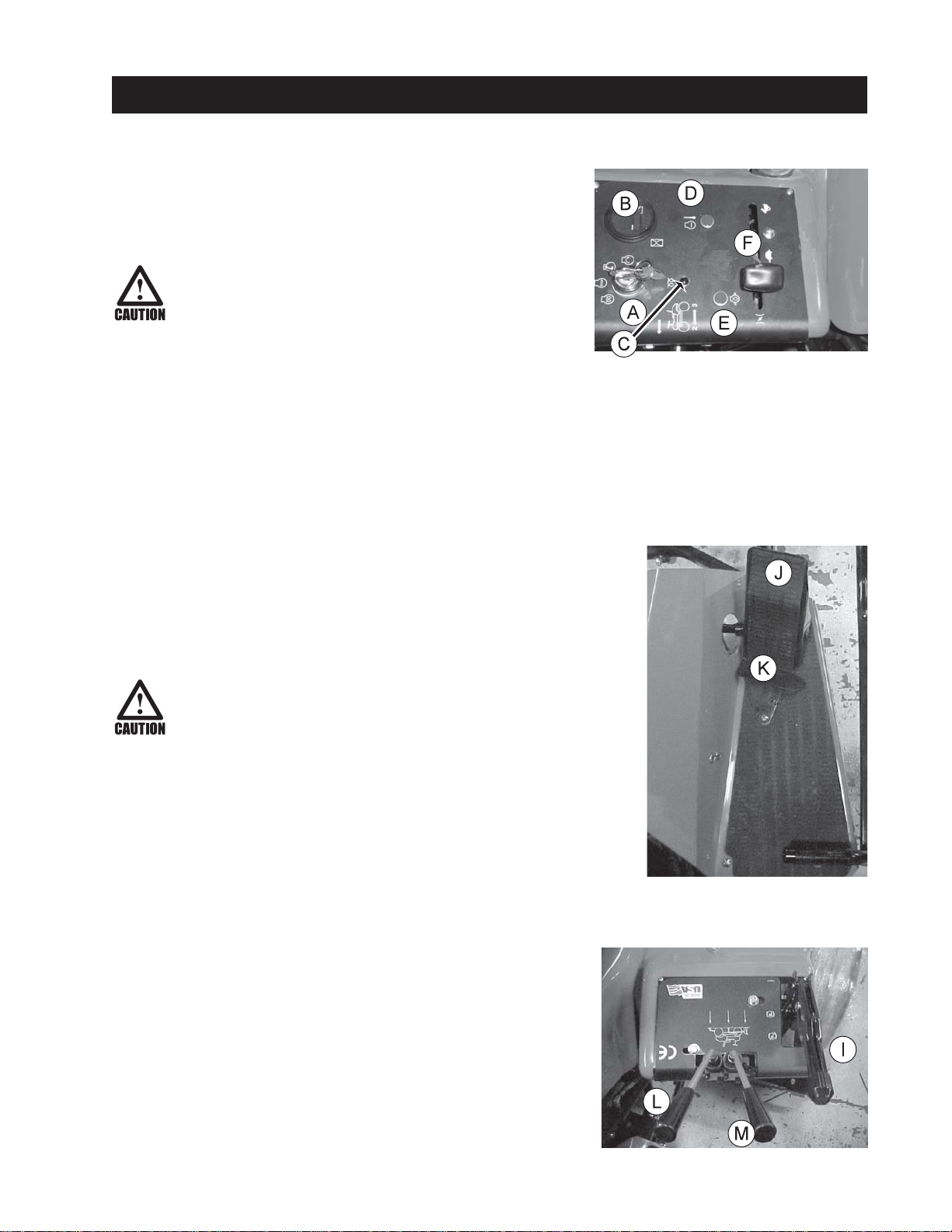

Controls & Instruments Diesel Super Rake..................................... 9
Controls & Instruments Super Star................................................ 10
Operation........................................................................................11
Daily Checklist............................................................................... 12

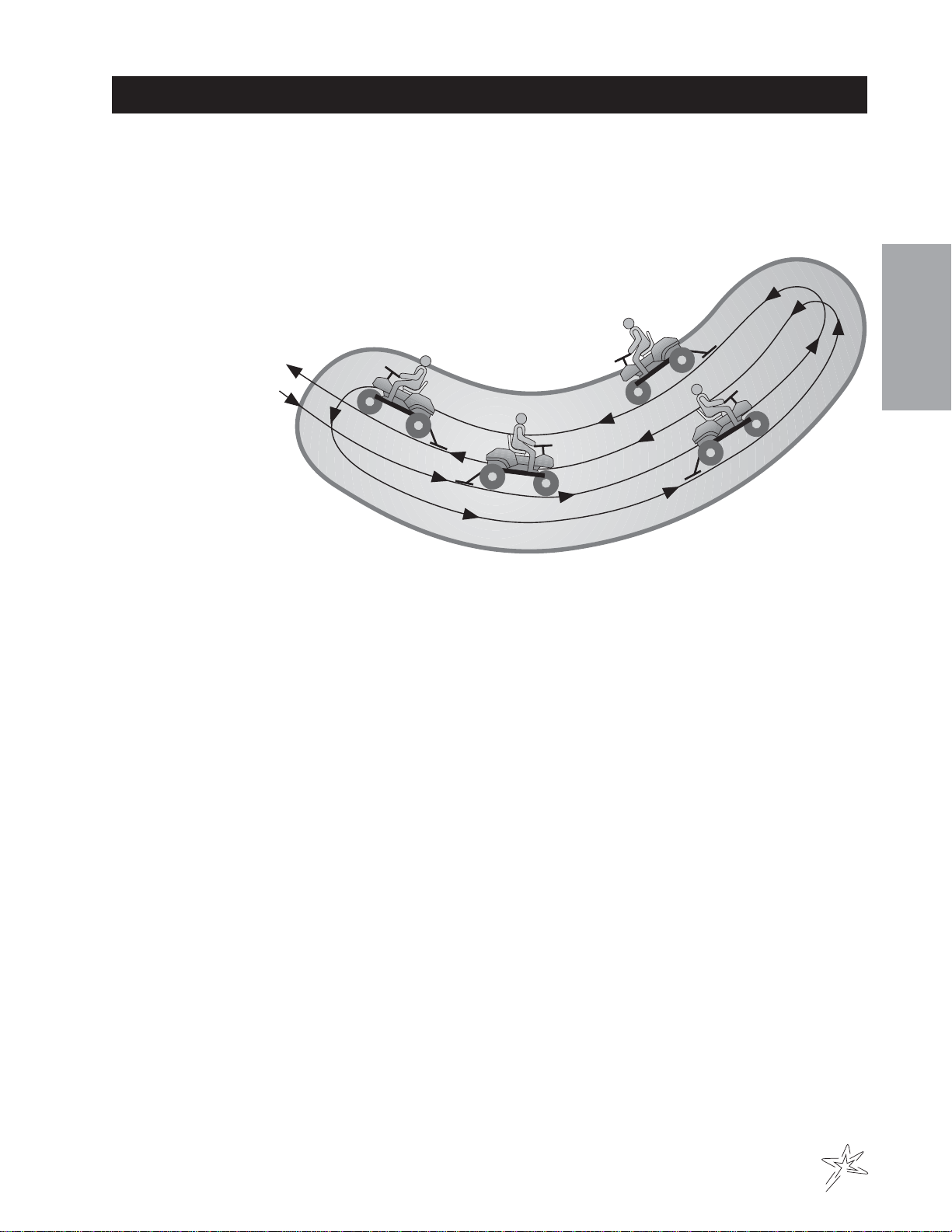

How To Rake A Sand Trap ........................................................... 13
Service.................................................................14
Battery ........................................................................................... 14
Other....................................................................15
Declaration of Conformity.............................................................. 15
Limited Warranty .................................................. Inside Back Cover

1
Introduction
Informationneededwhenorderingreplacementparts:
1. ModelNumber ofmachine
2. SerialNumber ofmachine
3. Nameand Part Numberof part
4. Quantityof parts
INTRODUCTION
Thankyou for purchasing a product.
Read this manual and all other manuals pertaining to the Bunker Rake carefully as they contain safety, operat-
ing, assembly and maintenance instructions. Failure to do so could result in personal injury or equipment dam-
age.
Keepmanuals in asafeplace after operatorandmaintenance personnel haveread them. Rightandleft sides are
fromthe operator’sseat,facing forward.
All machineshave a SerialNumber and ModelNumber. Bothnumbersare neededwhenordering
parts. Refertoengine manualforplacement ofengineserial number.

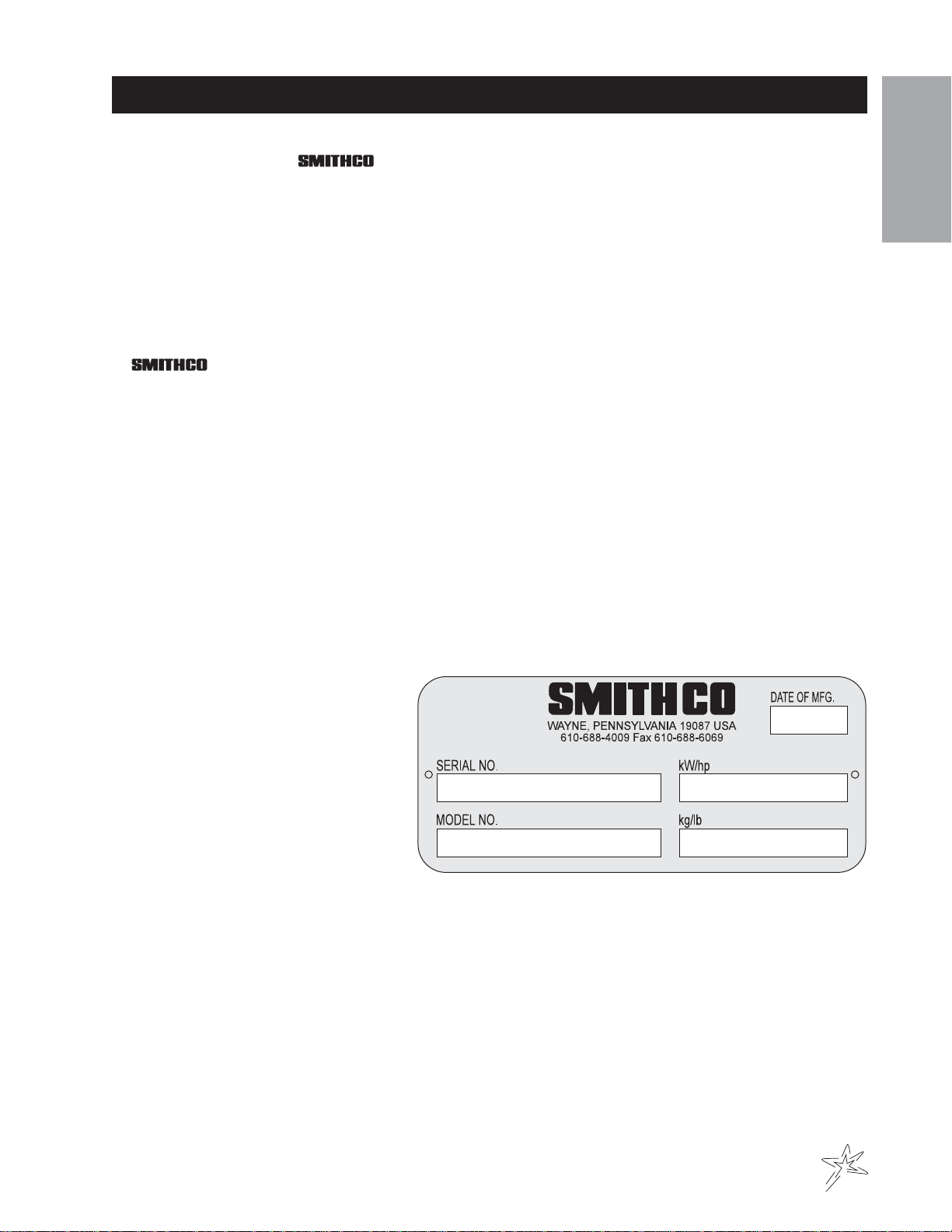

The serial number plate on the Super Rakes is located on the right side main frame.
The serial number plate for the Super Star is located on the rear axle.
For easy access record your Serial and Model numbers here.

2
Introduction

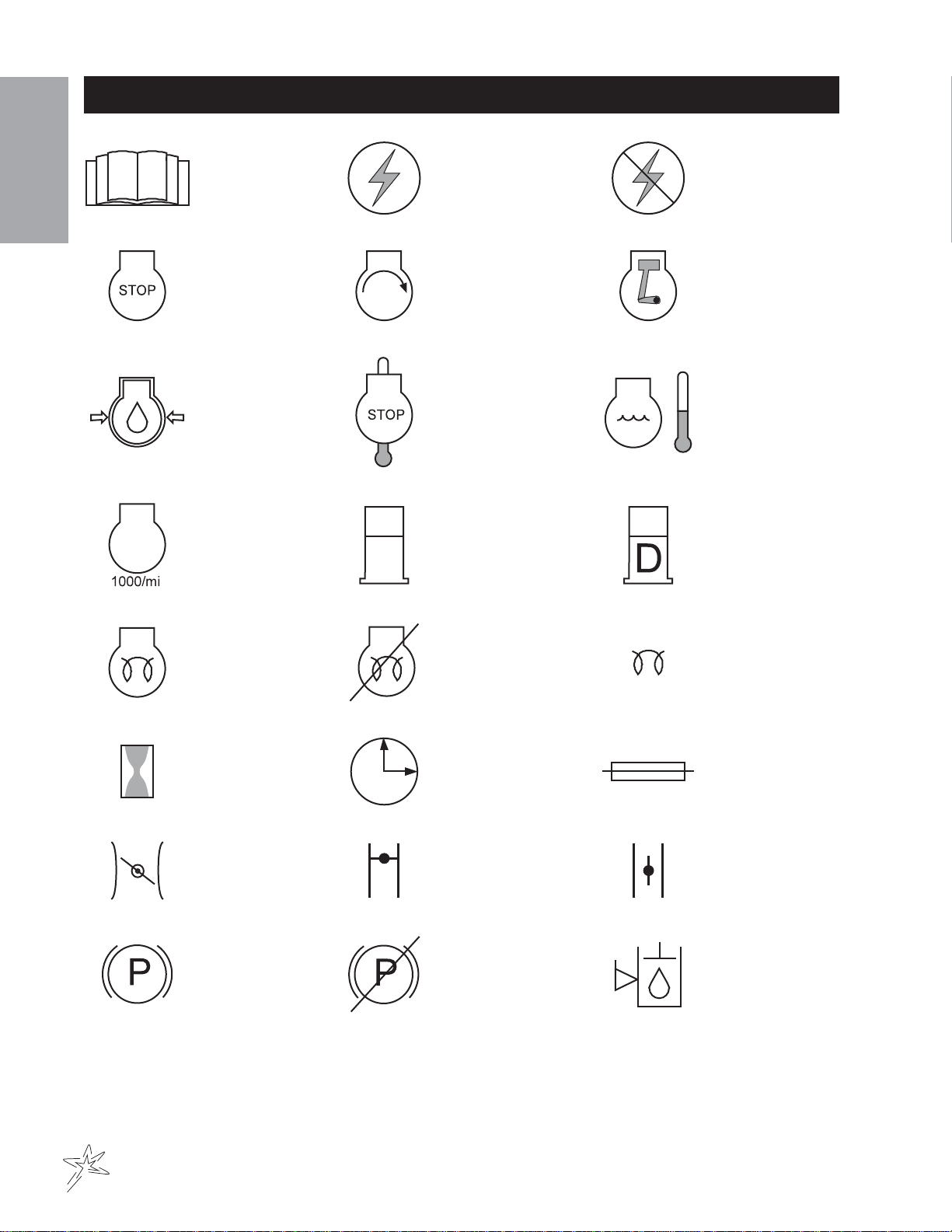

SYMBOLS
ParkBrake ParkBrake
Release HydraulicOil
Level
Choke- OpenChoke- ClosedHandThrottle
HourMeter HourMeter Fuse
GlowPlugGlowPlug - OffGlow Plug - On
RPM Gasoline Diesel
Water
Temperature
Temperature
Light
EngineOil
Engine - Stop Engine - Start Engine-Run
No Electrical
Power
ElectricalPower
ReadOperator’s
Manual

3
Introduction
SYMBOLS
NoSmoking Moving Parts Manual
Operation
Pinch Point Step HotSurface
HydraulicFluid
Penetration LiftArm Tractor
Engage Disengage PTO
GroundSpeed Fast Slow
HHigh LLow FForward
RReverse NNeutral Warning
Danger
Caution
Up/RaiseDown/LowerUp/DownArrow

4
Introduction
SAFEPRACTICES
1. It is your responsibility to read this manual and all publications associated with this machine (engine,
accessoriesandattachments).
2. Neverallow anyone tooperateor service themachine or itsattachmentswithout proper trainingand
instructions.Never allow minorstooperate anyequipment.
3. Learnthe proper use ofthe machine, the locationandpurpose of all thecontrolsand gauges before you
operatetheequipment. Working withunfamiliarequipment can leadtoaccidents.
4. Wear all Personal Protective Equipment (PPE) on your head, eyes, ears, hands and feet. Operate the
machine only in daylight or in good artificial light.
5. Inspect the area where the equipment will be used. Pick up all debris you can find before operating.
Bewareof overheadobstructionsand undergroundobstacles. Stayalert forhiddenhazards.
6. Neveroperate equipment thatisnot in perfect workingorder or without decals,guards, shields, or other
protectivedevices inplace.
7. Never disconnect or bypass any switch.
8. Carbonmonoxide in theexhaust fumes canbe fatal wheninhaled, never operateamachine withoutproper
ventilation.
9. Fuel is highly flammable, handle with care.
10. Keep engineclean.Allow the engine tocoolbefore storing and alwaysremovethe ignition key.
11. Afterenginehas started machine mustnotmove. If movement is evident,theneutral mechanism is not
adjustedcorrectly. Shut engine offand readjust so themachinedoesnot move when in neutral position.
13. Never useyourhands to search for oilleaks.Hydraulic fluid under pressure canpenetratethe skin and
cause serious injury.
14. Thismachinedemands your attention.To preventlossof control ortippingof the vehicle:
A. Use extra caution in backing up the vehicle. Ensure area is clear.
B. Do not stop or start suddenly on any slope.
C. Reduce speed on slopes and in sharp turns. Use caution when changing directions on slopes.
D. Stay alert for holes in the terrain and other hidden hazards.
15. Before leavingoperator’s positionforany reason:
A.Disengage all drives.
B. Lower all attachments to the ground.
C. Set park brake.
D.Shutengine offand removetheignition key.
16. Keephands,feet and clothing awayfrommoving parts. Wait forallmovement to stop beforeyou clean,
adjustorservice the machine.
17. Keepthearea of operation clearof all bystanders.
18. Nevercarry passengers.
19. Stopengine before making repairs/adjustmentsorchecking/addingoil to the crankcase.
20. Use parts and materials supplied by SMITHCO only. Do not modify any function or part.
hese machines are intended for professional maintenance on golf courses, sports turf, and any other area
maintained turf and related trails, paths and lots. No guaranty as to the suitability for any task is ex-
pressed or implied.

5
Introduction
SPECIFICATIONSSUPERSTAR
WEIGHTSANDDIMENSIONS
Length 64"(163cm)
Width 57"(145cm)
Height 47"(119cm)
Wheel Base 41" (104 cm)
Weight 950 lbs. ( 451 kg)
SOUNDLEVEL
AtEar Level 85 dB
At 3ft (.914 m) 83 dB
At 30 ft (9.14 m) 73 dB
ENGINE
Make Briggsand StrattonVanguard
Model# 303447
Type/ Spec# 1131E1
Horsepower 16 hp (11.9 kW)
Fuel Unleaded87 OctaneGasolineMinimum
CoolingSystem Air Cooled
LubricationSystem Full Pressure
Alternator 16 amp
WHEELS&TIRE Three: 23 x 10.5 x 12; 4 ply multitrack 5 psi (.35 bar)
Front tire fluid filled to 80 lbs. total. 41.5 pints of windshield washer fluid or
equivalent.
Speed
ForwardSpeed 0 to 11 m.p.h. (0-18 kph)
ReverseSpeed 0 to 5 m.p.h. (0-8 kph)
BATTERY AutomotiveType45-12 Volt
BCIGroup Size 45
ColdCrankingAmps 480
GroundTerminalPolarity Negative(-)
MaximumLength 9" (23 cm)
Maximum Width 5.38" (14 cm)
MaximumHeight 9" (23 cm)
FLUIDCAPACITY
CrankcaseOil See EngineManual
Fuel 20 quarts (18.93 liters)
HydraulicFluid 20 quarts (18.93liters)
Gradeof Hydraulic Fluid SAE 10W-40API Service SJ or higher Motor Oil

6
Introduction
SPECIFICATIONGASANDDIESELSUPERRAKE
WEIGHTSANDDIMENSIONS GASSUPERRAKE DIESELSUPERRAKE
Length 85"(216cm) 85" (216 cm)
Width 73.5"(187cm) 73.5"(187cm)
Height 45"(114cm) 45"(114cm)
Wheel Base 47" (120 cm) 47" (120 cm)
Weight 990lbs (449 kg) 1010 lbs (458 kg)
SOUNDLEVEL
At earlevel 84 dB 96 dB
At 3 ft. (0.914 m) 89dB 90 dB
At 30 ft. (9.14 m) 74dB 78 dB
ENGINE
Make Briggsand StrattonVanguard Kubota
Model# 303447 Z482b
Type / Spec # 1018A2
Horsepower 16 hp (12 kW) 12.5 hp (9.5 kW)
Fuel Unleaded 85 Octane (min) No. 2 Diesel
CoolingSystem Air Cooled LiquidCooled
LubricationSystem PressureType FullPressure
Alternator 16AMP 12.5AMP
SPEED
ForwardSpeed 0 to 10 m.p.h. (0-16 kph) 0 to 10 m.p.h. (0-16 kph)
ReverseSpeed 0 to 4 m.p.h. (0-6 kph) 0 to 4 m.p.h. (0-6 kph)
TIRES&WHEELS
AllTires **(3) 21 x 11.00 x 8 NHS **(3) 21 x 11.00 x 8 NHS
5 psi (.35 bar) 5 psi (.35 bar)
BATTERY AutomotiveType45-12 Volt AutomotiveType45-12Volt
BCIGroup Size 45 Size 45
ColdCrankingAmps 480 480
GroundTerminalPolarity Negative(-) Negative(-)
MaximumLength 9" (23 cm) 9" (23 cm)
Maximum Width 5.38" (14 cm) 5.38" (14 cm)
MaximumHeight 9" (23 cm) 9" (23 cm)
FLUIDCAPACITY
CrankcaseOil See EngineManual SeeEngine Manual
Fuel 15.6quarts(14.8 liters) 15.6 quarts(14.8liters)
HydraulicFluid 12.9 quarts (12.2liters) 12.9quarts (12.2 liters)
Gradeof HydraulicFluid SAE10W-40APIService SAE 10W-40API Service
SJorHigher Motor Oil SJorHigher Motor Oil
** Front tire fluid filled to 60 lbs. (27.22 kg) total.
34.5 pints (16.33 l) of windshield washer fluid or equivalent.

7
Introduction
SETUP
TheBunker Rakes arrivefrom with someassemblyrequired beforeservice.
1. Set park brake. Push the brake down past center and
theparkbrake is engaged.
2. Rearwheel mounting. Block fronttire.Jack up rear of
machinebeing careful notto damageundersideof
machine. Place wheel on hub lining up bolt holes. Use
thetenlugnuts provided. Then torque to 64 - 74 ft/lb
(87-100Nm) using acrosspattern. Retorque afterthe
first10 hoursandevery 200hours thereafter.Lower
machinetoground and removeblocksand jack.
3. Installsteering wheel (Ref1)on machine. Put steering
wheel onto shaft (Ref 3) Line up holes and insert 1/4x
2" Roll Pin (Ref 2) into wheel shaft.Tighten set screw.
4. Checkthe tire pressure. Thetire pressure should be
5psi(0.35 bar)
5. Batterynot furnished. Installanautomotive type 45 -12
volt; 480 cold cranking amps (minimum) battery in the
battery box of the Super Rakes and Super Stars This is
anegativegrounding system.Attachthe battery hold-
downs.Thenattach red positive (+)cable (A) to
positiveterminal. Sliderubberboot overthe positive
terminalto prevent shorts.Attachblacknegative(-)
cable(B) to the negativeterminal.
Connecting battery cables to the wrong post
could result in personal injury and/or damage
to the electrical system. Make sure battery and
cables do not interfere or rub on any moving
part. Connect the red positive (+) cable (A) to
the battery first. When disconnecting remove
the black negative (-) cable (B) first.
6. Checkengine oil andaddas necessary. See engine manualforrecommended motor oil.DO NOT OVER-
FILL.
7. FillGasTanks withUnleaded87 Octane gasoline(minimum).
Fill Diesel Tanks with Diesel No. 2.
Gasoline is flammable. Caution must be used when storing or handling it. Do not fill fuel
tank while engine is operating or in an enclosed area. Fumes are explosive and dangerous
to inhale. DO NOT SMOKE while filling the fuel tank. DO NOT OVERFILL.
8. Check hydraulic oil level on the tank. The level should be 2 -21/2"(5 - 6.35 cm) from top of tank. If level is
low, add SAE 10W-40API Service SJ or higher motor oil.
9. Machineshould be greasedbefore starting.
10. Read operatinginstructions before startingmachine.

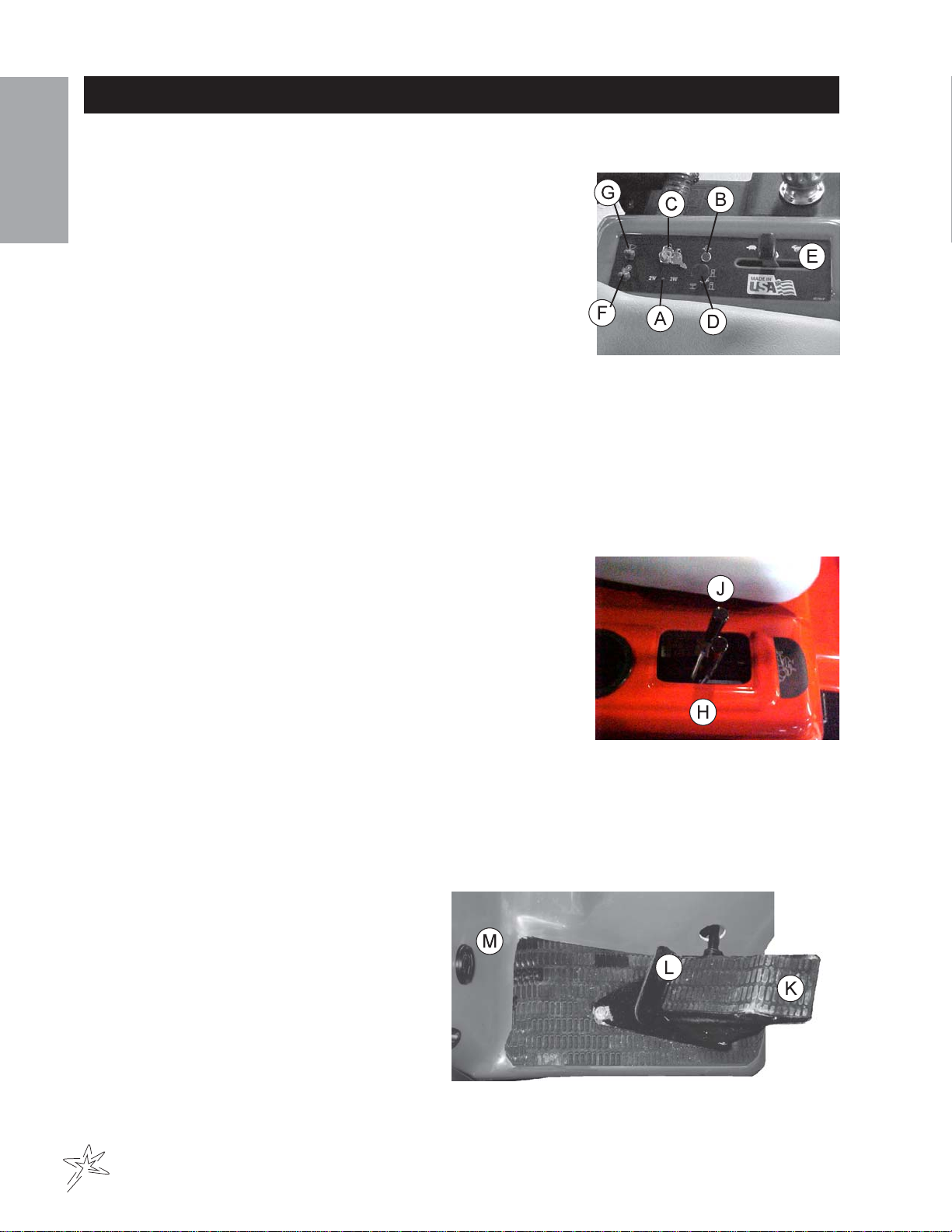

CONTROLS&INSTRUMENTSGASSUPERRAKE
INSTRUMENTPANEL
Located on right fender.

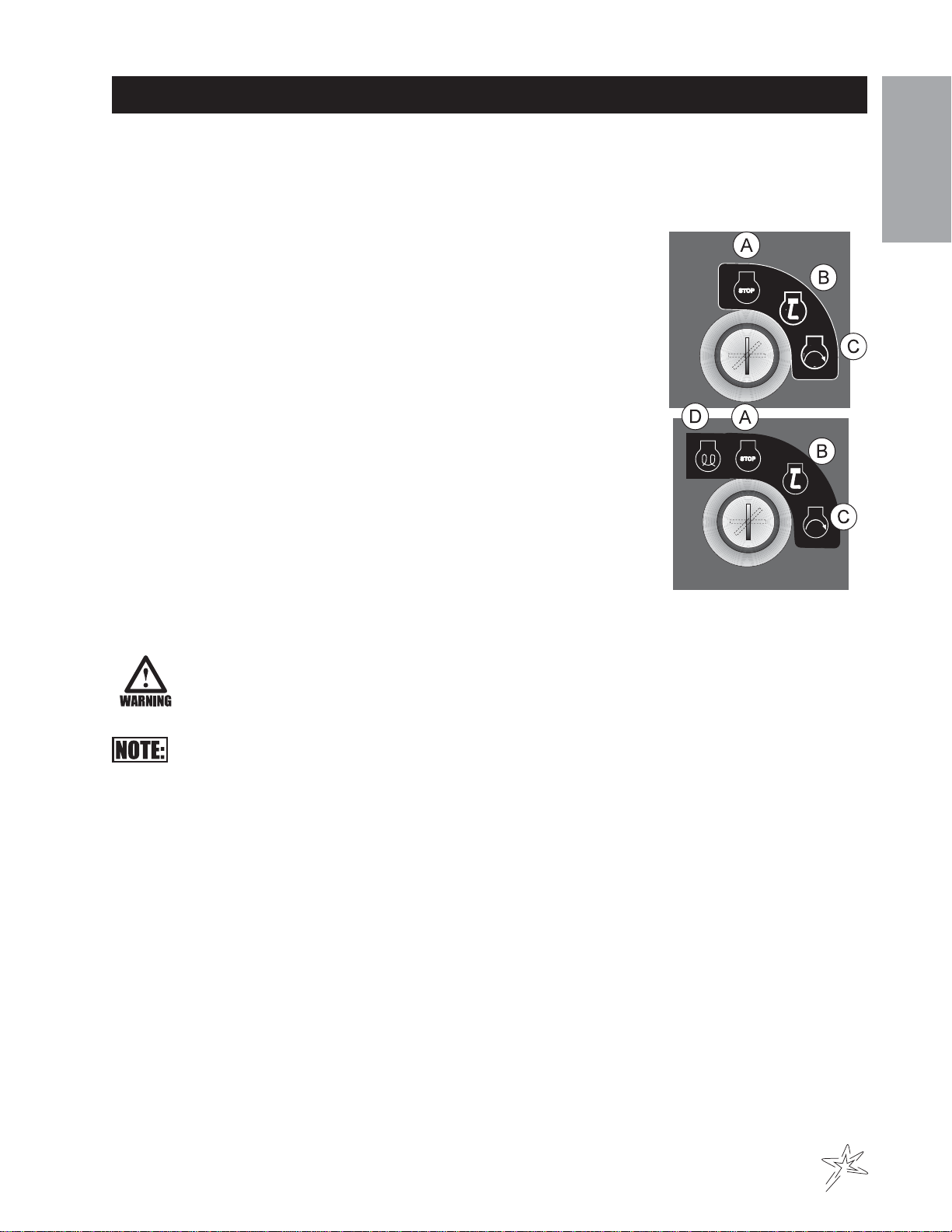

A. Ignition Switch:Three Position. Stop-Run-Start.
B. Two Or Three Wheel Drive: Front wheel drive valve is located on
frontright fender.Pushto engagefrontwheel driveandpull todisen-
gagefrontwheel drive.
Disengage front wheel drive for transport and plow
operation only. Three to two wheel drive can be shifted
on the fly. Two wheel drive increases ground speed.
C. Ammeter:The ammeter indicates the rate ofchargingordischarging of battery.
D. Fuse Holder and Fuse: Located in center right side of instrument panel.A30 Amp fuse is used.
E. Oil Light: The oil light should come on when ignition is on, without engine operating. The oil light will light
when the oil pressure is low. If oil light should come on, shut off engine immediately and find cause.
F. Hour Meter: Thehourmeter indicates hoursof machine operation.Thehour meter operateswhenignition
switch is on.
G. Choke: Choke is located in center of instrument panel. Pull choke to rear to close choke plate when start-
ing a cold engine.Awarm engine may not require "choking" to start.
H. Hand Throttle: Hand throttle is located on left side of instrument panel. Use it to regulate engine speed.
RIGHTFLOORBOARD
FootPedal controls forwardand reverse motion.Pushing down onthe front of
pedal(I) will giveyou a forwardmotion and pushingdown on rearpedalwill
giveyoua reverse motion. Whenpedal is released thehydrostatictransmis-
sioncentersand stops the vehicle.Ground speed is proportionaltohow far
the foot pedal is depressed. (I) is the Hand Lift for the Sand Plow.
Quick removal of foot from forward or reverse pedal will
result in an abrupt stop of machine.
STEERING
Theautomotivetype steering wheelisconnected to thefrontwheel assem-
bly by a chain driven sprocket. This allows for quick turns and short turning
radius.
SEATADJUSTMENT
SeatAdjustment Lever is located under front of seat on left side. It allows
seatadjustment forwardorbackward foroperator’s comfort.There arefour
different bolt patterns so that you can manually adjust seat to fit operator’s
comfort.
PARKBRAKE
Parkbrake is located onleft fender. Pushlever (K) forward torelease
brakeandpull lever rearwardtoset brake. Park brakemust be applied
to start trap rake.
VALVEPANEL
TheLift Leversarelocated on leftfender.To raise pushdown and to
lowerpull back forward.Releasethe lever whenattachmentis in
properposition andleverwill returntoo neutral. TheRake Liftlever(L)
is on the inside of the machine. The LiftAssembly lever (M) is on the
outside closest to the seat unless equipped with a hydraulic plow
then the plow lever is closest to the seat.

CONTROLS&INSTRUMENTSDIESELSUPERRAKE
INSTRUMENTPANEL
Located on right fender.
A. Ignition Switch:FourPosition. Preheat-Stop-Run-Start.
B. Hour Meter: THe hour meter indicates the hours of machine op-
eration. It operates only when the ignition switch is on. THe volt
meterindicates battery voltage.
Disengage front wheel drive for transport and plow
operation only. Three to two wheel drive can be
shifted on the fly. Two wheel drive increases ground
speed.
C. Glow Plug: When ignition is turned to preheat, glow plug lights when ready to start.
D. Temperture Light: The temperature light will come on if machine starts ot over heat.
E. Oil Light: The oil light should come on when ignition is on, without engine operating. The oil light will light
when the oil pressure is low. If oil light should come on, shut off engine immediately and find cause.
F. Hand Throttle: Hand throttle is located on right fender. Use it to regulate engine speed.
Two Or Three Wheel Drive: Front wheel drive valve is located on front right fender. Push to engage front wheel
driveand pullto disengagefront wheeldrive.
RIGHTFLOORBOARD
TwoPedal FootControl: Foot Pedalcontrols forwardandreverse motionand
also acts as a brake. Pushing down on front pedal (J) will give you a forward
motionand pushing downonrear pedal (K)will give youa reverse motion.
When pedal is released the hydrostatic transmission centers and stops the
vehiclewith a braking action.Ground speed is proportionalto how far thefoot
pedalis depressed.
Quick removal of foot from forward or reverse pedal will
result in an abrupt stop of machine.
STEERING
Acquaintyourself withsteering beforeoperatingmachine. Theautomotive
type steering wheel is connected to the front wheel assembly by a chain
drivensprocket.This allows forquickturns and short turningradius.
SEATADJUSTMENT
SeatAdjustment Lever is located under front of seat on left side. It allows
seatadjustment forwardorbackward foroperator’s comfort.There arefour
different bolt patterns so that you can manually adjust seat to fit operator’s
comfort.
PARKBRAKE
Parkbrake is locatedonleft fender.Pushlever (I) forwardto release
brakeandpull lever rearwardtoset brake. Park brakemust be applied
to start trap rake.
VALVEPANEL
TheLift Leversarelocated on leftfender.To raise pushdown and to
lowerpull back forward.Releasethe lever whenattachmentis in
properposition andleverwill returntoo neutral. TheRake Liftlever(L)
is on the inside of the machine. The LiftAssembly lever (M) is on the
outside closest to the seat unless equipped with a hydraulic plow
then the plow lever is closest to the seat.

10
Introduction
CONTROLS&INSTRUMENTSSUPERSTAR
INSTRUMENTSLOCATEDONTHECONTROLPANEL
A. Electric On/Off Valve Switch - Toggle switch that turns 2 Wheel to
3 Wheel Drive. For 42-117 Optional Electric Valve Kit.
B. Oil Light - The oil light should come on when ignition is on without
engine operating. The oil light will light when the oil pressure is
low. If oil light should come on, shut off engine immediately and
find the cause.
C. Ignition Switch - The ignition switch has three positions: Off-Run-
Start.
D. Choke - Pull choke control knob up to close choke plate when
starting a cold engine. A warm engine may not require "choking"
to start.
E. Hand Throttle - The hand throttle is used to regulate engine
speed.
F. Blower - This is an optional switch that comes with the Leaf and Debris Blower.
G. Light - this is an optional switch that comes with the Light Kit.
STEERING
Acquaint yourself with the steering before operating the machine. This machine is equipped with a tilt steering mecha-
nism. The lever to tilt the steering wheel is located at bottom of rubber boot on steering column. Hold the lever down
and adjust the steering wheel to a comfortable position.
RAKELIFTLEVER
This lever (H) raises and lowers all rear attachments. To raise push forward,
to lower pull back. Release the lever when attachment is in proper position
and lever will return to neutral.
LIFT ASSEMBLY LEVER
This lever (J) raises and lowers all attachments under the center of the ma-
chine. To raise push forward, to lower pull back. Release the lever when
attachment is in proper position and lever will return to neutral.
SEAT ADJUSTMENT
Seat adjustment lever is located under front of seat on left side. It allows seat
adjustment forward or backward for operator's comfort. The seat also has the
start safety switch in it. To start the Super Star the operator must be sitting on the seat.
RIGHT FLOORBOARD
FootPedal controlsforwardand reversemotion.
Pushingdownon the frontofpedal (K) willgiveyou
aforward motionandpushing downon rearpedal
(L)willgive you areversemotion. When pedal is
releasedthehydrostatictransmission centers and
stopsthe vehicle. Ground speedis proportional to
howfar the foot pedalis depressed.
HOUR METER/ VOLT METER
Located on the right front fiberglass cowling (M). The
hour meter indicates hours of machine operation. The
hour meter operates when ignition switch is on. The
volt meter indicates battery voltage. When starting the
battery, voltage should not drop below 9 volts, with the
key on, engine not operating the voltage should be 12
volts. With engine operating at 3600 rpm the voltage
should read around 14 volts.

11
Introduction
OPERATIONANDDAILYCHECKLIST
STARTINGENGINE
Before operating this machine, become familiar with all controls and functions of these units.Also complete all
maintenancerequirements and readall safety warnings. Byknowing the machinethoroughly, howit operates
andby doing the prescribedmaintenance steps, you canexpect relatively trouble-free operationfor years to
come.
1. Makesure the fuel flow valve, located onthefueltank, is “ON.”
2. Set park brake.
Super Rakes: Start safety switch is on the park brake.
Super Stars: Safety Start Switch is in seat. Operator must be sitting on
the seat for machine to start.
3. The ignition switch is a three position on gas and four position on diesel.
For Gas engines: Insert key (A) and turn clockwise until engine starts
(C). Release key and it will return to run position (B). Use choke and
hand throttle as necessary. For Diesel Engines: Insert key (A) and turn
counterclockwise (D) until glow plug is glowing. Turn key clockwise until
engine starts (C). Release key and it will return to run position (B).
4. Allow engine to idle and warm up a few minutes before selecting a
directionof travel.
5. To shut off engine on all gas machines turn key to the stop position. On
Diesel Super Rake move throttle to stop position and pull teh Kill control
handle.
COLDWEATHERSTARTING
When attempting to start the engine in cold weather, the oil in the hydrostat
pump may provide too much resistance to start a cold machine.
Before attempting to start the engine in cold weather, disengage the drive belt to the hydrostat by push-
ing down the idler lever until it catches in the notch on the latching lever. Start engine and allow it to
warm up with no load. When the engine is warm, shut off engine. Push down on the latching lever until
the idler is released.
Engine must be stopped when the drive belt is engaged. If the engine is running when the belt is en-
gaged,the vehicle maymovesuddenly,injuring you and/orbystanders.
Alwaysstop the engine beforereengaging the drivebelt.The sudden applicationofpower to thehydrostat may
causeseriousdamagethe pump, the engine or both.

12
Introduction
DAILYCHECKLIST
Use all procedures and parts prescribed by the manufacturer's. Read the engine manual
before operation.
Thesuggestedmaintenance checklist is notoffered as a replacement forthe manufacturer’s but asasupple-
ment.You must adhereto guidelines establishedbymanufacturerfor warrantycoverage.In adverseconditions
suchasdirt, mud orextremetemperatures, maintenance should bemore frequent.
DAILYCHECKLIST
1. Check park brake adjustment.Adjust as required.
2. Checkengine oil level.Addas needed.DONOT OVERFILL.
3. Tirepressure should be 5psi (0.35 bar) maximum.
4. Inspect electrical system for loose connections or frayed wiring, including battery cables. Replace any
faultyequipmentor tighten ifloose.
5. Check hardware for loose or missing nuts, bolts, screws, etc., and tighten or replace as needed.
6. Inspect hydraulic lines for damage or leaks. Never use hands to inspect leaks.
7. Check hydraulic oil level on the tank. The level should be 2 -21/2"(5 - 6.35 cm) from top of tank. If level is
low, add SAE 10W-40API Service SJ or higher motor oil.
8. Inspectsteering, throttle andshiftlinkages for good hookupsand clear travel.
9. Checkanti-vibration mountson engineframe.
10. Check controlsfor smooth, properworking operation. Lubricateasneeded.
11. Removedebrisfromenginecompartment

13
Service
HOWTORAKEASANDTRAP
HOWTORAKEASANDTRAP
Viewbunkerto determine the mostefficientpattern to follow sothatrake pattern and configurationofbunker will
flowin same generaldirectionand look attractive.
Enter bunker at its lowest point. Perhaps drain area or another point where “lip” of the trap is minimal.
Operate at 2-4 m.p.h. (3-6.5 kph) for best raking results. Control speed with hydraulic pedal.
Oncefully insidebunker,lower rearrake andproceedforward asdescribedabove.
First pass should be directly down center of trap. This helps avoid ex-
tremely sharp turns that will spoil sands’ appearance.
Onceatfar end, turn machine and
drivedownoneside
oftrap and come
back up other side.
Grassor other material
may build up on rake
tines as machine passes
“enter/exit”point in Figure
1. Lift rake briefly while still
movingforward.
Do not rake closer than 6" (15
cm) to edge of trap.
Do not rake slopes in trap. The
weightofmachine will pullsanddown.
Use cultivator or other center mounted accessories only as necessary for compacted sand. Frequent use will
leavesand too soft andobjectionable to somegolfers.
Use front mounted plow to push sand to desired locations within trap.
After exiting trap, secure machines in accordance with practices described in this manual. Rake trap edges,
slopes and “enter /exit” area with a hand rake.
Afterreturningto maintenance area, thoroughlycleanmachine, check fluids, and lubricateasadvised in this
manual.

14
Diagrams
BATTERY
BATTERY
Batteries normally produce explosive gases which can cause personal injury. Do not allow flames, sparks or any ig-
nited object to come near the battery. When charging or working near battery, always shield your eyes and always pro-
vide proper ventilation.
Battery cable should be disconnected before using "Fast Charge".
Charge battery at 15 amps for 10 minutes or 7 amps for 30 minutes. Do not exceed the recommended charging rate. If
electrolyte starts boiling over, decrease charging.
Always remove grounded (-) battery clamp first and replace it last. Avoid hazards by:
1. Filling batteries in well-ventilated areas.
2. Wear eye protection and rubber gloves.
3. Avoid breathing fumes when electrolyte is added.
4. Avoid spilling or dripping electrolyte.
Battery Electrolyte is an acidic solution and should be handled with care. If electrolyte is splashed on
any part of your body, flush all contact areas immediately with liberal amounts of water. Get medical
attention immediately.
JUMP STARTING
Use of booster battery and jumper cables. Particular care should be used when connecting a booster
battery. Use proper polarity in order to prevent sparks.
To jump start (negative grounded battery):
1. Shield eyes.
2. Connect ends of one cable to positive (+) terminals
of each battery, first (A) then (B).
3. Connect one end of other cable to negative (-)
terminal of "good" battery (C).
4. Connect other end of cable (D) to engine block on
unit being started (NOT to negative (-) terminal of
battery)
To prevent damage to other electrical components on unit
being started, make certain that engine is at idle speed
before disconnecting jumper cables.

15
EC Declaration of Conformity
according to Directive 89/392/EEC
We
SMITHCO INC.
(Name of supplier)
34 West Ave. Wayne, PA 19087 USA
(Full address of the manufacture - authorized representative established in the Community must
also give the business name and address of the manufacture)
declare under our sole responsibility, that the product
(Make, Model)
to which this declaration relates corresponds to the relevant basic safety and health
requirements of the Directive 89/392/EEC,
(if applicable)
and to the requirements of the other Directives:
EN292-1
EN292-2
EN294
EN349
92/59
89/392
(Title and/or number and date of issue of the other Directives)
(if applicable)
For the relevant implementation of the safety and health requirements mentioned in the
Directives, the following standard(s) and/or technical specification(s) has (have) been respected:
ISO 37-1983
PREN 836
ISO 1219-1976
SAE HS-2800
SAE J1362
(Title and/or number and date of issue of standard(s) and/or technical specification(s))
Cameron, Wisconsin USA
(Place and date of issue) (Name, function and signature of the authorized person)
GasSuper Rake13-550-D/13-551-D
Diesel Super Rake 17-001-D
SuperStar 42-000-D/42-001-D

16
NOTES

LIMITED WARRANTY
SMITHCO warrants this product to be free from defects in material and workmanship under normal
use for one year from the date of purchase by the original user. (60 days if product is used for rental
purposes.) All warranty claims must be handled through a SMITHCO authorized dealer or by
SMITHCO, INC. All transportation charges must be paid by the purchaser.
There is no further express warranty. All implied warranties, including those of merchantability and
fitness for a particular purpose, are limited to one year, (60 days if product is used for rental pur-
poses) from the date of purchase by the original user, and to the extent permitted by law any and all
implied warranties are excluded and disclaimed after the expiration of such period.
All incidental and consequential damages, including pickup and delivery of the unit, communica-
tion, mileage charges and/or rental of a replacement unit during repair, are not covered under this
warranty, nor is any loss of income and/or other loss resulting from the failure of the product to
function due to a warranty defect.
The following items are not covered under the SMITHCO warranty, and are warranted by their
respective manufacturer.
(a) Engine and engine parts, including starters, generators, alternators and filters.
(b) Transaxle, differentials, gear boxes and mechanical pumps.
(c) Hydrostatic transmissions, hydraulic pumps and motors.
(d) Batteries.
(e) Wheels and tires.
A copy of the warranty for the above items is furnished if necessary with each SMITHCO product.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitations of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights and you may also have other rights, which
may vary from state to state.
Federal law now requires disclosure of the warranty which applies to this product prior to the sale to
a customer. Please leave this statement attached to the product and allow the buyer to remove it
after purchase.
