Snom HD100 User manual

SIP Phone Configuration Guide
HD100 , HD101
HD130, HD150, HD151
HM201
HD300, HD350W, HD351W

SIP Phone Configuration Guide
- 2 -
Table of Contents
1Overview............................................................................................................................................................. 5
2Before Configuration......................................................................................................................................... 5
3Configure via Web Portal................................................................................................................................. 6
3.1 Configuration Process......................................................................................................................... 6
3.1.1 Step 1: Obtain IP Address......................................................................................................... 6
3.1.2 Step 2: Access Web Portal ....................................................................................................... 7

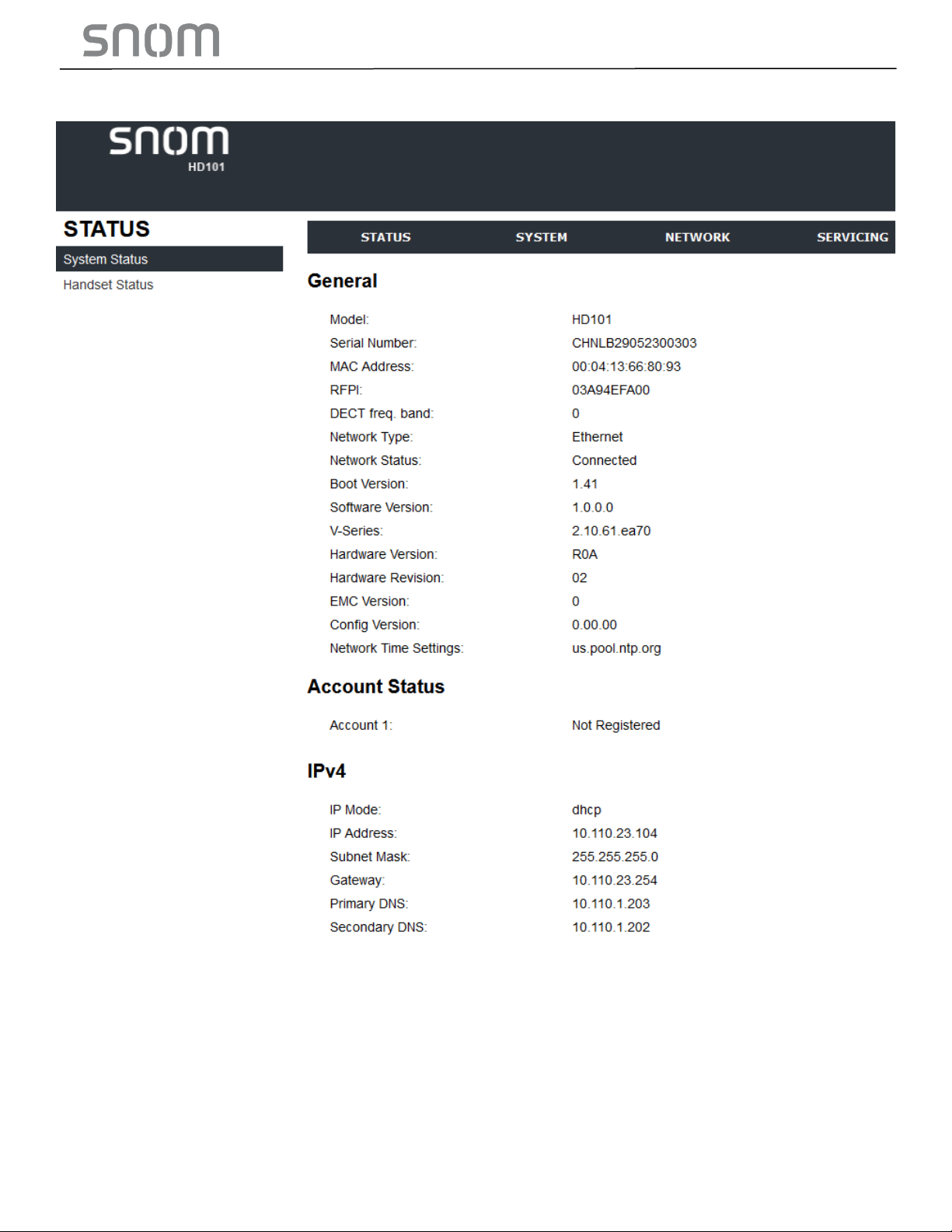

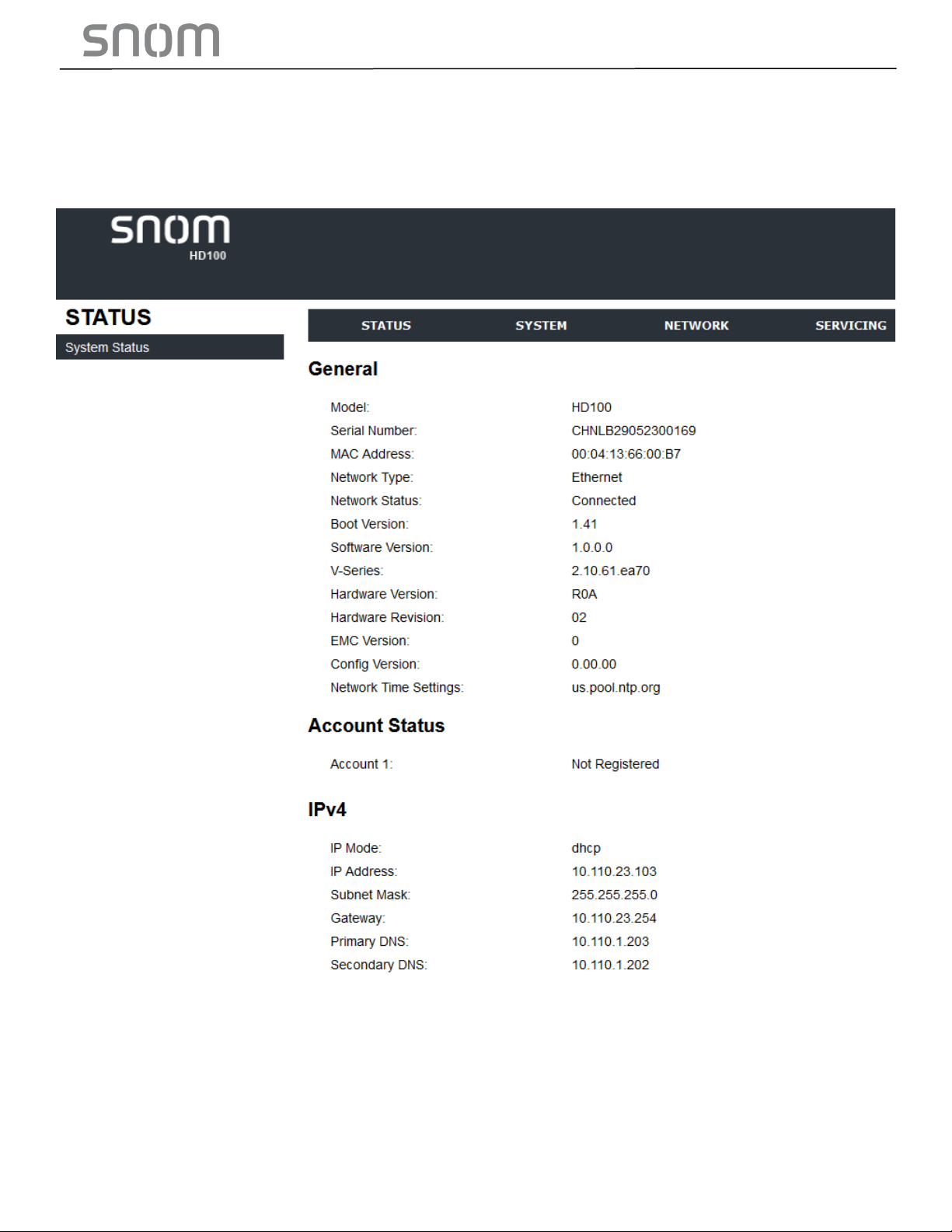

3.1.3 Step 3: Check System Information.......................................................................................... 8
3.1.4 Step 4: Configure Web Portal Pages..................................................................................... 10
3.1.5 Step 5: Reboot Phone System............................................................................................... 10
3.2 Configure System Pages.................................................................................................................. 10
3.2.1 SIP Account Management....................................................................................................... 10
3.2.1.1 General Account Settings......................................................................................... 12
3.2.1.2 Dial Plan....................................................................................................................... 12
3.2.1.3 SIP Server Settings.................................................................................................... 14
3.2.1.4 Registration Settings.................................................................................................. 14
3.2.1.5 Outbound Proxy Settings.......................................................................................... 14
3.2.1.6 Backup Outbound Proxy Settings............................................................................ 14
3.2.1.7 Caller Identity Settings............................................................................................... 15
3.2.1.8 Audio Settings............................................................................................................. 15
3.2.1.9 Quality of Service....................................................................................................... 16
3.2.1.10 Signaling Settings....................................................................................................... 16
3.2.1.11 Voice Settings............................................................................................................. 16
3.2.1.12 Voicemail Settings...................................................................................................... 17
3.2.1.13 NAT Traversal............................................................................................................. 17
3.2.1.14 Music on Hold Settings.............................................................................................. 18
3.2.1.15 Session Timer............................................................................................................. 18
3.2.1.16 Jitter Buffer.................................................................................................................. 18
3.2.1.17 Keep Alive.................................................................................................................... 19
3.2.2 Call Settings............................................................................................................................... 20

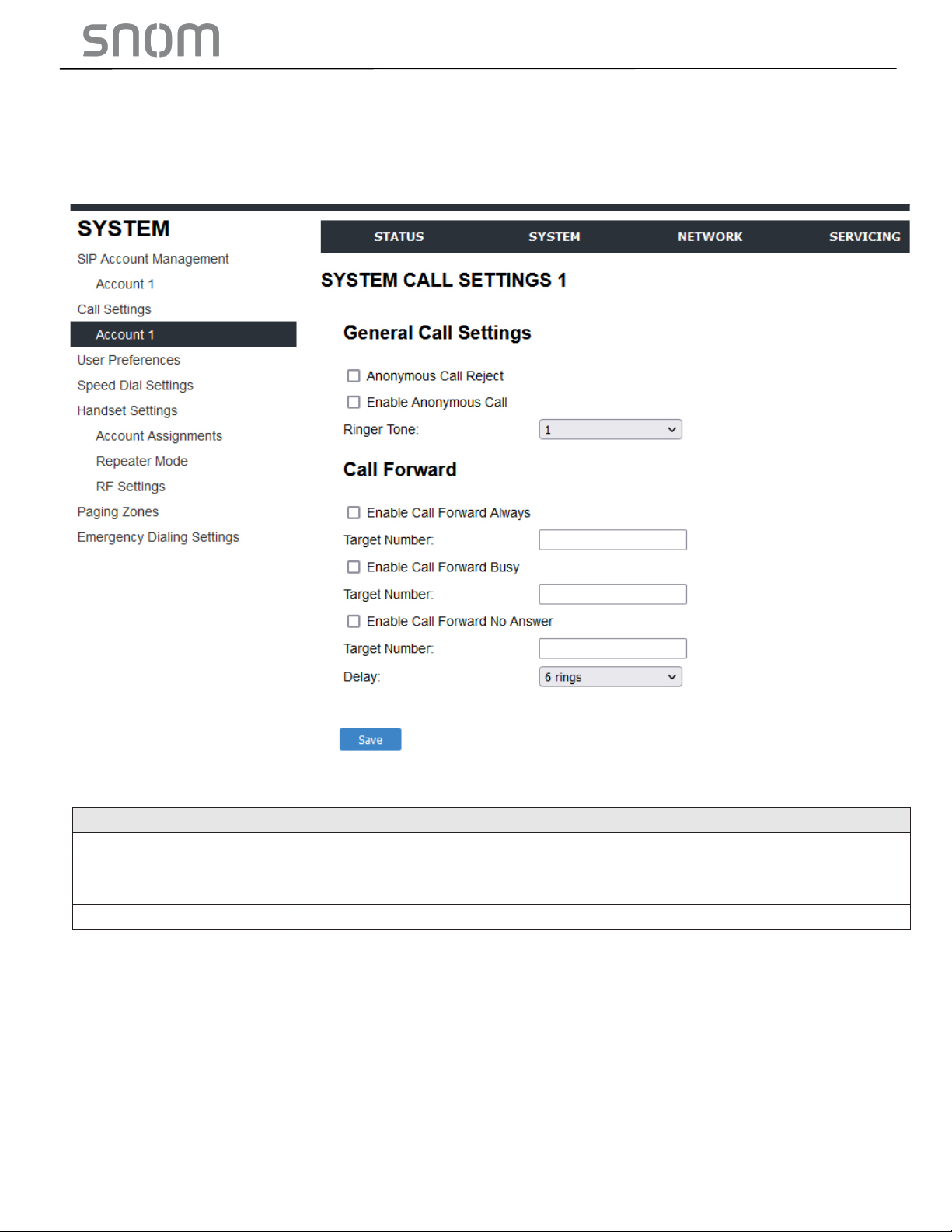

3.2.2.1 General Call Settings................................................................................................. 20
3.2.3 User Preferences...................................................................................................................... 20
3.2.3.1 General User Settings............................................................................................... 21
3.2.4 Speed Dial Settings (all the models except HM201)........................................................... 21
3.2.4.1 Speed Dial Keys......................................................................................................... 22
3.2.5 Handset Settings....................................................................................................................... 22
3.2.5.1 Account Assignments................................................................................................ 23
3.2.5.2 RF Power Settings..................................................................................................... 25
3.2.6 Emergency Dialing Settings.................................................................................................... 25
3.3 Configure Network Pages................................................................................................................. 25
3.3.1 Basic Network Settings............................................................................................................ 27
3.3.1.1 IPv4............................................................................................................................... 27
3.3.1.2 IPv6............................................................................................................................... 28
3.3.1.3 Wi-Fi............................................................................................................................. 29
3.3.1.4 Note on Wi-Fi Access Point Setting for SIP Network........................................... 33
3.3.1.5 Download Wi-Fi log.................................................................................................... 33
3.3.2 Advanced Network Settings.................................................................................................... 35

SIP Phone Configuration Guide
- 3 -
3.3.2.1 VLAN............................................................................................................................ 36
3.3.2.2 LLDP-MED .................................................................................................................. 37
3.3.2.3 802.1x........................................................................................................................... 37
3.4 Configure Servicing Pages............................................................................................................... 37
3.4.1 Reboot........................................................................................................................................ 37
3.4.2 Time and Date........................................................................................................................... 38
3.4.2.1 Time and Date Format............................................................................................... 38
3.4.2.2 Network Time Settings .............................................................................................. 39
3.4.2.3 Time Zone and Daylight Savings Settings ............................................................. 39
3.4.2.4 Manual Time Settings................................................................................................ 40
3.4.3 Firmware Upgrade.................................................................................................................... 40
3.4.3.1 Firmware Server Settings ......................................................................................... 41
3.4.3.2 Manual Firmware Update and Upload.................................................................... 41
3.4.3.3 Updating a Cordless Handset .................................................................................. 42
3.4.4 Provisioning............................................................................................................................... 44
3.4.4.1 Provisioning Server.................................................................................................... 45
3.4.4.2 Plug-and-Play Settings.............................................................................................. 45
3.4.4.3 DHCP Settings............................................................................................................ 45
3.4.4.4 Resynchronization...................................................................................................... 46
3.4.4.5 Import Configuration .................................................................................................. 47
3.4.4.6 Export Configuration.................................................................................................. 47
3.4.4.7 Reset Configurations................................................................................................. 48
3.4.5 Security....................................................................................................................................... 49
3.4.5.1 Passwords................................................................................................................... 50
3.4.5.2 Web Server.................................................................................................................. 50
3.4.5.3 Trusted Servers.......................................................................................................... 50
3.4.5.4 Trusted IP.................................................................................................................... 52
3.4.6 Certificates................................................................................................................................. 53
3.4.6.1 Device Certificate....................................................................................................... 53
3.4.6.2 Trusted Certificate...................................................................................................... 54
3.4.7 TR-069 Settings........................................................................................................................ 54
3.4.8 System Logs.............................................................................................................................. 55
3.4.8.1 Syslog Settings........................................................................................................... 56
3.4.8.2 Network Trace............................................................................................................. 57
4Configure via Star Code................................................................................................................................. 58
4.1 Base Star Codes Provisioning HD100, HD100W, HD101, HD101W........................................ 58
4.2 Handset Star Codes Provisioning HD101, HD101W.................................................................... 58
4.3 Handset Star Codes Provisioning HD100, HD100W.................................................................... 58
4.4 Handset Star Codes Provisioning HD101, HD101W.................................................................... 58
4.5 Base Star Codes Provisioning HD151............................................................................................ 58
4.6 Handset Star Codes Provisioning HD151...................................................................................... 59
4.7 Base Star Codes Provisioning HD130, HD150............................................................................. 59
5Configure with Voice Menu............................................................................................................................ 60
6Provisioning Using Configuration Files........................................................................................................ 62
6.1 Provisioning Process......................................................................................................................... 62
6.1.1 Resynchronization: Configuration File Checking................................................................. 63
6.1.2 HD10X Reboot.......................................................................................................................... 63
6.2 Configuration File Types................................................................................................................... 63
6.3 Data Files............................................................................................................................................. 64

SIP Phone Configuration Guide
- 4 -
6.4 Configuration File Tips and Security............................................................................................... 64
6.4.1 Clearing Parameters with %NULL in Configuration File..................................................... 64
6.5 TFTP Pull Down Method................................................................................................................... 64
6.6 Configuration File Parameter Guide................................................................................................ 65
6.6.1 SIP Account Settings ("sip_account" Module)..................................................................... 65
6.6.2 Handset Settings ("hs_settings" Module) ............................................................................. 76
6.6.3 Network Settings ("network" Module).................................................................................... 76
6.6.4 Provisioning Settings ("provisioning" Module) ..................................................................... 85
6.6.5 Time and Date Settings ("time_date" Module)..................................................................... 90
6.6.6 Log Settings ("log" Module)..................................................................................................... 93
6.6.7 Web Settings ("web" Module)................................................................................................. 95
6.6.8 Trusted IP Settings (“trusted_ip” Module)............................................................................. 95
6.6.9 Trusted Server Settings (“trusted_servers” Module)........................................................... 96
6.6.10 User Preference Settings ("user_pref" Module)................................................................... 96
6.6.11 Call Settings ("call_settings" Module).................................................................................... 97
6.6.12 Programmable Feature Key Settings ("pfk" Module).......................................................... 99
6.6.13 Audio Settings (“audio” Module)............................................................................................. 99
6.6.14 TR-069 Settings (“tr069” Module) ........................................................................................ 101
7Troubleshooting...................................................................................................................................... 103
7.1 Common Troubleshooting Procedures......................................................................................... 103
8Appendix.................................................................................................................................................. 104
8.1 Upload / Update Handset Screen Wallpaper for HD1................................................................ 104
8.2 Upload/Update Firmware for HM201 Only................................................................................... 104
8.3 Speed Dial Settings for HM201...................................................................................................... 105

SIP Phone Configuration Guide
- 5 -
1 Overview
The purpose of this configuration guide is to provide a basic overview of the SIP phones, allowing IT &
Telco technical experienced installers to proceed with provisioning of the phone and register to an IP
PBX. The intended audience for this document is Customer Service and Technical Installation
Personnel involved in the installation and maintenance of SIP phones. For bulk provisioning, please
refer to the Administration Guide for Hotel SIP Phone Admin Tool.
All SIP phones require proper configuration before use. Each SIP phone is equipped with a web
portal user interface for easy configuration and administration.
Inter-Op Partners
These SIP phones have successfully passed certification with PBX manufactures such as Alcatel,
Avaya, Broadcloud, Broadworks, Mitel, NEC, PhonesSuite and Siemens. For specific details of the
system, please contact your PBX service provider.
2 Before Configuration
All SIP phones must be setup & wired correctly before configuration. Please read the model specific
quick setup guide for setup & wiring instructions shipped with the phones.

SIP Phone Configuration Guide
- 6 -
3 Configure via Web Portal
Configure all SIP phones via web portal menus.
3.1 Configuration Process
3.1.1 Step 1: Obtain IP Address
To obtain auto IP address
By default, the phones automatically obtain IP address through DHCP server. You may use a DHCP
lease viewer to find out the IP address assigned by matching the MAC address on the back of the
phone with the search results displayed.
To discover IP address using the phone IP address read back
HD100
•Use the keypad to press and hold [VOL+] for more than 5 seconds, and then press [VOL-] [VOL+]
[VOL-] [VOL+] [VOL-] [BS1] [BS2] [BS3] in sequence.
HD101
•Press on its handset's keypad [TALK] [*] [*] [*] [*] [1] [2] in sequence.
HD350W & HD351W
•Press on its keypad [*] [4] [7] [1] [2] [3] [3] [#] in sequence.

SIP Phone Configuration Guide
- 7 -
3.1.2 Step 2: Access Web Portal
The SIP phone embedded web serverresponds to HTTPS request. Embedded HTML pages allow user
to configure the SIP phone via a web browser such as Microsoft’s IE (version 6.0 or later) or Mozilla
Firefox (version 4.0.1 or later).
Note: If you attempt to access the phones web interface and only end up with an empty / blank page,
you most probably tried to use HTTP instead of HTTPS. Please try again with https://
To access the web portal menu via Ethernet:
1. Connect the computer to the same network as the phone.
•The web enabled computer has tobe connected to the same sub-networkas theSIP phone.
This can easily be done by connecting the computer to the same hub/ switch that the SIP
phone is connected to.
2. Make sure the SIP phone is properly installed.
3. Open a web browser on your computer.
4. Enter https:// followed by the IP address of the SIP phone in the address bar of the browser.
•When the SIP phone is properly connected to a DHCP server, you can use the distributed
IP address of the SIP phone. The address is in the format: XXX.XXX.XXX.XXX, where XXX
represents a number from 0-255. You need this number to access the web portal menu.
•Please note most web browsers will report the website / the phone web user interface as
unsecure / not private or not trustworthy. This is due the nature of the phone built-in device
certificate which comes from a (for your browser) unknown / untrusted source (the Snom
Technology Root Authority). Beside that the CN, common name of the device certificate
cannot be identical to the IP address used to access the web interface. Due to the
production procedure the device certificate CN will correspond the specific LAN MAC
address of the phone. So, from the browsers perspective it will remain looking suspicious /
invalid, even you manage to import the Snom Technology Root Authority as a trusted
source into your browser / PC. This is common per design for embedded devices, like SIP
phones and you need to use an exception, confirming to your browser that you like to
connect despite the warning. If this exception is not offered in your browser, your browser
is most likely managed this way by your corporate IT / security team, and you need to
request this option from them.
5. When the login page appears, enter the administrator’s username and password to access the
web portal menu.
•The default username is admin and the default password is admin.
On the Web Portal, there is a navigation bar at the top and the respective submenus on the left.
Navigation bar topics:
•STATUS
•SYSTEM
•NETWORK
•SERVICING

SIP Phone Configuration Guide
- 8 -
3.1.3 Step 3: Check System Information
At the top navigation menu, select STATUS. You will able to review System Status and Handset
Status (i.e. general information about the phone and handsets).
System Status - HD100

SIP Phone Configuration Guide
- 9 -
System Status - HD101
•General: display information about your device, including model, MAC address, and firmware
version.
•Account Status: display your SIP account registration.
•IPv4 | IPv6: display network information regarding your device’s network address and network
connection.

SIP Phone Configuration Guide
- 10 -
System status - HM201
Software version: 2.22.6.0 or later
- image pending till product is available
Handset status - HD101, HD351W, HM201 only
- image pending till product is available
The handset status page shows the name and the registration status of all the registered cordless
handsets. The page lists the maximum of four handsets, even if fewer handsets are registered. If you
have not given the handsets unique names, their default names of HANDSET will appear.
3.1.4 Step 4: Configure Web Portal Pages
3.1.5 Step 5: Reboot Phone System
A phone system reboot, after changing configuration of the following settings, is required in order to
apply the new settings:
•Network Configuration
•Network Security
•Static IP Mapping
•DECT
•Inter-Op Configuration
After saving the settings, click Reboot to perform phone system reboot.
3.2 Configure System Pages
3.2.1 SIP Account Management
On the SIP Account Management page, you can configure each account you have ordered from your
service provider or configured in your SIP-PBX. The SIP Account settings are also available as
parameters in the configuration file. See Section 6.6.1 SIP Account Settings ("sip_account" Module).

SIP Phone Configuration Guide
- 11 -

SIP Phone Configuration Guide
- 12 -
3.2.1.1 General Account Settings
Click the links on the web portal for each setting to see the matching configuration file parameter in
Section 6.6 Configuration File Parameter Guide. Default values and ranges are listed there.
Setting
Description
Enable Account
Enable or disable the SIP account. Select to enable.
Account label
Enter the name that will appear on the HD10X cordless handset
display when account 1 is selected.
The Account Label identifies the SIP account throughout the Web
Portal and on the handset Line menu.
Display Name
Enter the Display Name. The Display Name is the text portion of the
caller ID that is displayed for outgoing calls using account 1.
User Identifier
Enter the User identifier supplied by your service provider.
The User ID, also known as the Account ID, is a SIP URI field used
for SIP registration.
Note:
•Do not enter the host name (e.g. "@sipservice.com"). The Web
Portal automatically adds the default host name.
Authentication Name
If authentication is enabled on the server, enter the authentication
name (or authentication ID) for authentication with the server.
Authentication Password
If authentication is enabled on the server, enter the authentication
password for authentication with the server.
Dial Plan
Enter the dial plan, with dialing strings separated by a symbol. See
Section 3.2.1.2 Dial Plan.
Call Restriction Dial plan
To restrict users from dialing out numbers through dial plan matching
on a per-account basis.
Inter Digit Timeout (sec)
Set how long the HD10X waits after any "P" (pause) in the dial string
or in the dial plan.
Line Type
Select the line type to Private or Shared.
A private line will be accessible only at the HD10X you are
configuring. Shared lines can be assigned to more than one HD10X.
For more information about using shared lines, see HD10X User
Guide.
DTMF method
Select the default DTMF transmission method. You may need to
adjust this if call quality problems are triggering unwanted DTMF
tones or you have problems sending DTMF tones in general.
Unregister after reboot
Enable the phone to unregister the account(s) after rebooting - before
the account(s) register again as the phone starts up. If other phones
that share the same account(s) unregister unexpectedly in tandem
with the rebooting HD10X, disable this setting.
3.2.1.2 Dial Plan
The dial plan consists of a series of dialing rules, or strings, that determine whether what the user has
dialed is valid and when the HD10X should dial the number.
Dialing rules must consist of the elements defined in the table below.
Element
Description

SIP Phone Configuration Guide
- 13 -
x
Any dial pad key from 0 to 9, including # and *.
[0-9]
Any two numbers separated by a hyphen, where the second number is greater than the
first. All numbers within the range or valid, excluding # and *.
x+
An unlimited series of digits.
,
This represents the playing of a secondary dial tone after the user enters the digit(s)
specified or dials an external call prefix before the comma. For instance, "9,xxxxxxx"
means the secondary dial tone is played after the user dials 9 until any new digit is
entered. "9,3xxxxxx" means only when the digit 3 is hit would the secondary dial tone
stop playing.
PX
This represents a pause of a defined time; X is the pause duration in seconds. For
instance, "P3" would represent pause duration of 3 seconds. When "P" only is used, the
pause time is the same as the Inter Digit Timeout (see Section 3.2.1 SIP Account
Management).
(0:9)
This is a substitution rule where the first number is replaced by the second. For example,
"(4:723)xxxx" would replace "46789" with "723-6789". If the substituted number (the first
number) is empty, the second number is added to the number dialed. For example, in
"(:1)xxxxxxxxxx", the digit 1 is appended to any 10-digit number dialed.
|
This separator is used to indicate the start of a new pattern. Can be used to add multiple
dialing rules to one pattern edit box.
A sample dial plan appears below.
[1-5][0-3]x | [1-5]40 |9[2-9]xxxxxxxxx |91[2-9]xxxxxxxxx |911
Local call, 10-digit formatting
with a “a”dialing prefix
Extension ending
in 00-39
Extension
ending in 40
Emergency
Domestic long distance
(most regions)

SIP Phone Configuration Guide
- 14 -
3.2.1.3 SIP Server Settings
SIP Server
Server Address:
10.244.185.71
Port:
5060
Setting
Description
Server address
Enter the IP address or domain name for the SIP server.
Port
Enter the port number that the SIP server will use.
3.2.1.4 Registration Settings
Registration
Server Address:
10.244.185.71
Port:
5060
Expiration (secs):
3600
Registration Freq (secs):
10
Setting
Description
Server address
Enter the IP address or domain name for the registrar server.
Port
Enter the port number that the registrar server will use.
Expiration (secs)
Enter the desired registration expiry time in seconds
Registration Freq
(secs)
Enter the desired registration retry frequency in seconds.
IfregistrationusingthePrimaryOutboundProxyfails,theRegistrationFreq
settingdeterminesthenumberofsecondsbeforearegistrationattemptis
made using the Backup Outbound Proxy
3.2.1.5 Outbound Proxy Settings
Outbound Proxy
Server Address:
10.244.185.71
Port:
5060
Setting
Description
Server Address
Enter the IP address or domain name for the proxy server.
Port
Enter the port number that the proxy server will use.
3.2.1.6 Backup Outbound Proxy Settings
Backup Outbound Proxy
Server Address:
Port:
5060
Setting
Description
Server Address
Enter the IP address or domain name for the backup proxy server.
Port
Enter the port number that the backup proxy server will use.

SIP Phone Configuration Guide
- 15 -
3.2.1.7 Caller Identity Settings
Caller Identity
Source Priority 1:
PAID

Source Priority 2:
RPID

Source Priority 3:
From

Setting
Description
Source Priority 1
SelectthedesiredcallerIDsourcetodisplayontheincomingcallscreen:
“From” field,RPID(Remote-PartyID)orPAI(P-AssertedIdentity)header.
Source Priority 2
Select the lower-priority caller ID source.
Source Priority 3
Select the lowest-priority caller ID source.
3.2.1.8 Audio Settings
Setting
Description
Codec priority 1
Select the codec to use first during a call.
Codec priority 2
Select the codec to use second during a call if the previous codec fails.
Codec priority 3
Select the codec to use third during a call if the previous codec fails.
Codec priority 4
Select the codec to use fourth during a call if the previous codec fails.
Codec priority 5
Select the codec to use fifth during a call if the previous codec fails.
Codec priority 6
Select the codec to use sixth during a call if the previous codec fails.
Codec priority 7
Select the codec to use seventh during a call if the previous codec fails.
Enable voice
encryption (RTP)
Select to enable secure RTP for voice packets.
Enable G.729 Annex B
WhenG.729a/bisenable,selecttoenableG.729AnnexB,withvoiceactivity
detection (VAD)and bandwidth-conserving silence suppression.
Preferred Packetization
Time (ms)
Select the packetization interval time.
DTMF Payload Type
Set the DTMF payload type for in-call DTMF from 96-127.
English

SIP Phone Configuration Guide
- 16 -
3.2.1.9 Quality of Service
Quality of Service
DSCP (voice):
46
DSCP (signaling):
26
Setting
Description
DSCP (voice)
EntertheDifferentiatedServicesCodePoint(DSCP)valuefromtheQualityof
Service setting onyour router orswitch.
DSCP (signaling)
EntertheDifferentiatedServicesCodePoint(DSCP)valuefromtheQualityof
Service setting onyour router orswitch.
3.2.1.10 Signaling Settings
Signaling Settings
Local SIP Port:
5060
Transport:
UDP

Setting
Description
Local SIP port
Enter the local SIP port.
Transport
Select the SIP transport protocol:
• TCP (Transmission Control Protocol) is the most reliable protocol
and includes error checking and deliveryvalidation.
• UDP(UserDatagram Protocol) is generally less prone to latency, but
SIP data may be subject to network congestion.
• TLS (Transport Layer Security) - the HD10X supports secured SIP
signalling via TLS. Optional server authentication is supported via user-
uploadedcertificates. TLScertificates areuploadedusingtheconfiguration
file.
3.2.1.11 Voice Settings
Voice
Min Local RTP Port:
18000
Max Local RTP Port:
19000
Setting
Description
Min Local RTP Port
Enter the lower limit of the Real-time Transport Protocol (RTP) port range.
RTP ports specify the minimum and maximum port values that the phone
will use for RTP packets.
Max Local RTP Port
Enter the upper limit of the RTP port range.

SIP Phone Configuration Guide
- 17 -
3.2.1.12 Voicemail Settings
Voicemail Settings
Enable MWI Subscription
Mailbox ID:
Expiration (secs):
3600
Ignore Unsolicited MWI
Enable Stutter Dial Tone
Voicemail:
Setting
Description
Enable MWI
Subscription
When enabled, the account subscribes to the "message summary" event
package.TheaccountmayusetheUserIDortheserviceprovider's"MailboxID".
Mailbox ID
EntertheURIforthemailboxID.ThephoneusesthisURIfortheMWI
subscription.Ifleftblank,theUserIDisusedfortheMWIsubscription.
Expiration (secs)
Enter the MWI subscription expiry time (in seconds) for account 1.
Ignore unsolicited MWI
When selected, unsolicited MWI notifications - notifications in addition to,
or instead of SUBSCRIBE and NOTIFY methods - are ignored for
account 1. If the HD10X receives unsolicited MWI notifications, the
Message Waiting LED will not light to indicate new messages.
Disable this setting if:
• MWIservicedoesnotinvolveasubscriptiontoavoicemailserver.Thatis,
the server supports unsolicited MWI notifications.
• YouwanttheMessageWaitingLEDtoindicatenewmessageswhenthe
HD10Xreceivesunsolicited MWI notifications.
EnableStutterDialTone
Enablesordisablesthestutterdialtoneforthataccount(indicatingmessage(s)
waiting) when the phone goes off hook.
Voicemail
Enter the voicemail retrieval feature access code.
3.2.1.13 NAT Traversal
NAT Traversal
Enable STUN
Server Address:
Port:
3748
Enable STUN Keep-Alive
Keep-Alive Interval (secs):
30
✓
✓

SIP Phone Configuration Guide
- 18 -
Setting
Description
Enable STUN
Enables or disables STUN (Simple Traversal of UDP through NATs) for
account 1. The Enable STUN setting allows the HD10X to identify its
publicly addressable information behind a NAT via communicating with a
STUN server.
Server Address
Enter the STUN server IP address or domain name.
Port
Enter the STUN server port.
Enable STUN Keep-
Alive
Enable or disables UDP keep-alive. Keep-alive packets are used to maintain
connections established throughNAT.
Keep-Alive Interval(sec)
Enter the interval (in seconds) for sending UDP keep-alive.
3.2.1.14 Music on Hold Settings
Music On Hold
Enable Local MoH
Setting
Description
Enable Local MoH
Enables or disables a hold-reminder tone that the user hears when a far-
end caller puts the call on hold.
3.2.1.15 Session Timer
Session Timer
Enable Session Timer
Minimum Value (secs)
90
Maximum Value (secs):
1800
Setting
Description
Enable Session Timer
EnterthelowerlimitoftheReal-timeTransportProtocol(RTP)portrange.RTP
ports specify the minimum and maximum port values that the phone will use
for RTPpackets.
Minimum Value (sec)
Set the session timer minimum value (in seconds) for account 1.
Maximum Value (sec)
Set the session timer maximum value (in seconds) for account 1.
3.2.1.16 Jitter Buffer
Jitter Buffer
Fixed
Fixed Delay (ms):
70
Adaptive
3600
Normal Delay (ms):
80
Minimum Delay (ms):
60
Maximum Delay (ms):
240
✓✓

SIP Phone Configuration Guide
- 19 -
Setting
Description
Fixed
Enable fixed jitter buffer mode.
Fixed Delay (ms)
If Fixed is selected, enter the fixed jitter delay.
Adaptive
Enable adaptive jitter buffer mode.
Normal Delay (ms)
If Adaptive is selected, enter the normal or “target” delay.
Minimum Delay (ms)
Enter the minimum delay.
Maximum Delay(ms)
Enterthe maximum delay. This time, in milliseconds, must be at least twice
the minimum delay.
3.2.1.17 Keep Alive
Setting
Description
Enable Keep Alive
EnableSIPkeepaliveinserviceofNATtraversalandasaheartbeatmechanism
toaudittheSIPserverhealthstatus.Onceenabled,OPTIONStraffic should be
sent whenever the account is registered. OPTIONS traffic will occur
periodically according to the keep-alive interval.
Keep Alive interval
(sec)
SettheintervalatwhichtheOPTIONSforthekeep-alivemechanismaresent.
Ignore KeepAlive
Failure
Enablethephoneto ignorekeep-alivefailure,ifthefailurecan triggeraccount
re-registration and re-subscription (and active calls are dropped).

SIP Phone Configuration Guide
- 20 -
3.2.2 Call Settings
You can configure call settings for each account. Call Settings include Call Forward settings.
The call settings are also available as parameters in the configuration file. See Section 6.6.11 Call
Settings ("call_settings" Module).
3.2.2.1 General Call Settings
Setting
Description
Anonymous Call Reject
Enables or disables rejecting calls indicated as "Anonymous".
Enable Anonymous Call
Enables or disables outgoing anonymous calls. When enabled, the caller
name and numberare indicated as"Anonymous".
Ringer Tone
Set the ringer tone for incoming calls on the account.
3.2.3 User Preferences
OntheUserPreferencespage,youcanconfigure somebasicsettingsforthephoneandsetthe language
thatappearsontheWeb Portal.TheUserPreferencespageisalsoavailabletophoneusers whentheylog
on to theWeb Portal.
The user preference settings are also available as parameters in the configuration file. See Section
6.6.10 User Preference Settings ("user_pref" Module) .
