Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1. Prior information 2
1.1. Field of application 2
1.2. Liability 2
2. Installation 2
2.1. Assembly 2
2.2. Wiring 4
2.3. Commissioning 5
2.4. Tips and advice for installation 8
3. Operation and maintenance 10
3.1. Up and Down buttons 10
3.2. STOP function 10
3.3. Favourite (my) position 10
3.4. Additional settings 10
3.5. Tips and recommendations for use 10
4. Technical data 11
TRANSLATED INSTRUCTIONS
These instructions apply to all Oximo 40 Solar io drives, the dierent versions of which are available in the
current catalogue.
CONTENTS
GENERAL INFORMATION
Safety instructions
Danger
Indicates a danger which may result in immediate death or serious injury.
Warning
Indicates a danger which may result in death or serious injury.
Precaution
Indicates a danger which may result in minor or moderate injury.
Attention
Indicates a danger which may result in damage to or destruction of the product.

2
EN Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1. PRIOR INFORMATION
1.1. FIELD OF APPLICATION
OXIMO40 drives are designed to drive all types of roller shutter (with or without a rigid link, with or without stop,
etc.).
The professional drive and home automation installer must ensure that, once installed, the installation of
the motorised product complies with the standards in force in the country in which it is commissioned, in
particular standard EN 13659 on roller shutters.
1.2. LIABILITY
Please read these instructions carefully before installing and using the drive. In addition to following the
instructions given in this guide, the instructions detailed in the attached Safety instructions document must also
be observed.
The drive must be installed by a drive and home automation professional, in accordance with Somfy’s
instructions and the applicable regulations in the country of installation.
Any use of the drive outside the field of application described above is prohibited. Such use, and any failure to
comply with the instructions given in this guide and in the attached Safety instructions, document, absolves
Somfy of any liability and invalidates the warranty.
The installer must inform its customers of the operating and maintenance conditions for the drive and must
provide them with the instructions for operation and maintenance as well as the attached Safety instructions
document after installing the drive. Any After-Sales Service operation on the drive requires intervention by a
drive and home automation professional.
If in doubt when installing the drive, or to obtain additional information, contact a Somfy adviser or visit the
website www.somfy.com.
2. INSTALLATION
Warning
• These instructions are mandatory for the drive and home automation professional installing the drive.
• Comply with current standards and legislation in the country of installation.
Attention
• Never drop, knock or puncture the drive or immerse it in liquid.
• Install an individual control point for each drive.
Installation recommendations:
The three elements comprising the kit must be installed on the same
side of the roller shutter (Oximo 40 Solar io motor, 3.2 W SOLAR
PANEL and either an Oximo WireFree Battery /12V NAKED
BATTERY or an Oximo WIreFree Battery Stick).
2.1. ASSEMBLY
2.1.1. Preparing the drive installation
Check that the inner diameter of the motorized product’s tube is
greater than or equal to 37mm.
1) Fit the accessories required to integrate the drive into the roller
tube:
-the crown (a) and the wheel (b) on the drive.
2) Measure the length (L1) between the inner edge of the drive
head and the rim of the drive wheel.
1)
L1
L1 = …
2)
L1
L1 = …
(4
(1(2

3
EN
Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.1.2. Preparing the tube
Install the drive in a roller tube with a minimum thickness of 0.5 mm
and a smooth inner surface: with no welding, crimping, folding, etc.
inside the tube.
1) Cut the roller tube to the required length, depending on the
motorised product.
2) Deburr the roller tube and remove the swarf.
3) For roller tubes which
are smooth inside, cut a
notch with the following
measurements:
2.1.3. Drive-tube assembly
1) Slide the drive into the roller tube.
For winding tubes with a smooth interior, position the cut notch
on the crown.
2) The drive wheel must be locked in place to prevent any
movement in the roller tube:
This can be achieved by fastening the winding tube to the drive
wheel using 4 self-tapping screws, Ø5mm, or 4 steel pop riv-
ets, Ø4.8mm, placed between 5mm and 15mm from the
outer edge of the drive wheel, regardless of the roller tube.
Attention
The screws or pop rivets must only be fastened to the drive
wheel and not to the drive.
2.1.4. Mounting the tube-drive assembly
1) Install and fix the drive-tube assembly onto the end bracket (e)
and onto the drive bracket (f).
Attention
Ensure that the drive-tube assembly is secured to the end
bracket. This operation prevents the drive-tube assembly from
coming out of the end bracket mounting.
2) Depending on the type of bracket, screw the adapter (g) onto the
motor head.
2.1.5. Installation of the antenna
Attention
• Do not wind or cut the antenna wire. Observe a minimum
bending radius (h) of 9mm.
• The end of the drive antenna wire must protrude at least
10 cm from the roller shutter housing and be 1cm from all
metal surfaces.
3)
1) 2)
cd
L1
L1
1)
2)
L1
L1
fe
g
1)
2)
≥1 cm
≥10 cm
◀
◀
◀
◀
◀
◀
c d
Ø 40 x 1 6 mm 8.5 mm
Ø 40 x 1.5 7 mm 8.5 mm
h

4
EN Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.2. WIRING
Precaution
• Standard NF C 15-100 for electrical installations must be adhered to.
• To ensure electrical safety, this class III drive must be recharged by a “SELV” voltage source (Safety Extra
Low Voltage).
Attention
• Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
• Attach cables to prevent any contact with moving parts.
• If the drive is used outdoors and if the power supply cable is of type H05-VVF, route the cable in a UV-
resistant duct, e.g. trunking.
• The drive cable cannot be removed. If it is damaged, return the drive to the After-Sales department.
• Leave the drive power supply cable accessible: it must be easy to replace.
• To guarantee good radio reception, do not cut the external antenna.
• The cables and connectors must be protected from the roller shutter movement.
• Somfy recommends placing the connectors behind the end piece and securing the cables inside the roller
shutter housing.

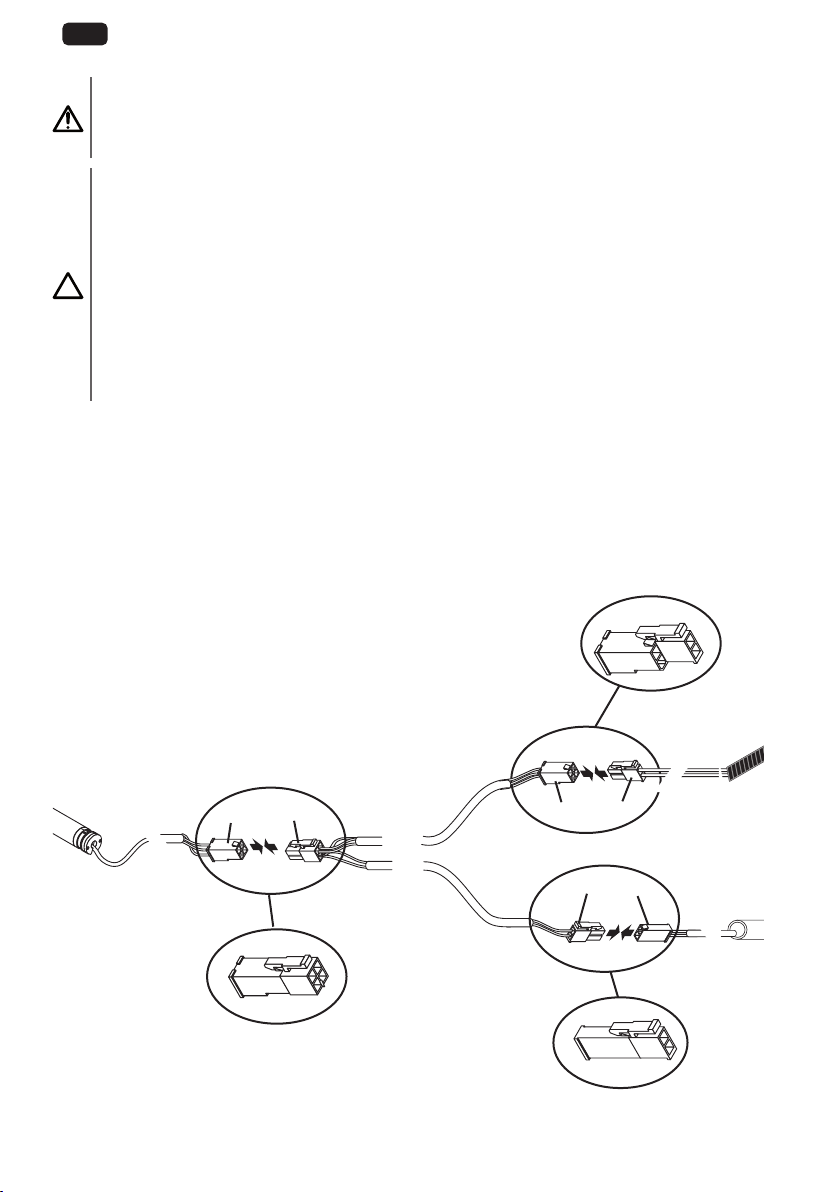

1) Wire the 4-pin drive connector (A) to the 4-pin Y cable connector (B).
2) Wire the 2-pin battery connector (C) to the 2-pin Y cable connector (D).
3) Wire the 2-pin solar panel connector (E) to the 4-pin Y cable connector (F)
D C
BA F E

5
EN
Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.3. COMMISSIONING
Identifying the steps to follow
The end limit setting depends on the type of roller blind:
For a roller shutter with rigid
links and with stops
For a roller shutter without rigid
links and without stops
For a roller shutter without rigid
links and with stops or with rigid
links and without stops
The upper and lower end limits
must be set in manual mode.
The upper or lower end limits
must be set in semi-automatic
mode.
Step 1: Pre-programming the control point (2.3.1)
Step 4: Programming the control point (2.3.5)
OPERATION
Step 3:
Setting the end limits in
manual mode (2.3.4.b)
Step 3:
Setting the end limits
in semi-automatic mode
(2.3.4.c)
Step 2: Controlling the direction of rotation (2.3.2)
Step 3:
Automatic setting of end
limits (2.3.4.a)
No adjustment necessary : the
end limits are set automatically.
Check the robustness of the roller
shutter and its fittings.
For information about the compat-
ibility of the drive with the roller
shutter and accessories, contact
the roller shutter manufacturer or
Somfy.

6
EN Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.

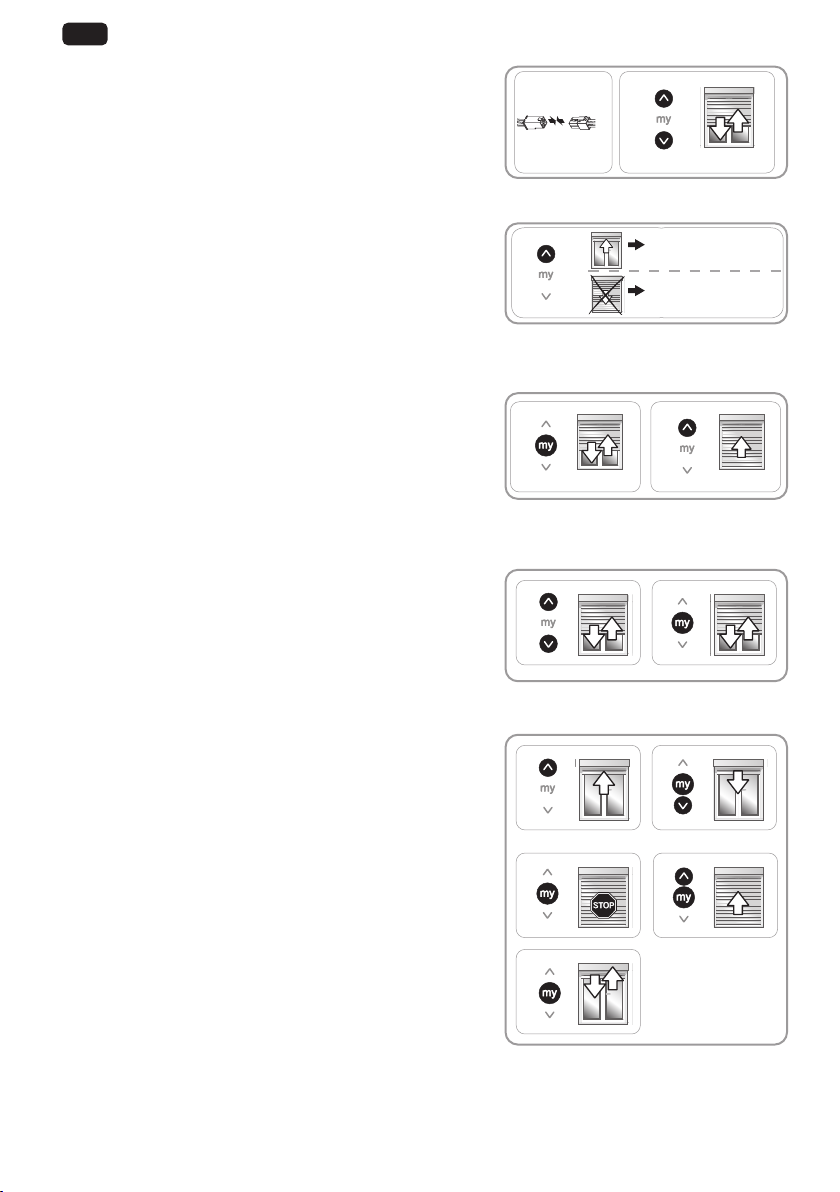

2.3.1. Pre-programming the control point
1) Connect the drive (see 2.2. Wiring).
2) Press the Up and Down buttons on the control point: The
motorised product makes up and down movements (rapidly
raising and lowering) and the control point is pre-programmed in
the drive.
2.3.2. Checking the direction of rotation
1) Press the Up button on the control point:
a) If the motorised product rises (a), the direction of rota-
tion is correct: move onto the section entitled Setting the
end limits.
b) If the motorised product lowers (b), the direction of ro-
tation is incorrect: Go to the Modifying the direction of rotation step.
2.3.3. Modifying the direction of rotation
1) Press the my button on the control point until the motorised
product moves up and down: the rotational direction has been
modified.
2) Press the Up button on the control point to control the
direction of rotation.
2.3.4. Setting the end limits
Automatic setting of the end limits (2.3.4.a)
1) Press the Up and Down buttons on the control point at the same
time: The motorised product moves up and down (moves up and
down rapidly).
2) Press the my button until the motorised product moves up and
down.
Setting the end limits in manual mode (2.3.4.b)
The end limits can be set in any order.
1) Raise the motorised product to the desired upper position by
pressing the Up button.
2) Press the my and Down buttons at the same time until the
motorised product moves.
The upper end limit is memorised.
3) Press the my button when the motorised product reaches the
desired lower position. If necessary, adjust the position of the
motorised product using the Up and Down buttons.
4) Press the my and Up buttons at the same time until the
motorised product moves.
The lower end limit is memorised. The motorised product rises
and stops in the upper position.
5) To confirm the end limits, press the my button until the
motorised product moves up and down.
The end limits are programmed.
1) 2)
ON
a
b
Modifying the direction
of rotation
Setting the end
limits
1) 2)
1) 2)
1) 2)
3) 4)
5)

7
EN
Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.

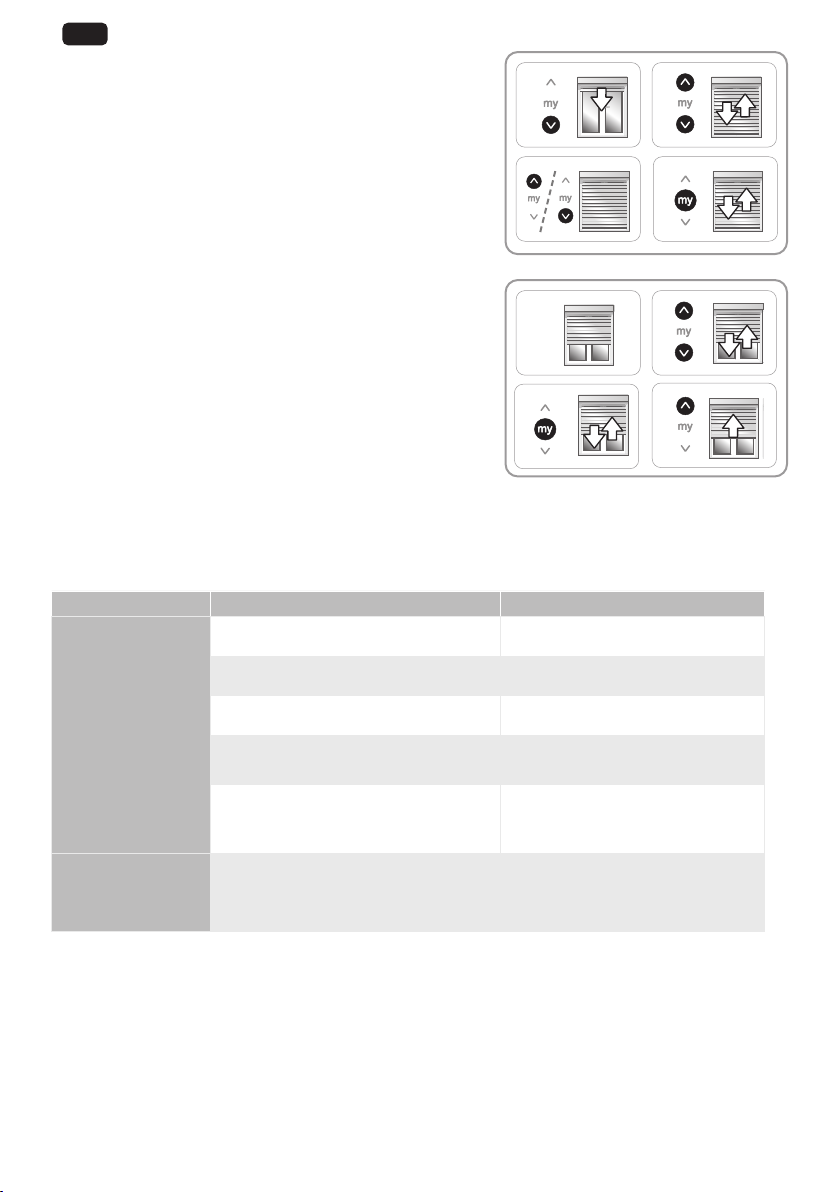

Setting the end limits in semi-automatic mode (2.3.4.c)
Setting the upper end limit in automatic mode and the lower
end limit in manual mode
1) Lower the motorised product to the desired position by
pressing the Down button.
2) Press the my and Up buttons simultaneously until the
motorised product rises; the lower end limit is set.
3) Press the "my" button to stop the motorised product.
4) To confirm the end limits, press the my button until the
motorised product moves up and down.
Setting the upper end limit in manual mode and the lower end
limit in automatic mode
1) Raise the motorised product to the desired upper position by
pressing the Up button.
2) Press the my and Down buttons simultaneously until the
motorised product lowers; the upper end limit is set.
3) Press the "my" button to stop the motorised product.
4) To confirm the end limits, press the my button until the
motorised product moves up and down.
2.3.5. Programming the control point
The drive is in programming mode:
-Briefly press the PROG button on the control point to be
programmed:
The motorised product moves up and down: this control
point is programmed in the drive.
If the drive is no longer in programming mode, repeat Step 2.3.1
before performing Step 2.3.5.
2.3.6. Re-setting the end limits (for end limits set in manual mode)
Readjusting the upper end limit
1) Press the Up button to bring the motorised product to the end
limit to be readjusted.
2) Press the Up and Down buttons at the same time until the
motorised product moves up and down.
3) Press the Up or Down button to move the motorised product
to the new desired position.
4) To confirm the new end limit, press the my button until the
motorised product moves up and down.
1) 2)
3) 4)
12
43
PROG. 0.5 s
1) 2)
3) 4)
1) 2)
3) 4)

8
EN Oximo 40 Solar io
Copyright©2021 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
Readjusting the lower end limit
1) Press the Down button to bring the motorised product to the
end limit to be readjusted.
2) Press the Up and Down buttons at the same time until the
motorised product moves up and down.
3) Press the Up or Down button to move the motorised product
to the new desired position.
4) To confirm the new end limit, press the my button until the
motorised product moves up and down.
2.3.7. Modifying the direction of rotation
1) Position the motorised product at the mid-height position.
2) Press the Up and Down buttons at the same time until the
motorised product moves up and down.
3) Press the my button on the control point until the motorised
product moves up and down: The direction of rotation has been
modified.
4) Press the Up button to check the direction of rotation.
2.4. TIPS AND ADVICE FOR INSTALLATION
2.4.1. Questions about the product?
Observations Possible causes Solutions
The motorised product
does not work.
The wiring is incorrect. Check the wiring and modify it if neces-
sary.
The battery is discharged. See 3.5.3. and refer to the battery
instructions.
The control point battery is low. Check the battery and replace it as
required.
The control point is not compatible. Check the compatibility and replace the
control point if necessary.
The control point used has not been pro-
grammed into the drive.
Use a programmed control point or
program this control point.
The motorised product
does not respond to
the wake-up com-
mand.
The motorised product is not set. Commission the motorised product (see
2.3.).
1) 2)
3) 4)
1) 2)
3) 4)
