SOMFY Orea 50 WT User manual

33
Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images
1. Prior information 33
1. 1. Sphere of application 33
1. 2. Liability 33
2. Installation 34
2. 1. Assembly 34
2. 2. Wiring 35
2. 3. Set-up 36
2. 4. Tips and advice on installation 37
3. Operation and maintenance 39
3. 1. Raising and lowering the awning 39
3. 2. STOP function 39
4. Tips and advice on operation 39
5. Technical data 39

position reversing switch control point.
CONTENTS
ORIGINAL INSTRUCTIONS
These instructions apply to all Orea 50 WT, Orea 50 WT RH and Orea 60 WT drives, whatever
the torque/speed combination.
1. PRIOR INFORMATION
1. 1. SPHERE OF APPLICATION
Orea 50, Orea 50 RH and Orea 60 drives are designed to drive all types of outside cassette
awnings that meet at least one of the following conditions:
- The driven product is controlled by a press-and-hold control point (wireless or wired) (see
the enclosed Safety instructions document).
- 
permanent access level.
- The awning is equipped with a safety device that prevents any contact in the shear or crush
zone (a guard that cannot be removed without tools).
1. 2. LIABILITY

the instructions provided in this guide, please also comply with the instructions set out in the
enclosed Safety instructions document.
The drive must be installed by a home motorisation and automation professional, in
accordance with Somfy's instructions and the applicable regulations in the country of
installation.
Any operation of the drive outside the sphere of application described above is prohibited. Such

to comply with the instructions given herein and in the enclosed Safety instructions document.
After installing the drive, the installer must inform his customers of the operating and maintenance
conditions for the drive and must pass the operating and maintenance instructions on to them, as
well as the enclosed Safety instructions document. Any After-Sales Service operation on the
drive requires intervention by a home motorisation and automation professional.
Should any doubt arise during installation of the drive or for additional information, consult a Somfy
contact or visit www.somfy.com.
Safety Warning! 1Caution! 

34 Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images

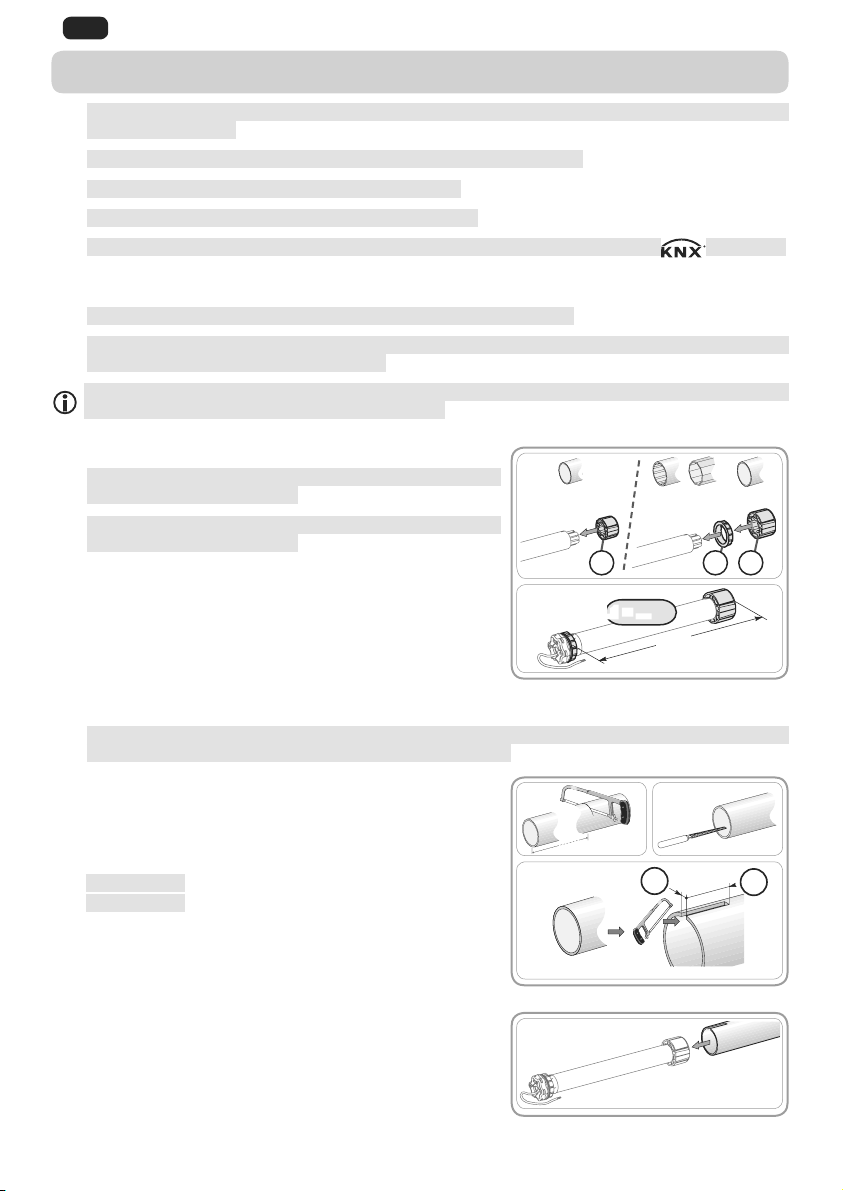

2. INSTALLATION
1These instructions are mandatory for the home motorisation and automation professional
installing the drive.
1Never drop, knock or puncture the drive or immerse it in liquid.
1
1Never connect 2 control points to the same drive.
1Check compatibility if the drive is being used with a bus system (e.g.: a " " system).
2. 1. ASSEMBLY
1
1Make sure that the drive used is suitable for the size of the awning to prevent damage to
the awning and/or the Somfy product.
Please consult the awning manufacturer or Somfy for information on the compatibility of
the drive with the awning and its accessories.
2. 1. 1. Drive preparation
1Orea 50 WT: Make sure that the inner diameter of
the tube is at least 47 mm.
1Orea 60 WT: Make sure that the inner diameter of
the tube is at least 60 mm.
1) Fit the accessories necessary to incorporate the drive
into the winding tube:
 Either only the wheel (A) on the drive.
 Or the ring (B) and the wheel (C) on the drive.
2) Measure the length (L1) between the inside edge of
the drive head and the end of the wheel.
2. 1. 2. Tube preparation
1 
surface (no welds, crimps, folds, etc. inside the tube).
1) Cut the winding tube to the desired length depending
on the driven product.
2) Deburr the winding tube and remove all chips.
3) For smooth winding tubes, cut a notch to the following
dimensions:
 Orea 50 WT: (D) = 4 mm; (E) = 28 mm.
 Orea 60 WT: (D) = 8 mm; (E) = 35 mm.
2. 1. 3. Drive-tube assembly
1) Slide the drive into the winding tube. For winding
tubes that are smooth inside, position the cut notch
on the protruding part of the ring.
1)
L1
L1 = …
2)
Ø > 47 mm
CB
Ø = 47 mm
A
3)
1) 2)
DE
1)

35
Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images
2) The wheel must be prevented from moving back and forth inside the winding tube:
 Either by securing the winding tube to the wheel
using 4 Ø 5 mm Parker screws or 4 Ø 4.8 mm steel
pop rivets located between 5 mm and 15 mm from
the outside edge of the wheel, irrespective of the
type of winding tube.
The screws or pop rivets must only be fastened on
the wheel and not on the drive.
 Or by using a wheel lock, for non-smooth tubes.
3) Fit the tube end into the winding tube.
2. 1. 4. Mounting the tube-drive assembly
2. 1. 4. 1. Star head drive
1) Fit the tube-drive assembly to the end support (F).
2) Fit the tube-drive assembly to the drive support (G).
Depending on the type of support, position the
retaining ring (H
ring, a lockable retaining ring (I) must be used).
2. 1. 4. 2. Round head drive
1) Fit the support to the drive head, and then the
removable side plate.
2) Slide the tube-drive-removable side plate assembly
into the head rail.
2. 2. WIRING
Cables routed through a metal internal wall must be
protected and insulated by sleeving or sheathing.
Secure the cables to prevent any contact with moving
parts.


        
cable.
1Leave the drive power supply cable accessible: it must be easily replaceable.
Always make a loop in the power supply cable to
1prevent water from entering the drive!
- Switch the power supply off.
- Connect the drive according to the information provided
in the table below:
Cable
Neutral
(N) Live (L1) Live (L2) Earth ( )
230 V 50 Hz Blue Brown Black Green-yellow
15 mm
5 mm
L1
2)
3)
1
F
G
1) 2)
H
I
1)
2)
L ≤ 50 m
230 V 50 Hz
N L1 L2
OFF

36 Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images
2. 3. SET-UP
2. 3. 1. Checking the rotation direction
1) Switch the power supply back on.
- Press the "Up" button on the control point:
       
and set-up is complete.
 
step.
2) Switch the power supply off.
- Switch over the brown and black wires connected to
the control point.
3) Switch the power supply back on.
- Press the "Up" button to check the rotation direction.
2. 3. 2. Setting the end limits
1Use universal adjusting cable 9015971 (follow the instructions in the corresponding
manual for connection), or use a non-locking double push-button switch.
The upper end limit is set automatically, while the lower end limit must be set manually.
Setting the lower end limit
1) Press the "Up" and "Down" buttons until the awning
moves back and forth.
2) Press the "Up" button until the awning moves back
and forth.
3) Place the awning in the desired lower end limit
position.
 
the "Up" or "Down" button.
4) 
until the awning moves back and forth.
5) Press the "Up" and "Down" buttons until the awning
moves back and forth.
The lower end limit position is programmed.
1)
2)
3)
ON
ON
OFF
OK
2
OK
1)
5)
3)
3s
3s
0.5s 3s
3s
4)
2)

37
Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images

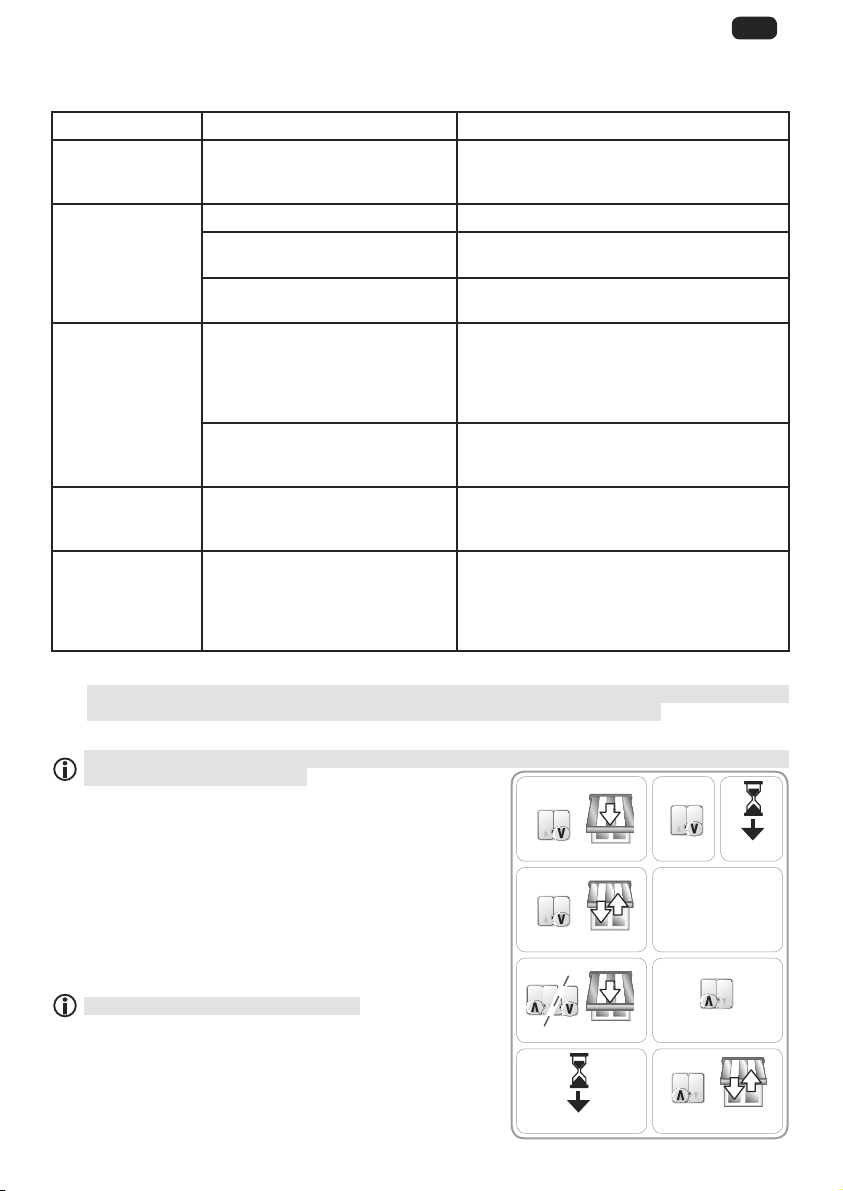

2. 4. TIPS AND ADVICE ON INSTALLATION
2. 4. 1. Questions about the Orea WT?
Problems Possible causes Solutions
The awning
rotates in the
wrong direction.
The wiring is incorrect. Check the wiring and modify as required.
The awning does
not operate. The wiring is incorrect. Check the wiring and modify as required.
The overheating protection on
the drive has been activated. Wait for the drive to cool down.
The control point is
not compatible. Check the compatibility and replace the control point as required.
The awning stops
too soon. The awning is encountering friction when it moves: rubbing
on the guide rails and cassette,
interference between the
winding tube and the drive, etc.
Check the installation of the awning and
adjust any rubbing points.


The drive has been installed in
a new awning. Restore the drive to its original 

The awning does
not stop at the
lower end limit.

are unsuitable. Check that the awning is secured to the winding tube with rigid links.
The awning does
not stop at the
upper end limit.
The system for stopping the
awning in the upper position
is unsuitable.


removable stops incorporated into the
guide rails or an end slat that acts as
a stop.
2. 4. 2. Re-setting the end limits
1Use universal adjusting cable 9015971 (follow the instructions in the corresponding
manual for connection), or use a non-locking double push-button switch.
Re-setting the lower end limit

reaction by the end product.
1) Place the awning at its lower end limit.
2) 
3) Wait for 2 seconds.
4) Press the "Down" button until the awning moves back
and forth.
5) Repeat steps 3 and 4 four times.
 The last back and forth movement is brief.
6) Place the awning in the desired lower end limit
position.
7) 

8) Wait for 2 seconds.
9) Press the "Up" button until the awning moves back
and forth.
The new lower end limit position is programmed.
2) 3)
5)
7)
9)
1)
4)
6)
8)
0.5 s
5 s
[Step 3
+
Step 4]
x 4
2 s
2 s

38 Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images
2. 4. 3. Advanced functions
1Contact the manufacturer of the driven product before using these functions to ensure
that they are compatible with your installation.
Obstacle detection function
This function is used to increase or decrease the obstacle detection sensitivity of the awning
cassette, which can be set to three levels (high-medium-low).
By default, the drive is factory-set to medium sensitivity.
Before starting the setting procedure, place the awning at its half-way position.
To activate this function:
1) Press the "Up" and "Down" buttons until the awning
moves back and forth.
2) Press the "Up" or "Down" buttons until the awning
moves back and forth to adjust the obstacle detection
level.
a)
A brief back and forth movement indicates that
obstacle detection is set to medium sensitivity.
b)
A long back and forth movement indicates that
obstacle detection is set to either low or high
sensitivity.
3) Press the "Up" and "Down" buttons until the awning
moves back and forth.
The last level is saved.
2. 4. 4. #
1Use universal adjusting cable 9015971 (follow the instructions in the corresponding
manual for connection), or use a non-locking double push-button switch.
- Simultaneously press the adjusting cable or non-locking
double push-button switch "Up" and "Down" buttons
until the awning moves back and forth once, then
again.
 
1)
3)
a) b)
3s
3s
2)
8s

39
Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images

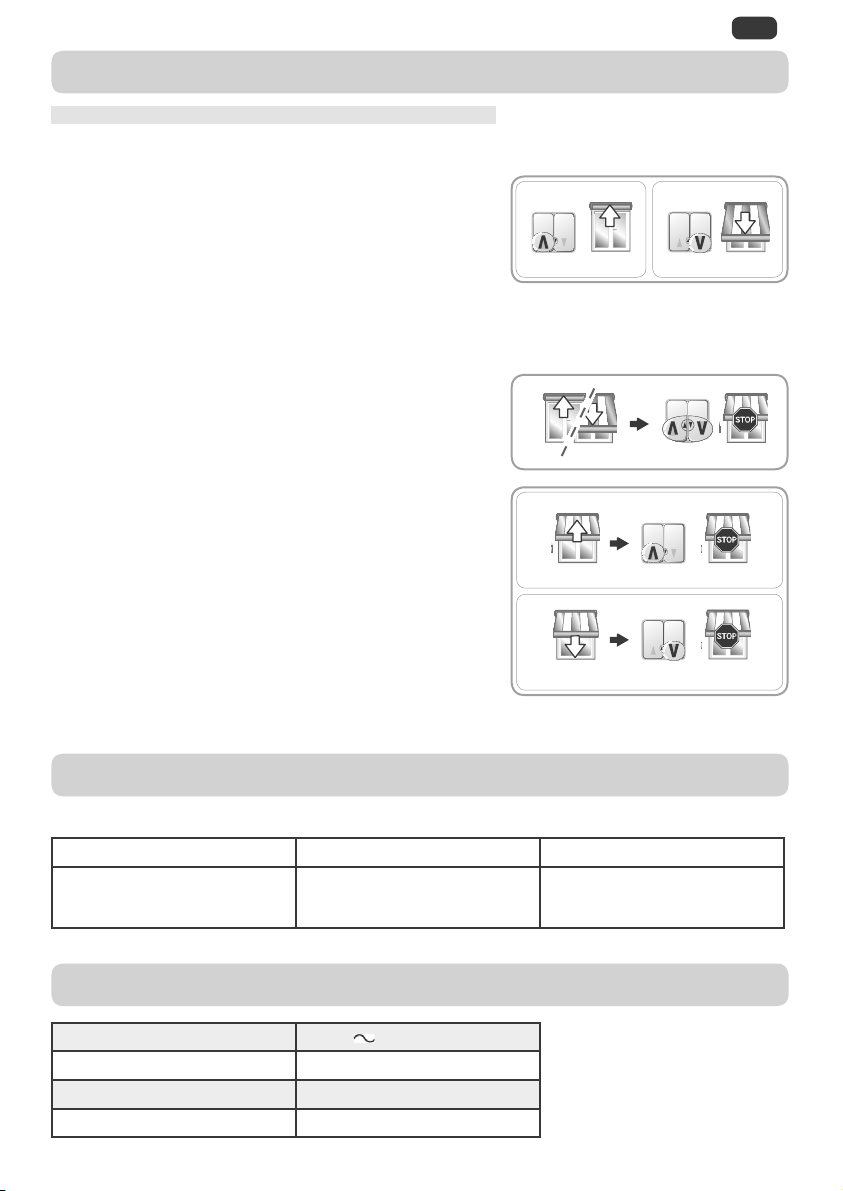

3. OPERATION AND MAINTENANCE
This drive does not require any maintenance operations
3. 1. RAISING AND LOWERING THE AWNING
1) Press the "Up" button:
 The awning is raised and automatically stops at the
upper stop.
2) Press the "Down" button:
 The awning is lowered and automatically stops at the
lower stop.
3. 2. STOP FUNCTION
3. 2. 1. With a non-locking double push-button switch
The driven product is moving.
- Simultaneously press the "Up" and "Down" buttons on
the control point: the driven product stops automatically.
3. 2. 2. With a locking double push-button switch
1) The driven product is moving upwards.
- Press the "Up" button on the control point: the driven
product stops automatically.
2) The driven product is moving downwards.
- Press the "Down" button on the control point: the
driven product stops automatically.
1) 2)
1)
2)
4. TIPS AND ADVICE ON OPERATION
Questions about the Orea WT?
Problems Possible causes Solutions
The awning does not
operate. The overheating protection on the drive has been
activated.
Wait for the drive to cool
down.
5. TECHNICAL DATA
Power supply  50 Hz
Operating temperature - 20 °C to + 60 °C
Protection rating 
Electric insulation 

40 Copyright © 2005 - 2014 Somfy SAS. All rights reserved.
EN
Non contractual images

in these instructions, is in compliance with the essential requirements of Machinery Directive 2006/42/EC and
EMC Directive 2004/108/EC.
         

to produce the declaration including the place and date of issue, can be found at www.somfy.com/ce.
