SOMFY FX24 User manual

somfy.com
FX24
- Installation manual
EN
- Manual de instalación
ES
- Manual de instalação
PT
- Εγχειρίδιο εγκατάστασης
EL
5054417A
- 2 -

EN
1
Copyright © 2008 Somfy SAS. All rights reserved.
CONTENTS
GENERAL __________________________________________________________________________________________________________2
SAFETY INSTRUCTIONS _____________________________________________________________________________________2
Warning 2
Safety instructions 2
PRODUCT DESCRIPTION ____________________________________________________________________________________3
Field of application 3
Main functions 3
Dimensions 3
Electronic circuit board layout 4
Technical specifications 4
INSTALLING THE CONTROLLER __________________________________________________________________________5
Preparing the case 5
Mounting the controller 5
Wiring 5
CONNECTING PERIPHERAL ACCESSORIES _________________________________________________________5
Automatic blinking 24V orange light 5
Photoelectric cells 6
Wired code contact 6
Wired keylock contact 6
SET UP ______________________________________________________________________________________________________________7
Configuration 7
Choosing languages 7
Pairing remote controls 7
Learning 8
PARAMETER SETTING MENU (PArAM) _______________________________________________________________ 10
LOGIC MENU (LoGIc) ________________________________________________________________________________________ 11
FUNCTIONAL TESTS_________________________________________________________________________________________ 13
Checking 13
CLEARING REMOTE CONTROLS AND ALL SETTINGS_________________________________________ 13
Clearing all remote controls 13
Clearing all settings 13
TROUBLESHOOTING ________________________________________________________________________________________ 14
Meaning of the messages displayed on-screen 14
REMOVING THE CONTROLLER _________________________________________________________________________ 14

EN
2Copyright © 2008 Somfy SAS. All rights reserved.
GENERAL
SAFETY INSTRUCTIONS
This product, installed in accordance with this guide, complies with EN 12453 and EN 13241-1 standards.
The instructions referred to in the product Installation and Operating manuals are intended to meet the requirements of
property safety, personal safety and the above-mentioned standards.
Failure to comply with these instructions releases Somfy from any liability for damage that may be entailed.
We, Somfy, declare that this product is compliant with the essential requirements and other relevant stipulations of
directive 1999/5/EC. A compliance declaration is available from the following address www.somfy.com/ce. (FX24)
This product can be used in the European Union and in Switzerland.
Warning
Important: Please comply with all instructions, for incorrect installation may cause serious injury.
Safety instructions
Before installing the motor drive system, make sure that the driven part is in good working order, that it is correctly
balanced and that it opens and closes correctly.
Ensure that danger areas (where pinching, cutting, trapping may occur) between the driven parts and fixed surrounding
parts due to the opening motion of the driven part are avoided.
Retain a clear 500 mm space behind each gate section when the gate is fully opened.
Any switch that does not lock into position (interphone, key switch, etc.) must be located in plain view of the driven part
but away from the moving parts.
Any switch installed must be at a minimum height of 1.5 meters and not be accessible to the public, except if it works
with a key.
Ensure that the motor drive system cannot be used with gate section including a wicket gate inhibiting motion
(unless the motor drive cannot operate with the wicket gate open).
After installation, make sure that the mechanism is correctly adjusted and that the protection system and any manual
release mechanism operate correctly.
Permanently affix the label describing the manual release mechanism close to its operating mechanism.
Wear protective glasses while performing drilling work.
We recommend providing the installation with a surge arrester (in compliance with standard NF C 61740, with a
maximum residual voltage of 2 kV).

EN
3
Copyright © 2008 Somfy SAS. All rights reserved.
PRODUCT DESCRIPTION
Field of application
FX24 is intended to control one or two motors with a maximum power of 40 W, for opening and closing gates.
Main functions
Controlling two low voltage motors with a maximum power of 40 W.•
Electronically adjusting torque with an obstacle detection function.•
Controlling limiting devices.•
Controlling safety mechanisms.•
Dimensions
236
100
194

EN
4Copyright © 2008 Somfy SAS. All rights reserved.

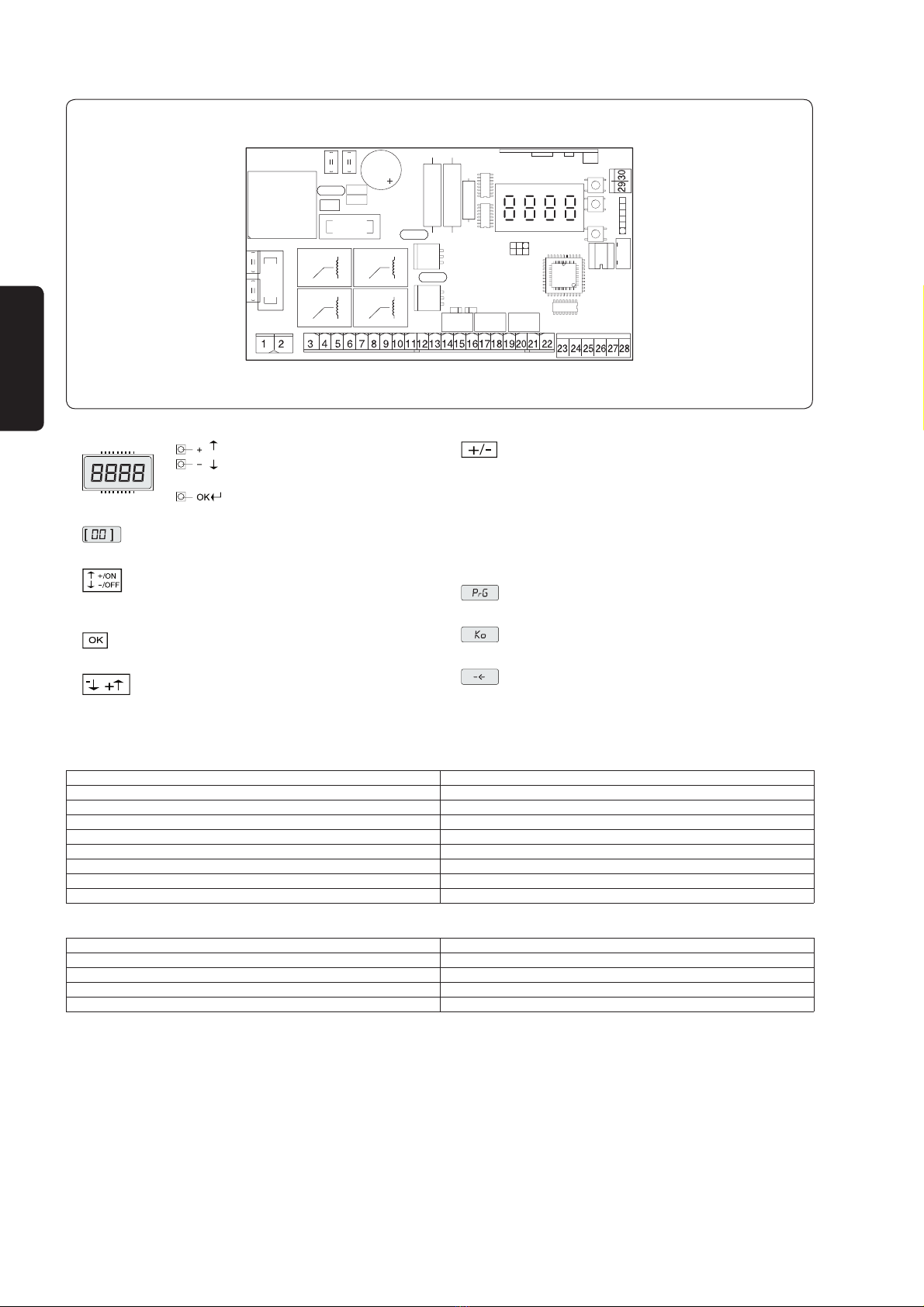

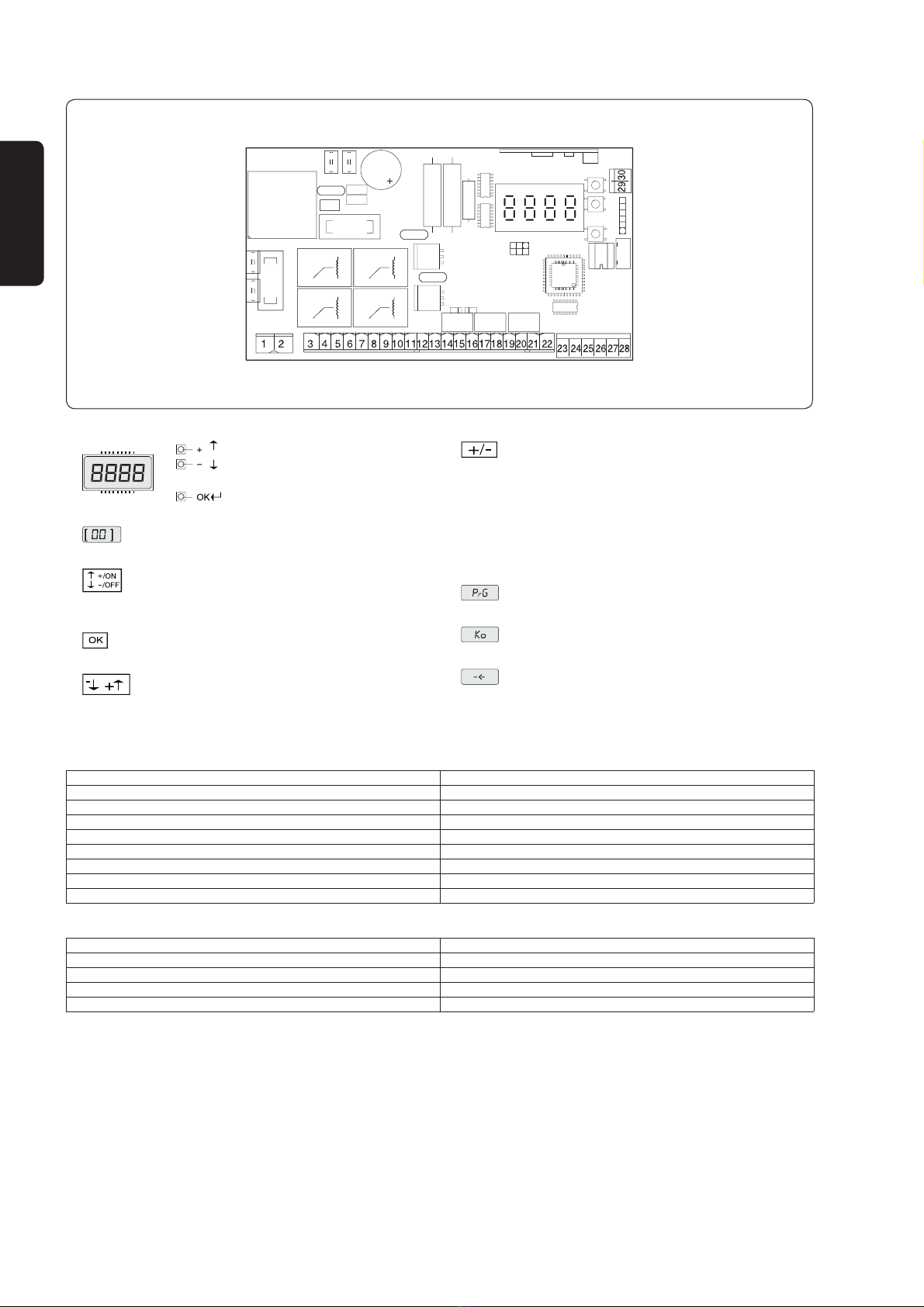

Electronic circuit board layout
Key:
Preset value
Increment/decrement parameters or
switch ON/OFF
Back/Validate
Scroll the menu
Simultaneously pressing the + and - buttons
is used to exit the menu and return to the
previous menu.
From the main menu level, simultaneously
pressing the + and – buttons will exit the
programming mode.
The display is switched off.
Programming in progress
Error in the value or function
Enter the value or function
Technical specifications
Electronic controller
Power supply 230 V AC ± 10% - 50 Hz
Mains/low voltage insulation > 2 M Ω500 V DC
Operating temperature -10 / +55°C
Motor output current level 3.5 A + 3.5 A max.
Motor relay communication current 10 A
Max. motor power 40 W (24 V DC)
Accessory power supply 24 V AC
Gate open indicator NO contact (24 V AC - 1 A max.)
Blinking light 24 V AC - 25 W max.
Battery (ref. 9014611)
Charge voltage 27.2 V DC
Charge current 130 mA
Battery capacity 2 x (12 V 1.2 Ah)
Flat battery protection threshold 20.4 V DC
Battery recharge time 12 to 14 hours
FX24 is supplied with standard settings entered.
The electronic circuit board is provided with an unpluggable terminal block to facilitate maintenance. It is supplied with a
series of ready wired jumpers to facilitate installation.

EN
5
Copyright © 2008 Somfy SAS. All rights reserved.
Preparing the case
Remove the cover•
Important: Do not remove the electronic circuit board.
Drill out the mounting holes taking care not to damage the circuit board.•
Use the controller case as the pattern for marking the mounting points on the gate post.•
Drill the gate post.•
Insert the cables and cut them to length.•
The electric power line should:
be reserved exclusively for use by the gate opener,•
have a minimum cross section of 1.5 mm• 2,
be provided with a protection device (10A fuse or circuit breaker) and a residual current device (30 mA),•
be fitted with an omnipolar disconnection mechanism,•
be installed in line with applicable safety standards.•
Mounting the controller
Mount the FX24 on the gate post under the motor drive unit.

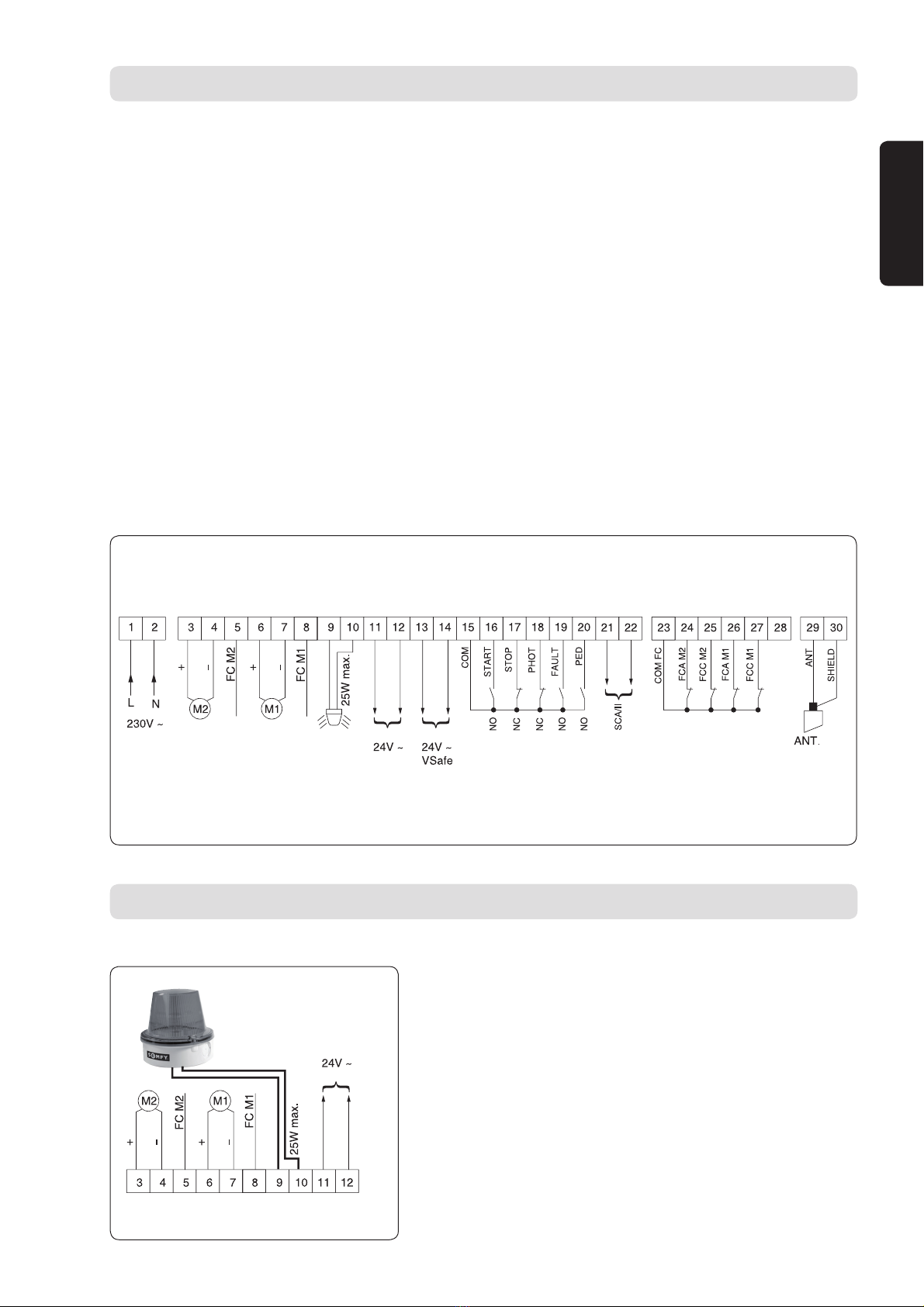

Wiring
white white
INSTALLING THE CONTROLLER
CONNECTING PERIPHERAL ACCESSORIES
Automatic blinking 24V orange light
white
white

EN
6Copyright © 2008 Somfy SAS. All rights reserved.
Photoelectric cells
With self-test function Without self-test function
1 2 1 2 345
24V
ac/dc
24V
ac/dc
0V 0V C NC NO
CE CR
1 2 1 2 345
24V
ac/dc
24V
ac/dc
0V 0V C NCNO
CE CR
Trigger the cell self-test function
tESt Phot set to ON in the LoGIc menu
Disable the cell self-test function
tESt Phot set to OFF in the LoGIc menu
Wired code keypad
E - + H H P2 M P1 T3 C3 R3 T2 C2 R2 T1 C1 R1 V V
B
A
A
B
7s
Wired keylock contact
AB
A
B
7s

EN
7
Copyright © 2008 Somfy SAS. All rights reserved.
SET UP
Configuration
Set up requires using controller buttons.
Press... To...
OK Call up the menu and
submenu Validate a set up
selection
+ or - Choose settings Change a
setting value
+ and –
(pressed
together)
Exit the active menu
The changes made are validated by pressing the OK button.
When the FX24 is switched on, the following information is displayed on-screen:
Somfy•
Product name•
the controller software version,•
the total number of open and close operations performed (a value displayed in thousands). For the first thousand•
operations, the screen displays "0000".
Pressing OK during the presentation phase lets the user move straight to the first menu.
Choosing languages
This function is used to choose the programming
language on-screen:
Italian (ItA)•
French (FrA)•
German (dEU)•
English (EnG)•
Spanish (ESP)•
[1] Use the + and – buttons on the control unit to
access the "LAnGUE" (Language) menu.
[2] Press the OK button.
[3] Use the + and – buttons to call up the desired
language.
[4] Press the OK button to validate your choice.
Pairing remote controls
To pair a remote control:
[1] Press the "PROG" button on the controller
for two seconds. The red indicator comes on.
[2] Press the remote control channel button
within two minutes of starting the process.
The red indicator blinks.
The remote control is paired.
Note: Performing this procedure for a channel
that is already paired will clear it.
To add more remote controls:
Repeat the same procedure.

EN
8Copyright © 2008 Somfy SAS. All rights reserved.
To add a Telis type remote control:
[1] Press the "PROG" button on the controller
for two seconds. The red indicator comes on.
[2] Within two minutes of starting the process,
press the "PROG" button on the backside of
the Telis remote control. The red indicator
blinks.
The remote control is paired.
To exit the programming mode without pairing a remote control: Briefly press the "PROG" button on the controller.
Before starting up, check the electrical connections and the direction of motor rotation.
Position the gate half open.
When the button is pressed for the first time, the gate should open. If not, reverse the connections to the
electric motors.
Learning
Learning the gate's travel distance is a necessary step when setting the motor drive system into service.
During learning, the obstacle detection function is disabled. Remove all objects or obstacles and keep
people from approaching or placing themselves within the motor drive system's operating radius.
To perform an emergency stop during learning, use a paired remote control.
Before starting learning, move the gate by hand to place it in the closed position.
Re-engaging the motor drive system
[1] Lift the lock cover.
[2] Insert the release key and turn it counter clockwise by 90°.
[3] Check gate motion and the action of the limiting devices.
The "Suc" message is displayed showing that the operation has been performed correctly. If the operation is performed
in any other way, the "nSuc" error message is displayed and the operation is not performed.

EN
9
Copyright © 2008 Somfy SAS. All rights reserved.

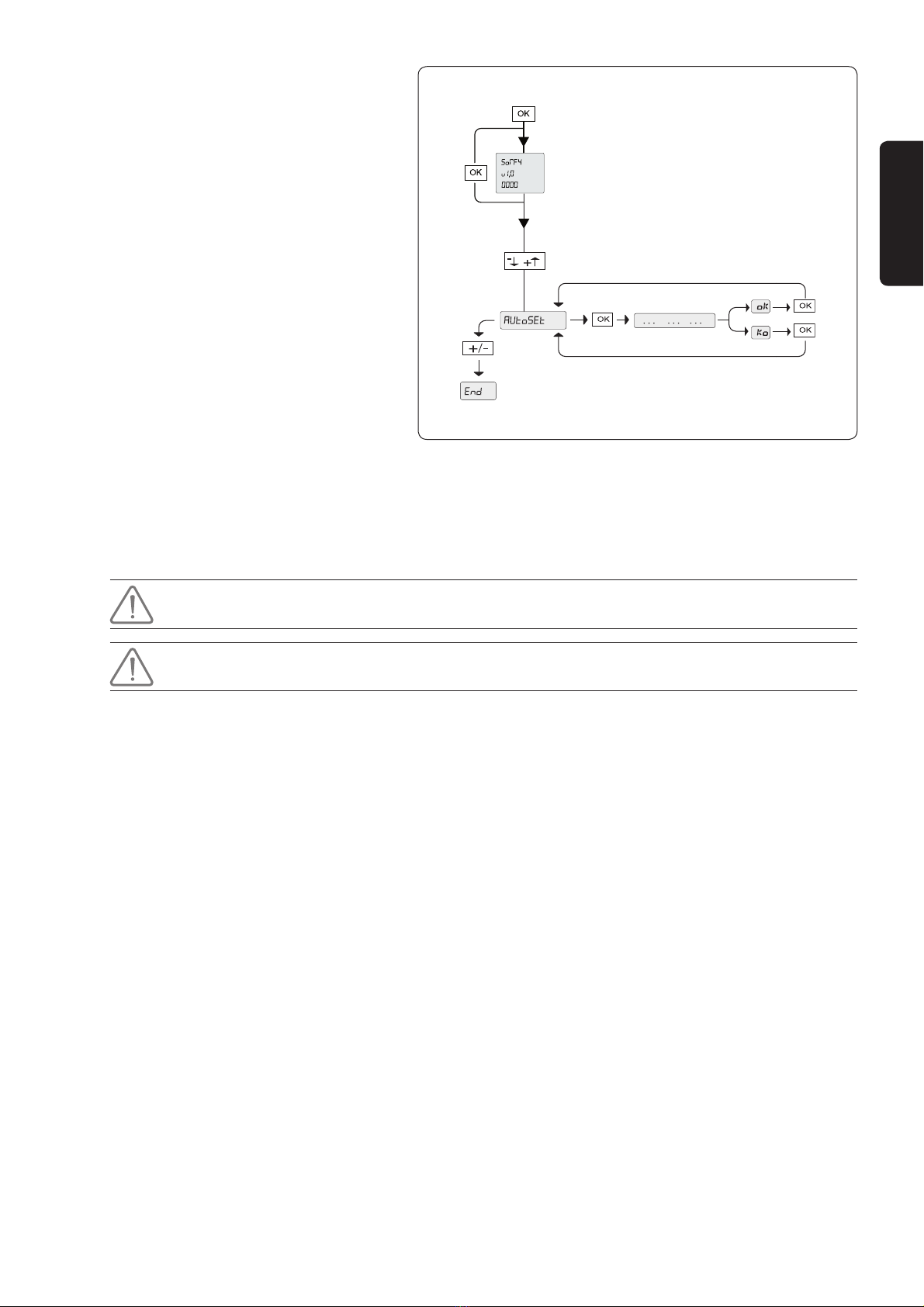

Start learning
Learning comprises two cycles
(one cycle = one opening + closing operation).
The first cycle is performed without slowing down
and lets the motor memorize full gate travel.
The second cycle with slowing down is intended
to set the minimum amount of torque required to
move the gate.
[1] Press the "OK" button on the controller twice
to access the menus.
[2] Use the "+" and "-" buttons on the controller
to call up the AutoSet menu.
[3] Press the "OK" button to validate. Learning
is started. The gate must perform two
complete cycles.
If learning is completed correctly, the motor
drive system display shows OK.
If learning fails, the motor drive system
display shows KO.
Check the following points before restarting the learning function:
the gate moves correctly.•
there are no obstacles in front of the photoelectric cells.•
If learning is interrupted, return the gate to its closed position and restart learning.
If the slowing down speed is changed later on, a new learning cycle is required.
If a change in settings is performed after learning, make sure that the installation complies with
applicable standards.
AT THIS STAGE IN THE INSTALLATION PROCESS, THE MOTOR DRIVE SYSTEM IS READY TO OPERATE.

EN
10 Copyright © 2008 Somfy SAS. All rights reserved.
PARAMETER SETTING MENU (PArAM)
Press "OK" to display one of the following submenus:
Display By default Description
Automatic closure
time
(tcA)
10 s Setting the automatic closure time (if tcA is active in LoGic).
Automatic closure time setting from 3 to 120 s.
Motor 1 torque
(R1t)
50 % Setting the minimum torque value for motor 1 required to move the gate.
Motor 1 torque setting value between 1% and 99%.
Motor 2 torque
(R2t)
50 % Setting the minimum torque value for motor 2 required to move the gate.
Motor 2 torque setting value between 1% and 99%.
Motor 1 slowing down
torque
(R1t SLoW)
45 % Setting the torque value for motor 1 required to slow down the gate.
Motor 1 slowing down torque setting between 1% and 99%.
Motor 2 slowing down
torque
(R2t SLoW)
45 % Setting the torque value for motor 2 required to slow down the gate.
Motor 2 slowing down torque setting between 1% and 99%.
Opening time delay
(oPEn dELAY t IME)
1 s Delay in starting motor 1 opening compared with motor 2, adjustable from 1 to 10 s.
Closing time delay
(cLS dELAY t IME)
1 s Delay in starting motor 2 closing compared with motor 1, adjustable from 1 to 25 s.
Motor 1 fast travel time
(R1 FAST t IME)
15 s Time spent at normal speed by motor 1 (not slowed), adjustable from 1 to 30 s.
Motor 2 fast travel time
(R2 FAST t IME)
15 s Time spent at normal speed by motor 2 (not slowed), adjustable from 1 to 30 s.
Note: The slow down time (during opening and closing) is obtained by timing the duration of an operation and entering a lesser value
in the "Motor fast travel time" parameter setting. If for example an operation lasts for 25 s, by entering a value of 20 s, we will obtain a
slow down time of 5 s.
Slow down speed
(SLow SPEEd)
50 % Slow down speed reduction (from 0% to 99%) in relation to normal speed. A 0 value
corresponds to disabling the slow down function.

EN
11
Copyright © 2008 Somfy SAS. All rights reserved.

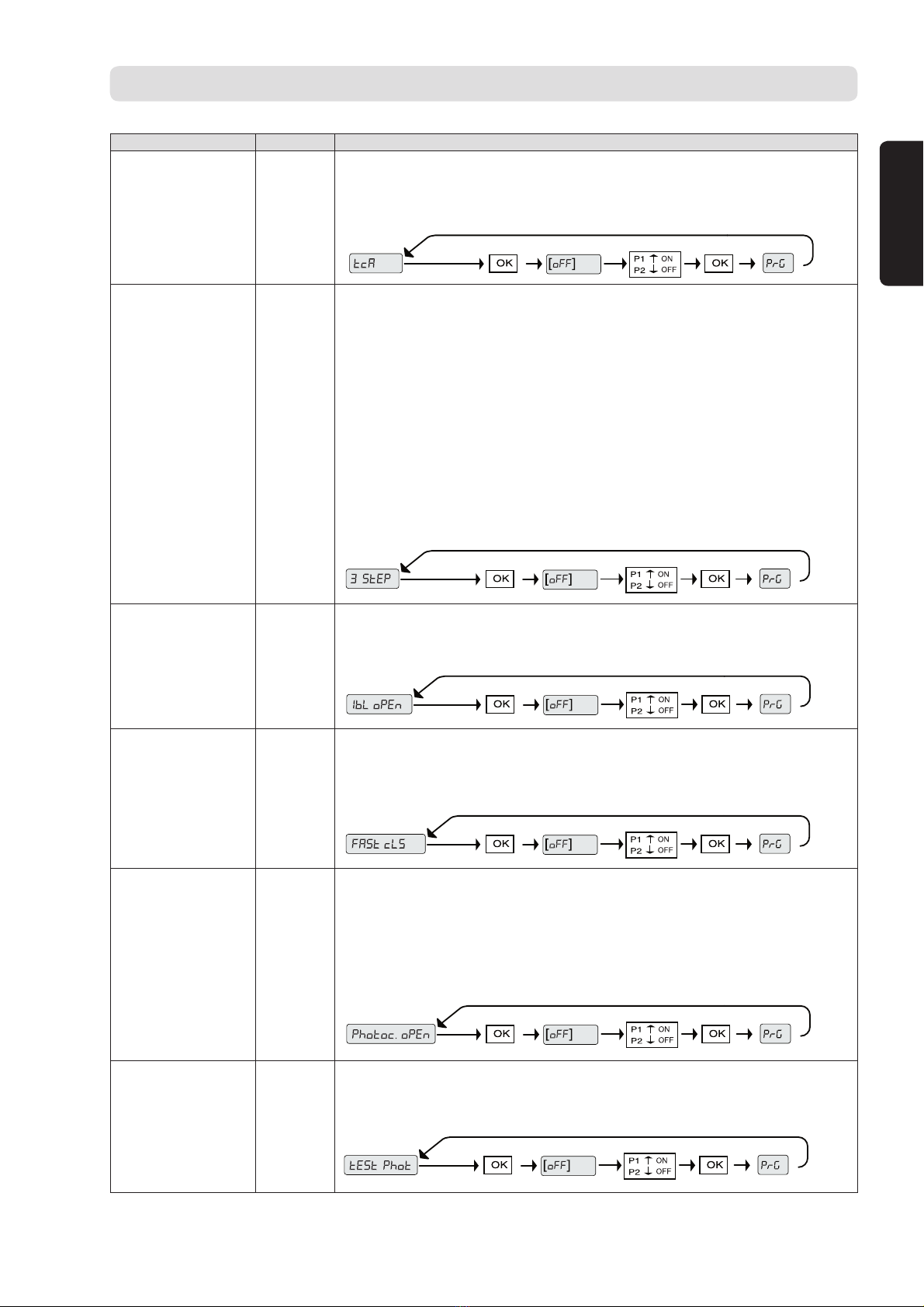

LOGIC MENU (LoGIc)
Press "OK" to display one of the following submenus:
Display By default Description
Automatic closure
(tcA)
OFF Automatic closure mode operation.
The gate will close automatically once the programmed time delay (tcA) times out.
ON: after a time delay, triggers automatic closure
OFF: switches off automatic closure
3 steps
(3 StEP)
OFF “3 step”: semi-automatic mode operation (refer to the User's Manual).
“4 step”: sequential mode operation (refer to the User's Manual).
ON: Switches on 3 step logic. Pressing START once has the following effect:
gate closed: the gate opens•
gate moving (opening): the gate stops and the automatic closure time is switched on (only if•
the latter function is set to ON)
gate open: the gate closes•
gate moving (closing): the gate stops and opens again•
OFF: Switches on 4 step logic. Pressing START once has the following effect:
gate closed: the gate opens•
gate moving (opening): the gate stops and the automatic closure time is switched on•
(only if the latter function is set to ON)
gate open: the gate closes•
gate moving (closing): the gate stops and the automatic closure time is not switched on•
once the gate stops moving: the gate opens•
Pushbutton inhibit
(IbL oPEn)
OFF Blocks out pushbutton functions while the gate is opening.
ON: while opening only
OFF: no inhibit function
Fast closure
(FASt cLS)
OFF The gate closes three seconds after clearing the photoelectric cells and before reaching the
end of the configured automatic closure time.
ON: command enabled
OFF: command disabled
Photoelectric cells
during opening
(Photoc. oPEn)
OFF ON:
in closing mode, the gate stops then reverses its movement.•
in opening mode, cells are inactive.•
OFF:
• in closing mode, the gate stops and reverses its movement once the cells are no longer
obstructed.
in opening mode, the gate stops then continues its movement once the cells are no longer• obstructed.
Photoelectric cell tests
(tESt Phot)
OFF Activates the photoelectric cell test.
ON: command enabled
OFF: command disabled

EN
12 Copyright © 2008 Somfy SAS. All rights reserved.

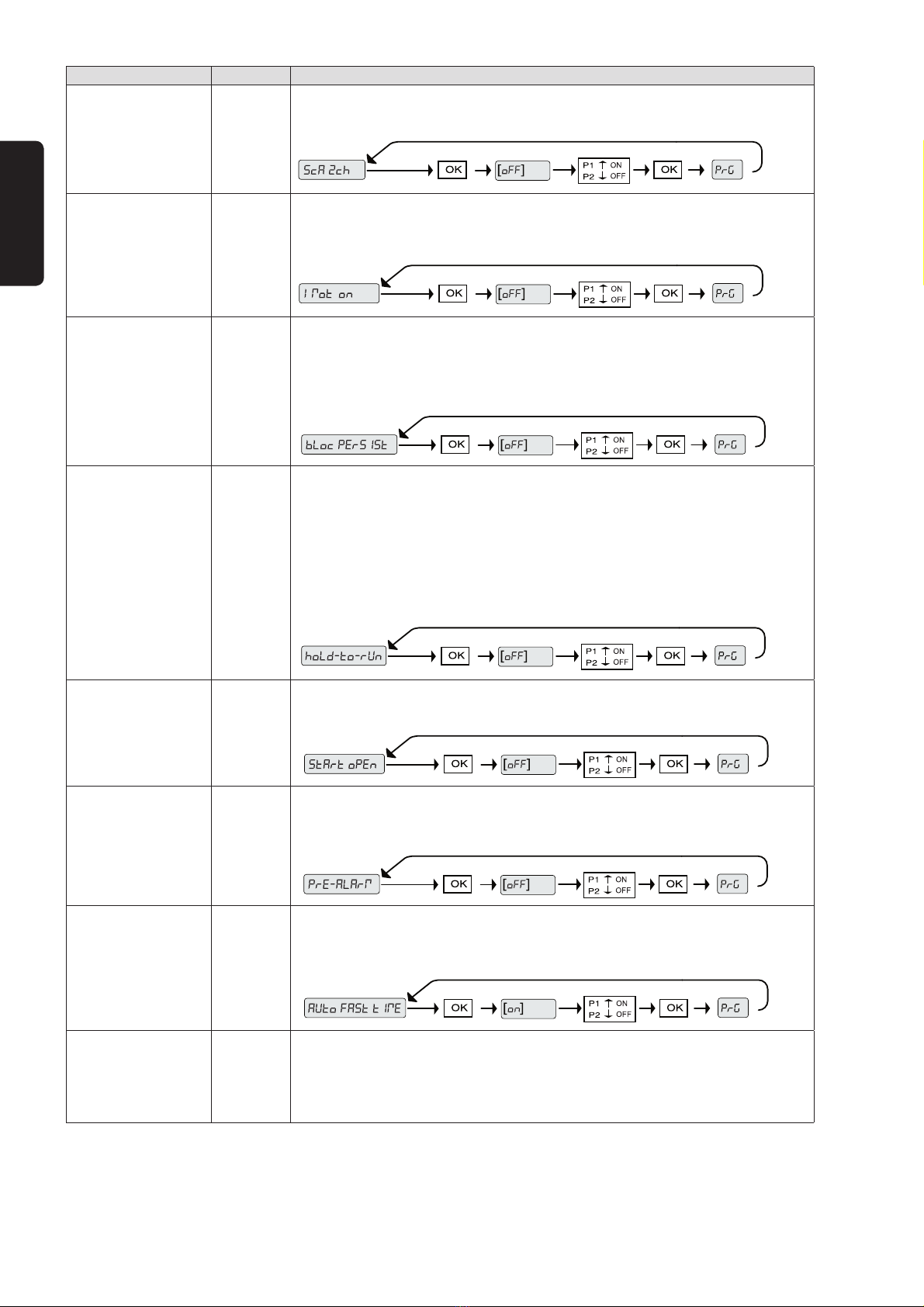

Display By default Description
Gate open indicator
(ScA 2ch)
ON Activates the gate open indicator.
ON: The output between terminals 21-22 is configured as the gate open indicator.
Active motors
(1 Mot on)
OFF Selects the active motors.
ON: Only motor 2 is active (terminals 3-4-5). The pedestrian entrance is enabled.
OFF: Both motors are active.
Hold locking
(bLoc PErS IST)
OFF To be used in the presence of a closing limit stop.
ON: The motor continues travel for 0.5 s after detecting the closing limiting device or until the
mechanical limit stop. In this way, by slightly anticipating when the closing limit stop acts, the
two gate sections will close up perfectly against the limit stop.
OFF: Motion is stopped by closing limit stop action.
Action maintained
(hoLd-to-rUn)
OFF Dead man's operation using a wired control only. Action is maintained so long as the control
button is pushed.
ON: action maintained operation.
OFF: pulse type operation in line with 3 or 4 step logic.
Warning: Selecting the "Action Maintained" logic triggers a different START and
PEDESTRIANS button operating mode:
- START becomes the OPEN function with action maintained
- PEDESTRIANS becomes the CLOSE function with action maintained
START – OPEN
selection
(StArt oPEn)
OFF ON: The input between terminals 15 - 16 works as OPEN.
OFF: The input between terminals 15 - 16 works as START.
Prior alarm mode
(PrE-ALArM)
OFF An indication before the motors start.
ON: The blinking light comes on for three seconds before the motors start.
OFF: The blinking light lights at the same time as the motors start.
Automatic fast time
(AUto FASt t IME)
OFF ON: The FX24 automatically calculates the slow down time depending on motor speed. The
FX24 changes the "Fast time" setting to ensure that the gate motion time remains constant.
OFF: The FX24 does not automatically calculate the slow down time. It only uses the "Fast
time" setting.
Pedestrian opening
(PEdEStrIAn)
OFF Pedestrian opening mode.
A short press on the button partially opens the gate while a long press fully opens the gate.
Opening time: 7 seconds
ON: enables pedestrian opening
OFF: disables pedestrian opening

EN
13
Copyright © 2008 Somfy SAS. All rights reserved.
FUNCTIONAL TESTS
CLEARING REMOTE CONTROLS AND ALL
SETTINGS
Checking
The FX24 checks the operating relays and safety mechanisms before running the opening and closing cycles.
If a malfunction occurs, make sure that the connected devices operate correctly and check the wiring.
During the opening and closing phases, the screen displays four digits separated by a decimal point, e.g. 35.40. The
digits are updated during motion and represent the maximum torque reached by motor 1 (value 35) and by motor 2
(value 40).
If the maximum torque value reached during motion is close to the set value, operating anomalies may appear due to
wear or to any slight deformation affecting the gate section.
Clearing all remote controls
Press the controller's "PROG" button for more than seven seconds. The indicator blinks to show that all of the remote
controls are cleared.
Clearing all settings
[1] Press OK twice to access the menus.
[2] Use the +and –buttons to call up the preset
menu.
[3] Press OK to clear all of the settings.
The motor drive system is reset and reverts to its
initial configuration.
Before using the motor drive system, perform
a new learning cycle.
OK OK

EN
14 Copyright © 2008 Somfy SAS. All rights reserved.
TROUBLESHOOTING
Meaning of the messages displayed on-screen
Before accessing the list of menus, the FX24 screen displays the following information:
Somfy•
Product name•
FX24 software version level•
Number of cycles performed (a value expressed in hundreds). During the first 100 operations, the screen displays 0000.•
If incorrect operation occurs, a message is displayed showing which mechanism should be checked. If the problem found
cannot be corrected, contact Somfy technical support.
The screen located on the electronic circuit board displays useful information during normal operation and when faults
occur.
The following messages indicate which mechanism to check:
Message Meaning Comments
OK Learning successful
KO Learning failed
Awaiting a value or function
End Exit programming mode
SuC Closing limit stop enabled
SuO Opening limit stop enabled
AMP Obstacle detected
PED Pedestrian entrance function on Ensure that the peripheral that controls the pedestrian entrance is
operating properly.
START START input on Ensure that the peripheral that controls the START input is operating
properly.
STOP STOP input on Ensure that the peripheral that controls the STOP input is operating
properly.
PHOT PHOT input on Ensure that nothing is blocking out the photoelectric cells.
CLOSE CLOSE input on Ensure that the peripheral that controls the CLOSE input is operating
properly.
OPEN OPEN input on Ensure that the peripheral that controls the OPEN input is operating
properly.
SWO1 Motor 1 opening limit stop input on Electro-magnetic detection system failure. Replace it.
SWC1 Motor 1 closing limit stop input on Electro-magnetic detection system failure. Replace it.
SWO2 Motor 2 opening limit stop input on Electro-magnetic detection system failure. Replace it.
SWC2 Motor 2 closing limit stop input on Electro-magnetic detection system failure. Replace it.
TH Software thermal protection function triggered Wait for this message to be cleared before continuing to use the motor
drive system.
REMOVING THE CONTROLLER
Warning: This operation must be performed by qualified personnel.
If the FX24 controller is to be removed and refitted elsewhere:
cut the power supply and disconnect the entire electrical installation,•
if some components cannot be removed or are damaged, replace them•

ES
1
Copyright © 2008 Somfy SAS. All rights reserved.
ÍNDICE
INTRODUCCIÓN _________________________________________________________________________________________________2
INSTRUCCIONES DE SEGURIDAD________________________________________________________________________2
Advertencia 2
Instrucciones de seguridad 2
DESCRIPCIÓN DEL PRODUCTO___________________________________________________________________________3
Ámbito de aplicación 3
Funciones principales 3
Dimensiones 3
Presentación de la tarjeta electrónica 4
Características técnicas 4
INSTALACIÓN DEL MANDO _________________________________________________________________________________5
Preparación de la carcasa 5
Colocación del mando 5
Cableado 5
CONEXIÓN DE PERIFÉRICOS _____________________________________________________________________________5
Luz naranja auto-intermitente 24 V 5
Células fotoeléctricas 6
Contacto alámbrico con código 6
Contacto alámbrico con llave 6
AJUSTES __________________________________________________________________________________________________________7
Configuración 7
Selección de idiomas 7
Memorización de los mandos a distancia 7
Autoaprendizaje 8
MENÚ PARÁMETROS (PArAM) ___________________________________________________________________________ 10
MENÚ LÓGICO (LoGIc)______________________________________________________________________________________ 11
PRUEBAS DE FUNCIONAMIENTO ______________________________________________________________________ 13
Verificación 13
BORRADO DE LOS MANDOS A DISTANCIA Y DE TODOS LOS AJUSTES ______________ 13
Borrado de todos los mandos a distancia 13
Borrado de todos los ajustes 13
DIAGNÓSTICO _________________________________________________________________________________________________ 14
Significado de los mensajes que aparecen en la pantalla 14
DESMONTAJE DEL MANDO ______________________________________________________________________________ 14

ES
2Copyright © 2008 Somfy SAS. All rights reserved.
INTRODUCCIÓN
INSTRUCCIONES DE SEGURIDAD
Este producto, instalado conforme a las presentes instrucciones, permite una puesta en servicio conforme a las normas
EN 12453 y EN 13241-1.
Las instrucciones citadas en los manuales de instalación y utilización del producto están destinadas a cumplir los
requisitos de seguridad de bienes y de personas, así como los de las mencionadas normas.
En caso de incumplimiento de estas instrucciones, Somfy declina toda responsabilidad por cualquier daño que pudiera
originarse.
Somfy declara que este producto se ajusta a los requisitos básicos y a otras disposiciones pertinentes de la directiva
1999/5/CE. Existe una declaración de conformidad para su consulta en www.somfy.com/ce. (FX24). Producto utilizable
en la Unión Europea y en Suiza.
Advertencia
Importante: observe todas las instrucciones, ya que una instalación incorrecta puede dar lugar a lesiones graves.
Instrucciones de seguridad
Antes de instalar la motorización, compruebe que el batiente esté en buen estado mecánico, correctamente equilibrado
y que se abra y cierre sin problemas.
Asegúrese de que no haya zonas peligrosas (aplastamiento, cizallamiento, atoramiento) entre el batiente y las partes
fijas circundantes, a causa del movimiento de apertura.
Deje despejada una zona de 500 mm por detrás de cada hoja en posición de apertura total.
Cualquier interruptor sin bloqueo (interfono, contacto con llave, etc.) debe estar situado a vista directa del batiente,
aunque alejado de las partes móviles.
Debe estar instalado a una altura mínima de 1,5 m y no ser accesible al público, excepto si funciona con llave.
Compruebe que la motorización no se active si un batiente con portilla está obstaculizado (excepto si la motorización no
puede funcionar con la portilla abierta).
Tras la instalación, compruebe que el mecanismo esté ajustado correctamente y que el sistema de protección y todo
dispositivo de desembragado manual funcionen correctamente.
Fije de manera permanente la etiqueta relativa al dispositivo de desembragado manual junto a su mando de maniobra.
Utilice gafas durante el taladrado.
Se recomienda incorporar un pararrayos a la instalación (según la norma NF C 61740, tensión residual máxima de 2 kV).

ES
3
Copyright © 2008 Somfy SAS. All rights reserved.
DESCRIPCIÓN DEL PRODUCTO
Ámbito de aplicación
El FX24 está destinado al mando de uno o dos motores con una potencia máxima de 40 W, para la apertura y cierre de
cancelas.
Funciones principales
Control de dos motores de baja tensión, hasta 40 W de potencia.•
Ajuste electrónico del par con detección de obstáculos.•
Verificación de los topes de fin de carrera.•
Verificación de los dispositivos de seguridad.•
Dimensiones
236
100
194

ES
4Copyright © 2008 Somfy SAS. All rights reserved.
Presentación de la tarjeta electrónica
Leyenda:
Valor predefinido
Incrementar/reducir parámetros o
conmutar ON/OFF
Volver/Aceptar
Recorrer el menú
Pulsando las teclas + y – a la vez se
puede salir del menú y volver al menú
anterior. En el nivel principal del menú,
pulsando las teclas + y – a la vez se sale
de la programación. La pantalla se apaga.
Programando
Error del valor o de la función
Introducir el valor o la función
Características técnicas
Mando electrónico
Alimentación 230 V CA ± 10 % - 50 Hz
Aislamiento red/baja tensión > 2 M Ω500 V CC
Temperatura de funcionamiento -10 / +55 °C
Intensidad de salida del motor 3,5 A + 3,5 A máx.
Intensidad de comunicación relé motor 10 A
Potencia máx. de los motores 40 W (24 V CC)
Alimentación de los accesorios 24 V CA
Testigo de cancela abierta Contacto NO (24 V CA - 1 A máx.)
Luz intermitente 24 V CA - 25 W máx.
Batería (ref. 9014611)
Tensión de carga 27,2 V CC
Intensidad de carga 130 mA
Capacidad de la batería 2 x (12 V 1,2 Ah)
Umbral de protección batería descargada 20,4 V CC
Tiempo de recarga de la batería 12 a 14 h
El FX24 viene de fábrica con unos ajustes estándar.
La tarjeta electrónica cuenta con una bornera extraíble para facilitar el mantenimiento. Se entrega con una serie de
shunts precableados para facilitar la instalación.
