SOMFY FX24 User manual

somfy.com
5063195A
- 1 -
FX24
EN
Installation manual
TR

FA

AR


Do not dispose of your scrapped appliances, nor your used batteries with household waste. You are

collection point for recycling.



EN
1
Copyright © 2009 Somfy SAS. All rights reserved.
CONTENTS
GENERAL __________________________________________________________________________________________________________2
SAFETY INSTRUCTIONS _____________________________________________________________________________________2
Warning 2
Safety instructions 2
PRODUCT DESCRIPTION ____________________________________________________________________________________3
Field of application 3
Main functions 3
Dimensions 3
Electronic circuit board layout 4
Technical specications 4
INSTALLING THE CONTROLLER __________________________________________________________________________5
Preparing the case 5
Mounting the controller 5
Wiring 5
CONNECTING PERIPHERAL ACCESSORIES _________________________________________________________5
Automatic blinking 24V orange light 5
Photoelectric cells 6
Wired code contact 6
Wired keylock contact 6
SET UP ______________________________________________________________________________________________________________7
Conguration 7
Choosing languages 7
Pairing remote controls 7
Learning 8
PARAMETER SETTING MENU (PArAM) _______________________________________________________________ 10
LOGIC MENU (LoGIc) ________________________________________________________________________________________ 11
FUNCTIONAL TESTS_________________________________________________________________________________________ 13
Checking 13
CLEARING REMOTE CONTROLS AND ALL SETTINGS_________________________________________ 13
Clearing all remote controls 13
Clearing all settings 13
TROUBLESHOOTING ________________________________________________________________________________________ 14
Meaning of the messages displayed on-screen 14
REMOVING THE CONTROLLER _________________________________________________________________________ 14

EN
2Copyright © 2009 Somfy SAS. All rights reserved.
GENERAL
SAFETY INSTRUCTIONS
This product, installed in accordance with this guide, complies with EN 12453 and EN 13241-1 standards.
The instructions referred to in the product Installation and Operating manuals are intended to meet the requirements of
property safety, personal safety and the above-mentioned standards.
Failure to comply with these instructions releases Somfy from any liability for damage that may be entailed.
We, Somfy, declare that this product is compliant with the essential requirements and other relevant stipulations of
directive 1999/5/EC. A compliance declaration is available from the following address www.somfy.com/ce. (FX24)
This product can be used in the European Union and in Switzerland.
Warning
Important: Please comply with all instructions, for incorrect installation may cause serious injury.
Safety instructions
Before installing the motor drive system, make sure that the driven part is in good working order, that it is correctly
balanced and that it opens and closes correctly.
Ensure that danger areas (where pinching, cutting, trapping may occur) between the driven parts and xed surrounding
parts due to the opening motion of the driven part are avoided.
Retain a clear 500 mm space behind each gate section when the gate is fully opened.
Any switch that does not lock into position (interphone, key switch, etc.) must be located in plain view of the driven part
but away from the moving parts.
Any switch installed must be at a minimum height of 1.5 meters and not be accessible to the public, except if it works
with a key.
Ensure that the motor drive system cannot be used with gate section including a wicket gate inhibiting motion
(unless the motor drive cannot operate with the wicket gate open).
After installation, make sure that the mechanism is correctly adjusted and that the protection system and any manual
release mechanism operate correctly.
Permanently afx the label describing the manual release mechanism close to its operating mechanism.
Wear protective glasses while performing drilling work.
We recommend providing the installation with a surge arrester (in compliance with standard NF C 61740, with a
maximum residual voltage of 2 kV).

EN
3
Copyright © 2009 Somfy SAS. All rights reserved.
PRODUCT DESCRIPTION
Field of application
FX24 is intended to control one or two motors with a maximum power of 40 W, for opening and closing gates.
Main functions
Controlling two low voltage motors with a maximum power of 40 W.•
Electronically adjusting torque with an obstacle detection function.•
Controlling limiting devices.•
Controlling safety mechanisms.•
Dimensions
236
100
194

EN
4Copyright © 2009 Somfy SAS. All rights reserved.

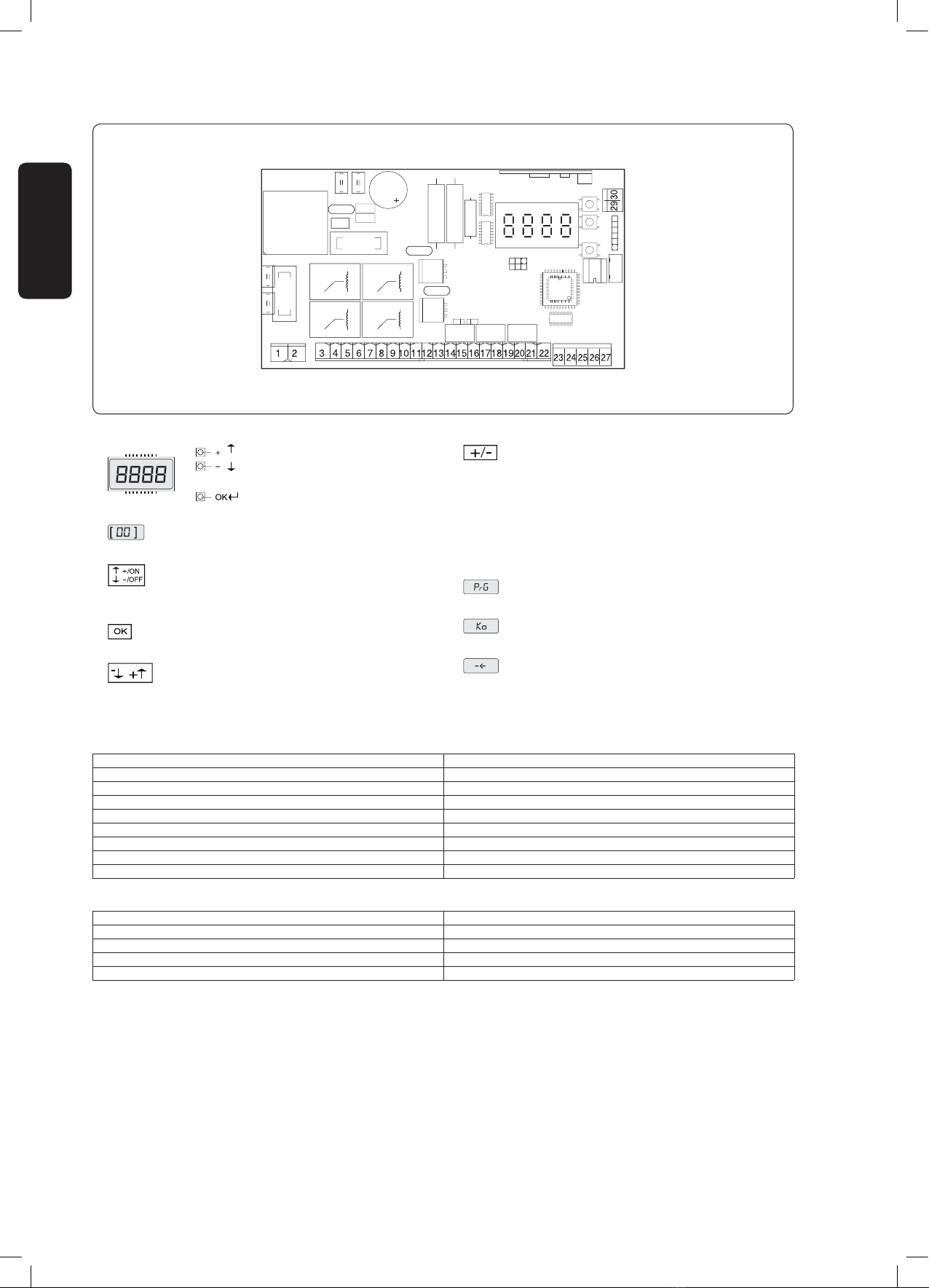

Electronic circuit board layout
Key:
Preset value
Increment/decrement parameters or
switch ON/OFF
Back/Validate
Scroll the menu
Simultaneously pressing the + and - buttons
is used to exit the menu and return to the
previous menu.
From the main menu level, simultaneously
pressing the + and – buttons will exit the
programming mode.
The display is switched off.
Programming in progress
Error in the value or function
Enter the value or function
Technical specications
Electronic controller
Power supply 230 V AC ± 10% - 50 Hz
Mains/low voltage insulation > 2 M Ω 500 V DC
Operating temperature -10 / +55°C
Motor output current level 3.5 A + 3.5 A max.
Motor relay communication current 10 A
Max. motor power 40 W (24 V DC)
Accessory power supply 24 V AC
Gate open indicator NO contact (24 V AC - 1 A max.)
Blinking light 24 V AC - 25 W max.
Battery (ref. 9014611)
Charge voltage 27.2 V DC
Charge current 130 mA
Battery capacity 2 x (12 V 1.2 Ah)
Flat battery protection threshold 20.4 V DC
Battery recharge time 12 to 14 hours
FX24 is supplied with standard settings entered.
The electronic circuit board is provided with an unpluggable terminal block to facilitate maintenance. It is supplied with a
series of ready wired jumpers to facilitate installation.

EN
5
Copyright © 2009 Somfy SAS. All rights reserved.
Preparing the case
Remove the cover•
Important: Do not remove the electronic circuit board.
Drill out the mounting holes taking care not to damage the circuit board.•
Use the controller case as the pattern for marking the mounting points on the gate post.•
Drill the gate post.•
Insert the cables and cut them to length.•
The electric power line should:
be reserved exclusively for use by the gate opener,•
have a minimum cross section of 1.5 mm• 2,
be provided with a protection device (10A fuse or circuit breaker) and a residual current device (30 mA),•
be tted with an omnipolar disconnection mechanism,•
be installed in line with applicable safety standards.•
Mounting the controller
Mount the FX24 on the gate post under the motor drive unit.
Wiring
white white
Note: Terminals 23 to 27 are not used for the Ixengo; they are used for other end limit motors.
INSTALLING THE CONTROLLER
CONNECTING PERIPHERAL ACCESSORIES
Automatic blinking 24V orange light
white
white

EN
6Copyright © 2009 Somfy SAS. All rights reserved.
Photoelectric cells
With self-test function Without self-test function
1 2 1 2 345
24V
ac/dc
24V
ac/dc
0V 0V CNCNO
CE CR
1 212 345
24V
ac/dc
24V
ac/dc
0V 0V CNCNO
CE CR
Trigger the cell self-test function
tESt Phot set to ON in the LoGIc menu
Disable the cell self-test function
tESt Phot set to OFF in the LoGIc menu
Wired code keypad
E - + H H P2 M P1 T3 C3 R3 T2 C2 R2 T1 C1 R1 V V
B
A
A
B
7s
Wired keylock contact
AB
A
B
7s

EN
7
Copyright © 2009 Somfy SAS. All rights reserved.
SET UP
Conguration
Set up requires using controller buttons.
Press... To...
OK Call up the menu and
submenu Validate a set up
selection
+ or - Choose settings Change a
setting value
+ and –
(pressed
together)
Exit the active menu
The changes made are validated by pressing the OK button.
When the FX24 is switched on, the following information is displayed on-screen:
Somfy•
Product name•
the controller software version,•
the total number of open and close operations performed (a value displayed in thousands). For the rst thousand •
operations, the screen displays "0000".
Pressing OK during the presentation phase lets the user move straight to the rst menu.
Choosing languages
This function is used to choose the programming
language on-screen:
Italian (ItA)•
French (FrA)•
German (dEU)•
English (EnG)•
Spanish (ESP)•
[1] Use the + and – buttons on the control unit to
access the "LAnGUE" (Language) menu.
[2] Press the OK button.
[3] Use the + and – buttons to call up the desired
language.
[4] Press the OK button to validate your choice.
Pairing remote controls
To pair a remote control:
[1] Press the "PROG" button on the controller
for two seconds. The red indicator comes on.
[2] Press the remote control channel button
within two minutes of starting the process.
The red indicator blinks.
The remote control is paired.
Note: Performing this procedure for a channel
that is already paired will clear it.
To add more remote controls:
Repeat the same procedure.

EN
8Copyright © 2009 Somfy SAS. All rights reserved.
To add a Telis type remote control:
[1] Press the "PROG" button on the controller
for two seconds. The red indicator comes on.
[2] Within two minutes of starting the process,
press the "PROG" button on the backside of
the Telis remote control. The red indicator
blinks.
The remote control is paired.
To exit the programming mode without pairing a remote control: Briey press the "PROG" button on the controller.
Before starting up, check the electrical connections and the direction of motor rotation.
Position the gate half open.
When the button is pressed for the rst time, the gate should open. If not, reverse the connections to the
electric motors.
Learning
- The gate’s travel learning is essential when commissioning the motorisation.
- The gate must be closed before learning is started.
- During learning, the obstacle detection function is not active. Remove any objects or obstacles and do
not allow any persons near or inside the operating range of the motorisation.
- To carry out an emergency stop during learning, use a memorised remote control.
Before starting learning, move the gate by hand to place it in the closed position.
Re-engaging the motor drive system
[1] Lift the lock cover.
[2] Insert the release key and turn it counter clockwise by 90°.
[3] Check gate motion and the action of the limiting devices.
The "Suc" message is displayed showing that the operation has been performed correctly. If the operation is performed
in any other way, the "nSuc" error message is displayed and the operation is not performed.

EN
9
Copyright © 2009 Somfy SAS. All rights reserved.
Start learning
Learning comprises two cycles
(one cycle = one opening + closing operation).
The rst cycle is performed without slowing down
and lets the motor memorize full gate travel.
The second cycle with slowing down is intended
to set the minimum amount of torque required to
move the gate.
[1] Press the "OK" button on the controller twice
to access the menus.
[2] Use the "+" and "-" buttons on the controller
to call up the AutoSet menu.
[3] Press the "OK" button to validate. Learning
is started. The gate must perform two
complete cycles.
If learning is completed correctly, the motor
drive system display shows OK.
If learning fails, the motor drive system
display shows KO.
Check the following points before restarting the learning function:
the gate moves correctly.•
there are no obstacles in front of the photoelectric cells.•

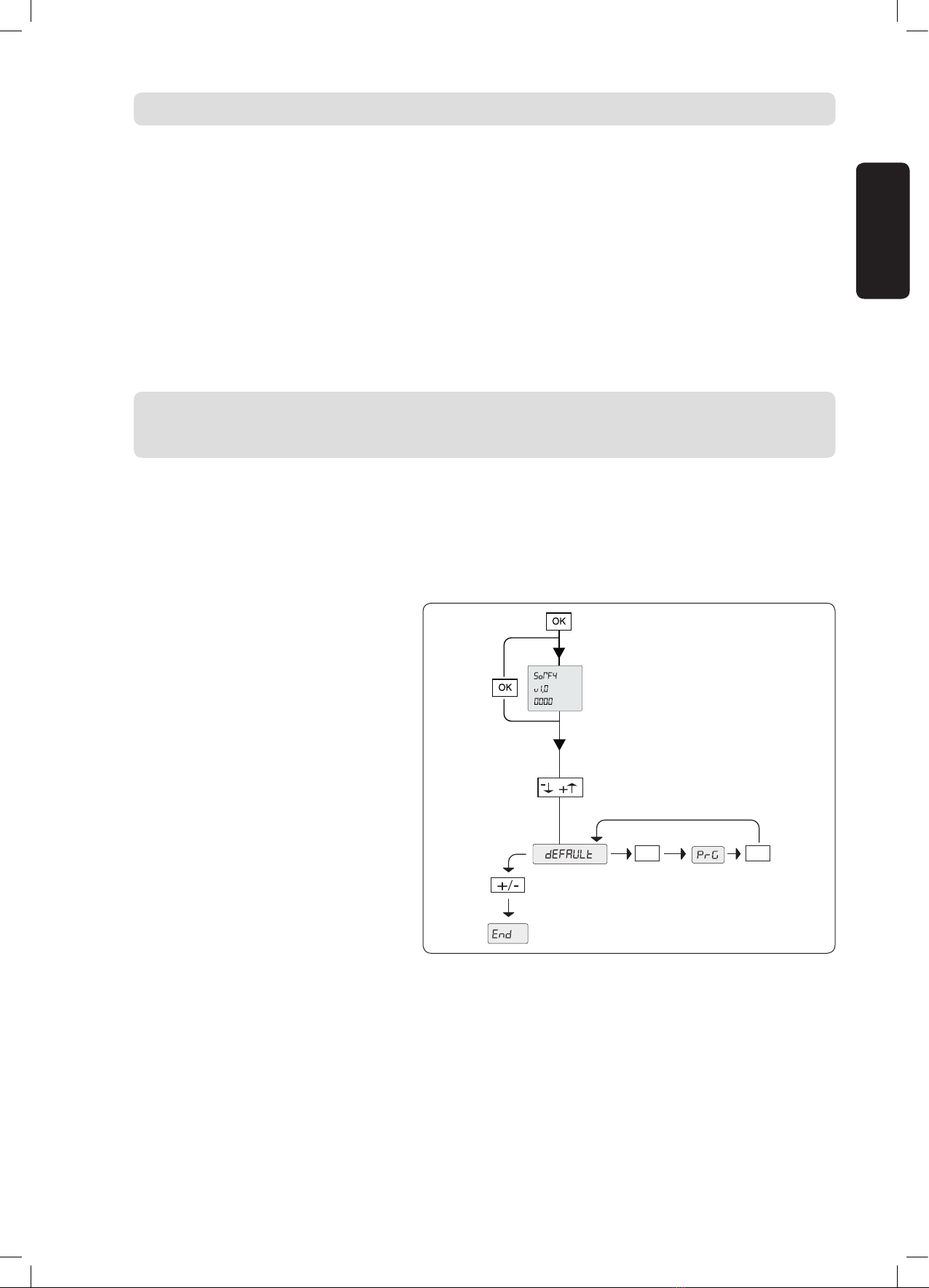

If learning is interrupted, return the gate to its closed position and restart learning.
If the slowing down speed is changed later on, a new learning cycle is required.
If a change in settings is performed after learning, make sure that the installation complies with
applicable standards.
AT THIS STAGE IN THE INSTALLATION PROCESS, THE MOTOR DRIVE SYSTEM IS READY TO OPERATE.

EN
10 Copyright © 2009 Somfy SAS. All rights reserved.
PARAMETER SETTING MENU (PArAM)
Press "OK" to display one of the following submenus:
Display By default Description
Automatic closure
time
(tcA)
10 s Setting the automatic closure time (if tcA is active in LoGic).
Automatic closure time setting from 3 to 120 s.
Motor 1 torque
(R1t)
50 % Setting the minimum torque value for motor 1 required to move the gate.
Motor 1 torque setting value between 1% and 99%.
Motor 2 torque
(R2t)
50 % Setting the minimum torque value for motor 2 required to move the gate.
Motor 2 torque setting value between 1% and 99%.
Motor 1 slowing down
torque
(R1t SLoW)
45 % Setting the torque value for motor 1 required to slow down the gate.
Motor 1 slowing down torque setting between 1% and 99%.
Motor 2 slowing down
torque
(R2t SLoW)
45 % Setting the torque value for motor 2 required to slow down the gate.
Motor 2 slowing down torque setting between 1% and 99%.
Opening time delay
(oPEn dELAY t IME)
1 s Delay in starting motor 1 opening compared with motor 2, adjustable from 1 to 10 s.
Closing time delay
(cLS dELAY t IME)
1 s Delay in starting motor 2 closing compared with motor 1, adjustable from 1 to 25 s.
Motor 1 fast travel time
(R1 FAST t IME)
15 s Time spent at normal speed by motor 1 (not slowed), adjustable from 1 to 30 s.
Motor 2 fast travel time
(R2 FAST t IME)
15 s Time spent at normal speed by motor 2 (not slowed), adjustable from 1 to 30 s.
Note: The slow down time (during opening and closing) is obtained by timing the duration of an operation and entering a lesser value
in the "Motor fast travel time" parameter setting. If for example an operation lasts for 25 s, by entering a value of 20 s, we will obtain a
slow down time of 5 s.
Slow down speed
(SLow SPEEd)
50 % Slow down speed reduction (from 0% to 99%) in relation to normal speed. A 0 value
corresponds to disabling the slow down function.
0% = no slowing down
From 1% and 30% = high slowing down range
From 31% and 99% = low slowing down range

EN
11
Copyright © 2009 Somfy SAS. All rights reserved.
LOGIC MENU (LoGIc)
Press "OK" to display one of the following submenus:
Display By default Description
Automatic closure
(tcA)
OFF Automatic closure mode operation.
The gate will close automatically once the programmed time delay (tcA) times out.
ON: after a time delay, triggers automatic closure
OFF: switches off automatic closure
3 steps
(3 StEP)
OFF “3 step”: semi-automatic mode operation (refer to the User's Manual).
“4 step”: sequential mode operation (refer to the User's Manual).
ON: Switches on 3 step logic. Pressing START once has the following effect:
gate closed: the gate opens•
gate moving (opening): the gate stops and the automatic closure time is switched on (only if•
the latter function is set to ON)
gate open: the gate closes•
gate moving (closing): the gate stops and opens again•
OFF: Switches on 4 step logic. Pressing START once has the following effect:
gate closed: the gate opens•
gate moving (opening): the gate stops and the automatic closure time is switched on•
(only if the latter function is set to ON)
gate open: the gate closes•
gate moving (closing): the gate stops and the automatic closure time is not switched on•
once the gate stops moving: the gate opens•
Pushbutton inhibit
(IbL oPEn)
OFF Blocks out pushbutton functions while the gate is opening.
ON: while opening only
OFF: no inhibit function
Fast closure
(FASt cLS)
OFF The gate closes three seconds after clearing the photoelectric cells and before reaching the
end of the congured automatic closure time.
ON: command enabled
OFF: command disabled
Photoelectric cells
during opening
(Photoc. oPEn)
OFF ON:
in closing mode, the gate stops then reverses its movement.•
in opening mode, cells are inactive.•
OFF:
• in closing mode, the gate stops and reverses its movement once the cells are no longer
obstructed.
in opening mode, the gate stops then continues its movement once the cells are no longer•
obstructed.
Photoelectric cell tests
(tESt Phot)
OFF Activates the photoelectric cell test.
ON: command enabled
OFF: command disabled

EN
12 Copyright © 2009 Somfy SAS. All rights reserved.
Display By default Description
Gate open indicator
(ScA 2ch)
ON Activates the gate open indicator.
ON: The output between terminals 21-22 is congured as the gate open indicator.
Active motors
(1 Mot on)
OFF Selects the active motors.
ON: Only motor 1 is active (terminals 3-4-5). The pedestrian entrance is enabled.
OFF: Both motors are active.
Hold locking
(bLoc PErS IST)
OFF To be used in the presence of a closing limit stop.
ON: The motor continues travel for 0.5 s after detecting the closing limiting device or until the
mechanical limit stop. In this way, by slightly anticipating when the closing limit stop acts, the
two gate sections will close up perfectly against the limit stop.
OFF: Motion is stopped by closing limit stop action.
Action maintained
(hoLd-to-rUn)
OFF Dead man's operation using a wired control only. Action is maintained so long as the control
button is pushed.
ON: action maintained operation.
OFF: pulse type operation in line with 3 or 4 step logic.
Warning: Selecting the "Action Maintained" logic triggers a different START and
PEDESTRIANS button operating mode:
- START becomes the OPEN function with action maintained
- PEDESTRIANS becomes the CLOSE function with action maintained
START – OPEN
selection
(StArt oPEn)
OFF ON: The input between terminals 15 - 16 works as OPEN.
OFF: The input between terminals 15 - 16 works as START.
Prior alarm mode
(PrE-ALArM)
OFF An indication before the motors start.
ON: The blinking light comes on for three seconds before the motors start.
OFF: The blinking light lights at the same time as the motors start.
Automatic fast time
(AUto FASt t IME)
OFF ON: The FX24 automatically calculates the slow down time depending on motor speed. The
FX24 changes the "Fast time" setting to ensure that the gate motion time remains constant.
OFF: The FX24 does not automatically calculate the slow down time. It only uses the "Fast
time" setting.
Pedestrian opening
(PEdEStrIAn)
OFF Pedestrian opening mode.
A short press on the button partially opens the gate while a long press fully opens the gate.
Opening time: 7 seconds
ON: enables pedestrian opening
OFF: disables pedestrian opening

EN
13
Copyright © 2009 Somfy SAS. All rights reserved.
FUNCTIONAL TESTS
CLEARING REMOTE CONTROLS AND ALL
SETTINGS
Checking
The FX24 checks the operating relays and safety mechanisms before running the opening and closing cycles.
If a malfunction occurs, make sure that the connected devices operate correctly and check the wiring.
During the opening and closing phases, the screen displays four digits separated by a decimal point, e.g. 35.40. The
digits are updated during motion and represent the maximum torque reached by motor 1 (value 35) and by motor 2
(value 40).
If the maximum torque value reached during motion is close to the set value, operating anomalies may appear due to
wear or to any slight deformation affecting the gate section.
Clearing all remote controls
Press the controller's "PROG" button for more than seven seconds. The indicator blinks to show that all of the remote
controls are cleared.
Clearing all settings
[1] Press OK twice to access the menus.
[2] Use the +and –buttons to call up the preset
menu.
[3] Press OK to clear all of the settings.
The motor drive system is reset and reverts to its
initial conguration.
Before using the motor drive system, perform
a new learning cycle.
OK OK

EN
14 Copyright © 2009 Somfy SAS. All rights reserved.
TROUBLESHOOTING
Meaning of the messages displayed on-screen
Before accessing the list of menus, the FX24 screen displays the following information:
Somfy•
Product name•
FX24 software version level•
Number of cycles performed (a value expressed in hundreds). During the rst 100 operations, the screen displays 0000.•
If incorrect operation occurs, a message is displayed showing which mechanism should be checked. If the problem found
cannot be corrected, contact Somfy technical support.
The screen located on the electronic circuit board displays useful information during normal operation and when faults
occur.
The following messages indicate which mechanism to check:
Message Meaning Comments
OK Learning successful
KO Learning failed
Awaiting a value or function
End Exit programming mode
SuC Closing limit stop enabled
SuO Opening limit stop enabled
AMP Obstacle detected
PED Pedestrian entrance function on Ensure that the peripheral that controls the pedestrian entrance is
operating properly.
START START input on Ensure that the peripheral that controls the START input is operating
properly.
STOP STOP input on Ensure that the peripheral that controls the STOP input is operating
properly.
PHOT PHOT input on Ensure that nothing is blocking out the photoelectric cells.
CLOSE CLOSE input on Ensure that the peripheral that controls the CLOSE input is operating
properly.
OPEN OPEN input on Ensure that the peripheral that controls the OPEN input is operating
properly.
SWO1 Motor 1 opening limit stop input on Electro-magnetic detection system failure. Replace it.
SWC1 Motor 1 closing limit stop input on Electro-magnetic detection system failure. Replace it.
SWO2 Motor 2 opening limit stop input on Electro-magnetic detection system failure. Replace it.
SWC2 Motor 2 closing limit stop input on Electro-magnetic detection system failure. Replace it.
TH Software thermal protection function triggered Wait for this message to be cleared before continuing to use the motor
drive system.
REMOVING THE CONTROLLER
Warning: This operation must be performed by qualied personnel.
If the FX24 controller is to be removed and retted elsewhere:
cut the power supply and disconnect the entire electrical installation,•
if some components cannot be removed or are damaged, replace them•

TR
1
Copyright © 2009 Somfy SAS. All rights reserved.
İÇİNDEKİLER
GENEL BİLGİLER _______________________________________________________________________________________________2
GÜVENLİK TALİMATLARI ____________________________________________________________________________________2
Uyarı 2
Güvenlik talimatları 2
ÜRÜN AÇIKLAMASI _____________________________________________________________________________________________3
Uygulama alanı 3
Temel fonksiyonlar 3
Boyutlar 3
Elektronik devre kartı arabirimi 4
Teknik özellikler 4
DENETLEYİCİNİN MONTE EDİLMESİ ____________________________________________________________________5
Mahfazanın hazırlanması 5
Denetleyicinin monte edilmesi 5
Kablo tertibatı 5
ÇEVRESEL DONATILARIN BAĞLANMASI _____________________________________________________________5
Otomatik 24 V ikaz lambası 5
Fotoseller 6
Kablolu kod klavyesi 6
Kablolu anahtar kontağı 6
AYARLAMA ________________________________________________________________________________________________________7
Kongürasyon 7
Dil seçimi 7
Uzaktan kumandaların eşleştirilmesi 7
Öğrenme 8
PARAMETRE AYAR MENÜSÜ (PArAM) ________________________________________________________________ 10
LOJIK MENÜ (LoGIc) _________________________________________________________________________________________ 11
FONKSİYON TESTLERİ _____________________________________________________________________________________ 13
Kontrol 13
UZAKTAN KUMANDA VE TÜM AYARLARIN SİLİNMESİ ________________________________________ 13
Tüm uzaktan kumandaların silinmesi 13
Tüm ayarların silinmesi 13
SORUN GİDERME ____________________________________________________________________________________________ 14
Ekranda görüntülenen mesajların anlamı 14
DENETLEYİCİNİN SÖKÜLMESİ __________________________________________________________________________ 14

TR
2Copyright © 2009 Somfy SAS. All rights reserved.
GENEL BİLGİLER
GÜVENLİK TALİMATLARI
Bu kılavuza uygun olarak monte edilen bu ürün, EN 12453 ve EN 13241-1 standartları ile uyumludur.
Ürünün montajına ve Çalıştırma kılavuzlarına atıfta bulunan bu talimatlar, ürünün güvenliği, kişisel güvenlik ve yukarıda
belirtilen standartların şartlarını karşılamayı amaçlamaktadır.
Bu talimatlara uyulmaması karşılaşılabilecek herhangi bir hasara yönelik Somfy’nin yükümlülüklerini geçersiz kılmaktadır.
Somfy, bu ürünün 1999/5/EC Yönergesi’nin temel şartları ve diğer ilgili hükümlerine uygun olduğunu beyan etmektedir.
Uygunluk Beyanı www.somfy.com/ce (FX24) adresinde bulunmaktadır.
Bu ürün Avrupa Birliği ve İsviçre’de kullanılabilir.
Uyarı
Önemli: Tüm talimatlara uyunuz, hatalı montaj ciddi yaralanmalara neden olabilir.
Güvenlik talimatları
Motor tahrik sistemini monte etmeden önce tahrikli parçanın çalışır durumda, doğru dengelenmiş olduğunu ve doğru
şekilde açılıp kapandığını kontrol edin.
Tahrikli parçanın açılma hareketi nedeniyle tahrikli parça ve etrafındaki sabit parça arasında tehlikeli bölgelerden
(sıkışma, kesilme ve herhangi bir bölgenin kaptırılması gerçekleşebilir) kaçınılmalıdır.
Kapı tamamen açıkken kapının her kısmının arkasında 500 mm boşluk bırakın.
Konumuna kilitlenmeyen tüm düğmeler (dahili telefon, kilitli anahtar v.b) tahrikli parçanın karşısında ancak hareketli
parçaların uzağında bulunmalıdır.
Takılan tüm düğmeler minimum 1.5 metre yüksekliğinde olmalı ve, bir anahtarla çalışması haricinde, insanlar tarafından
ulaşılmamalıdır .
Motor tahrik sistemi yavru kapı engelleme hareketini içerecek şekilde kapının bölümleriyle kullanılamaz (motor tahriği
yavru kapının açılmasını çalıştıramadığı sürece).
Montajdan sonra mekanizmanın doğru ayarlandığını ve koruma sistemi ve herhangi bir manuel ayırma mekanizmasının
doğru şekilde çalıştığını kontrol edin.
Çalıştırma mekanizmasına yakın olan manuel ayırma mekanizmasını tanımlayan bir etiket yapıştırın.
Delme işlemi esnasında koruyucu gözlük takın.
Montaja bir akım koruyucu (NF C 61740 standardına uygun, maksimum kalıntı voltajı 2 kV) takılması tavsiye
edilmektedir.

TR
3
Copyright © 2009 Somfy SAS. All rights reserved.
ÜRÜN AÇIKLAMASI
Uygulama alanı
FX24, kapıların açılması için maks. 40 W’lık bir veya iki motoru kumanda etmektedir.
Temel Fonksiyonlar
Maks.40 W gücünde iki düşük voltajlı motorun kumanda edilmesi .•
Engel teşhisi fonksiyonuyla torkun elektronik olarak ayarlanması.•
Sınırlandırma cihazlarının kontrolü.•
Güvenlik mekanizmalarının kontrolü.•
Boyutlar
236
100
194

TR
4Copyright © 2009 Somfy SAS. All rights reserved.
Elektronik devre kartı arabirimi
Anahtar:
Önceden ayarlanmış değer
parametreleri arttırma/azaltma veya
AÇMA/KAPAMA
Geri/Doğrulama
Menü kaydırma
Menüden çıkmak ve önceki menüye
dönmek için + ve – tuşlarına eşzamanlı
basılır.
Ana menüde + ve – düğmelerine eş
zamanlı basıldığı takdirde programlama
modundan çıkılır.
Görüntü iptal olur
Programlama devam ediyor
Değer veya fonksiyon hatası
Değer veya fonksiyon giriş
Teknik Özellikler
Elektronik denetleyici
Güç kaynağı 230 V AC ±10 % - 50 Hz
Ana şebeke/düşük voltaj yalıtımı > 2 M Ω 500 V DC
Çalıştırma sıcaklığı -10 / +55 °C
Motor çıktı akım seviyesi 3.5 A + 3.5 A maks.
Motor rölesi iletişim akımı 10 A
Maks. motor gücü 40 W (24 V DC)
Donatılar güç kaynağı 24 V AC
Kapı açılma göstergesi Bağlantı yok (24 V AC - 1 A max.)
Yanıp sönen lamba 24 V AC - 25 W maks.
Akü (ref. 9014611)
Şarj voltajı 27.2 V DC
Şarj akımı 130 mA
Akü kapasitesi 2 x (12 V 1,2 Ah)
Düz akü koruma eşiği 20.4 V DC
Akü yeniden şarj süresi 12 ila 14 saat
FX24 standart ayarlarla sunulmaktadır.
Elektronik devre kartı bakımı kolaylaştıran şsiz terminal bloğu ile temin edilmektedir. Ürün, montajı kolaylaştıran bir dizi
hazır kablolu bağlantı iletkeni ile sunulmaktadır.
