Experience stable and reliable sound from Sony. The DWZ-M70 package with
a handheld microphone, and the DWZ-B70HL package with a headset and
lavalier microphone provide clear voices for your audience by eliminating
unwanted acoustic feedback noise, using Sony’s advanced integration of
DSP functions. With 24-bit linear PCM digital transmission, you get high sound
quality with high reliability, utilizing unique transmission technology also
developed by Sony. With the support of two RF modes, your audio signal can
be captured and transmitted reliably and easily.
Great Performances for Presenters and Vocalists
High-quality 24-bit linear PCM digital transmission
offers a pristine audio experience, and a wide
frequency range of 10 Hz to 22 kHz. With these
high-quality digital sound packages, you can
experience professional performances by
presenters and vocalists. The audio performance
degradation that’s typical with conventional
analog wireless systems is avoided, because
these digital wireless packages are designed
without the need for a compander.
Superb Digital Sound Quality
DWZ-M70
DWZ-B70HL
The Sony Intelligent Feedback Reducer
can suppress unwanted feedback (howling)
with high-performance DSP and Sony’s unique
algorithms designed to eliminate feedback
before it becomes unbearable. Up to 1024-band
suppression lters are continuously tuned
automatically in real time, eliminating feedback
and avoiding deteriorating the original signal;
this delivers the highest quality sound that can be
enjoyed by presenters, vocalists, and audiences.
You can freely select the audio outputs to
which you want this feedback reduction lter to
apply – for example, you can output original
audio to the main PA system, while processed
audio is delivered to your monitor speakers.
Intelligent Feedback Reducer
FEATURES and TECHNOLOGIES
Frequency Response
Dynamic Response
Digital SystemAnalog System
Level [dB]
Frequency[Hz]
10 100 1k 10k 100k
-30
-25
-20
-15
-10
-5
0
5
10
DWZ-M70
DWZ-M70
DWZ-B70HL
DWZ-B70HL
4
Sony Intelligent Feedback Reducer’s Suppression Filter
Conventional Suppression Filter
Without Feedback Reducer With Feedback Reducer
OFF ON

Interruptions in reception (signal dropout) can be
a problem with wireless microphone transmission
systems. With the DWZ Series, however, the
occurrence of signal dropout can be reduced to
a minimum. Utilizing a space diversity reception
system, this series achieves stable reception by using
dual antenna inputs/reception circuits. These receive
signals over two different paths and automatically
select the stronger RF signal for output.
Stable Transmission
The DWZ-M70 package and DWZ-B70HL package
provide two selectable RF modes. Simply choose
the one that makes best use of your actual 2.4-GHz
RF environment.
Two RF Modes for Reliable Transmission

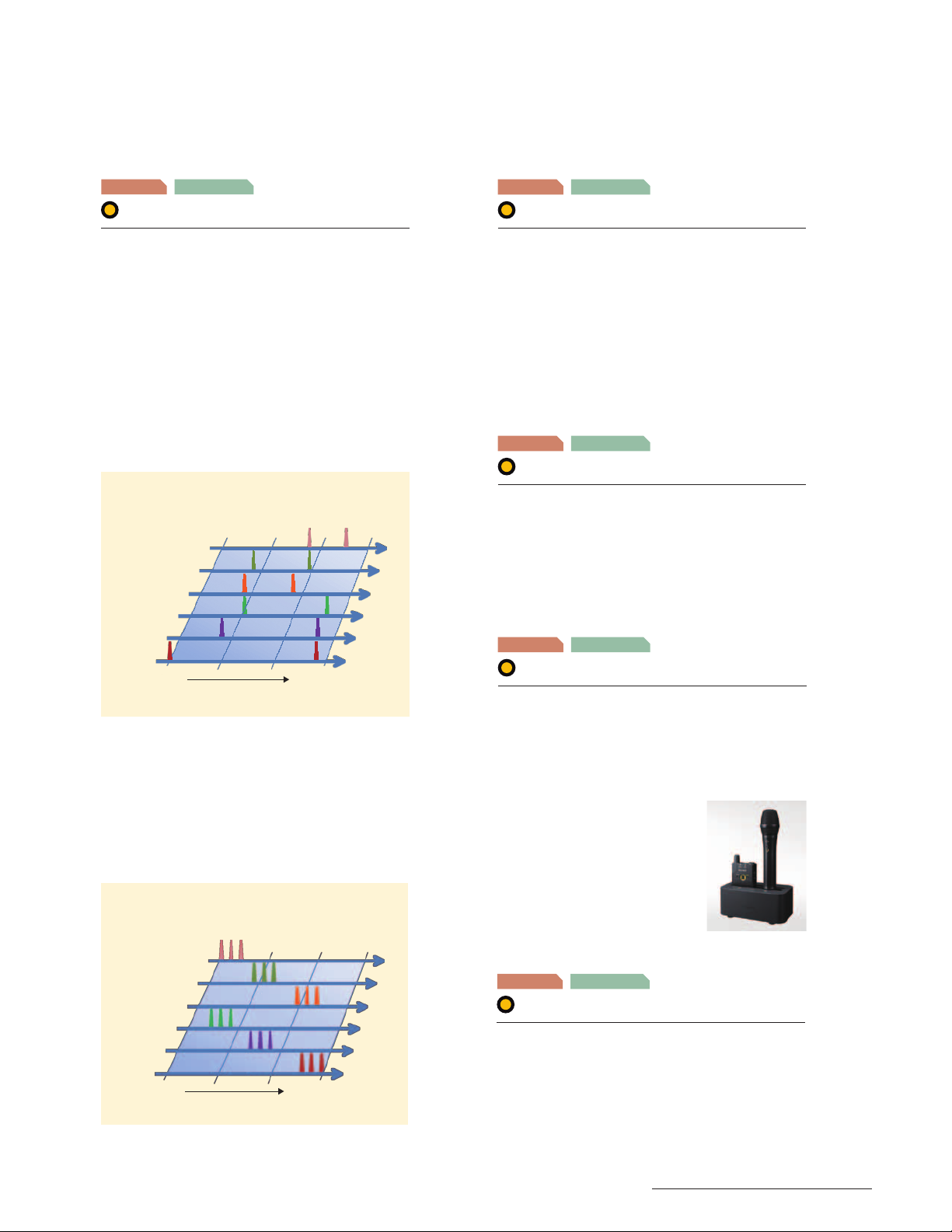

This mode reduces interference with other wireless
equipment used in the same environment, such as
wi- devices. It doesn’t require you to have technical
knowledge about radio frequencies. Wide Band
Hopping Mode also supports additional error
correction for more secure transmission*.
[ Wide Band Hopping Mode ]
CH 6
CH 5
CH 4
CH 3
CH 2
CH 1
2402MHz 2482MHz
Hopping Image of Wide Band
** Latency of approximately 3 ms.
* Latency of approximately 6 ms.
This mode helps you to avoid interference from other
devices – for example, 2.4-GHz wireless remote
controllers that are commonly used for lighting control.
This enables you to coordinate frequencies when
using multiple wireless systems simultaneously**.
[ Narrow Band Hopping Mode ]
CH f
CH e
CH d
CH c
CH b
CH a
2402MHz 2482MHz
Hopping Image of Wide Band
DWZ-M70 DWZ-M70
DWZ-M70
DWZ-B70HL DWZ-B70HL
DWZ-B70HL
The BC-DWZ1 optional battery charger enables
you to recharge NiHM batteries in the ZTX-M02RC
and the ZTX-B02RC. The BC-DWZ1 is a contactless
recharger; this means that you simply place the
handheld microphone and/or bodypack transmitter
into the charging station to
recharge NiMH-type batteries.
You do not need to physically
remove the rechargeable
batteries to recharge them, which
saves you time and reduces
wear and tear to the transmitters.
Battery Recharging System
DWZ-M70 DWZ-B70HL
The ZTX-M02RC handheld microphone (supplied
with the DWZ-M70 package) and the ZTX-B02RC
bodypack transmitter (supplied with the DWZ-B70HL
package) are made of strong durable metal. Metal
construction supports reliable use in rough
operating conditions.
Robust Metal Body
DWZ-M70 DWZ-B70HL
5
These two DWZ Series packages both offer 128-bit
standard encryption technology to secure
transmitted signals and avoid being intercepted
by others. By using this encryption feature, users
can reduce the worry that confidential
info r m a tion could be intercepted.
Highly Secure Transmission
*BC-DWZ1 and NiMH battery are sold separately.

The DWZ-B70HL package includes two types of
microphones. The ECM-HZ1UBMP is a uni-directional
electret condenser lightweight headset that keeps
you comfortable and stress-free even when wearing
it for long periods of time. Its ear-clip-style design
allows you to wear it on either your left or right ear.
The ECM-LZ1UBMP is a uni-directional electret
condenser lavalier microphone, ideal for commercial
sound applications such as presentations, lectures,
and conferences.
Headset & Lavalier Microphones
With a five-band digital equalizer in the half-rack
ZRX-HR70 receiver, you can adjust the sound
character of your microphone as desired.
The bodypack transmitter muting switch allows you to
select specic outputs on the receiver to be muted.
You can select to mute all outputs, XLR/Main outputs,
or the AUX/Tuner output. This feature provide you
with many operational choices – for example,
talkback operation.
Five-band Equalizer
Selectable Muting Output
Adjustable transmitter attenuators allow you to
select proper audio input levels from the microphone.
The bodypack transmitter (included with the
DWZ-B70HL package) can also support line level
audio input signals, plus it can be used in
conjunction with the optional EC-1.5BX XLR input
cable when needed.
Adjustable Attenuator
DWZ-M70
DWZ-M70
DWZ-B70HL
DWZ-B70HL
DWZ-B70HL
DWZ-B70HL
Headset microphone
ECM-HZ1UBMP Lavalier microphone ECM-LZ1UBMP

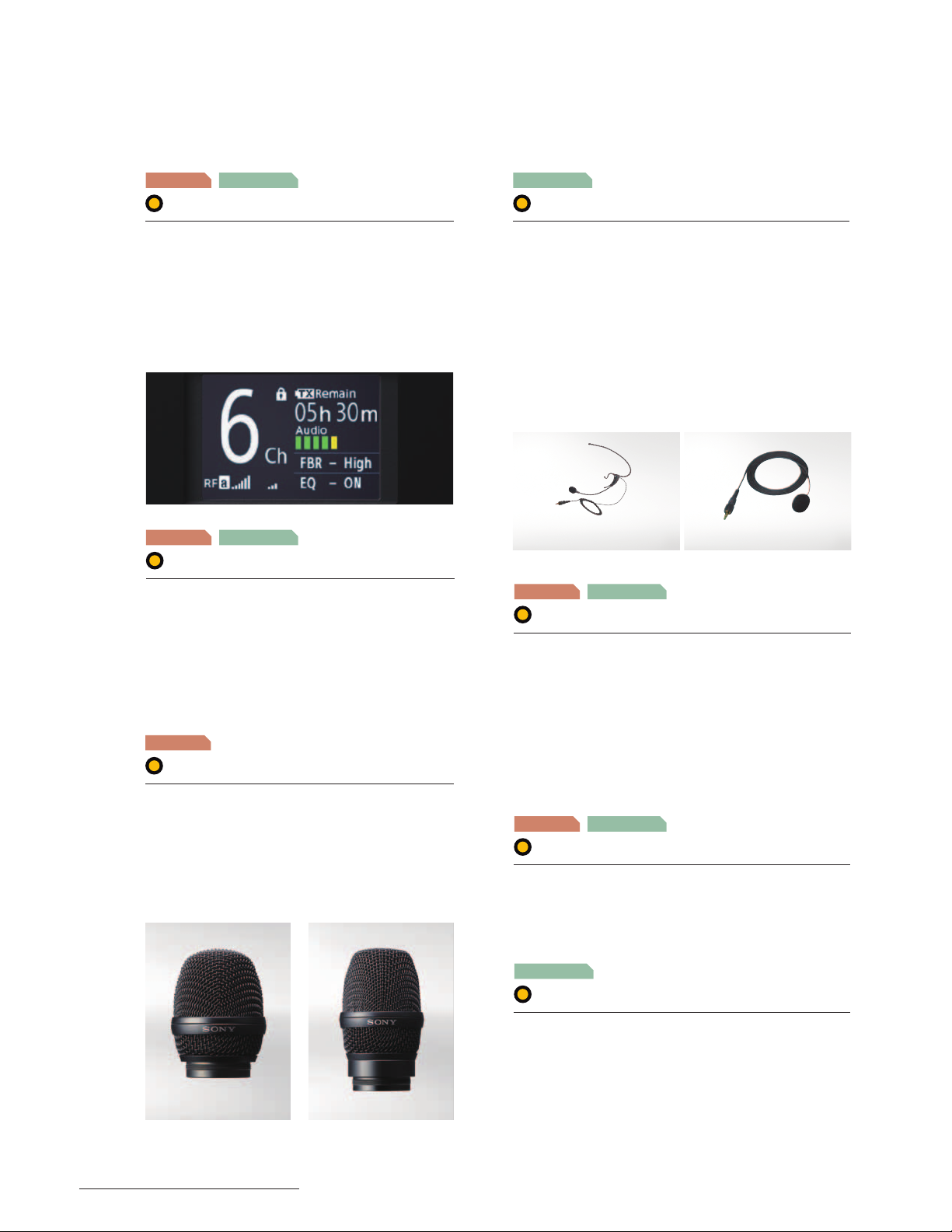

The ZRX-HR70 half-rack-size receiver (supplied
with the DWZ-M70 package and the DWZ-B70HL
package) includes a large color LCD display to
provide you with a detailed visual status of your
selected channel, feedback reducer, signal,
and ve-band digital equalizer, along with your
audio level, and transmitter battery life.
Large Color LCD
DWZ-M70
DWZ-M70
DWZ-B70HL
DWZ-B70HL
With the handheld transmitter, you can use
the supplied high-quality dynamic cardioid
microphone capsule. Alternatively, you can
select any optional mic capsule from Sony’s
DWX Series capsules (the thread pitch is
1.25”/28; 31.3 mm/pitch 1.0 mm threading)*.
Interchangeable Capsules
DWZ-M70
6
The half-rack ZRX-HR70 has Clear Channel Scan
and Best Channel Selection features that can detect
unoccupied channels and select the most
appropriate channel automatically. These features
allow you to achieve fast and easy system setup.
Fast and Easy Setup
CU- C31 F31/ F32
*Use of third-party capsules may cause RFI or EMF noise.

BUTTONS and INTERFACES
Optional Accessory
ZRX-HR70
Half-rack receiver
ZRX-HR70
Half-rack receiver
ZTX-B02RC
Bodypack transmitter
ZTX-M02RC
Handheld microphone
ECM-HZ1UBMP
Headset microphone
ECM-LZ1UBMP
Lavalier microphone
AC adaptor
AC adaptor Microphone holder clip Cord Clip
PACKAGE LINEUP
DWZ-M70 DWZ-B70HL
Microphone holderAntenna Antenna
Belt Clip
Channel Display
Power Switch
Encryption Switch
Power/Muting Button Display
Escape Button
Power Button
Unbalanced Tuner/
AUX Output
Balanced Output
Mic/Line (audio output level)
DC 12V Input
Cable Clamp
Antenna a/b Connector
Unbalanced Main
Output
Rotary Encoder
Channel Display
Channel Select Button
Audio Input
Input Switch
ATT (attenuator)
Switch
Battery
Compartment
Channel Select
Button
Encryption
Switch
ZRX-HR70ZTX-B02RCZTX-M02RC
Headset microphone
ECM-HZ1UBMP Lavalier microphone ECM-LZ1UBMP
Battery charger
BC-DWZ1 Rack mount kit RMM-HRD1
Microphone holder clip
SAD-HZ1B Windscreen pack AD-RX7B Guitar cable GC-0.7BMP Input cable EC-1.5BX XLR
7

Model Code DWZ-M70 DWZ-B70HL
Transmitter Type Handheld Bodypack
Carrier Frequencies 2402.0 MHz to 2478.5 MHz 2402.0 MHz to 2478.5 MHz
RF Power Output 10 mW (e.i.r.p.) 10 mW (e.i.r.p.)
Receiving
Section
Receiver Type Rackmount (Half / 1 channel) Rackmount (Half / 1 channel)
Reception Type Space diversity Space diversity
Antenna Type External whip antenna External whip antenna
Receiving Frequencies 2402.0 MHz to 2478.5 MHz 2402.0 MHz to 2478.5 MHz
RF Sensitivity 24 dBμV or less 24 dBμV or less
Capsule Type Dynamic Electret condenser
Directivity Uni-directional Uni-directional
Maximum Input Level 142 dBSPL (with 12 dB attenuator) MIC: –22 dBu INST/LINE: +8 dBu(when attenuator level is 0 dB)
Audio Attenuator
Adjustment Range
0 / 6 / 12 dB 0 / 10 / 20 dB
Frequency Response Transmission: 10 Hz to 22 kHz Headset Microphone: 60 Hz to 18 kHz
Lavalier Microphone: 60 Hz to 18 kHz
Dynamic Range 102 dB (A-weighted) MIC: 102 dB (A-weighted) INST/LINE: 98 dB (A-weighted)
Audio Delay Narrow band mode: Approx. 3 ms / Wide band mode: Approx. 6 ms (Transmitter + Receiver)
(Additional Audio Delay forIntelligent Feedback Reducer/ Low: 0ms, Mid: 8ms, High: 16ms)
Narrow band mode: Approx. 3 ms / Wide band mode:Approx. 6 ms (Transmitter + Receiver)
(Additional Audio Delay forIntelligent Feedback Reducer/ Low: 0ms, Mid: 8ms, High: 16ms)
Distortion (T.H.D) 0.03% or less (-38 dBu, 1 kHz input) 0.03% or less (-38 dBu, 1 kHz input)
Analog Output
XLR-3-32, balanced (x1) Phone jack, unbalanced (x2) (Intelligent Feedback Reducer is available) XLR-3-32, balanced (x1) Phone jack, unbalanced (x2) (Intelligent Feedback Reducer is available)
Reference
Output Level
Other
Equipment
Encryption AES 128-bit AES 128-bit
LCD LCDDisplay
USB Port(for rmware update)
TX x1 / RX x 1 TX x1 / RX x 1
General
Power Requirements ZTX-M02RC: 3.0 V DC (two LR6 (size AA) alkaline dry cell batteries)
*Rechargeable function is available with two HR6 (size AA) Ni-MH rechargeable batteries
ZTX-B02RC: 3.0 V DC (two LR6 (size AA) alkaline dry cell batteries)
*Rechargeable function is available with two HR6 (size AA) Ni-MH rechargeable batteries
ZRX-HR70: External DC input: 12 V DC ZRX-HR70: External DC input: 12 V DC
Battery Operating Time Approx. 10 hours of continuous use (25 °C (77 °F) ambient temperature,
Sony LR6 (size AA) alkaline dry cell batteries)
Approx. 10 hours of continuous use (25 °C (77 °F) ambient temperature,
Sony LR6 (size AA) alkaline dry cell batteries)
Operating Temperature 32°F to 122°F / 0°C to 50°C 32°F to 122°F / 0°C to 50°C
Storage/Transport Temperature
-4°F to +140°F -20°C to +60°C -4°F to +140°F -20°C to +60°C
Dimensions
Weight
Supplied Accessories ZTX-M02RC (1),ZRX-HR70 (1),Mic holder (1),Antenna (2),AC adapter (1),
Quick Start Guide (1),Before Use (1),CD-ROM (1)
ZTX-B02RC (1),ZRX-HR70 (1),Uni-directional Lavalier Microphone (1),
Uni-directional Headset microphone (1),Mic holder clip (1),Cord clip (1),Wind screen (1),
Belt clip (1),Belt clip screw (1),Antenna (2),AC adapter (1),Quick Start Guide (1),Before Use (1),CD-ROM (1)
Transmission: 10 Hz to 22 kHz
Microphone unit: 70 Hz to 16 kHz
Balanced output: MIC: –58 dBu / LINE: –12 dBu
Unbalanced output: –28 dBu
Balanced output: MIC: –58 dBu / LINE: –12 dBu
Unbalanced output: –28 dBu
ZTX-M02RC: Approx. 11 oz. (308 g) (including batteries)
ZRX-HR70: Approx. 1 lb. 2.0 oz. (510 g)
ZTX-B02RC: 2 1/2 × 3 1/2 × 13/16 inches (63 x 87 x 20 mm) (w/h/d) (excluding the antenna)
ZRX-HR70: 6 5/8 × 1 3/4 ×3 7/8 inches (168 x 44 x 96 mm) (w/h/d)
ZTX-B02RC: Approx.5.7 oz. (162 g) (including batteries)
ZRX-HR70: Approx. 1 lb. 2.0 oz. (510 g)
ZTX-M02RC: 1 15/16 × 10 1/4 inches (48 x 258 mm) (diameter/length)
ZRX-HR70: 6 5/8 × 1 3/4 ×3 7/8 inches (168 x 44 x 96 mm) (w/h/d)
Transmitting
Section
Audio Section
Directivity
Characteristics
0.000.00
5.00
5.00
0
30
60
90
120
150
180
210
240
270
300
330
-25.00
-25.00
-20.00
-20.00
-15.00
-15.00
-5.00
-5.00
-10.00
-10.00
0.0
10.0
10 100 1k 10k
Level[dB]
Frequency[Hz]
-40.0
-30.0
-20.0
-10.0
20.0
ZTX-M02RC
Frequency
Response
On axis 90° 180°
On axis 90° 180°
On axis 90° 180°
400Hz 1000Hz
4000Hz 8000Hz
Directivity
Characteristics
0
30
60
90
120
150
180
210
240
270
300
330 5.00
5.00
-25.00
-25.00
-20.00
-20.00
-15.00
-15.00
-5.00
-5.00
-10.00
-10.00
0.0
10.0
10 100 1k 10k
Level[dB]
Frequency[Hz]
-40.0
-30.0
-20.0
-10.0
20.0
ECM-HZ1UBMP
Frequency
Response
400Hz 1000Hz
2000Hz 4000Hz
400Hz 1000Hz
2000Hz 4000Hz
Directivity
Characteristics
5.005.00
0
30
60
90
120
150
180
210
240
270
300
330
-25.00
-25.00
-20.00
-20.00
-15.00
-15.00
-5.00
-5.00
-10.00
-10.00
0.0
10.0
10 100 1k 10k
Level[dB]
Frequency[Hz]
-40.0
-30.0
-20.0
-10.0
20.0
ECM-LZ1UBMP
Frequency
Response
0.000.00
0.000.00
*0dBμV=1μV EMF, 0dBu=0.775Vrms, 0dBV=1V, 0dB SPL=2x10-5 Pa
SPECIFICATIONS
©2013 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features, design, and specifications are subject to change without notice.
The values for weight and dimension are approximate.
SONY and make.believe are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
A-1195 (MK11016V1) Printed in USA (2/13)
