Sony DTC-670 User manual

SONY
Digital Audio
Tape Deck
Operating Instructions
ul
in
|
|
©
Ke)
pil Q ©
® a wo o . N
z
o ’ = o Z —,
2 fo)
9 D 3
& 9 me
®& MIMI
5|

Operating Instructions
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
Owner's Record
The model number is located on the rear exterior and serial
number is on the rear. Record the serial number in the
space provided below. Refer to these numbers whenever
you call upon your Sony dealer regarding this product.
Model No. DTC-670
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
Serial No.
Or NCREIO)N
RISK OF ELECTRIC SHOCK
OO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the prod-
uct’s enclosure that may be of suffi-
cient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.
INFORMATION
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residantial installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interferential will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
— Reorient or relocate the receiving antenna.
~ Increase the separation between the equipment and
receiver.
— Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
You can cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.

Precautions
e Before operating the unit, be sure that the operating
voltage of your unit is identical with that of your local
power supply.
e The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet,
even if the unit itself has been turned off.
@ Should any solid object or liquid fall into the cabinet,
unplug the unit and have it checked by qualified
personnel before operating it any further.
e@ Unplug the unit from the wall outlet if it is not to be used
for an extended period of time. To disconnect the cord,
pull it out by grasping the plug. Never pull the cord
itself,
Before making program source connections, be sure to
unplug the unit.
e Do not install the unit in a location near heat sources
such as radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical vibration or
shock.
e@ Donot place anything on the top of the cabinet. The top
ventilation holes must be unobstructed for the proper
operation of the unit and to prolong the life of its
components.
If the unit is brought directly from a cold to a warm location,
moisture may condense inside the unit. In this condition,
the tape may adhere to the head drum and be damaged, or
the unit may not operate correctly. Always remove the
cassette when the unit will not be used.
If moisture is present...
e Function controls will not operate.
e@ All operations will stop.
When the CAUTION indicator lights and the unit will not
operate
Leave the unit turned on for about an hour.
If you have any question or problem concerning your unit,
please consult your nearest Sony dealer.

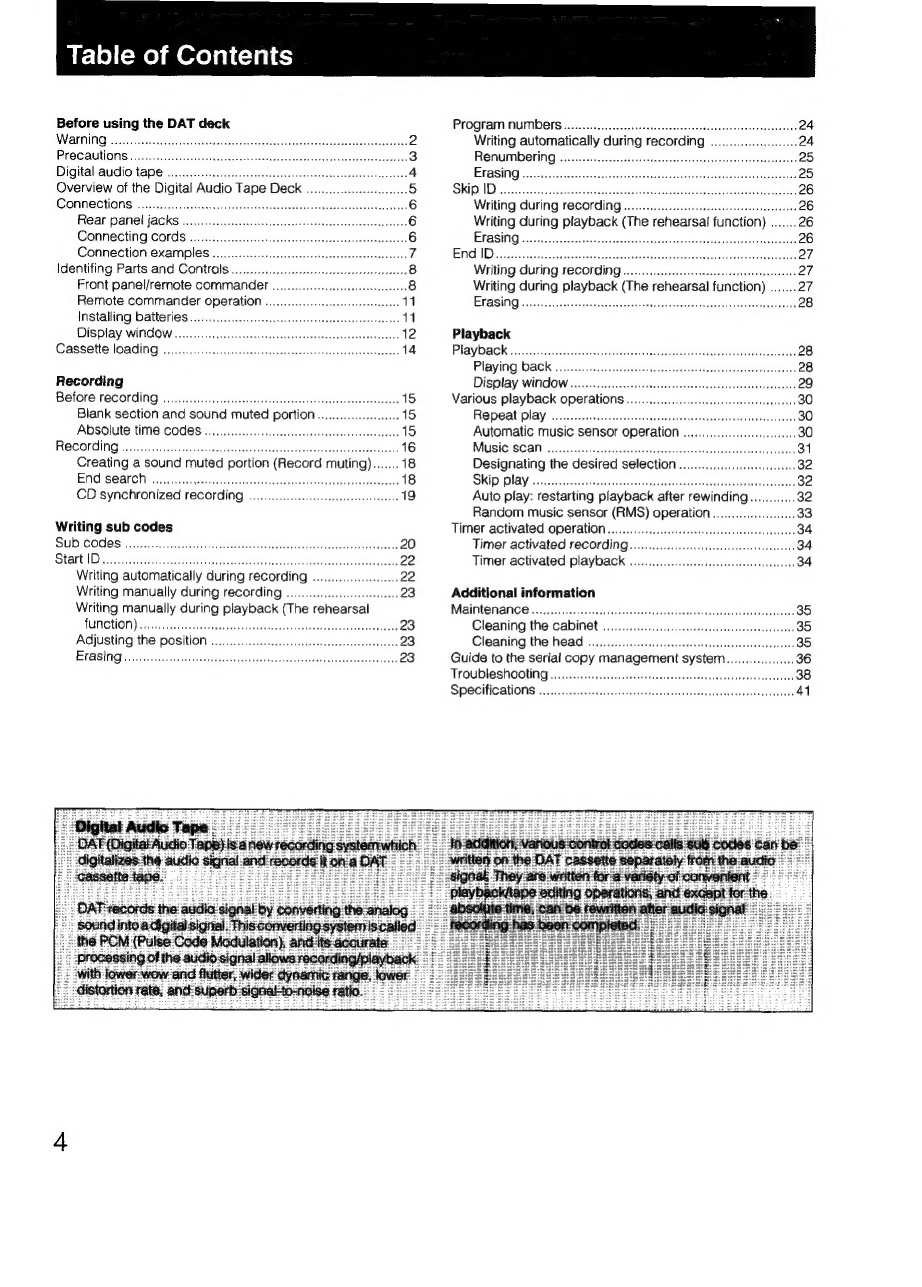

Bile) (=e) m Oroler (=. 01 &)
Before using the DAT deck
Warning
Precautions
Digital audio tape ..
Overview of the Digital Audio Tape Deck
Connections
Rear panel jacks ..
Connecting cords ......
Connection examples ....
Identifing Parts and Controls.....
Front panel/remote commander .

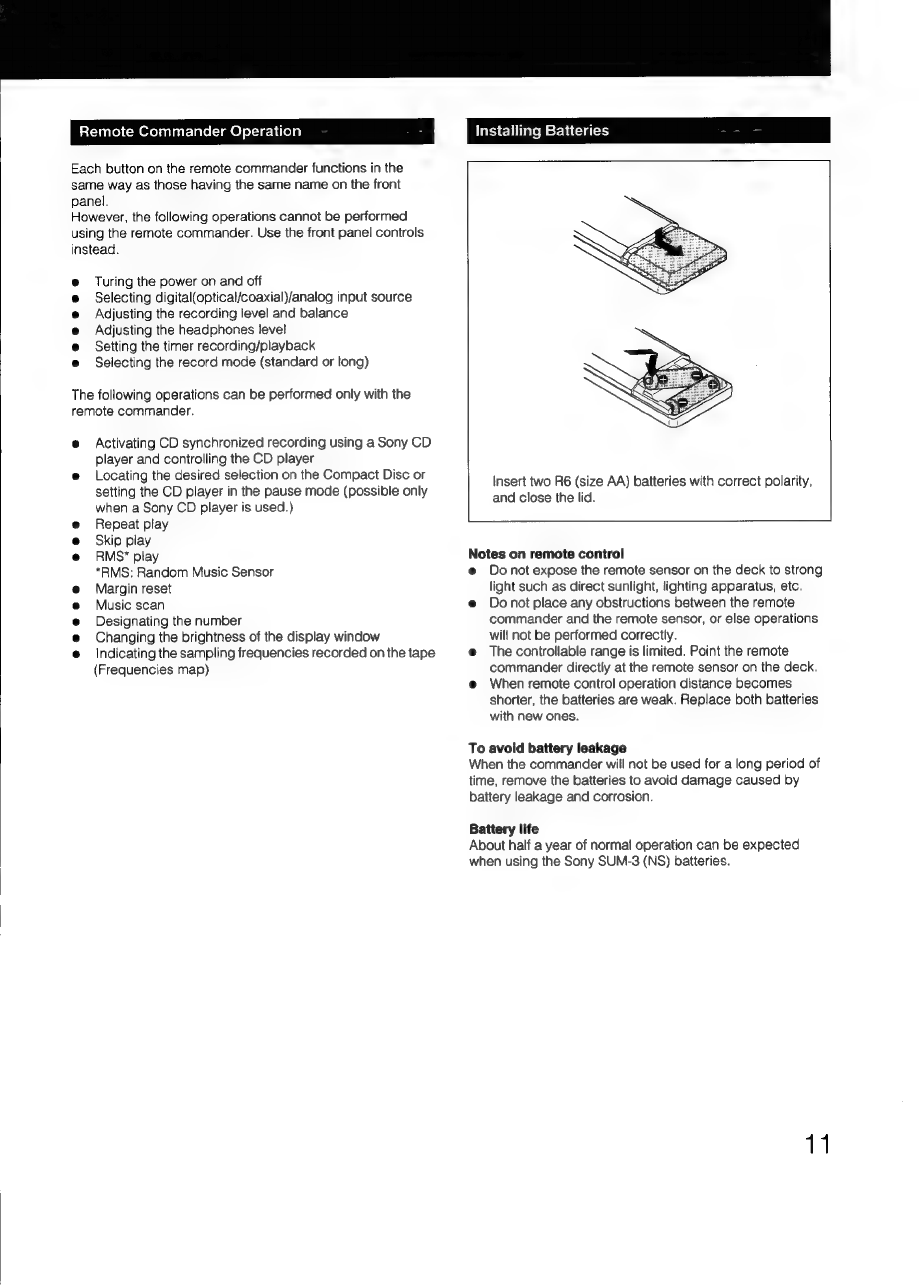

Remote commander operation ...
Installing batteries......
Display window 2
Cassette loading ..........ceccssesserssessesceereresesssssssssessecsseeees
Recording
Before recording ...
Blank section and sound muted portion..
Absolute time codes.......
Re@COrdiNng ....... ccc ee ceees

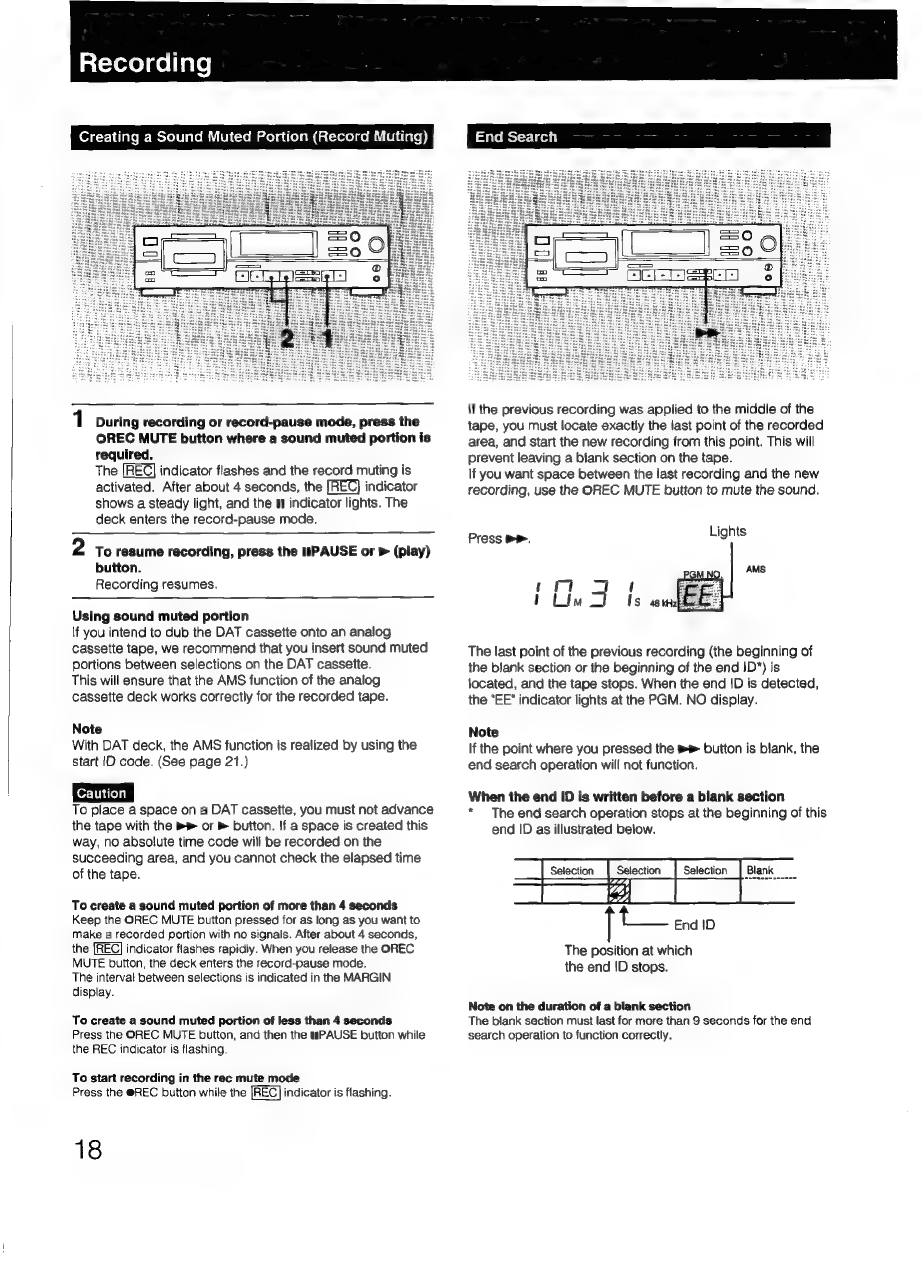

Creating a sound muted portion (Record muting).
ENG GOB0ON: scccoayedteccebicceness

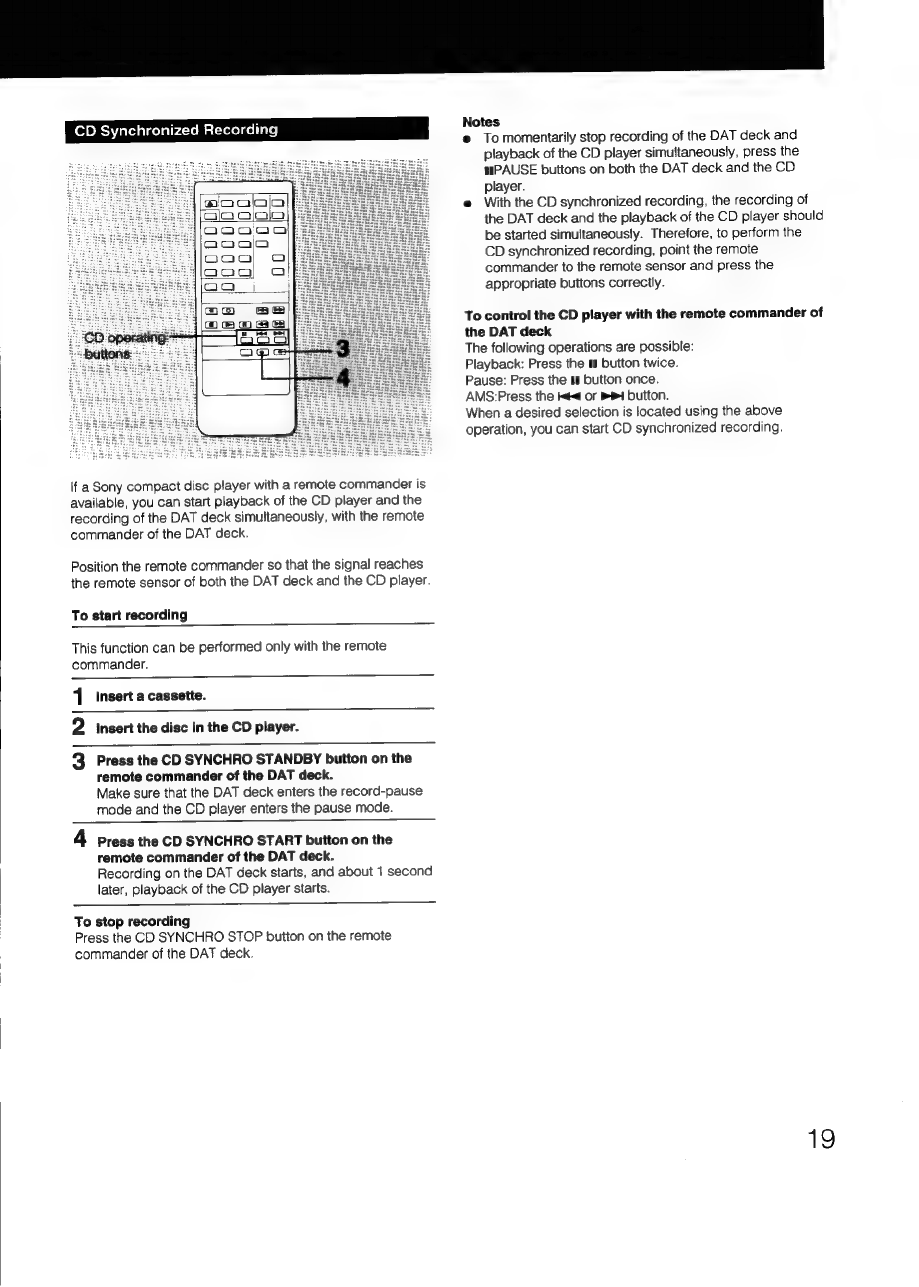

CD synchronized recording ....
Writing sub codes
Sub codes ...
Start ID
Writing automatically during recording
Writing manually during recording
Writing manually during playback (The rehearsal
function)
Adjusting the position .
Erasing
Program numbers
Writing automatically during recording .
Renumbering ....
Erasing ....
Skip ID we.
Writing during recording fs
Writing an eyeace (The rehearsal function) ....... 26
Erasing...
End ID...........
Writing during recording....
Writing during playback (The rehearsal function) .
EAS HN reds eccccence swssiecveesadsds tedved gen caiwe Wa ddca Gedurecenivcels 28
Playback
Playback
Playing back ..
Display window .....
Various playback operations
Repeat play oe
Automatic music sensor operation .
Music scan ou...
Designating the desired selection ..
Skip DAY. cic icesies cxorsasacneies
Auto play: restarting playback after rewinding...
Random music sensor (RMS) operation ...
Timer activated operation...........
Timer activated recording..
Timer activated playback
Additional information
Maintenance ........ cece ccc eseeeeteesseees
Cleaning the cabinet
Cleaning the head ..........
Guide to the serial copy management system
Troubleshooting...
Specifications

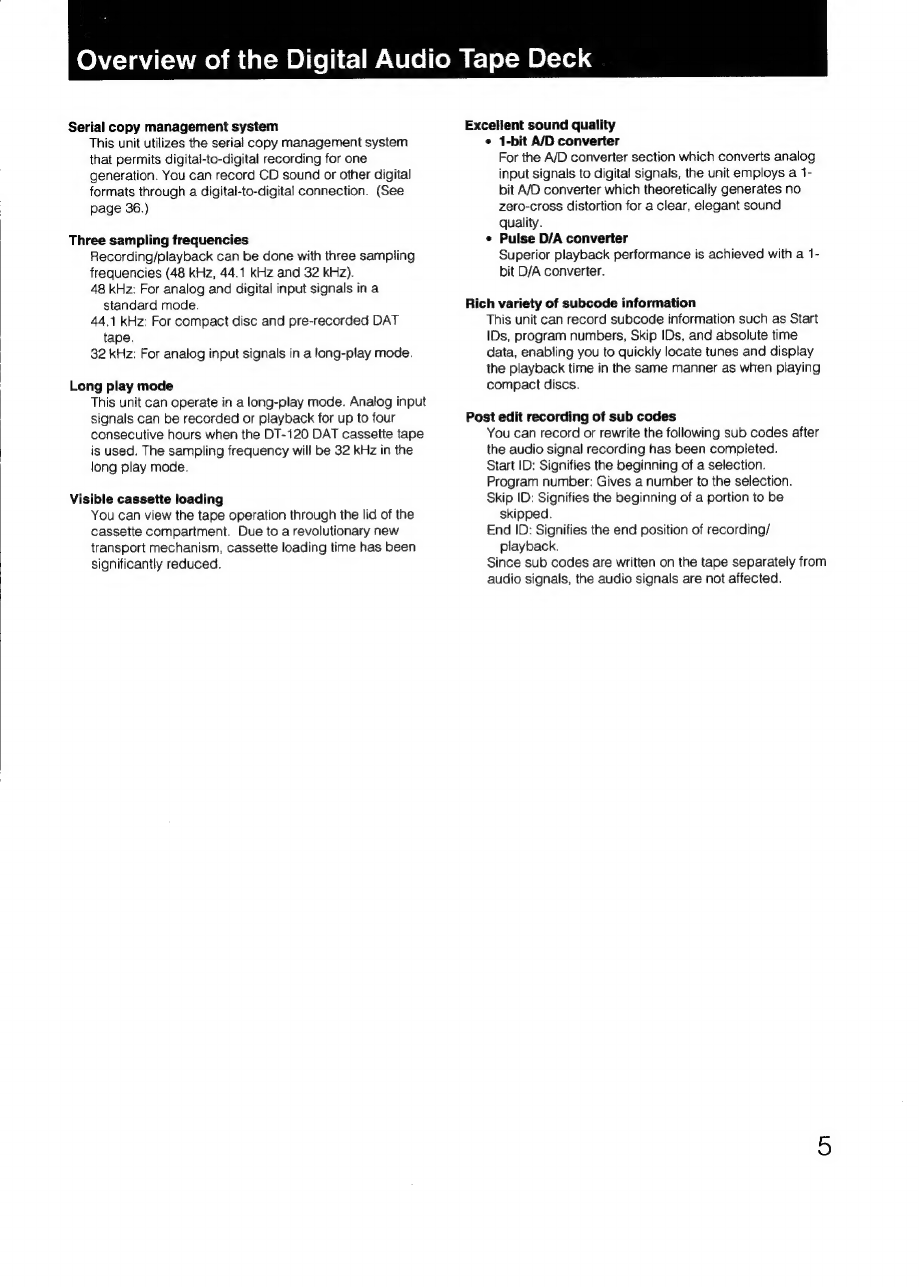

Overview of the Digital Audio Tape Deck
Serial copy management system
This unit utilizes the serial copy management system
that permits digital-to-digital recording for one
generation. You can record CD sound or other digital
formats through a digital-to-digital connection. (See
page 36.)
Three sampling frequencies
Recording/playback can be done with three sampling
frequencies (48 kHz, 44.1 kHz and 32 kHz).
48 kHz: For analog and digital input signals in a
standard mode.
44.1 kHz: For compact disc and pre-recorded DAT
tape.
32 kHz: For analog input signals in a long-play mode.
Long play mode
This unit can operate in a long-play mode. Analog input
signals can be recorded or playback for up to four
consecutive hours when the DT-120 DAT cassette tape
is used. The sampling frequency will be 32 kHz in the
long play mode.
Visible cassette loading
You can view the tape operation through the lid of the
cassette compartment. Due to a revolutionary new
transport mechanism, cassette loading time has been
significantly reduced.
Excellent sound quality
¢ 1-bit A/D converter
For the A/D converter section which converts analog
input signals to digital signals, the unit employs a 1-
bit A/D converter which theoretically generates no
zero-cross distortion for a clear, elegant sound
quality.
Pulse D/A converter
Superior playback performance is achieved with a 1-
bit D/A converter.
Rich variety of subcode information
This unit can record subcode information such as Start
IDs, program numbers, Skip IDs, and absolute time
data, enabling you to quickly locate tunes and display
the playback time in the same manner as when playing
compact discs.
Post edit recording of sub codes
You can record or rewrite the following sub codes after
the audio signal recording has been completed.
Start ID: Signifies the beginning of a selection.
Program number: Gives a number to the selection.
Skip ID: Signifies the beginning of a portion to be
skipped.
End ID: Signifies the end position of recording/
playback.
Since sub codes are written on the tape separately from
audio signals, the audio signals are not affected.

Connections
This section describes about the connecting cords and the
analog and digital connections. Select the connection
depending on your equipment connected with this unit.
Rear Panel Jacks
LINE IN (line input) jacks (phono jack)
Connect to the recording outputs of an amplifier. Signals
supplied by the amplifier can be recorded using the
sampling frequency of 48 kHz in the standard play mode
or 32 kHz in the long play mode.
LINE OUT (line output) jacks (phono jack)
Connect to the DAT or tape inputs of an amplifier. The
piayback signal of this deck will be output.
COAXIAL/OPTICAL DIGITAL IN (digital input) jacks
(coaxial phono jack/optical jack)
Connectto the digital outputs of an amplifier having a built-
in D/A converter or other digital source, such as a CD
player for digital-to-digital recording.
OPTICAL DIGITAL OUT (digital output) jack
(optical jack)
Connect to the digital inputs of an amplifier having a built-
in D/A converter or another DAT deck, for playback of a
DAT cassette or digital-to-digital recording.
Notes on connection
e Use the connecting cords specified in the illustrations.
e@ Turn off the power for all equipments before making
connections.
e Be sure to insert the plugs firmly into the jacks. Loose
connections may cause hum and noise. When
unplugging, grasp the plug and not the cord.
Notes on the optical cable
@ Donot bend the cord. When the cord is not used, curl it
with a diameter of more than 15 cm (5 7/g inches).
e@ Do not use it under high temperatures.
@ When the optical cable is not connected, cover the
OPTICAL IN/OUT jacks with the supplied caps.
Note on sound signals
When connecting an optical cable to the DIGITAL IN/
DIGITAL OUT jacks, sound signals (L/R) are transmitted
together through the cable.
Connecting Cords
There are following three types of connecting jacks at the
rear of the deck. Each type of jack requires a different type
of connecting cord.
Audio signal connecting cord
(supplied, or optional RK-C77 etc.)
Red White
af;
See oar e:
Oe =e-+@
LINE OUT White Red = LINE IN
Coaxial digital connecting cord
ional VMC-1ES, etc.
coaxiaL — (Ptona Sete) COAXIAL
our’ IN
On=
CD
(=
-—)
* This unit is not equipped with the COAXIAL OUT jack.
Optical cable
(optional POC-15, etc.)
OPTICAL OUT OPTICAL IN
How to connect the optical cable
Remove the cap.

| Connection Examples
——- : Analog signal
—— : Digital signal
(coaxial cable or optical cable)
cc, : Signal flow
=
le
player
DAT
deck
45
{
b
Ih
Amplifier
[aecour]|[) {|| rare]
When recording via digital-
to-digital connection,
connect a DAT deck (the
digital input) to DIGITAL
OUT (OPTICAL) of the
DTC-670.
When recording via digital-
to-digital connection,
connect the sound source
equipment (the digital
output) to DIGITAL IN
(COAXIAL or OPTICAL) of
the DTC-670.
dl
Ip
DTC-670
ates | ee:
— == to a wall outlet
When connecting a microphone
Connect the analog output of a stereo microphone
amplifier to LINE IN of the DTC-670.
Note
If “COPY PROHIBIT” appears in the display window,
recording via digital-to-digital connection cannot be
performed.
In this case, connect the sound source equipment using
LINE IN and OUT jacks.

el=Yal thi lale Mm ac:latcw-ltlem Oce)altge) i)
This section describes the names and functions of each parts of this unit. Before operating this unit, please read carefully.
Front Panel/Remote Commander
[1] POWER switch
Turns the power on and off.
[2] Cassette compartment
Insert a cassette with the window side up and the safety
tab facing you.
(3) Display window
[4] END ID buttons
WRITE: Press to write the ID signifying the end of
playback or recording.
ERASE: Press to erase the end ID.
SKIP ID buttons
WRITE: Press at the beginning of the portion you may
wish to skip later. A skip ID will be written from the
point where you pressed this button.
ERASE: Press to erase the nearest skip ID which is
before the current position.
[6] START ID buttons
AUTO: Press to turn on and off the AUTO indicator.
When the AUTO indicator is lit, the start 1D will
automatically be written during recording. When the
AUTO indicator is not lit, press the START ID WRITE
button at the point where you want to write a start ID.
WRITE: Press to write the start [D at the desired point
during recording or playback.
ERASE: Press to erase a start ID, When a start 1D and
a program number are written on the tape, both
codes are simultaneously erased by pressing this
button.
RENUMBER: Press to renumber all programs on the
tape. When only the start IDs are written, pressing
this button will insert the proper program numbers
beginning with “1”. The tape will rewind and start
from the beginning to accomplish this function.
INPUT selector
Set according to the signal to be recorded.
ANALOG: For recording from the equipment
connected to the LINE IN jacks.
OPTICAL: For recording from the equipment
connected to the DIGITAL IN (OPTICAL) jack.
COAXIAL: For recording from the equipment
connected to the DIGITAL IN (COAXIAL) jack.
REC LEVEL (recording level) control
Adjust the recording level for the analog input signals.
When recording digital signals, it is not necessary to
adjust the recording level.

[9] BALANCE control
Adjust the recording balance for the analog input signals.
When recording digital signals, it is not necessary to
adjust the recording balance.
Remote sensor
Receives the signal from the remote commander.
REC MODE selector
Normally set to the STANDARD position.
When this selector is set to the LONG position, you can
record analog input signals or digital signals with 32 kHz
in the long play mode.
TIMER switch
Normally set to the OFF position. When recording or
playing back at the desired time using a commercially
available audio timer, set to the REC position or the PLAY
position respectively.
COUNTER buttons
MODE: Selects the counter display in the display window
among the linear counter (tape running time), absolute
time, elapsed time of the selection, and total remaining
time of tape. Each time you press the button, the
display changes sequentially.
RESET: Resets the linear counter to “OM 00S".
OPEN/CLOSE button
Press to open or close the cassette compartment.
Tape operating buttons
@ (stop): Press to stop recording or playback.
» (play): Press to play back the tape.
@REC (recording): Press to enter the record-pause
mode. To start recording, press the PAUSE or >
button.
ItPAUSE (pause): Press to stop for a moment during
recording or playback. Torestart recording or playback,
press this button again or press the » button.
If the unit is left in the pause mode for about 10
minutes, it will automatically be released and the
deck will enter the stop mode. To restart recording
or playback from the stop mode, press the @REC or
» button respectively.
OREC MUTE (record muting): Press to insert a sound-
muted portion (space).
</> (AMS): Press to locate the beginning of the
selection during the playback.
<¢</>> (rewind/review, fast-forward/cue): In the stop
mode, press to rewind/fast-forward the tape. During
playback, press to rewind or fast-forward the tape
while listening to the sound.
Headphones jack
Insert the headphones plug to this jack.
PHONE LEVEL control
The PHONE LEVEL control adjusts the headphones volume
level.
9

KolsValduitale Max-laccw-lave mOxelaligel ts
Front Panel/Remote Commander
DISPLAY MODE button
Changes the display mode. (Refer to page 12.)
Numeric buttons (0-9)
Designate the desired program number to be played
back before starting playback.
Designate the desired number in the record-pause
mode, the program number is written consecutively
from the designated number.
[20] CLEAR button
Use to cancel the program number which has been
mistakenly entered.
21] MUSIC SCAN button
Use this feature to listen to the beginning of each
selection successively.
22] RMS play buttons
ENTER: To program the selections in a desired order,
press this button after pressing the numeric buttons.
CHECK: Press to check the programmed contents.
REPEAT 14/ALL button
Press to play a desired portion repeatedly. Each time you
press the button, the indicatior changes as follows:
REPEAT 1 -» REPEAT ALL -> off
10
MARGIN RESET button
Press to reset the margin of peak level,
SKIP PLAY button
Press to activate the skip ID code function. The portion of
the tape previously marked will be skipped.
CD operation buttons
Operative only for the Sony CD player equipped with a
remote commander.
ll (pause): Press this button twice to start playback. To
enter the pause mode, press this button once.
k¢<q/m 1 (AMS): Press to locate the desired selection on
the Compact Disc during playback or in the stop mode.
CD SYNCHRO (CD synchronized recording) buttons
(The playback of the Sony CD player equipped with a
remote commander and the recording of the DAT deck
can be performed simultaneously.)
STANDBY: Press to set the unit to the record-standby
mode.
START: Press to start recording of the DAT deck and
then playback of the CD player.
STOP: Press to stop the DAT deck recording and the CD
player playback.

Remote Commander Operation
Each button on the remote commander functions in the
same way as those having the same name on the front
panel.
However, the following operations cannot be performed
using the remote commander. Use the front panel controls
instead.
Turing the power on and off
Selecting digital(optical/coaxial)/analog input source
Adjusting the recording level and balance
Adjusting the headphones level
Setting the timer recording/playback
Selecting the record mode (standard or long)
The following operations can be performed only with the
remote commander.
e Activating CD synchronized recording using a Sony CD
player and controlling the CD player
e Locating the desired selection on the Compact Disc or
setting the CD player in the pause mode (possible only
when a Sony CD player is used.)
e@ Repeat play
e Skip play
@ RMS" play
“RMS: Random Music Sensor
@ Margin reset
e@ Music scan
e Designating the number
e@ Changing the brightness of the display window
e Indicating the sampling frequencies recorded on the tape
(Frequencies map)
Installing Batteries
Insert two R6 (size AA) batteries with correct polarity,
and close the lid.
Notes on remote control
e@ Do not expose the remote sensor on the deck to strong
light such as direct sunlight, lighting apparatus, etc.
e@ Do not place any obstructions between the remote
commander and the remote sensor, or else operations
will not be performed correctly.
e@ The controllable range is limited. Point the remote
commander directly at the remote sensor on the deck.
@ When remote control operation distance becomes
shorter, the batteries are weak. Replace both batteries
with new ones.
To avoid battery leakage
When the commander will not be used for a long period of
time, remove the batteries to avoid damage caused by
battery leakage and corrosion.
Battery life
About half a year of normal operation can be expected
when using the Sony SUM-3 (NS) batteries.
14

Co l-Talciitale Max: laecw-larem Oxelal age) es
Display Window :
i itt h
ff
[LONG] TEMAINING DIGITAL IN
(LONG) PGM TIME OPTICAL
Pir ABS TIME COAXIAL
SKIP ID
WRITE ERASE
The following functions can be performed only with the LONG play mode indicator
remote commander. Lights when recording or playback is being performed in
. ; the long play mode.
To turn off the display window
When the power is turned on, the display window is also .
turned on. During recording or playback, all display or TOC (Table Of Contents) indicator
some parts of the display can be turned off. When a pre-recorded DAT cassette is played back, this
Each time you press the DISPLAY MODE button, the indicator will light.
indicators change as follows:
REMAINING (remaining time): Lights when the counter
Normal indicators) <————-—_—_—____—_—__—__ shows the remaining time of the tape.
PGMTIME (program time): Lights when the counter shows
the elapsed time of the current selection.
Peak level meters and margin indicators go off. ABS TIME (absolute time) indicator: Lights when the
(The DISPLAY OFF indicator lights.) counter shows the elapsed time from the beginning of
the tape.
v
All the indicators go off during recording or playback’. Time indicator
(The DISPLAY OFF AUTO indicator lights momentarily
, Sram Indicates the tape running time, absolute time, elapsed
just before the indicators go off.)
time of the current selection or remaining time. Each
time the COUNTER MODE button is pressed, the
display is changed.
* When pressing the DISPLAY MODE button except during
recording ar playback, the DISPLAY OFF AUTO indicator lights.
In this case, all the indicators go off immediately after recording
or playback starts. INPUT selector indicators
The OPTICAL or COAXIAL indicator lights according to
To change the brightness of the display window the position of the |NPUT selector. No indicator lights when
While pressing the COUNTER MODE button, press one of the INPUT selector is set to the ANALOG position.
the numeric buttons 1, 2 and 3. The greater number
pressed, the darker the display window becomes. [6] Sampling frequency indicator
48 kHz: For recording/playback of analog input signals
(standard mode)
44.1 kHz: For recording/playback of CD or apre-recorded
DAT cassette
32 kHz: For recording/playback of analog input signals
(long-play mode}
12

[7] REPEAT indicators
REPEAT 1: Lights when a desired selection is played
back repeatedly.
REPEAT ALL: Lights when all the selections are played
back repeatedly.
AMS (Automatic Music Sensor)/RMS (Random
Music Sensor) indicators
Show the number of selections to be skipped ahead or
behindin the AMS operation. When designating aselection
directly by the numeric button and the » button, the
display shows the program number of the target selection
while the selection is being searched for. When
programming the desired selections in the RMS operation
(page 33), the display shows the program number of the
selection to be programmed.
{9] DISPLAY OFF/AUTO indicators
The DISPLAY OFF indicator lights when peak level meters
and margin indicators are turned off. The DISPLAY OFF
AUTO indicator lights momentarily before all the indicators
are turned off.
SKIP PLAY indicator
When this indicator is lit during playback, the portion
marked by the skip ID is skipped and playback continues
from the next start iD.
is
&]
MUSIC SCAN indicator
Lights after pressing the MUSIC SCAN button to listen to
the beginning of each selection successively.
[12] CAUTION indicator
Lights when moisture condensation occurs. Ifthis happens,
the deck stops functioning automatically. (See page 3.)
[3] START ID mode indicators
AUTO: Lights when the AUTO button is pressed to write
the start ID automatically.
RENUMBER: Lights when the RENUMBER button is
pressed to renumber the program numbers.
WRITE: Lights when writing the start ID manually.
ERASE: Lights when erasing the start ID.
AUTO RENUMBER: Lights when renumbering program
numbers automatically.
SHIFT RENUMBER: Lights when shifting the start ID and
program number position.
SKIP ID mode indicator
WRITE: Lights when writing the skip ID.
ERASE: Lights when erasing the skip ID.
END ID mode indicator
WRITE: Lights when writing the end !D.
ERASE: Lights when erasing the end ID.
START ID indicator: Flashes when writing (for 9 or 18
seconds), erasing a start ID code, and lights when the
start 1D is detected during playback.
SKIP {Dindicator: Lights when writing (for 1 or 2seconds)
or erasing a skip |D code or when the skip ID is detected
during playback.
MARGIN indicator
Shows how much margin there is between the peak level
of input audio signal and 0 dB.
REHEARSAL indicator
Lights while the rehearsal function is activated (page 23).
COPY PROHIBIT indicator
Lights when recording the digital signal with the copy
prohibit code. In this case, record with the LINE IN jacks.
[20] STEP/PGM NO. indicator
Shows the program number of the selection being played.
When programming the desired selection in the RMS
operation (page 33), the display shows the step number
of the programmed selection.
Frequencies map
When pressing the 4 button while keeping the COUNTER
MODE button pressed, bars indicating the sampling
frequencies with which the tape was recorded appear on
the peak level meters.
Peak level meters
Indicate the level of the audio signal being recorded
during recording, and the peak values of the audio signal
recorded on the tape during playback.
Tape operation indicators
[REC] : Lights during recording or in the record-pause
mode.
»: Lights during recording or playback. It also lights in the
record-pause mode or in the play-pause mode.
i: Lights in the record-pause mode or in the play-pause
mode.

OF TT-y-y (=m Mor-lellale
On a digital audio tape
Only the digital audio tape made especially for DAT deck is
required.
Untike a conventional analog audio cassette tape, a digital
audio tape can be used only one side.
e Digital audio tape is designed to avoid a dust. Do not
open the inside of the tape.
e The hole at the back of a tape is a detector slot. Do not
cover the slot.
To prevent accidental! erasure
When a recording is made, any previously recorded signal
will be erased automatically. To prevent accidental erasure,
set the safety tab to the position shown in the illustration.
With the hole open, rewriting sub codes cannot be
performed.
1 Turn on the power.
2 Press AOPEN/CLOSE.
The *“GPEN" indicator appears on the display.
3 Insert the cassette.
Insert the cassette
until it clicks.
Window side up
Tab facing fowards you ay
4 Press 2OPEN/CLOSE.
The "CL GSE" indicator appears on the display.
To remove the cassette
Press 2OPEN/CLOSE.
=a.
[| Recording is impossible (with the hole
open).
Recording is possible (with the hole
“4 covered).
Notes
e@ When you turn on the power, the if indicator flashes for a
moment in the display window. During this period, no
buttons other than the 2OPEN/CLOSE and » buttons are
operative. Wait until blinking stops and the itindicator goes
off.
@ When inserting the cassette, do not push the cassette
compartment closed. Be sure to use the 2OPEN/CLOSE
button.
14
On the sampling frequency
When a cassette is inserted and a source program is
played back, the sampling frequency (48 kHz, 44.1 kHz or
32 kHz) of the source program appears in the display
window.

sie] cc Mat-lecelgeliare|
Blank Secti laxemoxel¥lareMuiviCcyoM ela ited)
With conventional analog audio tapes, the tape portion on
which no recording ever has been made and the portion on
which a recording has been made but the sound is muted
are treated the same, since no sound can be heard from
these portions.
However, with DAT cassette, you should know that the two
kinds of “no sound" portions must definitely be
distinguished one from the other.
Blank section
Means the portion on which no recording ever has been
applied.
VAL SACS,
®: Recording
Blank
section
©:
Selection
Sound portion
Means the portion on which a recording has been applied
but that no audible sound is recorded.
SEEICELICE
®: Recording
Sound muted section
" ©: Selection
Important
When recording, be certain that no blank section is left on
the tape. If blank sections remain on the tape, search
operations using the AMS buttons, for example, may take
quite a long time or the absolute time is not written
correctly.
Difference between the blank section and sound-muted
portion
When you record, a track format is constructed on the
recorded area, even if the sound is muted during
recording. On the blank section, since no recording is
applied, there is no track format.
Absolute Time Codes
The absolute time indicates the position of the tape, giving
the time elapsed from the beginning. The absolute time
codes correctly written on the tape can be used in various
convenient ways during playback.
Recording absolute time codes
When you record, the absolute time codes are also written
automatically from the beginning of the tape.
Once the absolute time codes are recorded, it cannot be
re-written. With the absolute time , you can check the
elapsed time from the beginning of the tape or designate
the position of the tape to be played back precisely.
Note, however, that the absolute time codes are not written
if you start recording from the middle of blank section. No
blank sections should be left on the tape when recording.
Tips for recording:
e@ To insert silence between selections, use the record
muting function (page 18). Do not advance the tape with
the mt or & button.
e Tostartrecording from the middle of the tape, use the end
search function (page 18) to locate the beginning of the
blank section. This will avoid leaving a blank section.
e@ When loading the tape written the absolute time codes,
the ABS TIME indicator is displayed, otherwise, the
counter indicator is displayed.
If a blank section is left on the tape
!f you start recording from the middle of a blank section, or
when the beginning of the new tape is advanced with the
»P or m button, the absolute time codes are not recorded,
since the DAT deck can no longer count the absolute time
from the beginning of the tape.
15

latcere}gel ale!
1 Make sure that the TIMER switch is set to the OFF
position, and turn on the power.
2 Open the cassette compartment, insert a cassette
and press the 2SOPEN/CLOSE button to load the
cassette. (See page 14.)
Then locate the position at which you want to start
recording.
To start recording from the beginning of the tape, press
the «@ button. (Press the «@ button again, the "TOP"
indicator will appear at the beginning of the tape.)
To start from the middle of the tape, locate the point
immediately before the blank section with the end
search function. (See page 18).
3 Set the INPUT selector to ANALOG, OPTICAL or
COAXIAL depending upon the connections of your
sound source.
4 Press the @REC button.
, » and HM indicators light on the display, and the
deck enters the record-pause mode. The sampling
frequency to be applied for recording appears.
If the digital copy prohibit signal is written on the
codes of the sound source, the COPY PROHIBIT
indicator appears in the display window and
signifies that you cannot record that source with
the digital-to-digital connection. In this case, use the
analog-to-analog connection.
5 When recording the analog input signal, adjust the
recording level and balance with the REC LEVEL
and BALANCE controls respectively. (See page 17.)
No recording level adjustment is required when
recording the digital input signal.
6 To record in the fong-play mode, set the REC MODE
selector to the LONG position. (See page 17.)
7 Press the &#PAUSE or & (play) button.
The 1 indicator goes off, and recording starts.
16
To write start ID automatically during recording
Make sure that the AUTO indicator is lit.
If not, press the START ID AUTO button. (See page 22.)
To designate the program number
Press the desired numeric button on the remote
commander. (See page 24.)
When recording from the beginning of the tape, the
program number will be assigned automatically from 1.
To insert sound muted portion at the beginning of the
tape
Do not advance the tape with the » or » button. This will
leave a blank section at the beginning. Be sure to proceed
with the record muting function. (See page 18.)
To stop recording
Press the m button.
To stop recording for a moment
Press the PAUSE button.
When you press the OREC MUTE button, the deck will also
enter the record-pause mode.
To release pause and restart recording
Press the HPAUSE or ® button.
To remove the cassette
Press the 2OPEN/CLOSE button.
If recording cannot be made
Check the following:
@ The safety tab of the cassette is set to the record-inhibit
position. (See page 14.)
No cassette is loaded.
The INPUT selector is set to the incorrect position.
Tape is fully rewound to the end.
The output level of the playback equipment is too low.
The digital copy prohibit signal is written in the codes of
the sound source you want to record. (The COPY
PROHIBIT indicator appears in the display window.)
e@ The REC LEVEL control is set to the 0 position. (Only
when recording the analog input signal.)
Note on the INPUT selector and the REC MODE selector
Do not change the position of these seiectors after
recording starts.
if the cassette is ejected after it has been loaded
Check to see if the cassette is inserted correctly. (See page
14.)
When the tape is recorded to the end (Auto rewind
function)
The tape is rewound to the beginning and stops
automatically.
The auto rewind function is not apptied when the TIMER
switch is set to the REC position.
Accuracy of the electronic linear time counter
The linear time counter provided with this unit is not a clock.
The time indicated by the counter may differ slightly from
the actual recording/playback time.

Recording level adjustment (for analog input signals
only)
The peak level meters show the peak level of the analog
input signal held momentarily. The MARGIN indicator
shows how much margin there is between the peak level of
the input audio signal and 0 dB. Whenever a signal having
a higher level than the displayed one is input, the new level
replaces the lower one on the MARGIN indicator.
Turn the REC LEVEL control so that the “OVER" segments
do not light, even at the highest level.
To reset the margin
Press MARGIN RESET on the remote commander. The
margin wil! become “- -".
If the level exceeds 0 dB
The “OVER” segments light in red, and “0.0 dB” flashes.
If "OVER" lights steadily, lower the recording level so that
the peak level meters light between —12 dB (£2 ) and 0 dB
to avoid sound distortion.
Margin
Peak eve! Should not light.
REC LEVEL
If you keep adjusting the recording level with the unit in
the record-pause mode
If the unit is left in the record-pause mode for more than 10
minutes, the record-pause mode will be released
automatically, and the unit will enter the stop mode.
The levels of the input audio signals appear even in the
stop mode, and you can continue to adjust the recording
level. (The "AD-DA" indicator appears on the display.)
In the above case, press the @REC button again to set the
unit to record-pause mode.
If the unit is left in the record-pause mode for more than
10 minutes during digital recording
The record-pause mode will be released automatically, and
the unit will enter the stop mode. (The -"DA" indicator
appears on the display.) In this case, press the @REC to
set the unit to record-pause mode.
If the cable is disconnected or the program source is
intermitted, the digital input signal will be interrupted
during digital recording
The OPTICAL or COAXIAL indicator flashes and the unit will
enter record-pause mode. (For about 10 minutes) ff the
digital signal is input again in this period, the unit will enter
recording mode automatically.
Long play mode
According to the input signal, recording/playback in the
long play mode can be performed as follows.
Analog input signal standard play long play
(48 kHz) (32 kHz)
Digital input signal standard play
32 kHz* (32 kHz)
long play
(32 kHz)
Digital input signal
44.1 kHz, 48 kHz
standard play | standard play
(the same as (the same as
input signal) input signal)
( ): sampling frequency
The digital input signal of 44.1 kHz or 48 kHz cannot be
recorded/played back in the long play mode, even if the
REC MODE selector is set to the LONG position.
* When analog input signal of 32 kHz or 48 kHz is
recorded via digital-to-digital connection.
The longest recording period at each mode
(h: hour, m: minute)
The timer counter in the long-play mode
Tape running time, absolute time and total remaining of the
tape appears, based on those in the standard mode. To
obtain the actual time, double each value.
17

at-rerelaeltare|
Creating a Sound Muted Portion (Record Muting)
1 During recording or record-pause mode, press the
OREC MUTE button where a sound muted portion is
required.
The indicator flashes and the record muting is
activated. After about 4 seconds, the [REC} indicator
shows a steady light, and the #1 indicator lights. The
deck enters the record-pause mode,
2 To resume recording, press the IPAUSE or > (play)
button.
Recording resumes.
Using sound muted portion
If you intend to dub the DAT cassette onto an analog
cassette tape, we recommend that you insert sound muted
portions between selections on the DAT cassette.
This will ensure that the AMS function of the analog
cassette deck works correctly for the recorded tape.
Note
With DAT deck, the AMS function is realized by using the
start 1D code. (See page 21.)
To place a space on a DAT cassette, you must not advance
the tape with the mt or » button. If a space is created this
way, no absolute time code will be recorded on the
succeeding area, and you cannot check the elapsed time
of the tape.
To create a sound muted portion of more than 4 seconds
Keep the OREC MUTE button pressed for as long as you want to
make a recorded portion with no signals. After about 4 seconds,
the [REC] indicator flashes rapidly. When you release the OREC
MUTE button, the deck enters the record-pause mode.
The interval between selections is indicated in the MARGIN
display.
To create a sound muted portion of less than 4 seconds
Press the OREC MUTE button, and then the "PAUSE button while
the REC indicator is flashing.
To start recording in the rec mute mode
Press the @REC button while the indicator is flashing.
18
\f the previous recording was applied to the middle of the
tape, you must locate exactly the last point of the recorded
area, and start the new recording from this point. This will
prevent leaving a blank section on the tape.
If you want space between the last recording and the new
recording, use the OREC MUTE button to mute the sound.
Press PP. Lights
i tid
The last point of the previous recording (the beginning of
the blank section or the beginning of the end ID”) is
located, and the tape stops. When the end ID is detected,
the "EE" indicator lights at the PGM. NO display.
Note
If the point where you pressed the » button is blank, the
end search operation will not function.
When the end ID is written before a blank section
* The end search operation stops at the beginning of this
end ID as illustrated beiow.
The position at which
the end !D stops.
Note on the duration of a blank section
The blank section must last for more than 9 seconds for the end
search operation to function correctly.

CD Synchronized Recordi
if a Sony compact disc player with a remote commander is
available, you can start playback of the CD player and the
recording of the DAT deck simultaneously, with the remote
commander of the DAT deck.
Position the remote commander so that the signal reaches
the remote sensor of both the DAT deck and the CD player.
To start recording
This function can be performed only with the remote
commander.
1 insert a cassette.
2 insert the disc in the CD player.
3 Press the CD SYNCHRO STANDBY button on the
remote commander of the DAT deck.
Make sure that the DAT deck enters the record-pause
mode and the CD player enters the pause mode.
4 Press the CD SYNCHRO START button on the
remote commander of the DAT deck.
Recording on the DAT deck starts, and about 1 second
later, playback of the CD player starts.
To stop recording
Press the CD SYNCHRO STOP button on the remote
commander of the DAT deck.
Notes
@ Tomomentarily stop recording of the DAT deck and
playback of the CD player simultaneously, press the
HPAUSE buttons on both the DAT deck and the CD
player.
e With the CD synchronized recording, the recording of
the DAT deck and the playback of the CD player should
be started simultaneously. Therefore, to perform the
CD synchronized recording, point the remote
commander to the remote sensor and press the
appropriate buttons correctly.
To control the CD player with the remote commander of
the DAT deck
The following operations are possible:
Playback: Press the lm button twice.
Pause: Press the lf button once.
AMS:Press the ké< or 1 button.
When a desired selection is located using the above
operation, you can start CD synchronized recording.
19

Writing sub codes
STU] ot Oxele (-1-)
in addition to the ordinary audio signals, various control
codes called sub codes can be recorded on the DAT
cassette tapes to ease recording and reproducing
operation.
A desired selection can be called up or time information
can be displayed using the sub codes, for example.
The sub codes such as start 1D, program number, skip ID,
end ID and program time and absolute time are available
on this unit.
e Sub codes are written on the tape separately from the
audio signals, so the audio signals are not affected.
@ Sub codes, except the absolute time, can be rewritten
after the audio signal recording has been completed.
The recorded audio signals are not affected by the rewritten
sub codes.
Start ID
This signal indicates the start of a music selection. You
can locate the position of the start ID precisely. This
signal should be written at the beginning of the
selection.
Program number
This signal gives a number to selection. You can record
it where the start ID is written. By designating this
number with the remote commander, you can choose
the desired selection directly or program selections in a
desired order.
@ When you record the tape with sub codes written onto a
new tape via digital-to-digital connection, the sub codes
to be written on the new tape are following:
The same as the codes written on
the original tape.
The same as the codes written on
the original tape.
New ones will be written according
to the DAT deck you use.
New ones will be written.
The one written on the original tape
will not be written.
When you use analog-to-analog connection, no sub codes
on the original tape will be written onto a new tape. New
codes will be written according to the DAT deck you use.
Selection
4:
ST
Y,
Start ID
.
Program number
Skip ID
This signal can be marked on the selection wherever
you wish. When the SKIP PLAY indicator is lit during
playback, the deck will skip at high speed from where
the skip ID is marked to the next start ID, and then
playback will start again. Record this skip ID at the
beginning of portion you want to skip.
a la
Y y
a4 LA
Skip ID
Start ID
Note
In the following cases, the sub code function may not be
performed correctly:
e@ The blank section is left on the tape.
e@ The beginning of the new tape is advanced with the >>
or » button.
20
