Teseo-LIV3F GNSS Module - Hardware Manual
Introduction
Teseo-LIV3F is a tiny GNSS module sized 9.7 mm × 10.1 mm × 2.5 mm featuring
STMicroelectronics®positioning receiver Teseo III. It is a standalone positioning receiver
which embeds the new ST GNSS positioning engine capable of receiving signals from
multiple satellite navigation systems, including GPS, Glonass or Beidou, Galileo and QZSS.
It embeds a 16M-Bit serial Flash.
In Figure 1 pinout of the module is represented as follows:
Figure 1. Teseo-LIV3F pinout
www.st.com

Contents UM2231
2/20 UM2231 Rev 3
Contents
1 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 VCC (pin8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 VBAT (pin6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 VCC_IO (pin7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 VCC_RF (pin14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5 Power supply design reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.6 Current consumption optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Reserved (pin15, 18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 I2C (pin16, 17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 UART (pin2, 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 I/O pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 PPS (pin4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.2 Wake_Up (pin5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.3 SYS_RESETn (pin9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.4 RF_IN (pin10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.5 AntOFF (pin13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5 Standby modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Software standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 Hardware standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Front ends management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.1 External LNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2 Active antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7 Reference schematic and BOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.1 Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.1.1 Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

UM2231 Rev 3 3/20
UM2231 Contents
3
8 Layout recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

List of tables UM2231
4/20 UM2231 Rev 3
List of tables
Table 1. Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 2. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

UM2231 Rev 3 5/20
UM2231 List of figures
5
List of figures
Figure 1. Teseo-LIV3F pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Inductor on VCC power line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 3. Teseo-LIV3F minimum connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4. Capacitors filtering the noise coming from external regulators. . . . . . . . . . . . . . . . . . . . . . . 8
Figure 5. Example of SMPS to improve current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 6. External LNA control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 7. Active antenna current switch control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 8. Active antenna current sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 9. General schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 10. Placing parallel component pads on 50 ohms line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 11. Reuse pads of one component on the line bypassing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 12. Layout proposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Power UM2231
6/20 UM2231 Rev 3
1 Power
Teseo-LIV3F is supplied by 3 power pins: VCC (pin8), VCC_IO (pin7) and VBAT (pin6).
1.1 VCC (pin8)
VCC is the main supply. VCC limiting values are: 2.1 V - 4.3 V.
At startup or during low power application current can change suddenly. It is important that
supply IC is able to provide this current variation.
Take care that interference on VCC power line could degrade Teseo-LIV3F sensitivity
performance, to avoid that it’s recommended a 27 nH inductor (Murata LQG15HS27NJ02)
as shown in Figure 2: Inductor on VCC power line.
Figure 2. Inductor on VCC power line
The suggested inductor on the VCC power line is able to recover interference coming from
VCC power line.
1.2 VBAT (pin6)
VBAT is the supply for the low power domain backup: backup RAM and RTC.

UM2231 Rev 3 7/20
UM2231 Power
18
VBAT can be either connected to VCC or it can be supplied by a dedicated supply always
ON. When VBAT supply is kept ON during low power mode to allow fast recovery of GNSS
fix
VBAT prevents current flow as soon as VBAT is lower than VCC. It is important when VBAT
is supplied with small battery and especially if battery is not rechargeable.
VBAT range can be from 2.1 V to 4.3 V.
1.3 VCC_IO (pin7)
VCC_IO is 3.3 V.
Figure 3 shows the minimum connection to make Teseo-LIV3F GNSS working.
Figure 3. Teseo-LIV3F minimum connection
1.4 VCC_RF (pin14)
VCC_RF is an output image of VCC with a filtering for LNA or active antenna supply.
1.5 Power supply design reference
To reduce and filter the noise coming from the external regulator it’s suggested a 10nF
capacitor between VCC_IO and ground as shown in Figure 4.

Power UM2231
8/20 UM2231 Rev 3
Figure 4. Capacitors filtering the noise coming from external regulators
1.6 Current consumption optimization
Use of an SMPS at 2.1V to supply VCC is recommended to optimize current consumption.
Here is an application example with ST1S12GR with an efficiency around 85%.
Figure 5. Example of SMPS to improve current consumption
If VCC_IO is also supplied by an SMPS, this will reach the lowest current consumption.
676*5
Nȍ
+
6:

9)%

Nȍ
*1'

)
0ȍ
6: 
(1 
)
9,1 9
9  9

UM2231 Rev 3 9/20
UM2231 Reserved (pin15, 18)
18
2 Reserved (pin15, 18)
In Teseo-LIV3F pin15 and 18 are reserved.

Interfaces UM2231
10/20 UM2231 Rev 3
3 Interfaces
3.1 I2C (pin16, 17)
Teseo-LIV3F supports I2C slave mode only.
Internal 10 Kpull-up resistor on VCC_IO is present. It is important to avoid having other
pull-up for current leakage in low power mode.
3.2 UART (pin2, 3)
UART is a Universal Asynchronous Receiver/Transmitter that supports much of the
functionality of the industry-standard 16C650 UART.
These UARTs vary from industry-standard 16C650 on some minor points which are:
Receive FIFO trigger levels
The deltas of the modem status signals are not available
1.5 stop bit is not supported
Independent receive clock feature is not supported

UM2231 Rev 3 11/20
UM2231 I/O pins
18
4 I/O pins
4.1 PPS (pin4)
PPS is the time pulse every one second. It can be configured with different condition of
pulses.
4.2 Wake_Up (pin5)
It is an external interrupt that is used to wake-up Teseo-LIV3F for asynchronous wake-up
during standby software for instance.
It can be activated by a GPIO from host for instance. Wake_Up signal is active high.
4.3 SYS_RESETn (pin9)
It can force a Teseo-LIV3F under reset.
Reset signal is active low.
Host processor must have full control of this pin to guarantee the Teseo-LIV3F’s firmware
upgrade support.
4.4 RF_IN (pin10)
It is the RF input.
4.5 AntOFF (pin13)
AntOFF is a GPIO used to switch OFF external LNA or switch OFF current for the active
antenna.
A 10 kΩpull down is necessary to ensure a low level during standby period.

Standby modes UM2231
12/20 UM2231 Rev 3
5 Standby modes
Standby mode, is the mode where only low power backup domain is running. It means
VBAT must always be maintained. It allows to have very low current consumption and fast
GNSS reacquisition at the end of the standby time due to RTC.
Teseo-LIV3F offers 2 different ways of standby:
Hardware standby
Software standby
As IO buffers are not supplied during standby mode, it is important to keep all IO without
external voltage to avoid any current leakage. UART_RX is an exception it can be left high.
5.1 Software standby
Software standby is activated by the binary for periodic standby. More details of how to set it
are in the Software Manual. As HW standby, all supplies are kept ON.
Periodic fixes are from 5 s up to 24hours between 2 fixes.
It ensures a current below 20 µA on Teseo-LIV3F. Be careful that VCC_RF is ON during this
standby, then in case of active antenna or external LNA, it is important to switch them OFF.
5.2 Hardware standby
This standby is ensured by switching OFF VCC (pin 6) and VCC_IO (pin 7) supplies and
setting SYS_RESETn (pin 9) to 0 V. It can be activated asynchronously from GNSS binary
with one GPIO switching OFF the supplies from a host.
During this standby only VBAT (pin 6) is kept ON.
It ensures a current below 15 µA. During this standby mode VCC_RF (pin 14) is OFF.

UM2231 Rev 3 13/20
UM2231 Front ends management
18
6 Front ends management
RF input impedance is 50 Ω.
6.1 External LNA
External LNA means a passive antenna used with an LNA on the same PCB as Teseo-
LIV3F module. To optimize power consumption during low power mode if needed, the LNA
should have an enable pin compatible with VCC_IO to be switched OFF/ON.

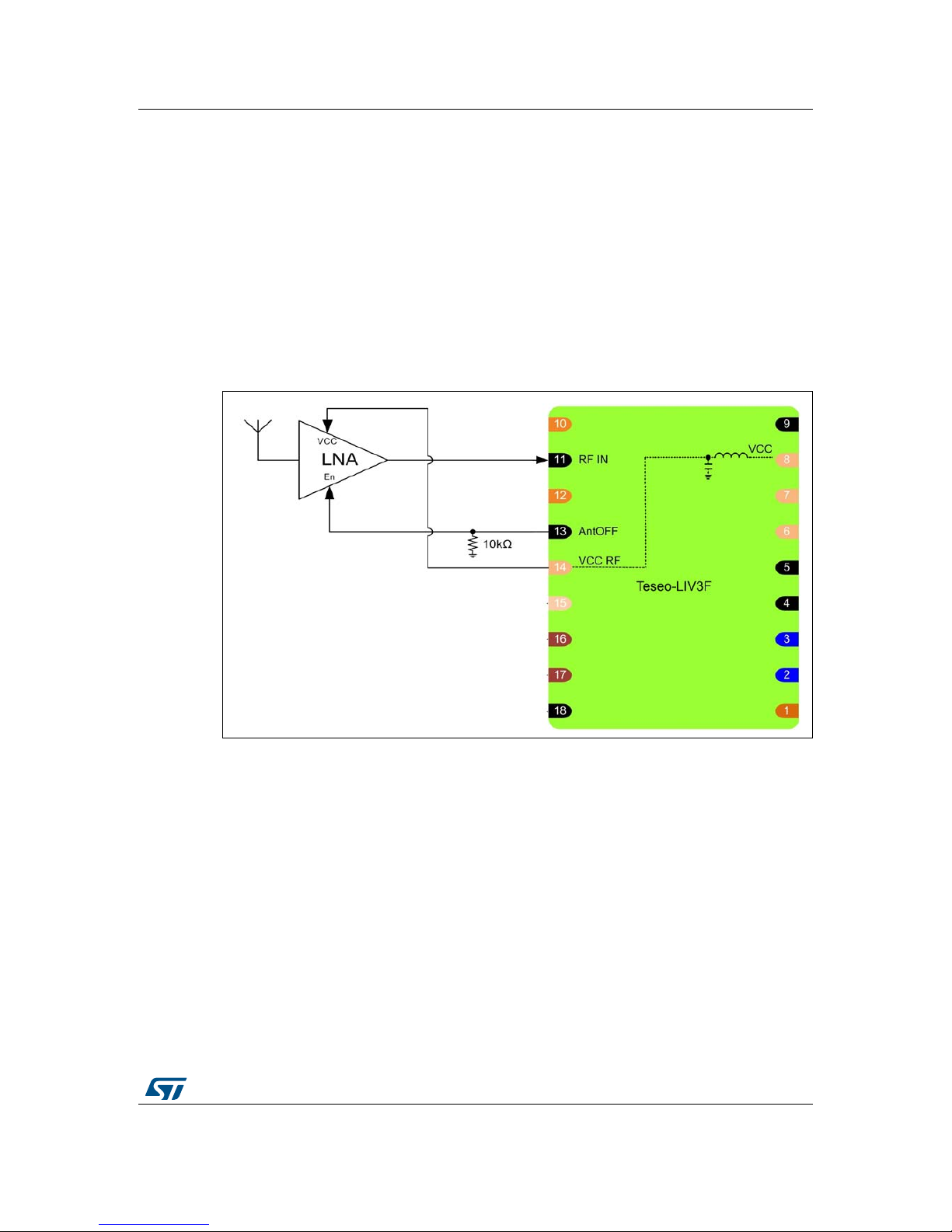

Here is a block diagram describing the connection.
Figure 6. External LNA control

Front ends management UM2231
14/20 UM2231 Rev 3
6.2 Active antenna
For RF passive components, ST recommends the usage of 0402 (1Ãx0.5mm) components.
Please choose the RF ground layer to be able to get 50ohms RF line width as close as
possible to components pads.
Figure 7. Active antenna current switch control
To improve the functionality, a current limiter could be used in order to prevent any short
circuit on the antenna see Figure 8.
Figure 8. Active antenna current sense

UM2231 Reference schematic and BOM
UM2231 Rev 3 15/20
7 Reference schematic and BOM
7.1 Schematic
Figure 9. General schematic
5(6(7Q
,&B&/.
,&B'$7$
:$.(83
8$57B5;
336
8$57B7;*166B$17(11$
9
*1'B9*1'B9
*1'B9
9&&B5)
9&&B5)
9
9
*1'B9
$172))
$172))
5
0
&
S)
8
676*5
9,1

(1

*1'

6: 
9)% 
8
/,9
*1'

7;B%227 
5; 
336 
5(6 
:$.(B83 
9%$77

9&&B,2

9&&

6<6B5671 
*1'B5)B

5)B,1

*1'B5)B

$172))

9&&B5)

5(6

6'$ 
6&/ 
=
%

 


&
X)
5
.
&
S)
8
%*$1
*1'

9&& 
287 
*1'B5)

,1

(1 
5
.
&
Q)
/
Q
/
X$
&
X)
&
Q)

Reference schematic and BOM UM2231 16/20 UM2231 Rev 3
7.1.1 Bill of material
Table 1. Bill of material
Refs Value Description Manufacturing 1 Manufacturing 2
Name Part number Name Part number
C1 4u7 Surface mount 0603 capacitor ceramic 4.7 µF, 10% 10V X7S
4µ7; 10; X7S Murata GRM188C71A475
KE11
C2 22 uF Capacitor, Ceramic, SMD, MLCC, Temperature Stable, Class
II, 22 µF, +/-20%, 6.3 V, X5R, 0805 KEMET C0805C226M9PAC TU
C3 100 n Surface mount, general purpose multilayer ceramic chip
capacitor 100n; 50V; X7R; +/-10% TDK C1608X7R1H104K TMurata GRM188R71H104K A93
C4 1 nF Automotive Grade Surface mount 0402 capacitor ceramic
1 nF, 10% 50 V X7R 1 nF; 50; X7R Murata GCM155R71H102
KA37 TDK CGA2B2X7R1H102
K050BA
C5,C
6120 pF Automotive Grade Surface mount 0402 capacitor ceramic 120 pF, 5% 50 V C0G 120 pF; 50; C0G Murata GCM1555C1H121 JA16 TDK CGA2B2C0G1H121 J050BA
L1 10 µ Surface mount magnetically shielded, wire wound inductor for
power line applications. 10 µ; 1.4 A TDK LTF5022T- 100M1R4-LC
L2 5n6H Surface mount wire wound inductor. 5n6H; 3%; 0.76 A Coilcraft 0402CS-5N6XJLU Murata LQW15AN5N6G80
D+00-21
R1 1 M Surface mount chip resistor 1 M; 5%; 0.1 W Rohm MCR03EZPJ105
R2 68 K Surface mount chip resistor 68 K; 1%; 0.1 W Rohm MCR03EZPF683
R3 15 K Surface mount chip resistor 15 K; 1%; 0.1 W Rohm MCR03EZPF153 Yageo AC0603FR-0715KL
U1 ST1S12GR Synchronous rectification adjustable step-down switching
regulator ST1S12GR; 0.7; 1.7 STMicroelectronics ST1S12GR TSOT23-5L
U2 BGA824N6 Low Noise Amplifier for GPS, GLONASS, Galileo and
Compass BGA824N6 Infineon BGA824N6
Z1 B4327 Automotive SAW RF filter for GPS+COMPASS+GLONASS Epcos B39162B4327P810
U3 LIV TESEOIII module SMPS version STMicroelectronics LIV3F

UM2231 Rev 3 17/20
UM2231 Layout recommendation
18
8 Layout recommendation
To guarantee good RF performance, 0402 components are preferable because they avoid
having too big component pads compared with RF 50 ohms line.
Place parallel components pads on 50 ohms line as in Figure 10.
Figure 10. Placing parallel component pads on 50 ohms line
For 50 ohms line bypassing it’s suggested to superimpose the pad of one component on the
pad of the other one as in Figure 11.
Figure 11. Reuse pads of one component on the line bypassing
Place ground vias below Teseo-LIV3F all around and in the middle and also around the 3
ground pins.
The following layout presents layout recommendation to ensure the best performances of
Teseo-LIV3F. ST heartily recommends having a maximum of ground vias below the module
as illustrated in the above figure. In case of difficulties for all these vias, ensure to have
several vias at least around the 3 ground pins (pin1, pin10 and pin 12).

Layout recommendation UM2231
18/20 UM2231 Rev 3
Figure 12. Layout proposal
It is important to have 50 ohms RF traces width as close as possible to components pads
size to avoid too much impedance jumps.
When possible, avoid any trace below Teseo-LIV3F module.

UM2231 Rev 3 19/20
UM2231 Revision history
19
9 Revision history
Table 2. Document revision history
Date Revision Changes
08-Sep-2017 1 Initial release.
09-May-2018 2 Added Chapter 8: Layout recommendation.
02-Jul-2018 3
Updated Chapter 8: Layout recommendation.
Updated Figure 10: Placing parallel component pads on
50 ohms line, Figure 11: Reuse pads of one component
on the line bypassing and Figure 12: Layout proposal.
Minor text changes.

UM2231
20/20 UM2231 Rev 3
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
