Steelcase TS Storage User manual

TS Storage™ Installation Instructions
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©2016 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
®
1/4"
1/2"
T20
5/16" DIA.

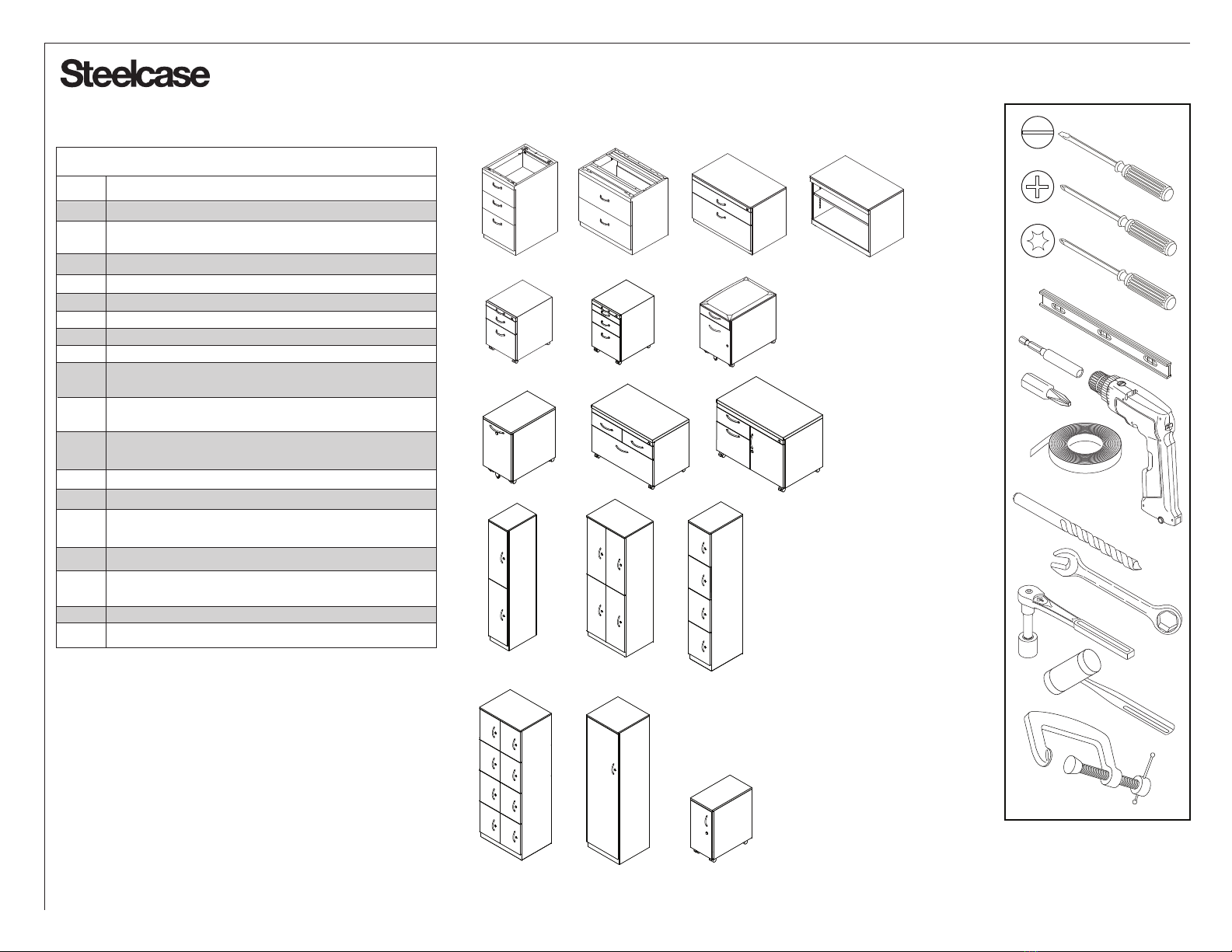

Page Description
Table of Contents
Drawer Removal (Lateral and Pedestal)
Drawer Reinstallation (Lateral and Pedestal)
Worksurface Installation for Under worksurface
Pedestal and Laterals
Caster Installation for Mobile Pedestals
Caster Installation for Slim Mobile Pedestals
Caster Installation for Hingetop Mobile Pedestals
Caster Installation for Mobile File Center
Caster Installation for Mini Locker
Drawer Front Alilgnment
Lateral File and Open Shelf File Cabinet
Leveling/Shelf Installation
Lateral File and Open Shelf Lateral Ganging
Instructions

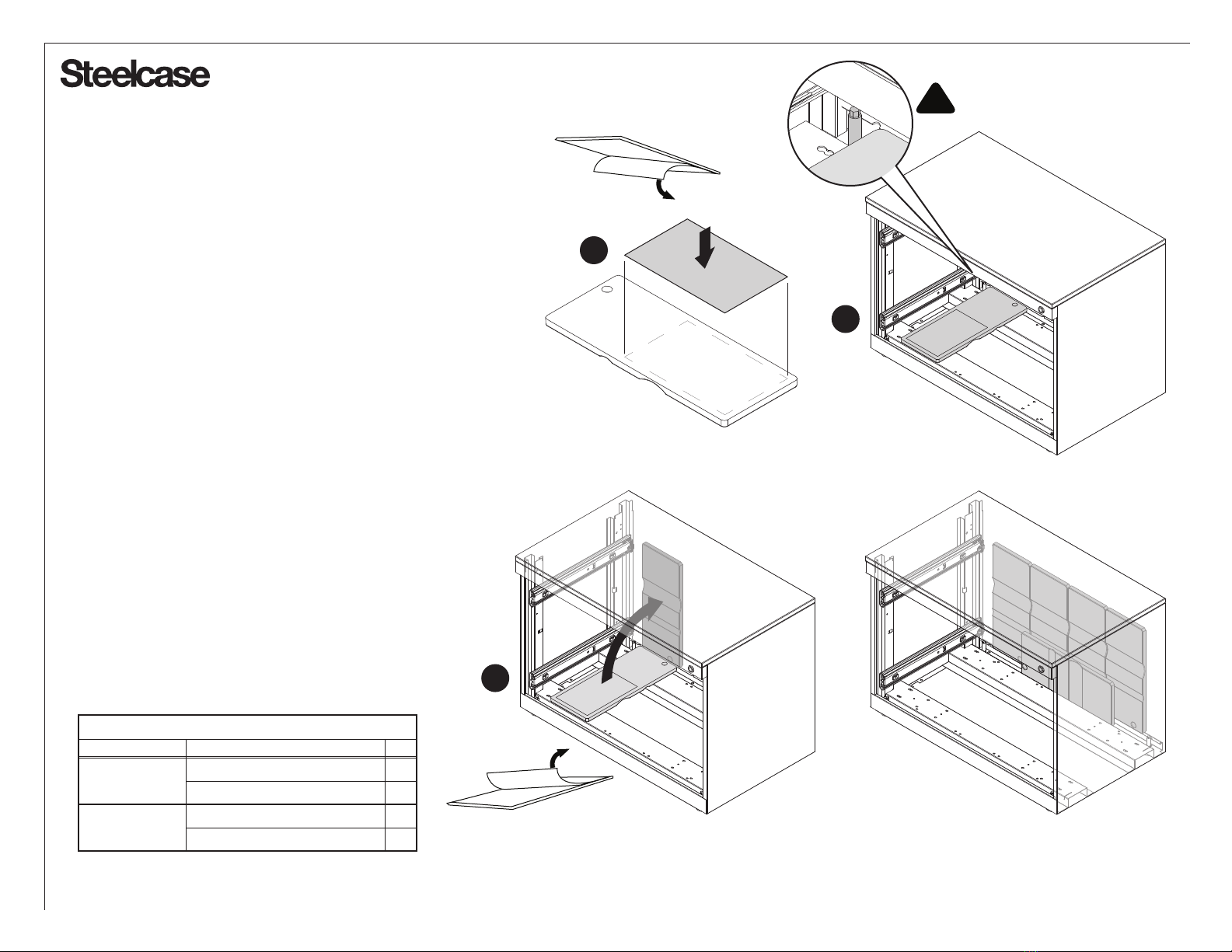

Counterweight Installation into Freestanding
Lateral Files
Locker Door Adjustment
Locker Leveling
Ganging Instructions
Removal of Plastic Lock Plug and Installation of
Lock Cylinder
Front Removal of Lock Cylinder

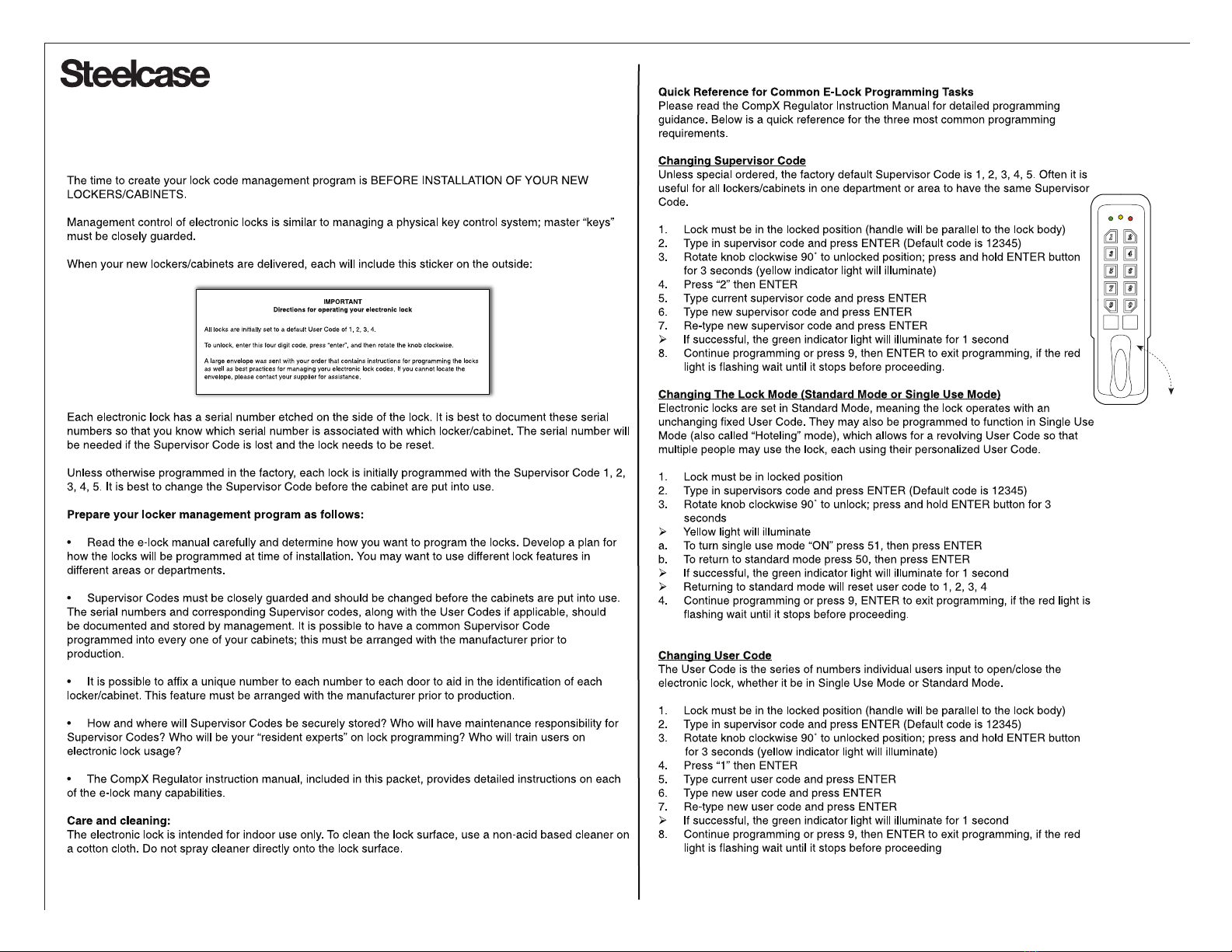

Elock Instructions
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
English - Page 1 to 19 of 57
French - Page 20 to 38 of 57
Spanish - Page 39 to 57 of 57
P/N 939504734
Doc # 70305 Rev J

®

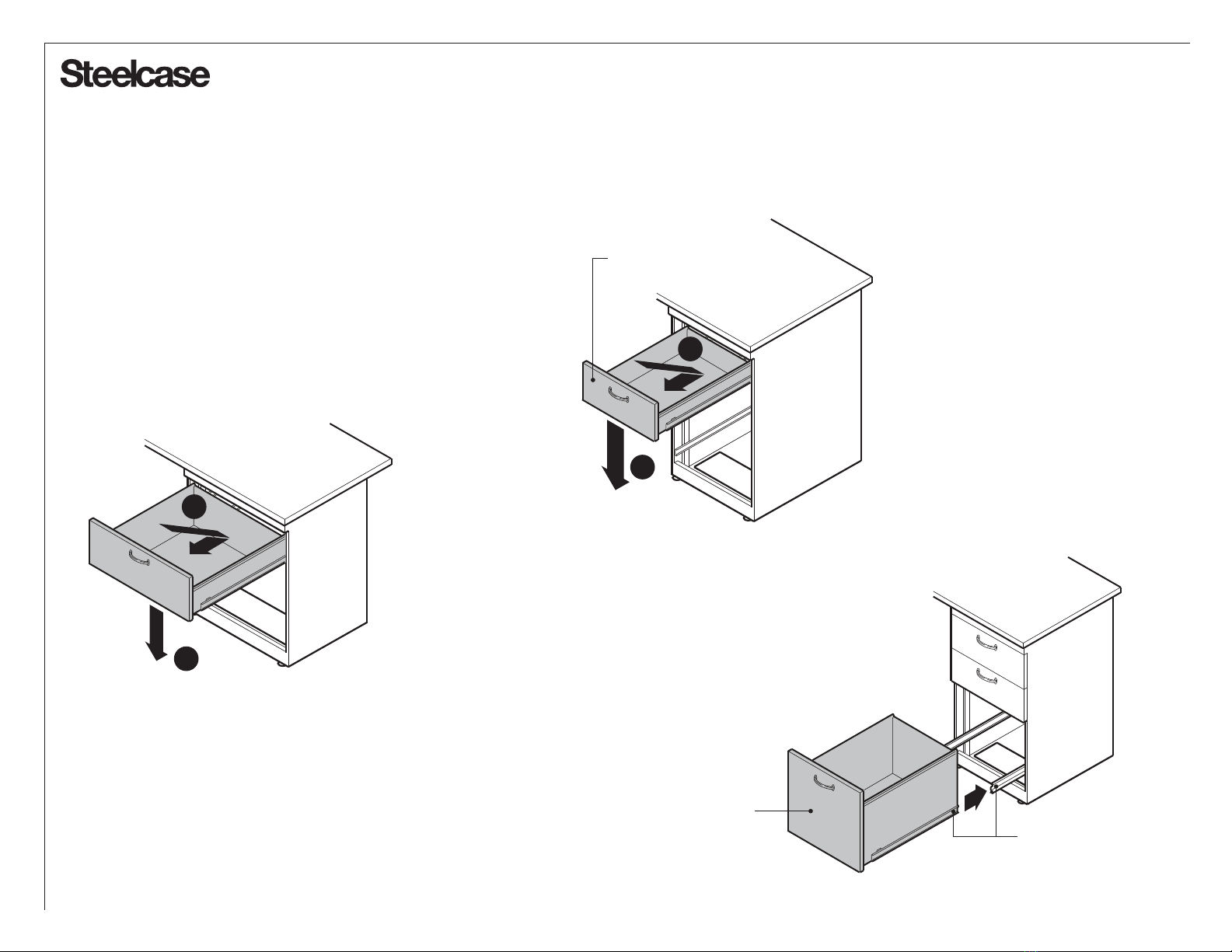

Drawer Removal (Lateral)
Fully extend bottom drawer. Remove as shown in
fig. 1. Repeat for top drawer.
Using a flat head screwdriver, pry raised bin slot
upward off tab retaining feature lift and remove
drawer from lateral.
Drawer Removal (Pedestal)
Fully extend file drawer. The file drawer must be removed first to
allow clearance for box drawer removal.
Separate the drawer slide members from the cabinet members by
depressing the slide connect levers on the sides of the drawer bin
and pulling the drawer forward (see fig. 2).
Remove the box drawers using method shown in fig. 1.
SLIDE
FILE DRAWER
Fig. 1
PULL UP
PRESS
DOWN
LATERAL
WARNING:
Under worksurface pedestals and
laterals to be used only with worksurfaces
that are mounted to kick panels. FILE DRAWER
SLIDE
BOX DRAWER
(See Fig. 1 for removal)
21
Fig. 2
PEDESTAL
NOTE: Screwdriver should
come in from the top of the slide.
Page 2 of 57
P/N 939504734
Doc # 70305 Rev J

®
Drawer Reinstallation (Lateral)
Reinstall top file drawer first. Replace drawer in lateral,
align rear mounting tabs on slides with rear drawer slots
and pull drawer forward to engage tabs (a).
Then align front mounting tabs with the front drawer
slots and push drawer front down to engage tabs (b).
Repeat for bottom file drawer.
Drawer Reinstallation (Pedestal)
Reinstall top file drawer first. Replace drawer in pedestal,
align rear mounting tabs on slides with rear drawer slots
and pull drawer forward to engage tabs (a).
Then align front mounting tabs with the front drawer slots
and push drawer front down to engage tabs (b). Repeat
for bottom file drawer.
Re-align file drawer slides with matching slides
in pedestal and push file drawer back into place.
Quick-release levers will automatically engage.
Close completely. Completely cycle the drawer
by fully opening and closing one time to reset the
ball retainers.
b
a
b
a
a
BOX DRAWER
MATCH UP SLIDES
FILE DRAWER
Page 3 of 57
P/N 939504734
Doc # 70305 Rev J

®
1/8"
(4) #14
WOOD
SCREW
WORKSURFACE
PEDESTAL
(4) #14
WOOD
SCREW
WORKSURFACE
LATERAL
NOTE: Make sure worksurface
is level when finished.
NOTE: Worksurface must be flush
to 1/8" from drawer front. If used
with kick freestanding desks, see
kick freestanding desks assembly
direction 939503257.
1/8"
NOTE: Worksurface must be flush
to 1/8" from drawer front. If used
with kick freestanding desks, see
kick freestanding desks assembly
direction 939503257.
NOTE: Make sure worksurface
is level when finished.

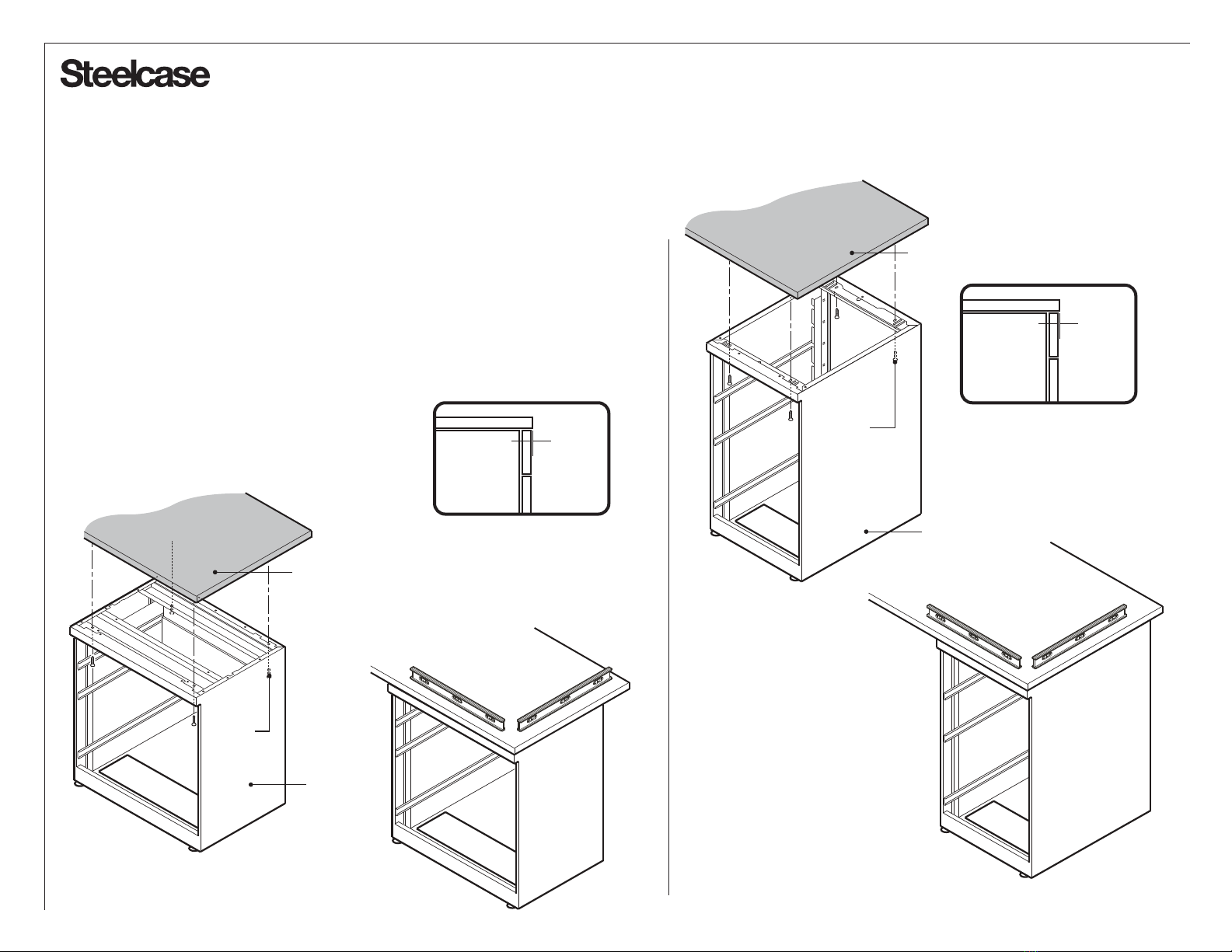

Worksurface Installation for Underworksurface Pedestals and Laterals
1. Remove all drawers (see page 2).
2. Place worksurface over the lateral or pedestal. Secure worksurface to the lateral
or pedestal with four (4) screws supplied.
NOTE: Front edge of the worksurface overhangs the front of the lateral or pedestal
approximately 1/8". When the worksurface is correctly positioned over the lateral or
pedestal, drilling 1/8" diameter pilot hole will ease the attachment of the screws.
NOTE: Pedestal filler available to fill gap between
back of pedestal and front of panel.
3. Reinstall all drawers (see page 3).
Page 4 of 57
P/N 939504734
Doc # 70305 Rev J

®
Caster Installation for Mobile Pedestals
1. Lay the unit on its back or top.
2. Remove the caster kit from the drawer. The locking
casters go on the front.
3. While installing the caster, angle the plate to go over
emboss 1 & 2 and then under the formed lance.
4. Position the caster plate so emboss 1 & 2 are in the
obround holes in the caster plate.
5. Install one (1) T20 torx drive pan head screw.
6. Repeat steps 3 thru 5 for the rest of the casters.
FORMED
LANCE
EMBOSS 1
EMBOSS 2
LOCKING CASTERS
NON-LOCKING CASTERS
T20 TORX DRIVE PAN HEAD SCREW
Page 5 of 57
P/N 939504734
Doc # 70305 Rev J
37mm (2 lock/ 2 non-lock)

®
Caster Installation for Slim Mobile Pedestals
1. Lay the unit on its back or top.
2. Remove the caster kit from the drawer. The locking
casters go on the front.
3. While installing the caster, angle the plate to go over
emboss 1 & 2 and then under the formed lance.
4. Position the caster plate so emboss 1 & 2 are in the
obround holes in the caster plate.
5. Install one (1) T20 torx drive pan head screw.
6. Repeat steps 3 thru 5 for the rest of the casters.
FORMED
LANCE
EMBOSS 1
EMBOSS 2
T20 TORX DRIVE PAN HEAD SCREW
7. Position outerhead wheel on outerhead, align holes
to wheel.
8. Install outerhead wheel using two (2)
T20 torx drive pan head screws.
9. If installing a cushion, remove backing
on hook & loop pads, set cushion in
place being sure to keep flush with
front and sides. If misaligned,
seperate from unit and
reset cushion.
CUSHION
LOCKING
CASTERS
OUTERHEAD
WHEEL
Page 6 of 57
P/N 939504734
Doc # 70305 Rev J
NON-LOCKING
CASTERS

®

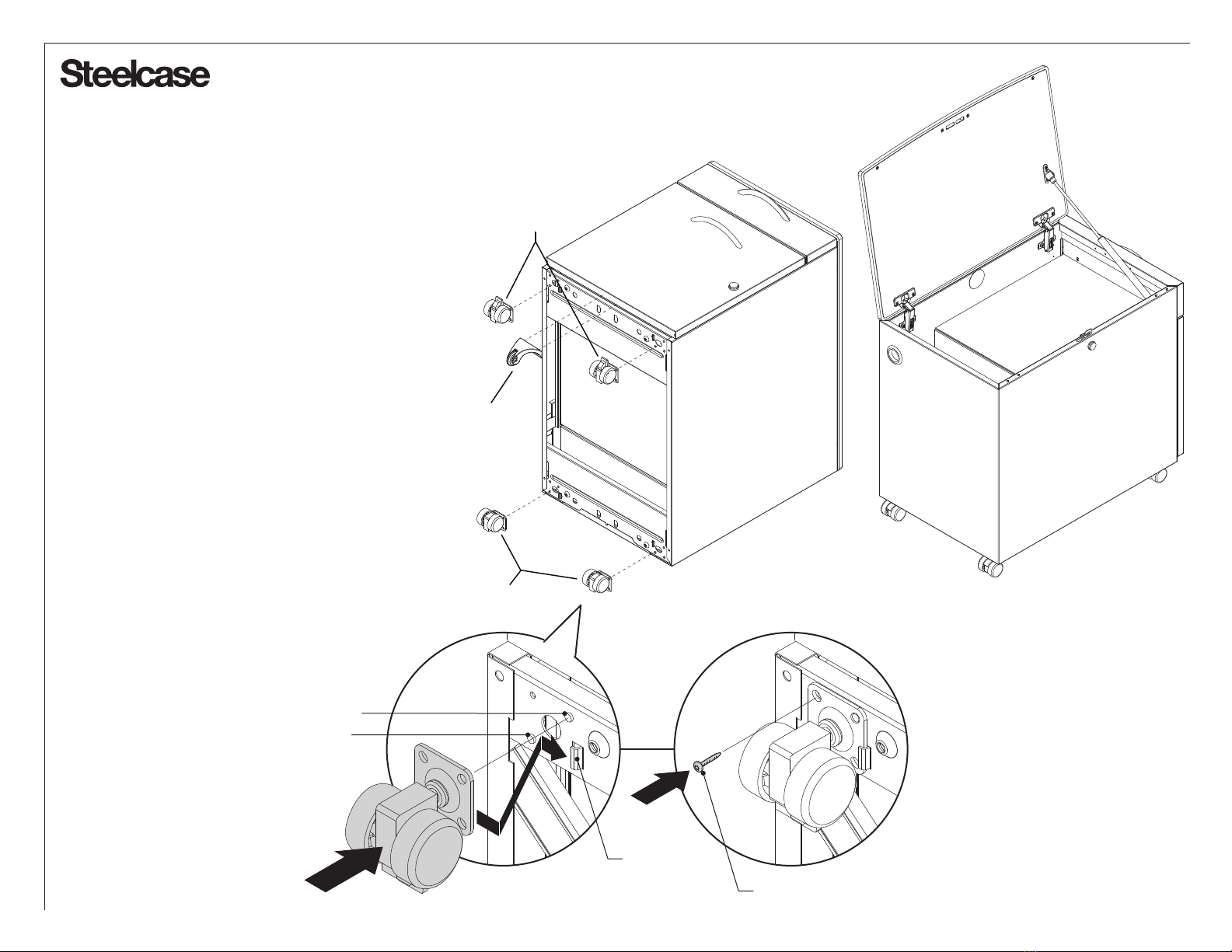

Caster Installation for Hingetop Mobile Pedestals
1. Lay the unit on its back or top.
2. Remove the caster kit from the drawer. The locking
casters go on the front.
3. While installing the caster, angle the plate to go over
emboss 1 & 2 and then under the formed lance.
4. Position the caster plate so emboss 1 & 2 are in the
obround holes in the caster plate.
5. Install one (1) T20 torx drive pan head screw.
6. Repeat steps 3 thru 5 for the rest of the casters.
FORMED
LANCE
EMBOSS 1
EMBOSS 2
T20 TORX DRIVE PAN HEAD SCREW
LOCKING
CASTERS
NON-LOCKING CASTERS
OUTERHEAD
WHEEL
Page 7 of 57
P/N 939504734
Doc # 70305 Rev J
7. Position outerhead wheel on outerhead;
align holes to wheel.
8. Install outerhead wheel using two (2)
T20 torx drive pan head screws.

®
Caster Installation for Mobile File Center
1. Lay the unit on its back or top.
2. Remove the caster kit from the drawer. The locking
casters go on the front.
3. Position the caster plate over the smaller hole pattern.
4. Install four (4) T20 torx drive pan head screws.
5. Repeat steps 3 and 4 for the rest of the casters.
Insert Shelf Clip and Install Shelf
To insert, angle down so top of clip goes in first.
Then squeeze and place into notch just below.
Make sure all four (4) clips are at same number of
notches high to ensure a level shelf.
Place back of shelf on notches first, then the front.
LOCKING CASTERS
NON-LOCKING CASTERS
Page 8 of 57
P/N 939504734
Doc # 70305 Rev J
OUTERHEAD WHEEL
37mm (2 lock/ 2 non-lock)
6. Position outerhead wheel on outerhead;
align holes to wheel.
7. Install outerhead wheel using two (2)
T20 torx drive pan head screws.

®

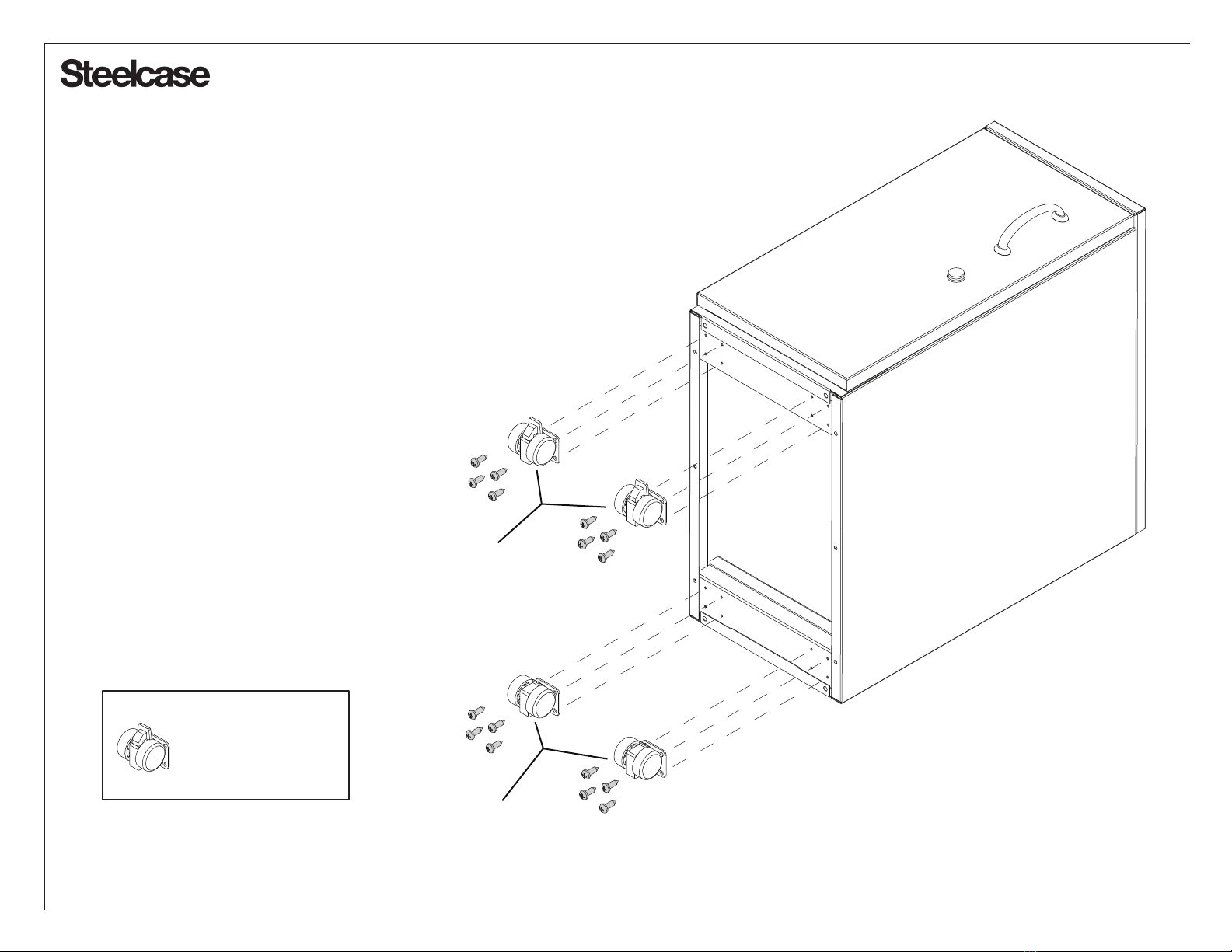

Caster Installation for Mini Locker
1. Lay the unit on its back or top.
2. Remove the caster kit from the drawer. The locking
casters go on the front.
3. Position the caster plate over the hole pattern
4.
5. Repeat steps 3 and 4 for the rest of the casters.
Install four (4) T20 torx drive pan head screws.
37mm (2 lock/ 2 non-lock)
Page 9 of 57
P/N 939504734
Doc # 70305 Rev J
LOCKING CASTERS
NON-LOCKING CASTERS

®
Drawer Front Alignment
NOTE: Only for minor drawer front
alignment adjustments.
-Extend drawers.
-Use a T20 torx tip to loosen the four (4) screws holding the
drawer front to the drawer body. Two (2) screws near top
and two (2) screws near bottom.
-Adjust drawer front to obtain desired alignment.
-Tighten screws.
NOTE: Ensure adequate spacing so drawer
fronts do not rub against adjacent components.
For further assistance please call
1-888-STEELCASE
Box drawer File drawer Lateral file drawer
1-1/2 Hi Lateral file drawer
Page 10 of 57
P/N 939504734
Doc # 70305 Rev J

®

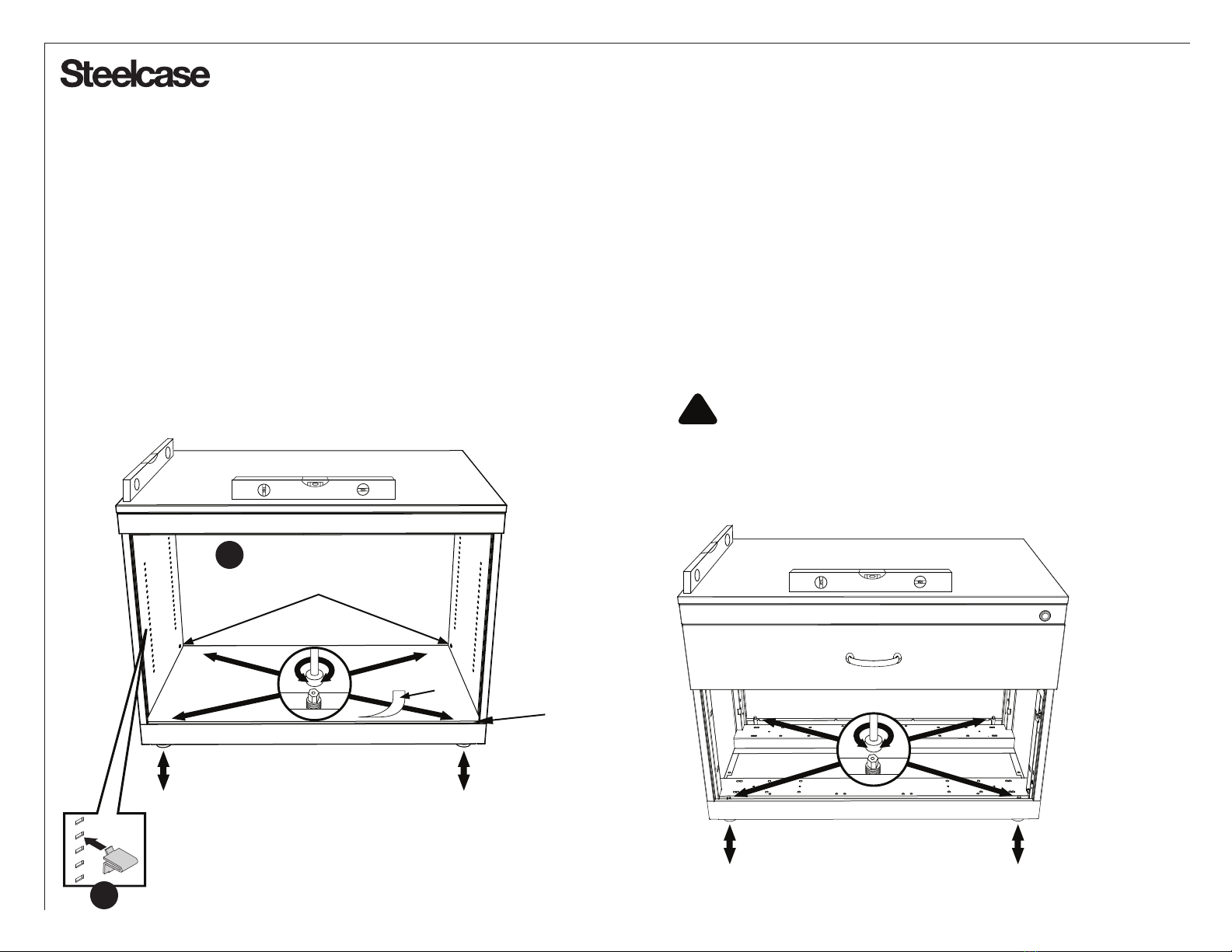

Lateral File & Open Shelf Lateral File Cabinet
Leveling/Shelf Installation
Access Open Shelf Lateral Leveling Glides
1. Remove the adjustable shelf and clips.
2. Remove the two (2) bottom screws on each side of the unit.
3. Using tape attached to bottom pan, lift tape on bottom
pan to pull up for access to leveling glides. If there is not
tape already attached, use masking tape.
Access Lateral File Leveling Glides
Remove bottom lateral file drawer (see page 2).
Pull Tape
to lift pan
Space indicates
pan lifting
and access
to levelers
underneath
Insert Shelf Clip and Install Shelf
To insert, angle down so top of clip goes in first.
Then squeeze and place into notch just below.
Make sure all four (4) clips are at same number of
notches high to ensure a level shelf.
Place back of shelf on notches first, then the front.
Open Shelf Lateral
Lateral
Level The Unit
Leveling of the cabinet is critical to ensure proper
function of the unit as well as maintaining and
protecting its aesthetics.
Adjust leveling glides while checking with level
both front-to-back and side-to-side.
Remove the two (2) bottom
screws on each side so
bottom pan will clear when
lifted to access levelers
2
1
!
Page 11 of 57
P/N 939504734
Doc # 70305 Rev J

1/2"
2"
1/2"
5"
1/2"
®
Lateral File & Open Shelf Lateral Ganging Instructions
Side-By-Side Ganging Open Shelf Lateral
1. Align and level cabinets.
2. Using tape attached to bottom pan, lift tape on
bottom pan to pull up and remove. If there is not
tape already attached, use masking tape.
3. Remove the two (2) screws on each
side panel towards the back of the unit.
Then remove the side panels.
4. Locate the Ganging Hardware Kit
(included) and drive the four (4) #10 x 1/2"
self-drilling phillips pan head screws
through the channel return flange.
2"
1/2"
2"
Back-To-Back Ganging Open Shelf
Lateral
1. Align and level cabinets.
2. Drill four (4) 5/16" diameter holes
through back panel approximately 2"
from top and 1/2" in from inside edges.
3. Locate the Ganging Hardware Kit
(included). Insert four (4) 1/4-20 pan
head screws, add nuts and tighten.
4
4
4
Ganging Hardware Kit
ITEM QTY
#10 x 1/2" Self-Drilling Screw
1/4-20 x 3/8" Pan Head Screw
1/4-20 Nut
Side-By-Side Ganging for Drawer Lateral
1. Align and level cabinets.
2. Remove lateral file drawers (see page 2).
3. Locate the Ganging Hardware Kit
(included) and drive the four (4) #10 x 1/2"
self-drilling phillips pan head screws through
the channel return flange.
Back-To-Back Ganging for Drawer
Lateral
1. Align and level cabinets.
2. Remove lateral file drawers (see
page 2).
3. Drill four (4) 5/16" diameter holes
through back panel approximately 2"
from top and 1/2" in from inside edges.
4. Locate the Ganging Hardware Kit
(included). Insert four (4) 1/4-20 pan
head screws, add nuts and tighten.
Open Shelf
Lateral
Lateral
Pull Tape
to lift pan
Page 12 of 57
P/N 939504734
Doc # 70305 Rev J

®
Counterweight Installation into Freestanding
Lateral Files
1. Remove top and bottom drawers (see page 2).
2. Remove one side of adhesive backing and apply to flat
side of the counterweight and away from hole.
3. Place counterweight on bottom of cabinet with:
- Slotted side down.
- Counterweight hole flush to back of unit.
- Locate inside of cabinet leveling glides.
4. Remove second side of adhesive backing. Double
check position, then rotate counterweight up and against
back of cabinet. The last counterweight is placed in
horizontally against the others.
CAUTION: DO NOT allow tape to contact back panel until
in proper position. The adhesive used is very strong and
may result in visual damage to the cabinet if you attempt to
remove the counterweight.
5. Reinstall lateral drawers (see page 3).
2
3
4
5
Counterweight Packages
ITEM QTY
6" x 14-1/2" Counterweight
TS2CW1 (30" W) 5
4-1/2" x 7-1/2" Double Sided Tape
6" x 14-1/2" Counterweight
TS2CW2 (36" W) 4-1/2" x 7-1/2" Double Sided Tape
6
6
DO NOT COVER
LEVELING GLIDES.
!
Page 13 of 57
P/N 939504734
Doc # 70305 Rev J

®
Locker Door Adjustment
1.
This screw adjusts the door in the HORIZONTAL or
the “A” direction.
2.
This screw adjusts the door in the FRONT TO BACK
(depth), or the “B” direction
3. This screw adjusts the door in the VERTICAL or
the “C” direction.
NOTE: Adjust doors so gaps are consistent and straight.
A
C
B
1
2
3
Page 14 of 57
P/N 939504734
Doc # 70305 Rev J

®
Locker Leveling
Access Locker Leveling Glides
1. Open door, Remove packaged shelves if supplied.
2. Using tape attached to the bottom, lift tape on
bottom pan to pull up for access to leveling
glides. If there is not tape already
attached, use masking tape.
- For Cubby Lockers remove the
lowest door to prevent scratching
and damage. To remove the door
release the latch by detaching hinge.
3. Level the unit. Access to glides is
from inside the locker after
removing the bottom pan.
4. Multipurpose Locker comes with
adjustable Shelves. Remove from
packaging and install shelf clips.
Level The Unit
Leveling of the cabinet is critical to ensure proper
function of the unit as well as maintaining and
protecting its aesthetics.
Adjust leveling glides while checking with level
both front-to-back and side-to-side.
Insert Shelf Clip and Install Shelf
To insert, angle down so top of clip goes in first.
Then squeeze and place into notch just below.
Make sure all four (4) clips are at same number of
notches high to ensure a level shelf.
Place back of shelf on notches first, then the front.
2
BOTTOM PAN
Page 15 of 57
P/N 939504734
Doc # 70305 Rev J

®
Side By Side Ganging
1. Open door and remove false floor(s) by
pulling up on factory installed tape tail.
2. Align and level cabinets by adjusting
leveling glides. (Recommend using clamps)
3. Using an electric driver install the (4)
#10 x 1/2” self drilling Phillips pan
service holes on the side panels. Two
service holes are located near the top
and two near the bottom on each side
as shown in figure.
4. Insert the (4)cover plug caps on the
top two service holes on each cabinet.
The bottom service holes will be hidden
by the false floor.
5. Remove tape tail and replace false
floor(s)
Back To Back Ganging
1. Open door and remove false floor(s) by
pulling up on factory installed tape tail.
2. Align and level cabinets by adjusting
leveling glides.
3. Drill 5/16” holes through back panel
approximately 2” from top and 1/2”
from inside edges.
4. Insert 1/4” machine screw through
5/16” holes and tighten using the
provided washer and nut.
5. Remove tape tail and replace false
floor(s).
4
4
4
Ganging Hardware Kit
ITEM QTY
#10 x 1/2" Self-Drilling Screw
1/4-20 x 3/8" Pan Head Screw
1/4-20 Nut
tape tail
1
ALL SINGLE WIDE
LOCKERS NEED TO
BE EITHER GANGED
OR MOUNTED.
Y565852 rev E
DO NOT:
You MUST:
WARNING
TIP OVER
HAZARD
Install this unit against a wall or gang
to a similar unit.
FOLLOW THESE INSTRUCTIONS TO
PREVENT UNIT FROM TIPPING OVER AND
CAUSING INJURY.
See Assembly Directions for further
instruction, available from Steelcase
dealer or call 1-888-783-3522
Pull down on doors (if equipped)
Move unit or adjust glides if loaded
Page 16 of 57
P/N 939504734
Doc # 70305 Rev J

Removal of Plastic Lock Plug and
Installation of Lock Cylinder
1. Pull open plastic plug cover.
2. While pressing the plug retainer tab to the right,
insert a coin or the head of a key into the slot and
turn 90oclockwise. This will unlock the case. You will
hear the lock mechanism open.
3. Push plug retainer tab down and remove plastic
plug from parent unit.
4. Position lock cylinder tab at 45oor 2:00 position.
Insert lock cylinder at a tilted angle so the tab will
collapse.
5. Push lock cylinder into the hole until it stops and
turn the lock plug assembly clockwise 45o(or the
3:00 position) and remove the key.
CAUTION: Make sure you unlock the
case BEFORE proceeding to step 3.
TAB
45oor 2:00
C
L
PLASTIC PLUG
COVER
COIN OR
HEAD OF KEY
PLASTIC PLUG
PLUG RETAINER TAB
CAUTION: Make sure the tab is
located at 45o or 2:00 before
inserting lock cylinder.
CAUTION: Failure to follow the installation
instructions will cause inability to install lock.
TURN 90o
3:00
45o
PLUG RETAINER TAB
1
2 3
4 5
Page 17 of 57
P/N 939504734
Doc # 70305 Rev J

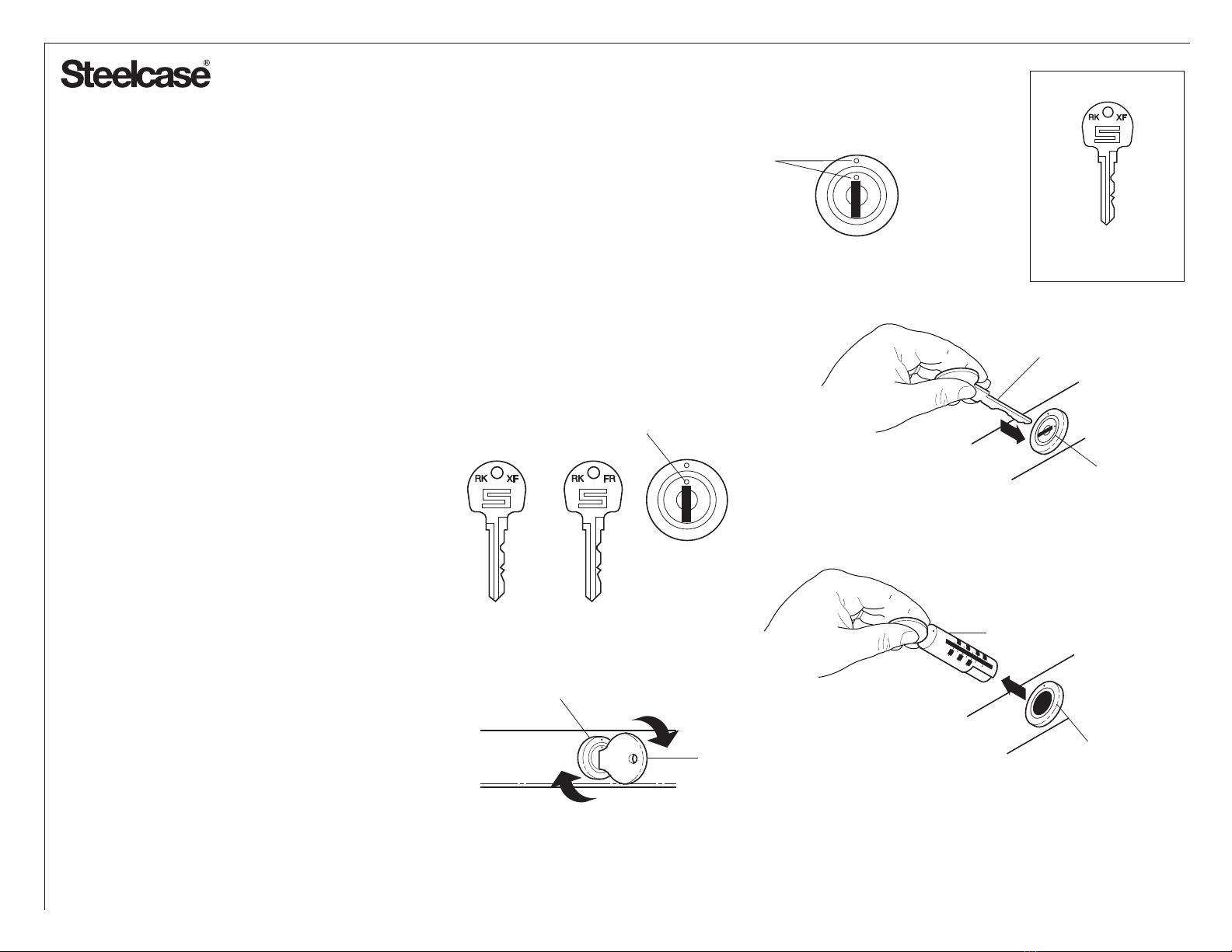

Front Removal of Lock Cylinder
1. Turn lock plug to unlocked position with
conventional key.
2. Insert removal tool into lock cylinder.
3. Rotate lock cylinder assembly slightly in a
counter clockwise direction while at the same
time pulling on removal tool, thus removing the
lock cylinder from the lock assembly.
4. At this time the mechanism inside the lock
assembly may rotate back to the locked position
preventing the installation of new lock plug. If
this occurs, insert a flat-bladed screwdriver into
the back of lock assembly and turn clockwise
unlocking the lock assembly. Insert tool into new
lock plug assembly. Hold tool in a horizontal
position and insert new lock plug assembly into
lock assembly. It may be necessary to hold new
plug assembly with finger while removing tool.
DIMPLE LOCATED ON FRONT
OF LOCK CYLINDER ASSEMBLY
TOOL RK-XF TOOL RK-FR
LOCK SHOWN IN LOCKED POSITION
STANDARD KEY OR MASTER KEY
LOCK CYLINDER ASSEMBLY
REMOVAL TOOL
LOCK
ASSEMBLY
LOCK
CYLINDER
ASSEMBLY
REMOVAL TOOL
A FRONT REMOVAL
LOCK CYLINDER CAN
BE IDENTIFIED WITH
A SMALL DIMPLE
LOCATED DIRECTLY
ABOVE THE KEY SLOT
Page 18 of 57
P/N 939504734
Doc # 70305 Rev J

®
7
5
8
6
43
1 2
9 0
CLEAR ENTER
Locked
Unlocked
Page 19 of 57
P/N 939504734
Doc # 70305 Rev J

TS Storage™Directives d'installation du
Pour tout problème, question ou demande, appelez
le détaillant local ou la ligne Steelcase au
1 888-STEELCASE (1 888 783-3522)
pour obtenir immédiatement de l'assistance de la part
de personnes voulant vous aider.
(En dehors des É.-U. A, du Canada, du Mexique,
de Porto Rico et des Îles Vierges Américaines,
faites le 1616 247-2500) ou visitez notre site Web à
www.steelcase.com
© 2016 Steelcase Inc.
Grand Rapids, MI 49501
É.-U. A
Imprimé aux É.-U. A
®
1/4 po
1/2 po
T20
Diam.
5/16 po
Page Description
Table des matières
Retrait du tiroir (classeur latéral et caisson)
Réinstallation du tiroir (classeur latéral et caisson)
Installation d'une surface de travail sur des
caissons et des classeurs latéraux
Installation des roulettes sur les caissons mobiles
Installation des roulettes sur mobilier effilé
Installations des roulettes sur les panneaux à
Installation des roulettes sur le classeur central
Installation des roulettes sur les mini-casiers
Alignement de l'avant du tiroir
Classeur latéral et caisson à tablette ouverte
Installation/mise à niveau de la tablette
Jumelage d'un classeur latéral avec un caisson à
Directives Installation des contre-poids
dans les caissons
Classeurs latéraux
Réglage de la porte des casiers
Directives d'installation/mise à niveau des
tablettes de casier
Directive de jumelage des casiers
Retrait de la goupille de blocage en plastique et
installation du barillet de serrure
Retrait de l'avant du barillet de serrure
Directives de verrouillage électronique
29
30
31
32
33
34
35
36
37
38
Page 20 of 57
P/N 939504734
Doc # 70305 Rev J
28
27
26
25
24
23
21
22
